  1. CIM1600VMware vCloud NetworkingFinally Explained Name, Title, Company

  2. Disclaimer • This session may contain product features that are currently under development. • This session/overview of the new technology represents no commitment from VMware to deliver these features in any generally available product. • Features are subject to change, and must not be included in contracts, purchase orders, or sales agreements of any kind. • Technical feasibility and market demand will affect final delivery. • Pricing and packaging for any new technologies or features discussed or presented have not been determined.

  3. Agenda • Networking Overview • External Network • Organization Network • vApp Network • Network Pools • What’s New in vCloud Director 1.5 • Example Use Cases • Q & A

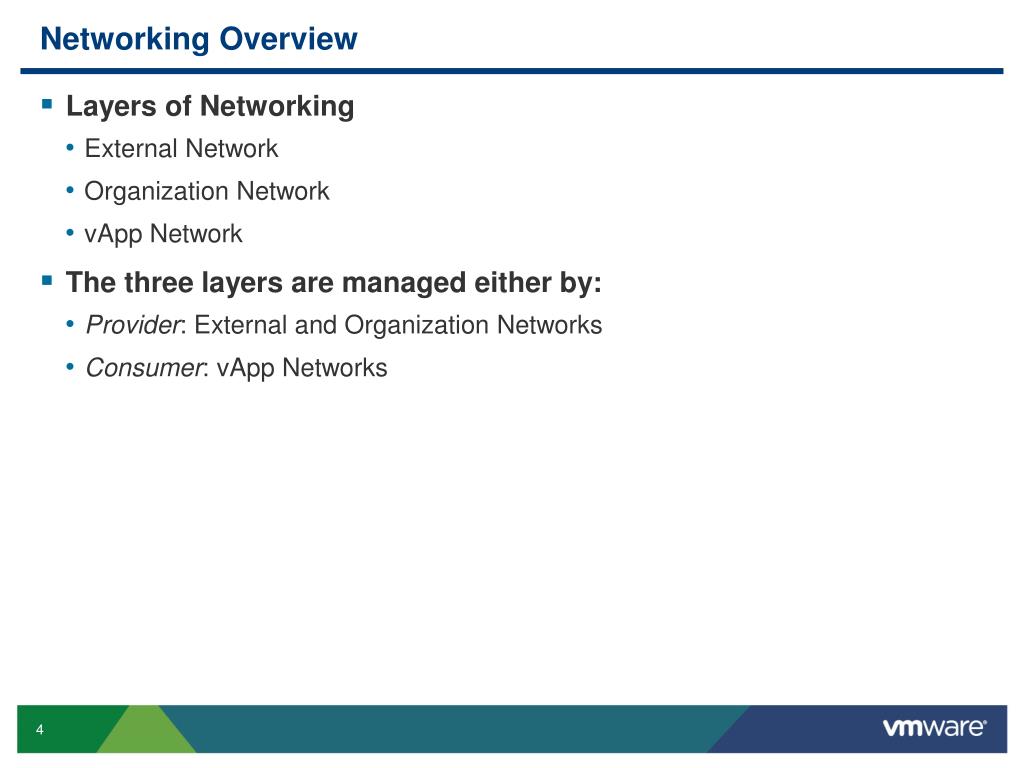

  4. Networking Overview • Layers of Networking • External Network • Organization Network • vApp Network • The three layers are managed either by: • Provider: External and Organization Networks • Consumer: vApp Networks

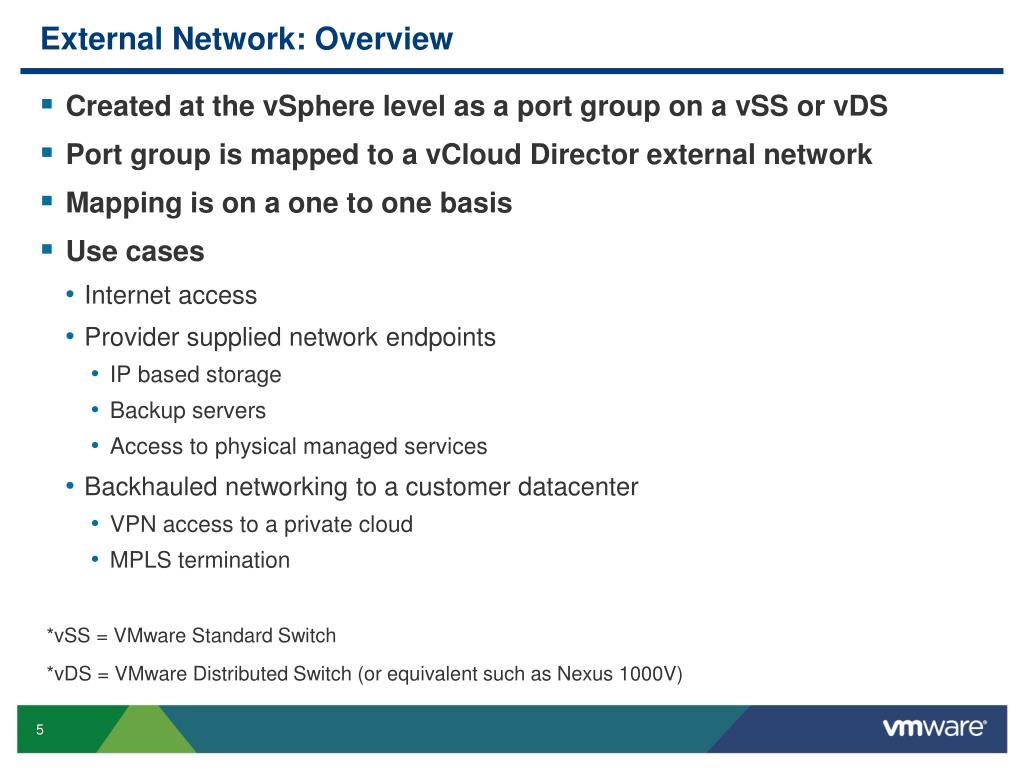

  5. External Network: Overview • Created at the vSphere level as a port group on a vSS or vDS • Port group is mapped to a vCloud Director external network • Mapping is on a one to one basis • Use cases • Internet access • Provider supplied network endpoints • IP based storage • Backup servers • Access to physical managed services • Backhauled networking to a customer datacenter • VPN access to a private cloud • MPLS termination *vSS = VMware Standard Switch *vDS = VMware Distributed Switch (or equivalent such as Nexus 1000V)

  6. External Networks: In vSphere • Dedicate vDS for statically mapped networks i.e. “Provider vDS” • Avoid vSS unless using scripting to duplicate port groups to hosts • Use unique VLANs per port group to avoid broadcast overlap • Below is an example of VLAN isolated External Networks:

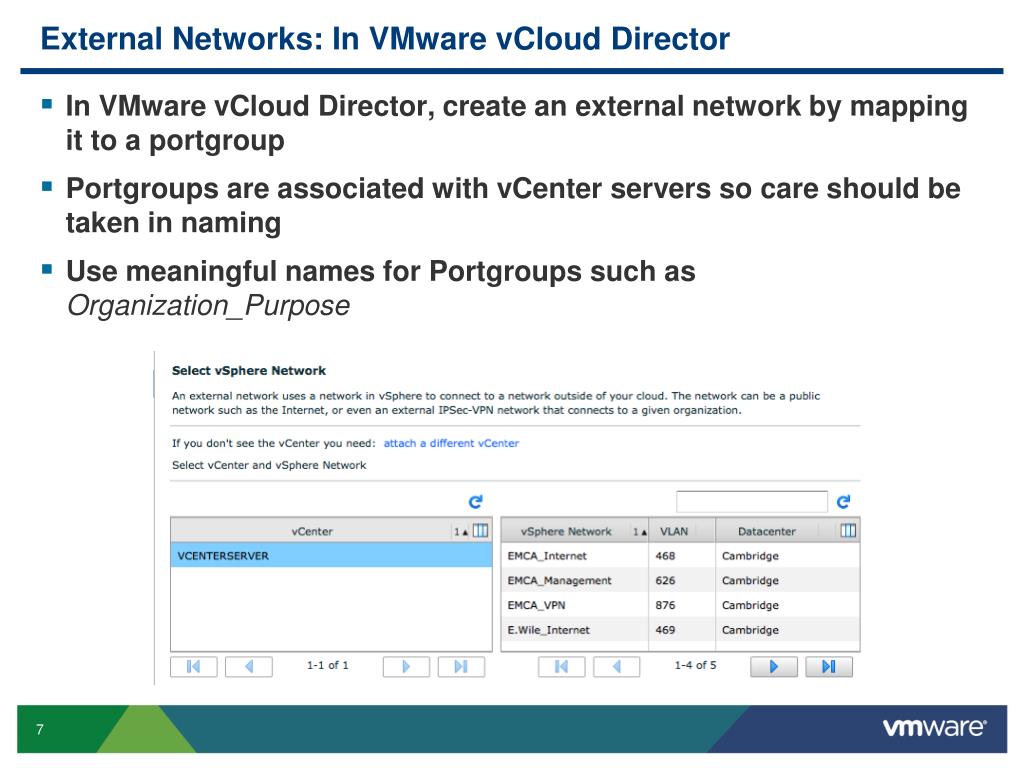

  7. External Networks: In VMware vCloud Director • In VMware vCloud Director, create an external network by mapping it to a portgroup • Portgroups are associated with vCenter servers so care should be taken in naming • Use meaningful names for Portgroups such as Organization_Purpose

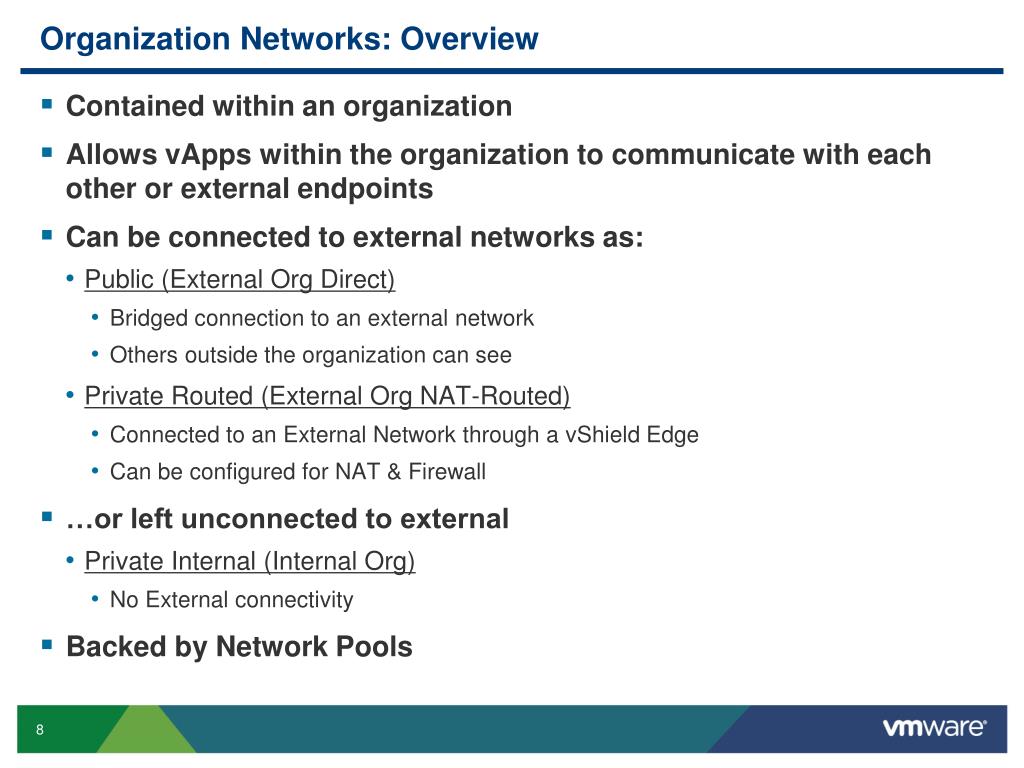

  8. Organization Networks: Overview • Contained within an organization • Allows vApps within the organization to communicate with each other or external endpoints • Can be connected to external networks as: • Public (External Org Direct) • Bridged connection to an external network • Others outside the organization can see • Private Routed (External Org NAT-Routed) • Connected to an External Network through a vShield Edge • Can be configured for NAT & Firewall • …or left unconnected to external • Private Internal (Internal Org) • No External connectivity • Backed by Network Pools

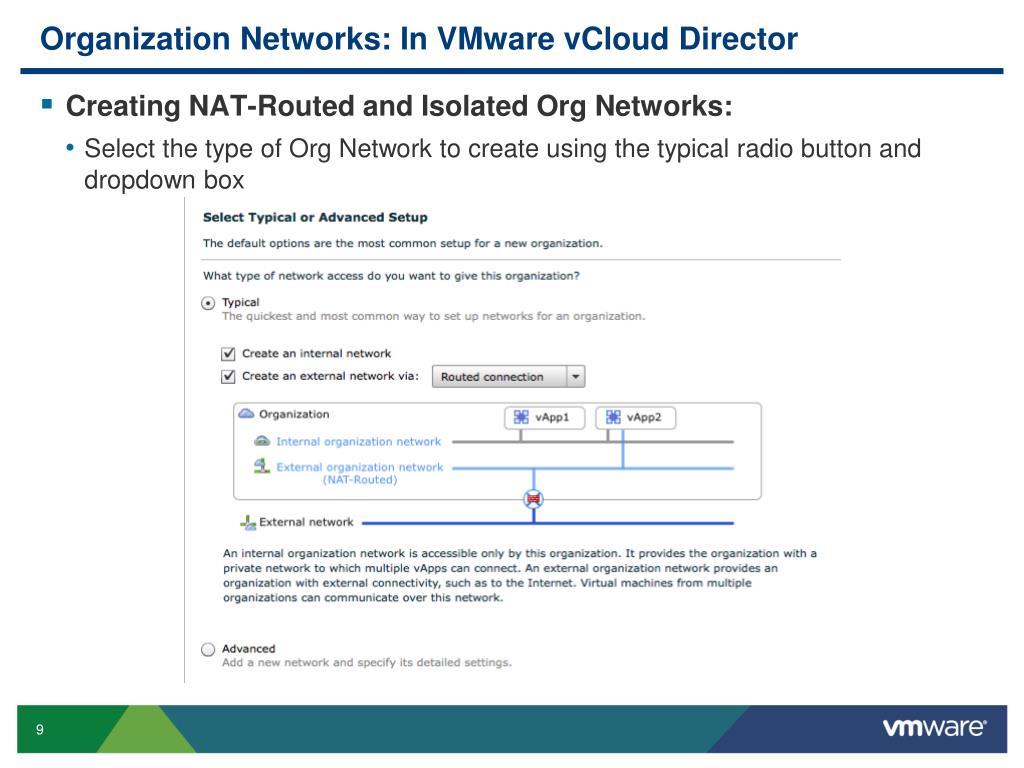

  9. Organization Networks: In VMware vCloud Director • Creating NAT-Routed and Isolated Org Networks: • Select the type of Org Network to create using the typical radio button and dropdown box

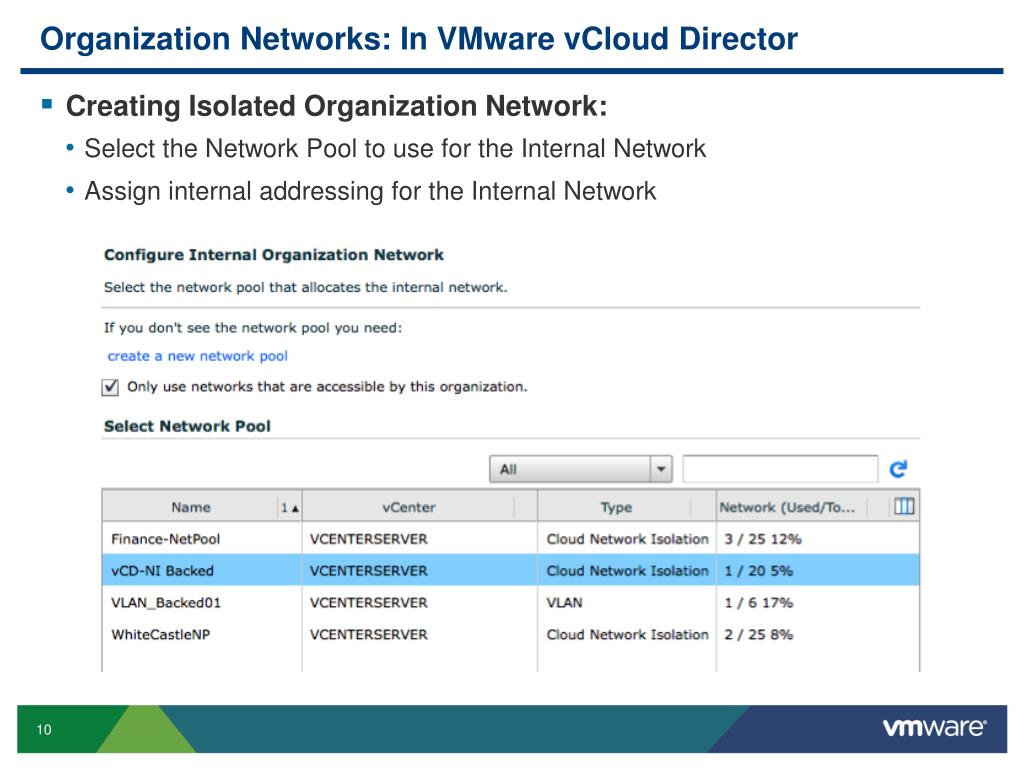

  10. Organization Networks: In VMware vCloud Director • Creating Isolated Organization Network: • Select the Network Pool to use for the Internal Network • Assign internal addressing for the Internal Network

  11. Organization Networks: In VMware vCloud Director • Creating NAT-Routed Organization Network: • Select the External Networkto attach • Select the Network Pool to usefor the Internal Network behindthe vShield Edge. • Assign internal addressing forthe Inside portion of Org Network

  12. vApp Networks: Overview • Contained within a vApp • Inherently Private Internal • Allows VMs in a vApp to communicate with each other or …by connecting them to Org networks, other vApps • Can be connected to Org Networks as • Public (Direct) • Bridged connection to a organization network • Private Routed • Connected to a organization network through a vShield Edge • Can be configured for NAT & Firewall • Backed by a Network Pool

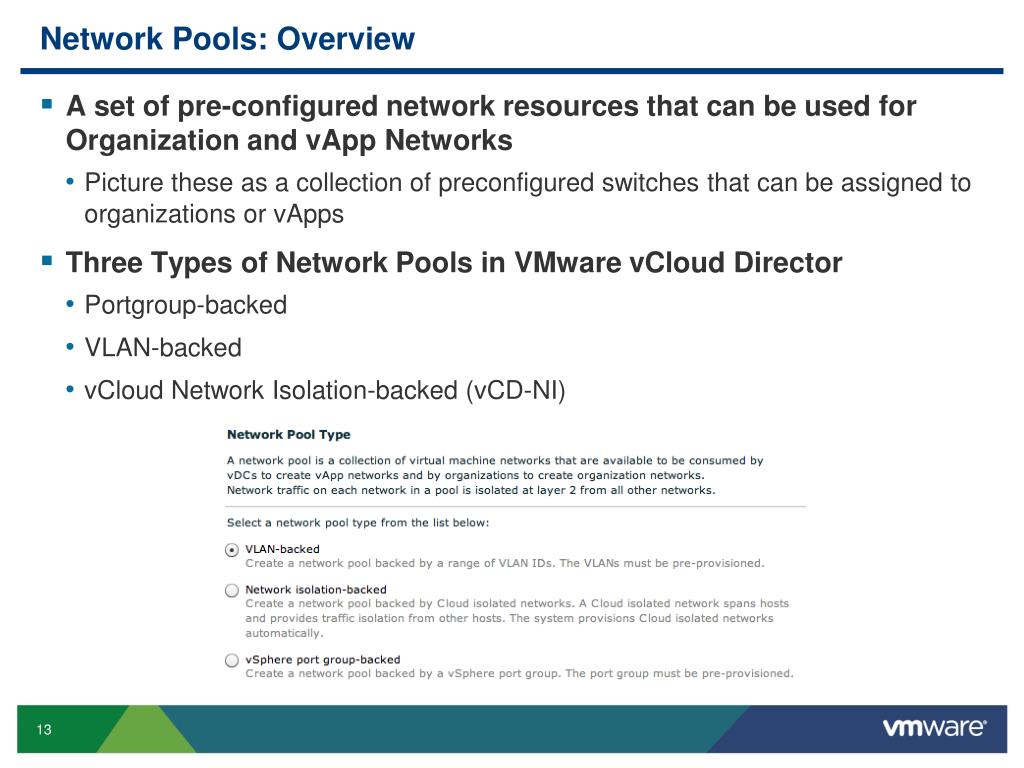

  13. Network Pools: Overview • A set of pre-configured network resources that can be used for Organization and vApp Networks • Picture these as a collection of preconfigured switches that can be assigned to organizations or vApps • Three Types of Network Pools in VMware vCloud Director • Portgroup-backed • VLAN-backed • vCloud Network Isolation-backed (vCD-NI)

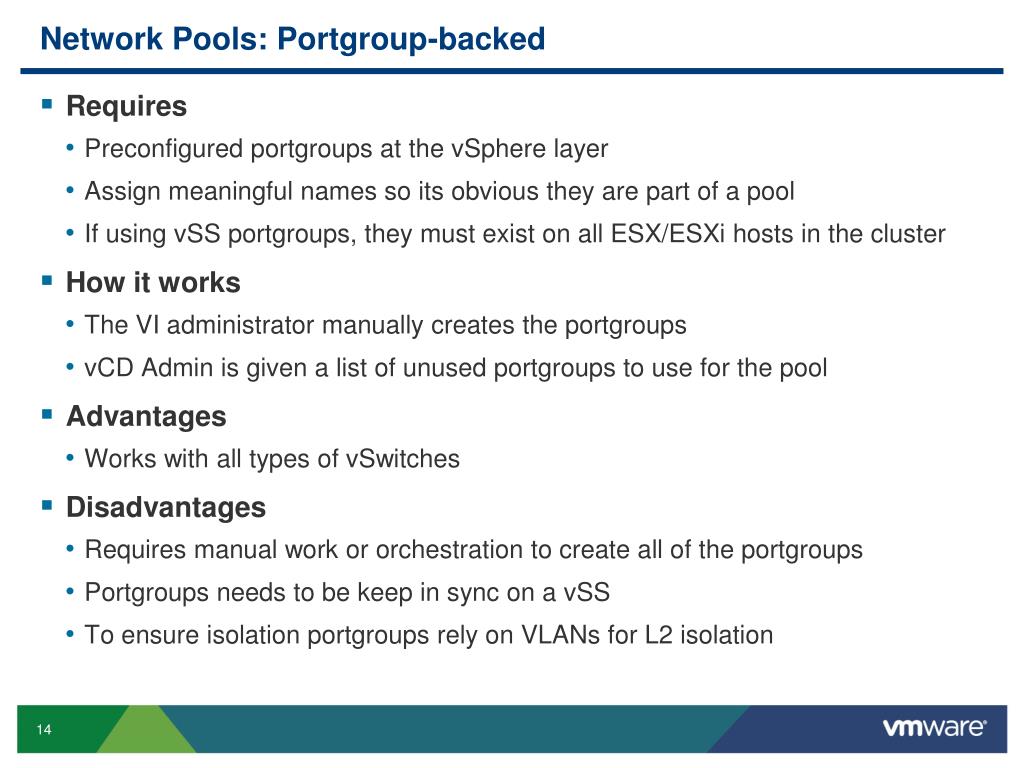

  14. Network Pools: Portgroup-backed • Requires • Preconfigured portgroups at the vSphere layer • Assign meaningful names so its obvious they are part of a pool • If using vSS portgroups, they must exist on all ESX/ESXi hosts in the cluster • How it works • The VI administrator manually creates the portgroups • vCD Admin is given a list of unused portgroups to use for the pool • Advantages • Works with all types of vSwitches • Disadvantages • Requires manual work or orchestration to create all of the portgroups • Portgroups needs to be keep in sync on a vSS • To ensure isolation portgroups rely on VLANs for L2 isolation

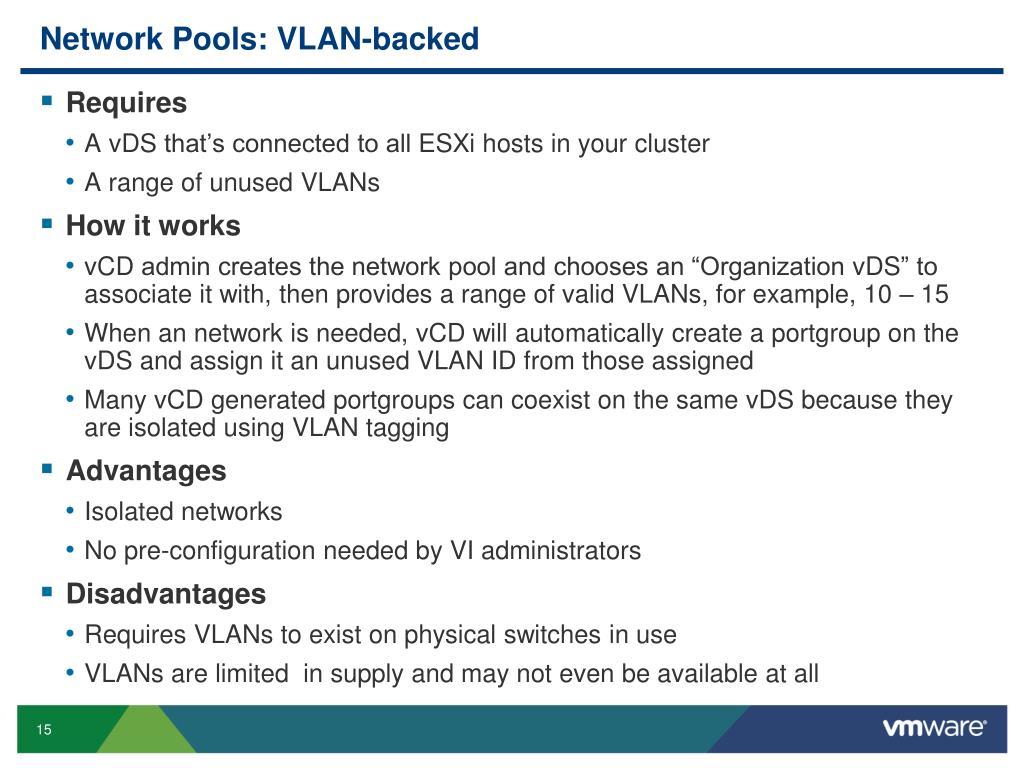

  15. Network Pools: VLAN-backed • Requires • A vDS that’s connected to all ESXi hosts in your cluster • A range of unused VLANs • How it works • vCD admin creates the network pool and chooses an “Organization vDS” to associate it with, then provides a range of valid VLANs, for example, 10 – 15 • When an network is needed, vCD will automatically create a portgroup on the vDS and assign it an unused VLAN ID from those assigned • Many vCD generated portgroups can coexist on the same vDS because they are isolated using VLAN tagging • Advantages • Isolated networks • No pre-configuration needed by VI administrators • Disadvantages • Requires VLANs to exist on physical switches in use • VLANs are limited in supply and may not even be available at all

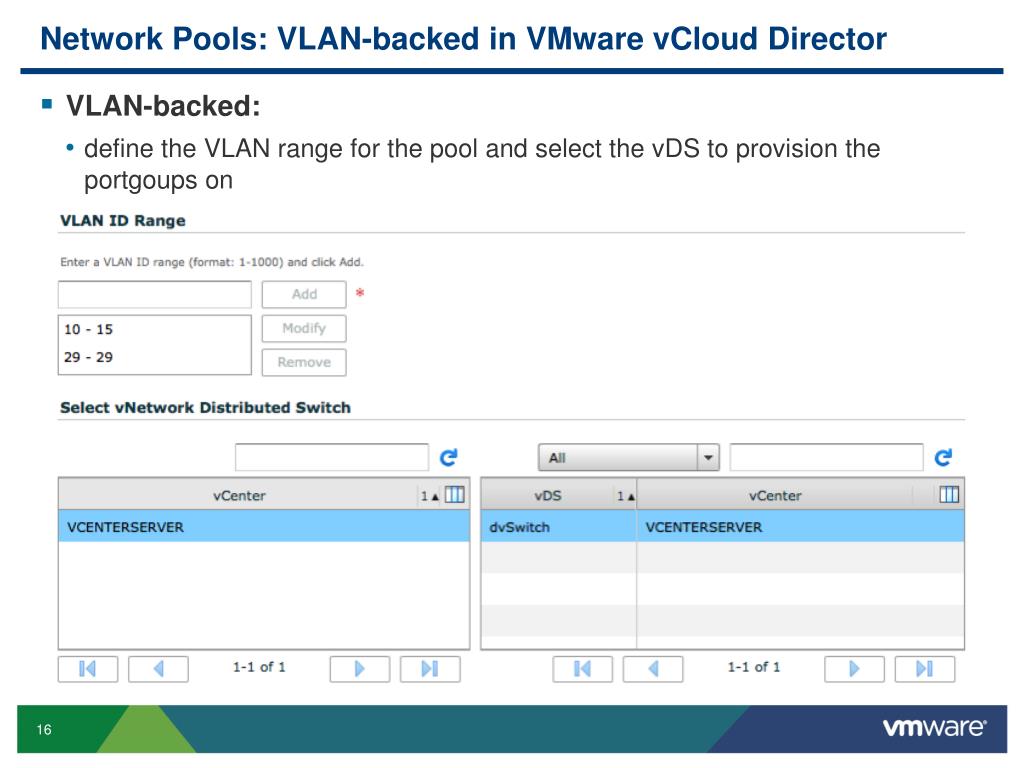

  16. Network Pools: VLAN-backed in VMware vCloud Director • VLAN-backed: • define the VLAN range for the pool and select the vDS to provision the portgoups on

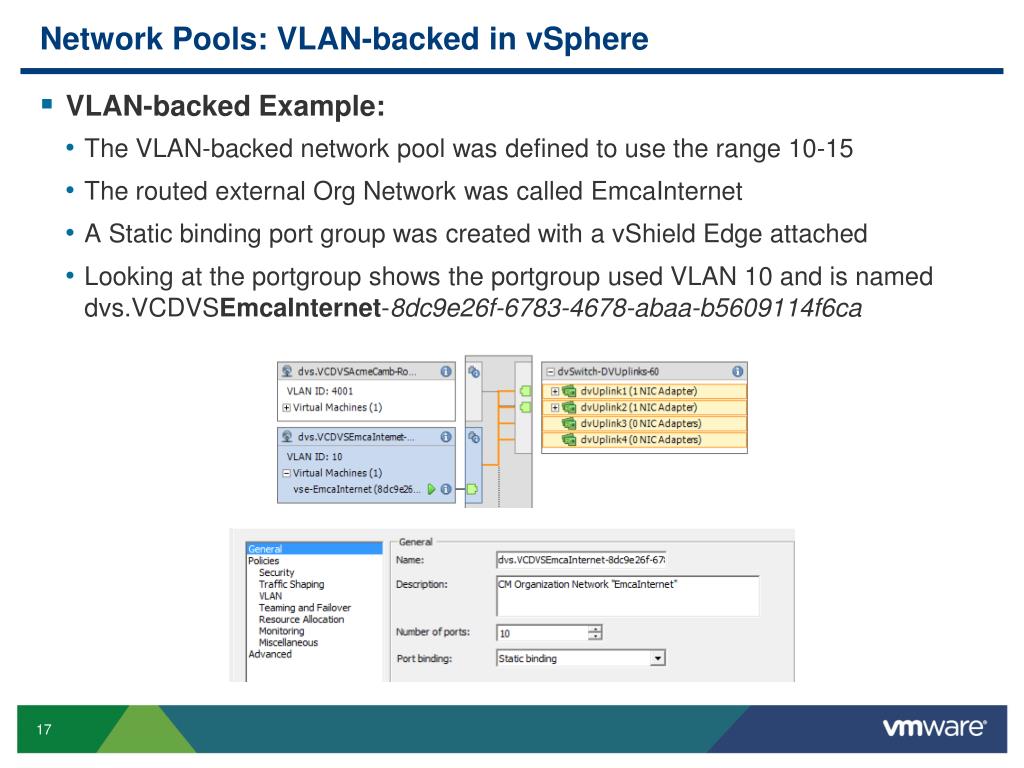

  17. Network Pools: VLAN-backed in vSphere • VLAN-backed Example: • The VLAN-backed network pool was defined to use the range 10-15 • The routed external Org Network was called EmcaInternet • A Static binding port group was created with a vShield Edge attached • Looking at the portgroup shows the portgroup used VLAN 10 and is named dvs.VCDVSEmcaInternet-8dc9e26f-6783-4678-abaa-b5609114f6ca

  18. Network Pools: vCloud Network Isolation • VMware proprietary network isolation technology • vCD-NI “networks” span hosts and are represented as portgroups on a vDS • Setup: • Designate a “Transport Network” – an actual layer 2 segment to carry the packets for vCD-NI networks • Decide how many networks you want in the pool, up to 1000 supported • Individual vCD-NI Networks are isolated from each other and the Transport Network via MAC-in-MAC encapsulation • Technical details: • Implemented with MAC-in-MAC encapsulation • Encapsulation handled by dvFilterVMkernel module • Can cause frame fragmentation with default MTU • Requires a small increase in MTU to 1524 or higher

  19. Network Pools: vCloud Network Isolation-backed • Requires • A vDS that’s connected to all ESXi hosts in your cluster • How it works: • vCD creates an overlay “transport” network for each isolated network to carry encapsulated traffic • Each overlay network is assigned a Network ID number • Encapsulation contains source and destination information of hosts where VM endpoints reside as well as the Network ID • ESXi host strips the vCD-NI packet to expose the VM source and destination MAC addressed packet that is delivered to the destination VM • Advantages: • Does not require VLANs (can optionally set a VLAN ID for the transport network; leaving blank defaults to 0) • Disadvantages: • Small performance overhead due to encapsulation (dvFilter) • Added MAC header require an increase in MTU same as in MPLS networks • vCD-NI is for layer 2 adjacency and not for routed networks • vCD-NI is only for VMs and cannot be accessed by physical hosts

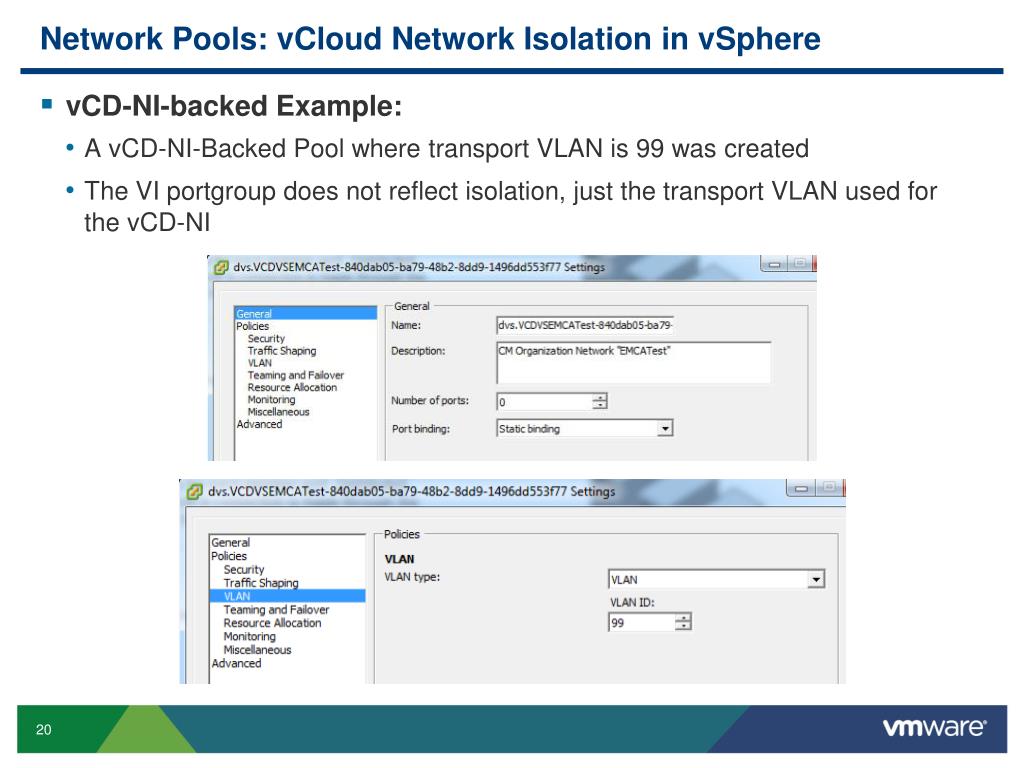

  20. Network Pools: vCloud Network Isolation in vSphere • vCD-NI-backed Example: • A vCD-NI-Backed Pool where transport VLAN is 99 was created • The VI portgroup does not reflect isolation, just the transport VLAN used for the vCD-NI

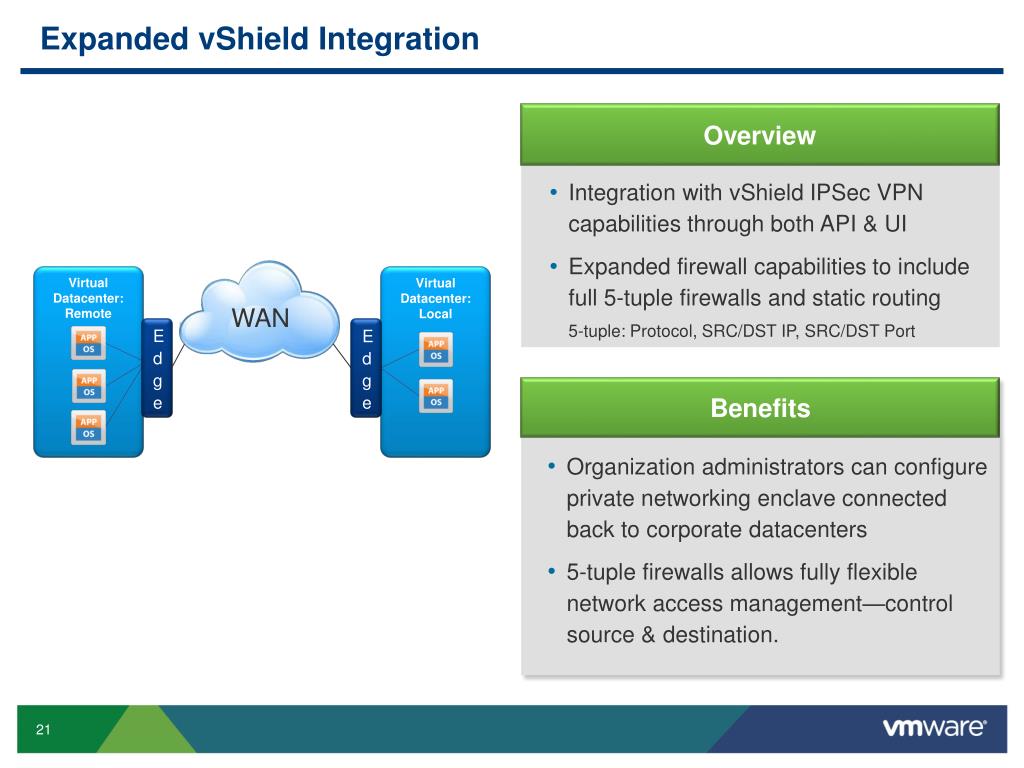

  21. Expanded vShield Integration Overview • Integration with vShield IPSec VPN capabilities through both API & UI • Expanded firewall capabilities to include full 5-tuple firewalls and static routing5-tuple: Protocol, SRC/DST IP, SRC/DST Port Virtual Datacenter: Remote Virtual Datacenter: Local WAN Edge Edge Benefits • Organization administrators can configure private networking enclave connected back to corporate datacenters • 5-tuple firewalls allows fully flexible network access management—control source & destination.

  22. IPSec Site to Site VPN • Enable Site to Site VPN connections using vCloud Director • Configured by the organization administrator on a routed org network

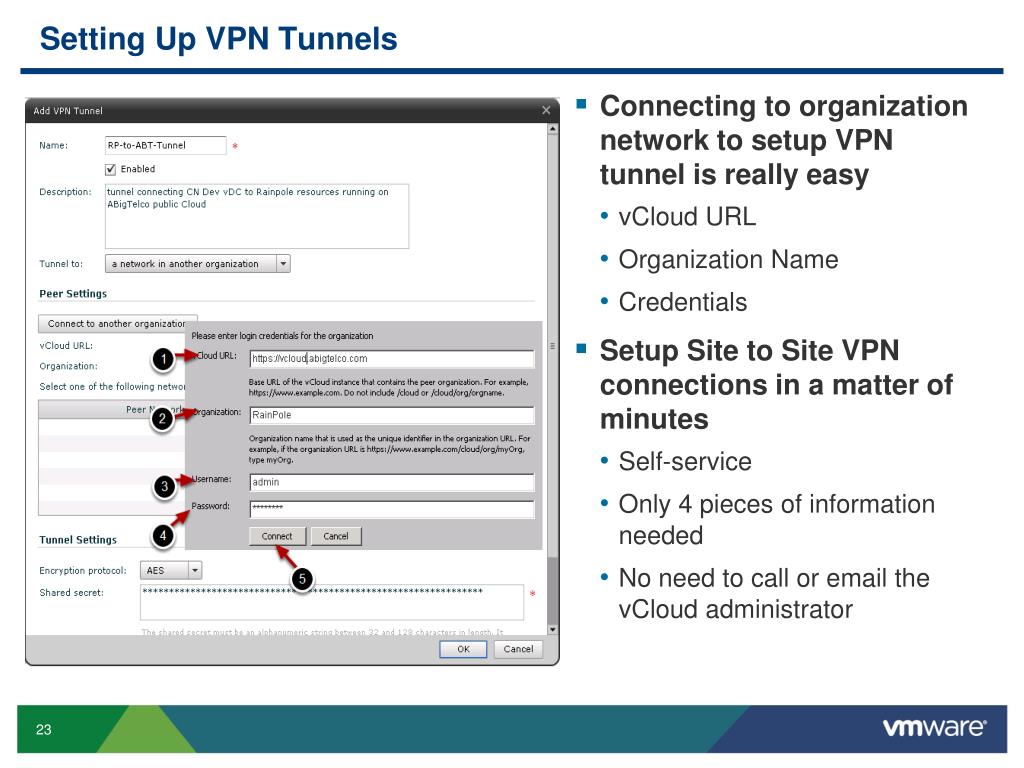

  23. Setting Up VPN Tunnels • Connecting to organization network to setup VPN tunnel is really easy • vCloud URL • Organization Name • Credentials • Setup Site to Site VPN connections in a matter of minutes • Self-service • Only 4 pieces of information needed • No need to call or email the vCloud administrator

  24. IPSec VPN Tunnel Configuration Types • Tunnel tonetwork in another organization • Tunnel to network in this organization • Tunnel to a remote network Org Network Org Network VPN Org Network Org Network Org Network Org B Org A Org A Org C VPN Private/Public vCloud Public Cloud Private Cloud vCloud VPN Endpoint (vShield Edge, 3rd Party) VPN

  25. IPSec VPN • AES or 3DES encryption

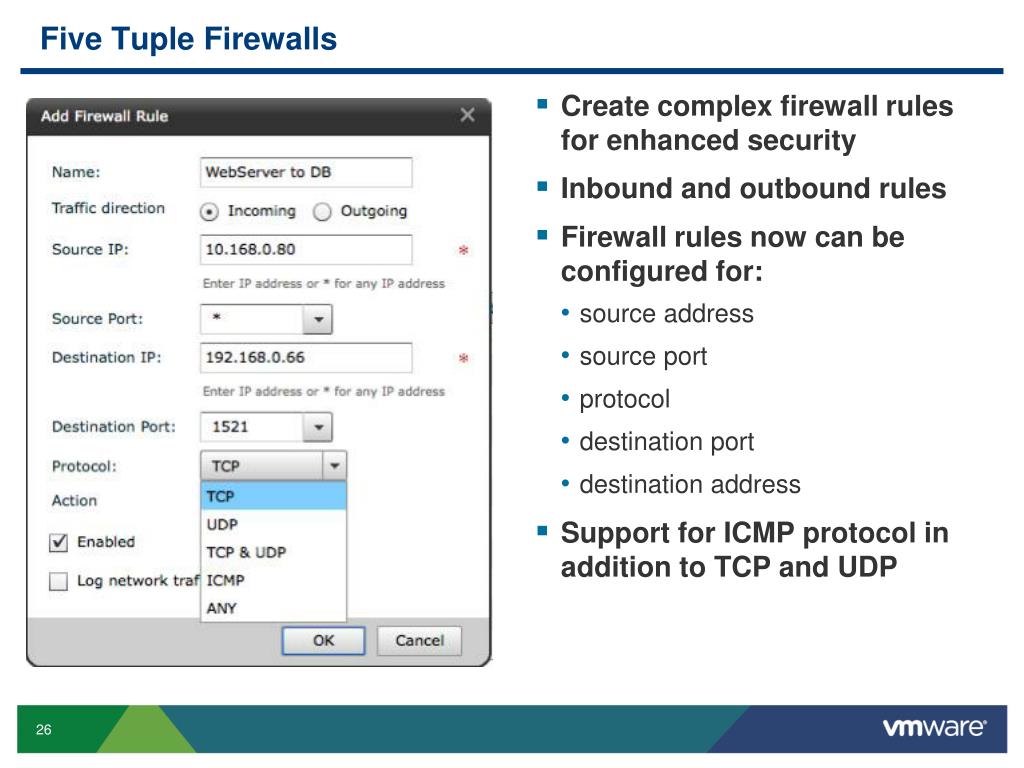

  26. Five Tuple Firewalls • Create complex firewall rules for enhanced security • Inbound and outbound rules • Firewall rules now can be configured for: • source address • source port • protocol • destination port • destination address • Support for ICMP protocol in addition to TCP and UDP

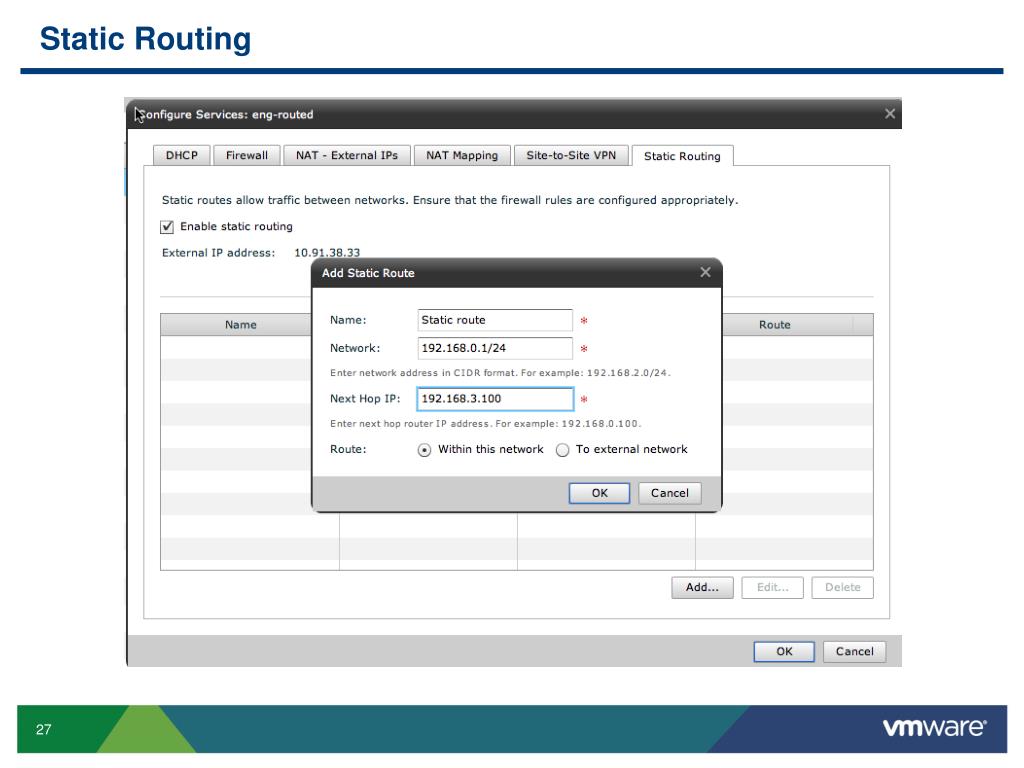

  27. Static Routing

  28. Third Party Distributed Switch Integration Overview • Support for broader range of network pool types in third party distributed switches • Support VLAN-backed networks • Requires vShield Manager 5 Third Party Distributed Switch Benefits • Leverage third party switches – • automatic portgroup creation now enabled • Leverage third party tools for network monitoring in conjunction with vCloud deployments.

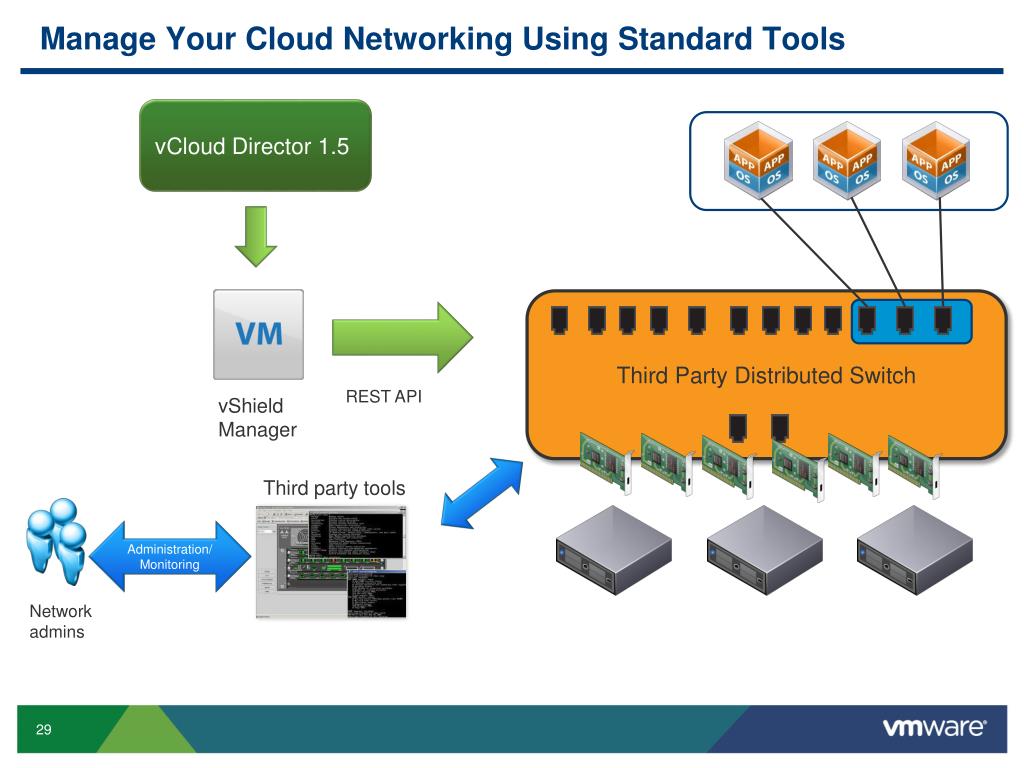

  29. Manage Your Cloud Networking Using Standard Tools vCloud Director 1.5 Third Party Distributed Switch REST API Third party tools vShield Manager Administration/Monitoring Network admins

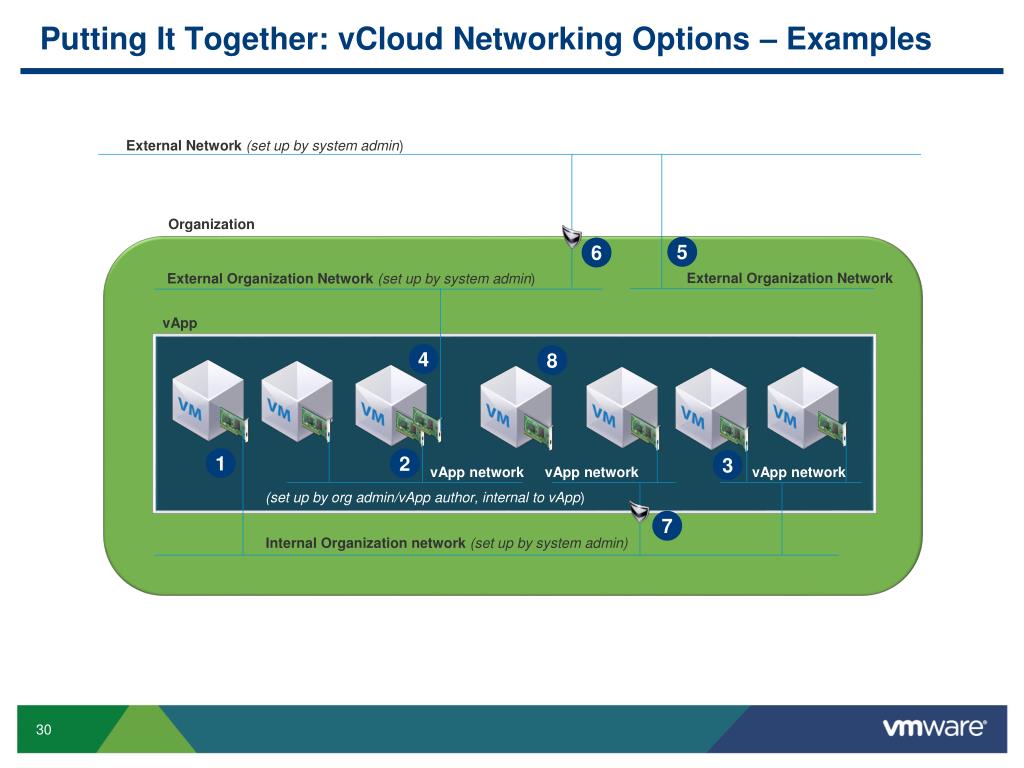

  30. Putting It Together: vCloud Networking Options – Examples External Network(set up by system admin) Organization 5 6 External Organization Network External Organization Network (set up by system admin) vApp 4 8 1 2 3 vApp network vApp network vApp network (set up by org admin/vApp author, internal to vApp) 7 Internal Organization network (set up by system admin)

  31. Questions
