  1. SAP on windows server 2012 hyper-vdocumentation June 2013

  2. summary • This documentation is applicable to Windows Server 2012 Hyper-V 3.0 and SQL 2012. Hyper-V 2.0 is not covered • Proposed documentation is targeted to small and medium SAP on SQL Server customers only. Very large complex landscapes tend to be “custom” solutions • H/W platform documented is 2 socket SandyBridge or IvyBridge ranging from 8-15 core. • Documentation provides customers a “cookbook” to deploy SAP on Win/SQL on Hyper-V 3.0

  3. 1. Documentation Model • Hardware config+ Network+disk • HW+Net+SAN • P2V vs. sys copy • Hyper-V 3.0 SD benchmark whitepaper • Whitepaper on Hyper-V 3.0 Benchmark • Security & Patching • Monitoring • Scenario III • Config of CSV, vhd, datafiles • HA/DR concepts • Scenario IV • System Copy + Backup/Restore • Sizing • 4 deployment scenarios are documented • Common SAP specific topics are documented across scenarios

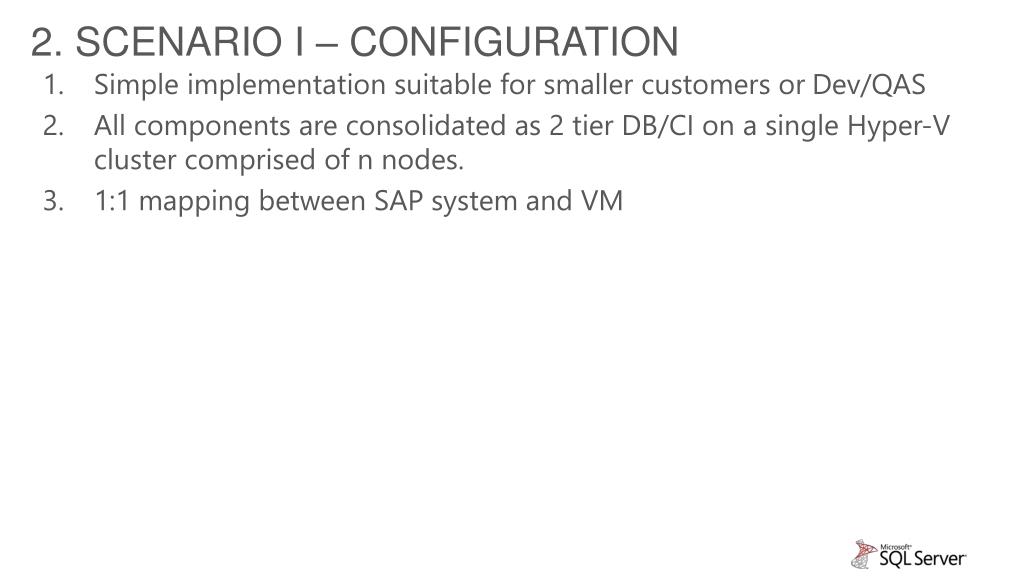

  4. 2. Scenario I – CONFIGURATION • Simple implementation suitable for smaller customers or Dev/QAS • All components are consolidated as 2 tier DB/CI on a single Hyper-V cluster comprised of n nodes. • 1:1 mapping between SAP system and VM

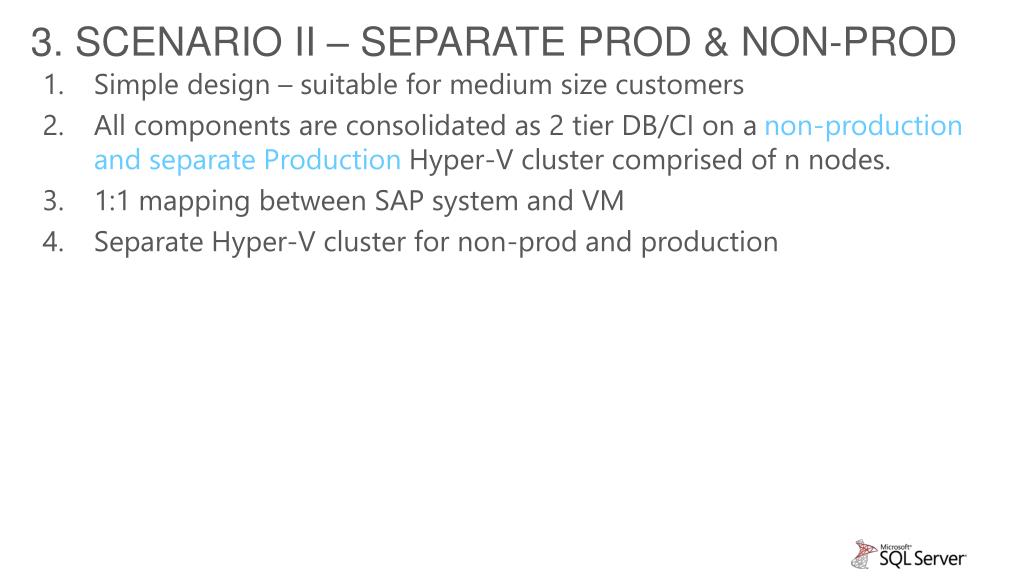

  5. 3. Scenario II – separate prod & non-prod • Simple design – suitable for medium size customers • All components are consolidated as 2 tier DB/CI on a non-production and separate Production Hyper-V cluster comprised of n nodes. • 1:1 mapping between SAP system and VM • Separate Hyper-V cluster for non-prod and production

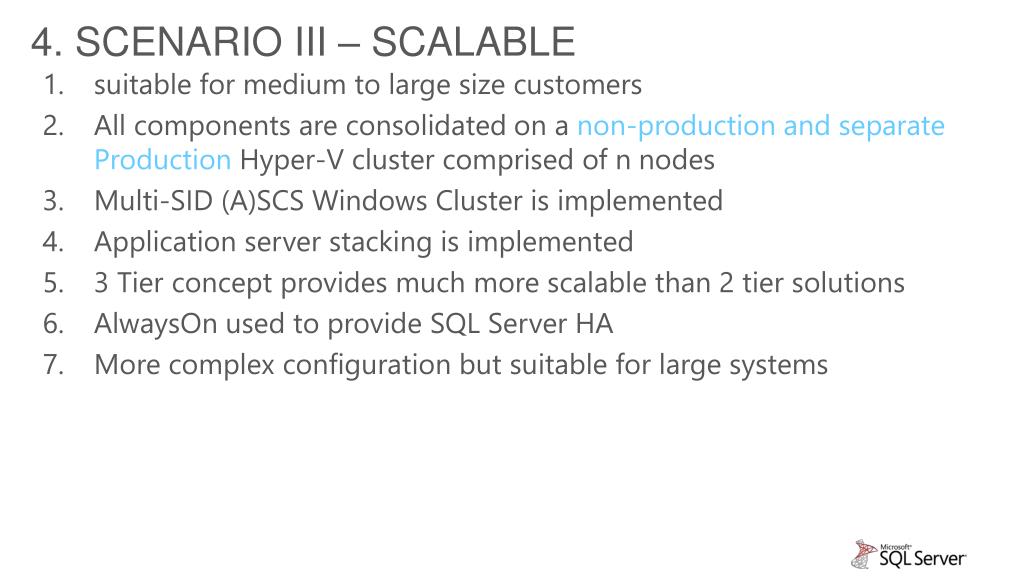

  6. 4. Scenario III – scalable • suitable for medium to large size customers • All components are consolidated on a non-production and separate ProductionHyper-V cluster comprised of n nodes • Multi-SID (A)SCS Windows Cluster is implemented • Application server stacking is implemented • 3 Tier concept provides much more scalable than 2 tier solutions • AlwaysOn used to provide SQL Server HA • More complex configuration but suitable for large systems

  7. 5. Scenario IV – Geocluster HA/DR • suitable for medium to large size customers • Provides HA/DR “in a box” • All components are consolidated on a non-production and separate Production Hyper-V cluster comprised of n nodes • Multi-SID (A)SCS Windows Cluster is implemented • Application server stacking is implemented • 3 Tier concept provides much more scalable than 2 tier solutions • AlwaysOn used to provide SQL Server HA • More complex configuration but suitable for large systems • Hyper-V Replica use to synchronize VMs between data centers (if required). SAN storage replication also supported

  8. 6. VIRTUAL MACHINE CONFIGURATION • Use only the following 4 predefined virtual machine sizes • SAP application servers should only use virtual machine sizes 1 + 2 • SQL Server can run on all 4 VM sizes • Use the Virtual Machine landscape calculator Excel spreadsheet to design the VMs and landscape • Review SAP on Microsoft Private Cloud chapter 9

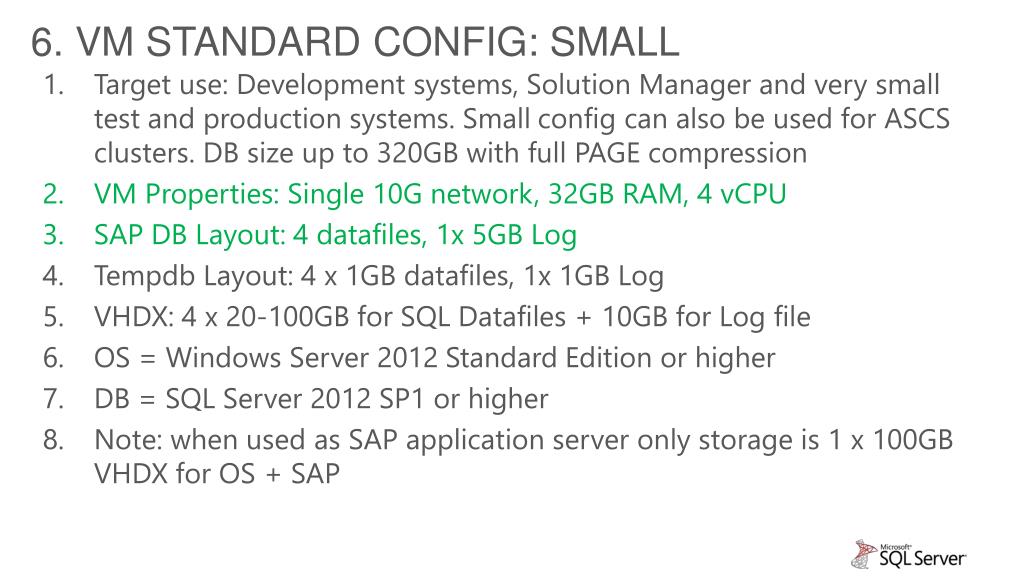

  9. 6. VM Standard config: small • Target use: Development systems, Solution Manager and very small test and production systems. Small config can also be used for ASCS clusters. DB size up to 320GB with full PAGE compression • VM Properties: Single 10G network, 32GB RAM, 4 vCPU • SAP DB Layout: 4 datafiles, 1x 5GB Log • Tempdb Layout: 4 x 1GB datafiles, 1x 1GB Log • VHDX: 4 x 20-100GB for SQL Datafiles + 10GB for Log file • OS = Windows Server 2012 Standard Edition or higher • DB = SQL Server 2012 SP1 or higher • Note: when used as SAP application server only storage is 1 x 100GB VHDX for OS + SAP

  10. 7. VM Standard config: medium • Target use: medium test and production systems. Medium VM can be used for both SQL Server and SAP application servers. Typically less than 500 users. DB size up to 640GB with full PAGE compression • VM Properties: Dual 10G network, 128GB RAM, 8 vCPU • SAP DB Layout: 8 datafiles, 1x 40GB Log • VHDX: 4 x 50-200GB for SQL Datafiles + 50GB for Log file • OS = Windows Server 2012 Standard Edition or higher • DB = SQL Server 2012 SP1 or higher • Note: when used as SAP application server only storage is 1 x 100GB VHDX for OS + SAP

  11. 8. VM Standard config: large (SQL only) • Target use: Large production SQL Server databases. DB size up to 2TB with full PAGE compression • VM Properties: >2 10G network, 192GB RAM, 16vCPU • SAP DB Layout: 16 datafiles, 1x 200GB Log • Tempdb Layout: 4 x 1GB datafiles, 1x 1GB Log • VHDX: 4 x 100-400GB for SQL Datafiles + 400GB for Log file • OS = Windows Server 2012 or higher • DB = SQL Server 2012 SP1 or higher

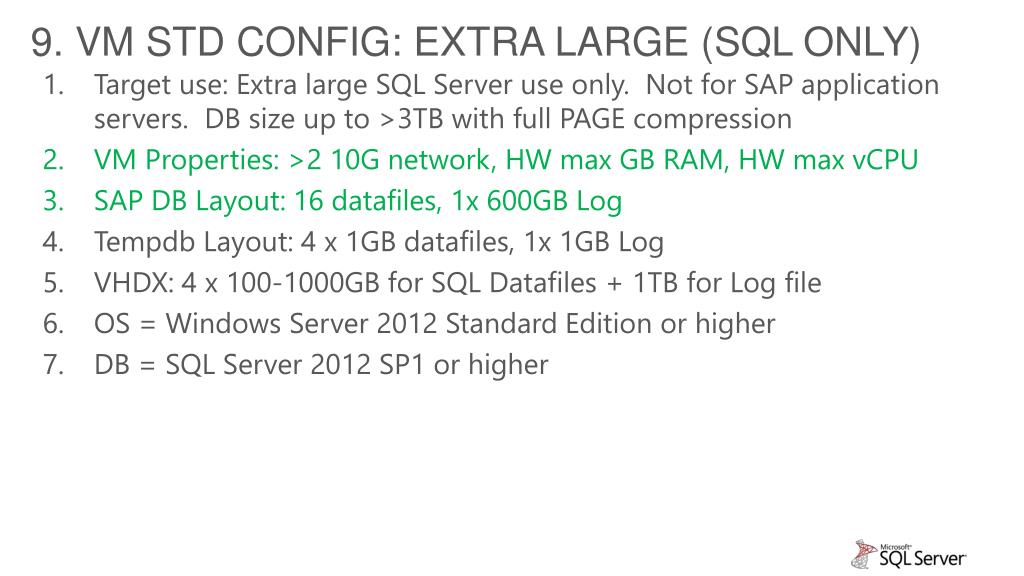

  12. 9. VM Stdconfig: Extra large (sql only) • Target use: Extra large SQL Server use only. Not for SAP application servers. DB size up to >3TB with full PAGE compression • VM Properties: >2 10G network, HW max GB RAM, HW max vCPU • SAP DB Layout: 16 datafiles, 1x 600GB Log • Tempdb Layout: 4 x 1GB datafiles, 1x 1GB Log • VHDX: 4 x 100-1000GB for SQL Datafiles + 1TB for Log file • OS = Windows Server 2012 Standard Edition or higher • DB = SQL Server 2012 SP1 or higher

  13. Appendix I – sql 2012 notes • 1651862 - Release planning for Microsoft SQL Server 2012 • 1721480 - MSS: Support for system copy to SQL Server 2012 • 1676665 - Setting up Microsoft SQL Server 2012 • 1702408 - Configuration Parameters for SQL Server 2012 • 1684545 - SAP Installation Media and SQL4SAP for SQL Server 2012 Blogs: Windows Server 2012 Generally Available for SAP NetWeaver – April 2013 SAP on SQL General Update for Customers & Partners January 2013 SQL Server Column-Store available for all major SAP BW releases SAP High Availability in virtualized Environments running on Windows Server 2012 Hyper-V Part 1: Overview

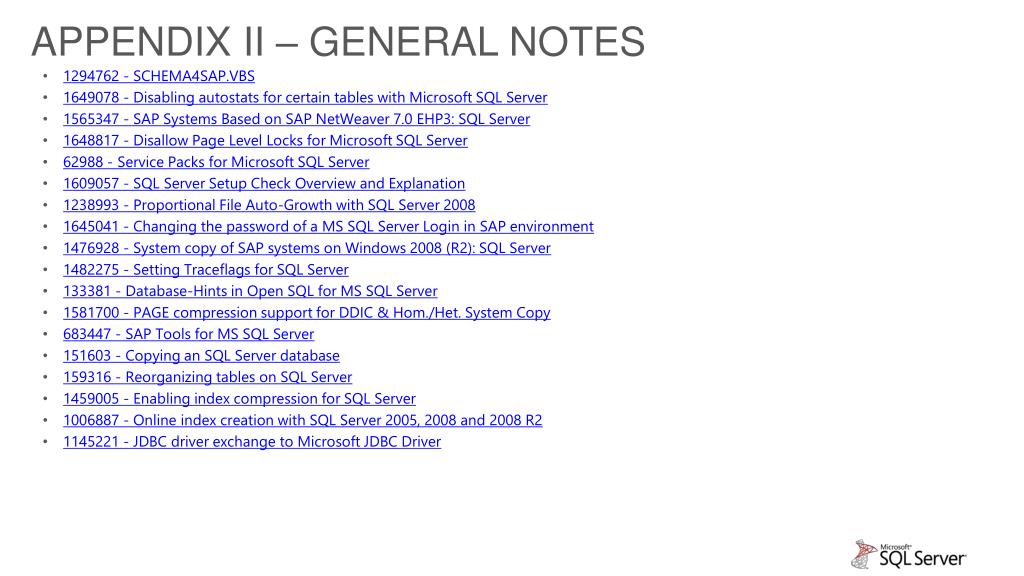

  14. Appendix II – general notes • 1294762 - SCHEMA4SAP.VBS • 1649078 - Disabling autostats for certain tables with Microsoft SQL Server • 1565347 - SAP Systems Based on SAP NetWeaver 7.0 EHP3: SQL Server • 1648817 - Disallow Page Level Locks for Microsoft SQL Server • 62988 - Service Packs for Microsoft SQL Server • 1609057 - SQL Server Setup Check Overview and Explanation • 1238993 - Proportional File Auto-Growth with SQL Server 2008 • 1645041 - Changing the password of a MS SQL Server Login in SAP environment • 1476928 - System copy of SAP systems on Windows 2008 (R2): SQL Server • 1482275 - Setting Traceflags for SQL Server • 133381 - Database-Hints in Open SQL for MS SQL Server • 1581700 - PAGE compression support for DDIC & Hom./Het. System Copy • 683447 - SAP Tools for MS SQL Server • 151603 - Copying an SQL Server database • 159316 - Reorganizing tables on SQL Server • 1459005 - Enabling index compression for SQL Server • 1006887 - Online index creation with SQL Server 2005, 2008 and 2008 R2 • 1145221 - JDBC driver exchange to Microsoft JDBC Driver

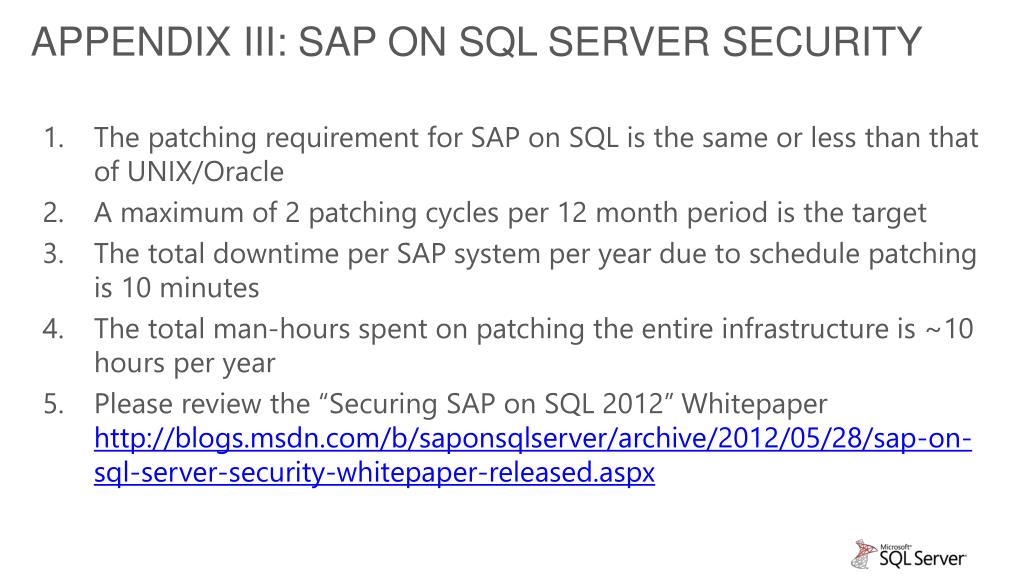

  15. Appendix III: sap on sql server security • The patching requirement for SAP on SQL is the same or less than that of UNIX/Oracle • A maximum of 2 patching cycles per 12 month period is the target • The total downtime per SAP system per year due to schedule patching is 10 minutes • The total man-hours spent on patching the entire infrastructure is ~10 hours per year • Please review the “Securing SAP on SQL 2012” Whitepaper http://blogs.msdn.com/b/saponsqlserver/archive/2012/05/28/sap-on-sql-server-security-whitepaper-released.aspx
