  1. Code Generation CPSC 388 Ellen Walker Hiram College

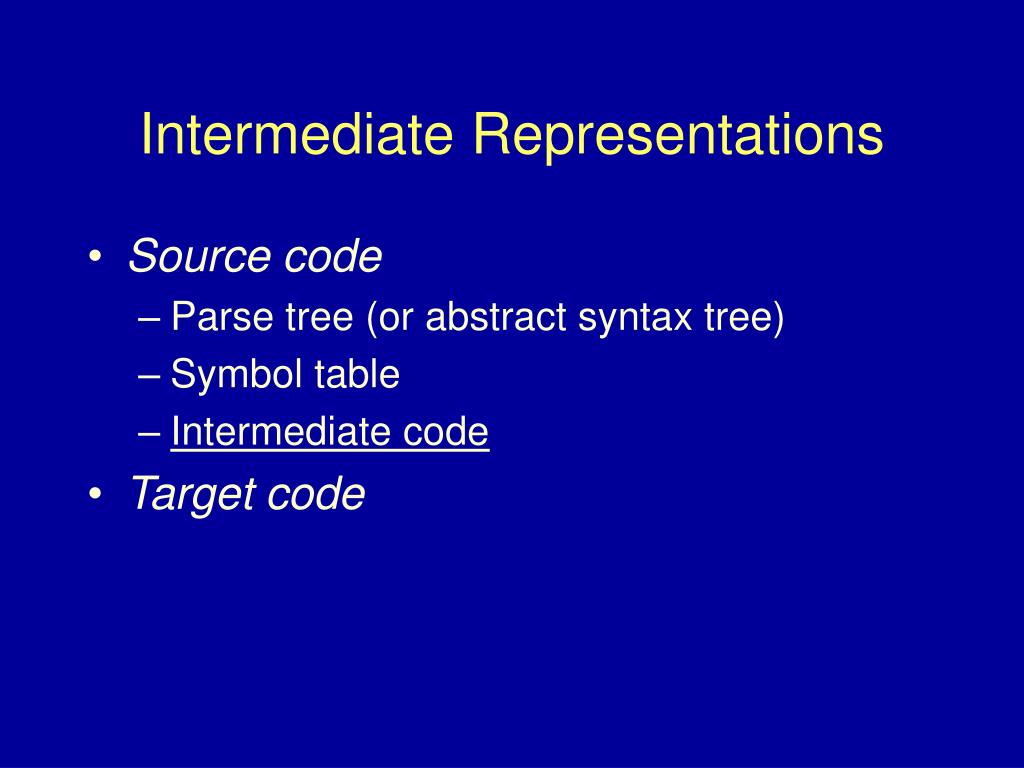

  2. Intermediate Representations • Source code • Parse tree (or abstract syntax tree) • Symbol table • Intermediate code • Target code

  3. Why Intermediate Code? • Easier analysis for optimization • Multiple target machines • Direct interpretation (e.g. Java P-code)

  4. 3-Address Code • Statements like x = y op z • Generous use of temp. variables • One for each internal node of (abstract) parse tree • Closely related to arithmetic expression • Example: a = b*(c+d) becomes: tmp1 = c+d a = b*tmp1

  5. Beyond Math Operations • No standardized 3 address code • Other operators in textbook • Comparison operators (e.g. x = y == z) • I/O (read x and write x) • Conditional & unconditional branch operators (if_true x goto L1, goto L2) • Label instructions (label L1) • Halt instruction (halt)

  6. Representing 3-address code • Quadruple implementation • 4 fields: (op,y,z,x) for x=y op z • Fields are null if not needed, e.g. (rd,x,,) • Instead of names, put pointers into symbol table • Triple implementation • 4th element is always a temp • Don’t name temp, use triple index instead

  7. Example: a = b+(c*d) • [quadruple] [triple] • (rd,c,_,_) 1: (rd,c,_) • (rd,d,_,_) 2: (rd,d,_) • (mul,c,d,t1) 3: (mul,c,d) • (rd,b,_,_) 4: (rd,b,_) • (add,b,t1,t2) 5: (add,b,3) • (asn,a,t2,_) 6: (asn,a,5)

  8. P-Code • Developed for Pascal compilers • Code for hypothetical P-machine • P-machine is a stack (0-address) machine [Load inst. takes 1-address] • Load = push, Store = pop • Operators act on top element(s) of stack • No temp. variable names needed

  9. LDC x - load const. x LDA x - load addr. x LOD x - load var. x STO - store val in addr STN - store & push MPI - multiply integers SBI - subtract integers ADI - add integers RDI -read int WRI - write int LAB - label FJP - jump on false GRT - > EQU - = STP - stop P-Code operators

  10. Example: a = b+(c*d) • LDA a • LOD d • LOD c • MPI • LOD b • ADI • STO

  11. P-Code as attribute • Include code (so far) as attribute in attribute grammar • exp -> id = exp • $$.code = LDA $1.name; $3.code; STN • aexp -> aexp+factor • $$.code = $1.code;$3.code;ADI • factor -> id • $$.code = LOD $1.name

  12. Generating 3 address code • Need a meta-function to generate temp names (newtemp()) • exp -> id = exp • $$.code = $3.code; “$1.name = $3.name” • aexp -> aexp+factor • $$.name = newtemp() • $$.code = “$1.code;$3.code;$$.name=$1.name+$3.name”

  13. Why real compilers don’t do this • Generating strings is inefficient • Lots of copying • Code, when generated, isn’t saved; just copied around until done • Code generation depends on inherited (not just synthesized) attributes • E.g. object type for assignment • This complicates grammars!

  14. Practical code generation • Modified postorder traversal of syntax tree • Remember postorder: • Act on the children recursively • Act on the parent directly • In this case, the action is “generate code”

  15. Code Generation Gen_code(node *n){ switch(n->op){ case ‘+’: gen_code(n->first); gen_code(n->first->next); cout << “ADI”; break;

  16. More Code Generation case ‘=’: cout << “LDA “ << t->name; Gen_code(t->first); cout << “STN”); break; … }

  17. Nothing new! • Postorder traversal executes in the same order as LALR parsing! • Code for code generation looks almost like the attribute grammar • $n.code --> Generate_code(child N); • $$.attr --> n->attr; (where n is param)

  18. Code Gen in YACC • Looks like attribute grammar, almost • Use code inside expression for assignment Exp : id {//generate lda code} ‘=‘ exp {generate rest} • Can we combine code generation with other attribute computation?

  19. Intermediate -> Target Code • Macro expansion • Direct replacement of intermediate statement with target statement(s) • Prepend a definition file to the code, then assemble • But it’s not as easy as it seems • Different data types require different code • Compiler tracks locations, etc. separately

  20. Intermediate -> Target Code (cont) • Static simulation • Simulate results of intermediate code (i.e. interpret it) • Then generate equivalent assembly code to get results • Might include abstract interpretation (e.g. symbolic algebra)

  21. P-code -> 3 address code • We must “run” the p-code to see what is on the stack for the 3 address code • Use a stack data structure during translation • “new top” = “old top” + “old second” • New temp. for “new top” • Temp or variable names stored in stack elements • Code is generated when stack is popped (only)

  22. 3 address code -> pcode • Each instruction a = b op c translates to: • LDA a • LOD b • LOD c • ADI -- or other operator based on “op” • STO

  23. Too much Pcode! • 3 address code has many temps • Temps are simply loaded & stored without changing! • Sequence “lda x, lod x, sto” is useless! • Similarly, “lda x, lda t1, … sto, sto” doesn’t really need t1

  24. Cleaning it up • Instead, use a tree form • Parent is op, has label of variable name • Children are id, num, or another op • Assignment statements generate no code, only an alternative label • Pcode generated from the eventual tree (which is essentially an expression tree) • Extra tmp names are ignored (p. 416)
