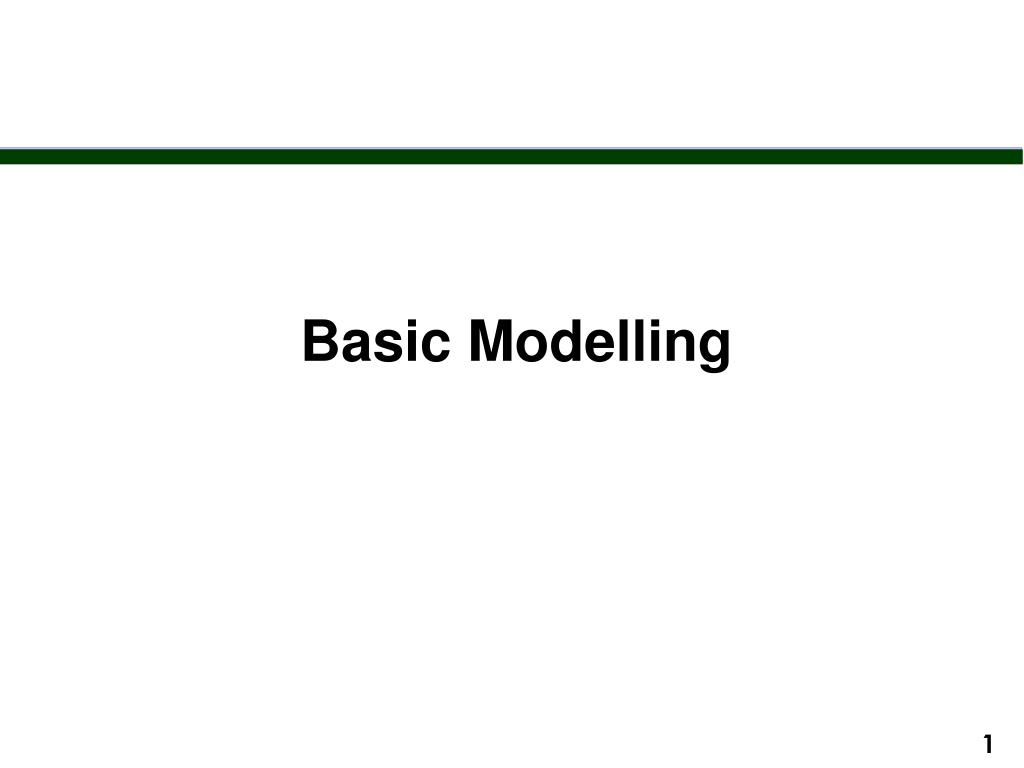

  1. Basic Modelling

  2. Lecture Objectives • To understand how 3D scenes can be modelled - in terms of geometry, appearance and behaviour - and rendered on a display • To understand how to deliver interactive animated 3D graphics over the Internet • To be able to create interactive 3D graphics applications using industry standard software (OpenGL and VRML)

  3. The Basics • MODELLING • representing objects in 3D • transforming objects and composing scenes • VIEWING • projecting 3D scenes onto a 2D display surface • RENDERING • illumination • shading • adding realism via textures, shadows

  4. Basic Modelling y objects represented as set of faces - ie polygons- and faces as a set of points x z scenes composed by scaling, rotating, translating objects to create a 3D world

  5. Viewing • Clipping • selects a volume of interest • Projection • 3D scene is projected onto a 2D plane camera

  6. Rendering illumination: how is light reflected from surfaces? shading: how do we use our knowledge of illumination to shade surfaces in our world?

  7. Rendering • texture • shadows

  8. Internet • VRML • ISO standard for 3D graphics over the Web • allows modelling of geometry, appearance and behaviour

  9. Advanced Rendering • ADVANCED RENDERING • direct versus global illumination methods • ray tracing and radiosity • OTHER ADVANCED FEATURES • curve and surface modelling • image based rendering • non-photorealistic rendering

  10. eye screen Advanced Rendering • Advanced Rendering - global illumination • ray tracing • radiosity based on physics of radioactive heat transfer between surfaces objects light

  11. Before we begin...mathematics! • 3D Co-ordinate Systems y y z x x z LEFT RIGHT z points away z points toward Align thumb with x, first finger with y, then second finger of appropriate hand gives z direction. Common now to use a RIGHT HANDED system.

  12. Points and Vectors • We shall write points as column vectors y P P = x y z x z Difference of two points gives a direction vector: D = P2 - P1 y P2 Note: If P1 and P2 are on a plane, then D lies in the plane x z P1

  13. Polygonal Representation • Any 3D object can be represented as a set of plane, polygonal surfaces V7 V6 V8 V5 V3 V2 V4 V1 Note:each vertex part of several polygons

  14. Polygonal Representation • Objects with curved surfaces can be approximated by polygons - improved approximation by more polygons

  15. Scene Organisation • Scene = list of objects • Object = list of surfaces • Surface = list of polygons • Polygon = list of vertices scene vertices object surfaces polygons

  16. Polygon Table Vertex Table V1 X1, Y1, Z1 P1 V1, V2, V3, V4 V2 X2, Y2, Z2 P2 V1, V5, V6, V2 . ... . ... Polygon Data Structure V7 V6 Object Obj1 V5 V8 V3 V2 P2 V4 V1 P1 Object Table Obj1 P1, P2, P3, P4, P5, P6

  17. Typical Primitives • Graphics systems such as OpenGL typically support: • triangles, triangle strips and fans • quads, quad strips • polygons • Which way is front? • convention is that normal points towards you if vertices are specified counter-clockwise

  18. Modelling Regular Objects • Sweeping • Spinning sweep axis 2D Profile R1 R2 spinning axis

  19. Sweeping a Circle to Generate a Cylinder as Polygons V12 V13 V11 V18 V3 V10 V4 V14 V2 V17 V15 V5 V1 vertices at z=depth V16 V6 V8 V7 V9 vertices at z=0 V1[x] = R; V1[y] = 0; V1[z] = 0 V2[x] = R cos ; V2[y] = R sin ; V2[z] = 0 (q=p/4) Vk[x] = R cos k; Vk[y] = R sin k; Vk[z] = 0 where k = 2 p (k - 1 )/8, k=1,2,..8

  20. Complex Primitives • Some systems such as VRML have cylinders, cones, etc as primitives • polygonal representation calculated automatically • OpenGL has a utility library (GLU) which contains various high-level primitives • again converted to polygons • For conventional graphics hardware: • POLYGONS RULE!

  21. Automatic Generation of Polygonal Objects • 3D scanners - or laser rangers - are able to generate computer representations of objects • object sits on rotating table • contour outline generated for a given height • scanner moves up a level and next contour created • successive contours stitched together to give polygonal representation

  22. A Puzzle

  23. Modelling Objects and Creating Worlds • We have seen how boundary representations of simple objects can be created • Typically each object is created in its own co-ordinate system • To create a world, we need to understand how to transform objects so as to place them in the right place - translation, at the right size - scaling, in the right orientation- rotation

  24. Transformations • The basic linear transformations are: • translation: P = P + T, where T is translation vector • scaling: P’ = S P, where S is a scaling matrix • rotation: P’ = R P, where R is a rotation matrix • As in 2D graphics, we use homogeneous co-ordinates in order to express all transformations as matrices and allow them to be combined easily

  25. Homogeneous Co-ordinates • In homogeneous coordinates, a 3D point P = (x,y,z)T is represented as: P = (x,y,z,1)T • That is, a point in 4D space, with its ‘extra’ co-ordinate equal to 1 • Note: in homogeneous co-ordinates, multiplication by a constant leaves point unchanged • ie (x, y, z, 1)T = (wx, wy, wz, w)T

  26. Translation • Suppose we want to translate P (x,y,z)T by a distance (Tx, Ty, Tz)T • We express P as (x, y, z, 1)T and form a translation matrix T as below • The translated point is P’ x y z 1 = x’ y’ z’ 1 1 0 0 Tx 0 1 0 Ty 0 0 1 Tz 0 0 0 1 = x + Tx y + Ty z + Tz 1 = T P P’

  27. = x’ y’ z’ 1 Sx 0 0 0 0 Sy 0 0 0 0 Sz 0 0 0 0 1 x y z 1 P’ S P = Scaling • Scaling by Sx, Sy, Sz relative to the origin: = Sx . x Sy . y Sz . z 1

  28. x’ y’ z’ 1 = 1 0 0 0 0 cos -sin 0 0 sin cos 0 0 0 0 1 x y z 1 P’ = Rz () P Rotation • Rotation is specified with respect to an axis - easiest to start with co-ordinate axes • To rotate about the x-axis: a positive angle corresponds to counter-clockwise direction looking at origin from positive position on axis

  29. Composite Transformations • The attraction of homogeneous co-ordinates is that a sequence of transformations may be encapsulated as a single matrix • For example, scaling with respect to a fixed position (a,b,c) can be achieved by: • translate fixed point to origin- say, T(-a,-b,-c) • scale- S • translate fixed point back to its starting position- T(a,b,c) • Thus: P’ = T(a,b,c) S T(-a,-b,-c) P = M P

  30. Rotation about a Specified Axis • It is useful to be able to rotate about any axis in 3D space • This is achieved by composing 7 elementary transformations

  31. y x z rotate so that P2 lies on z-axis (2 rotations) translate P1 to origin initial position y x z rotate axis to orig orientation translate back Rotation through  about Specified Axis y y P2 P1 x x z z y y P2 P1 x x z z rotate through requ’d angle, 

  32. Inverse Transformations • As in this example, it is often useful to calculate the inverse of a transformation • ie the transformation that returns to original state • Translation: T-1 (a, b, c) = T (-a, -b, -c) • Scaling: S-1 ( Sx, Sy, Sz ) = S ............ • Rotation: R-1z () = Rz (-)

  33. SEN 992 Computer Graphics I Viewing - Projections

  34. Viewing • Graphics display devices are 2D rectangular screens • Hence we need to understand how to transform our 3D world to a 2D surface • This involves: • selecting the observer position (or camera position) • selecting the view plane (or camera film plane) • selecting the type of projection

  35. Perspective Projections • There are two types of projection: perspective and parallel • In a perspective projection, object positions are projected onto the view plane along lines which converge at the observer P1 P1’ camera P2 P2’ view plane

  36. Parallel Projection • In a parallel projection, the observer position is at an infinite distance, so the projection lines are parallel P1 P2 view plane

  37. Perspective and Parallel Projection • Parallel projection preserves the relative proportions of objects, but does not give a realistic view • Perspective projection gives realistic views, but does not preserve proportions • Projections of distant objects are smaller than projections of objects of the same size which are closer to the view plane

  38. Perspective and Parallel Projection parallel perspective

  39. yV xV zV Viewing Coordinate System • Viewing is easier if we work in a viewing co-ordinate system, where the observer or camera position is on the z-axis, looking along the negative z-direction Camera is positioned at: (0 , 0, zC)

  40. yv xv zv View Plane • We assume the view plane is perpendicular to the viewing direction The view plane is positioned at: (0, 0, zVP) Let d = zC - zVP be the distance between the camera and the plane

  41. yv Q xv yV camera zv zV view plane Perspective Projection Calculation zQ zVP zC looking along x-axis

  42. Q yV camera zV view plane Perspective Projection Calculation P zQ zVP zC By similar triangles, yP / yQ = (zC - zVP) / (zC - zQ) and so yP = yQ * (zC - zVP) / (zC - zQ) or yP = yQ * d / (zC - zQ) xP likewise

  43. Transformation Matrix for Perspective xQ yQ zQ 1 xH yH zH wH = 1 0 0 0 0 1 0 0 0 0 -zVP/d zVPzC/d 0 0 -1/d zC/d Then xP = xH / wH ie xP = xH / ( (zC - zQ) / d ) ie xP = xQ / ( (zC - zQ) / d ) yP likewise

  44. Note for Later • The original z co-ordinate of points is retained • we need relative depth in the scene in order to sort out which faces are visible to the camera

  45. Vanishing Points • When a 3D object is projected onto a view plane using perspective, parallel lines in object NOT parallel to the view plane converge to a vanishing point vanishing point one-point perspective projection of cube view plane

  46. One- and Two-Point Perspective Drawing

  47. One-point Perspective This is: Trinity with the Virgin, St John and Donors, by Mastaccio in 1427 Said to be the first painting in perspective

  48. Two-point Perspective Edward Hopper Lighthouse at Two Lights -see www.postershop.com

  49. Orthographic parallel projection has view plane perpendicular to direction of projection Oblique parallel projection has view plane at an oblique angle to direction of projection Parallel Projection - Two types P1 P1 P2 P2 view plane view plane We shall only consider orthographic projection

  50. yv Q xv yV zv zV view plane Parallel Projection Calculation zQ zVP looking along x-axis
