How do you get data of existing field conditions into GeoPak? (3 ways)

How do you get data of existing field conditions into GeoPak? (3 ways). 1) The information is given to you (easy way). - If you request data you should get the following: Photogrammetry department (Extended Coverage) Survey Chief (Topog. area)

tate
Télécharger la présentation

How do you get data of existing field conditions into GeoPak? (3 ways)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

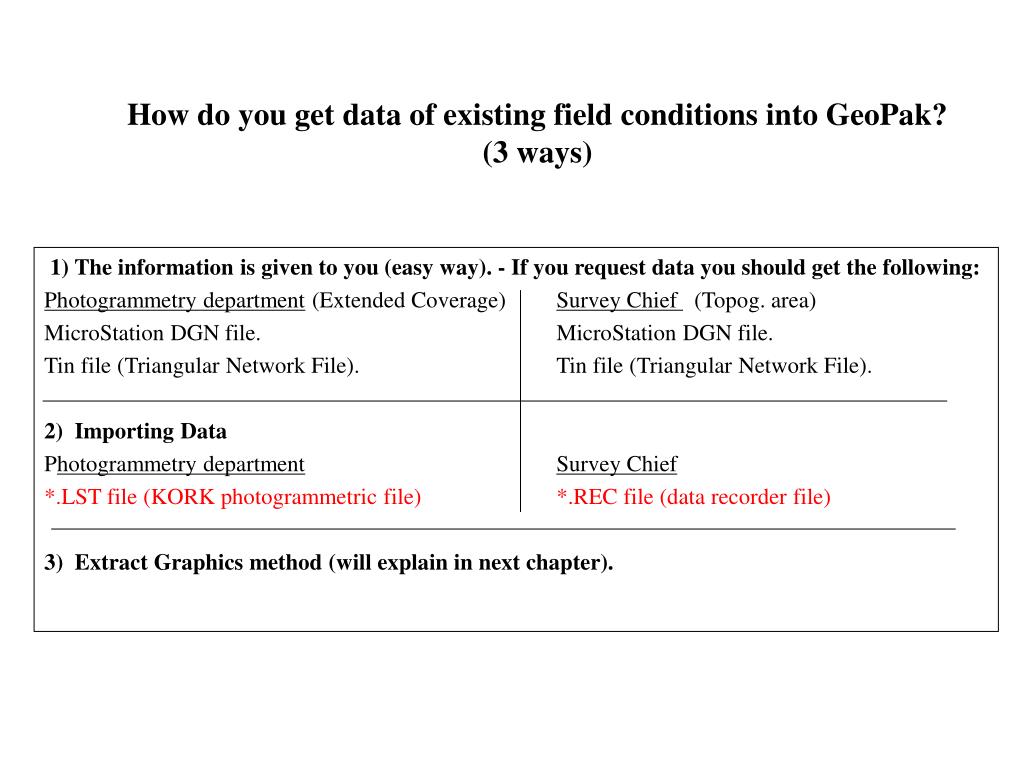

  1. How do you get data of existing field conditions into GeoPak? (3 ways) 1) The information is given to you (easy way). - If you request data you should get the following: Photogrammetry department (Extended Coverage) Survey Chief (Topog. area) MicroStation DGN file. MicroStation DGN file. Tin file (Triangular Network File). Tin file (Triangular Network File). 2) Importing Data Photogrammetry departmentSurvey Chief *.LST file (KORK photogrammetric file)*.REC file (data recorder file) 3)  Extract Graphics method (will explain in next chapter).

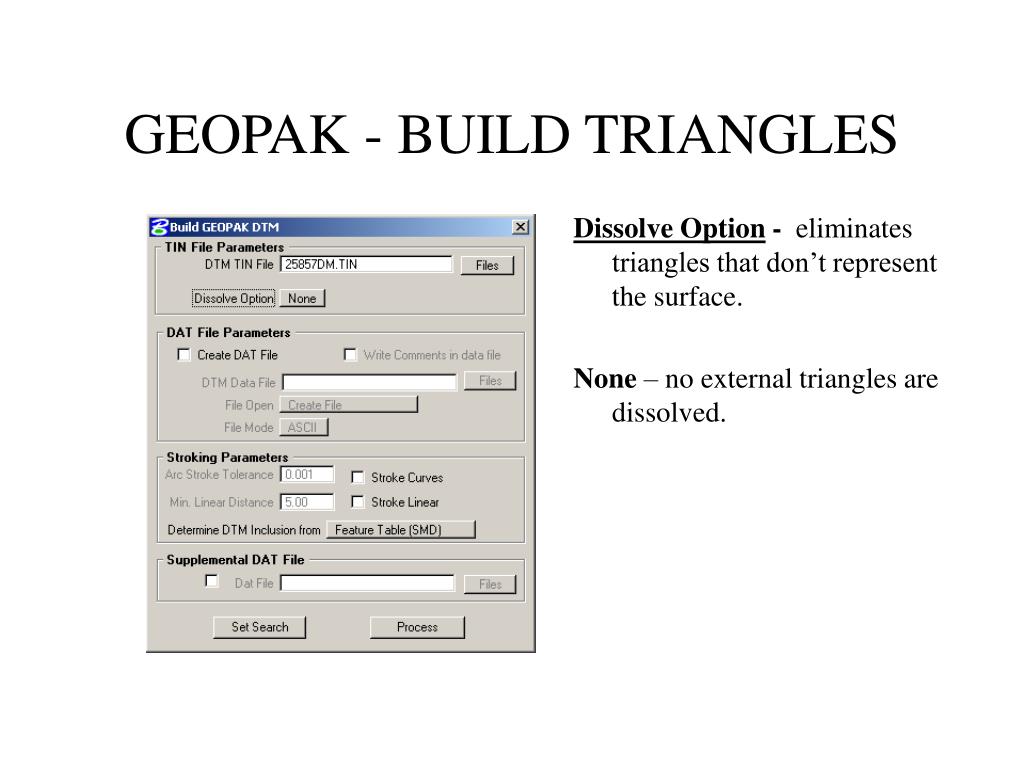

  2. GEOPAK - BUILD TRIANGLES Dissolve Option - eliminates triangles that don’t represent the surface. None – no external triangles are dissolved.

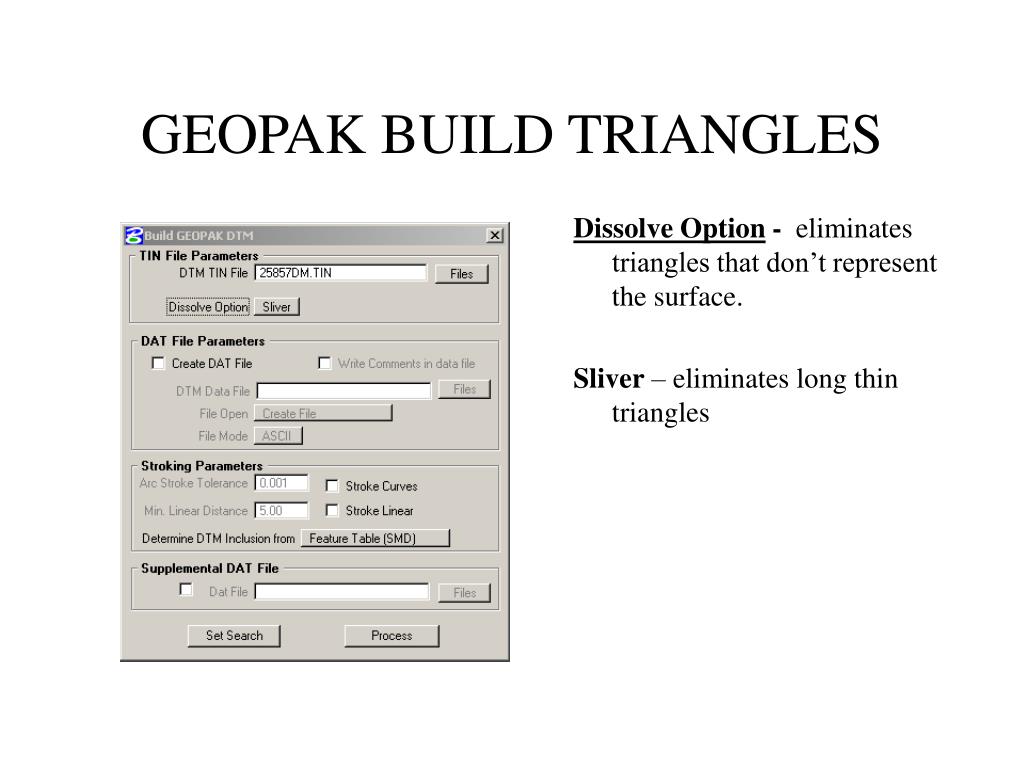

  3. GEOPAK BUILD TRIANGLES Dissolve Option - eliminates triangles that don’t represent the surface. Sliver – eliminates long thin triangles

  4. GEOPAK BUILD TRIANGLES Dissolve Option - eliminates triangles that don’t represent the surface. Side – Will dissolve all triangles that have an external side longer than the user specified length.
