The AGILO Autonomous Robot Soccer Team: Computational Principles, Experiences, and Perspectives

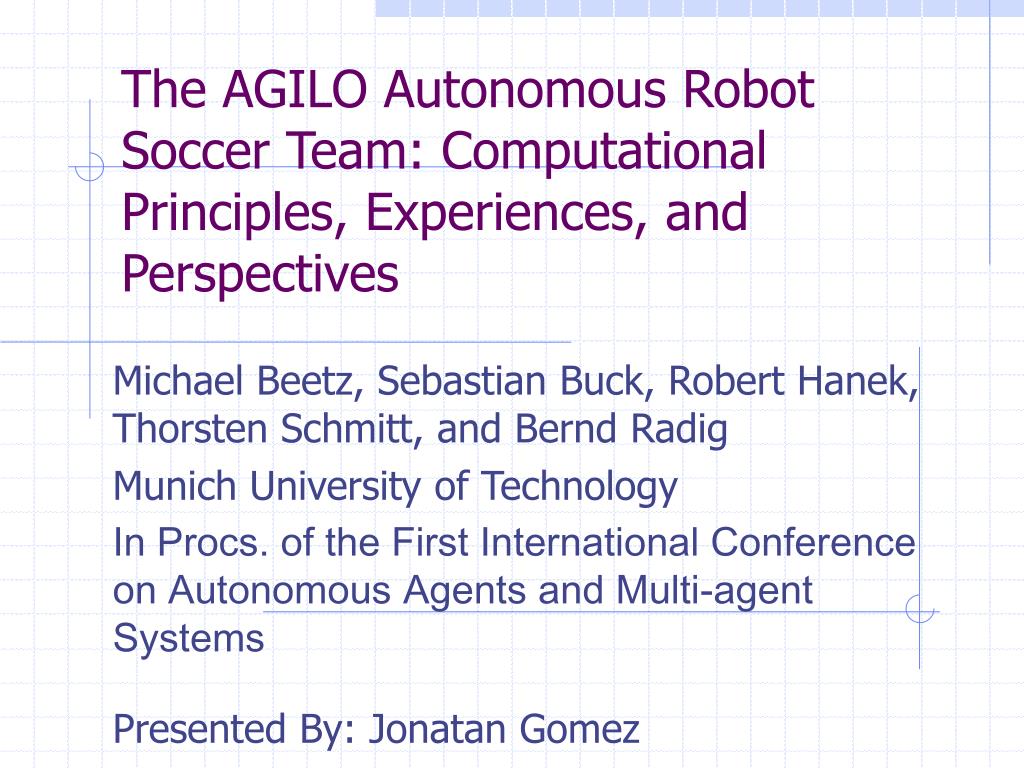

1. The AGILO Autonomous Robot Soccer Team: Computational Principles, Experiences, and Perspectives Michael Beetz, Sebastian Buck, Robert Hanek, Thorsten Schmitt, and Bernd Radig Munich University of Technology In Procs. of the First International Conference on Autonomous Agents and Multi-agent Systems Presented By: Jonatan Gomez

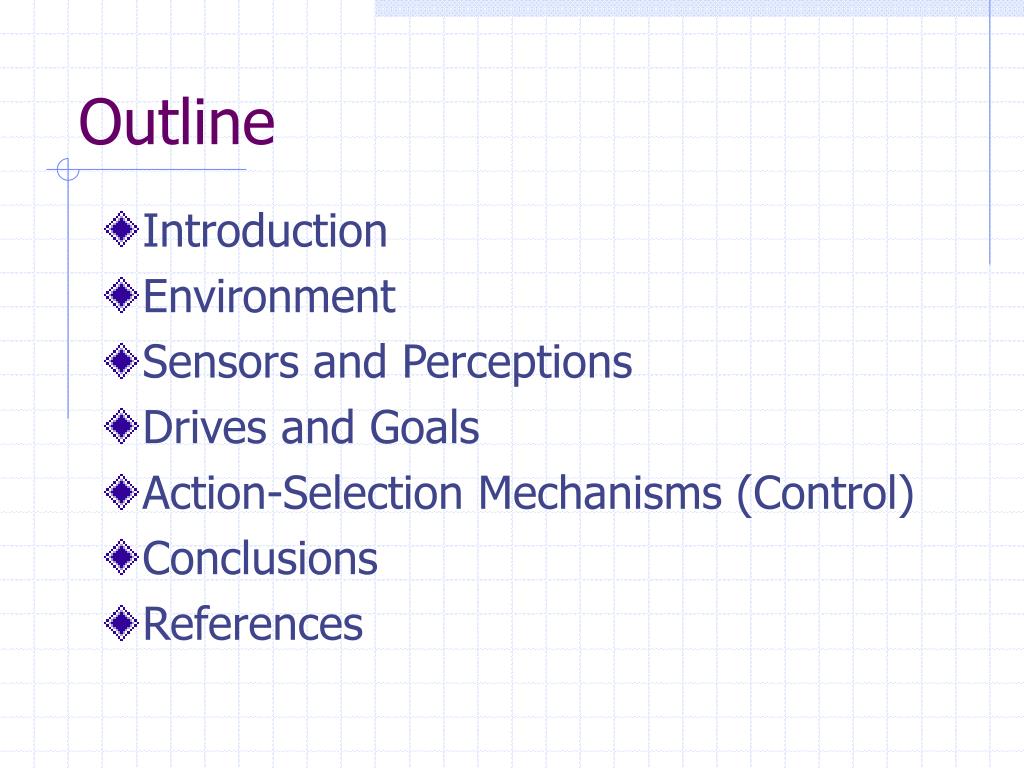

2. Outline • Introduction • Environment • Sensors and Perceptions • Drives and Goals • Action-Selection Mechanisms (Control) • Conclusions • References

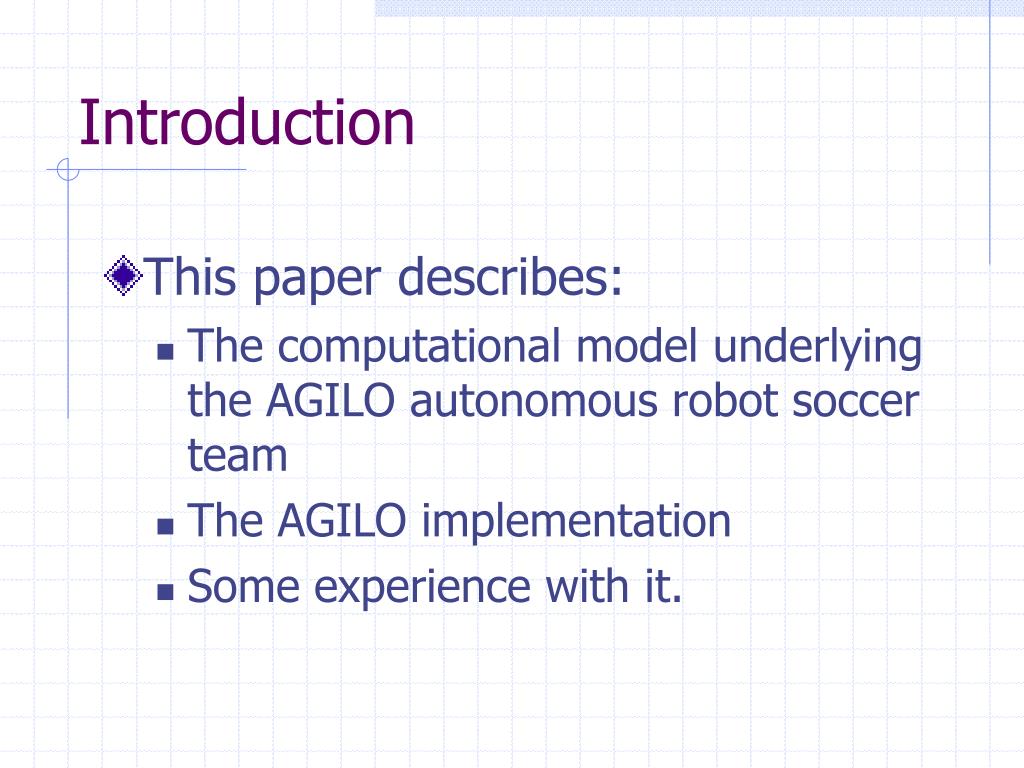

3. Introduction • This paper describes: • The computational model underlying the AGILO autonomous robot soccer team • The AGILO implementation • Some experience with it.

4. Introduction • In robot soccer (mid-size league): • Two teams of autonomous robots play soccer against each other. • Each team has four members - one goal keeper and three field players. • The soccer field is 4 * 9 meters big surrounded by walls.

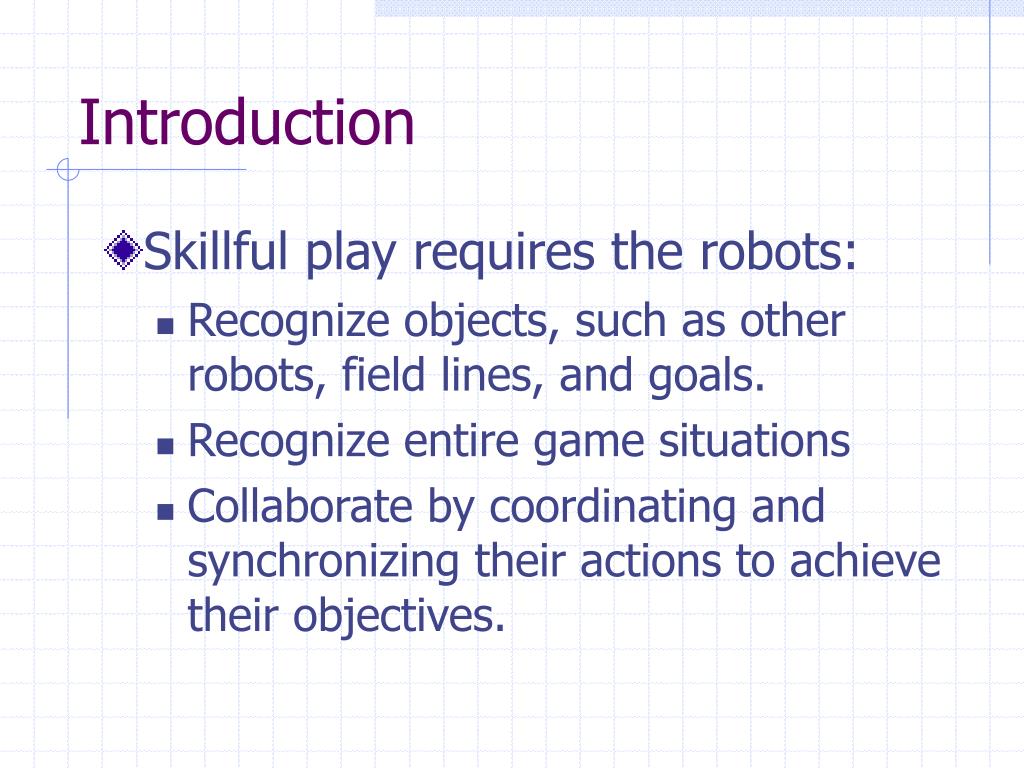

5. Introduction • Skillful play requires the robots: • Recognize objects, such as other robots, field lines, and goals. • Recognize entire game situations • Collaborate by coordinating and synchronizing their actions to achieve their objectives.

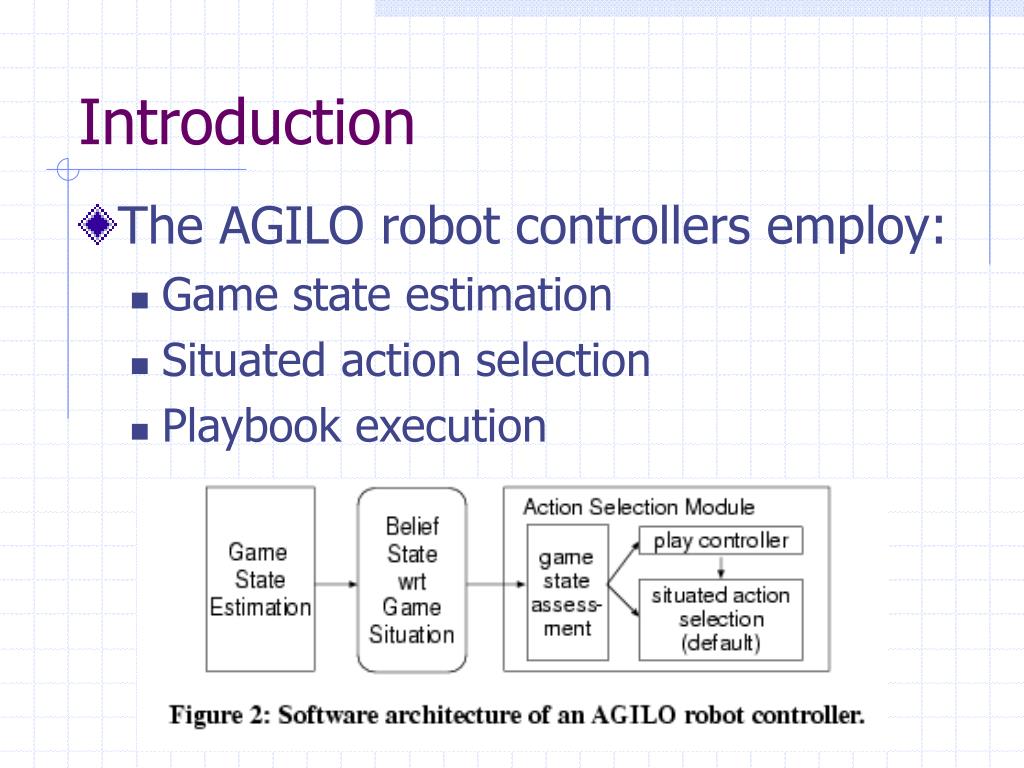

6. Introduction • The AGILO robot controllers employ: • Game state estimation • Situated action selection • Playbook execution

7. Environment • A soccer field with the following characteristics: • 4 * 9 meters big • Surrounded by walls • Field lines • 8 autonomous robots • 2 Goals • 1 ball

8. Environment • Properties • Dynamic • Semi-Accessible • Non-deterministic • Non-episodic • Continuous

9. Sensors and Perceptions • A wireless ethernet for communication with others team members (1). • Sonar sensors for collision avoidance (4). • A fixed color CCD camera with an opening angle of 90o (3).

10. Sensors and Perceptions • Vision-based, Cooperative Game State Estimation • Video Perception • Self Localization • Opponent Tracking • Cooperative State Estimation

11. Sensors and Perceptions

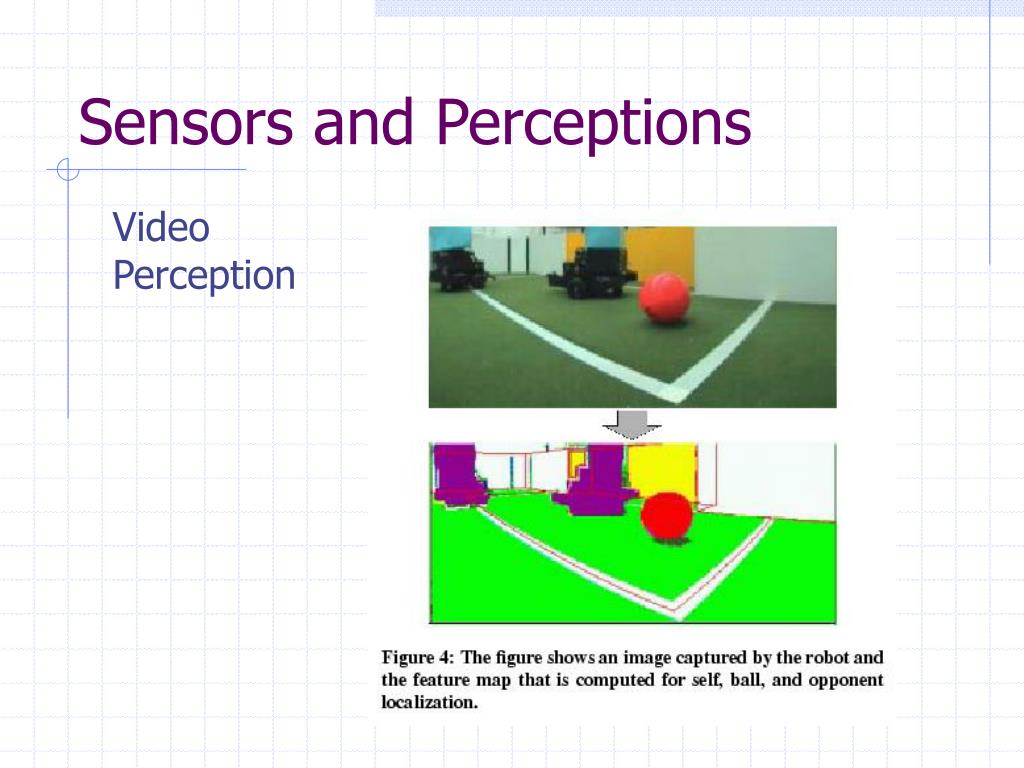

12. Sensors and Perceptions Video Perception

13. Sensors and Perceptions Self Localization

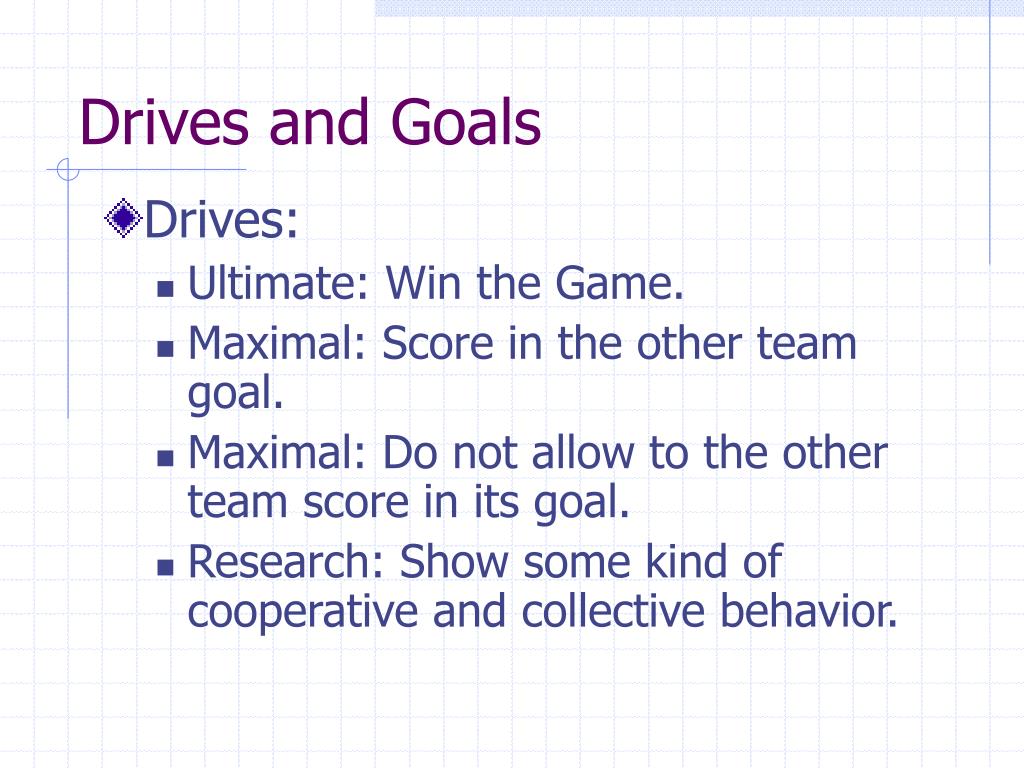

14. Drives and Goals • Drives: • Ultimate: Win the Game. • Maximal: Score in the other team goal. • Maximal: Do not allow to the other team score in its goal. • Research: Show some kind of cooperative and collective behavior.

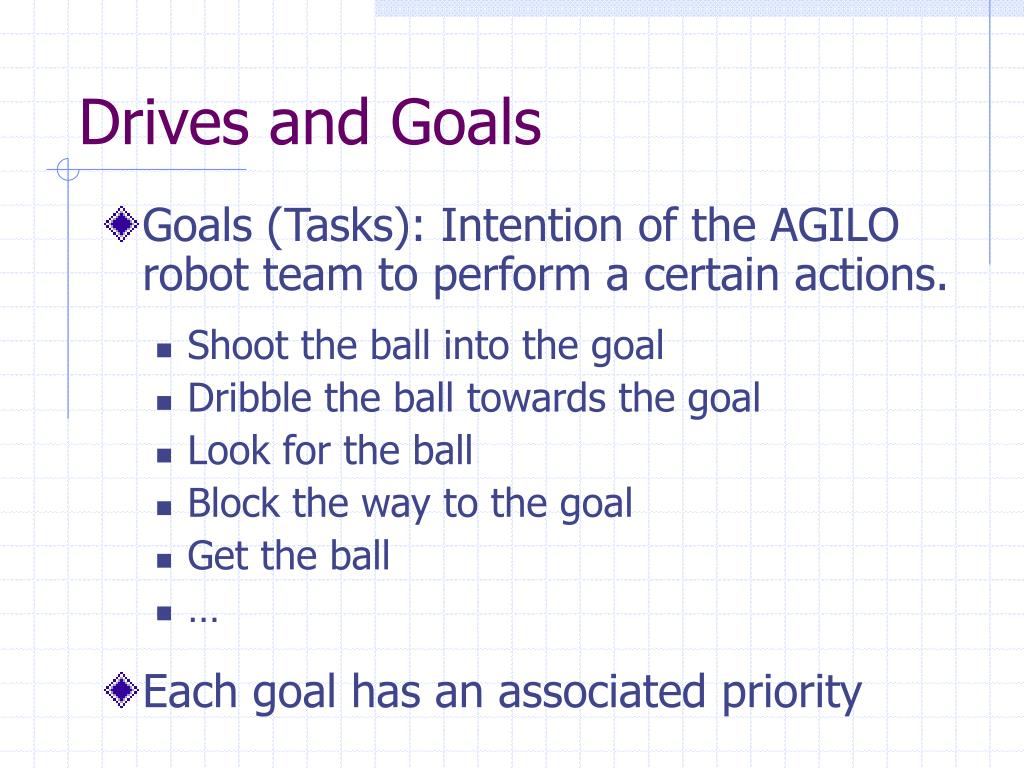

15. Drives and Goals • Goals (Tasks): Intention of the AGILO robot team to perform a certain actions. • Shoot the ball into the goal • Dribble the ball towards the goal • Look for the ball • Block the way to the goal • Get the ball • … • Each goal has an associated priority

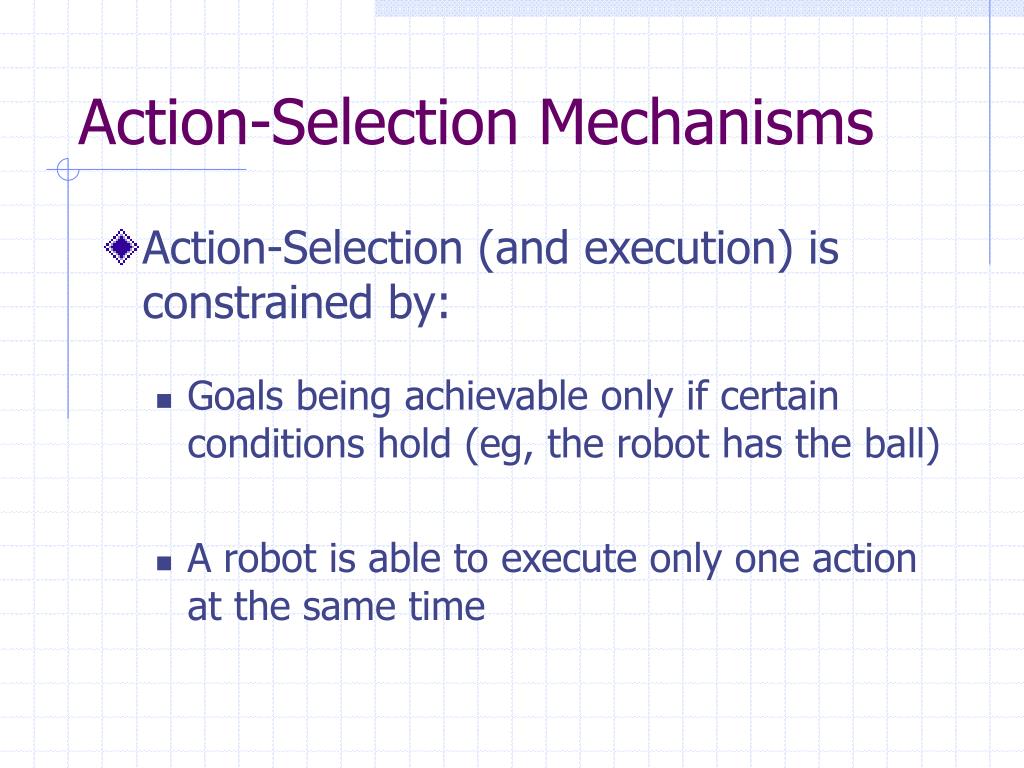

16. Action-Selection Mechanisms • Action-Selection (and execution) is constrained by: • Goals being achievable only if certain conditions hold (eg, the robot has the ball) • A robot is able to execute only one action at the same time

17. Action-Selection Mechanisms • Situated Action-Selection: • A goal assignment is a list of goals that an individual robot can perform (according to the goals priority and cost). • An order over the goal assignments is imposed in order to determine the goals to be performed by a robot.

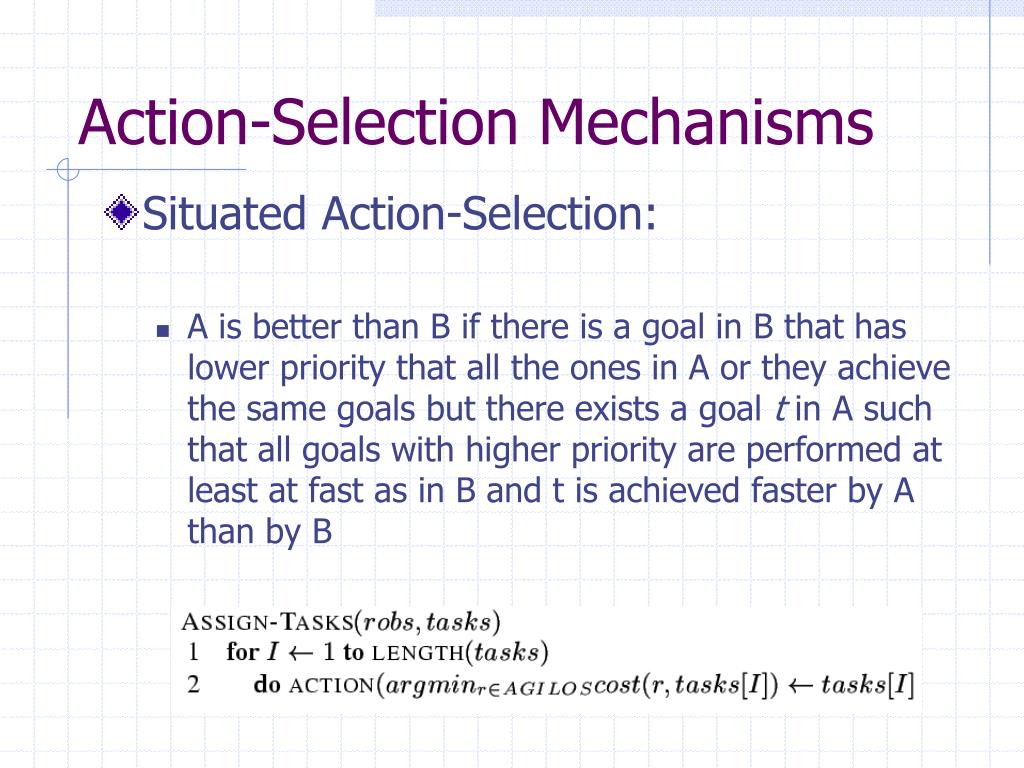

18. Action-Selection Mechanisms • Situated Action-Selection: • A is better than B if there is a goal in B that has lower priority that all the ones in A or they achieve the same goals but there exists a goal t in A such that all goals with higher priority are performed at least at fast as in B and t is achieved faster by A than by B

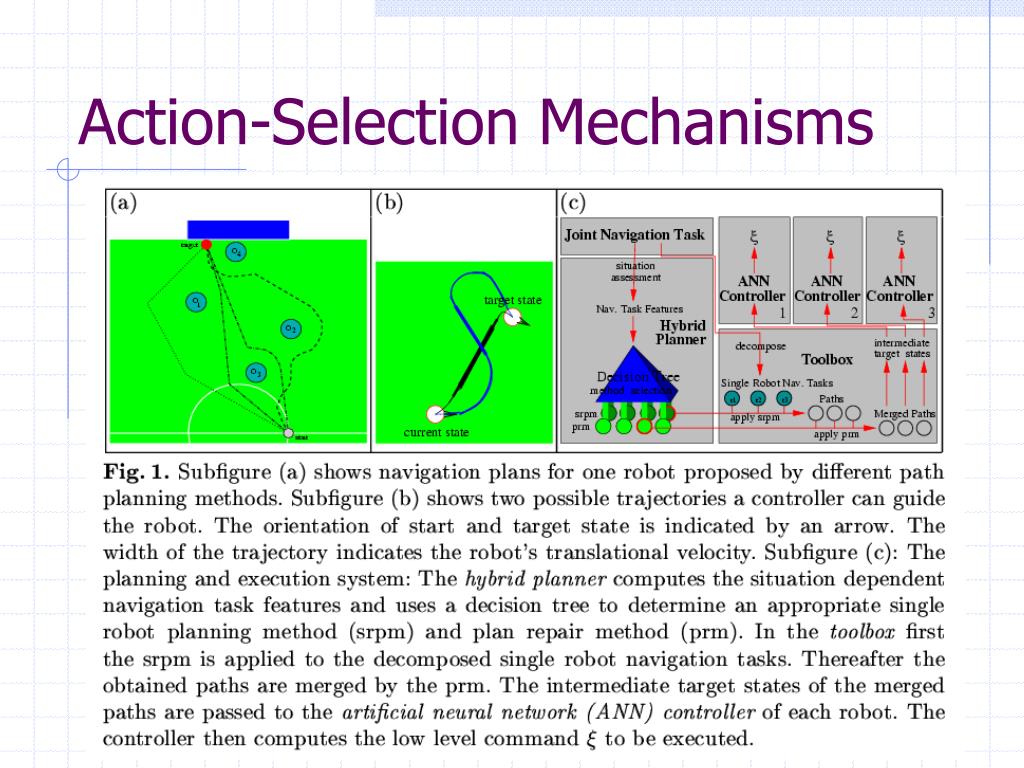

19. Action-Selection Mechanisms • Situated Action-Selection: The goal (task) cost estimator perform three steps: • Selection of the multi-robot navigation method that matches the game state best • Computing a path in the context of the navigation paths of the team mates • The proposed path is decomposed into a sequence of simpler navigation tasks for which the time cost can be accurately predicted using a neural network.

20. Action-Selection Mechanisms

21. Action-Selection Mechanisms • Situated Action-Selection: • Choosing actions that have the highest expected utility in the respective situation • Does not take into account a strategic assessment of alternative actions. • In general is a limited temporal horizon.

22. Action-Selection Mechanisms • Plan Based Control: • Improve the robot soccer team by adding the capability of learning and execute soccer plays. • Soccer plays are properly synchronized, cooperative macro actions than can be executed in certain game contexts and have, in these contexts, a high success rate.

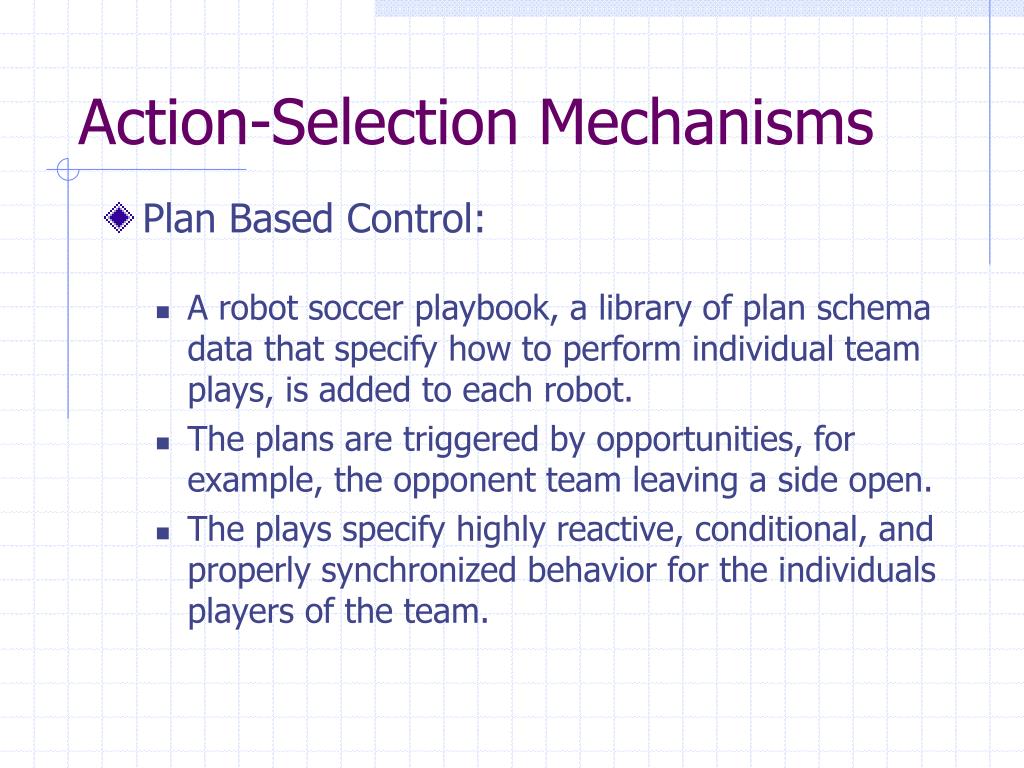

23. Action-Selection Mechanisms • Plan Based Control: • A robot soccer playbook, a library of plan schema data that specify how to perform individual team plays, is added to each robot. • The plans are triggered by opportunities, for example, the opponent team leaving a side open. • The plays specify highly reactive, conditional, and properly synchronized behavior for the individuals players of the team.

24. Action-Selection Mechanisms Plan Based Control

25. Conclusions • This paper described and discussed the control software of the AGILO autonomous robot soccer team. • The AGILO teams employs sophisticated state estimation and control techniques, including experience-based learning and plan-based control mechanisms.
