  1. Chapter 21, section 1 Tools of Modern Astronomy By Rusty Sturken

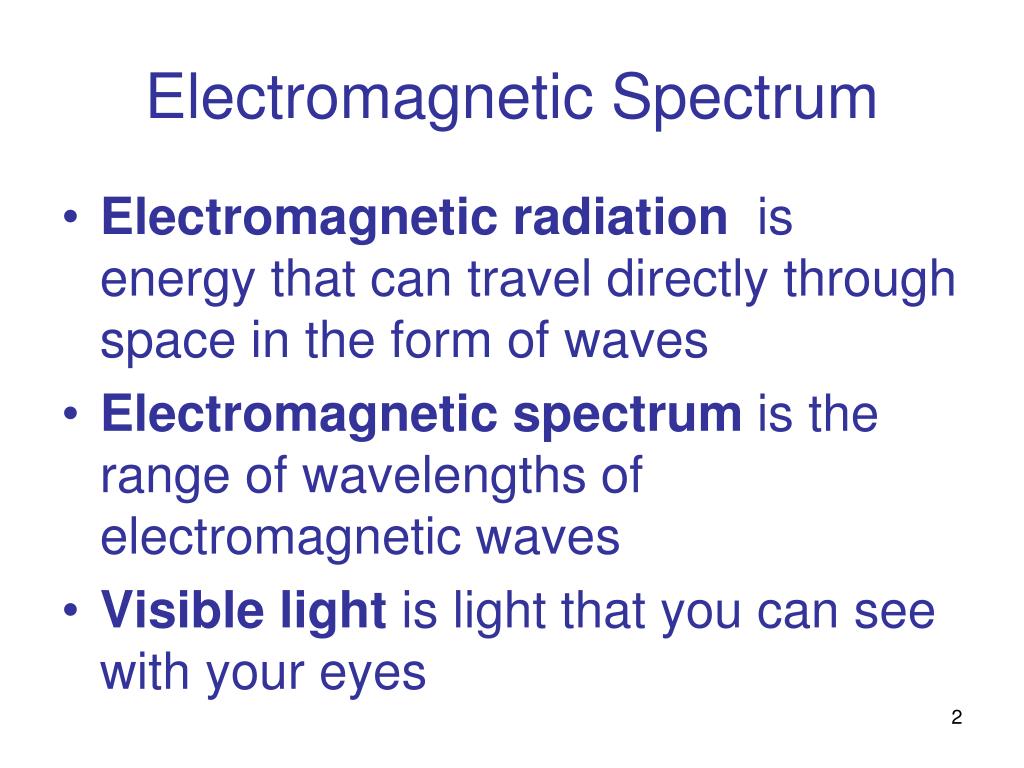

  2. Electromagnetic Spectrum • Electromagnetic radiation is energy that can travel directly through space in the form of waves • Electromagnetic spectrum is the range of wavelengths of electromagnetic waves • Visible light is light that you can see with your eyes

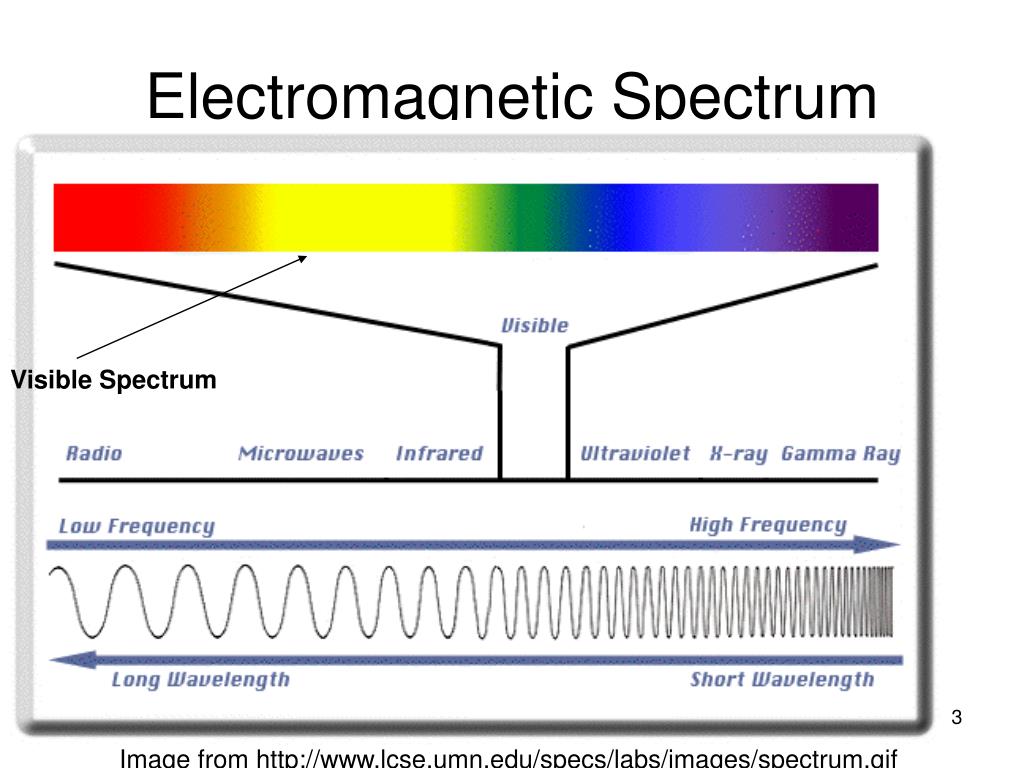

  3. Electromagnetic Spectrum Visible Spectrum Image from http://www.lcse.umn.edu/specs/labs/images/spectrum.gif

  4. Telescopes • A telescope is a device built to study distant objects by making them appear closer • A refracting telescope uses convex lenses to gather a large amount of light onto a small area • A reflecting telescope uses mirrors to gather a large amount of light onto a small area

  5. Telescopes • A radio telescope uses curved, reflecting surfaces to concentrate faint radio waves from outer space onto small antennas

  6. Refracting telescope Image on left from http://www.dkimages.com/ discover/previews/941/25018530.JPG Image on right from http://www.adlerplanetarium.org/research/collections/ instruments/images/g33_72.jpg

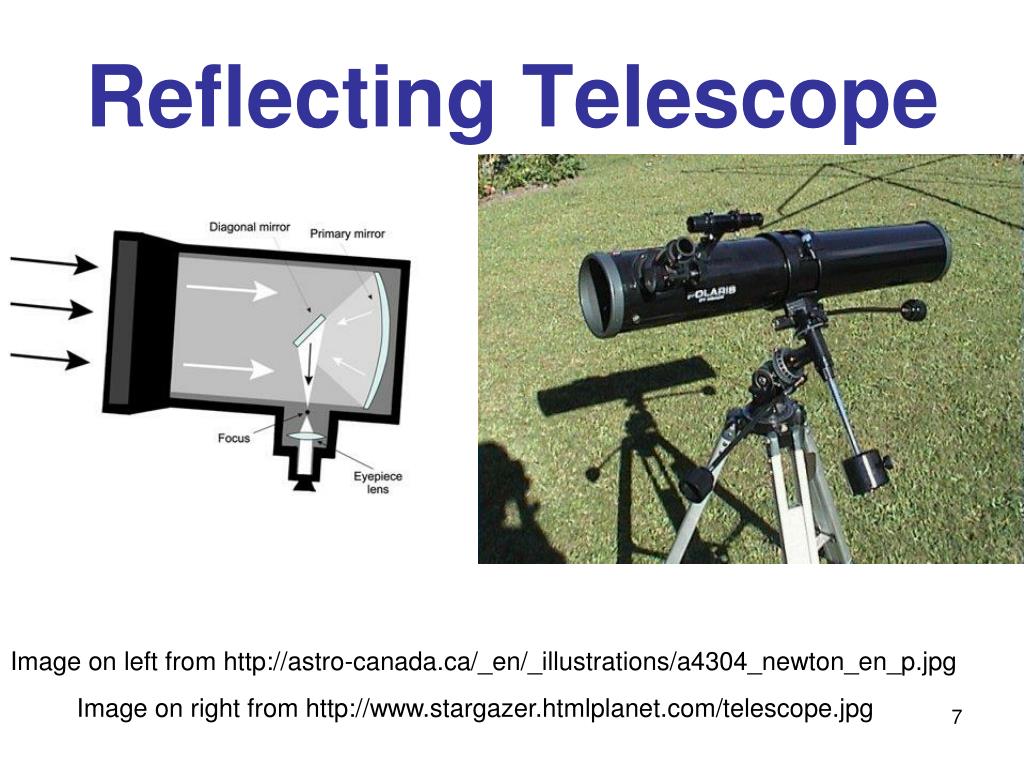

  7. Reflecting Telescope Image on left from http://astro-canada.ca/_en/_illustrations/a4304_newton_en_p.jpg Image on right from http://www.stargazer.htmlplanet.com/telescope.jpg

  8. Radio Telescope Very Large Array Telescope Arecibo Radio Telescope Image on left from http://pro.corbis.com/images/RF4411534.jpg?size=572&uid=%7BD0356A80-EEEE-4A3C-ACBA-86BB2F75551D%7D Image on right from http://www.aoc.nrao.edu/~emomjian/ao002.jpg

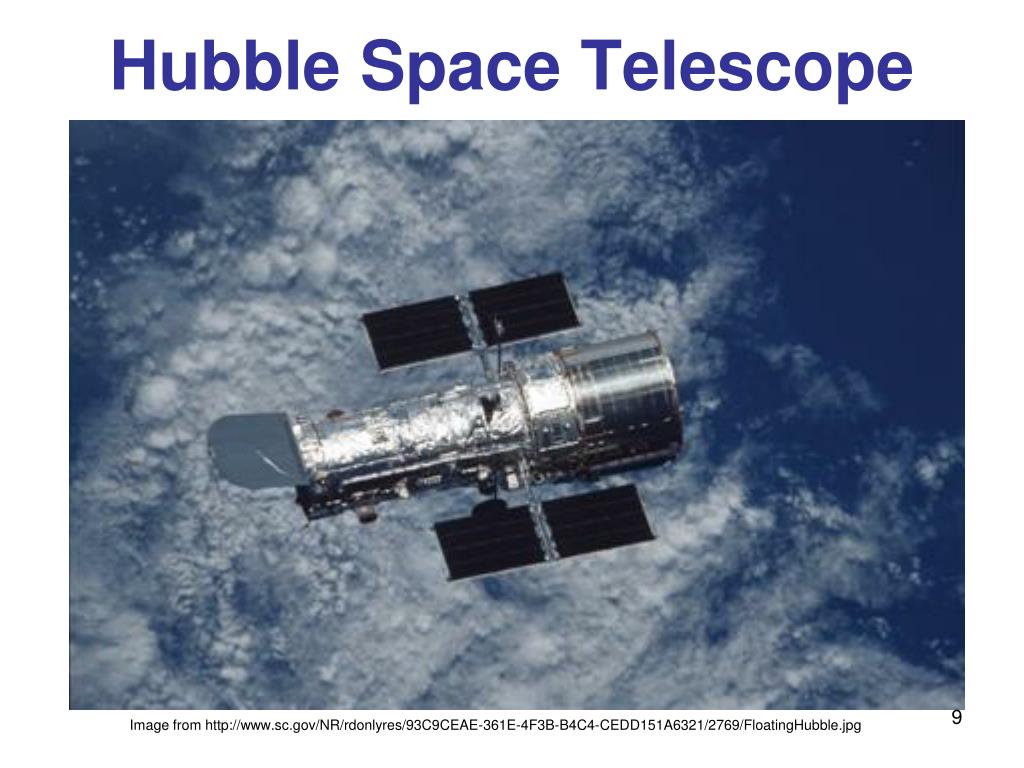

  9. Hubble Space Telescope Image from http://www.sc.gov/NR/rdonlyres/93C9CEAE-361E-4F3B-B4C4-CEDD151A6321/2769/FloatingHubble.jpg

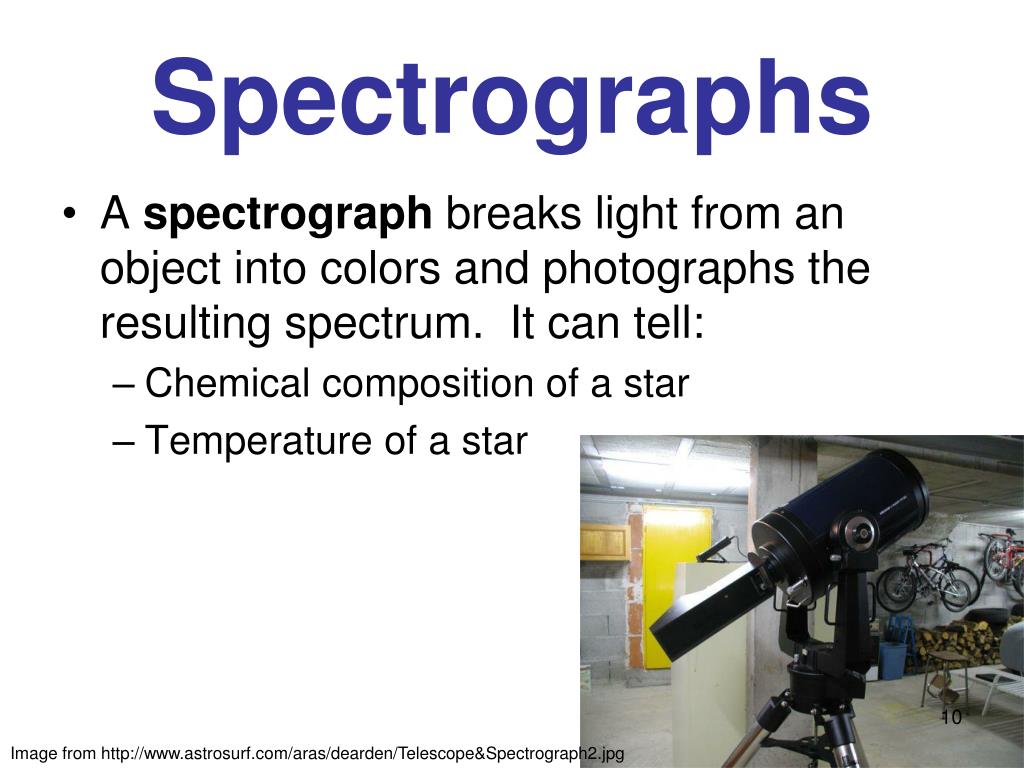

  10. Spectrographs • A spectrograph breaks light from an object into colors and photographs the resulting spectrum. It can tell: • Chemical composition of a star • Temperature of a star Image from http://www.astrosurf.com/aras/dearden/Telescope&Spectrograph2.jpg

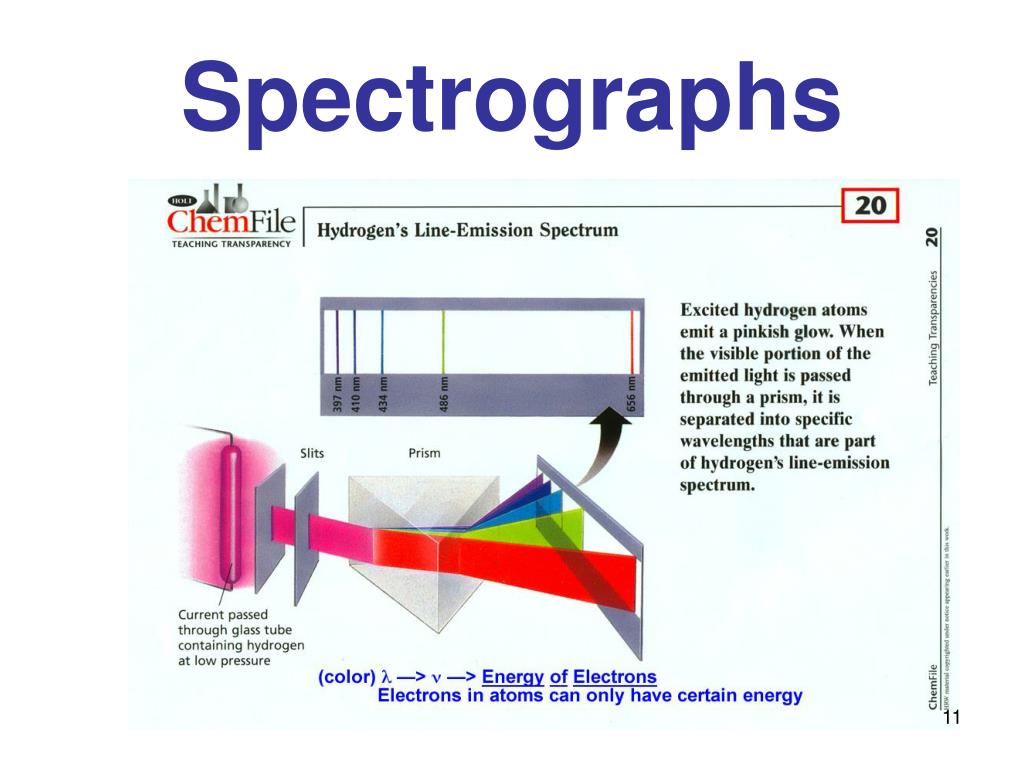

  11. Spectrographs

  12. Spectrographs Image from http://www.scienceinschool.org/repository/images/issue4spectrometer11_large.jpg
