Presentation Transcript

  1. Chemistry Unit 3Chemical Bonds Valence Electrons Dot Diagrams Oxidation numbers Types of Bonds Polyatomics Transition elements

  2. Valence Electrons • The number of electrons in the outer energy level involved in bonding. • Equal to the ‘group number’ (except 3-12). • Found in loop and cross diagrams.

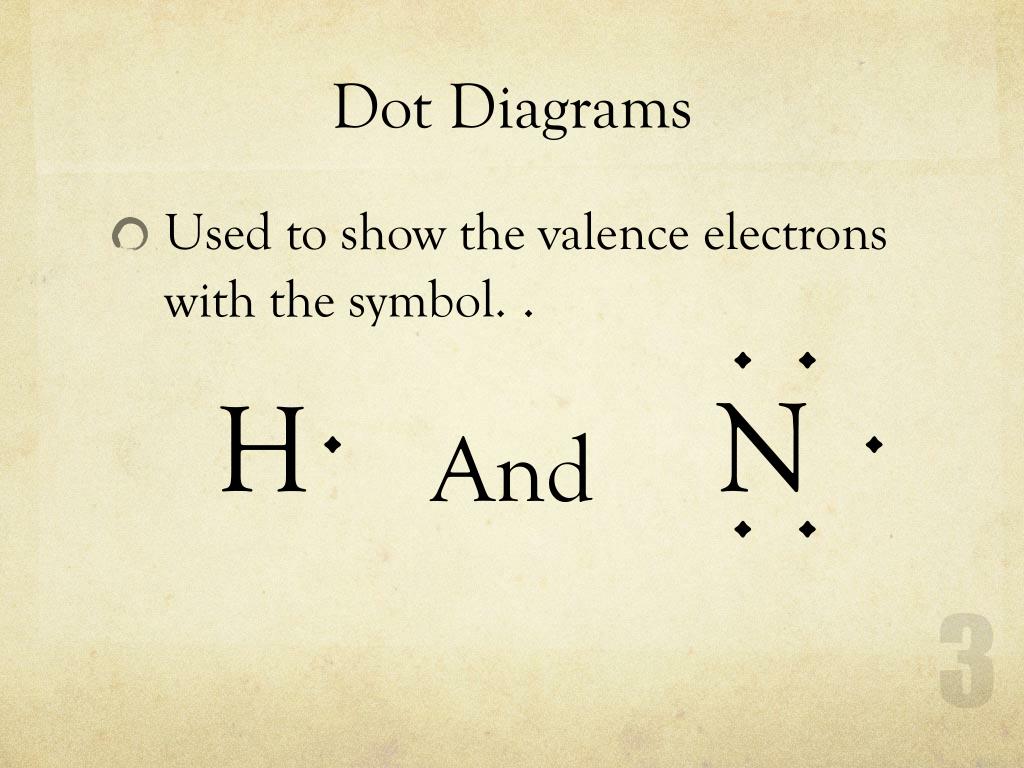

  3. Dot Diagrams • Used to show the valence electrons with the symbol. . . . . . N H And . .

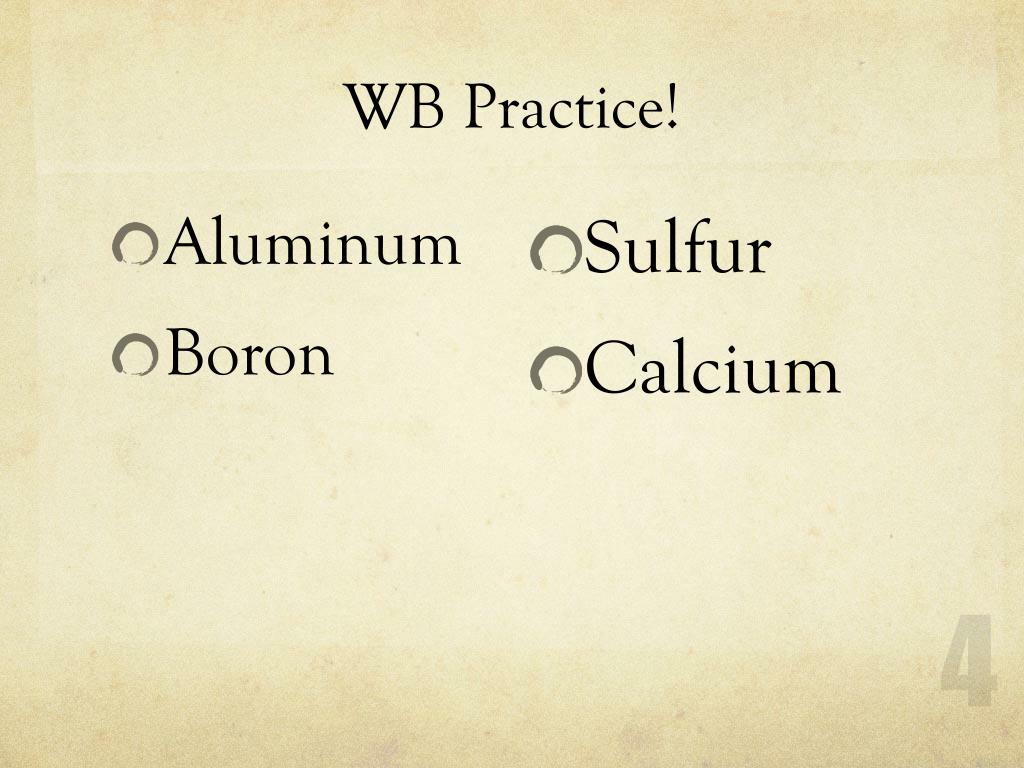

  4. WB Practice! • Aluminum • Boron • Sulfur • Calcium

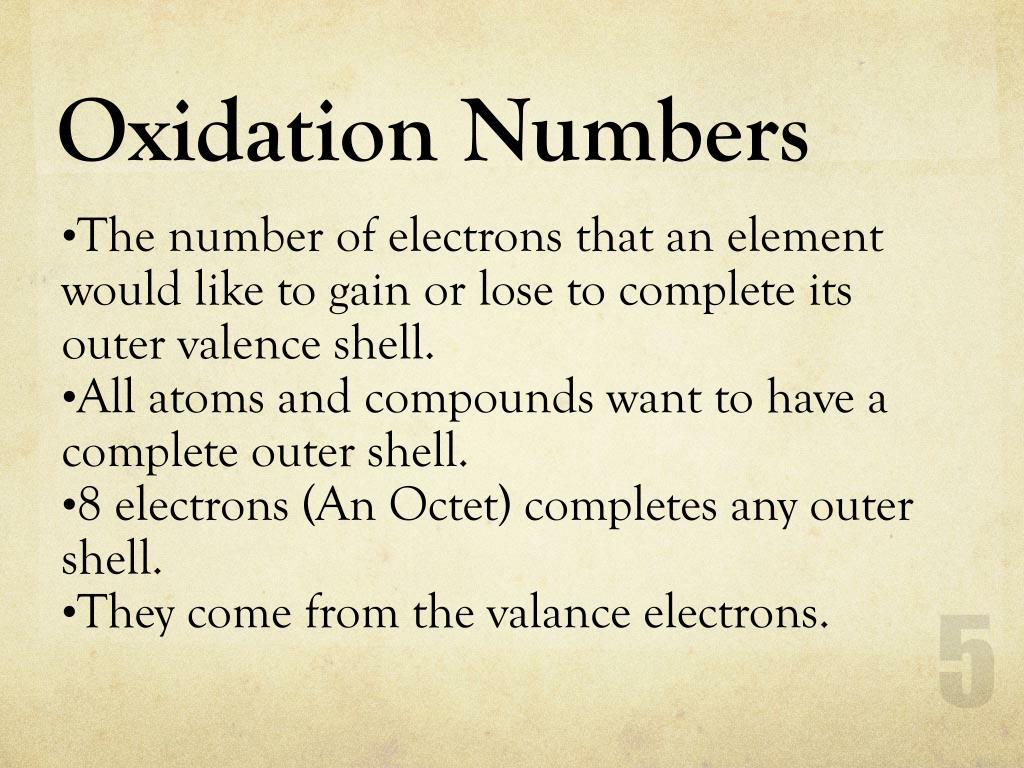

  5. Oxidation Numbers The number of electrons that an element would like to gain or lose to complete its outer valence shell. All atoms and compounds want to have a complete outer shell. 8 electrons (An Octet) completes any outer shell. They come from the valance electrons.

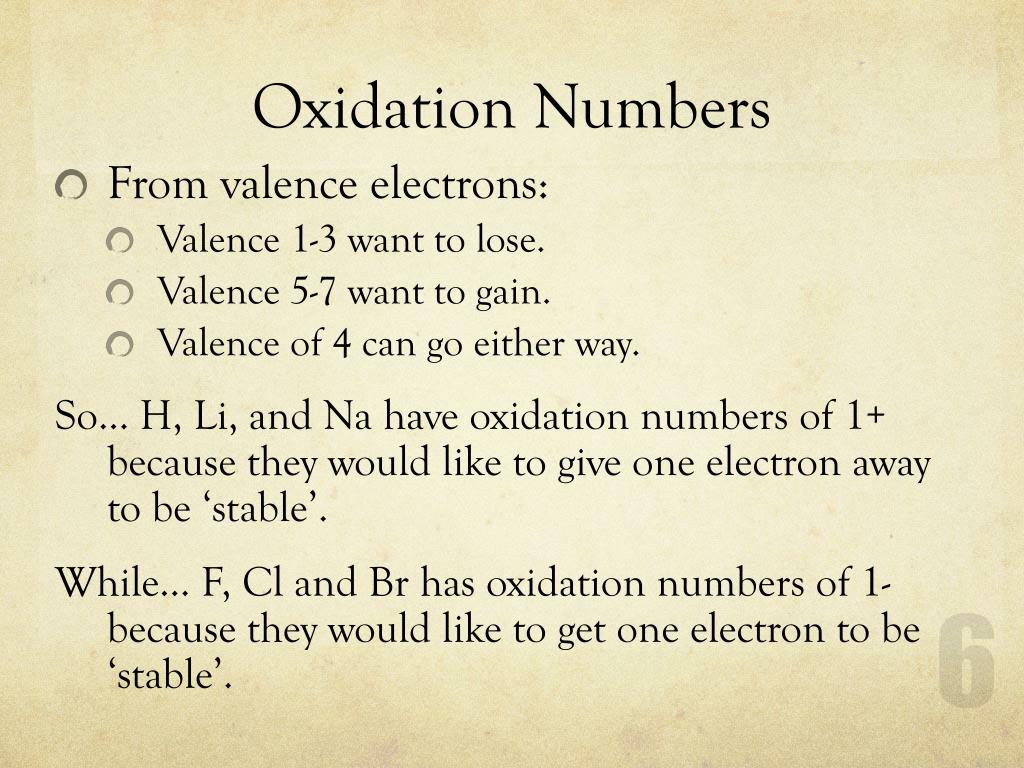

  6. Oxidation Numbers • From valence electrons: • Valence 1-3 want to lose. • Valence 5-7 want to gain. • Valence of 4 can go either way. So… H, Li, and Na have oxidation numbers of 1+ because they would like to give one electron away to be ‘stable’. While… F, Cl and Br has oxidation numbers of 1- because they would like to get one electron to be ‘stable’.

  7. Types of Bonds • Ionic: • Where electrons are lost and gained between atoms. • Mainly between metals and non-metals. • Uses the Oxidation number • Covalent: • Where electrons are shared between atoms. • Between two non-metals. • You must be given the number of each element used. • For BONDING: • Elements to RIGHT of the stair step are NON-metal • Elements to the LEFT of the stair step are METAL

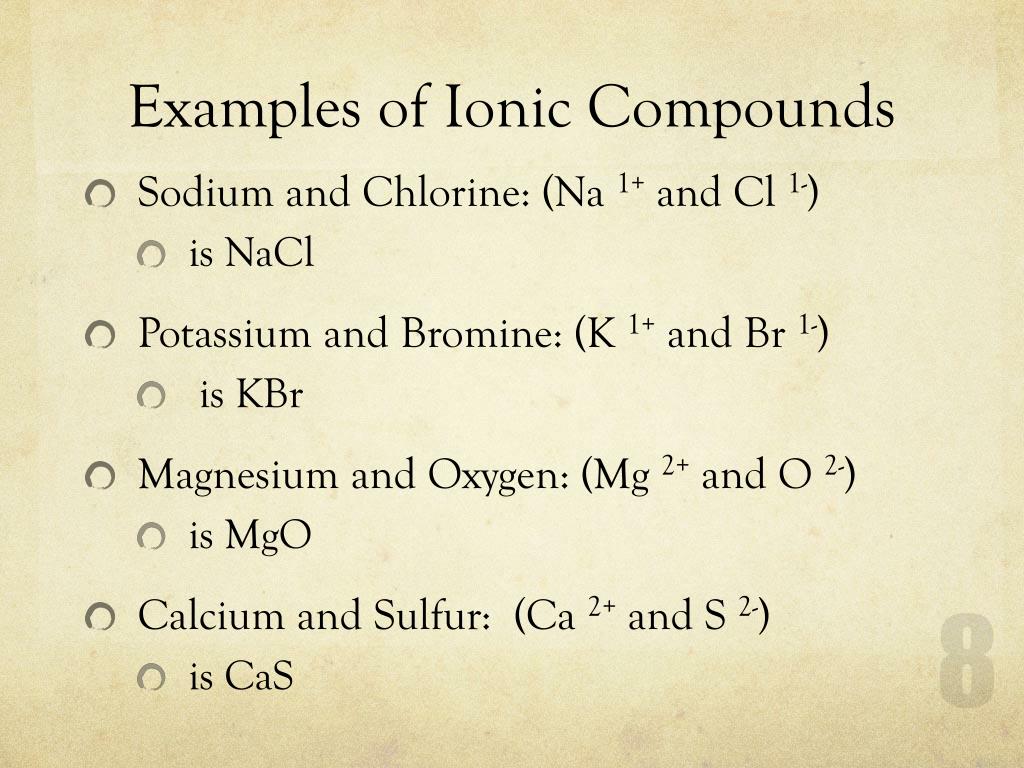

  8. Examples of Ionic Compounds • Sodium and Chlorine: (Na 1+ and Cl1-) • is NaCl • Potassium and Bromine: (K 1+ and Br 1-) • is KBr • Magnesium and Oxygen: (Mg 2+ and O 2-) • is MgO • Calcium and Sulfur: (Ca 2+ and S 2-) • is CaS

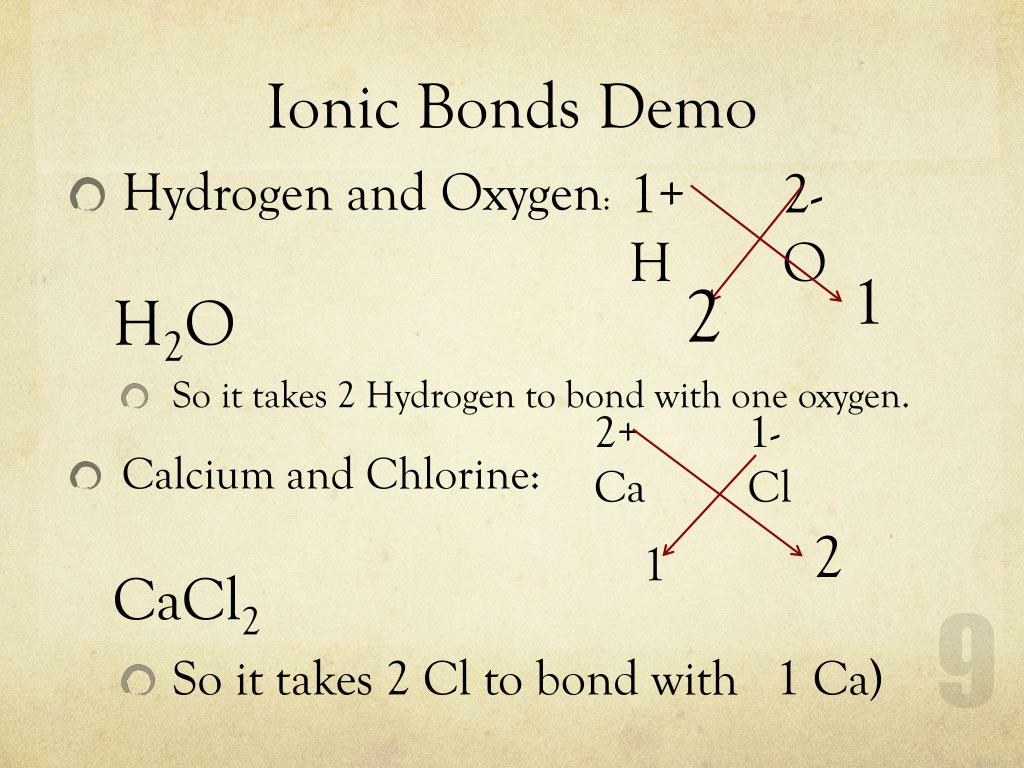

  9. Ionic Bonds Demo 1+ 2- H O • Hydrogen and Oxygen: • So it takes 2 Hydrogen to bond with one oxygen. • Calcium and Chlorine: • So it takes 2 Cl to bond with 1 Ca) 1 2 H2O 2+ 1- Ca Cl 2 1 CaCl2

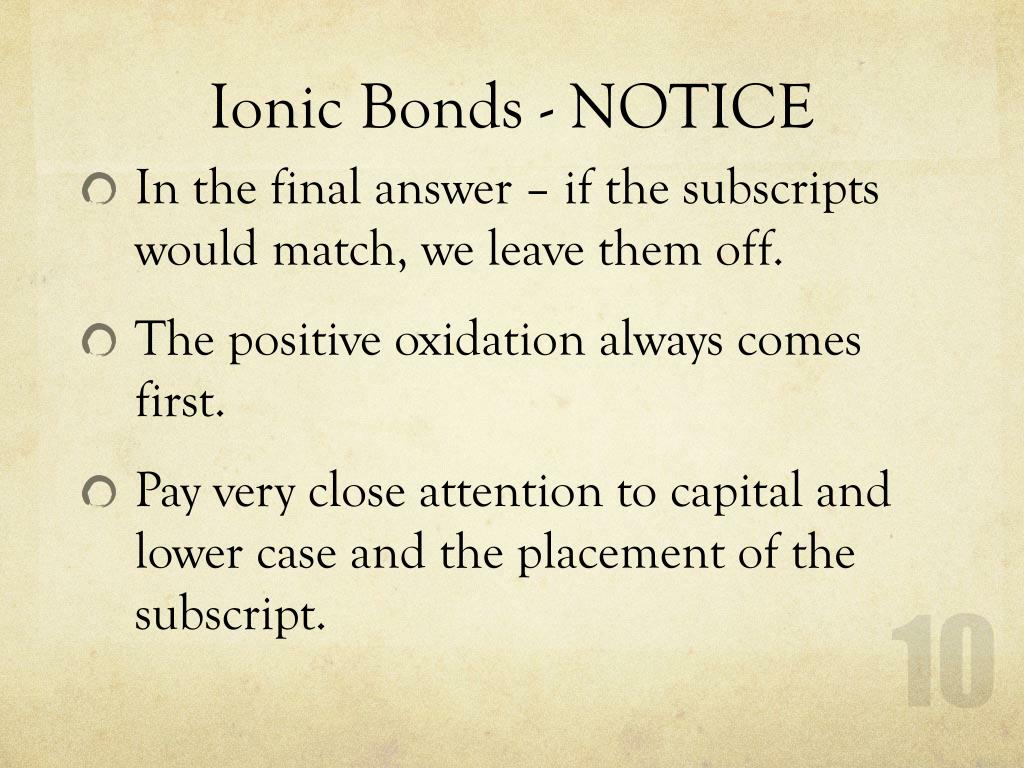

  10. Ionic Bonds - NOTICE • In the final answer – if the subscripts would match, we leave them off. • The positive oxidation always comes first. • Pay very close attention to capital and lower case and the placement of the subscript.

  11. Ionic Bond Practice • Combine: • Potassium and Sulfur • Magnesium and Nitrogen • Calcium and Phosphorous • Aluminum and Chlorine

  12. Examples of Covalent • 1 Carbon and 1 Oxygen is • CO • 1 Carbon and 2 Oxygen is • CO2 • 1 Phosphorous and 3 Chlorine is • PCl3

  13. Covalent Bond Practice • Combine: • 1 Silicon and 4 Fluorine • 2 Nitrogen and 3 Sulfur • 1 Hydrogen and 1 Bromine • 2 Bromine

  14. Polyatomics • Covalent compounds that are “pre-formed” with unique names and charges (oxidations). • They can and will ionically bond with other compounds and elements.

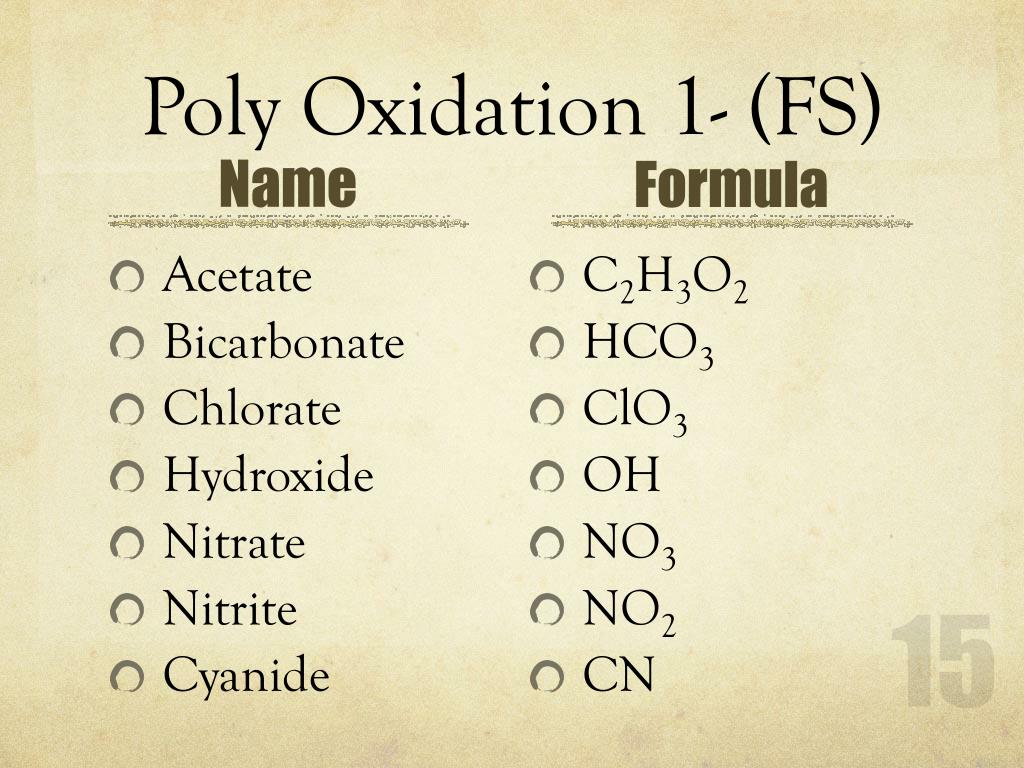

  15. Poly Oxidation 1- (FS) Name Formula C2H3O2 HCO3 ClO3 OH NO3 NO2 CN • Acetate • Bicarbonate • Chlorate • Hydroxide • Nitrate • Nitrite • Cyanide

  16. Poly OXIDATION 2- (FS) Name Formula CO3 CrO4 O2 SO4 SO3 SiO3 • Carbonate • Chromate • Peroxide • Sulfate • Sulfite • Silicate

  17. Poly – Other Oxidations (FS) Oxidation - Name Formula PO4 NH4 NH3 H3O CH4 • 3- Phosphate • 1+ Ammonium • 1+ Ammonia • 1+ Hydronium • 0 Methane

  18. Polyatomic Ionic Examples • Combine: • Aluminum (Al 3+) and Sulfate (SO42-) • Al2(SO4)3 • Potassium (K 1+) and Nitrate (NO31-) • KNO3 • Ammonium (NH41+) and Chlorine (Cl1-) • NH4Cl • Ammonium (NH41+) and Nitrate (NO31-) • NH4NO3

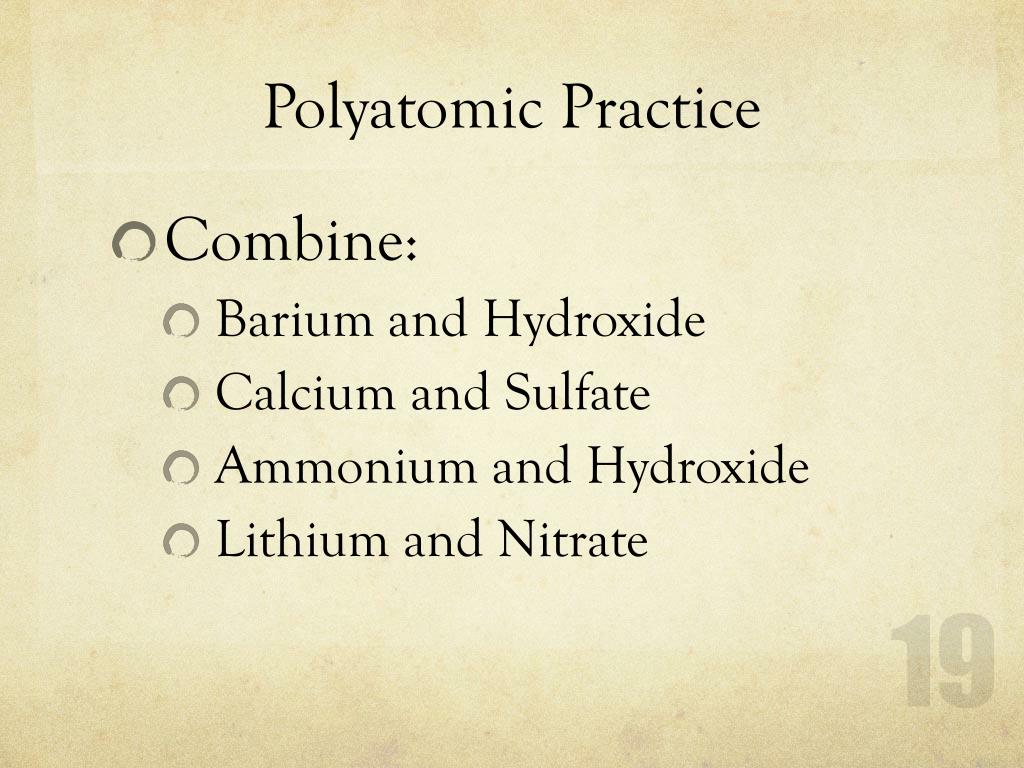

  19. Polyatomic Practice • Combine: • Barium and Hydroxide • Calcium and Sulfate • Ammonium and Hydroxide • Lithium and Nitrate

  20. Transition Elements • The transition elements get their name because they have variable oxidation numbers. • Their oxidation numbers are always positive. • You are told or given a transition elements oxidation number with a roman numeral. • They will bond Ionically with other elements and compounds.

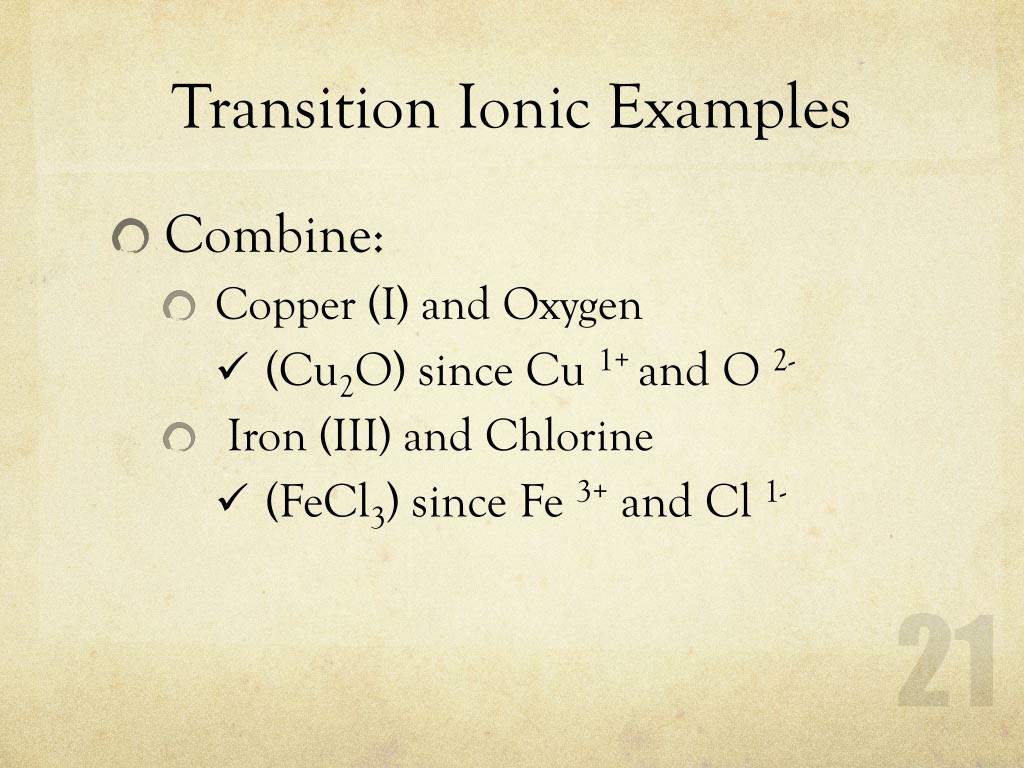

  21. Transition Ionic Examples • Combine: • Copper (I) and Oxygen • (Cu2O) since Cu 1+ and O 2- • Iron (III) and Chlorine • (FeCl3) since Fe 3+ and Cl1-

  22. Transition Ionic Practice Combine: • Lead (II) and Carbonate • Gold (III) and Sulfur • Nickel (II) and Nitrate • Tin (II) and Fluorine
