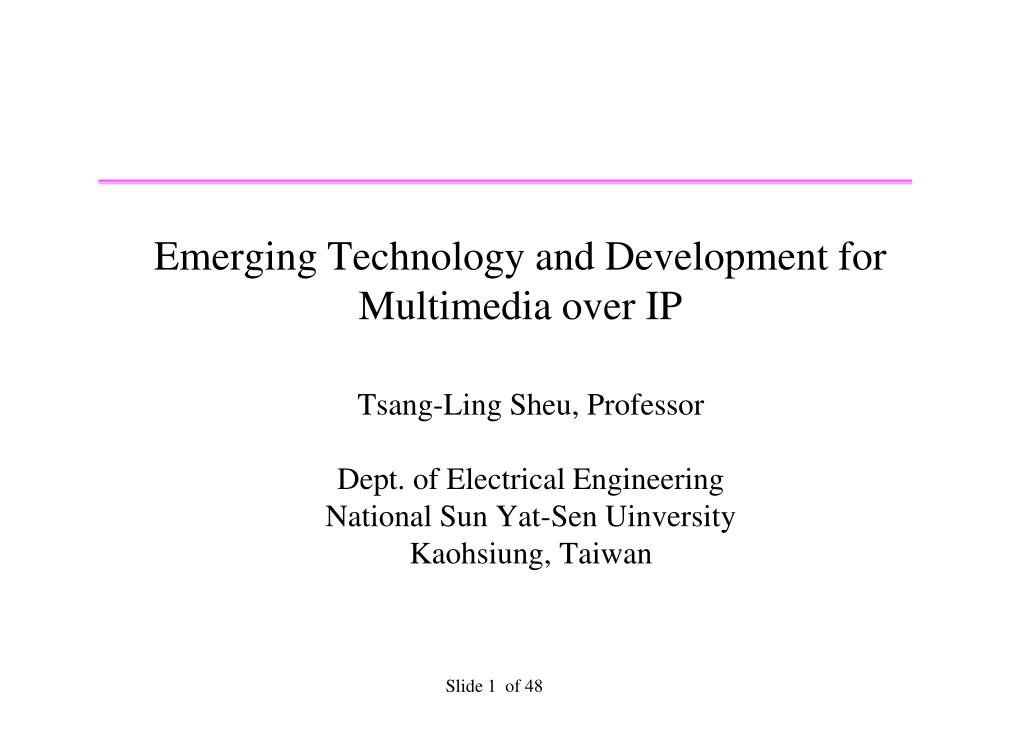

  1. Emerging Technology and Development for Multimedia over IP Tsang-Ling Sheu, Professor Dept. of Electrical Engineering National Sun Yat-Sen Uinversity Kaohsiung, Taiwan Slide 1 of 48

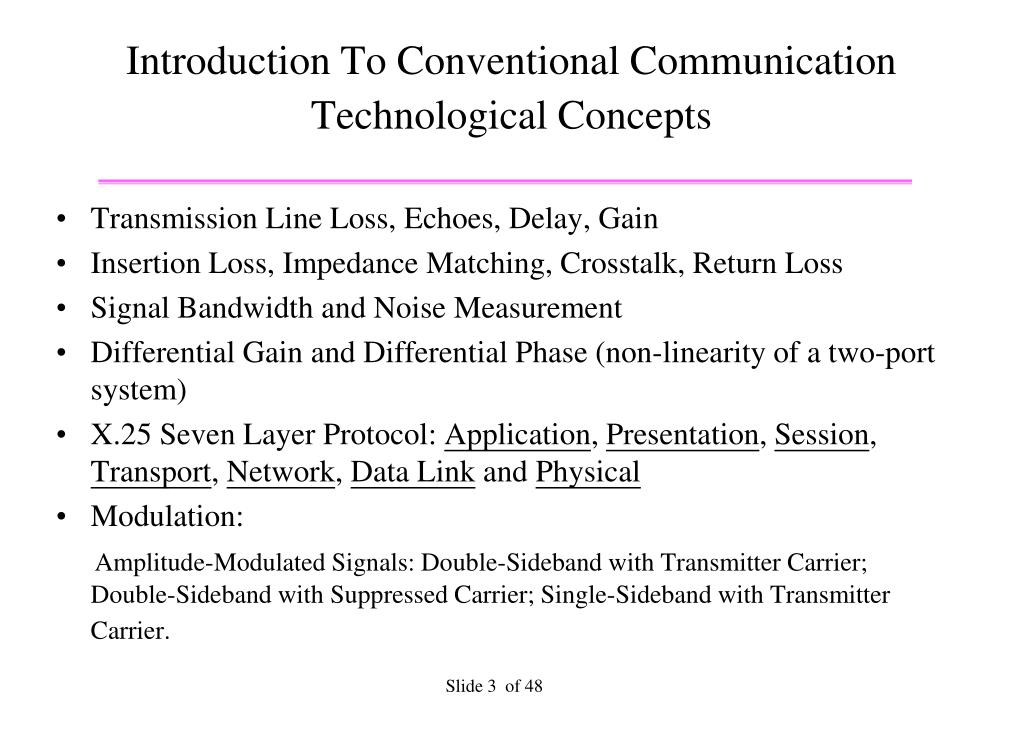

  2. Introduction To Conventional Communication Technological Concepts • Transmission Line Loss, Echoes, Delay, Gain • Insertion Loss, Impedance Matching, Crosstalk, Return Loss • Signal Bandwidth and Noise Measurement • Differential Gain and Differential Phase (non-linearity of a two-port system) • X.25 Seven Layer Protocol: Application, Presentation, Session, Transport, Network, Data Link and Physical • Modulation: Amplitude-Modulated Signals: Double-Sideband with Transmitter Carrier; Double-Sideband with Suppressed Carrier; Single-Sideband with Transmitter Carrier. Slide 3 of 48

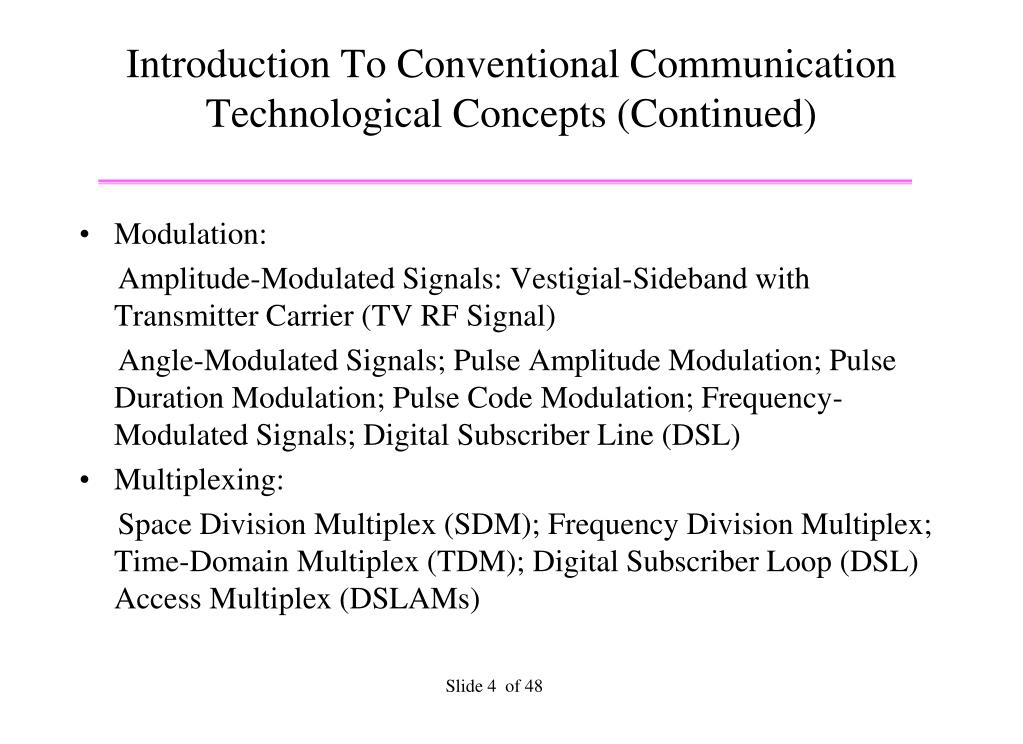

  3. Introduction To Conventional Communication Technological Concepts (Continued) • Modulation: Amplitude-Modulated Signals: Vestigial-Sideband with Transmitter Carrier (TV RF Signal) Angle-Modulated Signals; Pulse Amplitude Modulation; Pulse Duration Modulation; Pulse Code Modulation; Frequency-Modulated Signals; Digital Subscriber Line (DSL) • Multiplexing: Space Division Multiplex (SDM); Frequency Division Multiplex; Time-Domain Multiplex (TDM); Digital Subscriber Loop (DSL) Access Multiplex (DSLAMs) Slide 4 of 48

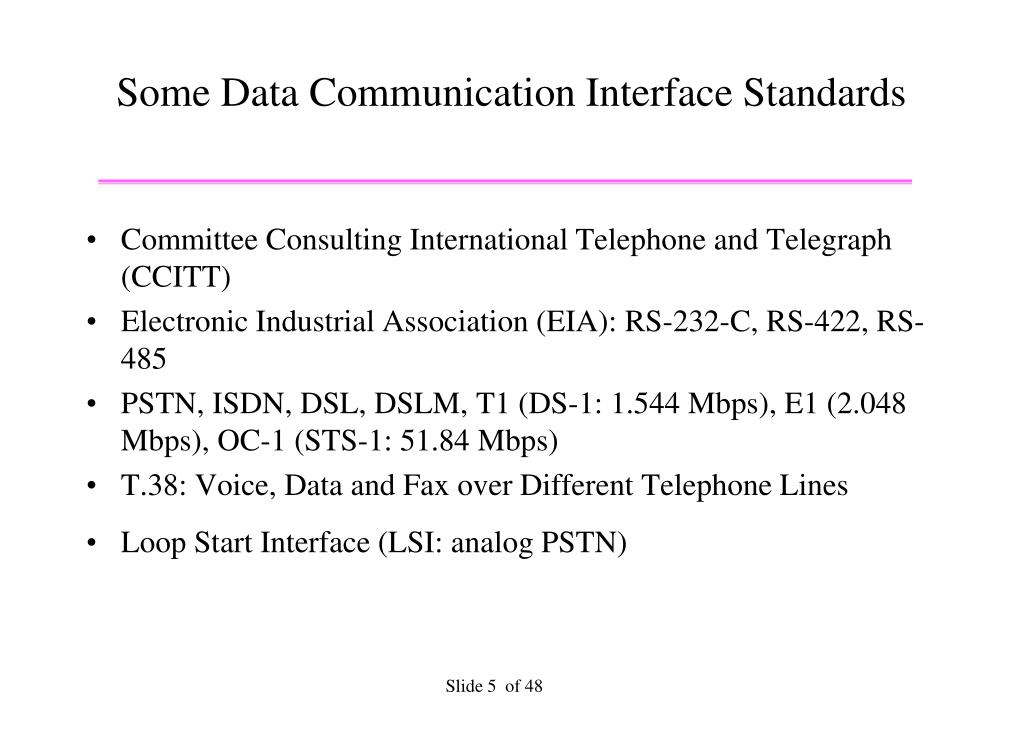

  4. Some Data Communication Interface Standards • Committee Consulting International Telephone and Telegraph (CCITT) • Electronic Industrial Association (EIA): RS-232-C, RS-422, RS-485 • PSTN, ISDN, DSL, DSLM, T1 (DS-1: 1.544 Mbps), E1 (2.048 Mbps), OC-1 (STS-1: 51.84 Mbps) • T.38: Voice, Data and Fax over Different Telephone Lines • Loop Start Interface (LSI: analog PSTN) Slide 5 of 48

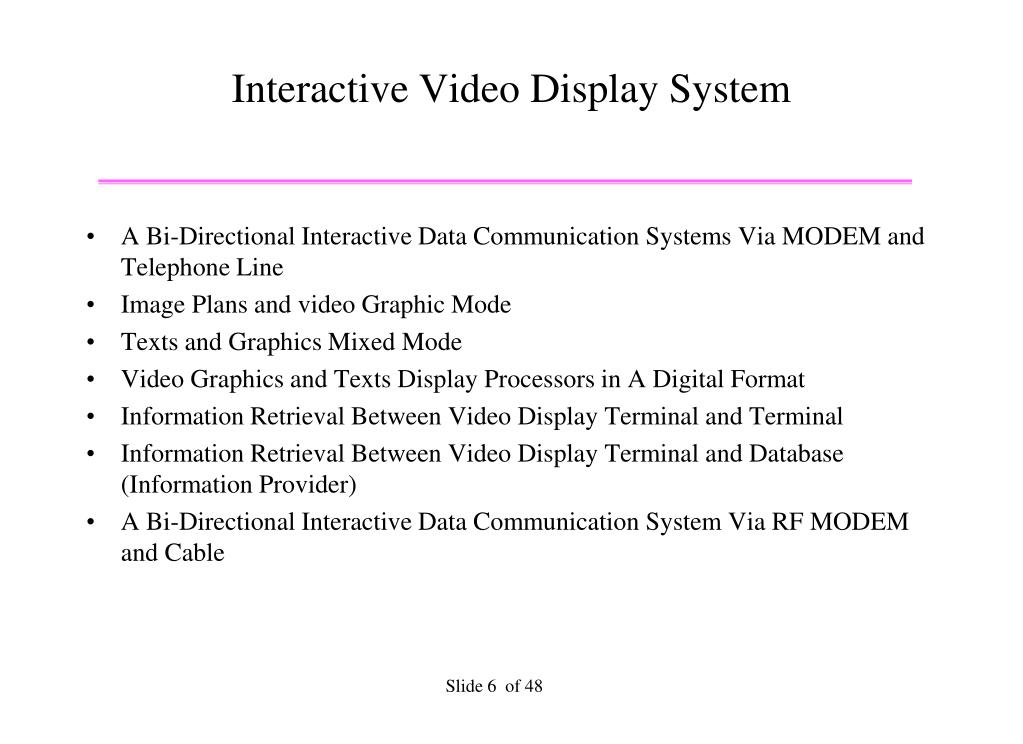

  5. Interactive Video Display System • A Bi-Directional Interactive Data Communication Systems Via MODEM and Telephone Line • Image Plans and video Graphic Mode • Texts and Graphics Mixed Mode • Video Graphics and Texts Display Processors in A Digital Format • Information Retrieval Between Video Display Terminal and Terminal • Information Retrieval Between Video Display Terminal and Database (Information Provider) • A Bi-Directional Interactive Data Communication System Via RF MODEM and Cable Slide 6 of 48

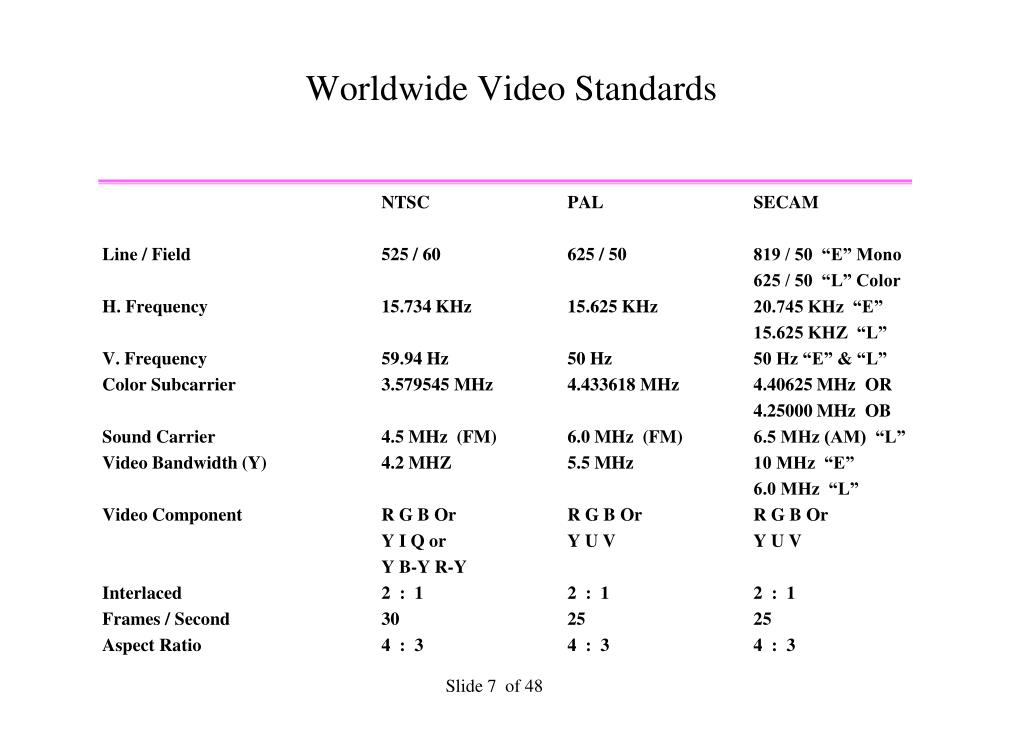

  6. Worldwide Video Standards NTSC PAL SECAM Line / Field525 / 60 625 / 50 819 / 50 “E” Mono 625 / 50 “L” Color H. Frequency 15.734 KHz 15.625 KHz 20.745 KHz “E” 15.625 KHZ “L” V. Frequency 59.94 Hz 50 Hz 50 Hz “E” & “L” Color Subcarrier 3.579545 MHz 4.433618 MHz 4.40625 MHz OR 4.25000 MHz OB Sound Carrier 4.5 MHz (FM) 6.0 MHz (FM) 6.5 MHz (AM) “L” Video Bandwidth (Y) 4.2 MHZ 5.5 MHz 10 MHz “E” 6.0 MHz “L” Video Component R G B Or R G B Or R G B Or Y I Q or Y U V Y U V Y B-Y R-Y Interlaced 2 : 1 2 : 1 2 : 1 Frames / Second30 25 25 Aspect Ratio 4 : 3 4 : 3 4 : 3 Slide 7 of 48

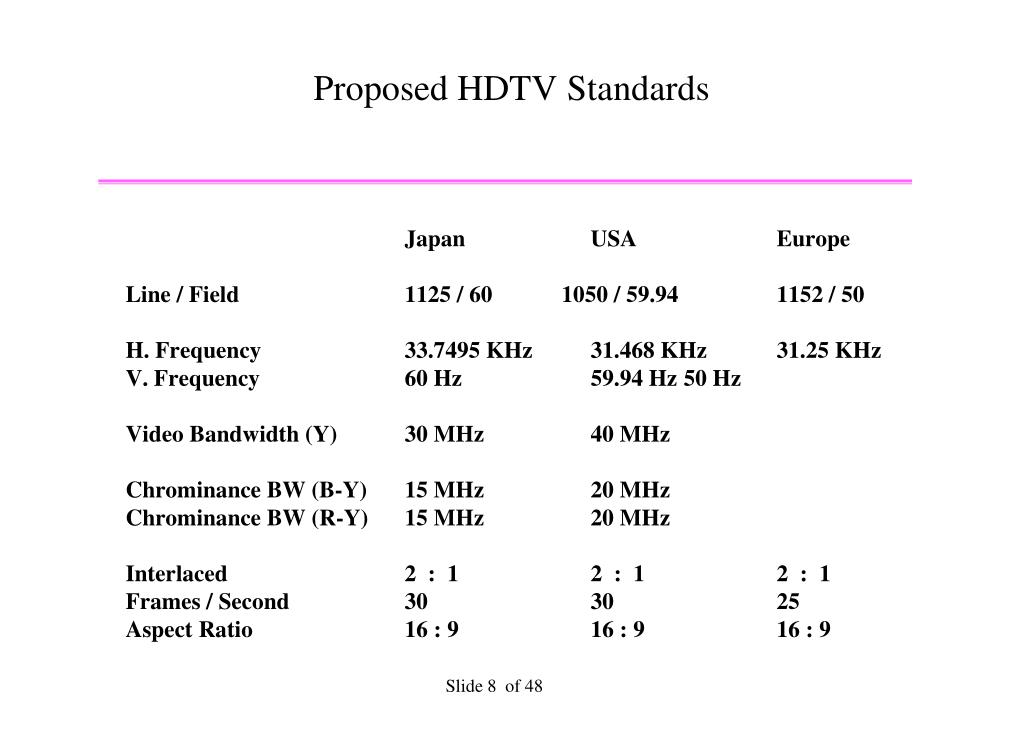

  7. Proposed HDTV Standards Japan USA Europe Line / Field1125 / 60 1050 / 59.94 1152 / 50 H. Frequency 33.7495 KHz 31.468 KHz 31.25 KHz V. Frequency 60 Hz 59.94 Hz 50 Hz Video Bandwidth (Y) 30 MHz 40 MHz Chrominance BW (B-Y) 15 MHz 20 MHz Chrominance BW (R-Y) 15 MHz 20 MHz Interlaced 2 : 1 2 : 1 2 : 1 Frames / Second30 30 25 Aspect Ratio 16 : 9 16 : 9 16 : 9 Slide 8 of 48

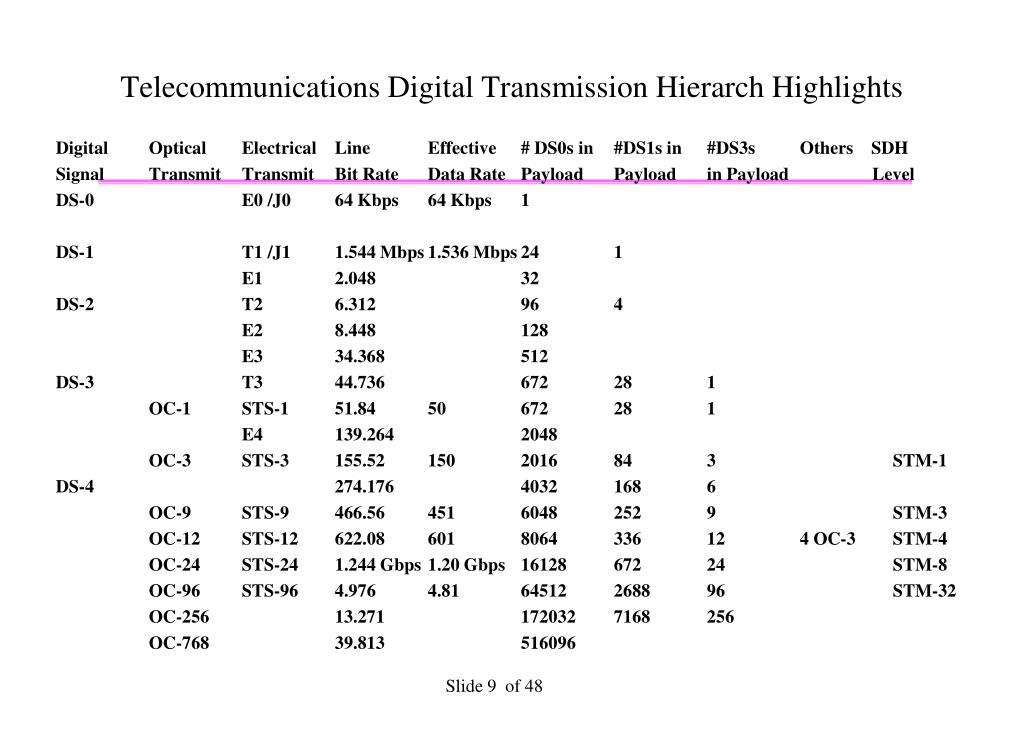

  8. Telecommunications Digital Transmission Hierarch Highlights Digital Optical Electrical Line Effective # DS0s in #DS1s in #DS3s Others SDH Signal Transmit Transmit Bit Rate Data Rate Payload Payload in Payload Level DS-0 E0 /J0 64 Kbps 64 Kbps 1 DS-1 T1 /J1 1.544 Mbps 1.536 Mbps 24 1 E1 2.048 32 DS-2 T2 6.312 96 4 E2 8.448 128 E3 34.368 512 DS-3 T3 44.736 672 28 1 OC-1 STS-1 51.84 50 672 28 1 E4 139.264 2048 OC-3 STS-3 155.52 150 2016 84 3 STM-1 DS-4 274.176 4032 168 6 OC-9 STS-9 466.56 451 6048 252 9 STM-3 OC-12 STS-12 622.08 601 8064 336 12 4 OC-3 STM-4 OC-24 STS-24 1.244 Gbps 1.20 Gbps 16128 672 24 STM-8 OC-96 STS-96 4.976 4.81 64512 2688 96 STM-32 OC-256 13.271 172032 7168 256 OC-768 39.813 516096 Slide 9 of 48

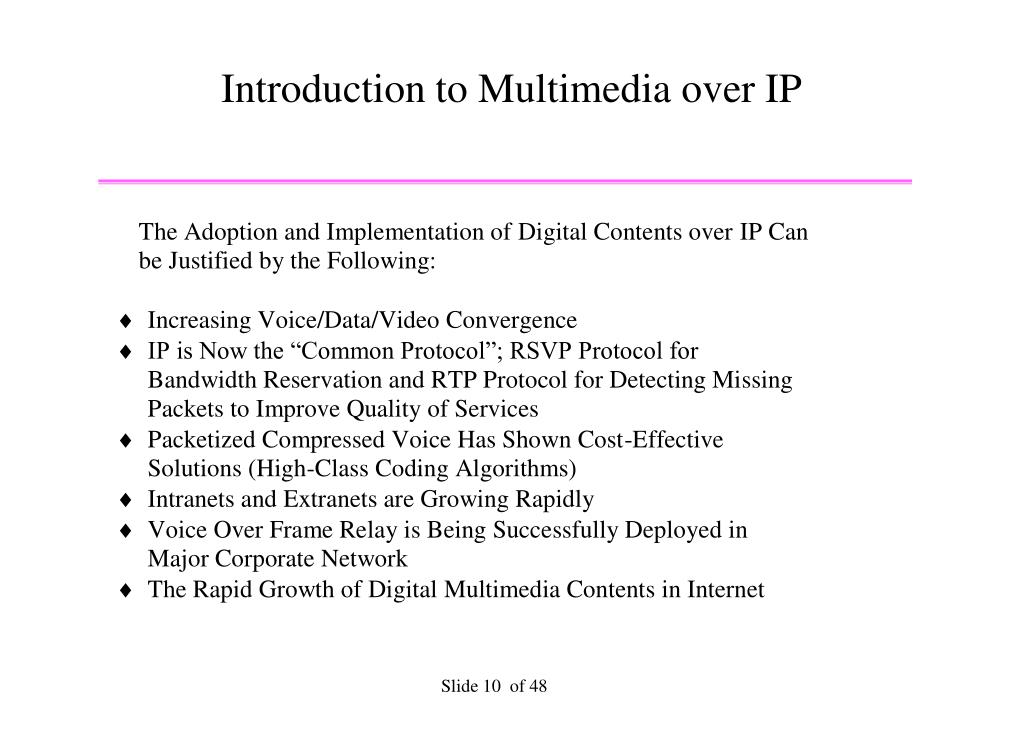

  9. Introduction to Multimedia over IP Slide 10 of 48

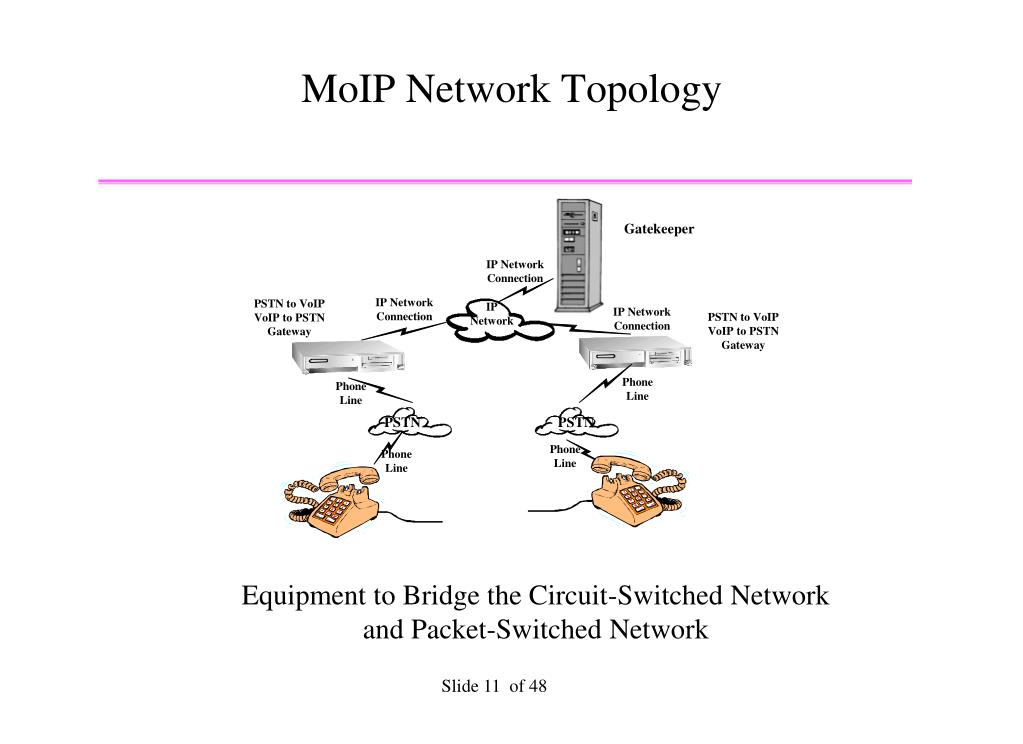

  10. MoIP Network Topology Gatekeeper IP Network Connection IP Network Connection PSTN to VoIP VoIP to PSTN Gateway IP Network IP Network Connection PSTN to VoIP VoIP to PSTN Gateway Phone Line Phone Line PSTN PSTN Phone Line Phone Line Equipment to Bridge the Circuit-Switched Network and Packet-Switched Network Slide 11 of 48

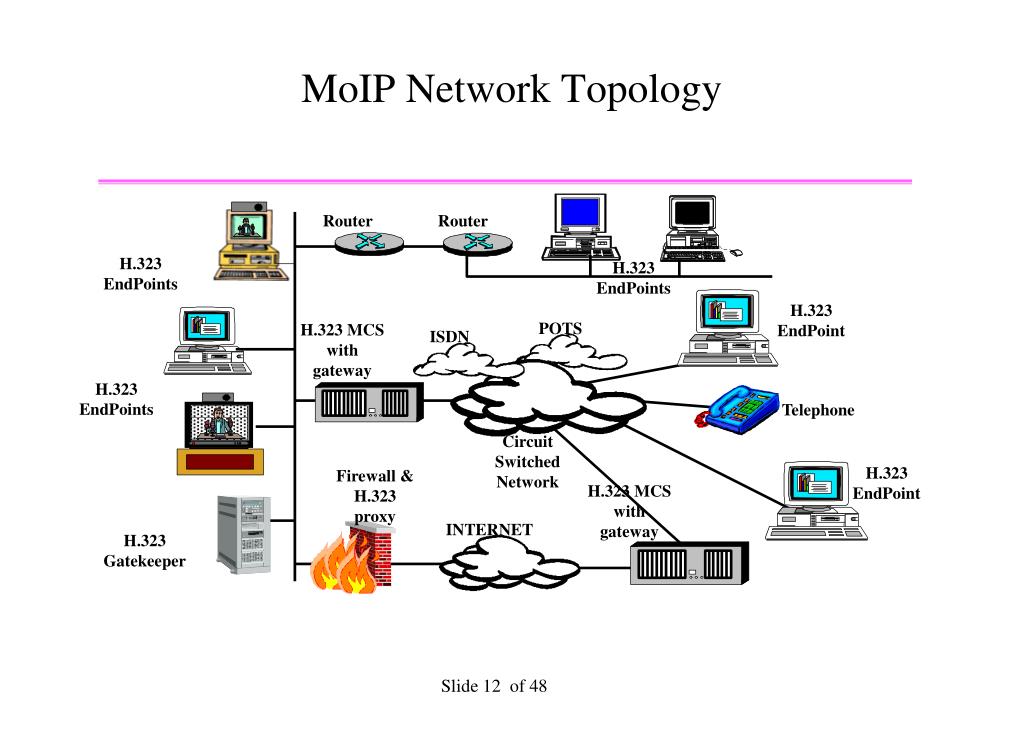

  11. MoIP Network Topology Router Router H.323 EndPoints H.323 EndPoints H.323 EndPoint POTS H.323 MCS with gateway ISDN H.323 EndPoints Telephone Circuit Switched Network H.323 EndPoint Firewall & H.323 proxy H.323 MCS with gateway INTERNET H.323 Gatekeeper Slide 12 of 48

  12. MoIP Network Topology H.323 H.323 ITU Terminals Circuit Switched Network H.320 ISDN H.323 H.323 Terminals Internet H.324 PSTN Gateway H.323 Zone H.323 MCU H.323 GateKeeper H.323 Terminals Major Entities in an H.32X Environment: H.323 Terminals, Gateways, Gatekeepers and MCUs. Slide 13 of 48

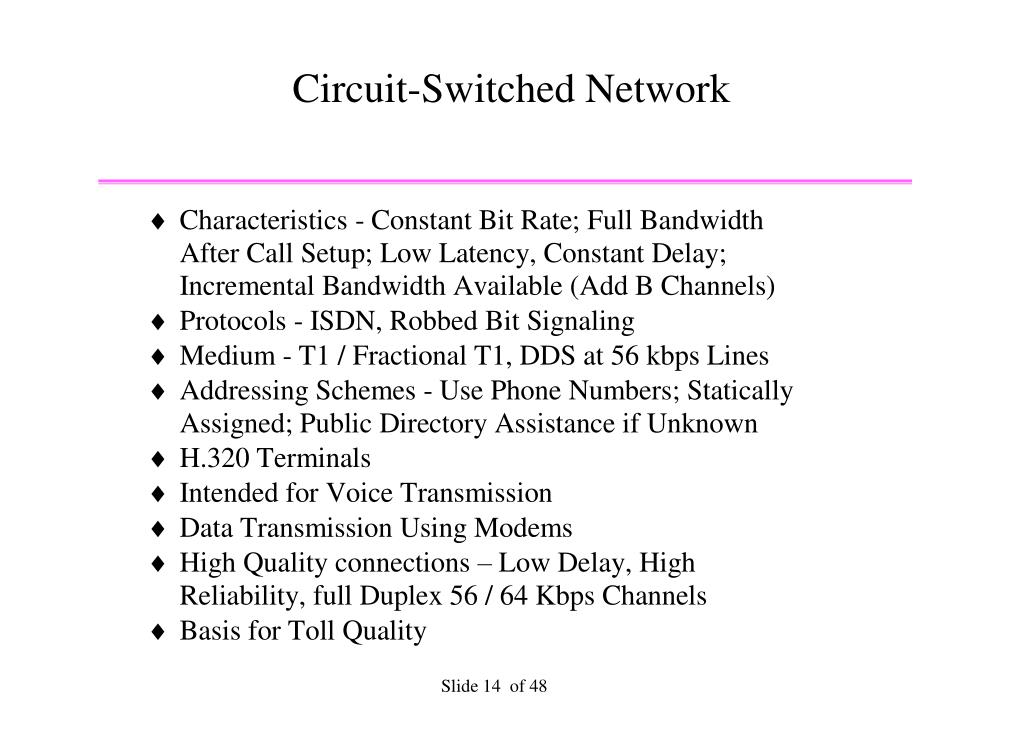

  13. Circuit-Switched Network Slide 14 of 48

  14. Packet-Switched Network Slide 15 of 48

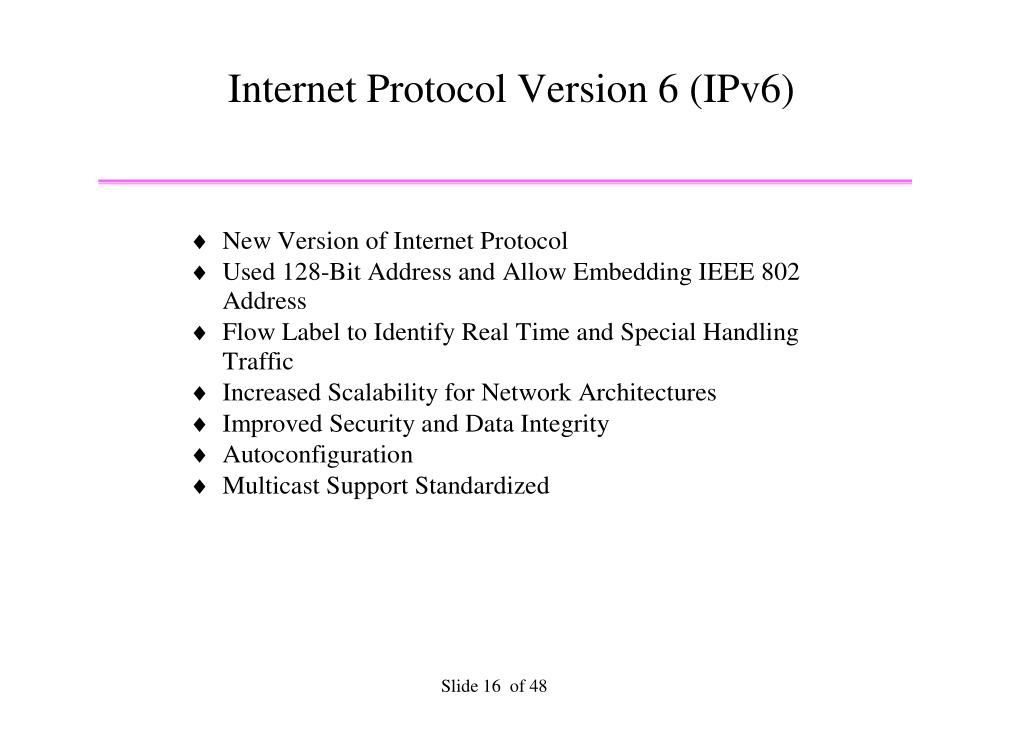

  15. Internet Protocol Version 6 (IPv6) Slide 16 of 48

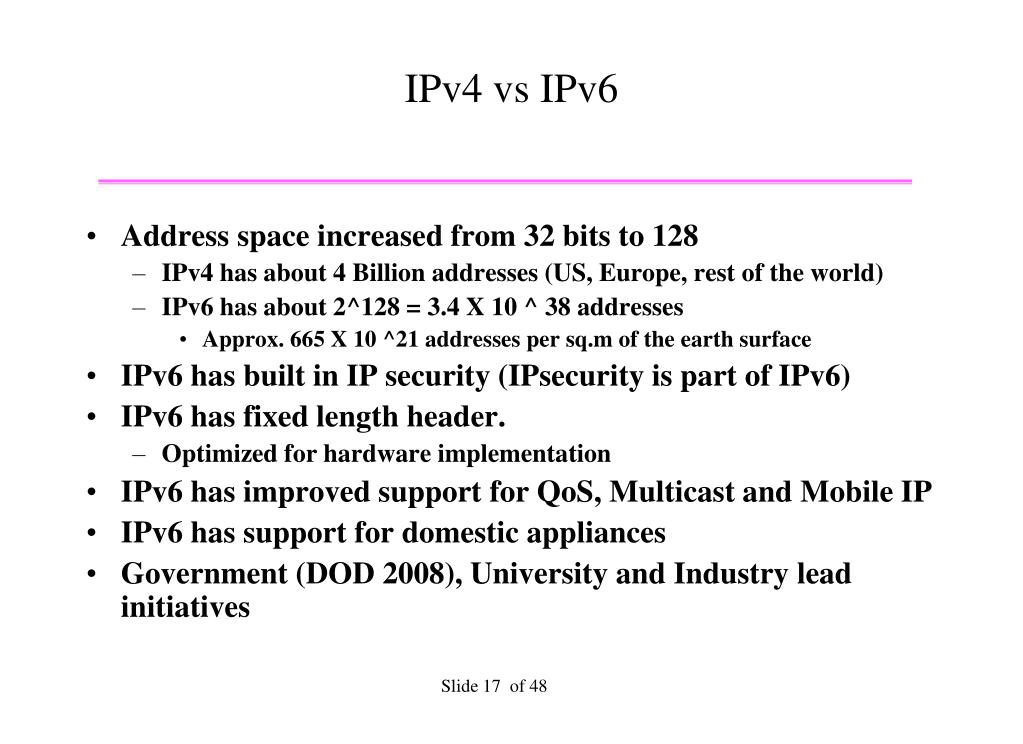

  16. IPv4 vs IPv6 • Address space increased from 32 bits to 128 • IPv4 has about 4 Billion addresses (US, Europe, rest of the world) • IPv6 has about 2^128 = 3.4 X 10 ^ 38 addresses • Approx. 665 X 10 ^21 addresses per sq.m of the earth surface • IPv6 has built in IP security (IPsecurity is part of IPv6) • IPv6 has fixed length header. • Optimized for hardware implementation • IPv6 has improved support for QoS, Multicast and Mobile IP • IPv6 has support for domestic appliances • Government (DOD 2008), University and Industry lead initiatives Slide 17 of 48

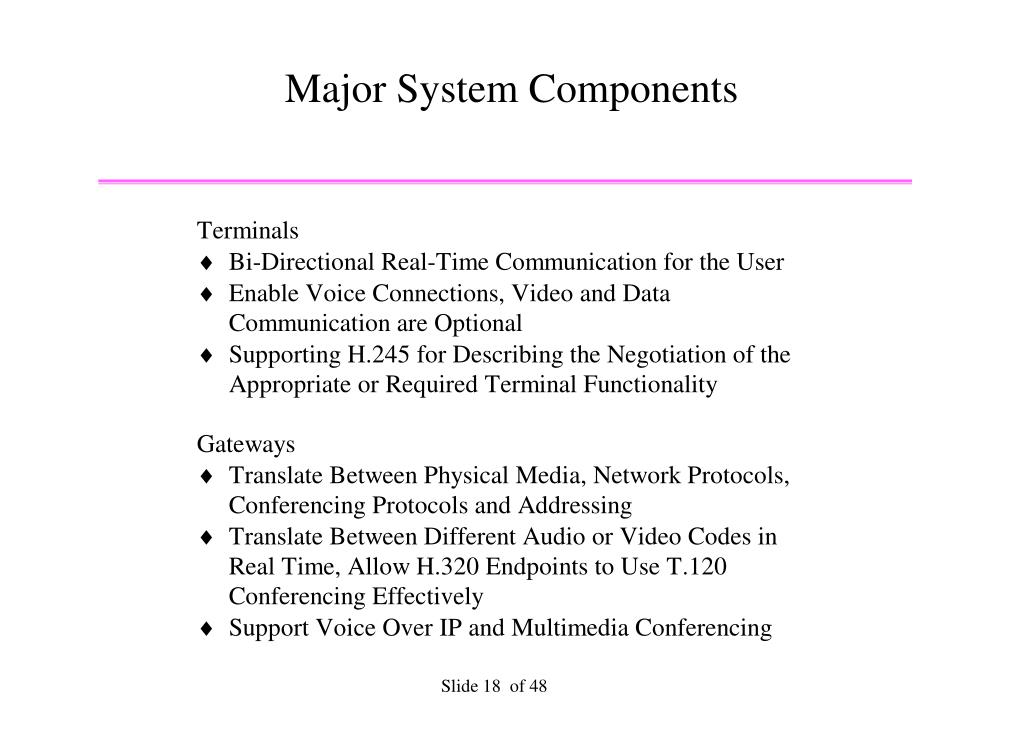

  17. Major System Components Slide 18 of 48

  18. Major System Components (Continued) Slide 19 of 48

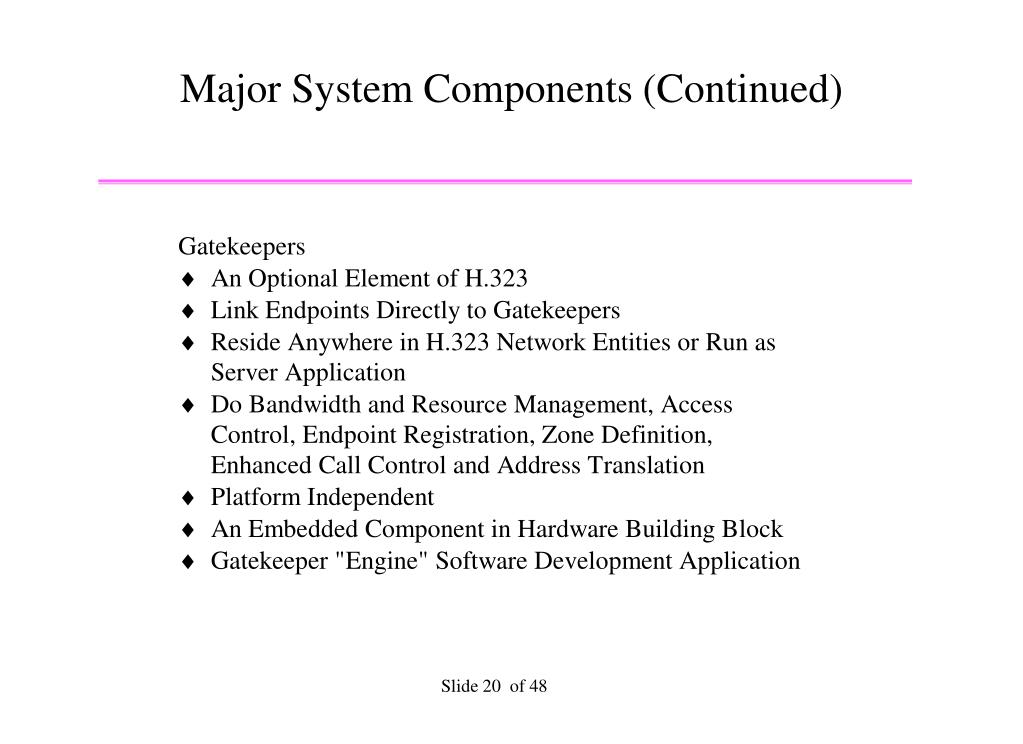

  19. Major System Components (Continued) Slide 20 of 48

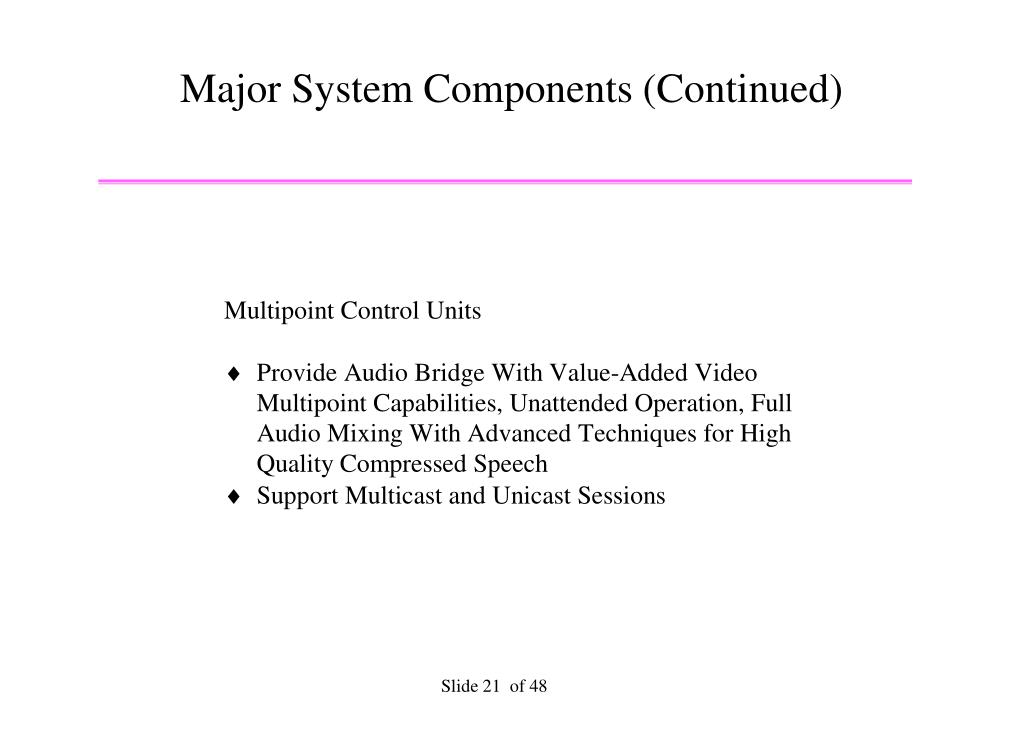

  20. Major System Components (Continued) Slide 21 of 48

  21. MoIP Device and System Developers Slide 22 of 48

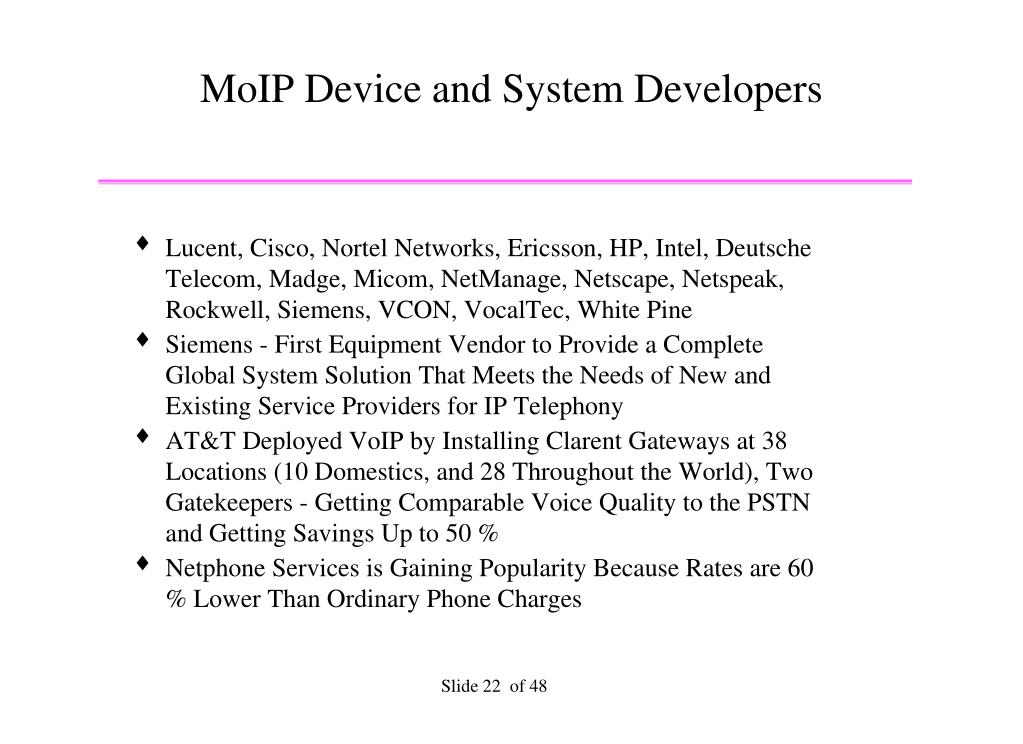

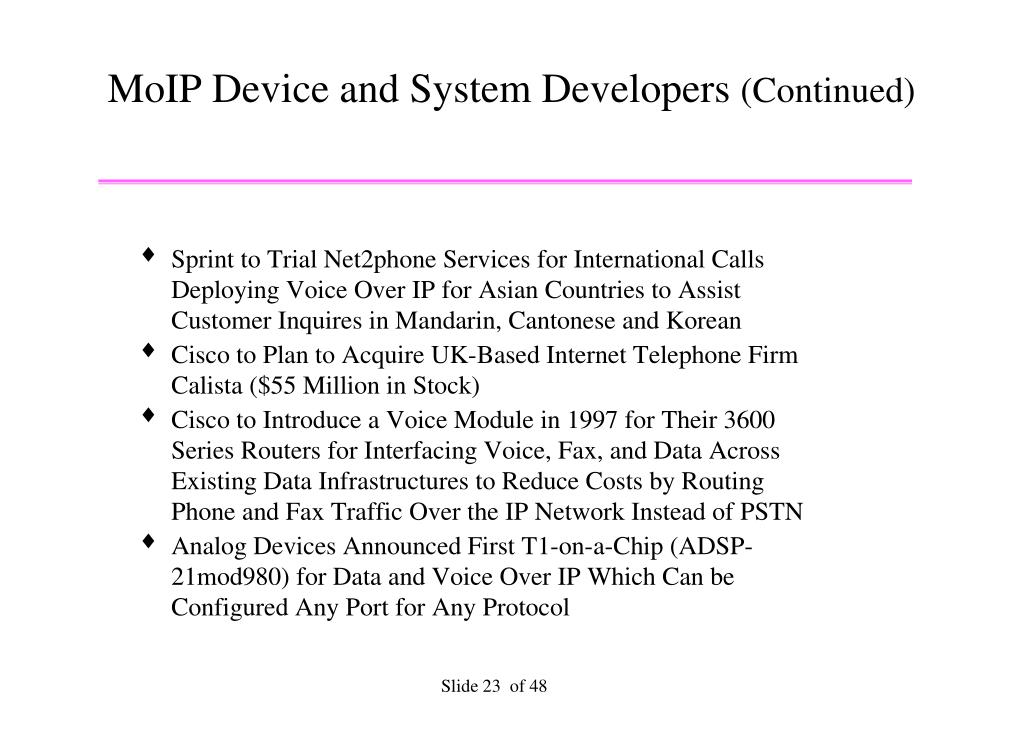

  22. MoIP Device and System Developers (Continued) Slide 23 of 48

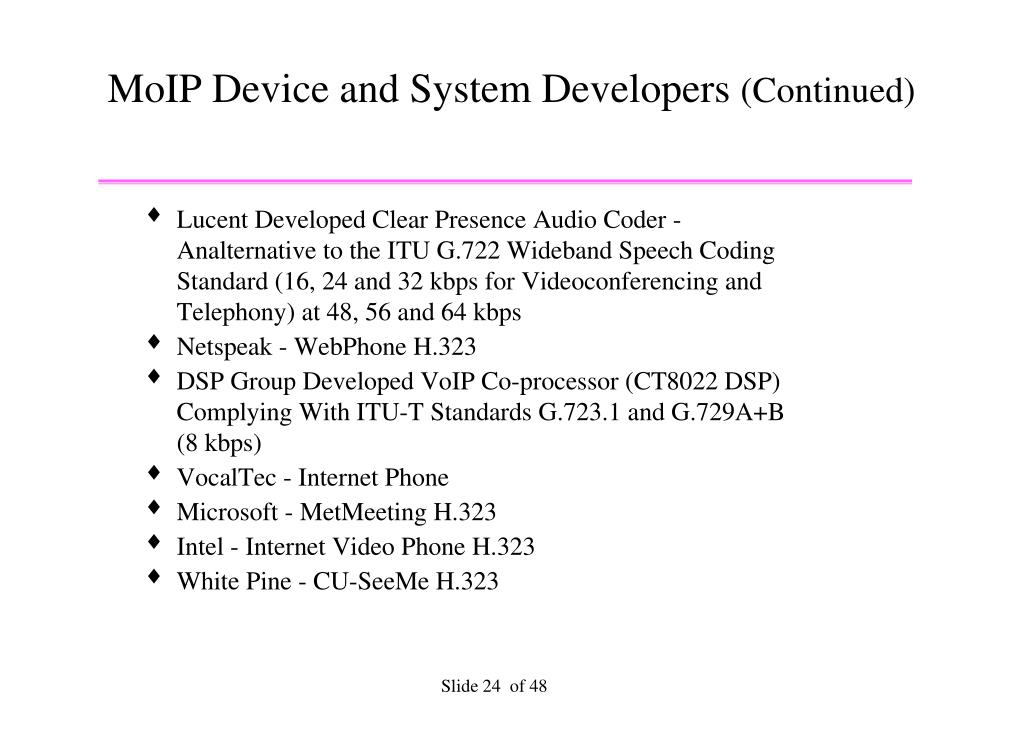

  23. MoIP Device and System Developers (Continued) Slide 24 of 48

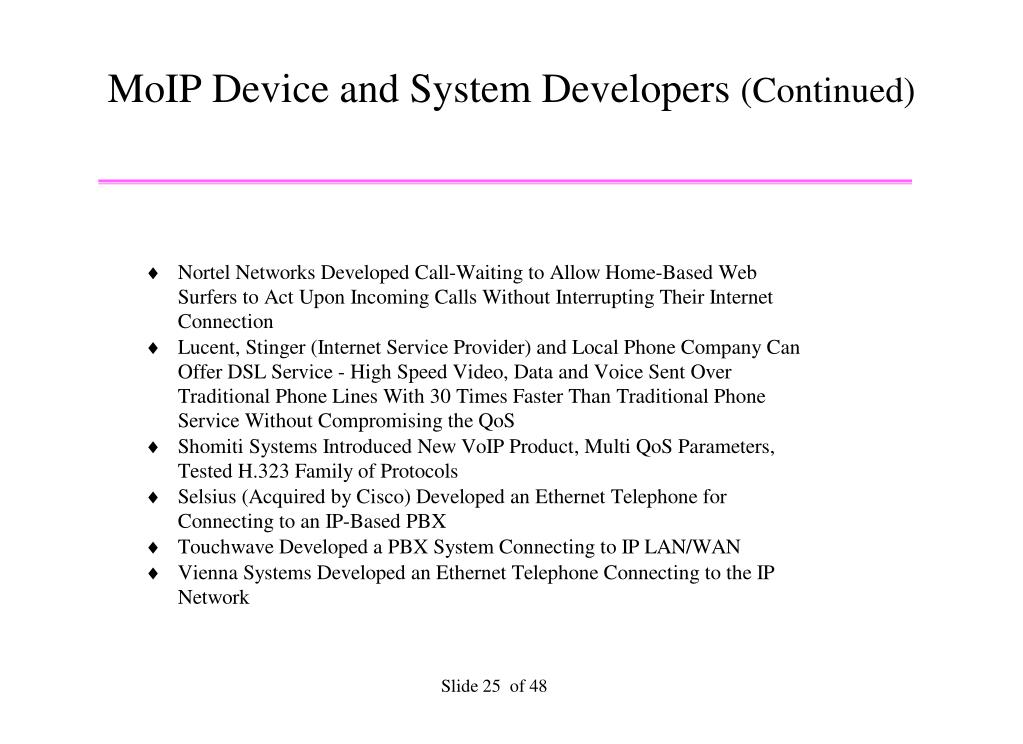

  24. MoIP Device and System Developers (Continued) Slide 25 of 48

  25. Existing and Proposed Standards Slide 26 of 48

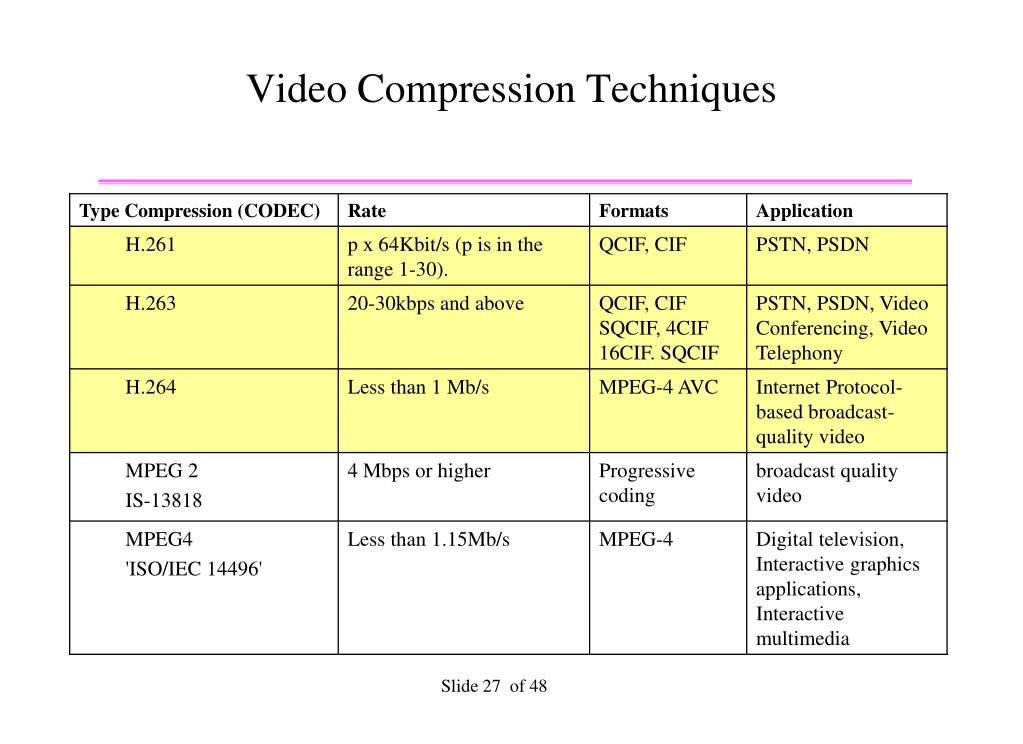

  26. Video Compression Techniques Slide 27 of 48

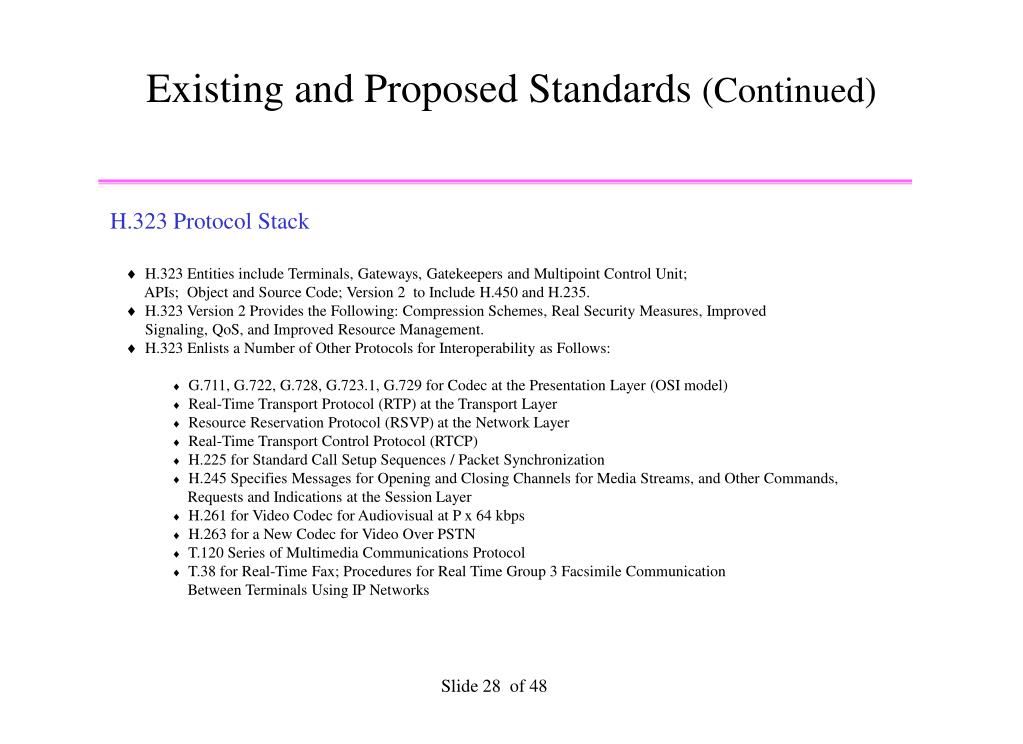

  27. Existing and Proposed Standards (Continued) H.323 Protocol Stack • H.323 Entities include Terminals, Gateways, Gatekeepers and Multipoint Control Unit; APIs; Object and Source Code; Version 2 to Include H.450 and H.235. • H.323 Version 2 Provides the Following: Compression Schemes, Real Security Measures, Improved Signaling, QoS, and Improved Resource Management. • H.323 Enlists a Number of Other Protocols for Interoperability as Follows: • G.711, G.722, G.728, G.723.1, G.729 for Codec at the Presentation Layer (OSI model) • Real-Time Transport Protocol (RTP) at the Transport Layer • Resource Reservation Protocol (RSVP) at the Network Layer • Real-Time Transport Control Protocol (RTCP) • H.225 for Standard Call Setup Sequences / Packet Synchronization • H.245 Specifies Messages for Opening and Closing Channels for Media Streams, and Other Commands, Requests and Indications at the Session Layer • H.261 for Video Codec for Audiovisual at P x 64 kbps • H.263 for a New Codec for Video Over PSTN • T.120 Series of Multimedia Communications Protocol • T.38 for Real-Time Fax; Procedures for Real Time Group 3 Facsimile Communication Between Terminals Using IP Networks Slide 28 of 48

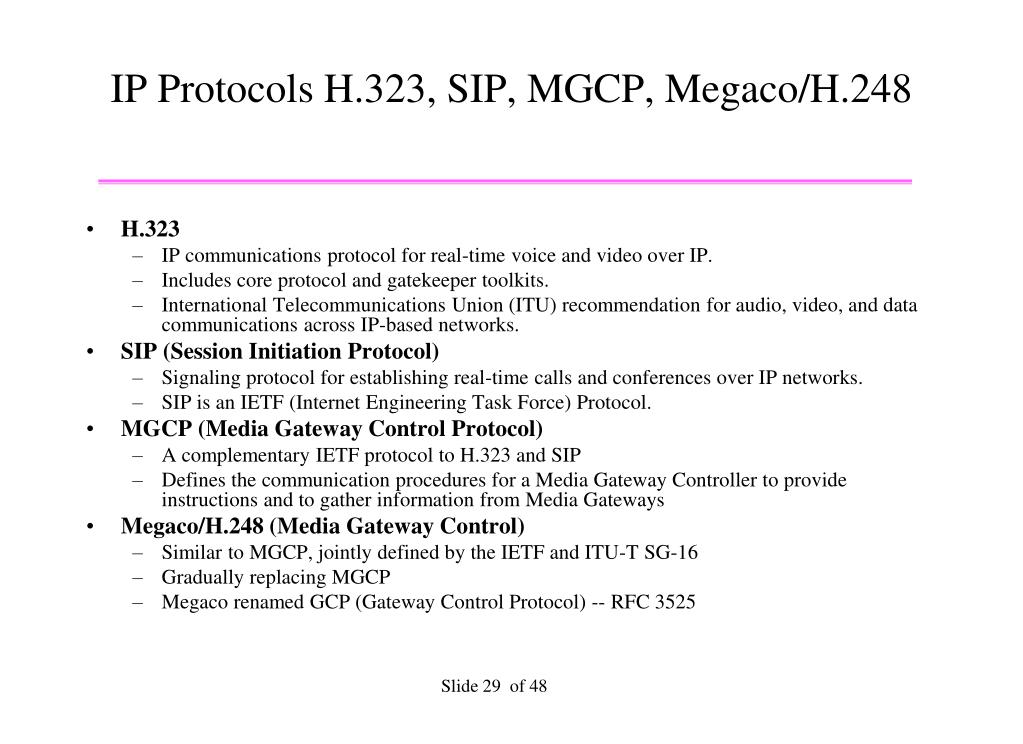

  28. IP Protocols H.323, SIP, MGCP, Megaco/H.248 • H.323 • IP communications protocol for real-time voice and video over IP. • Includes core protocol and gatekeeper toolkits. • International Telecommunications Union (ITU) recommendation for audio, video, and data communications across IP-based networks. • SIP (Session Initiation Protocol) • Signaling protocol for establishing real-time calls and conferences over IP networks. • SIP is an IETF (Internet Engineering Task Force) Protocol. • MGCP (Media Gateway Control Protocol) • A complementary IETF protocol to H.323 and SIP • Defines the communication procedures for a Media Gateway Controller to provide instructions and to gather information from Media Gateways • Megaco/H.248 (Media Gateway Control) • Similar to MGCP, jointly defined by the IETF and ITU-T SG-16 • Gradually replacing MGCP • Megaco renamed GCP (Gateway Control Protocol) -- RFC 3525 Slide 29 of 48

  29. RTP / RTCP Real-Time Transport Protocol (RTP) • Provides end-to-end delivery services of real-time Audio (G.711, G.723.1, G.728, etc.) and Video (H.261, H.263), • Data is transported via the user datagram protocol (UDP). • RTP provides payload-type identification, sequence numbering, time stamping, and delivery monitoring. • UDP provides multiplexing and checksum services. • RTP can be used with other transport protocols. Real-Time Transport Control Protocol (RTCP) • Counterpart of RTP that provides control services • Primary function of RTCP is to provide feedback on the quality of the data distribution – RTCP-XR • Carries transport-level identifier for an RTP source • Used by receivers to synchronize audio and video. Slide 30 of 48

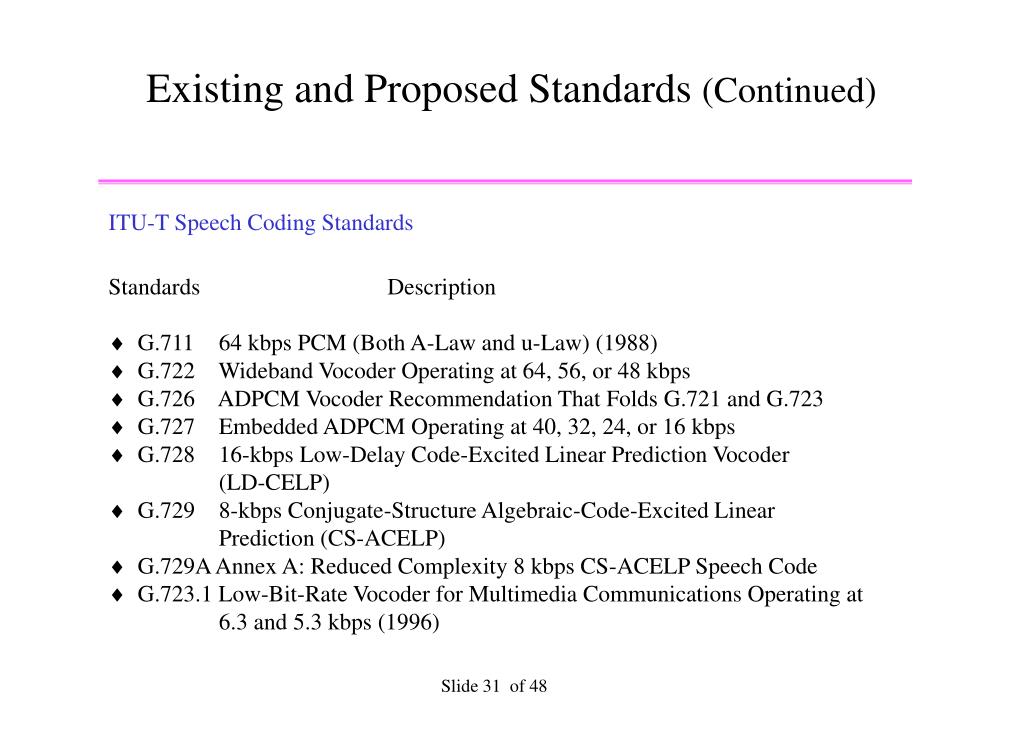

  30. Existing and Proposed Standards (Continued) ITU-T Speech Coding Standards • Standards Description • G.711 64 kbps PCM (Both A-Law and u-Law) (1988) • G.722 Wideband Vocoder Operating at 64, 56, or 48 kbps • G.726 ADPCM Vocoder Recommendation That Folds G.721 and G.723 • G.727 Embedded ADPCM Operating at 40, 32, 24, or 16 kbps • G.728 16-kbps Low-Delay Code-Excited Linear Prediction Vocoder (LD-CELP) • G.729 8-kbps Conjugate-Structure Algebraic-Code-Excited Linear Prediction (CS-ACELP) • G.729A Annex A: Reduced Complexity 8 kbps CS-ACELP Speech Code • G.723.1 Low-Bit-Rate Vocoder for Multimedia Communications Operating at 6.3 and 5.3 kbps (1996) Slide 31 of 48

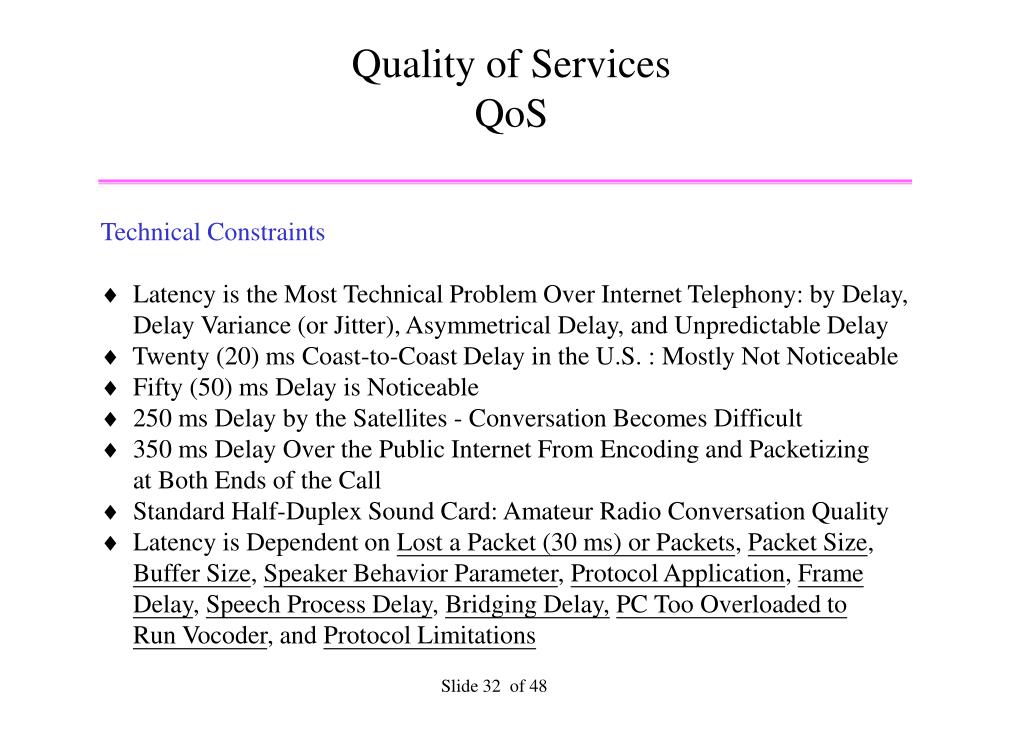

  31. Quality of ServicesQoS • Technical Constraints • Latency is the Most Technical Problem Over Internet Telephony: by Delay, Delay Variance (or Jitter), Asymmetrical Delay, and Unpredictable Delay • Twenty (20) ms Coast-to-Coast Delay in the U.S. : Mostly Not Noticeable • Fifty (50) ms Delay is Noticeable • 250 ms Delay by the Satellites - Conversation Becomes Difficult • 350 ms Delay Over the Public Internet From Encoding and Packetizing at Both Ends of the Call • Standard Half-Duplex Sound Card: Amateur Radio Conversation Quality • Latency is Dependent on Lost a Packet (30 ms) or Packets, Packet Size, Buffer Size, Speaker Behavior Parameter, Protocol Application, Frame Delay, Speech Process Delay, Bridging Delay,PC Too Overloaded to Run Vocoder, and Protocol Limitations Slide 32 of 48

  32. Quality of Services (Continued) • Performance Evaluations: • Delay 200 Milliseconds From a Private IP Network With Good Encoding and Excellent DSP Technologies • Laboratory Demonstrations to Analyze Voice Quality With 100 ms, • 150 ms, 200 ms, and 250 ms Latency With the Following Setups: • 1. Workstation-to-Workstation Using the Gatekeeper • 2. Workstation-to-Phone Using the Cisco 3620 as a H.323 Gateway • 3. Phone-to-Phone Using Netrix 2210 and Cisco 3620 for Calls • Connections Through IP Network Slide 33 of 48

  33. Effect of Delay on Voice Quality > 25ms Echo Cancellation Required PSTN <150 ms (with echo cancellation): acceptable 150-400 ms: acceptable if delay expected Slide 34 of 48

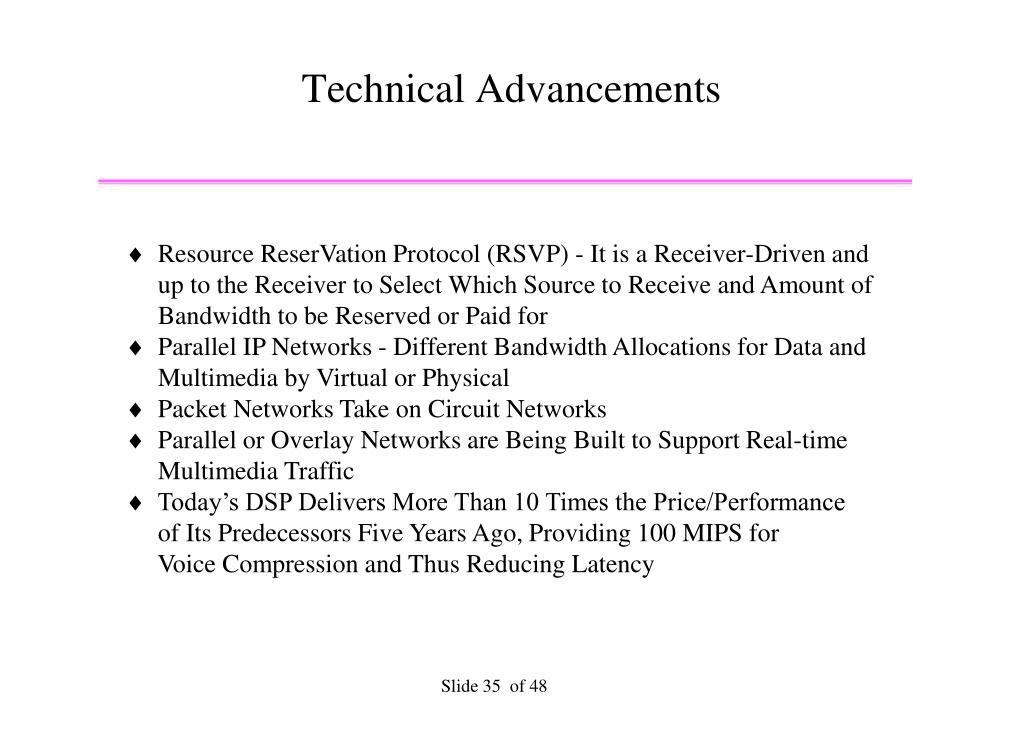

  34. Technical Advancements • Resource ReserVation Protocol (RSVP) - It is a Receiver-Driven and up to the Receiver to Select Which Source to Receive and Amount of Bandwidth to be Reserved or Paid for • Parallel IP Networks - Different Bandwidth Allocations for Data and Multimedia by Virtual or Physical • Packet Networks Take on Circuit Networks • Parallel or Overlay Networks are Being Built to Support Real-time Multimedia Traffic • Today’s DSP Delivers More Than 10 Times the Price/Performance of Its Predecessors Five Years Ago, Providing 100 MIPS for Voice Compression and Thus Reducing Latency Slide 35 of 48

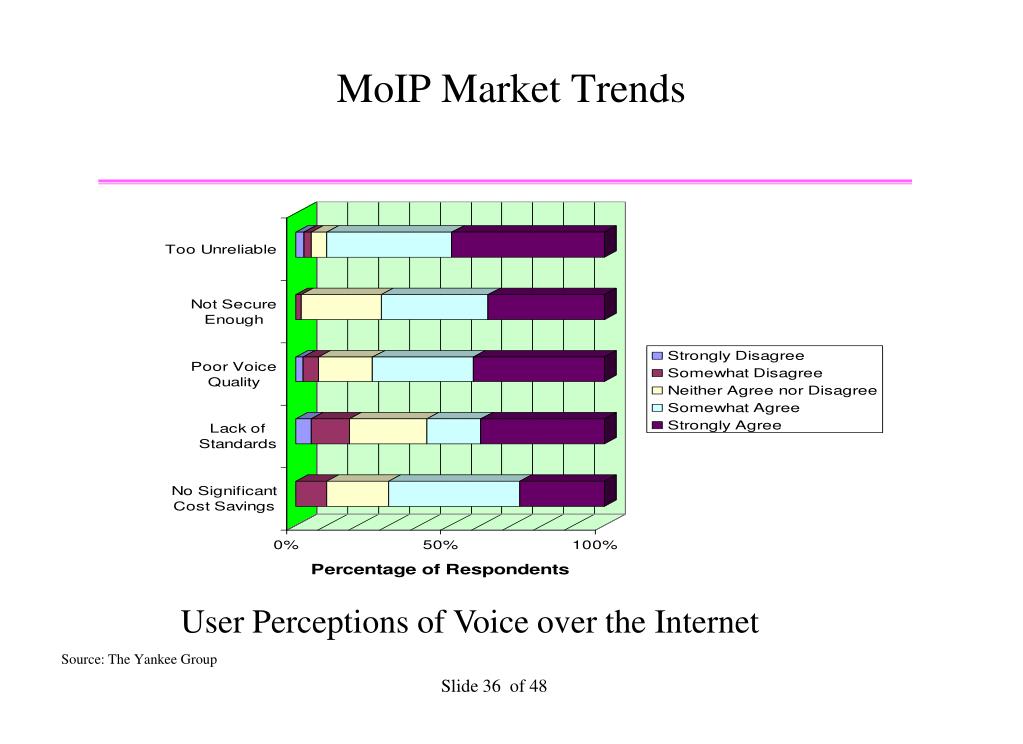

  35. MoIP Market Trends User Perceptions of Voice over the Internet Source: The Yankee Group Slide 36 of 48

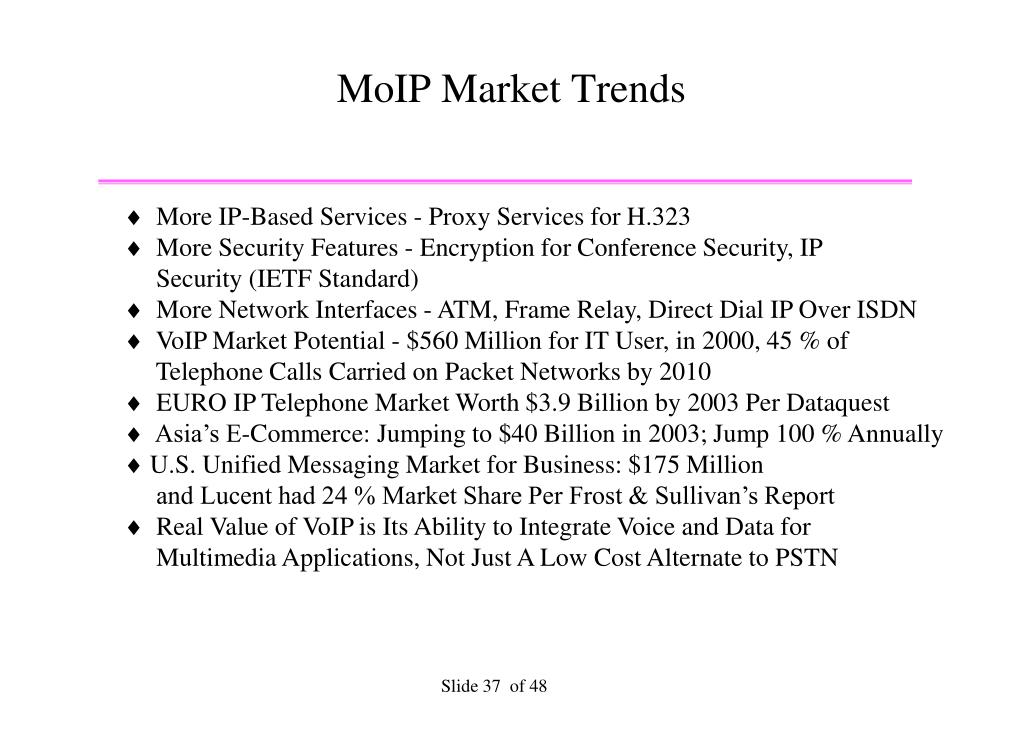

  36. MoIP Market Trends • More IP-Based Services - Proxy Services for H.323 • More Security Features - Encryption for Conference Security, IP Security (IETF Standard) • More Network Interfaces - ATM, Frame Relay, Direct Dial IP Over ISDN • VoIP Market Potential - $560 Million for IT User, in 2000, 45 % of Telephone Calls Carried on Packet Networks by 2010 • EURO IP Telephone Market Worth $3.9 Billion by 2003 Per Dataquest • Asia’s E-Commerce: Jumping to $40 Billion in 2003; Jump 100 % Annually • U.S. Unified Messaging Market for Business: $175 Million and Lucent had 24 % Market Share Per Frost & Sullivan’s Report • Real Value of VoIP is Its Ability to Integrate Voice and Data for Multimedia Applications, Not Just A Low Cost Alternate to PSTN Slide 37 of 48

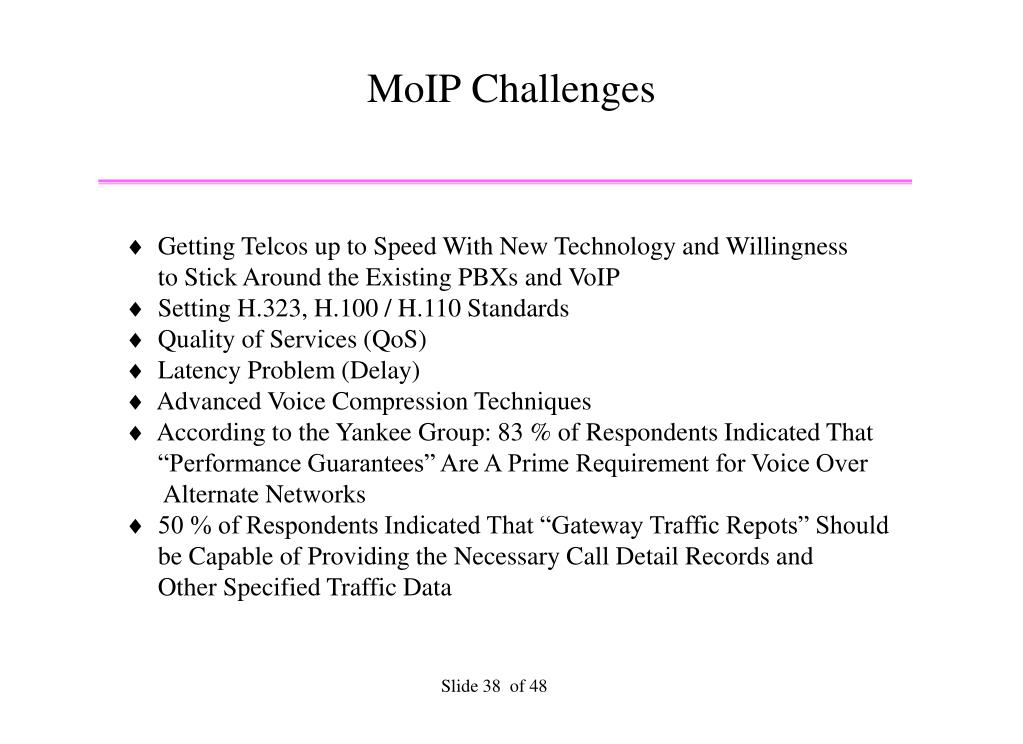

  37. MoIP Challenges • Getting Telcos up to Speed With New Technology and Willingness to Stick Around the Existing PBXs and VoIP • Setting H.323, H.100 / H.110 Standards • Quality of Services (QoS) • Latency Problem (Delay) • Advanced Voice Compression Techniques • According to the Yankee Group: 83 % of Respondents Indicated That “Performance Guarantees” Are A Prime Requirement for Voice Over Alternate Networks • 50 % of Respondents Indicated That “Gateway Traffic Repots” Should be Capable of Providing the Necessary Call Detail Records and Other Specified Traffic Data Slide 38 of 48
