  1. Deterministic Finite State Machines Chapter 5

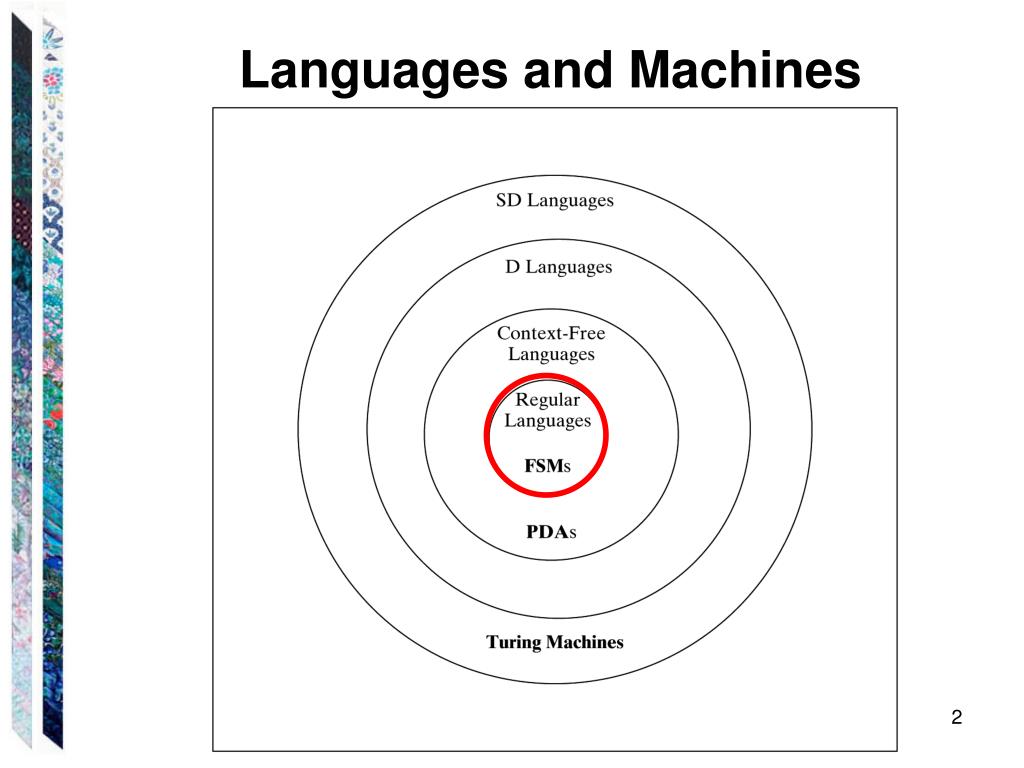

  2. Languages and Machines

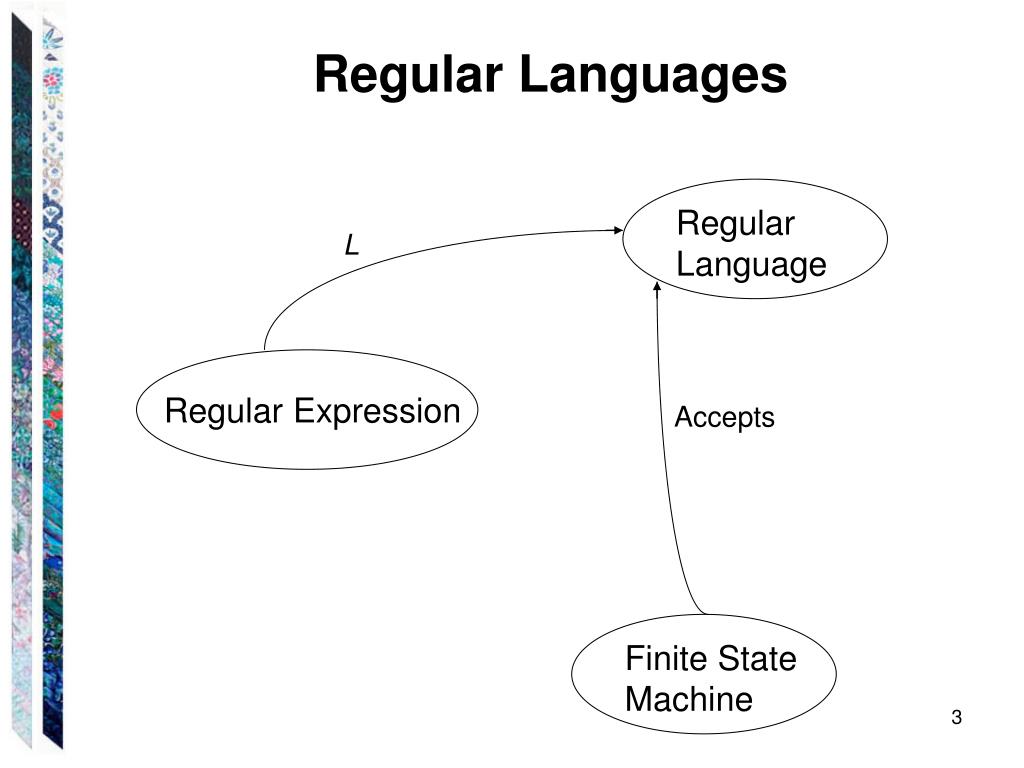

  3. Regular Languages Regular Language L Regular Expression Accepts Finite State Machine

  4. Finite State Machines Vending Machine: An FSM to accept $.50 in change Drink is 25 cents No more than 50 cents can be deposited X Other FSM examples?

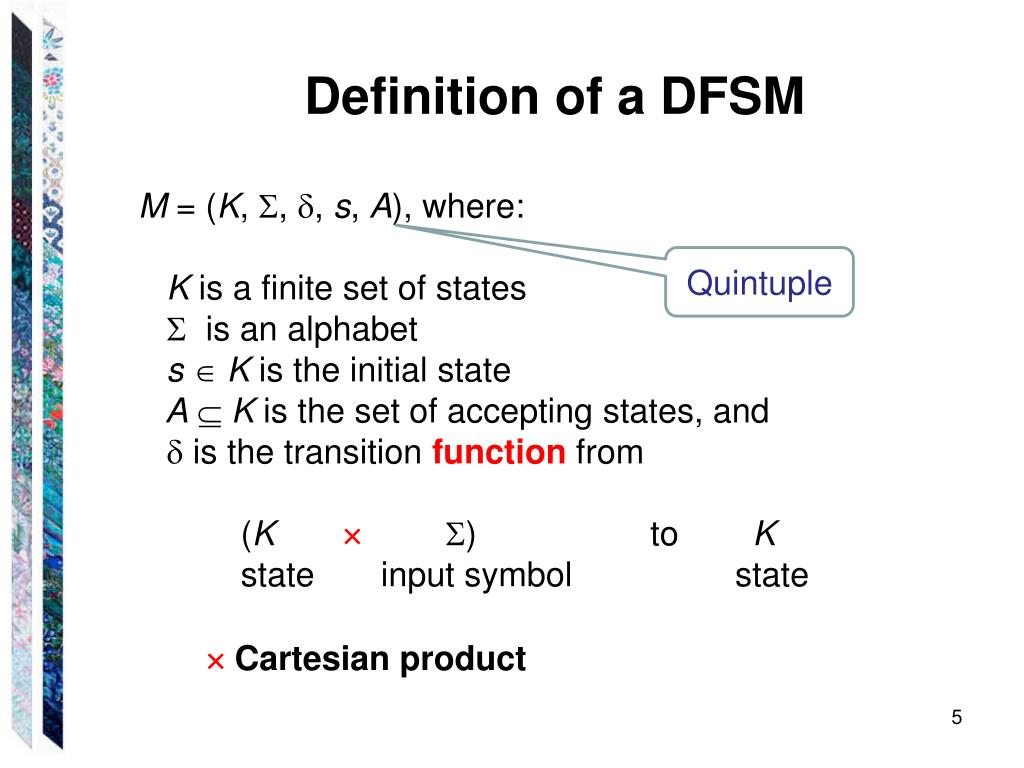

  5. Definition of a DFSM M = (K, , , s, A), where: K is a finite set of states  is an alphabet sK is the initial state AK is the set of accepting states, and  is the transition function from (K) to K state input symbol state Quintuple  Cartesian product

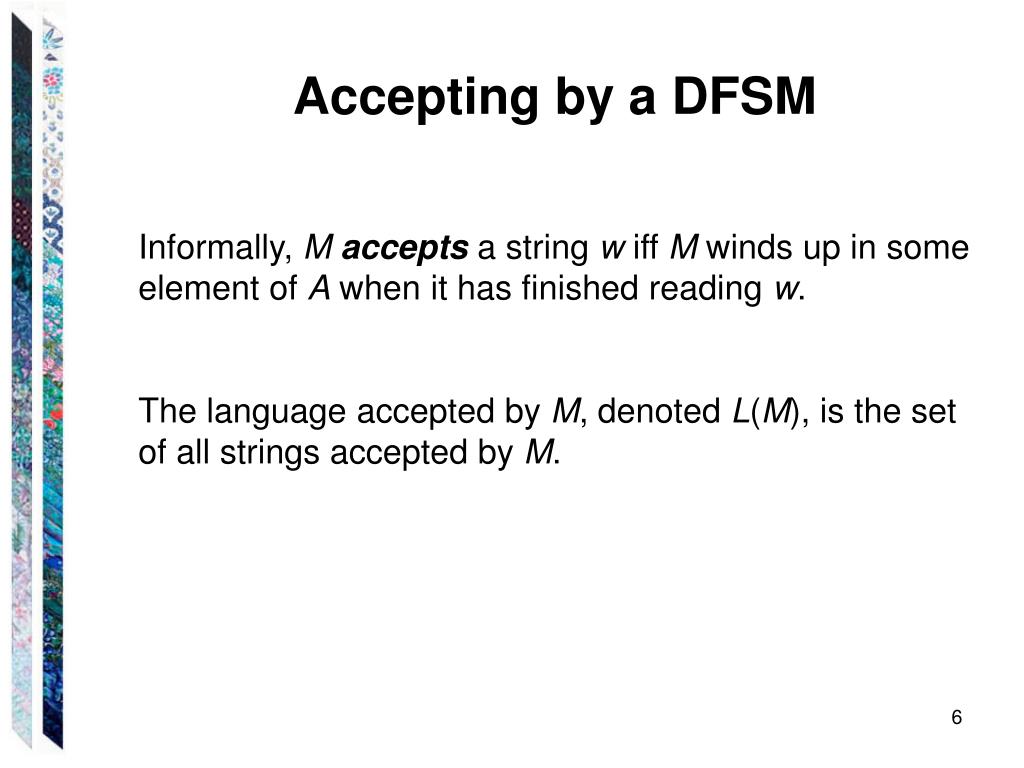

  6. Accepting by a DFSM Informally, Maccepts a string w iff M winds up in some element of A when it has finished reading w. The language accepted by M, denoted L(M), is the set of all strings accepted by M.

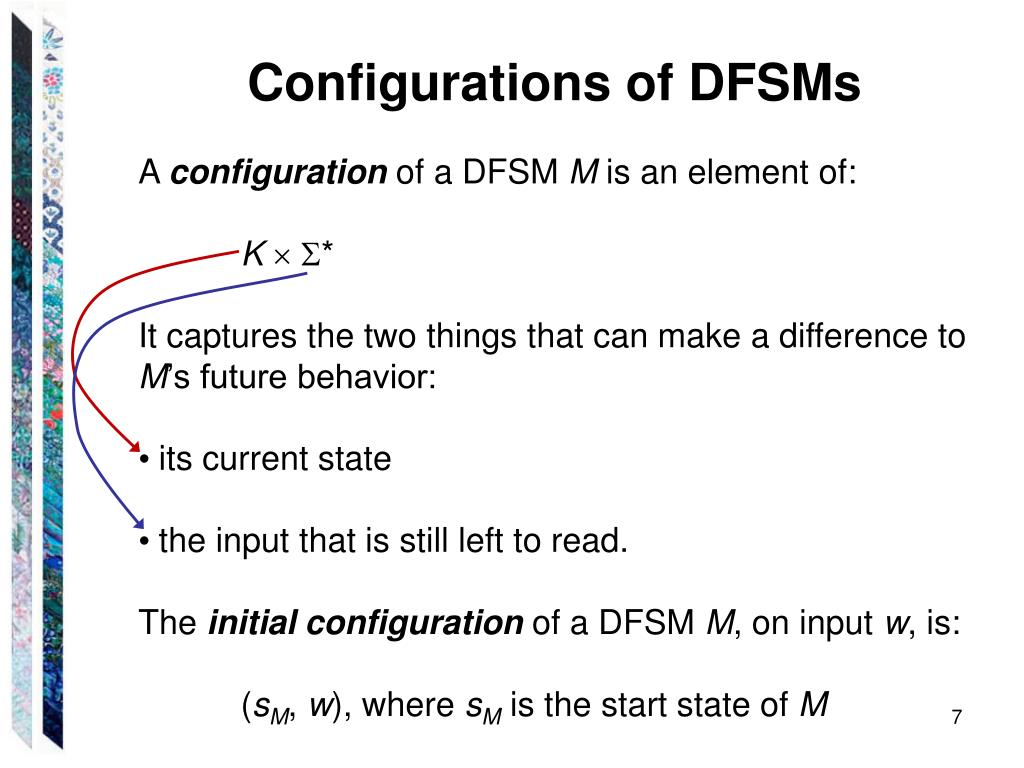

  7. Configurations of DFSMs A configuration of a DFSM M is an element of: K* It captures the two things that can make a difference to M’s future behavior: • its current state • the input that is still left to read. The initial configuration of a DFSM M, on input w, is: (sM, w), where sM is the start state of M

  8. The Yields Relations The yields-in-one-step relation |-M : (q, w) |-M (q', w') iff • w = aw' for some symbol a, and •  (q, a) = q' The relation yields, |-M*, is the reflexive, transitive closure of |-M. C1 |-M* C2 : M can go from C1 to C2 in 0 or more steps.

  9. Computations Using FSMs A computation by M is a finite sequence of configurations C0, C1, …, Cn for some n 0 such that: • C0 is an initial configuration, • Cn is of the form (q, ), for some state qKM, • C0 |-MC1 |-MC2 |-M … |-MCn.

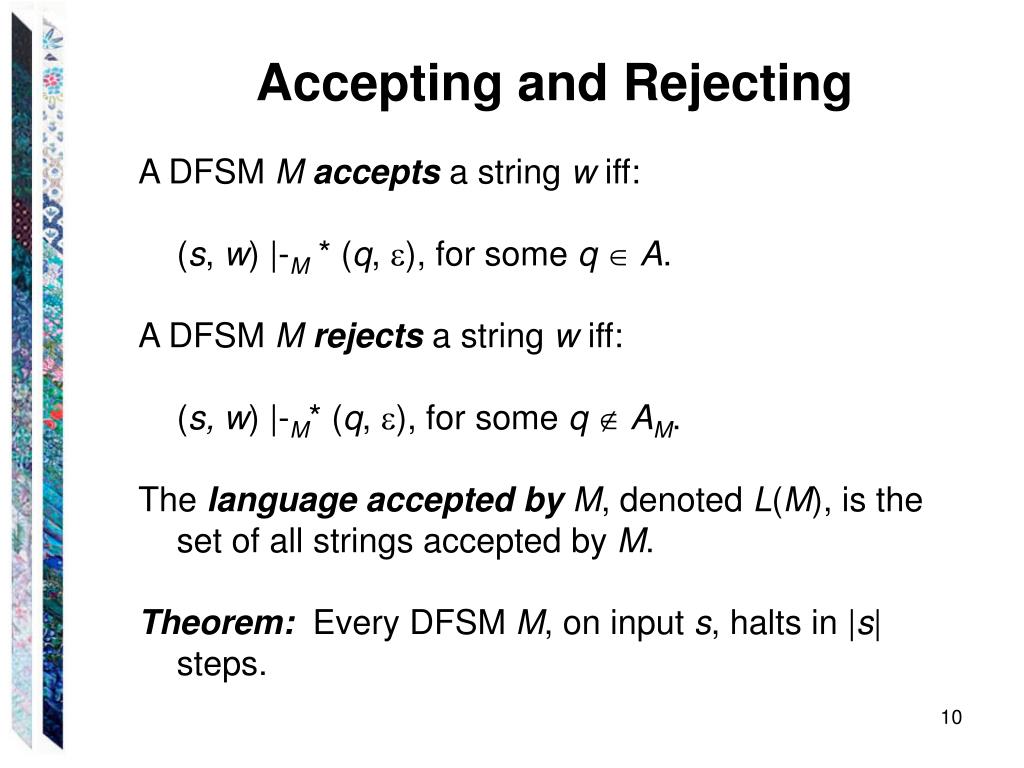

  10. Accepting and Rejecting A DFSM Maccepts a string w iff: (s, w) |-M * (q, ), for some qA. A DFSM Mrejects a string w iff: (s, w) |-M* (q, ), for some qAM. The language accepted byM, denoted L(M), is the set of all strings accepted by M. Theorem: Every DFSM M, on input s, halts in |s| steps.

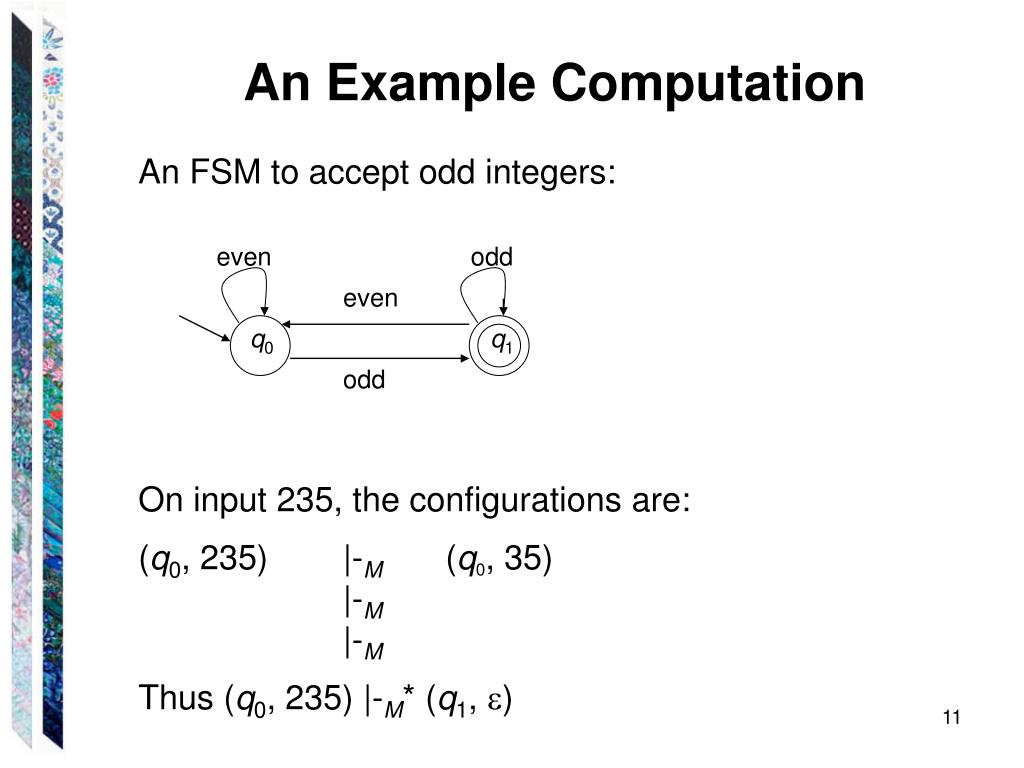

  11. An Example Computation An FSM to accept odd integers: even odd even q0q1 odd On input 235, the configurations are: (q0, 235) |-M (q0, 35) |-M |-M Thus (q0, 235) |-M* (q1, )

  12. Regular Languages A language is regular iff it is accepted by some FSM.

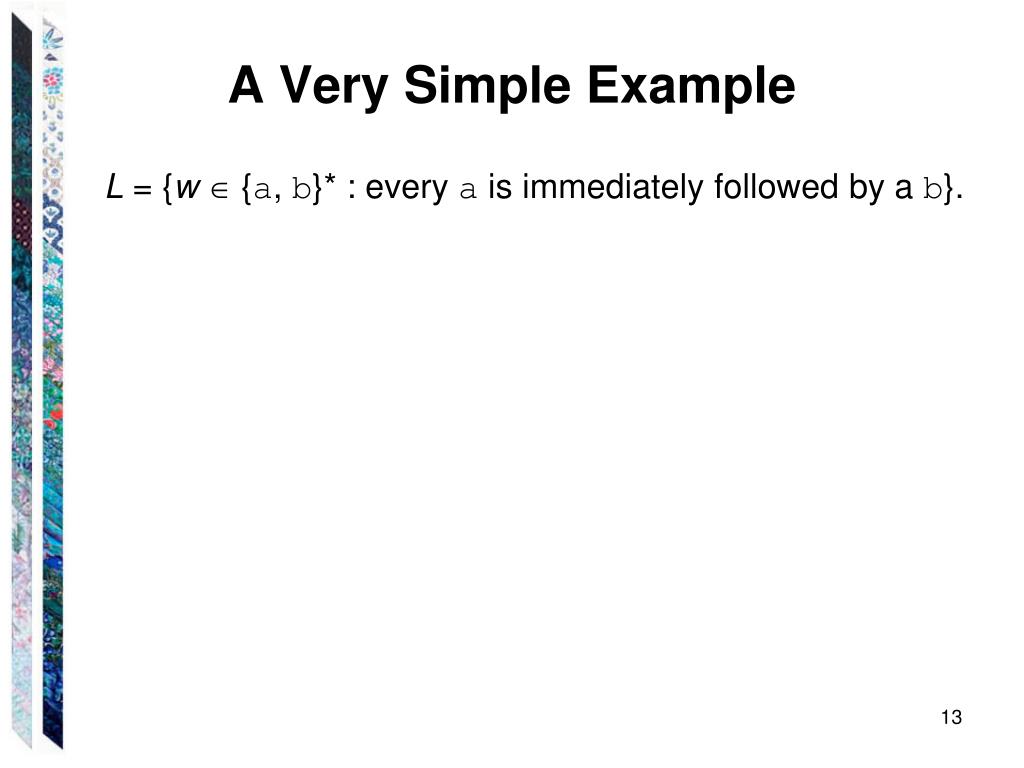

  13. A Very Simple Example L = {w {a, b}* : every a is immediately followed by a b}.

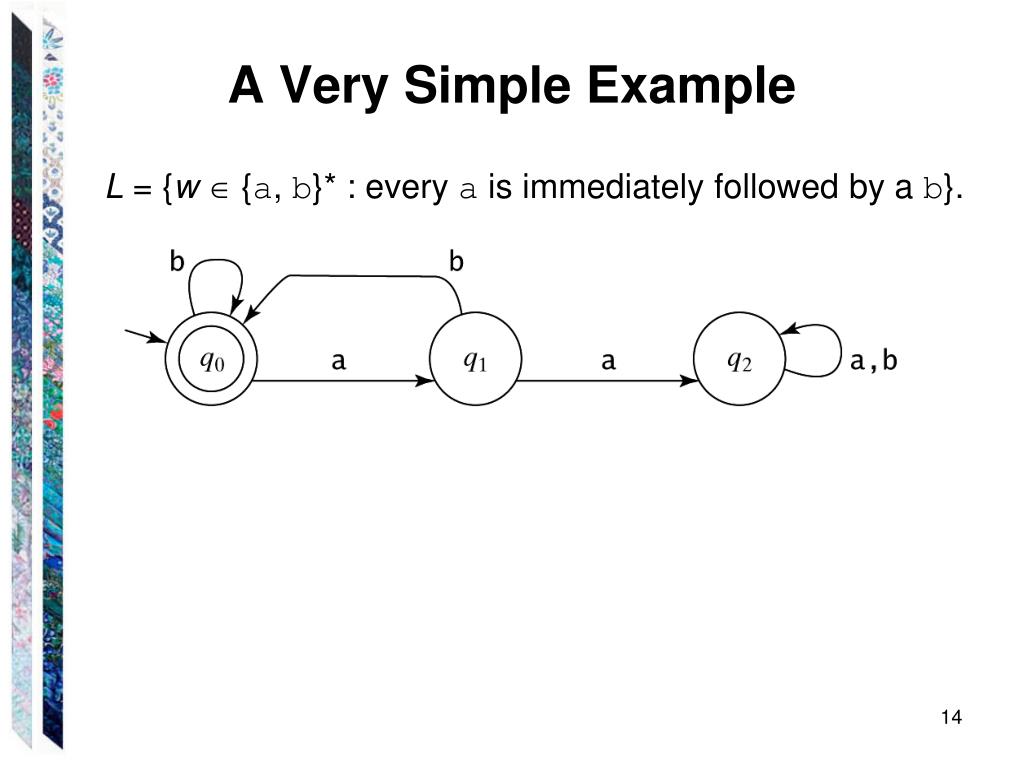

  14. A Very Simple Example L = {w {a, b}* : every a is immediately followed by a b}.

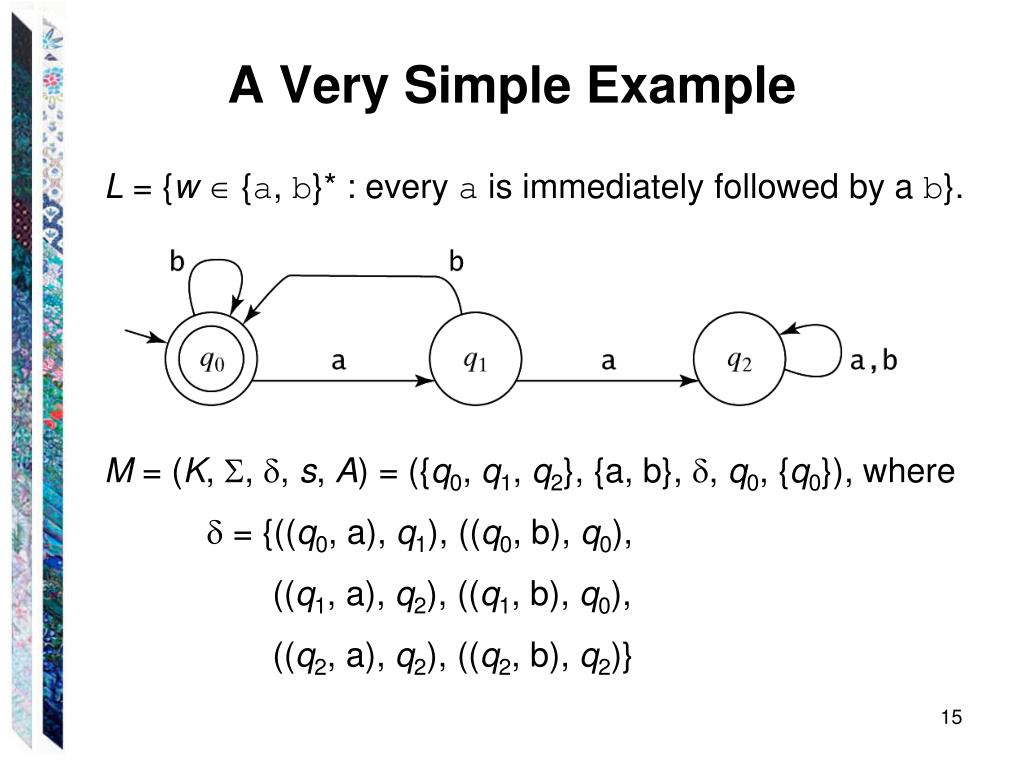

  15. A Very Simple Example L = {w {a, b}* : every a is immediately followed by a b}. M = (K, , , s, A) = ({q0, q1, q2}, {a, b}, , q0, {q0}), where  = {((q0, a), q1), ((q0, b), q0), ((q1, a), q2), ((q1, b), q0), ((q2, a), q2), ((q2, b), q2)}

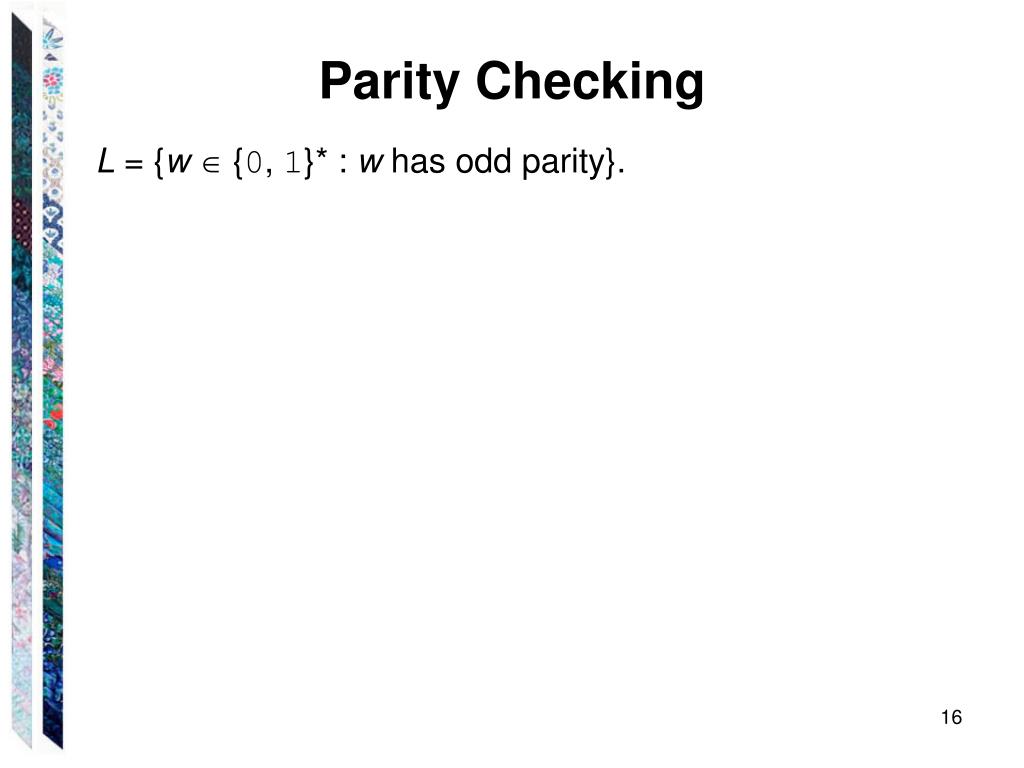

  16. Parity Checking L = {w {0, 1}* : w has odd parity}.

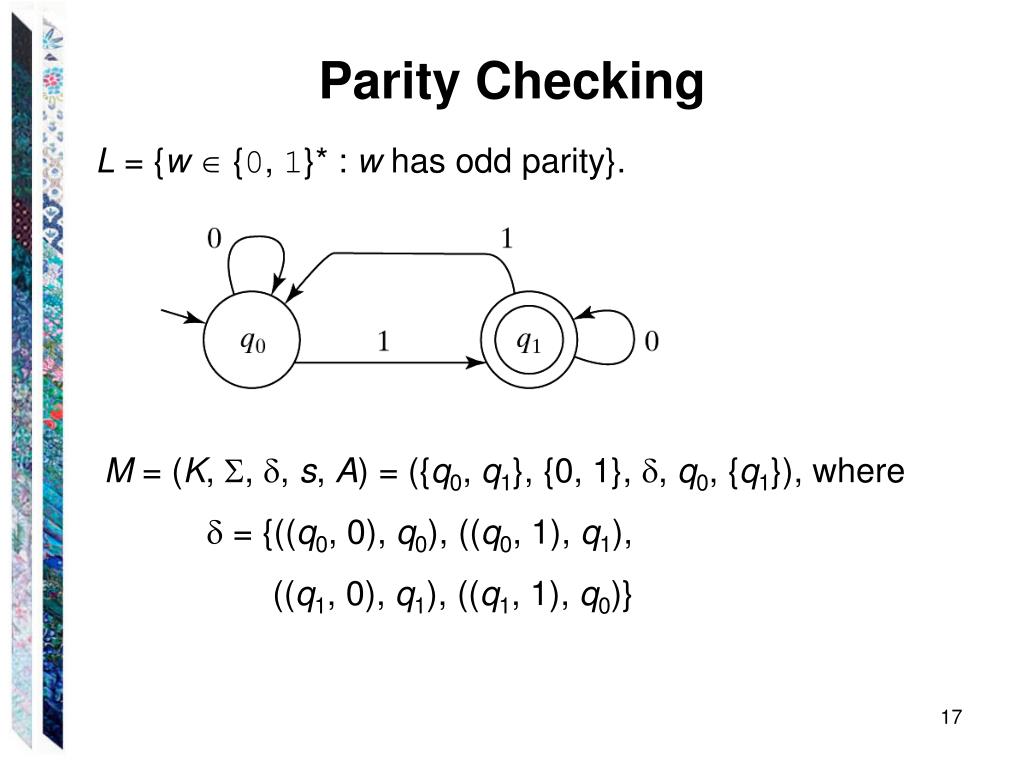

  17. Parity Checking L = {w {0, 1}* : w has odd parity}. M = (K, , , s, A) = ({q0, q1}, {0, 1}, , q0, {q1}), where  = {((q0, 0), q0), ((q0, 1), q1), ((q1, 0), q1), ((q1, 1), q0)}

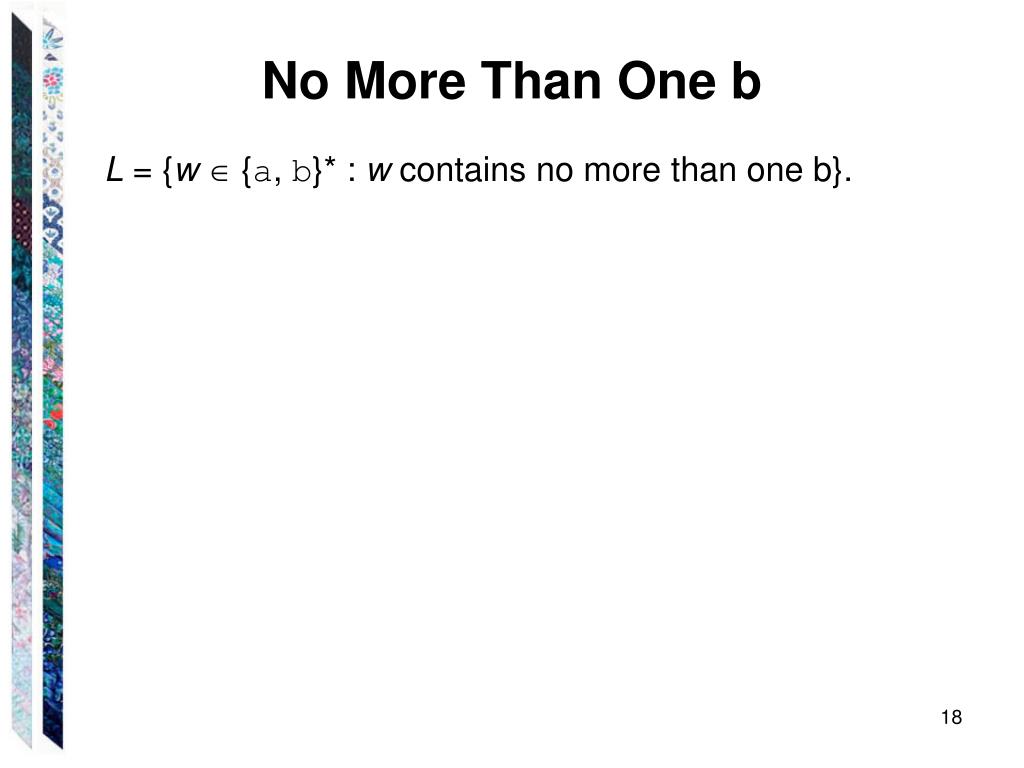

  18. No More Than One b L = {w {a, b}* : w contains no more than one b}.

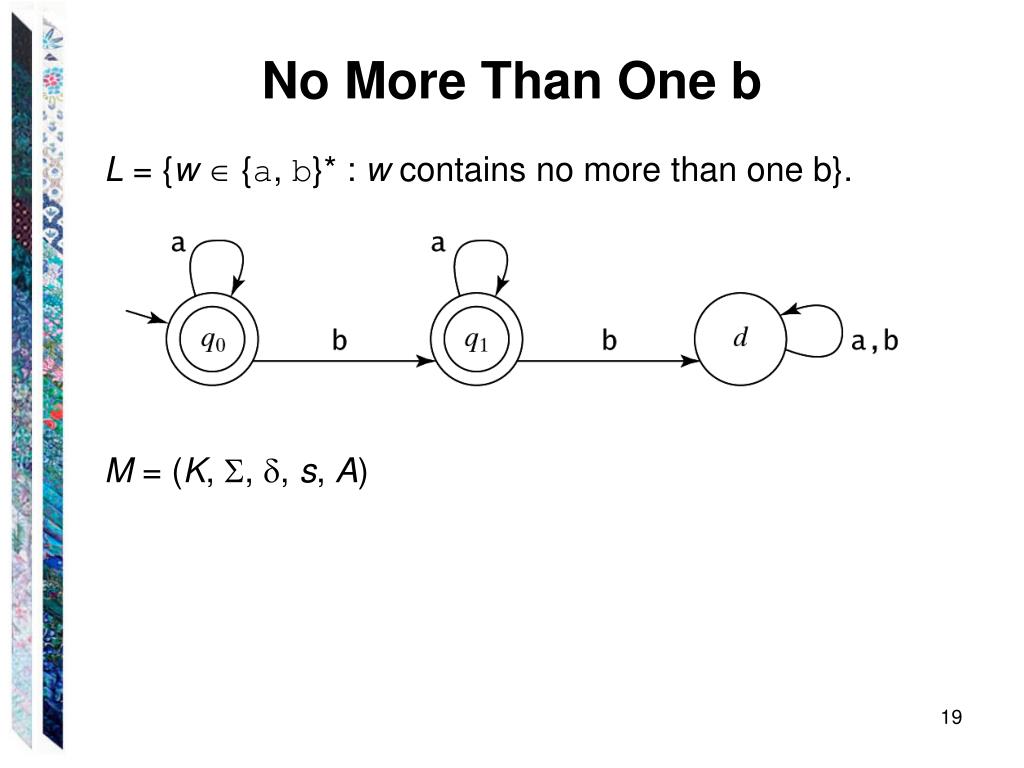

  19. No More Than One b L = {w {a, b}* : w contains no more than one b}. M = (K, , , s, A)

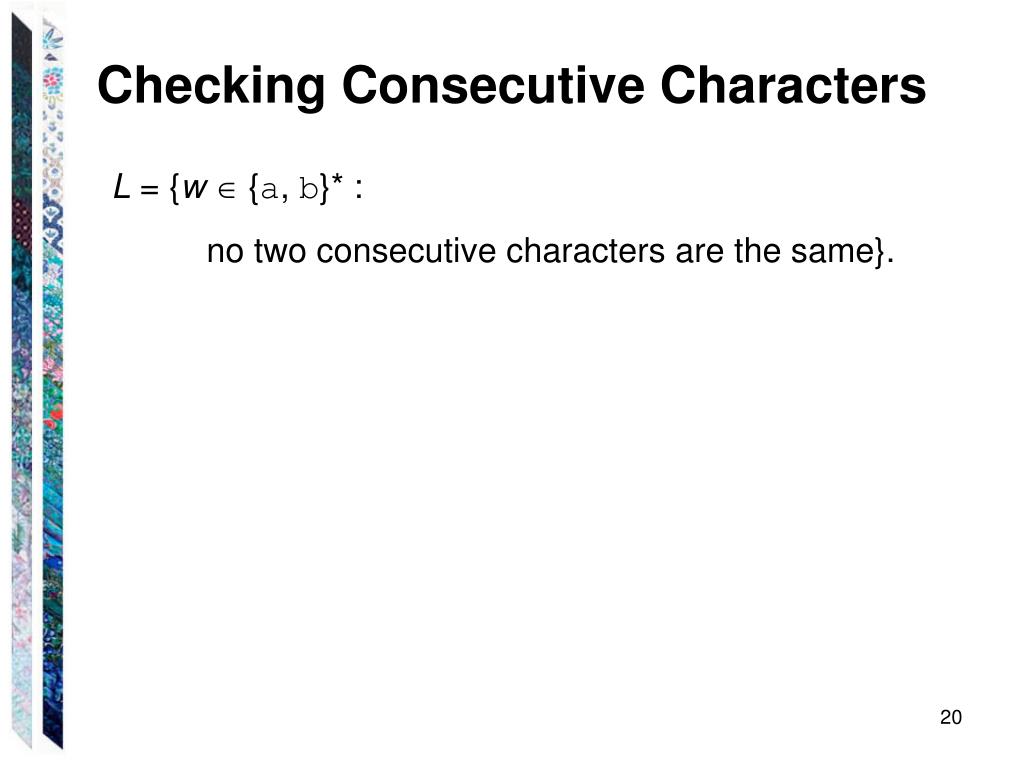

  20. Checking Consecutive Characters L = {w {a, b}* : no two consecutive characters are the same}.

  21. Checking Consecutive Characters L = {w {a, b}* : no two consecutive characters are the same}.

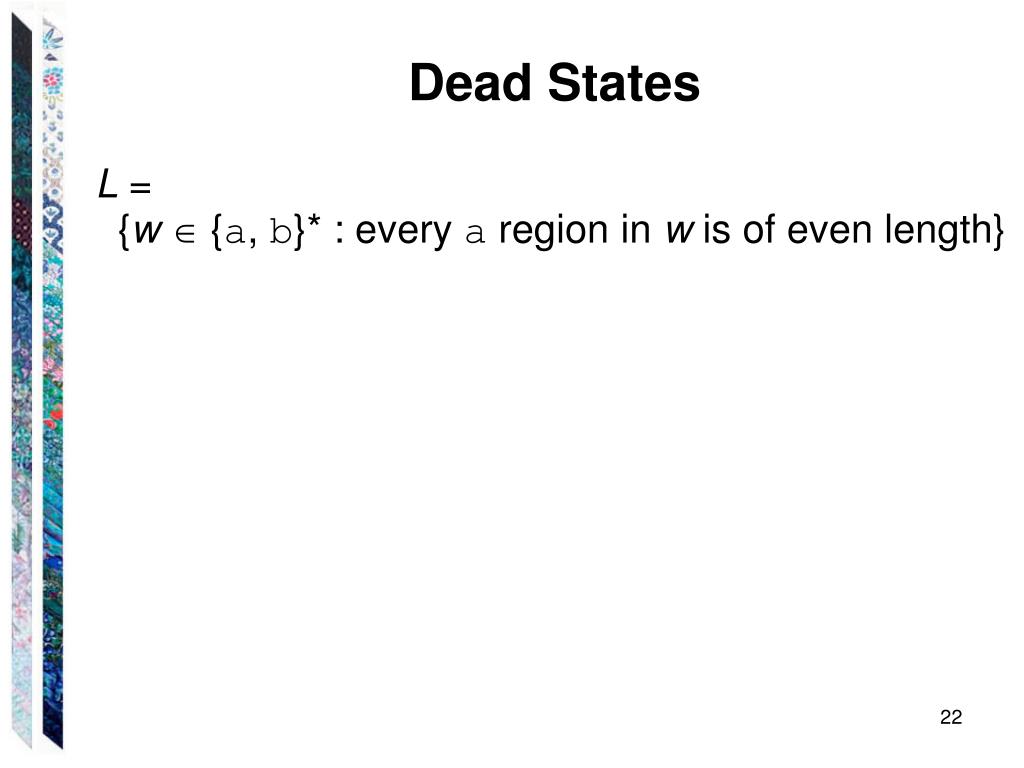

  22. Dead States L = {w {a, b}* : every a region in w is of even length}

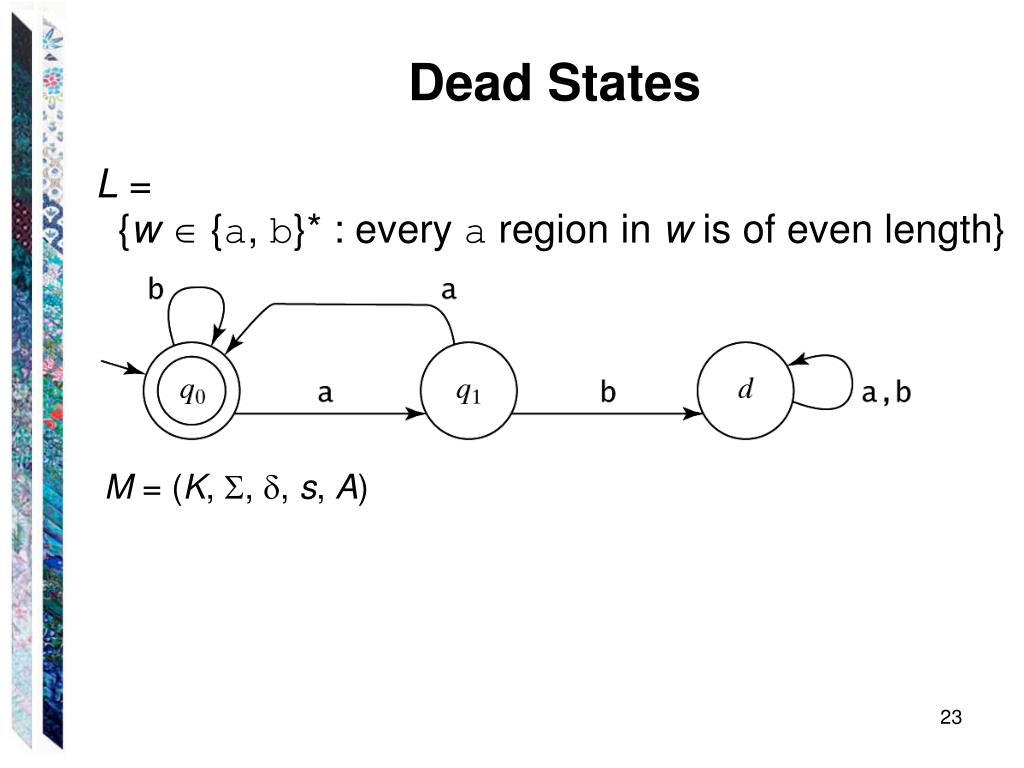

  23. Dead States L = {w {a, b}* : every a region in w is of even length} M = (K, , , s, A)

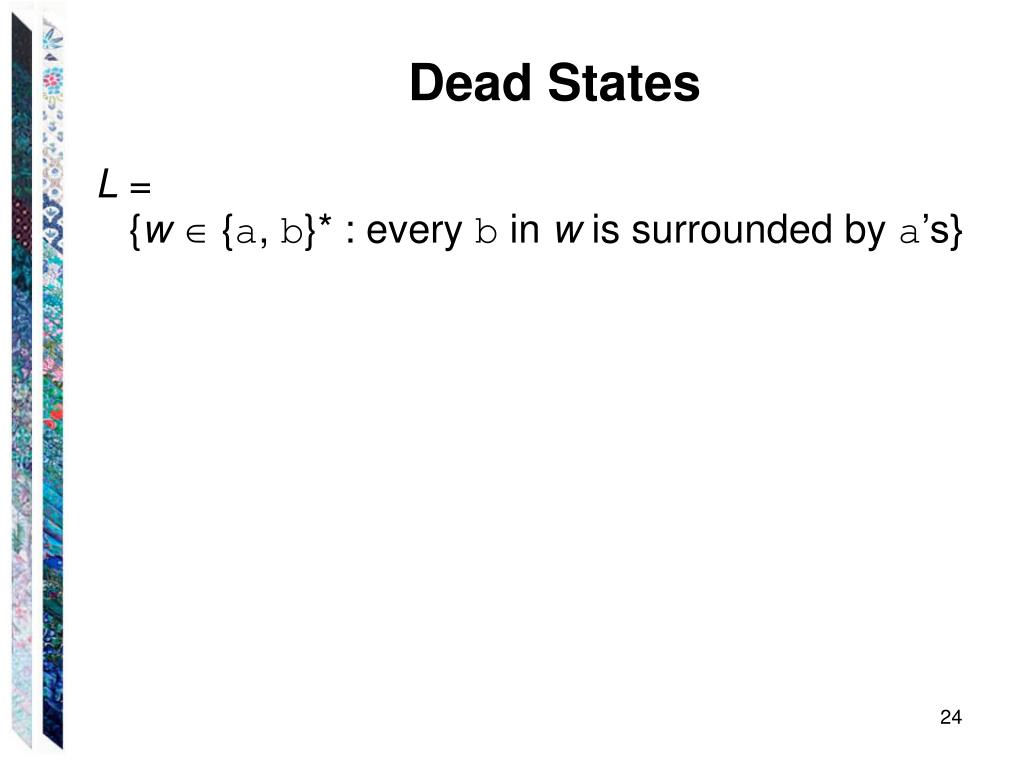

  24. Dead States L = {w {a, b}* : every b in w is surrounded by a’s}

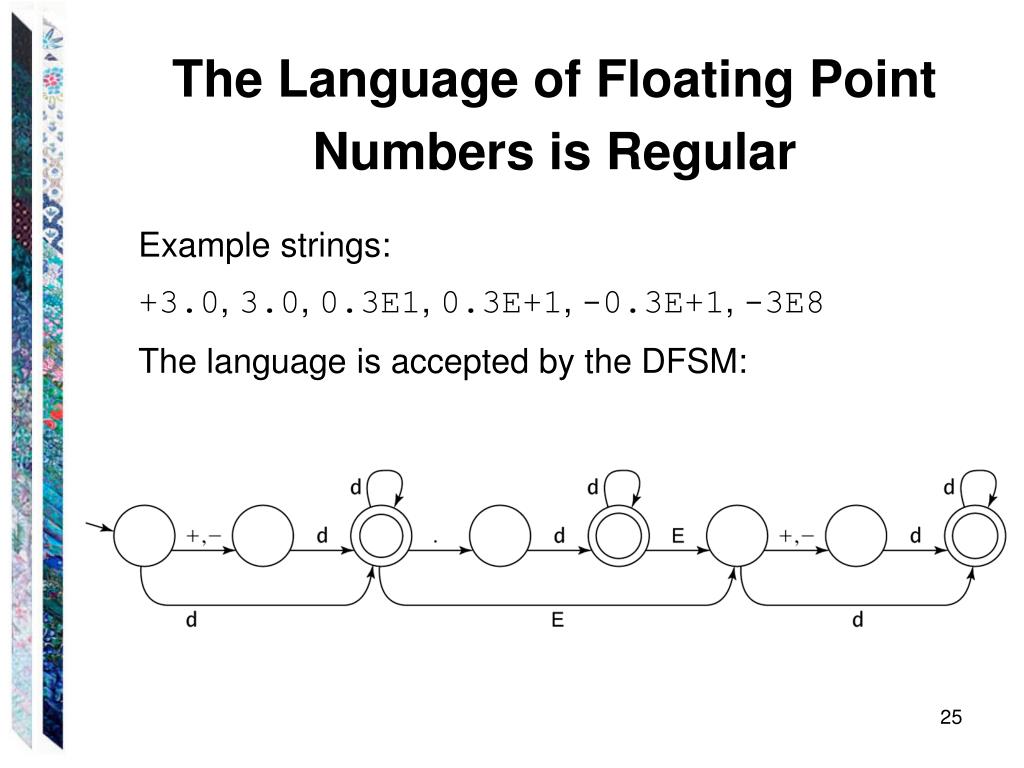

  25. The Language of Floating Point Numbers is Regular Example strings: +3.0, 3.0, 0.3E1, 0.3E+1, -0.3E+1, -3E8 The language is accepted by the DFSM:

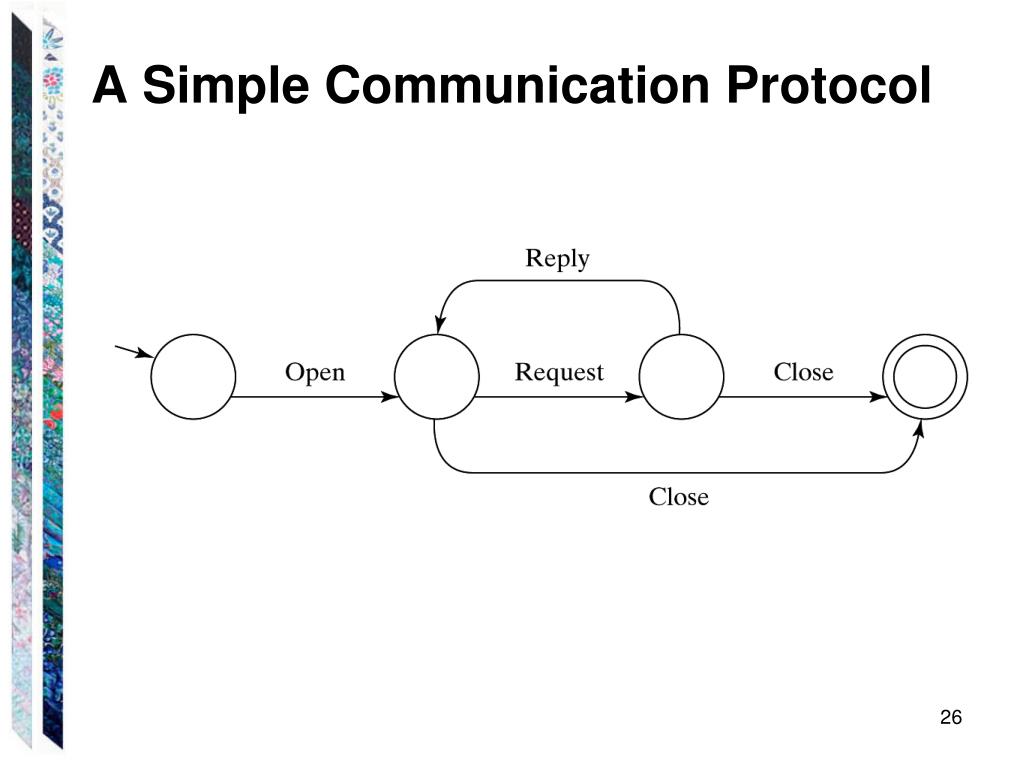

  26. A Simple Communication Protocol

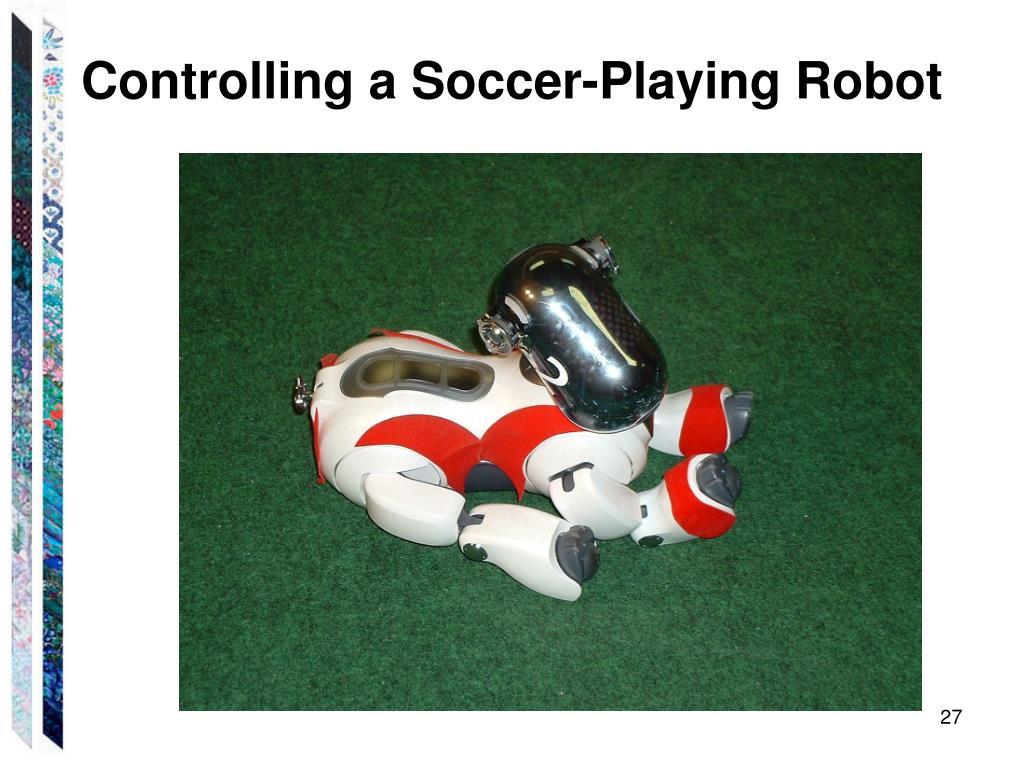

  27. Controlling a Soccer-Playing Robot

  28. A Simple Controller

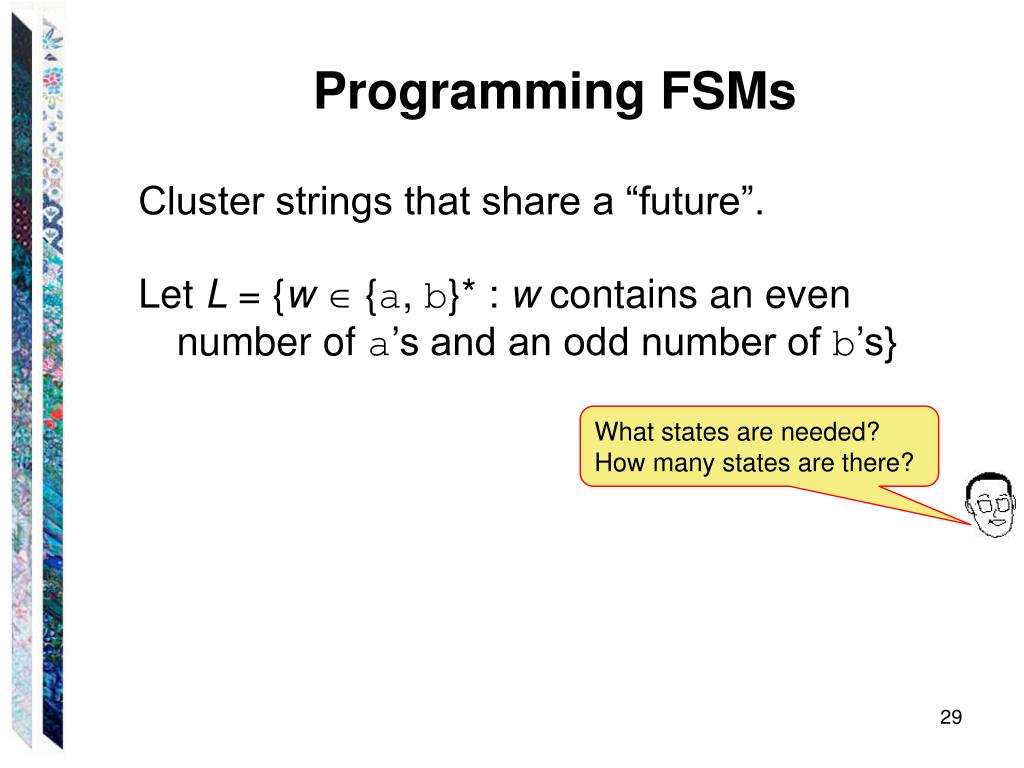

  29. Programming FSMs Cluster strings that share a “future”. Let L = {w {a, b}* : w contains an even number of a’s and an odd number of b’s} What states are needed? How many states are there?

  30. Even a’s Odd b’s

  31. Vowels in Alphabetical Order L = {w {a - z}* : all five vowels, a, e, i, o, and u, occur in w in alphabetical order}.

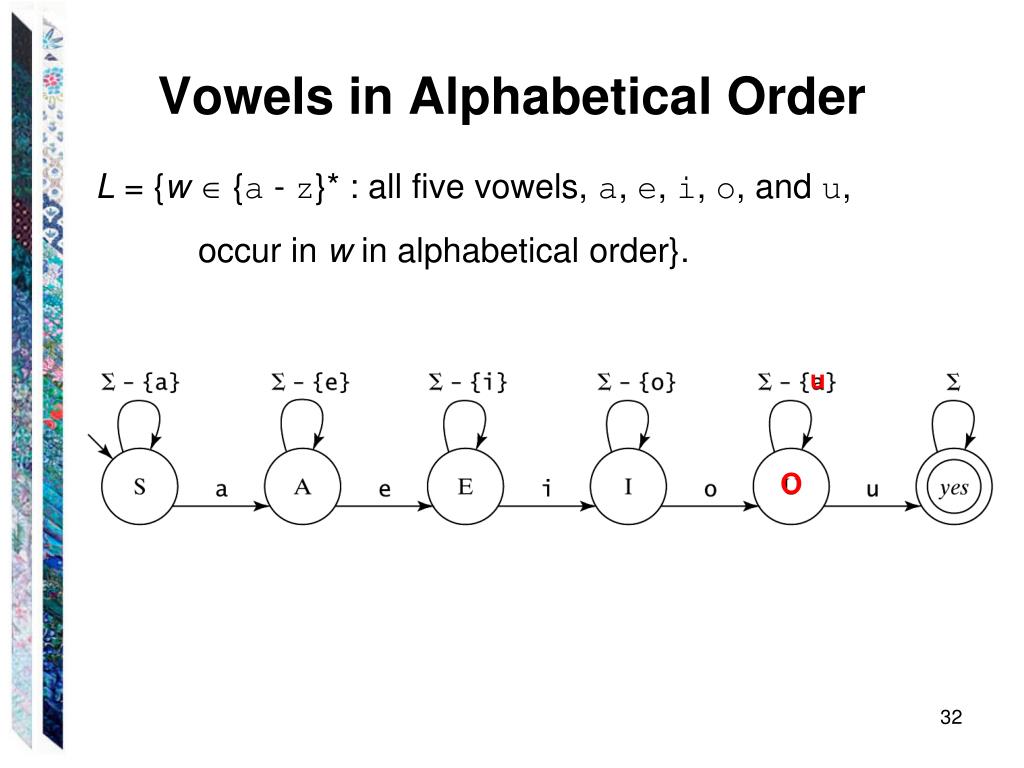

  32. Vowels in Alphabetical Order L = {w {a - z}* : all five vowels, a, e, i, o, and u, occur in w in alphabetical order}. u O

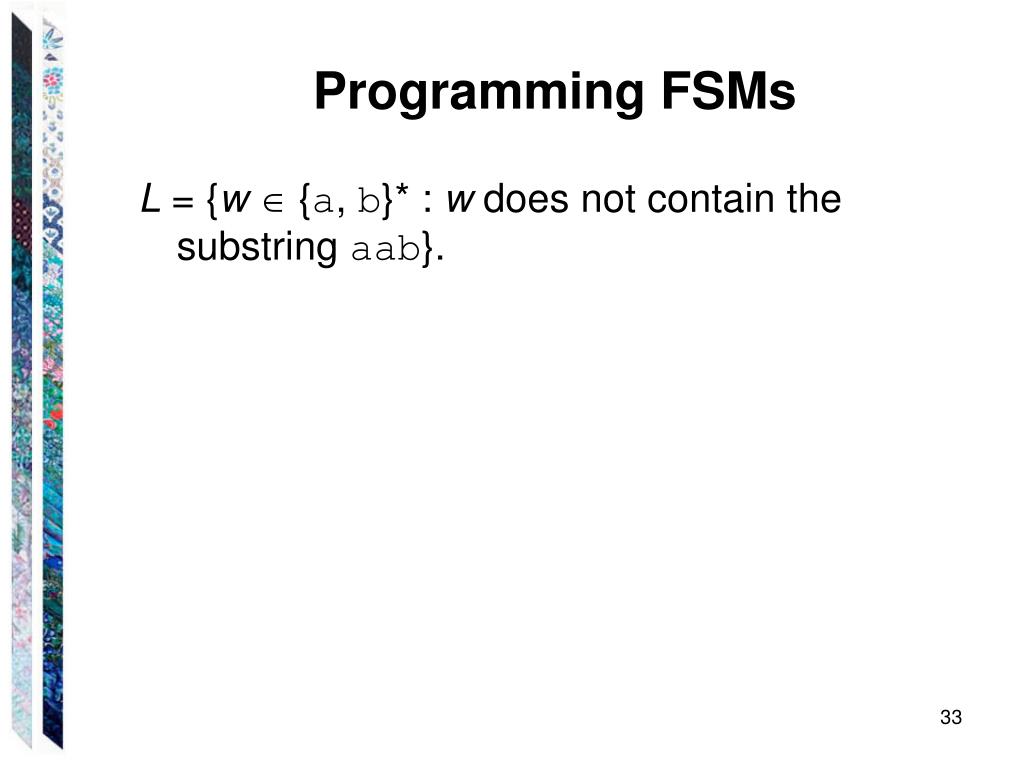

  33. Programming FSMs L = {w {a, b}* : w does not contain the substring aab}.

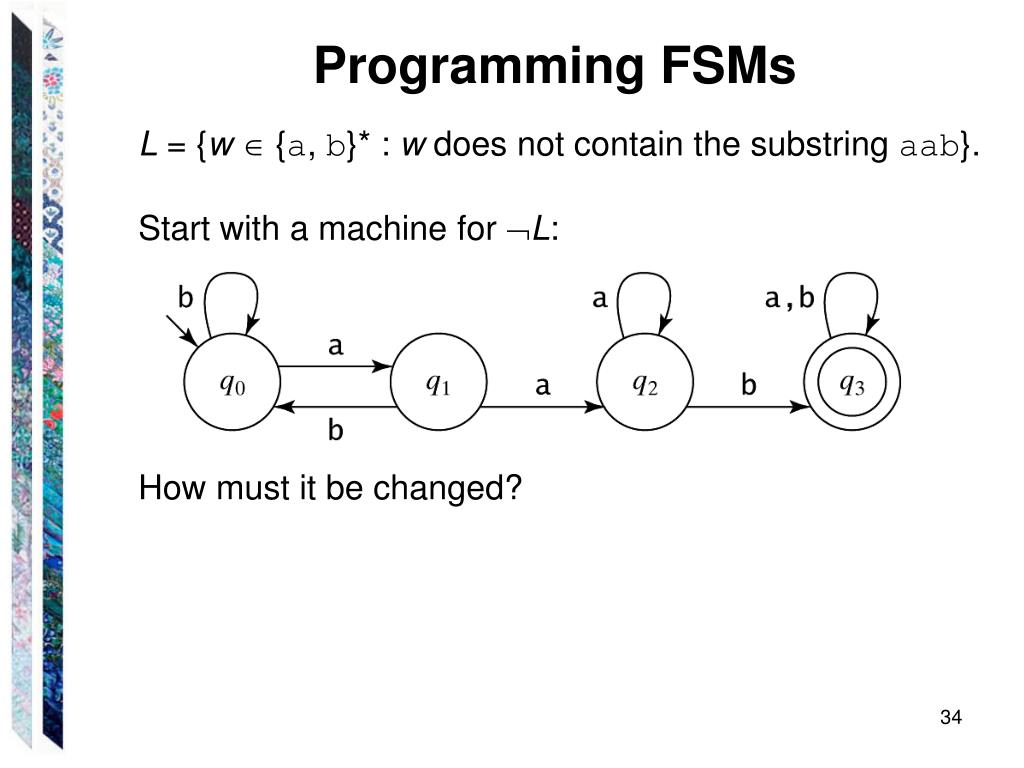

  34. Programming FSMs L = {w {a, b}* : w does not contain the substring aab}. Start with a machine for L: How must it be changed?

  35. Programming FSMs L = {w {a, b}* : w does not contain the substring aab}. Start with a machine for L: How must it be changed?

  36. A Building Security System L = {event sequences such that the alarm should sound}

  37. FSMs Predate Computers The Chinese Abacus, 14 century AD The Jacquard Loom, invented in 1801 The Prague Orloj, originally built in 1410

  38. Finite State Representations in Software Engineering A high-level state chart model of a digital watch.

  39. Making the Model Hierarchical

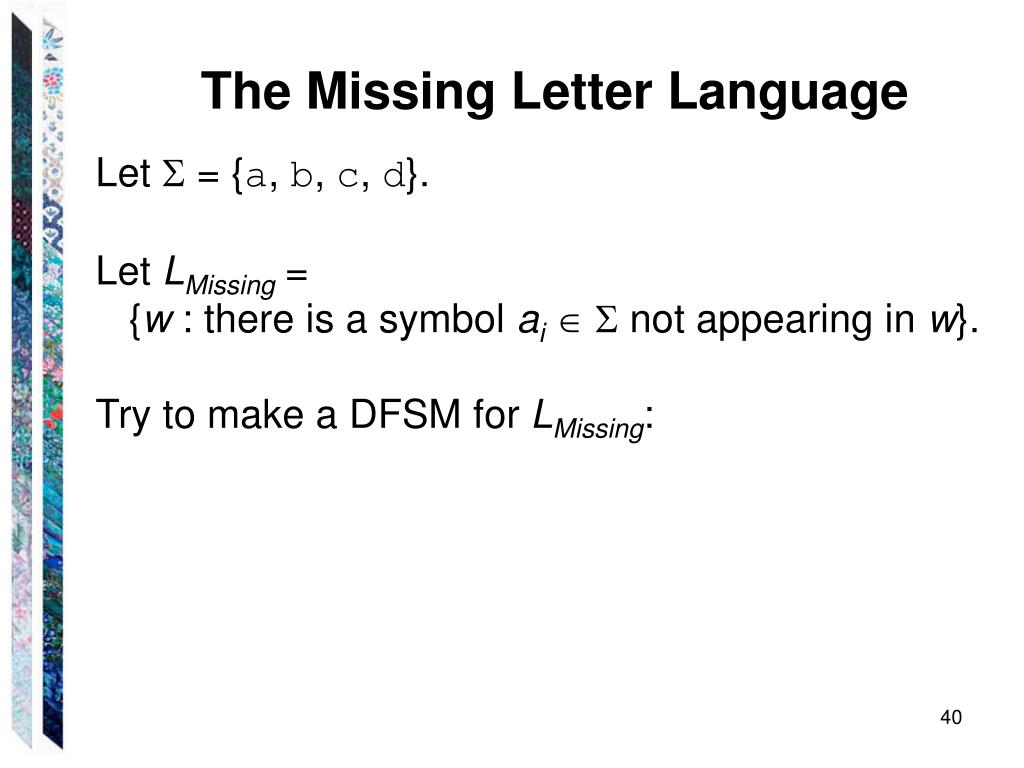

  40. The Missing Letter Language Let  = {a, b, c, d}. Let LMissing= {w : there is a symbol ai not appearing in w}. Try to make a DFSM for LMissing:
