  1. Tamper evident encryption of integers using keyed Hash Message Authentication Code Brad Baker November 16, 2009 UCCS Master’s Project Report Brad Baker - Master's Project Report

  2. Agenda • Introduction / Motivation • Background • Design • Analysis • Implementation • Testing • Conclusion / Future Work • References Brad Baker - Master's Project Report

  3. Section 1:Introduction Brad Baker - Master's Project Report

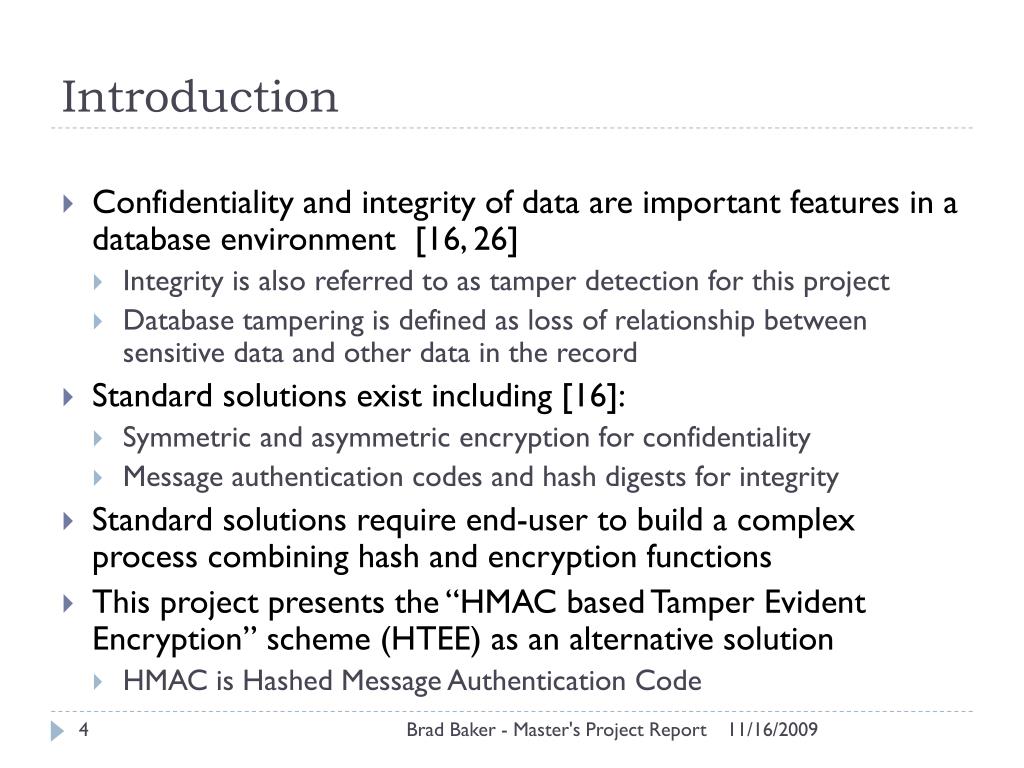

  4. Introduction • Confidentiality and integrity of data are important features in a database environment [16, 26] • Integrity is also referred to as tamper detection for this project • Database tampering is defined as loss of relationship between sensitive data and other data in the record • Standard solutions exist including [16]: • Symmetric and asymmetric encryption for confidentiality • Message authentication codes and hash digests for integrity • Standard solutions require end-user to build a complex process combining hash and encryption functions • This project presents the “HMAC based Tamper Evident Encryption” scheme (HTEE) as an alternative solution • HMAC is Hashed Message Authentication Code Brad Baker - Master's Project Report

  5. Motivation • Create an efficient and simple-use tamper evident encryption technique • Single step, single column tamper detection • Focus on processing numeric data in a database system • Improve performance of the encryption operation compared to standard approaches • Improve on previous work that introduced an HMAC based encryption/decryption process • Investigate uses of HMAC as an encryption and key generation function Brad Baker - Master's Project Report

  6. Related Work • File system and application level integrity [21, 22] • Checksums, CRC, RAID Parity, Cryptographic file systems • OpenSSL, Intrusion detection, Tripwire, Samhain • Forensic analysis and tamper detection [23] • Notarization with hash function and reliance on audit log • Analysis of how and when data was tampered • Parallel encryption and authentication code [24, 25] • Various implementations of encryption combined with MAC • Original HMAC encryption scheme [1] • Integer encryption with HMAC • Foundation for HTEE tamper detection Brad Baker - Master's Project Report

  7. Comparison of Solutions • Solutions for integrity and confidentiality considered: • HTEE: Encryption and tamper detection with HMAC function • AES & SHA-1: Encryption and hash, detects tampering • AES: Encryption, detects random changes only • Each provides a unique benefit: Brad Baker - Master's Project Report

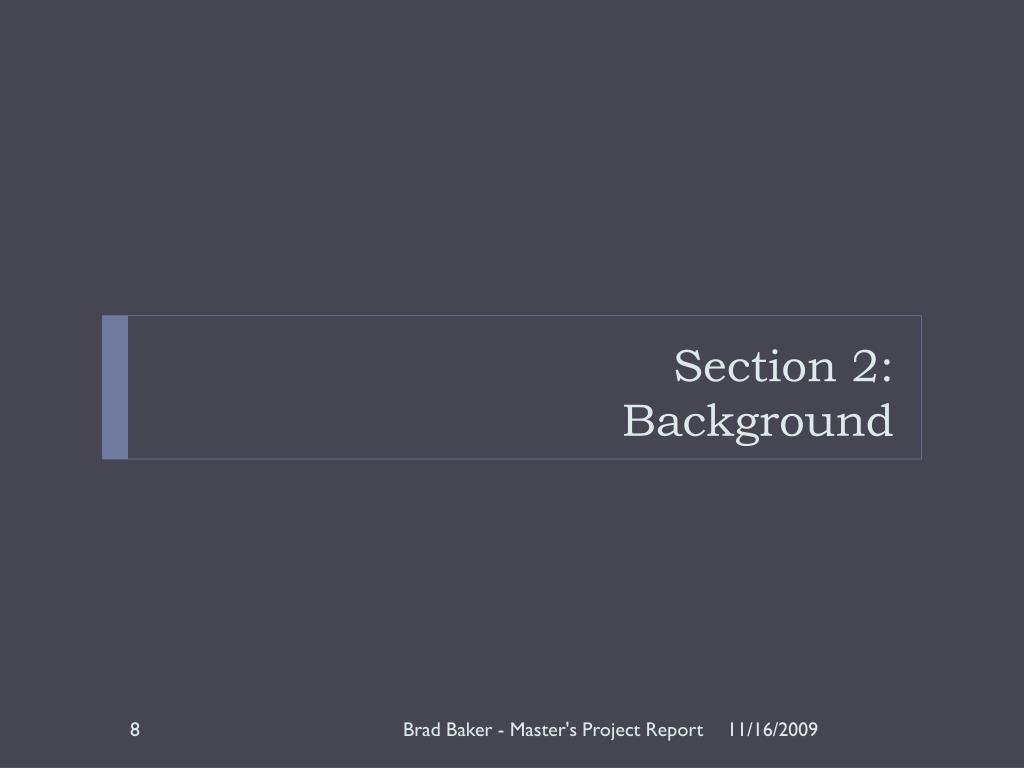

  8. Section 2:Background Brad Baker - Master's Project Report

  9. Background - HMAC • HMAC – keyed Hash Message Authentication Code [13] • Produces a secure authentication code (digest) using message and secret key, providing integrity and authenticity • Proposed in [3], and standardized as FIPS PUB 198 [12] • Unauthorized individual cannot generate digest without key • Can use any underlying hash function, MD5, SHA-1, etc. • Function generates two keys from secret key • The HMAC process is: • HMAC(key, msg) = Hash((key XOR opad) || Hash ((key XOR ipad) || msg) • Where opad=“0x5c5c…” and ipad=“0x3636…” Brad Baker - Master's Project Report

  10. Background – Integer Encryption • Integer encryption with HMAC • Original HMAC integer encryption scheme proposed in [1] • The scheme operates on integer plaintext values, decomposed into two components or buckets • Encryption is performed with HMAC calculation, decryption is performed with exhaustive search • The scheme is inefficient on encryption and for large integers • Encryption is recursive HMAC rather than direct calculation • Two buckets results in a large search ranges for decryption • A detailed analysis including testing results are available in [2] • HTEE is based on this scheme, and improves upon it Brad Baker - Master's Project Report

  11. Original HMAC process Brad Baker - Master's Project Report

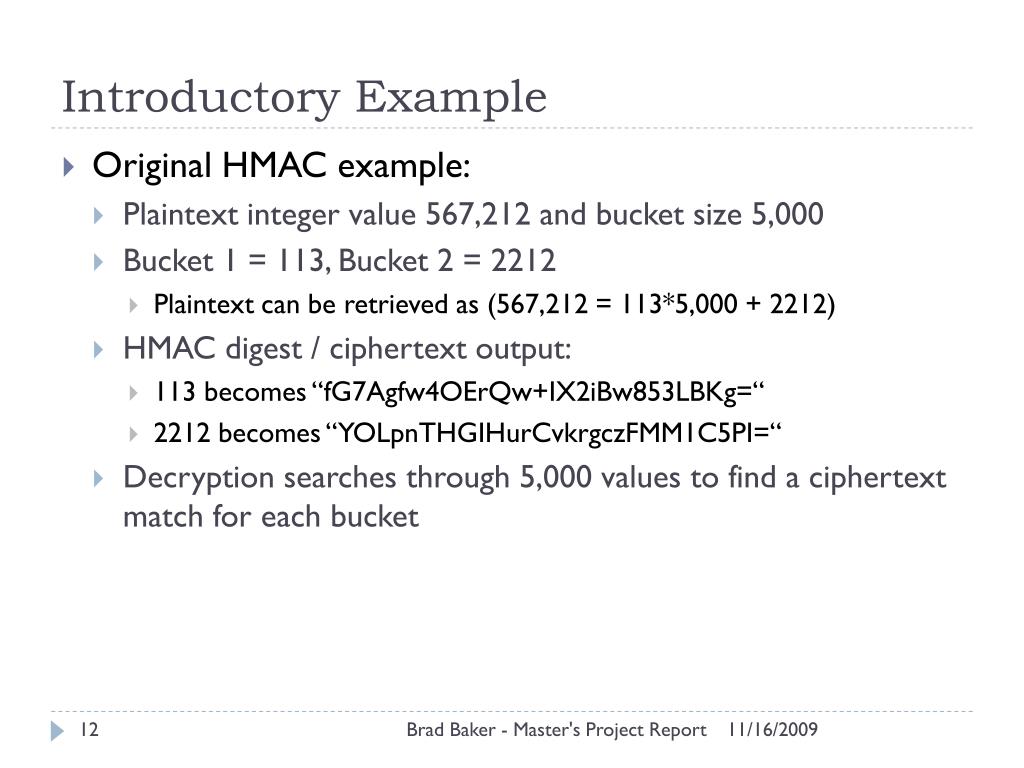

  12. Introductory Example • Original HMAC example: • Plaintext integer value 567,212 and bucket size 5,000 • Bucket 1 = 113, Bucket 2 = 2212 • Plaintext can be retrieved as (567,212 = 113*5,000 + 2212) • HMAC digest / ciphertext output: • 113 becomes “fG7Agfw4OErQw+IX2iBw853LBKg=“ • 2212 becomes “YOLpnTHGIHurCvkrgczFMM1C5PI=“ • Decryption searches through 5,000 values to find a ciphertext match for each bucket Brad Baker - Master's Project Report

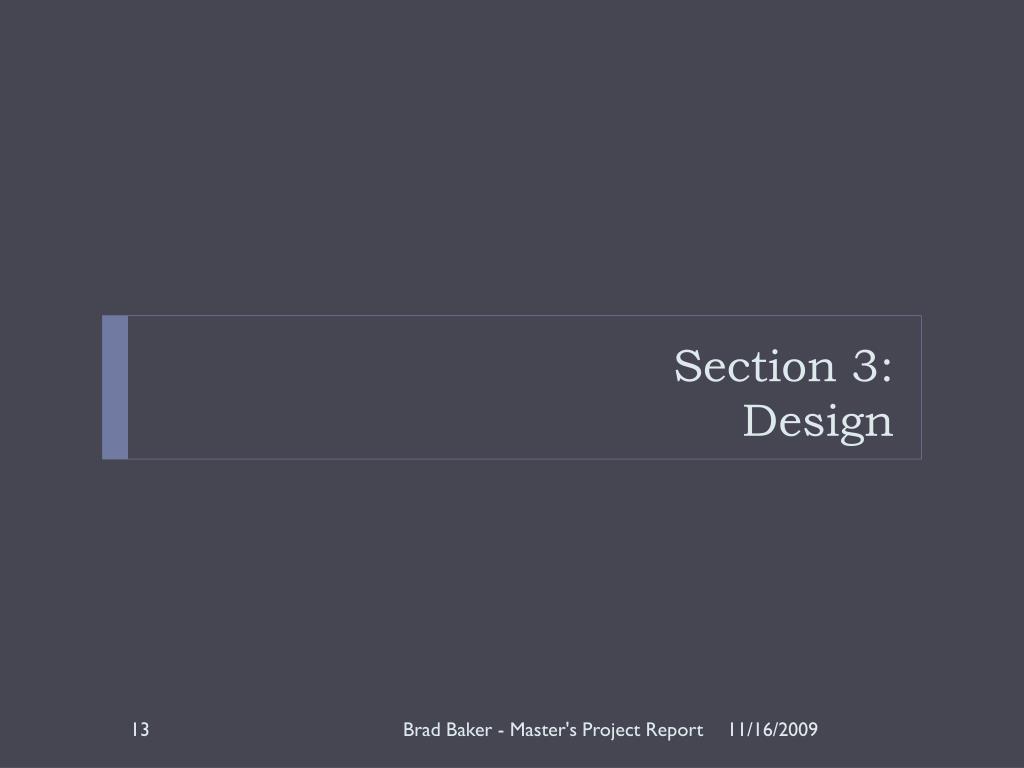

  13. Section 3:Design Brad Baker - Master's Project Report

  14. HTEE Design • Processes positive integer values • Decomposition of plaintext into multiple buckets of size 1,000 • For example: 2,412,345,678 becomes four buckets: • Bucket 1 = 2; Bucket 2 = 412; Bucket 3 = 345; Bucket 4 = 678; • In the original scheme, a 50,000 bucket size would make two buckets: • Bucket 1 = 48246; Bucket 2 = 45678; • Key transformation based on a unique value related to plaintext • Each encryption operation uses a different key • Encryption keys depend on original key and unique related data • The unique value is any data that must remain the same in relation to the plaintext, for example: • Record’s primary key, other unique data, hash digest of unique data Brad Baker - Master's Project Report

  15. HTEE Design • Encryption operation: • Calculate HMAC digest for each bucket • Decryption operation: • Search for digest match between ciphertext and all values (0-999) • Tamper detection: • Decryption operation cannot find matching value • Two key transformation functions used: element and bucket • Element transformation creates a key for each plaintext • HMAC executed recursively four times with unique value and original key • Bucket transformation creates key for each bucket value • HMAC executed iteratively with ciphertext output and original key • Encryption performed with transformed keys, not original key Brad Baker - Master's Project Report

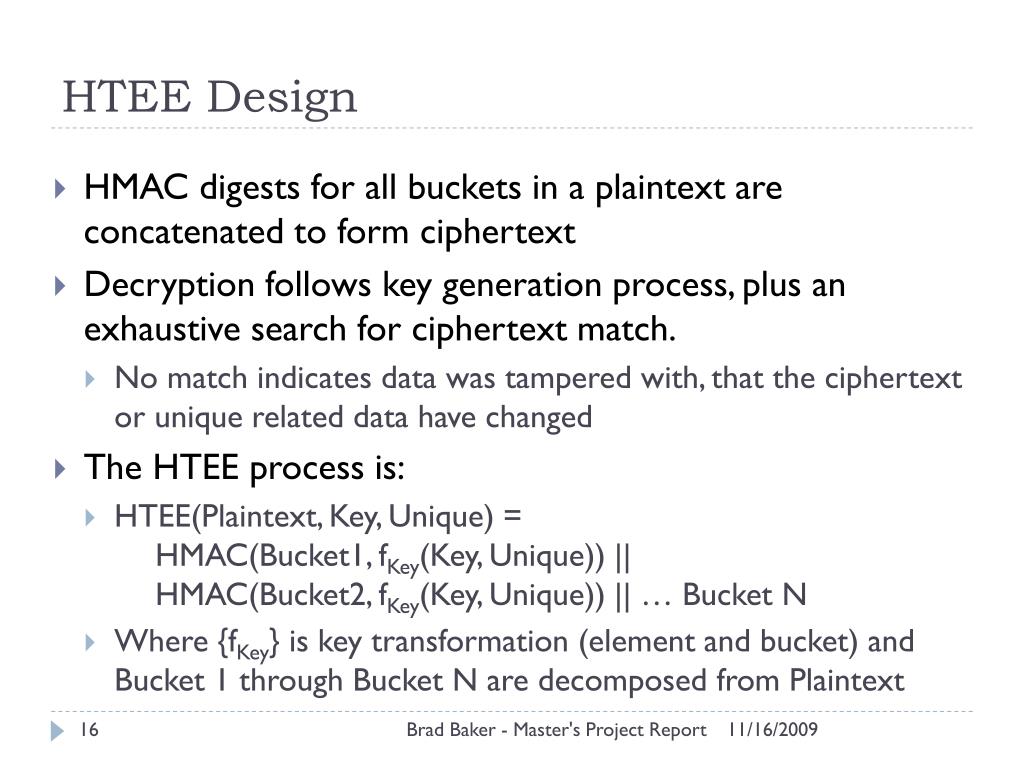

  16. HTEE Design • HMAC digests for all buckets in a plaintext are concatenated to form ciphertext • Decryption follows key generation process, plus an exhaustive search for ciphertext match. • No match indicates data was tampered with, that the ciphertext or unique related data have changed • The HTEE process is: • HTEE(Plaintext, Key, Unique) = HMAC(Bucket1, fKey(Key, Unique)) || HMAC(Bucket2, fKey(Key, Unique)) || … Bucket N • Where {fKey} is key transformation (element and bucket) and Bucket 1 through Bucket N are decomposed from Plaintext Brad Baker - Master's Project Report

  17. Example of HTEE • Record contents (DATA value is sensitive, must be encrypted):ID = 1001; DATA = 654321 • After decomposition of DATA value:bucket1 = 654; bucket2 = 321 • Original Key, 512 bit:fwWe6MNL5WC9gRgCfVbUsuFLeX8IfwKbnkWmlKhj5Tx2Ods+VkmKS73AeFt0EsXy+zmfWEsyOEaKSx/oYMSmRA== • Generated keys for buckets (dependent on ID value and original key): • Bucket1 key: qi5K5JmBNRfOuPf8qQvgPVVZ5nHZjlgoDb8un4GS/NxFhbRNdnE5B80kPe3rpqIvHRDzdZsiEmpk+2Ozcb5yXg== • Bucket2 key: ylT5vKaGkdc1XMtW0z+HOb1Td2eqLkrkmYE1F8649/ypC+A9VVnmcdmOWCgNvy6fgZL83EWFtE12cTkHzSQ97Q== • Ciphertext result from HMAC (bucket, key): • Bucket1 cipher: Ziuytd9t8Vn1h5ldqZjv57sTe2k= • Bucket2 cipher: uk/ACtScX2oxJUPyEPdPWSPCXQk= • Final Ciphertext: Ziuytd9t8Vn1h5ldqZjv57sTe2k=uk/ACtScX2oxJUPyEPdPWSPCXQk= • Final Output: ID = 1001; CIPHER = Ziuytd9t8Vn1h5ldqZjv57sTe2k=uk/ACtScX2oxJUPyEPdPWSPCXQk= Brad Baker - Master's Project Report

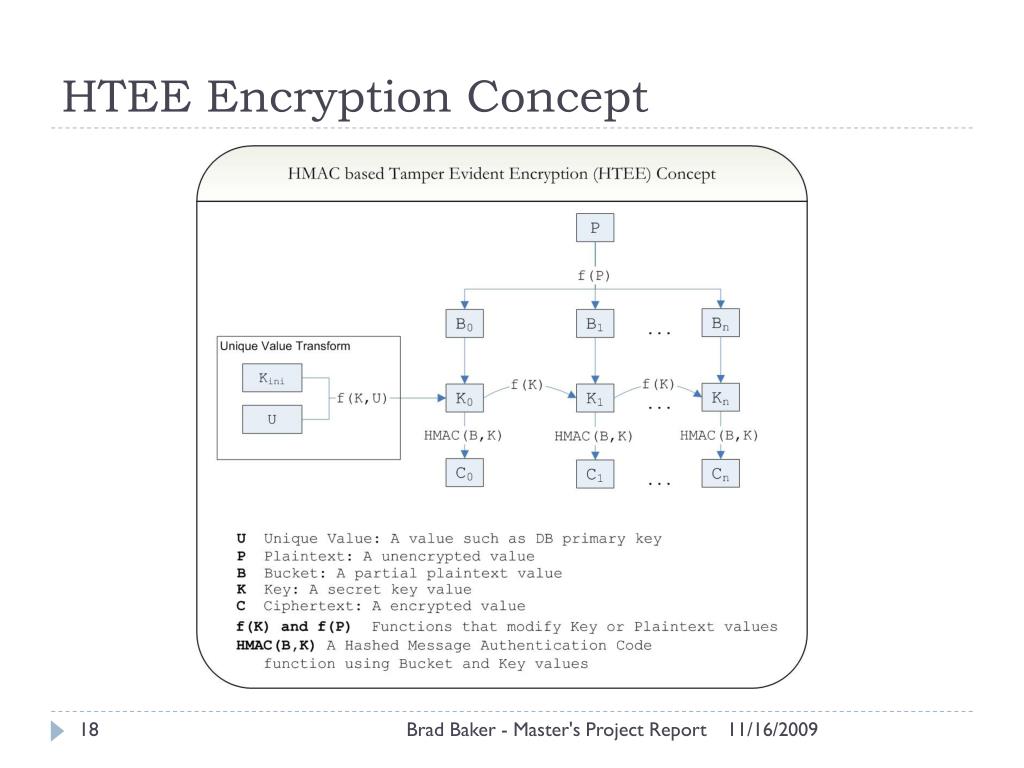

  18. HTEE Encryption Concept Brad Baker - Master's Project Report

  19. Element Key Transformation [3, 4, 9, 11] Brad Baker - Master's Project Report

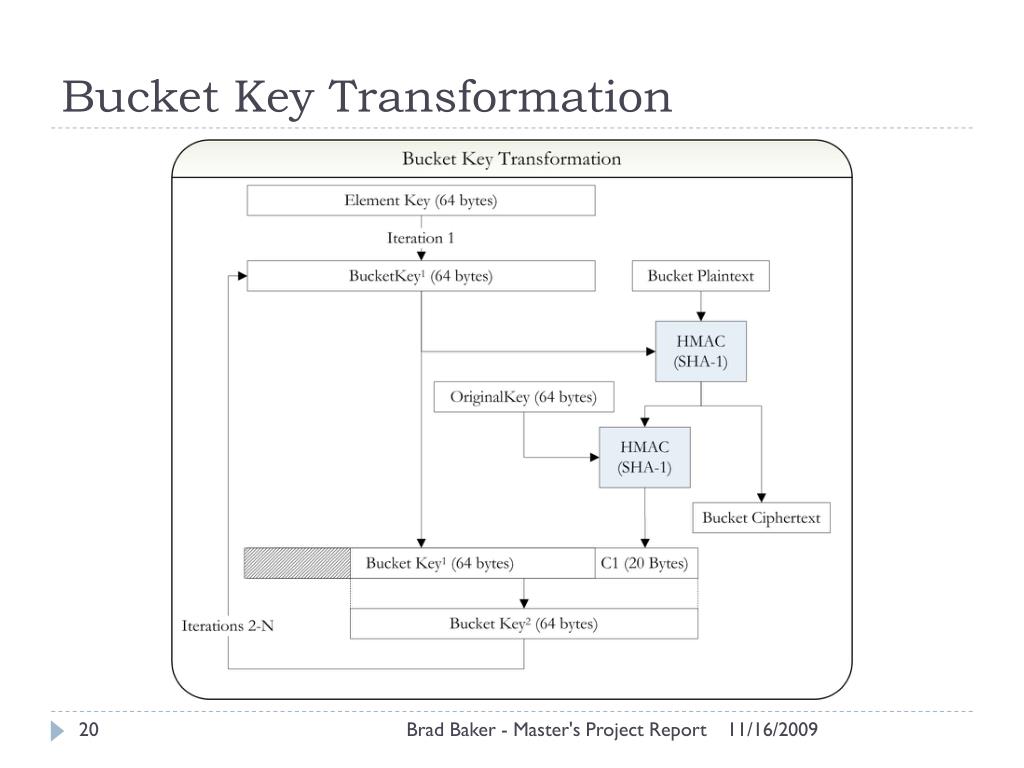

  20. Bucket Key Transformation Brad Baker - Master's Project Report

  21. Section 4:Analysis Brad Baker - Master's Project Report

  22. Security Analysis • Cryptographic strength of HTEE is based on HMAC • Key transformation and encryption use HMAC function • Cryptographic strength of HMAC is based on underlying hash function [3, 4, 5] • For this project, SHA-1 is used as underlying hash • Hash can be changed for additional security of HMAC [3] • HMAC proven secure from forgery if hash compression operation is a pseudo-random function [4, 7, 11] • HMAC is not susceptible to hash collision attacks that affect MD5 and SHA-1 [3, 4, 5] • Collisions are still produced but more difficult to attack Brad Baker - Master's Project Report

  23. Security Analysis • HMAC can be attacked by forgery or key recovery attacks [3, 6] • Key recovery attacks typically have chosen or known plaintext • The birthday paradox controls probability to find an HMAC collision [3, 5, 11, 15] • For SHA-1, 280 (message, digest) pairs from HMAC are needed • Research shows key recovery attacks that are better than brute force, but still worse than birthday attack [6, 7, 10] • For the HTEE scheme key recovery attacks are the primary concern • Forgeries are less of a concern as they could only break a single record’s tamper detection capability Brad Baker - Master's Project Report

  24. Security Analysis • The layering of key generation in HTEE makes analysis difficult: • Attacker knows the unique value and final digest/ciphertext • Given the digest it is difficult to find the key or message value • Given the unique value, it is difficult to obtain original key • Consider general form: HTEE(P,K,U) = HMAC(P, fK(K,U)) • Intermediate keys and plaintexts are masked and HMAC is difficult to break if using an effective underlying hash • HMAC operation protects plaintext and intermediate key, makes derivation of original key more difficult • A key recovery attack will take over 280 message pairs • Most applications will not use the same secret key for a large number of records (over 240, appx. 1 trillion) • This is short of the required over 280 pairs needed for key recovery Brad Baker - Master's Project Report

  25. Tamper Detection Analysis • HTEE creates a distinct key sequence based on the unique value related to plaintext • Identical keys only occur on hash collisions • This is improbable unless a very large number of records are processed • If ciphertext or unique value are changed then the key sequence or HMAC output will differ • Tamper detection will only fail if the original and changed HTEE process produce a collision • Probability of collision for each bucket is appx. 3.42x10-43 • Based on the birthday attack with1,000 values [15, 16] • Probability is{P = 1 – e(-k^2/2N)} with {k = 1000} and {N = 2160} Brad Baker - Master's Project Report

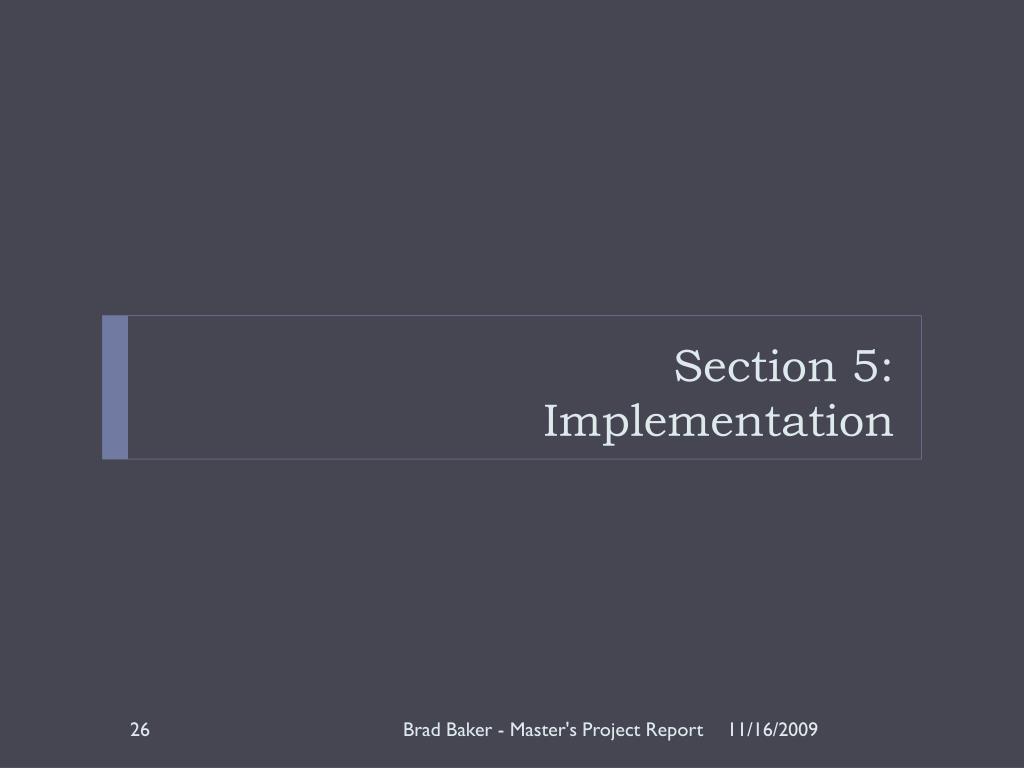

  26. Section 5:Implementation Brad Baker - Master's Project Report

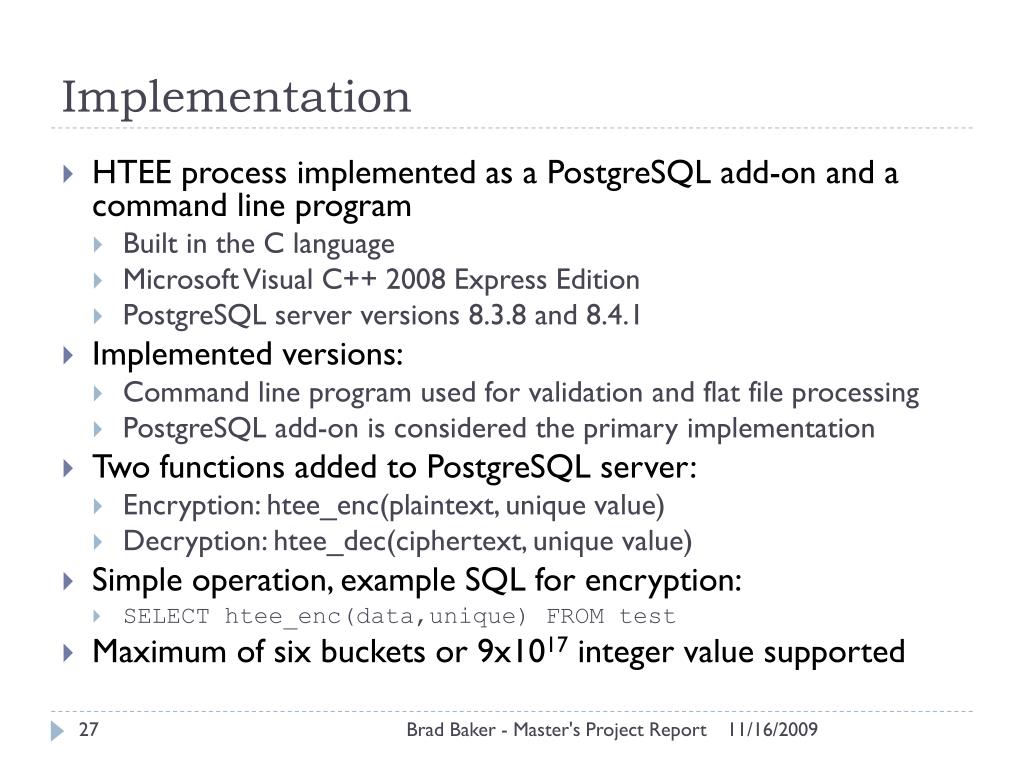

  27. Implementation • HTEE process implemented as a PostgreSQL add-on and a command line program • Built in the C language • Microsoft Visual C++ 2008 Express Edition • PostgreSQL server versions 8.3.8 and 8.4.1 • Implemented versions: • Command line program used for validation and flat file processing • PostgreSQL add-on is considered the primary implementation • Two functions added to PostgreSQL server: • Encryption: htee_enc(plaintext, unique value) • Decryption: htee_dec(ciphertext, unique value) • Simple operation, example SQL for encryption: • SELECT htee_enc(data,unique) FROM test • Maximum of six buckets or 9x1017 integer value supported Brad Baker - Master's Project Report

  28. Implementation • SHA-1 used for underlying hash function • Specifies use of 512 bit key, blocks of 160 bit ciphertext output • Input key is 88 base64 characters, output is 28 base64 characters per bucket value • Ciphertext output for six buckets is 168 bytes of base64 encoded data • Comparable AES output is 116 bytes, HTEE is a 44% increase • Compared to plaintext data, a 21-fold increase • Several challenges encountered: • Extending PostgreSQL in Windows environment • Interfacing with the PostgreSQL backend Brad Baker - Master's Project Report

  29. Section 6:Testing Brad Baker - Master's Project Report

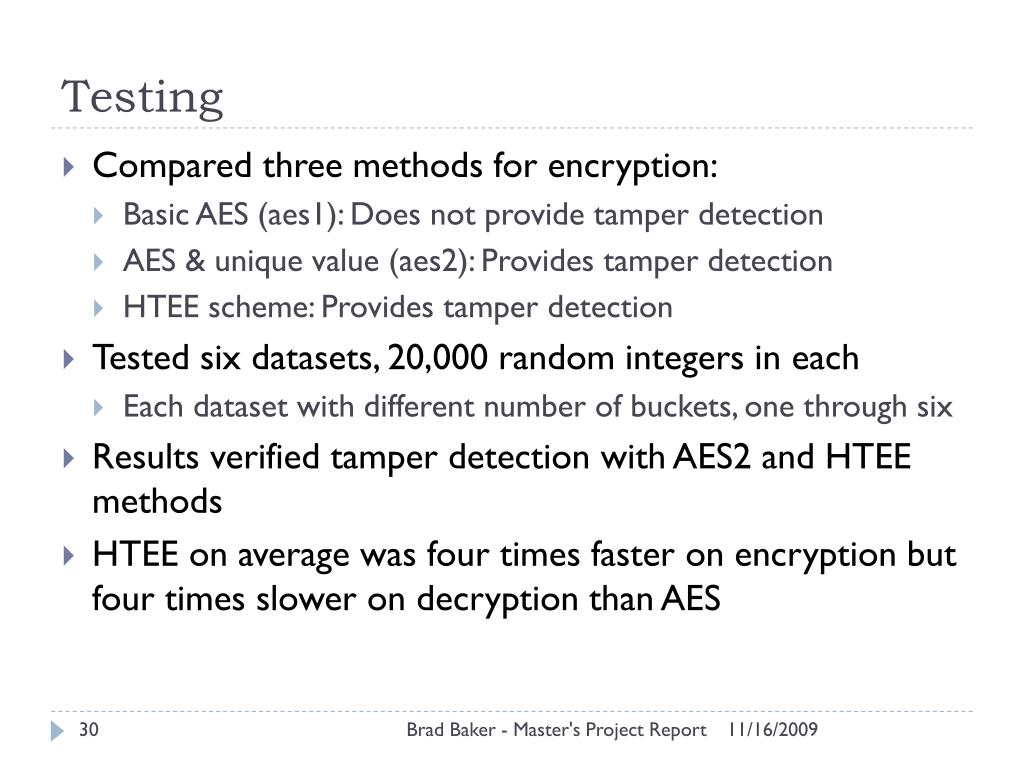

  30. Testing • Compared three methods for encryption: • Basic AES (aes1): Does not provide tamper detection • AES & unique value (aes2): Provides tamper detection • HTEE scheme: Provides tamper detection • Tested six datasets, 20,000 random integers in each • Each dataset with different number of buckets, one through six • Results verified tamper detection with AES2 and HTEE methods • HTEE on average was four times faster on encryption but four times slower on decryption than AES Brad Baker - Master's Project Report

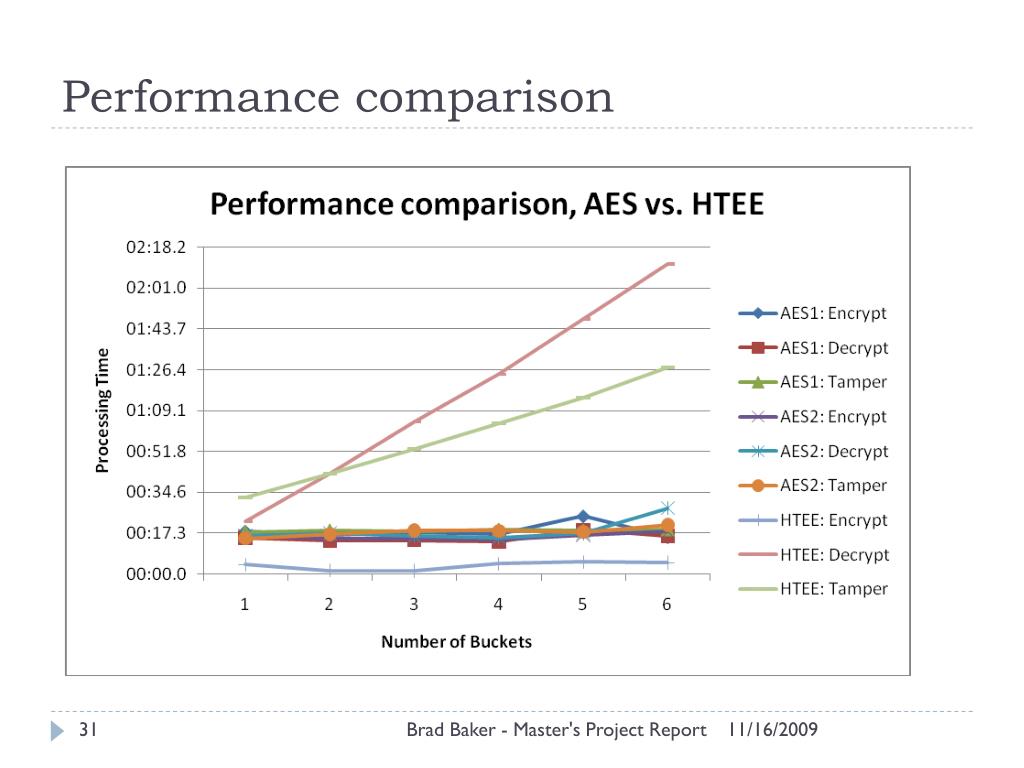

  31. Performance comparison Brad Baker - Master's Project Report

  32. HTEE performance details Brad Baker - Master's Project Report

  33. Performance analysis • The performance of HTEE and the original scheme [1] are compared with algorithmic analysis • HTEE is significantly more efficient on encryption, and decryption for large numbers [2] • Original scheme increases with n0.5, HTEE increases with log1000(n) • Testing verifies that HTEE is much faster for similar datasets • The large bucket size required for two buckets becomes prohibitively expensive to calculate decryption Brad Baker - Master's Project Report

  34. Section 7:Conclusion Brad Baker - Master's Project Report

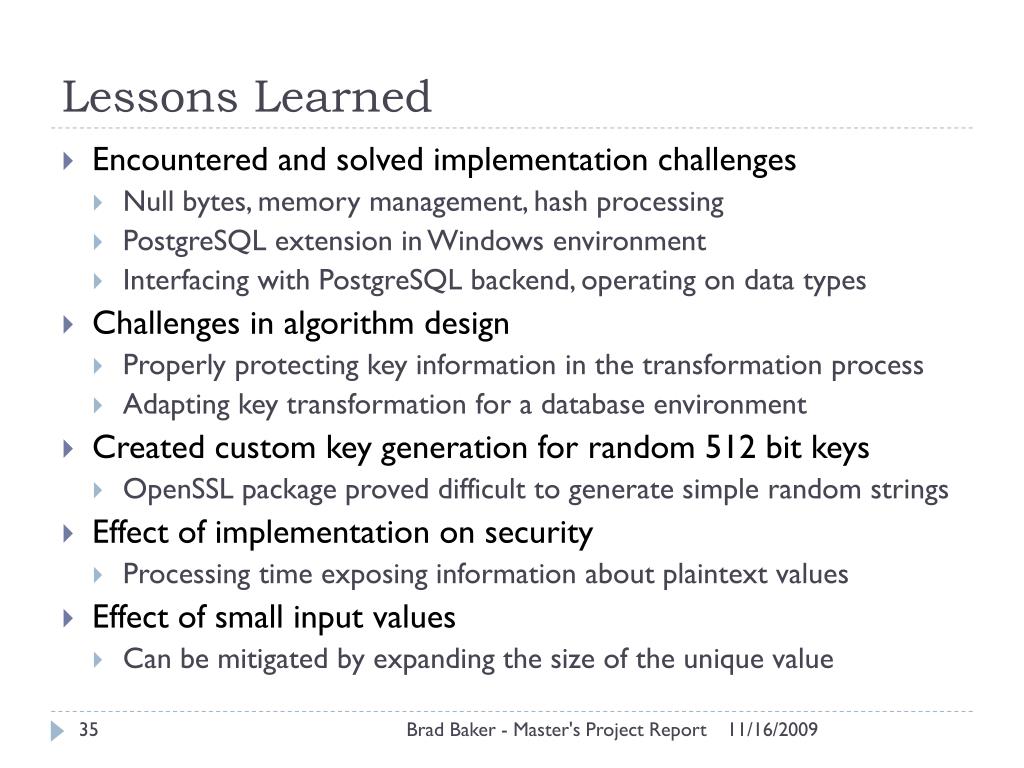

  35. Lessons Learned • Encountered and solved implementation challenges • Null bytes, memory management, hash processing • PostgreSQL extension in Windows environment • Interfacing with PostgreSQL backend, operating on data types • Challenges in algorithm design • Properly protecting key information in the transformation process • Adapting key transformation for a database environment • Created custom key generation for random 512 bit keys • OpenSSL package proved difficult to generate simple random strings • Effect of implementation on security • Processing time exposing information about plaintext values • Effect of small input values • Can be mitigated by expanding the size of the unique value Brad Baker - Master's Project Report

  36. Conclusion • HTEE provides strong tamper detection and data integrity • Ciphertext and other related data are tied together • HTEE provides strong confidentiality • Security based on the underlying HMAC and hash functions • Can be improved with stronger hash functions • For regulatory requirements recommend AES encryption • HTEE is more efficient on encryption and less efficient on decryption than AES • Ideal for encryption-heavy applications where tamper detection is needed • Examples include archival and auditing systems, including financial information • Additional information available: http://cs.uccs.edu/~gsc/pub/master/bbaker/ Brad Baker - Master's Project Report

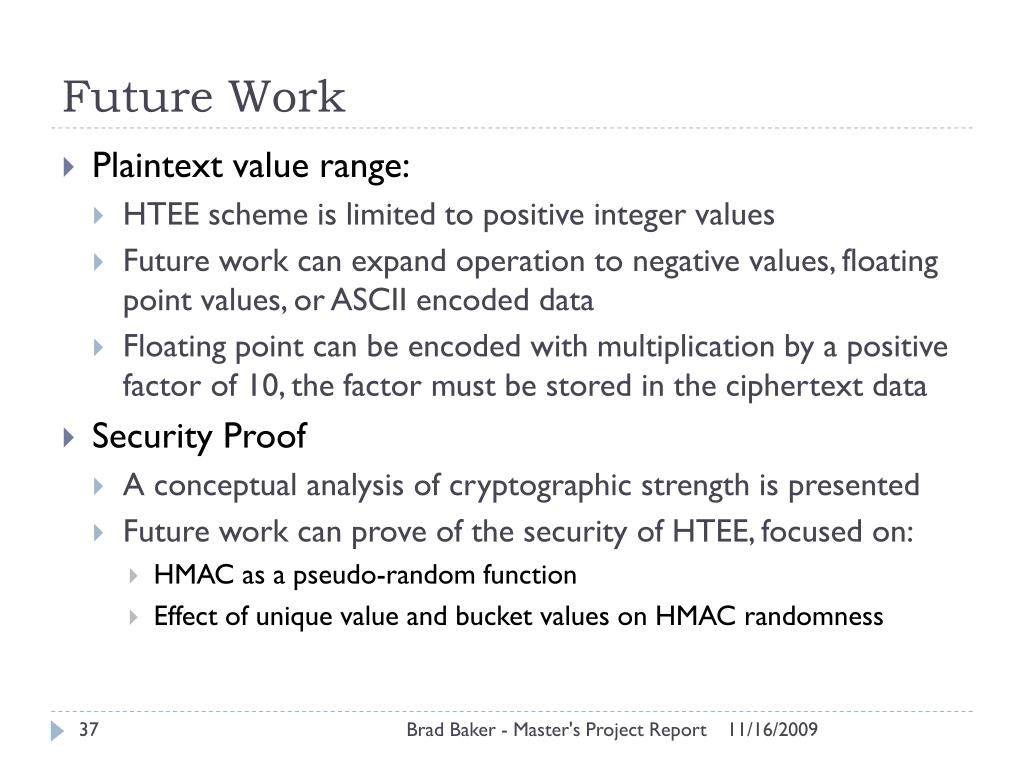

  37. Future Work • Plaintext value range: • HTEE scheme is limited to positive integer values • Future work can expand operation to negative values, floating point values, or ASCII encoded data • Floating point can be encoded with multiplication by a positive factor of 10, the factor must be stored in the ciphertext data • Security Proof • A conceptual analysis of cryptographic strength is presented • Future work can prove of the security of HTEE, focused on: • HMAC as a pseudo-random function • Effect of unique value and bucket values on HMAC randomness Brad Baker - Master's Project Report

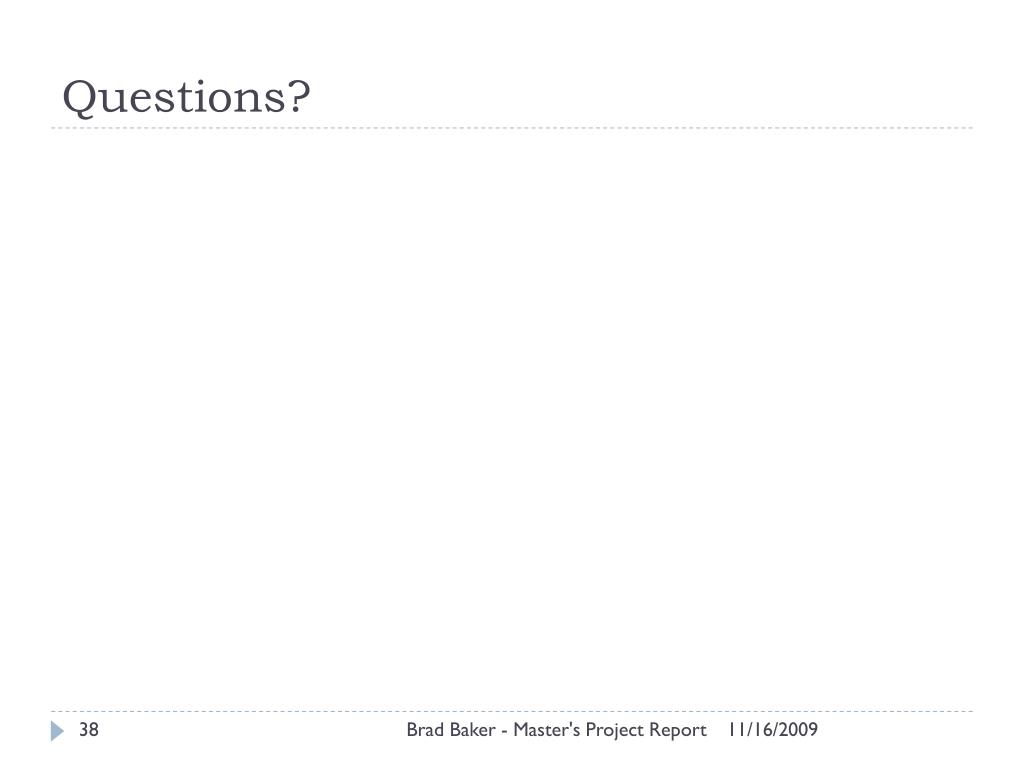

  38. Questions? Brad Baker - Master's Project Report

  39. References • Dong Hyeok Lee; You Jin Song; Sung Min Lee; Taek Yong Nam; Jong Su Jang, "How to Construct a New Encryption Scheme Supporting Range Queries on Encrypted Database," Convergence Information Technology, 2007. International Conference on , vol., no., pp.1402-1407, 21-23 Nov. 2007URI: http://ieeexplore.ieee.org/stamp/stamp.jsp?arnumber=4420452&isnumber=4420217 • Brad Baker, "Analysis of an HMAC Based Database Encryption Scheme," UCCS Summer 2009 Independent study July. 2009URI: http://cs.uccs.edu/~gsc/pub/master/bbaker/doc/final_paper_bbaker_cs592.doc • MihirBellare; Ran Canetti; Hugo Krawczyk; “Keying Hash Functions for Message Authentication”, IACR Crypto 1996URI: http://cseweb.ucsd.edu/users/mihir/papers/kmd5.pdf • MihirBellare, “New Proofs for NMAC and HMAC: Security without Collision-Resistance,” IACR Crypto 2006URI: http://eprint.iacr.org/2006/043.pdf • MihirBellare, “Attacks on SHA-1,” 2005URI: http://www.openauthentication.org/pdfs/Attacks%20on%20SHA-1.pdf • Pierre-Alain Fouque; GaëtanLeurent; Phong Q. Nguyen, "Full Key-Recovery Attacks on HMAC/NMAC-MD4 and NMAC-MD5," IACR Crypto 2007URI: ftp://ftp.di.ens.fr/pub/users/pnguyen/Crypto07.pdf • Scott Contini; Yiqun Lisa Yin, “Forgery and Partial Key-Recovery Attacks on HMAC and NMAC using Hash Collisions (Extended Version),” 2006URI: http://eprint.iacr.org/2006/319.pdf Brad Baker - Master's Project Report

  40. References • Hyrum Mills; Chris Soghoian; Jon Stone; Malene Wang, “NMAC: Security Proof,” 2004 URI:http://www.cs.jhu.edu/~astubble/dss/proofslides.pdf • Ran Canetti, “The HMAC construction: A decade later,” 2007URI: http://people.csail.mit.edu/canetti/materials/hmac-10.pdf • Yu Sasaki, “A Full Key Recovery Attack on HMAC-AURORA-512,” 2009URI: http://eprint.iacr.org/2009/125.pdf • Jongsung Kim; Alex Biryukov; Bart Preneel; and Seokhie Hong, “On the Security of HMAC and NMAC Based on HAVAL, MD4, MD5, SHA-0 and SHA-1”, 2006URI: http://eprint.iacr.org/2006/187.pdf • NIST, March 2002. FIPS Pub 198 HMAC specification. URI = http://csrc.nist.gov/publications/fips/fips198/fips-198a.pdf • Wikipedia, October 2009. HMAC reference material. URI= http://en.wikipedia.org/wiki/Hmac • Wikipedia, October 2009. SHA-1 reference material. URI= http://en.wikipedia.org/wiki/SHA-1 Brad Baker - Master's Project Report

  41. References • Wikipedia, October 2009. Birthday Attack reference. URI= http://en.wikipedia.org/wiki/Birthday_attack • Forouzan, Behrouz A. 2008. Cryptography and Network Security. McGraw Hill higher Education. ISBN 978-0-07-287022-0 • Simon Josefsson, 2006. GPL implementation of HMAC-SHA1. URI= http://www.koders.com/c/fidF9A73606BEE357A031F14689D03C089777847EFE.aspx • Scott G. Miller, 2006. GPL implementation of SHA-1 hash. URI= http://www.koders.com/c/fid716FD533B2D3ED4F230292A6F9617821C8FDD3D4.aspx • Bob Trower, August 2001. Open source base64 encoding implementation, adapted for test program. URI= http://base64.sourceforge.net/b64.c • PostgreSQL, October 2009. Server Documentation. URI= http://www.postgresql.org/docs/8.4/static/index.html • GopalanSivathanu; Charles P. Wright; and ErezZadok, “Ensuring data integrity in storage: techniques and applications,” Workshop On Storage Security And Survivability, Nov. 2005URI = http://doi.acm.org/10.1145/1103780.1103784 Brad Baker - Master's Project Report

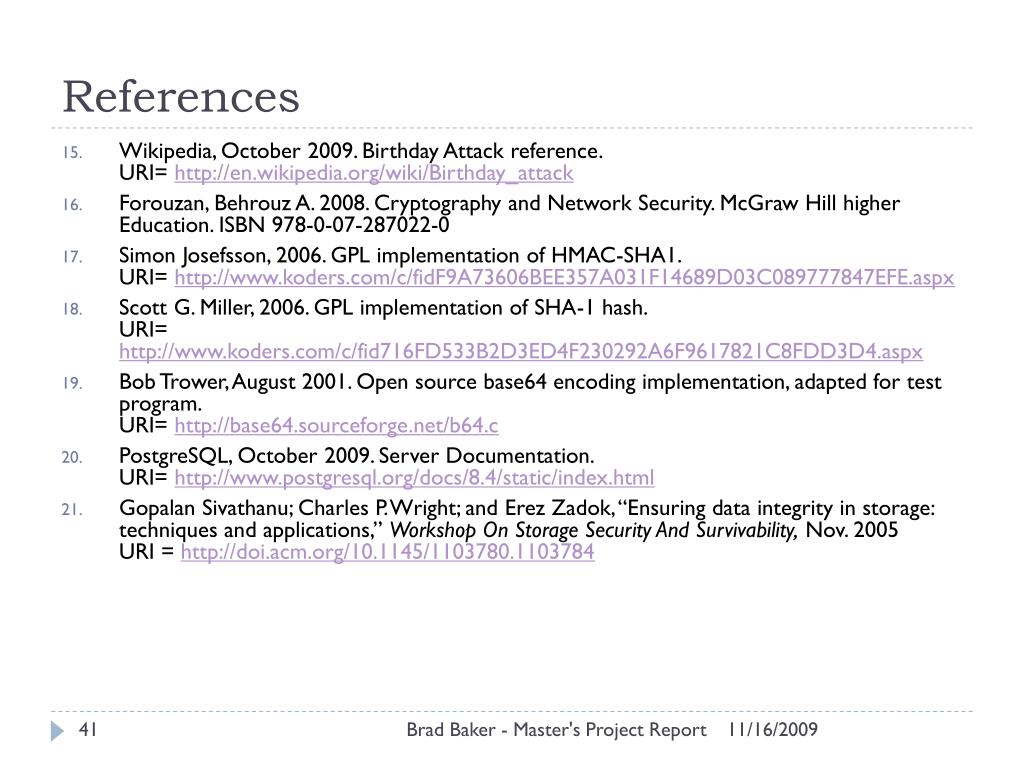

  42. References • Vishal Kher; Yongdae Kim, “Securing Distributed Storage: Challenges, Techniques, and Systems” Workshop On Storage Security And Survivability, Nov. 2005 URI = http://doi.acm.org/10.1145/1103780.1103783 • KyriacosPavlou; Richard Snodgrass, “Forensic Analysis of Database Tampering,” ACM Transactions on Database Systems (TODS), 2008URI = http://doi.acm.org/10.1145/1412331.1412342 • Elbaz, R.; Torres, L.; Sassatelli, G.; Guillemin, P.; Bardouillet, M.; Rigaud, J.B., "How to Add the Integrity Checking Capability to Block Encryption Algorithms," Research in Microelectronics and Electronics 2006, Ph. D. , vol., no., pp.369-372, 0-0 0URI: http://ieeexplore.ieee.org/stamp/stamp.jsp?arnumber=1689972&isnumber=35631 • Elbaz, R.; Torres, L.; Sassatelli, G.; Guillemin, P.; Bardouillet, M., "PE-ICE: Parallelized Encryption and Integrity Checking Engine," Design and Diagnostics of Electronic Circuits and systems, 2006 IEEE , vol., no., pp.141-142, 0-0 0URI: http://ieeexplore.ieee.org/stamp/stamp.jsp?arnumber=1649595&isnumber=34591 • Wikipedia, October 2009. Information Security Reference. URI= http://en.wikipedia.org/wiki/Information_security Brad Baker - Master's Project Report
