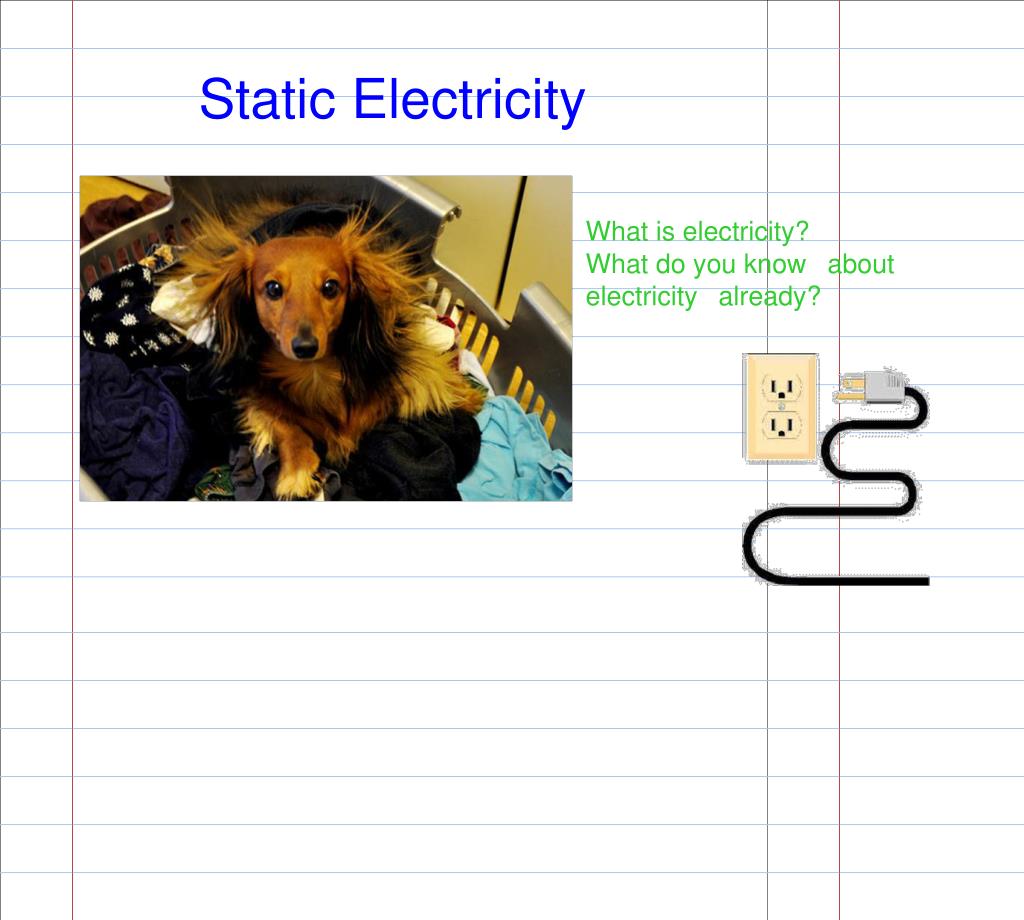

  1. Static Electricity What is electricity? What do you know
about electricity
already?

  2. Static electricity is an electric
charge that can be collected and
held in one place. “static” means stationary or not
moving Is the temporary transfer of
electrons (e-). Static Bill Nye 1:54 static and water 2:08

  3. Examples of Static Electricity Forgetting to put a
bounce sheet in the
clothes dryer

  4. Thunder and Lightening More on this later......

  5. Rubbing a Balloon on Hair/Wool

  6. Combing Hair

  7. Atoms and Charges Remember that atoms contain: ·        protons (positively charged) ·        electrons (negatively charged) ·        neutrons (no charge) If an atom contains an equal number of positive
and negative charges, the atom is uncharged or
neutral.

  8. Movement of Electrons In solid materials the electrons can
move, so all solid materials are
charged by the transfer of electrons. The movement, or transfer, of
electrons from one atom to another
changes the charge on the atom.

  9. Positively or Negatively Charged? When an atom loses electrons, the atom
becomes positively charged because the atom
then has more positive charge than negative
charge. When an atom gainselectrons, the atom
becomes negatively charged because the atom
then has more negative charge than positive
charge.

  10. When two different types of materials are
brought into close contact , one may lose
electrons to the other.

  11. Neutral objects can develop a
positive charge by loosing e- or
having them redistributed. Cheerio was once neutral

  12. Balloons and Static simulation

  13. Another Example of Positively or
Negatively Charged Example: Combing your Hair If the material your comb is made of has a
stronger attraction for electrons than your hair
does, yourcomb takes electrons from your hair. Your comb becomes negatively charged (it has
an excess of electrons) your hair becomes positively charged (it has a
shortage of electrons).

  14. Friction and Static Charge Friction occurs when objects are rubbed against
one another. This can result in one object losing
electrons and the other gaining electrons. Charging an object by using friction occurs
naturally . Ex. the static charge in the clouds that produce
lightning is due to friction as hot air rises rapidly in
cloud banks.

  15. Insulators and Conductors Conductors - material that allows
charges to pass through it easily.
Examples: metals Insulators - materials
which do not allow charges
to pass through. Examples:
plastic, wood, rubber

  16. Since static electricity is charge that is
held very nearly fixed in one place, only insulators can retain a static charge. Conductors allow charge to flow, such
Ex. when you turn on your Ipod and the
charges move from the battery through
the wires to complete a circuit. (More on
this in Ch 8)

  17. Examples of Static Electricity in Technology plastic sandwich wrap It clings because of static charge. Devices used to decrease air pollution -Devices in chimneys use static charge to remove small
particles of smoke and dust. -Air ionizers freshen air in your homes in the same way.

  18. Examples of Static Electricity in Technology painting automobiles - The paint is given an electrical charge and
then sprayed onto the body of the automobile
where it sticks to the metal. In a photocopier - Light and powdered toner are used to produce an
image using static electricity.

  19. Some dangers of static electricity Lightening  To protect a building
from lightning, a lightning
rod is placed on top of the
building. If lightning occurs
near the building, the large
amount of charge will pass
through the lightning rod to
the ground rather than
onto the building.

  20. Electric Force An electric force is a push or pull
between charged objects.

  21. Laws of Electric Charges The “laws” of electric charges: 1) like charges repel each other 2) opposite charges attract each other 3) neutral objects are attracted to charged
objects

  22. Electric Discharge Electric discharge - the removal of an electric
charge from an object.

  23. Examples of Electric Discharge Objects with electric charges can be discharged
in a number of ways. For example: When you walk across a rug you gain an
electric charge. Later, when you touch something
and feel a shock, you are being discharged. Thunderstorms are examples of large electric
discharge. John Travoltage

  24. Static- Brain Pop Movie Tim and Moby
