  1. Digital Audio Sound System ECE 345 – Senior Design Chris Gouveia Lawrence Lau December 4, 2003

  2. Overview • Background • Goals • Initial Design • Design Decisions • Challenges • Final Design • Testing • Final Analysis ECE 345 Senior Design - Gouveia, Lau

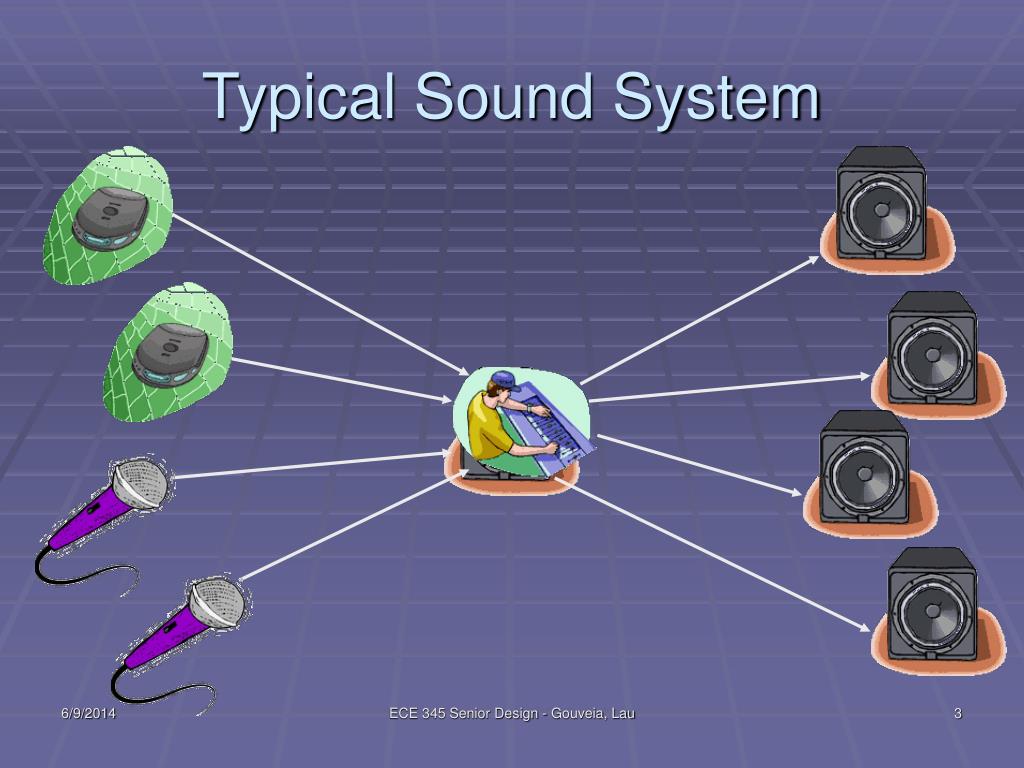

  3. Typical Sound System ECE 345 Senior Design - Gouveia, Lau

  4. Our Digital Sound System Transmitter Receiver ECE 345 Senior Design - Gouveia, Lau

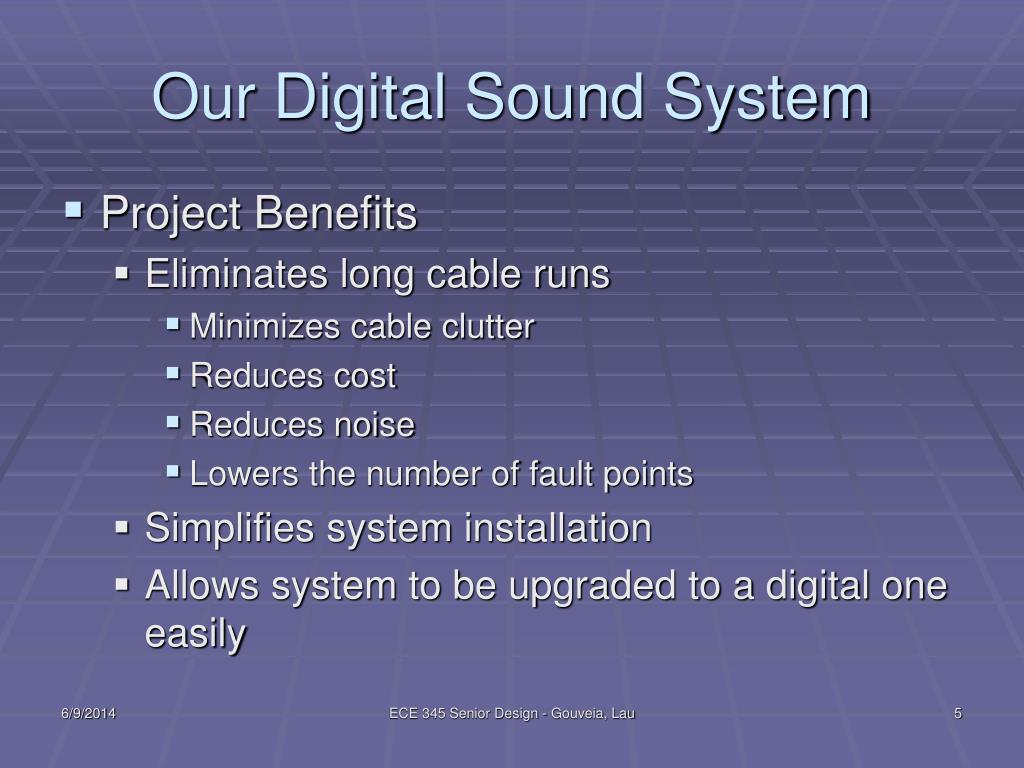

  5. Our Digital Sound System • Project Benefits • Eliminates long cable runs • Minimizes cable clutter • Reduces cost • Reduces noise • Lowers the number of fault points • Simplifies system installation • Allows system to be upgraded to a digital one easily ECE 345 Senior Design - Gouveia, Lau

  6. Our Digital Sound System • Transmitter • Input analog sound from source • Convert audio to digital format • Output Ethernet packets onto network • Receiver • Input Ethernet packets from network • Convert audio to analog format • Amplify output • Output analog audio to destination ECE 345 Senior Design - Gouveia, Lau

  7. Goals • 96kHz, 24 bit sampling • Stereo signaling • High fidelity • Minimal delay ECE 345 Senior Design - Gouveia, Lau

  8. Design Process • Start from the ends • Analog to Digital converter needed • Digital to Analog converter needed • Network processors in the middle • Microcontroller or microprocessor controlled • Glue logic ECE 345 Senior Design - Gouveia, Lau

  9. Functional Diagram Process Analog Signal A/D Conversion Collect Several Samples Create Network Packet Pass to Ethernet Controller Transmit Amplify Signal D/A Conversion Buffer Samples for D/A Decode Network Packet Pass to Controller Receive ECE 345 Senior Design - Gouveia, Lau

  10. Block Diagram Transmitter Sound Source Analog Circuitry Analog to Digital Converter Controller Ethernet Controller/PHY Speaker Analog Circuitry Digital to Analog Converter Controller Ethernet Controller/PHY Receiver ECE 345 Senior Design - Gouveia, Lau

  11. Initial Analysis • Digital audio data rate ECE 345 Senior Design - Gouveia, Lau

  12. Initial Analysis • Digital audio sampling rate ECE 345 Senior Design - Gouveia, Lau

  13. Initial Analysis • Digital audio buffering rate ECE 345 Senior Design - Gouveia, Lau

  14. Performance Requirements • 96 kHz sampling • 24 bit fidelity • Less than 5% harmonic distortion • 15ms maximum delay ECE 345 Senior Design - Gouveia, Lau

  15. Design Decisions • Analog and Digital Converters • Sampling rate • Bit depth • Interface • Microcontroller • Clock speed • Memory • Ethernet capabilities ECE 345 Senior Design - Gouveia, Lau

  16. Design Decisions • Microcontroller • Motorola Coldfire 5282 Microcontroller • Analog to Digital Converter • Texas Instruments PCM1804 • Digital to Analog Converter • Texas Instruments PCM1716 • Amplifier • National Instruments LM4832 ECE 345 Senior Design - Gouveia, Lau

  17. Challenges • Microcontroller operating system • Documentation • Microcontroller I/O • Crystal Oscillator • Power ECE 345 Senior Design - Gouveia, Lau

  18. Challenges • Microcontroller operating system • Scheduling algorithm • Slightly limited feature set ECE 345 Senior Design - Gouveia, Lau

  19. Challenges • Documentation • Poor documentation of system functions and examples • Made coding difficult • Required digging down into system code to understand functionality ECE 345 Senior Design - Gouveia, Lau

  20. Challenges • Microcontroller I/O • Minimum of 24 I/O pins required • Not enough general purpose I/O pins • Data bus requires protocol • No daughter processor to perform protocol with microcontroller ECE 345 Senior Design - Gouveia, Lau

  21. Challenges • Crystal oscillator • Unable to provide clean and stable clock source • Dirtied power and ground planes ECE 345 Senior Design - Gouveia, Lau

  22. Challenges • Power ECE 345 Senior Design - Gouveia, Lau

  23. Final Design Transmitter Analog Circuitry Analog to Digital Converter Sound Source Speaker Amplifier Digital to Analog Converter Controller Receiver ECE 345 Senior Design - Gouveia, Lau

  24. Final Design • Successes • Microcontrollers communicated via UDP • A/D and D/A transmitted audio • Microcontroller controlled D/A and amplifier • Failures • Transmit audio data using microcontrollers ECE 345 Senior Design - Gouveia, Lau

  25. Testing • Spectrum analysis • Signal to Noise Ratio • Total Harmonic Distortion ECE 345 Senior Design - Gouveia, Lau

  26. Testing • Spectrum analysis • 10 second sound sample • 1kHz tone • 10kHz tone ECE 345 Senior Design - Gouveia, Lau

  27. Testing • Spectrum analysis • 10 second sound sample • Dave Matthews Band – Crash Into Me • MP3 encoded • Captured using a consumer sound card • Control sample – Blue • Sample through system - Red ECE 345 Senior Design - Gouveia, Lau

  28. Testing ECE 345 Senior Design - Gouveia, Lau

  29. Testing • Spectrum analysis • 1 kHz tone • Generated by function generator • Captured using a consumer sound card • Control sample – Red • Sample through system - Blue ECE 345 Senior Design - Gouveia, Lau

  30. Testing ECE 345 Senior Design - Gouveia, Lau

  31. Testing • Spectrum analysis • 10 kHz tone • Generated by function generator • Captured using a consumer sound card • Control sample – Red • Sample through system - Blue ECE 345 Senior Design - Gouveia, Lau

  32. Testing ECE 345 Senior Design - Gouveia, Lau

  33. Testing • Signal to Noise Ratio • SNR is 45.5 dB • Affected by high noise floor • Determined using Distortion Analyzer and a 1kHz test tone ECE 345 Senior Design - Gouveia, Lau

  34. Testing • Total Harmonic Distortion • Measured using Distortion Analyzer • Sinusoid generated by function generator • Output fed through commercial mixer to generate differential output required by Distortion Analyzer ECE 345 Senior Design - Gouveia, Lau

  35. Testing ECE 345 Senior Design - Gouveia, Lau

  36. Final Analysis • If we had one more month: • Use an FPGA to offload data gathering from microcontroller • Let microcontroller only send network traffic • Use a clock buffer and PLL to provide stable clock source • Use separate logic and analog power sources • Develop cleaner power regulation ECE 345 Senior Design - Gouveia, Lau

  37. Questions ? ECE 345 Senior Design - Gouveia, Lau
