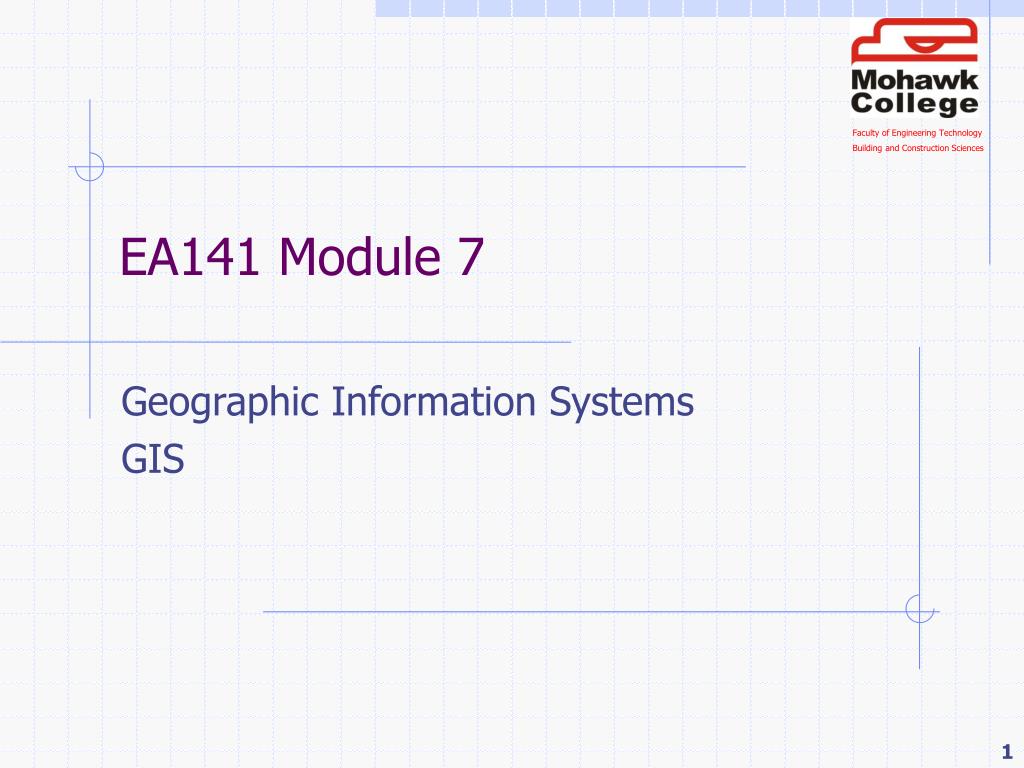

  1. EA141 Module 7 Geographic Information Systems GIS

  2. 7.1 Information Systems • collection of raw data • processed • to produce useful information • Steps • observation • collection • processing (analysis) • results • decisions e.g. test marks

  3. 7.2 Geographic Information Systems • geographic data = location (x,y,z,t) of: • people • places • things • all info in a GIS must be geographically refererenced • temporal referencing much more difficult! • processing = spatial analysis

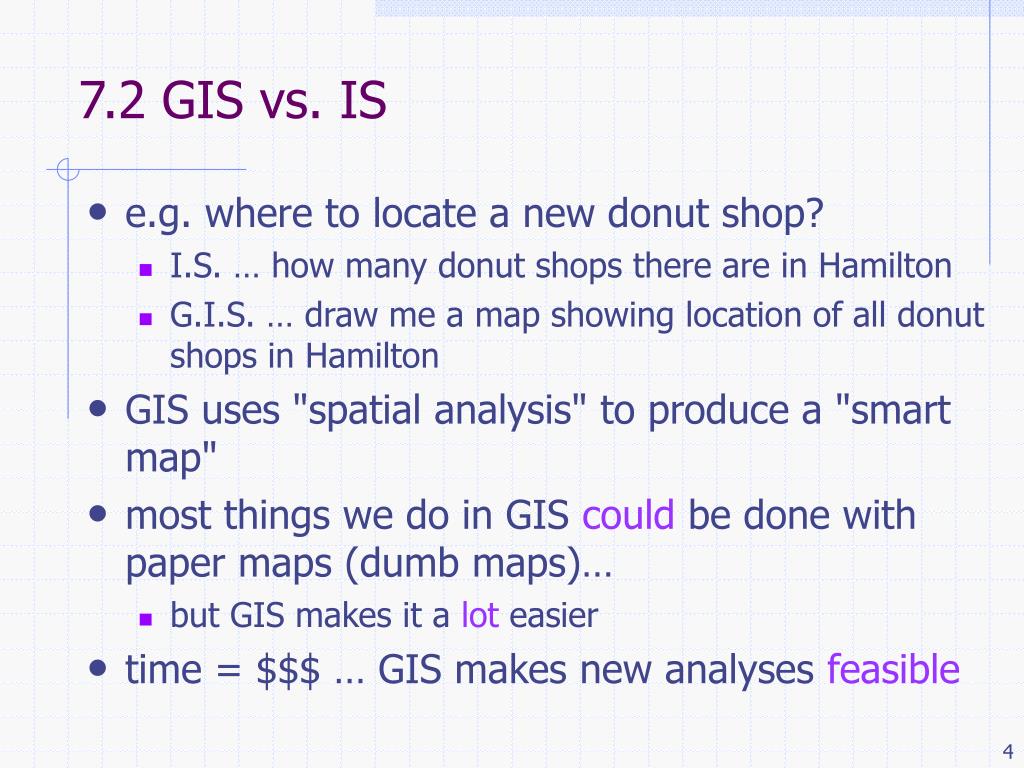

  4. 7.2 GIS vs. IS • e.g. where to locate a new donut shop? • I.S. … how many donut shops there are in Hamilton • G.I.S. … draw me a map showing location of all donut shops in Hamilton • GIS uses "spatial analysis" to produce a "smart map" • most things we do in GIS could be done with paper maps (dumb maps)… • but GIS makes it a lot easier • time = $$$ … GIS makes new analyses feasible

  5. 7.3 GIS and Surveying • GIS  new data acquisition • GIS relies on accurate data • Surveying = new data acquisition • other fields of Geomatics also contribute: • GPS • photogrammetry • remote sensing

  6. 7.4 What's it made of? • GIS = • hardware (computer, printer, etc.) • software (MapInfo, ArcInfo, ArcView) • data • approx. $$cost$$ breakdown: • hardware 10-20% • software 10-20% • data 60-80% • data acquisition • data entry • data scrubbing

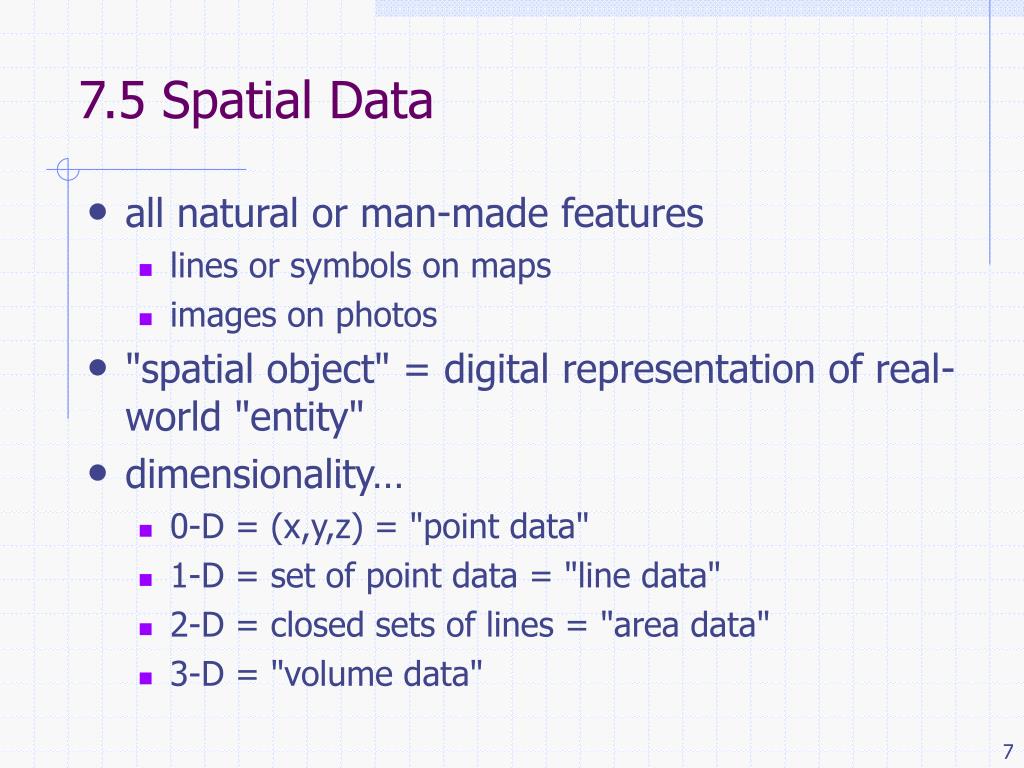

  7. 7.5 Spatial Data • all natural or man-made features • lines or symbols on maps • images on photos • "spatial object" = digital representation of real-world "entity" • dimensionality… • 0-D = (x,y,z) = "point data" • 1-D = set of point data = "line data" • 2-D = closed sets of lines = "area data" • 3-D = "volume data"

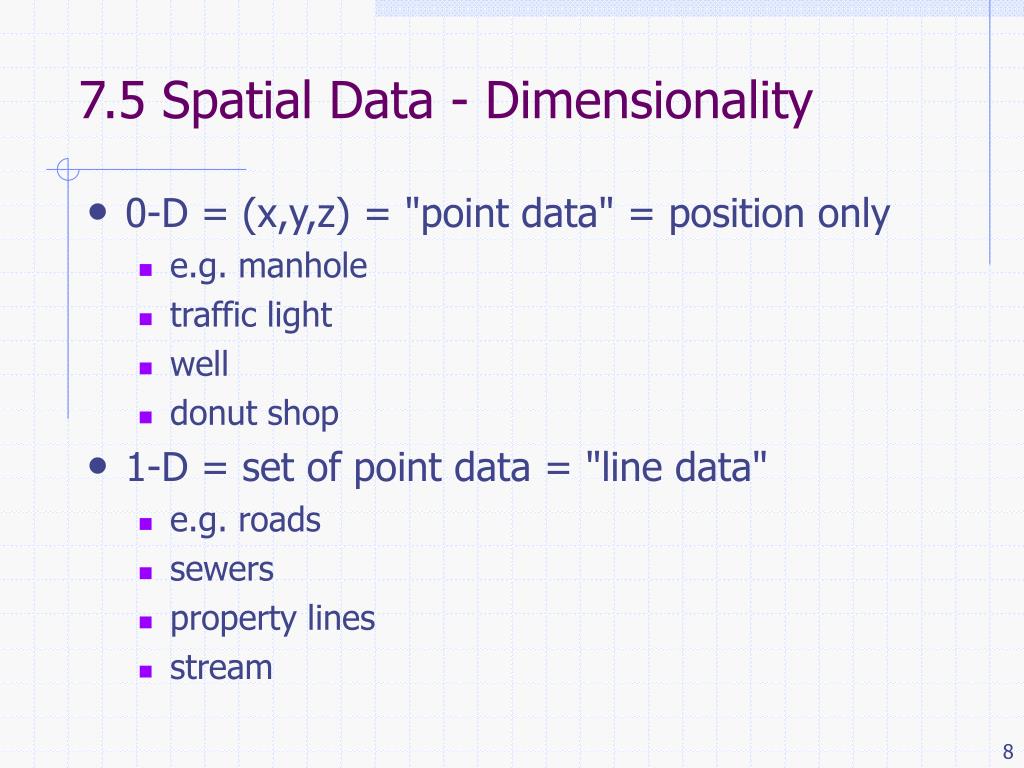

  8. 7.5 Spatial Data - Dimensionality • 0-D = (x,y,z) = "point data" = position only • e.g. manhole • traffic light • well • donut shop • 1-D = set of point data = "line data" • e.g. roads • sewers • property lines • stream

  9. 7.5 Spatial Data - Dimensionality • 2-D = closed sets of lines = "area data" • e.g., building footprint • park • wooded area • land zoned "commercial" • 3-D = "volume data" • e.g., gravel quarry • cut/fill area • oil/gas deposit

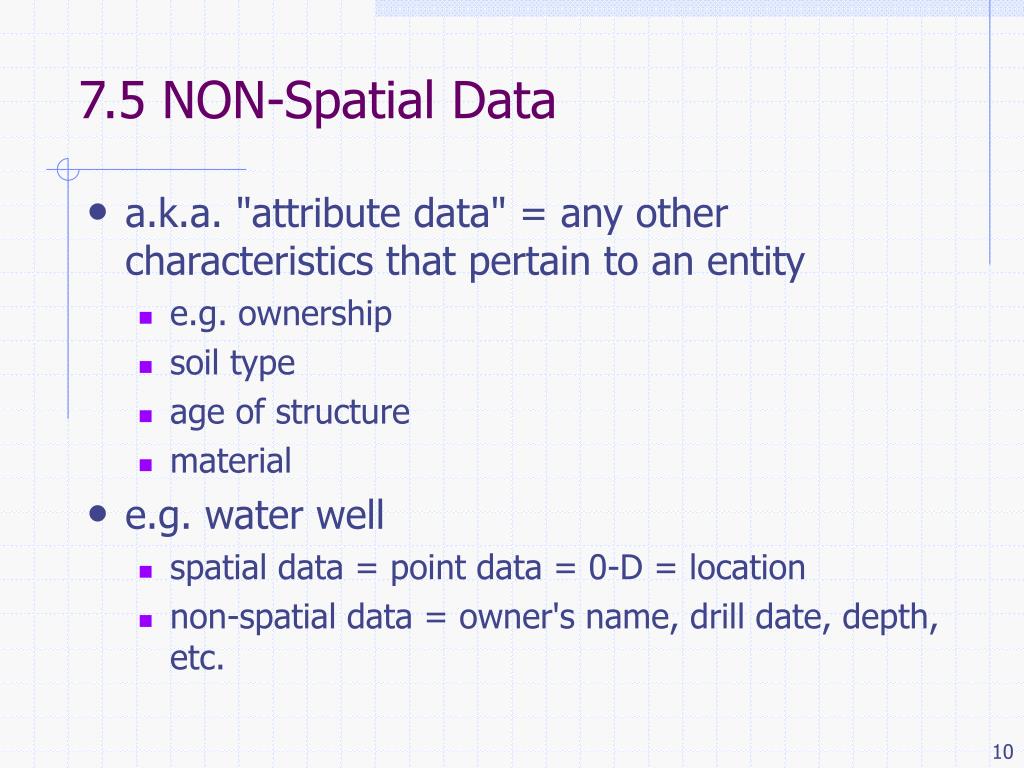

  10. 7.5 NON-Spatial Data • a.k.a. "attribute data" = any other characteristics that pertain to an entity • e.g. ownership • soil type • age of structure • material • e.g. water well • spatial data = point data = 0-D = location • non-spatial data = owner's name, drill date, depth, etc.

  11. 7.6 Data Models • what data needs to be included in the GIS? • depends on end-uses • depends on budget $$$ • two types of data models • Raster (dumb) = 0-D • Vector (smart) = 1-D to 3-D

  12. 7.7 Topology • branch of math describing relationships between spatial objects • topological relation may be: • connectivity (connected to another object) • directionality (before or after another object) • adjacency (beside another object) • nestedness (inside another object)

  13. 7.8 Analysis - Buffering • common analytical function of GISs • area around an object • think of AutoCAD "OFFSET" command • point buffer = area around a point • line buffer = area left & right of a line • polygon buffer = area around area

  14. 7.8 Other Analyses • adjacency • e.g. find neighbouring properties • connectivity • e.g. find connected watermains, streets to evaluate emergency preparedness • overlay • MOST COMMON ANALYSIS • e.g. show all properties: • with no vegetation • slope < 5% • on clay soil • < 15 min from a donut shop 

  15. 7.9 GIS & GPS • GPS gives current location of mobile things • GIS knows locations of fixed features • GIS + GPS tells me: • what route will minimize time • application to emergency vehicles, police • best route from where I am to a donut shop when visiting a new city  • "the only limit is our imagination"…
