  1. Commercial VisionPRO™ 8000

  2. VisionPRO 8000 Features • Commercial VisionPRO 8000 incorporates all the standard features of the VisionPRO family: • Sleek design • Menu-driven programming • Large touchscreen display • But the Commercial VisionPRO 8000 goes even farther and is tailored with features specifically for commercial applications

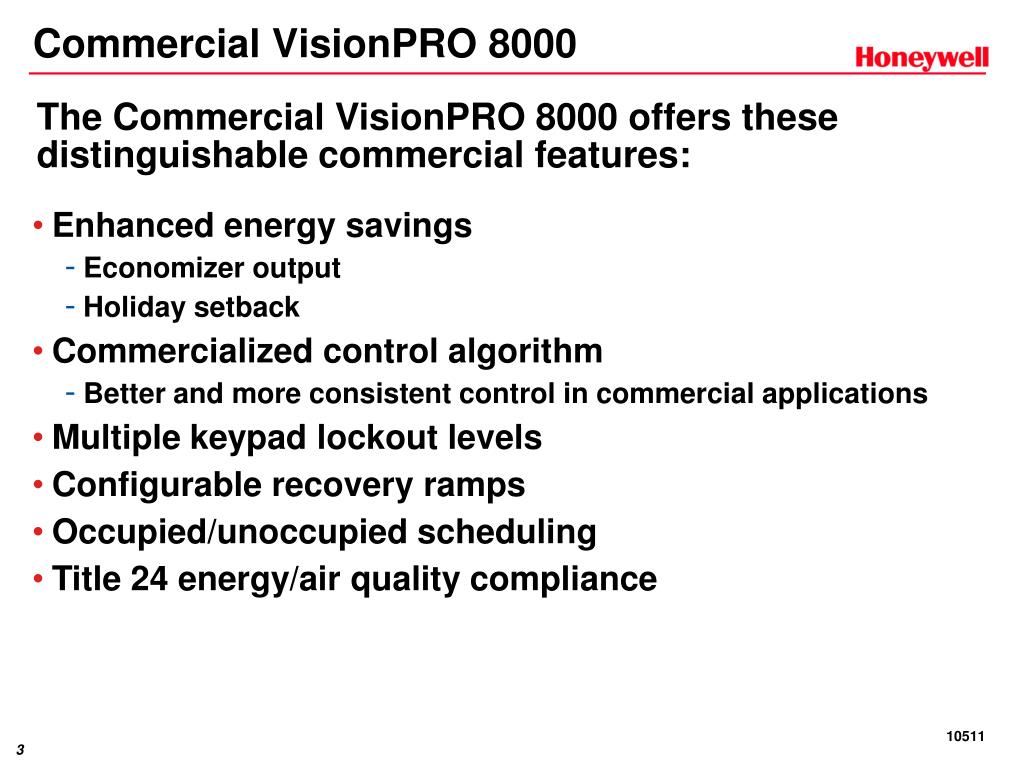

  3. Commercial VisionPRO 8000 The Commercial VisionPRO 8000 offers these distinguishable commercial features: • Enhanced energy savings • Economizer output • Holiday setback • Commercialized control algorithm • Better and more consistent control in commercial applications • Multiple keypad lockout levels • Configurable recovery ramps • Occupied/unoccupied scheduling • Title 24 energy/air quality compliance

  4. Nomenclature Power U = Universal (dual powered, system flexibility, scheduling flexibility) Line Designation TB = Buildings Thermostat TH = Homes Thermostat Specification Details TB8220U1003 Family Designation 8 = VisionPRO touchscreen 7 = VisionPRO conventional System Stages 22 = 2 Heat / 2 Cool Application 0 = Standard

  5. Commercial VisionPRO 8000 InstallationProcedures

  6. Installation • Steps to install Commercial VisionPRO 8000 • Mounting • Wiring • Powering Thermostat • Set Calendar • Installer Setup Menus • Main Settings Menu • Regional Settings Menu • Advanced Settings Menu • System Test(s)

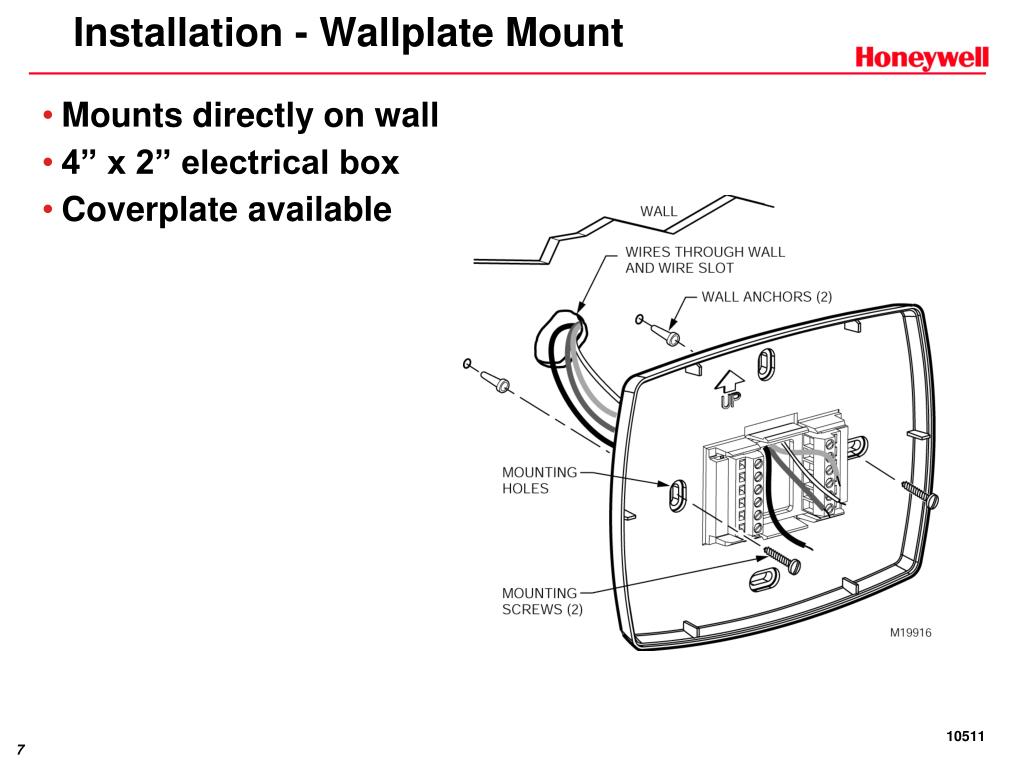

  7. Installation - Wallplate Mount • Mounts directly on wall • 4” x 2” electrical box • Coverplate available

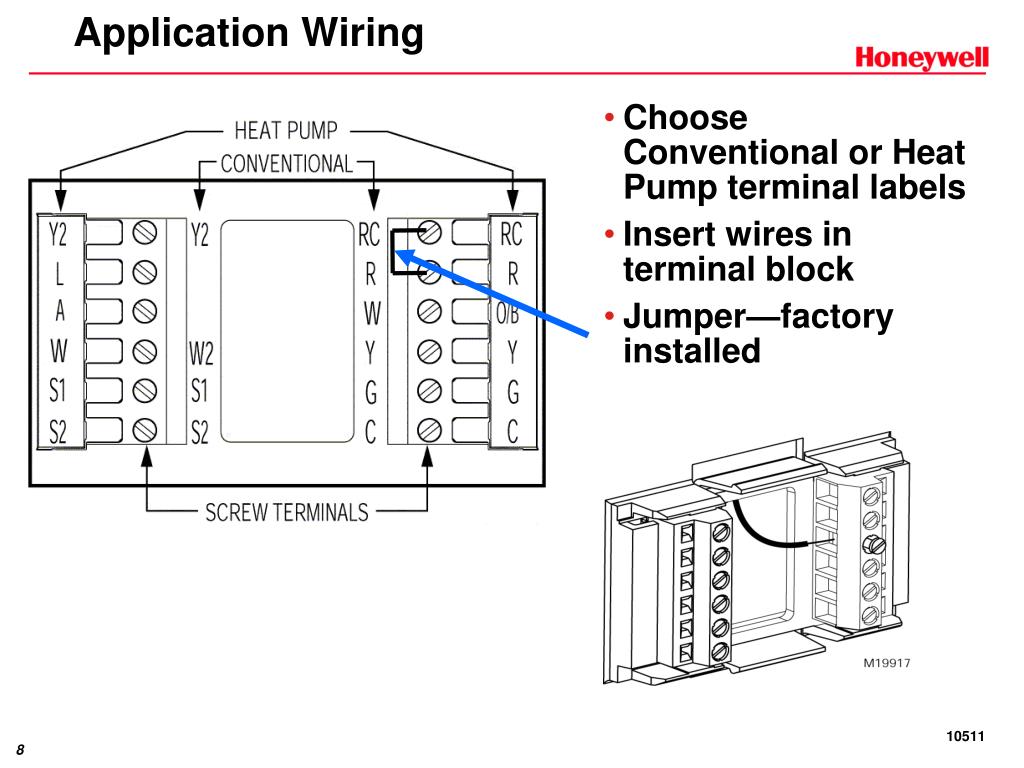

  8. Choose Conventional or Heat Pump terminal labels Insert wires in terminal block Jumper—factory installed Application Wiring

  9. Wiring 1 Heat/1Cool Conventional 1 = Power Supply 2 = Factory Installed Jumper 3 = Optional Sensor 1 Heat/1 Cool single transformer.

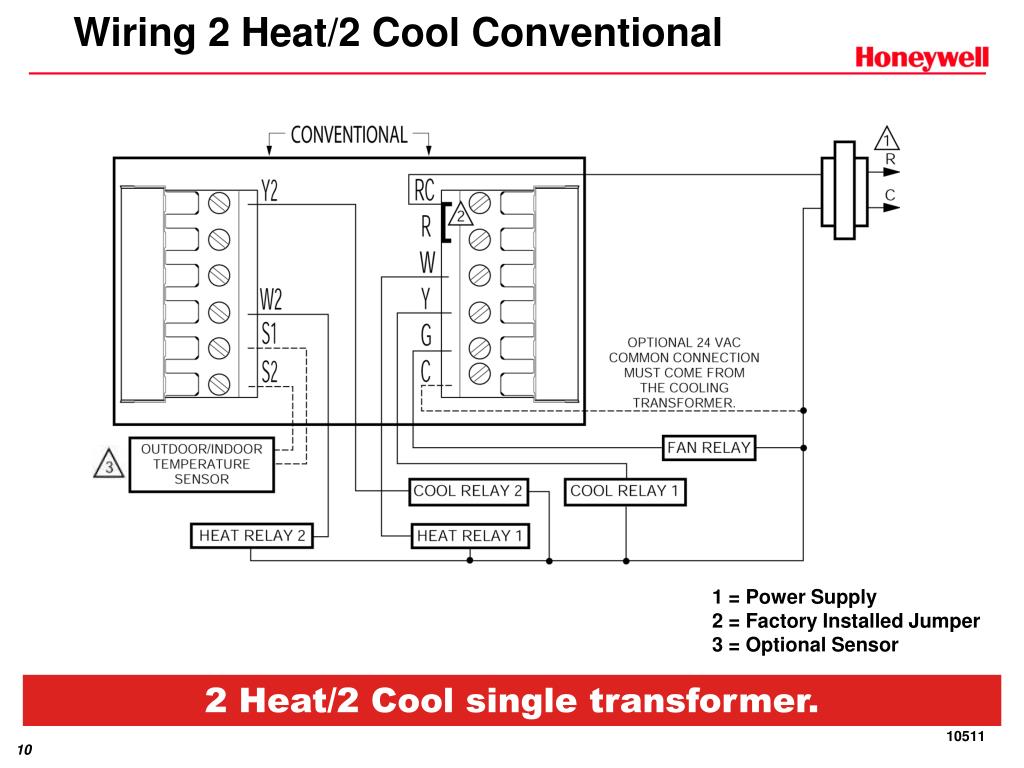

  10. Wiring 2 Heat/2 Cool Conventional 1 = Power Supply 2 = Factory Installed Jumper 3 = Optional Sensor 2 Heat/2 Cool single transformer.

  11. Wiring 1 Heat/1 Cool Heat Pump 1 = Power Supply 2 = Factory Installed Jumper 3 = Set to O or B in Setup 4 = Optional Sensor 1 Heat/1 Cool Heat Pump with NO Auxiliary Heat.

  12. Wiring 2 Heat/1 Cool Heat Pump TOD/ECON 1 = Power Supply 2 = Factory Installed Jumper 3, 4 = Optional Sensor 5 = Must Wire Common 6 = Set to O or B in Setup 2 Heat/1 Cool Heat Pump with Auxiliary Heat.

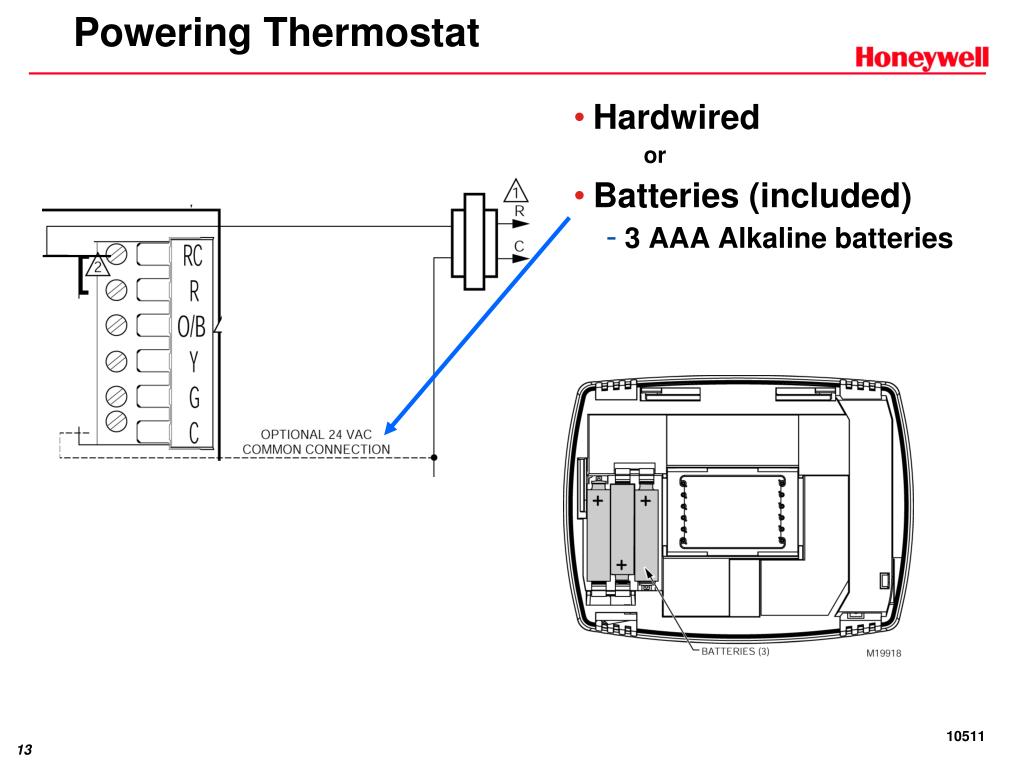

  13. Hardwired or Batteries (included) 3 AAA Alkaline batteries Powering Thermostat

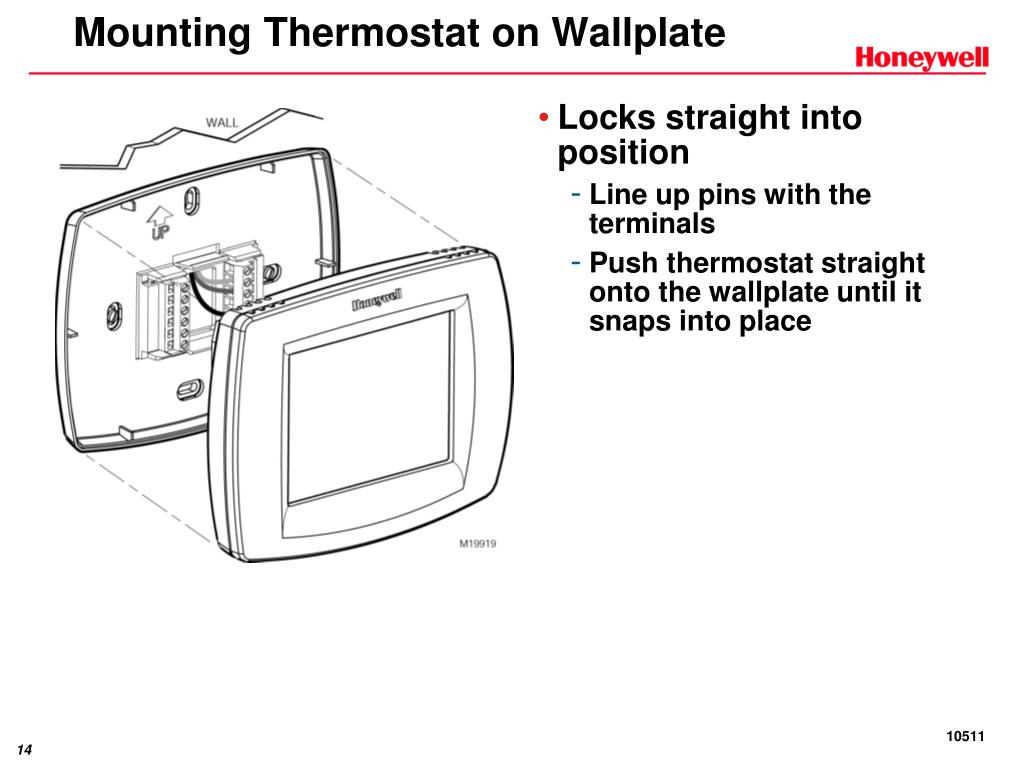

  14. Locks straight into position Line up pins with the terminals Push thermostat straight onto the wallplate until it snaps into place Mounting Thermostat on Wallplate

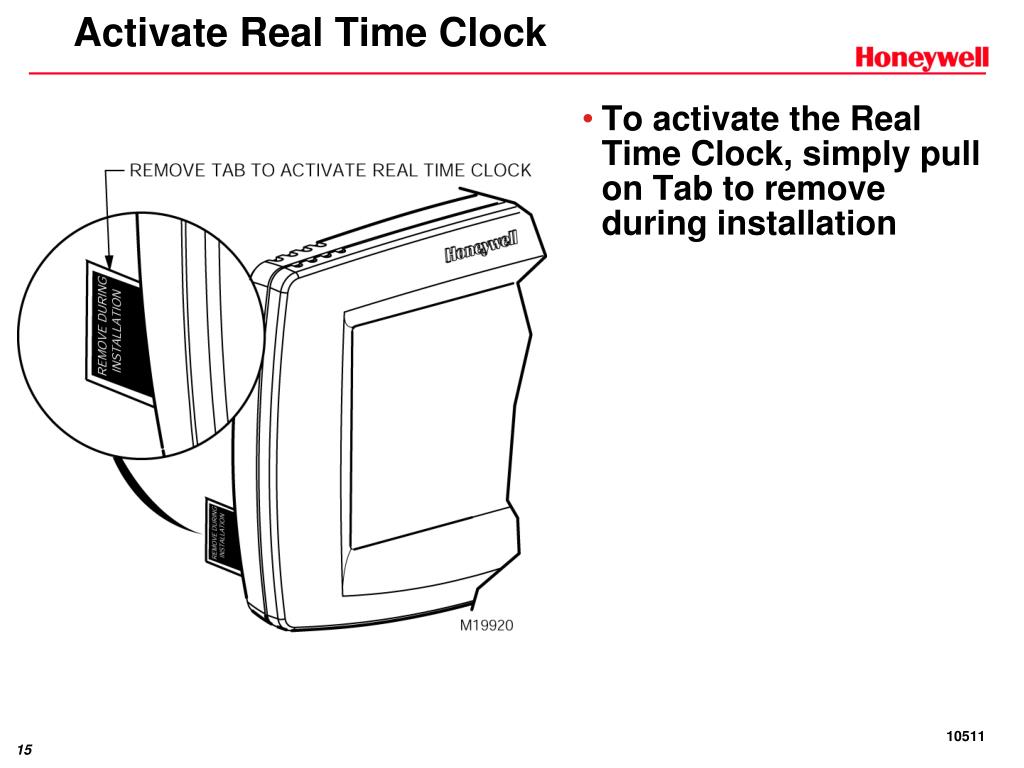

  15. Activate Real Time Clock • To activate the Real Time Clock, simply pull on Tab to remove during installation

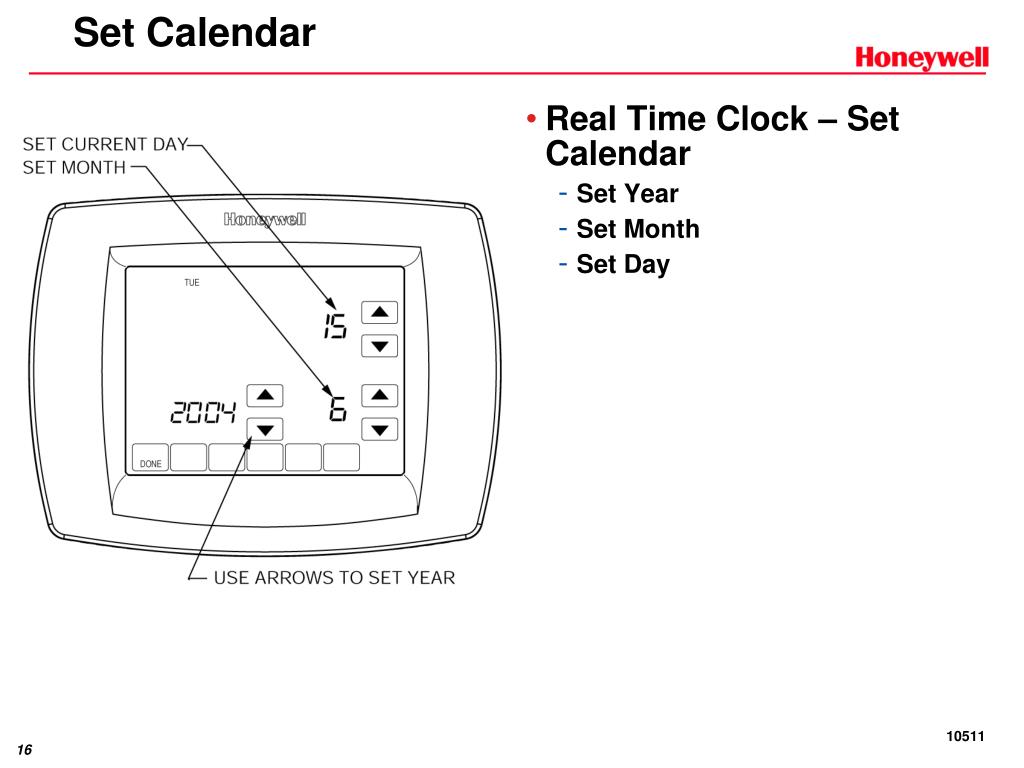

  16. Set Calendar • Real Time Clock – Set Calendar • Set Year • Set Month • Set Day

  17. Time Set Time • Real Time Clock – Set Time • Adjusts automatically for daylight savings time • Maintains time and day during power outage • Press Done Can turn Daylight Savings Time feature off in Installer Setup

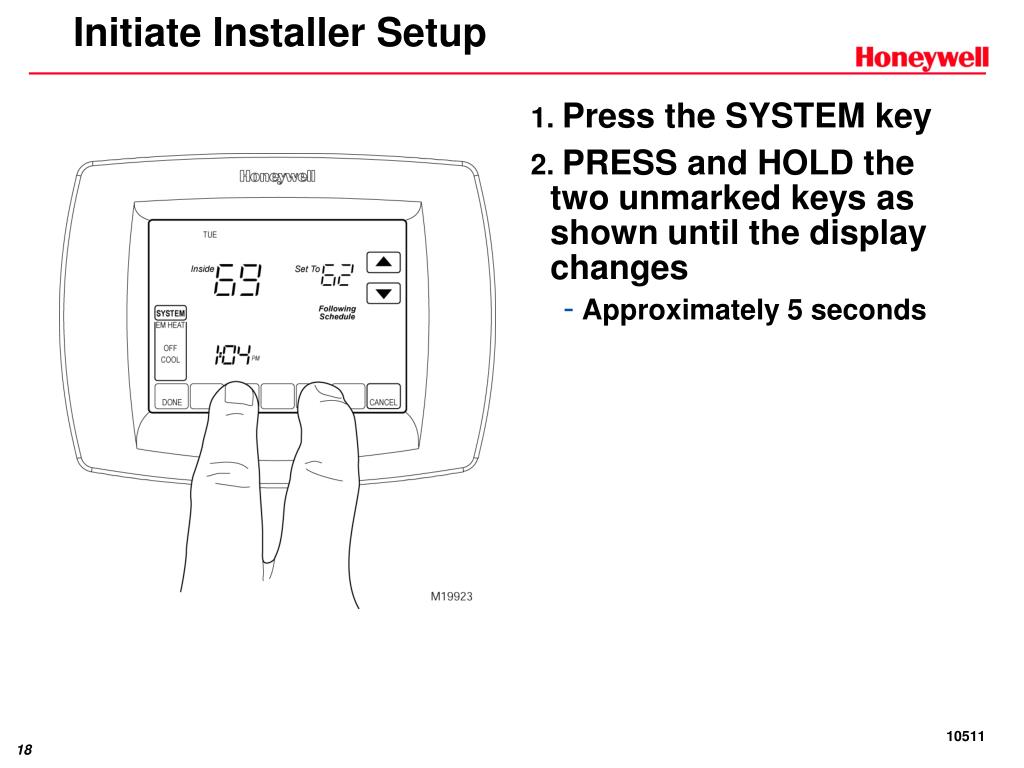

  18. Initiate Installer Setup 1. Press the SYSTEM key 2. PRESS and HOLD the two unmarked keys as shown until the display changes • Approximately 5 seconds

  19. Installer Setup Display Setup Number • Setup Number on Left • 4-digit number starting with 0 • Use the up arrow to advance to the next installer setup option • Current Setting on Right • 2-digit number • Use the up and down arrows to change the current setting • Exit Installer Setup • Press the Done Key Commercial Current Setting

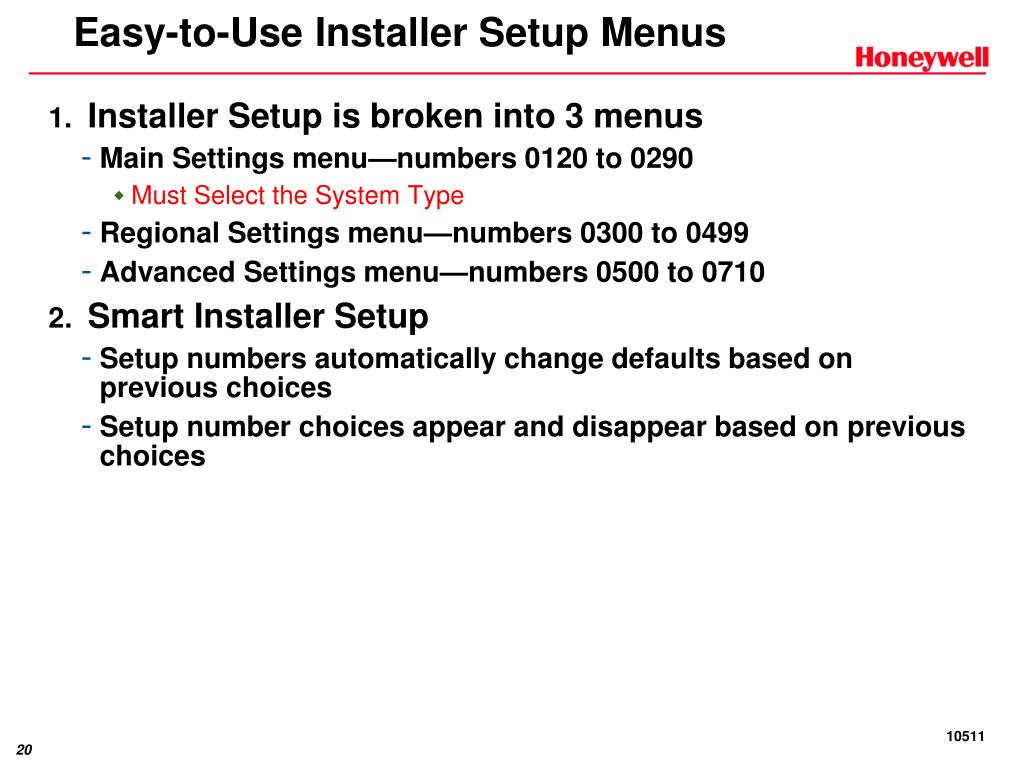

  20. Easy-to-Use Installer Setup Menus 1. Installer Setup is broken into 3 menus • Main Settings menu—numbers 0120 to 0290 • Must Select the System Type • Regional Settings menu—numbers 0300 to 0499 • Advanced Settings menu—numbers 0500 to 0710 2. Smart Installer Setup • Setup numbers automatically change defaults based on previous choices • Setup number choices appear and disappear based on previous choices

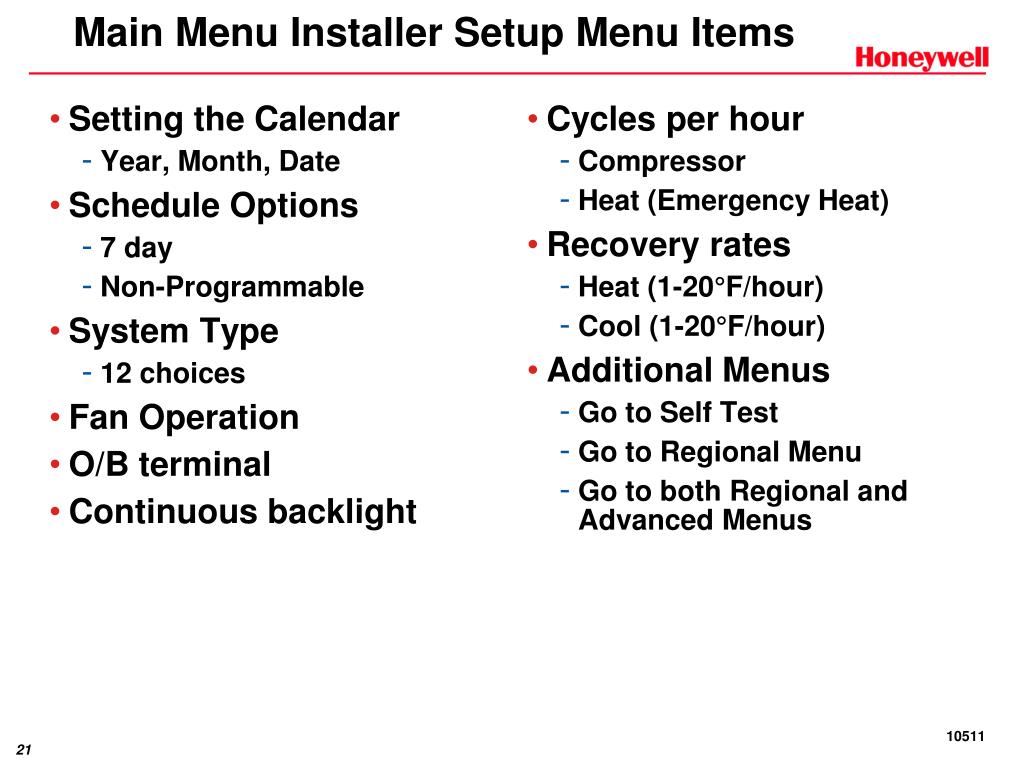

  21. Setting the Calendar Year, Month, Date Schedule Options 7 day Non-Programmable System Type 12 choices Fan Operation O/B terminal Continuous backlight Cycles per hour Compressor Heat (Emergency Heat) Recovery rates Heat (1-20°F/hour) Cool (1-20°F/hour) Additional Menus Go to Self Test Go to Regional Menu Go to both Regional and Advanced Menus Main Menu Installer Setup Menu Items

  22. Main Setting Menu Items Universal Application • Up to 2 Heat/2 Cool (plus Aux Heat) • Forced Warm Air • Single stage • Multistage • Heat Pumps • Single stage • Multistage Commercial

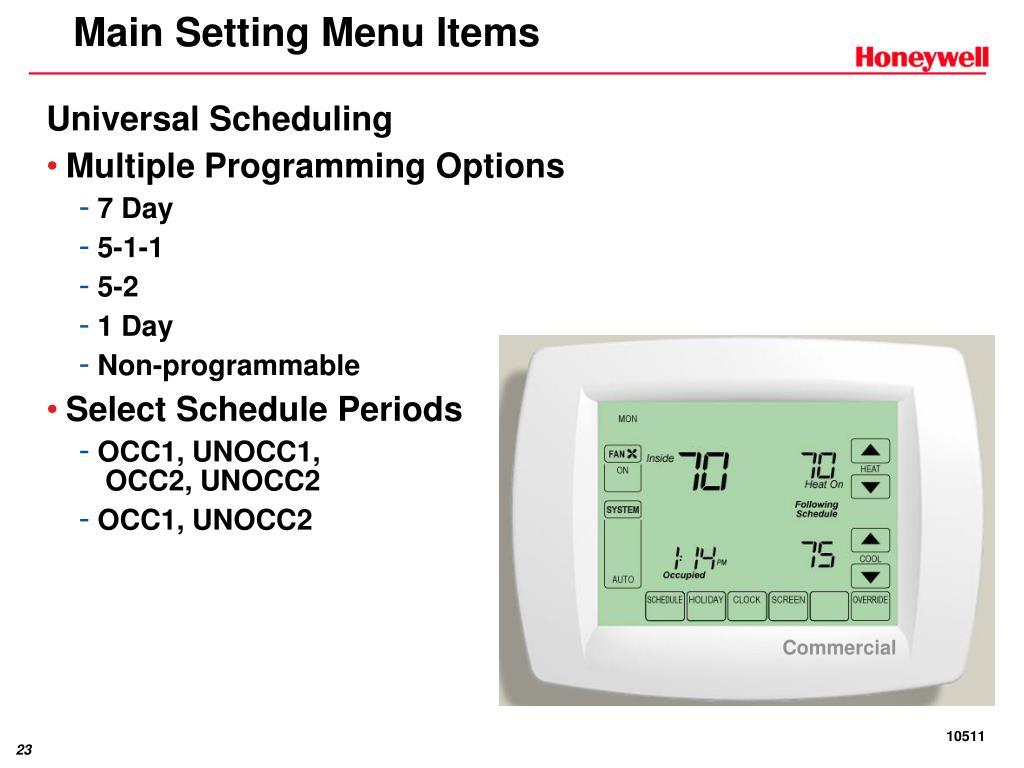

  23. Main Setting Menu Items Universal Scheduling • Multiple Programming Options • 7 Day • 5-1-1 • 5-2 • 1 Day • Non-programmable • Select Schedule Periods • OCC1, UNOCC1, OCC2, UNOCC2 • OCC1, UNOCC2 Commercial

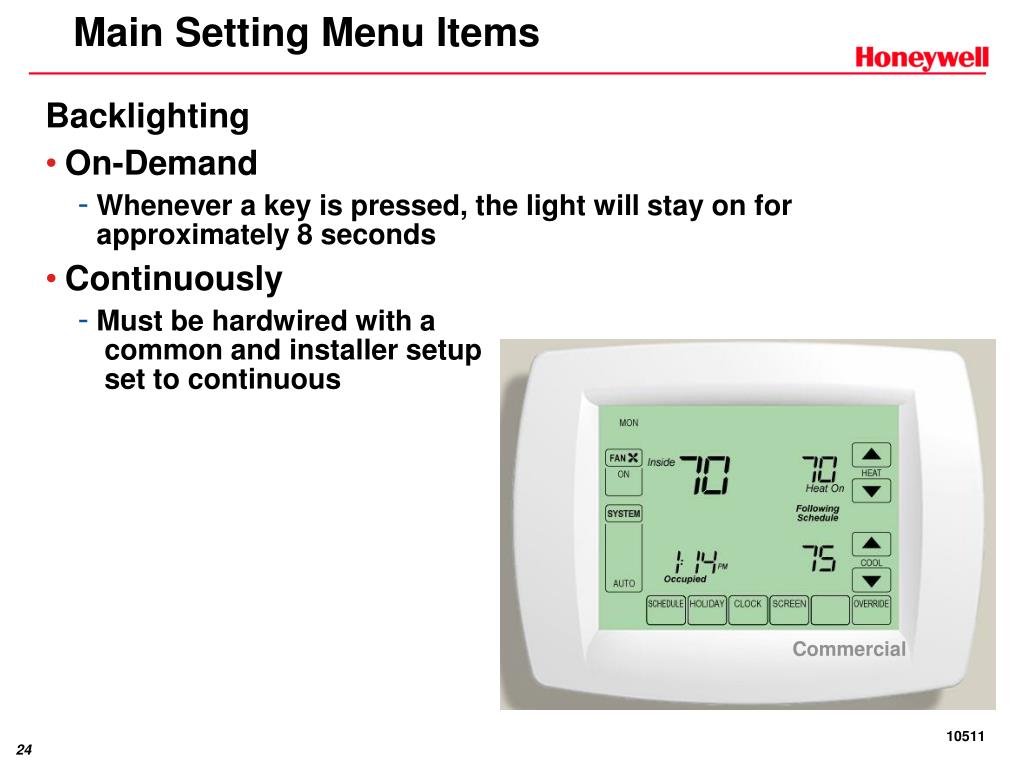

  24. Main Setting Menu Items Backlighting • On-Demand • Whenever a key is pressed, the light will stay on for approximately 8 seconds • Continuously • Must be hardwired with a common and installer setup set to continuous Commercial

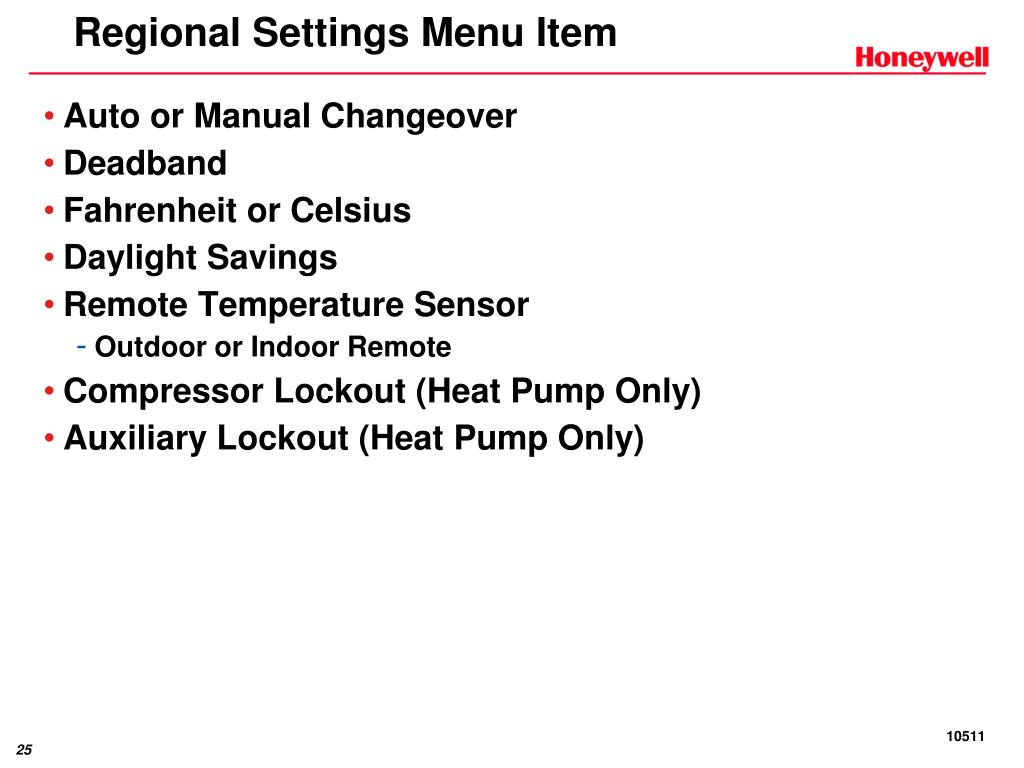

  25. Regional Settings Menu Item • Auto or Manual Changeover • Deadband • Fahrenheit or Celsius • Daylight Savings • Remote Temperature Sensor • Outdoor or Indoor Remote • Compressor Lockout (Heat Pump Only) • Auxiliary Lockout (Heat Pump Only)

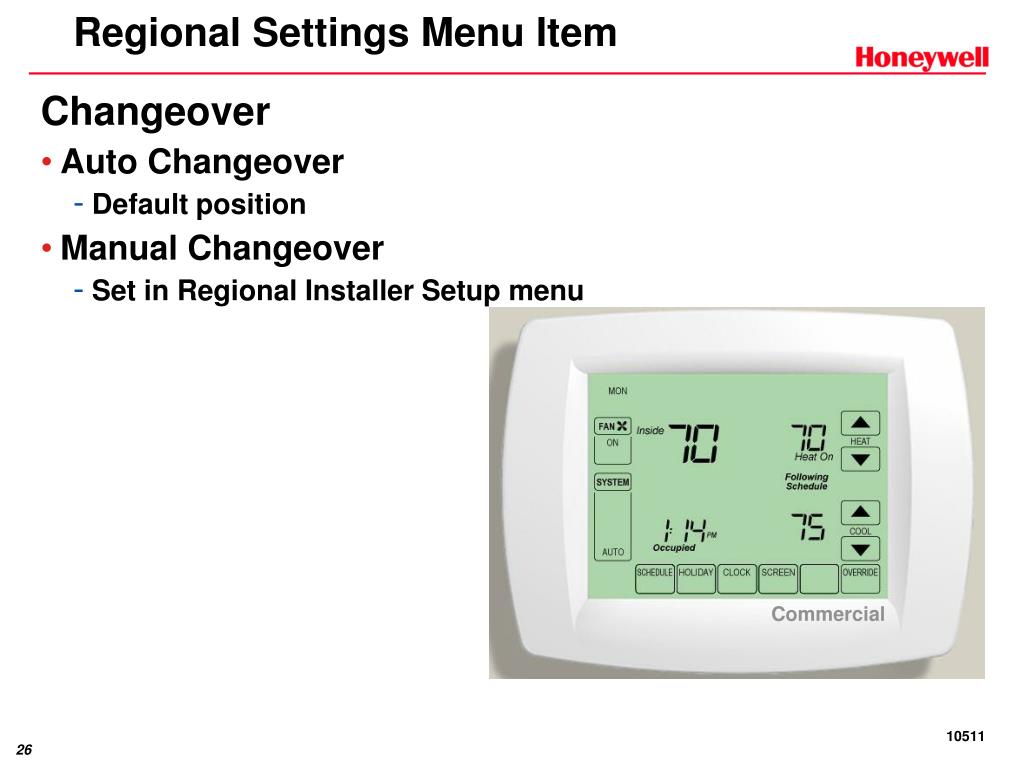

  26. Regional Settings Menu Item Changeover • Auto Changeover • Default position • Manual Changeover • Set in Regional Installer Setup menu Commercial

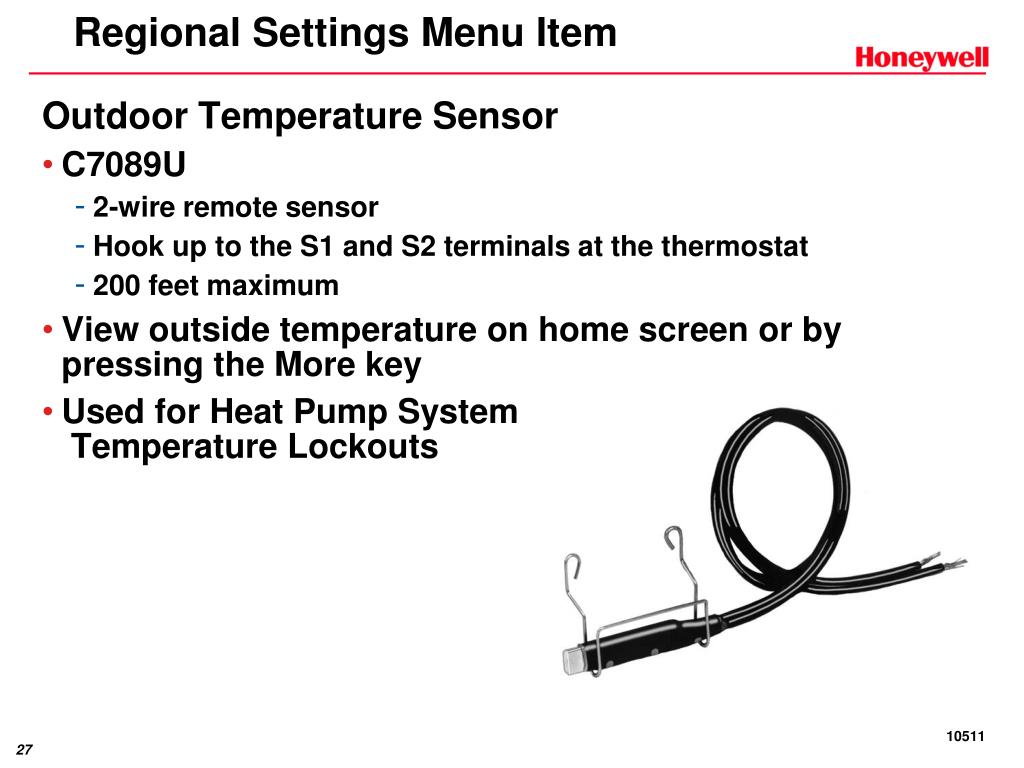

  27. Regional Settings Menu Item Outdoor Temperature Sensor • C7089U • 2-wire remote sensor • Hook up to the S1 and S2 terminals at the thermostat • 200 feet maximum • View outside temperature on home screen or by pressing the More key • Used for Heat Pump System Temperature Lockouts

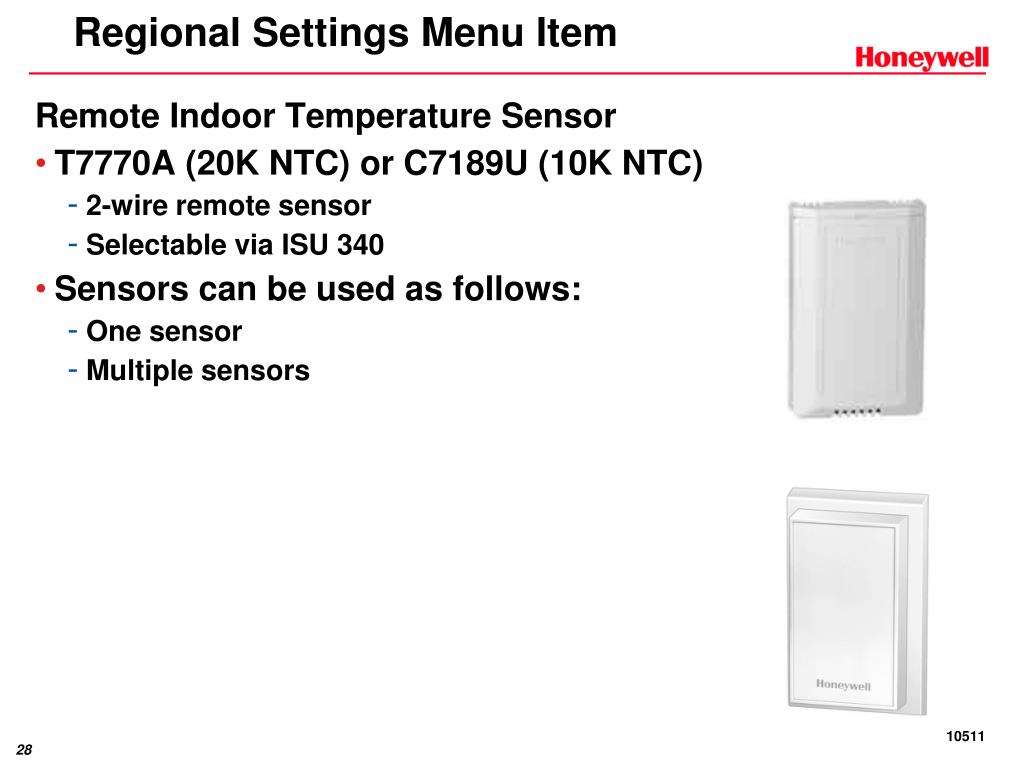

  28. Regional Settings Menu Item Remote Indoor Temperature Sensor • T7770A (20K NTC) or C7189U (10K NTC) • 2-wire remote sensor • Selectable via ISU 340 • Sensors can be used as follows: • One sensor • Multiple sensors

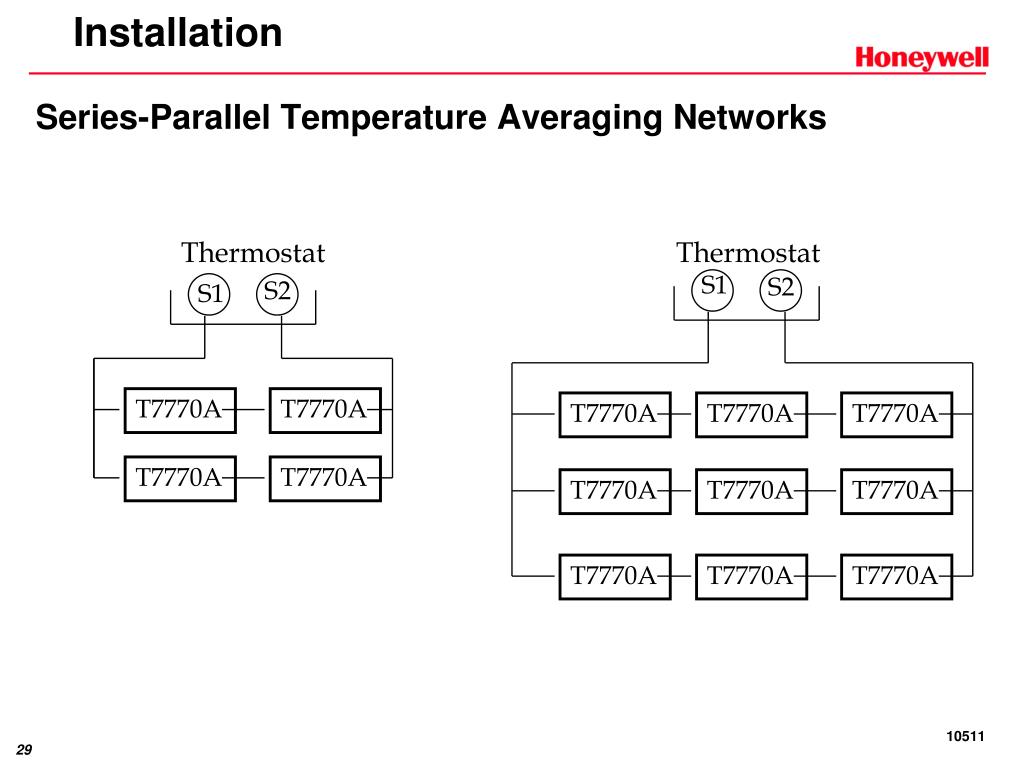

  29. Thermostat S1 S2 T7770A T7770A T7770A T7770A T7770A T7770A T7770A T7770A T7770A Installation Series-Parallel Temperature Averaging Networks Thermostat S2 S1 T7770A T7770A T7770A T7770A

  30. Number of Periods Compressor Off Time Temperature Range Stops Heat and Cool 12 or 24 hour clock Extended Fan Operation Heat and Cool Keypad Lockout Partial 1, Partial 2, or full Temperature Control(s) Heat and cool recovery Display Offset Reset Defaults Installer setup and schedule Advanced Settings Menu Items

  31. Advanced Settings Recovery Ramps • Recovery Ramps • Recovery scheme ramps the setpoint towards the desired setpoint • Ramped setpoint helps eliminate overshoot with oversized commercial equipment

  32. Commercial VisionPRO 8000 Recovery Operation

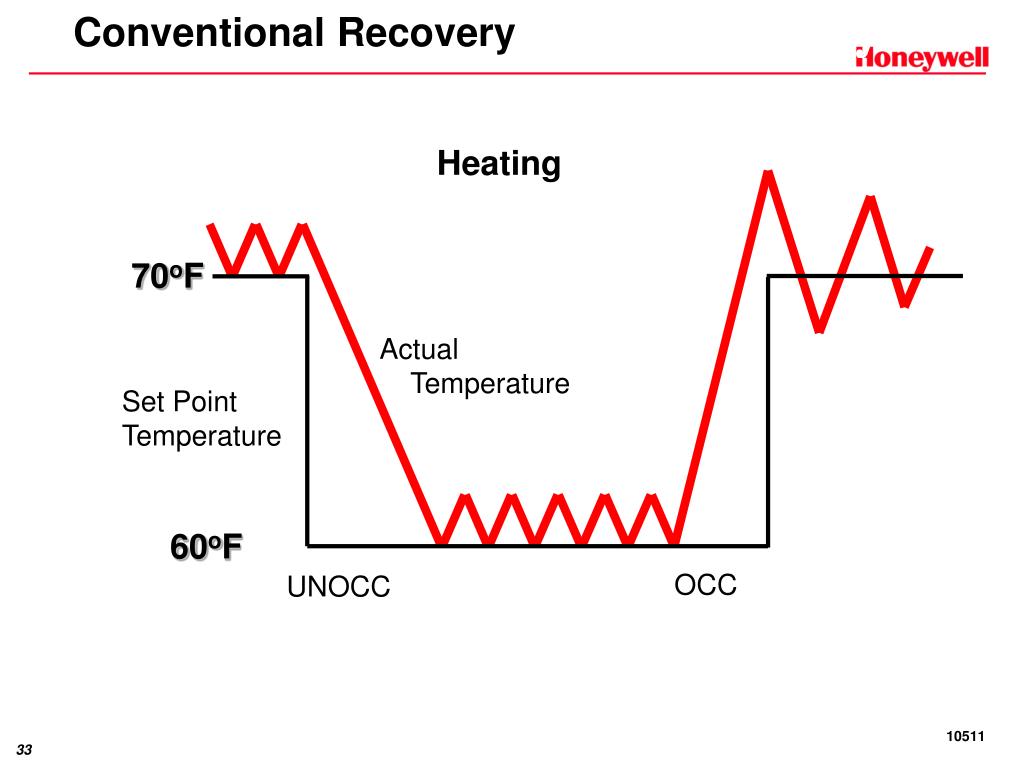

  33. Conventional Recovery Heating 70oF Actual Temperature Set Point Temperature 60oF OCC UNOCC

  34. Commercial Recovery Ramps Heating Actual Temperature 70oF Set Point Temperature Setpoint actually ramps up at a user-defined rate during recovery 60oF OCC UNOCC

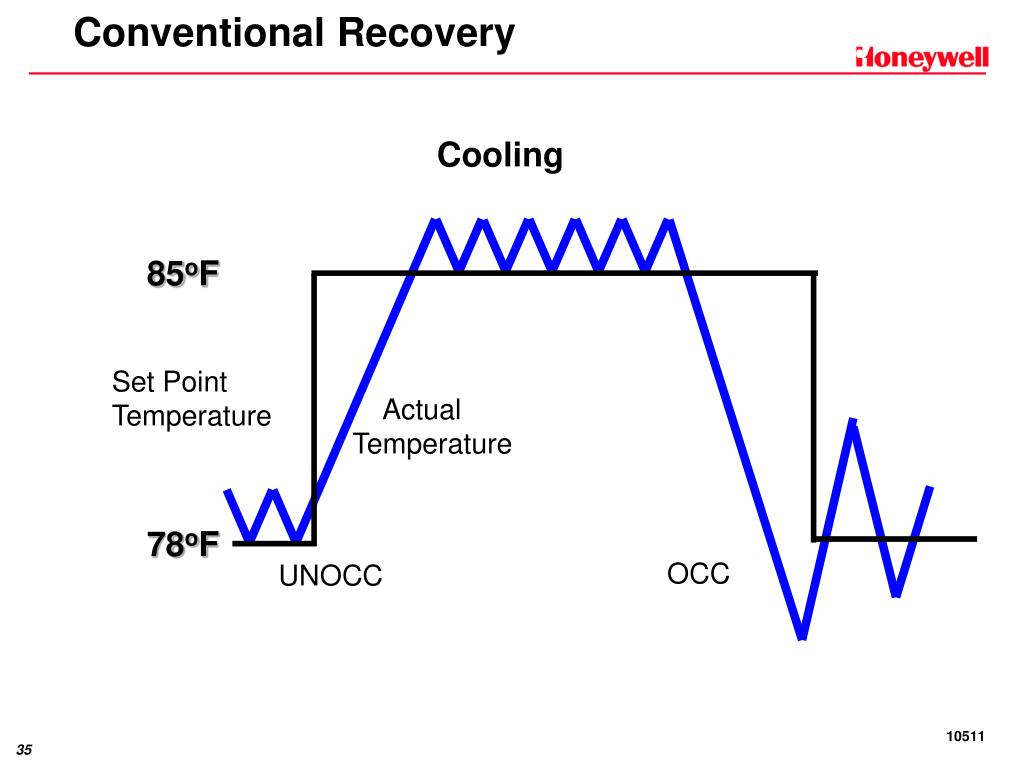

  35. Conventional Recovery Cooling 85oF Set Point Temperature Actual Temperature 78oF OCC UNOCC

  36. Commercial Recovery Ramps Cooling 85oF Set Point Temperature Actual Temperature 78oF OCC UNOCC

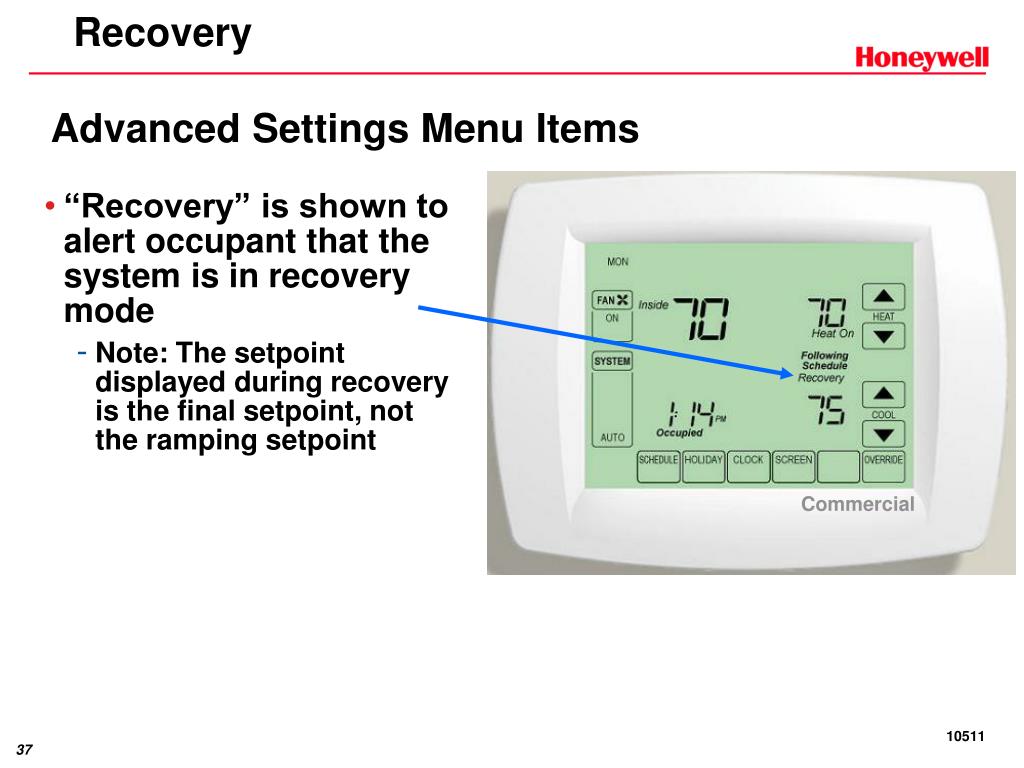

  37. Recovery Advanced Settings Menu Items • “Recovery” is shown to alert occupant that the system is in recovery mode • Note: The setpoint displayed during recovery is the final setpoint, not the ramping setpoint Commercial

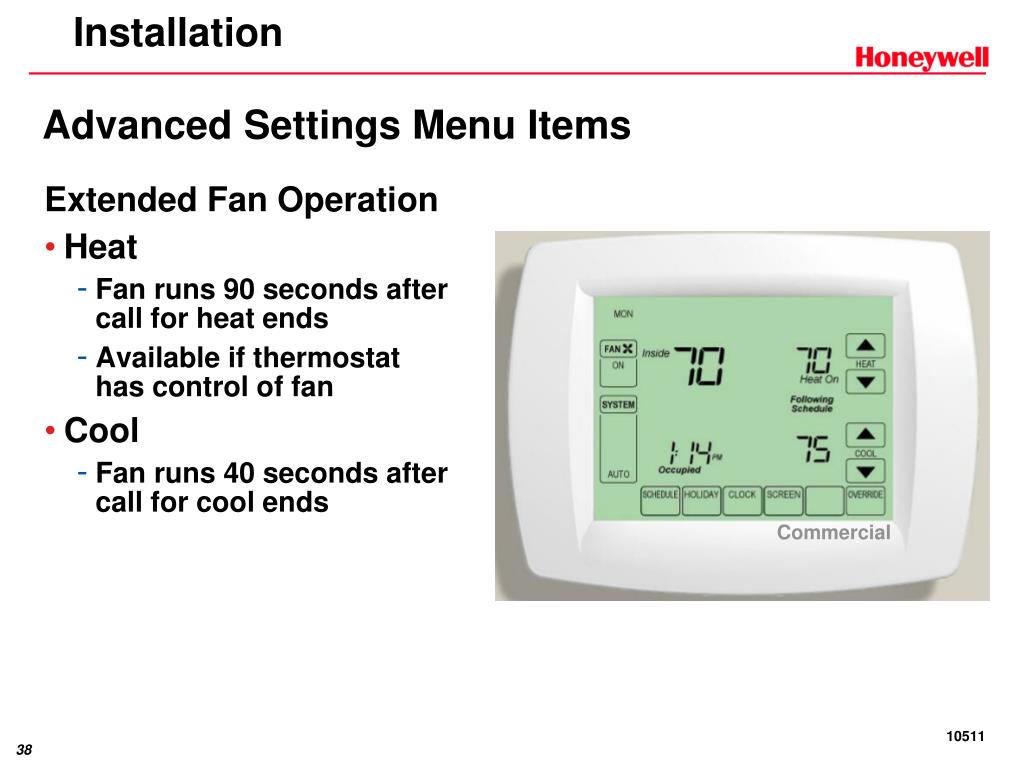

  38. Installation Advanced Settings Menu Items Extended Fan Operation • Heat • Fan runs 90 seconds after call for heat ends • Available if thermostat has control of fan • Cool • Fan runs 40 seconds after call for cool ends Commercial

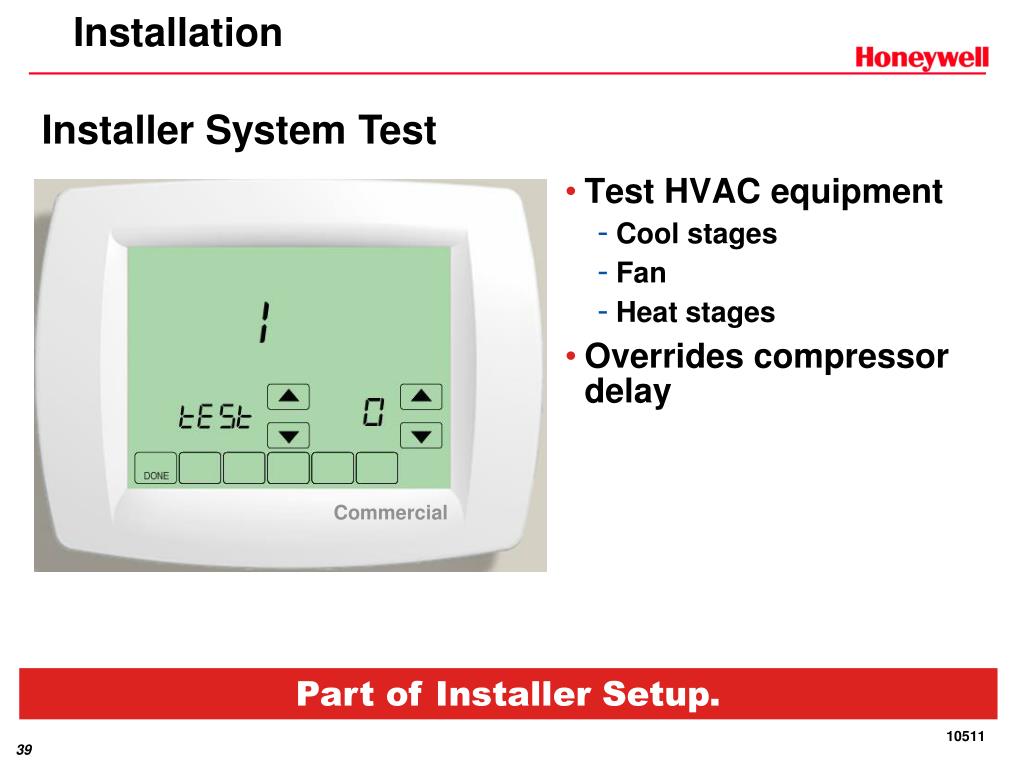

  39. Installation Installer System Test • Test HVAC equipment • Cool stages • Fan • Heat stages • Overrides compressor delay Commercial Part of Installer Setup.

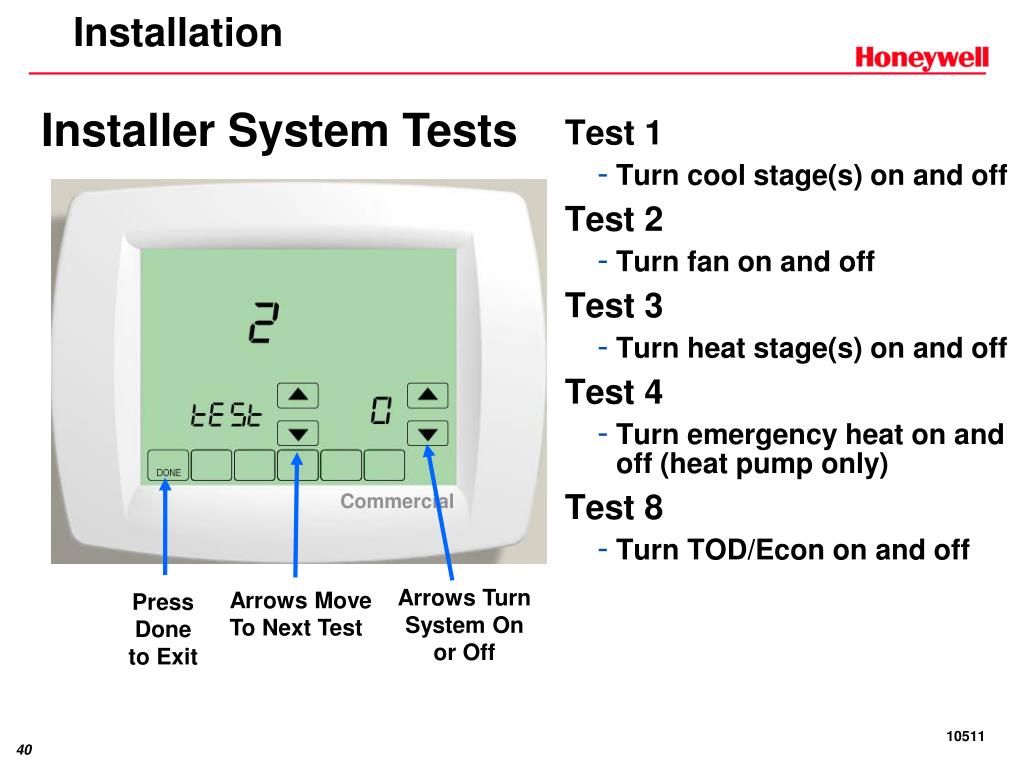

  40. Installation Installer System Tests Test 1 • Turn cool stage(s) on and off Test 2 • Turn fan on and off Test 3 • Turn heat stage(s) on and off Test 4 • Turn emergency heat on and off (heat pump only) Test 8 • Turn TOD/Econ on and off Commercial Arrows Turn System On or Off Arrows Move To Next Test Press Done to Exit

  41. Commercial VisionPRO 8000 Scheduling Procedures

  42. Scheduling Feature Review • Default Schedule is Energy Star • Menu Driven Program Scheduling • Each day can be scheduled differently • Ability to Select Multiple Days • Armchair Programming

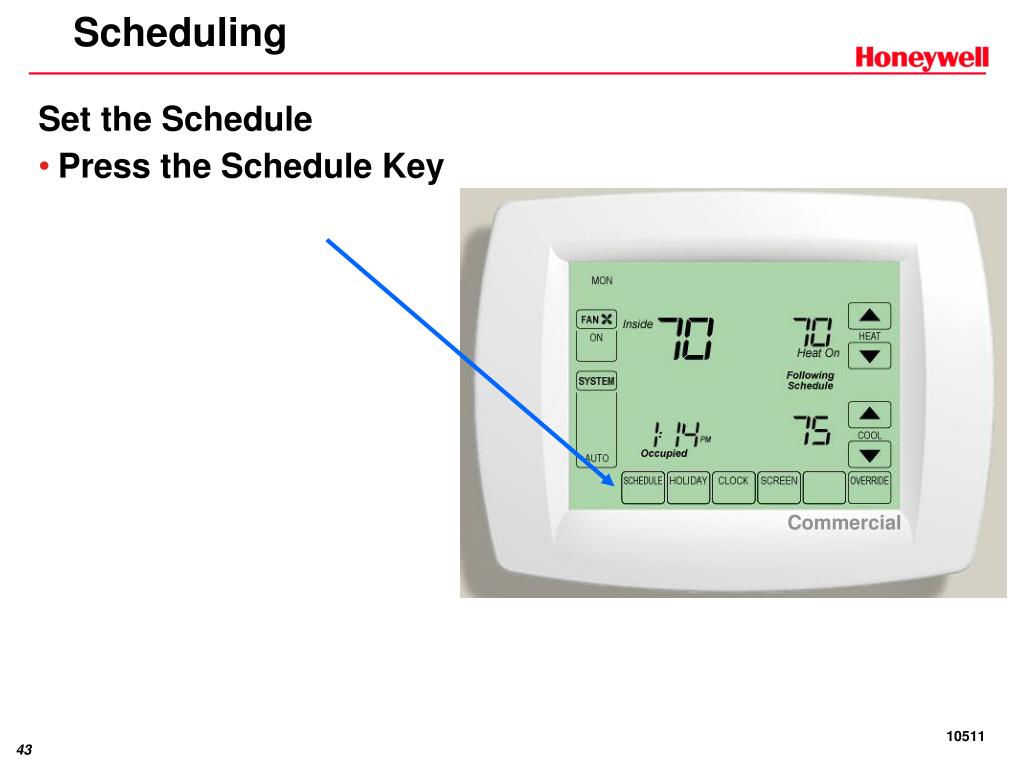

  43. Scheduling Set the Schedule • Press the Schedule Key Commercial

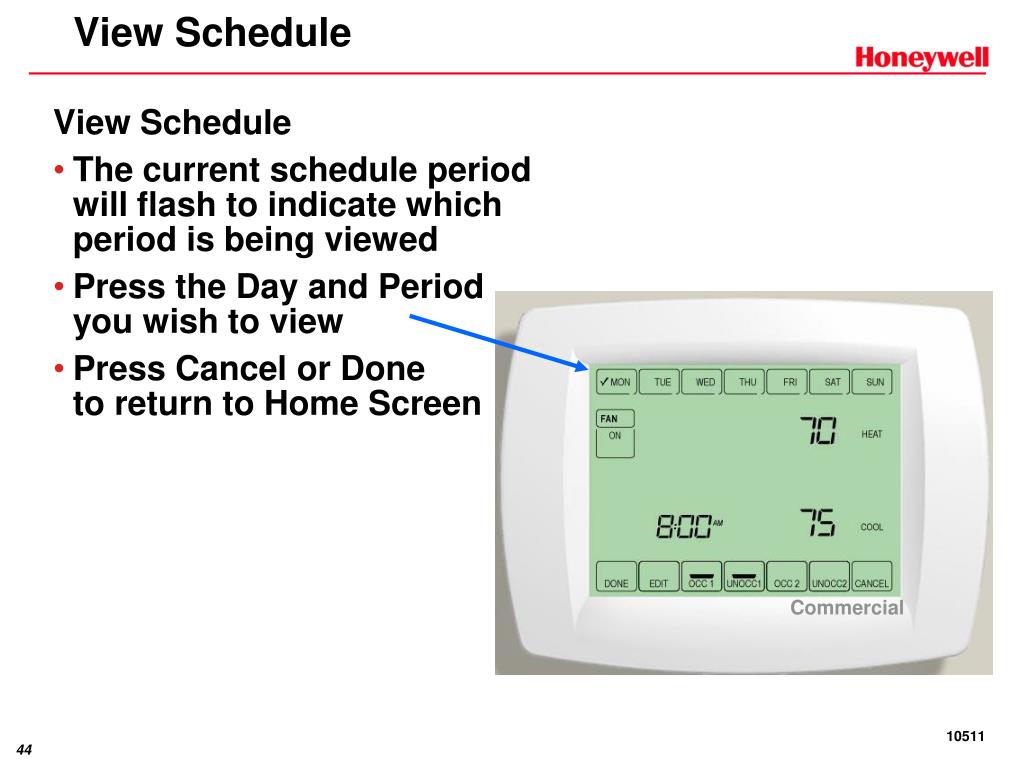

  44. View Schedule View Schedule • The current schedule periodwill flash to indicate whichperiod is being viewed • Press the Day and Periodyou wish to view • Press Cancel or Doneto return to Home Screen Commercial

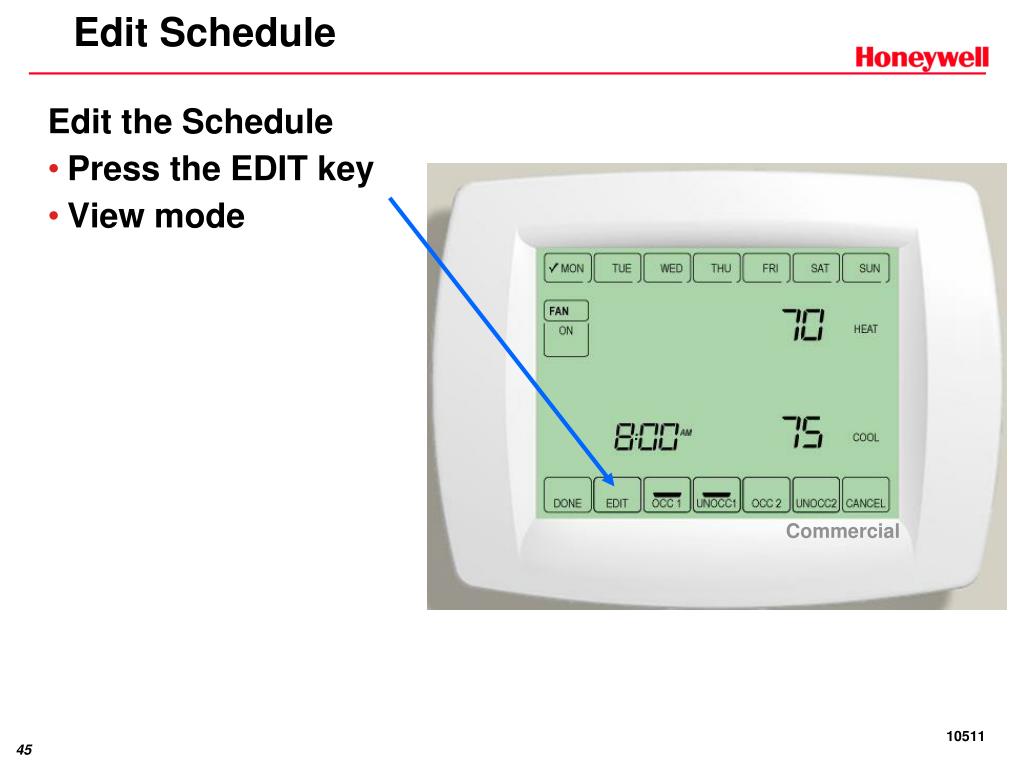

  45. Edit Schedule Edit the Schedule • Press the EDIT key • View mode Commercial

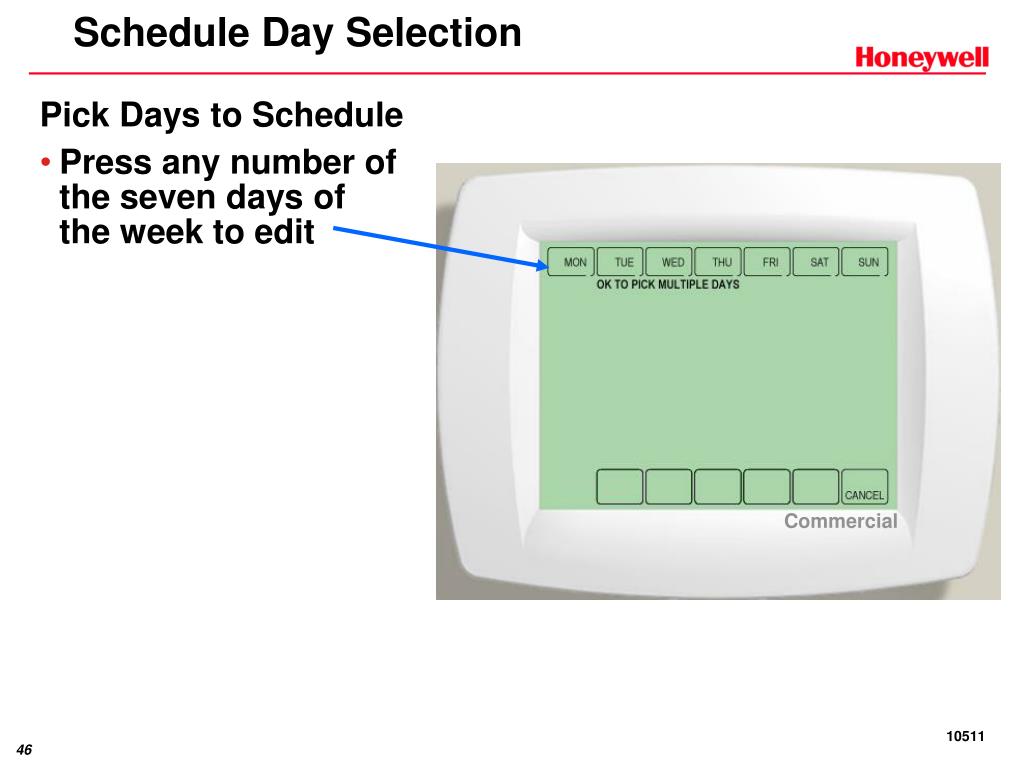

  46. Schedule Day Selection Pick Days to Schedule • Press any number ofthe seven days ofthe week to edit Commercial

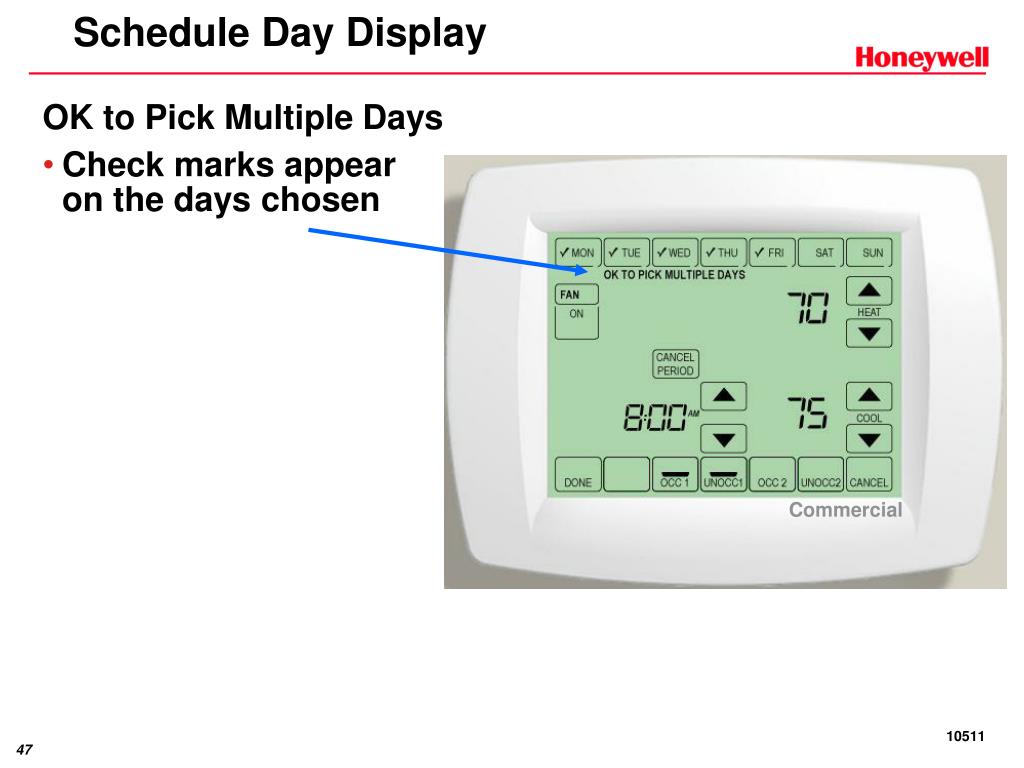

  47. Schedule Day Display OK to Pick Multiple Days • Check marks appearon the days chosen Commercial

  48. Schedule OCC1 Selection Press OCC1 Key • OCC1 will begin toflash, indicating itis chosen Commercial

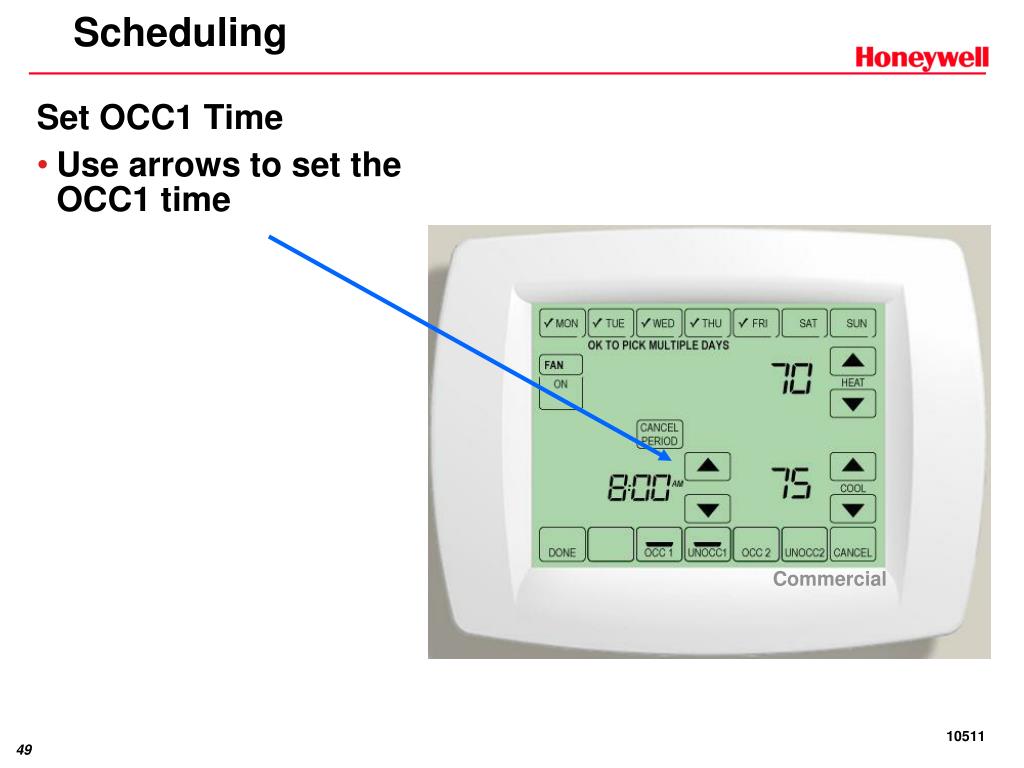

  49. Scheduling Set OCC1 Time • Use arrows to set theOCC1 time Commercial

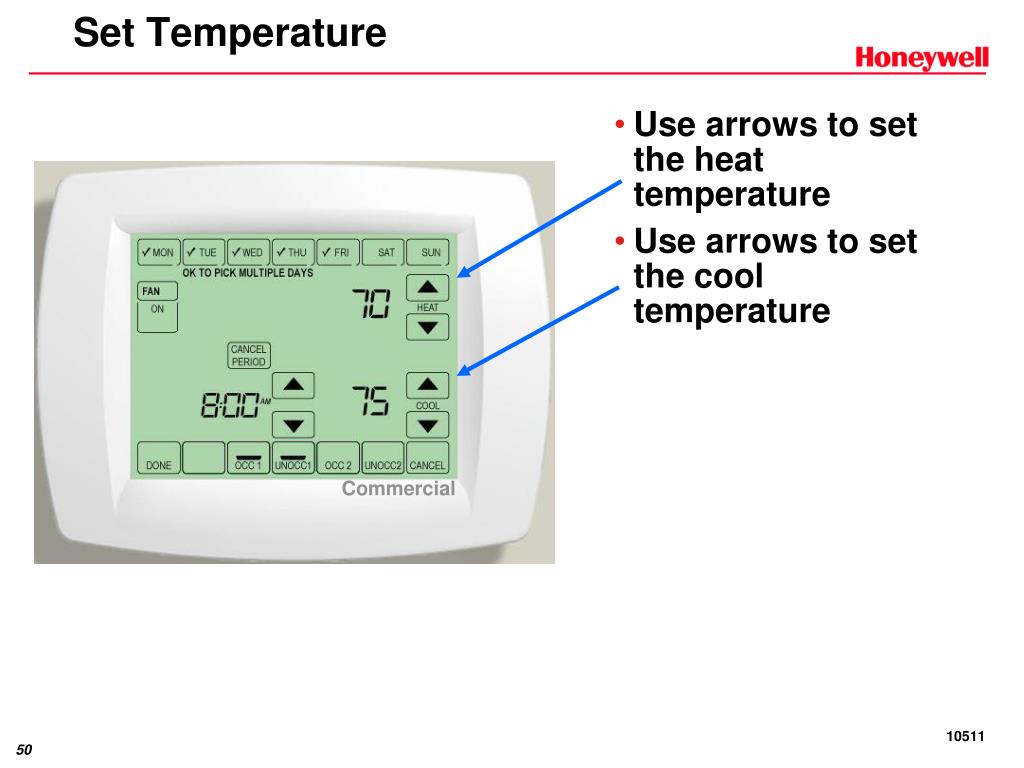

  50. Set Temperature • Use arrows to set the heat temperature • Use arrows to set the cool temperature Commercial
