  1. Resource Allocation BBUS541 Hiroshi Ochiumi

  2. Introduction • Projects Compete With One Another for Resources • resources that are not consumed • resources that are consumed • Goal of Resource Allocation is to Optimize Use of Limited Supply • Requires making trade-offs • time constrained • resource constrained

  3. Expediting a Project BBUS541 Hiroshi Ochiumi

  4. Expediting a Project • Time-Cost Trade-off Model • A model that develops the relationship between direct project costs, indirect costs, and time to complete the project by minimizing the sum of direct and indirect costs. • Crash Costs • The additional costs of an activity when time to complete it is shortened.

  5. Minimum Cost Scheduling Step 1:Prepare CPM-type network diagram. a. Normal cost (NC) b. Normal time (NT) c. Crash time (CT) d. Crash Cost (CC) Step 2: Determine the cost per unit of time to expedite (or crash) each activity. Step 3: Compute the critical path. Step 4: Shorten the critical path at the least cost. Step 5: Plot project direct, indirect, and total-cost curves and find the minimum-cost schedule.

  6. Example 1 5 B 3 2 2 7 D A 7 10 ES=0 EF=2 4 C 2 6

  7. Summary of Activity Times and Costs

  8. Calculation of Cost Per Day to Expedite Each Activity

  9. Cost per day to Expedite

  10. Critical Path? • A-B-D 2+5+3=10 • A-C-D 2+4+3=9

  11. “Crash” A-B-D path by 1 • Where exactly do we want to crash?

  12. Network Diagram 5 Cost +2 B 2 2 2 7 D A 7 9 ES=0 EF=2 4 C 2 6

  13. Cost per day to Expedite

  14. Critical Path? • A-B-D 2+5+2=9 • A-C-D 2+4+2=8

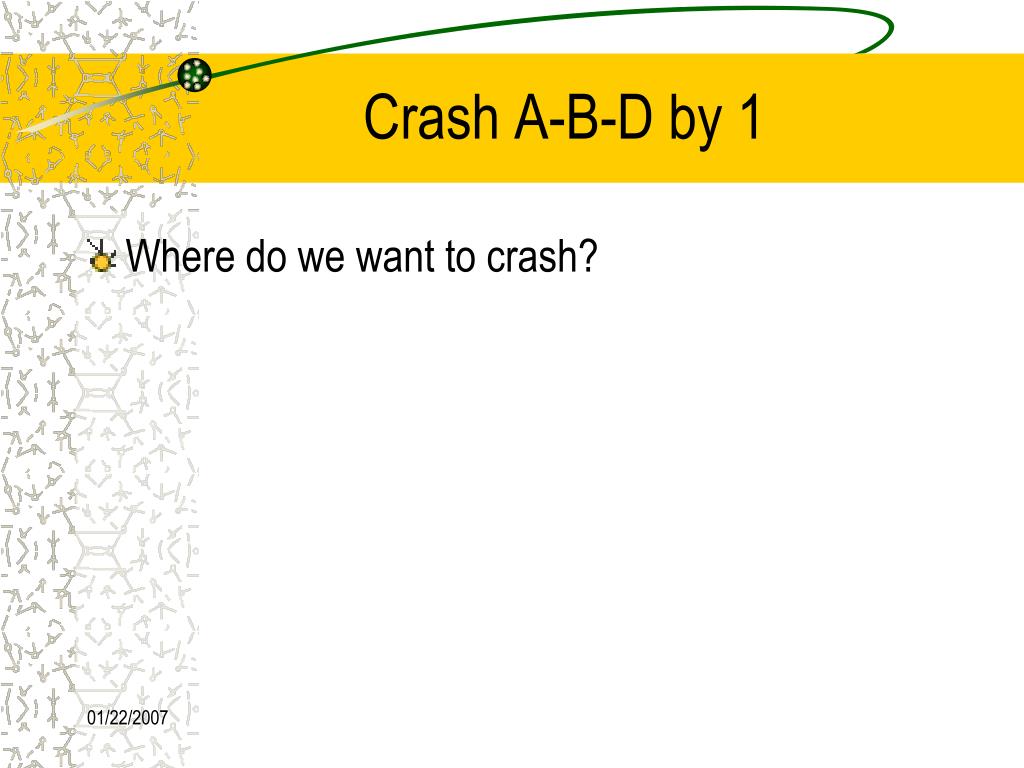

  15. Crash A-B-D by 1 • Where do we want to crash?

  16. Network Diagram 5 Cost +2+2 B 1 2 2 7 D A 7 8 ES=0 EF=2 4 C 2 6

  17. Cost per day to Expedite

  18. Critical Path? • A-B-D 2+5+1=8 • A-C-D 2+4+1=7

  19. Crash A-B-D by 1 • Where do we want to crash?

  20. Network Diagram 4 Cost +2+2+3 B 1 2 2 6 D A 6 7 ES=0 EF=2 4 C 2 6

  21. Cost per day to Expedite

  22. Critical Path? • A-B-D 2+4+1=7 • A-C-D 2+4+1=7

  23. Crash both paths by 1 • Where do we want to crash? • Do we want to crash C?

  24. Network Diagram 4 Cost +2+2+3+4 B 1 1 1 5 D A 5 6 ES=0 EF=1 4 C 1 5

  25. Cost per day to Expedite

  26. Critical Path? • A-B-D 1+4+1=6 • A-C-D 1+4+1=6

  27. Crash both paths by 1 • Where do we want to crash? • Do we want to crash C only?

  28. Network Diagram 3 Cost +2+2+3+4+3+2 B 1 1 1 4 D A 4 5 ES=0 EF=1 3 C 1 4

  29. Cost per day to Expedite • Can we continue?

  30. Example 2

  31. Example 2 • Can we use Excel Solver?

  32. Using Excel Solver to Crash a Project • Objective • minimize crashing costs • Decision Variables • amount to crash activities • time events occur, or EST’s • Constraints • amount each activity can be crashed • precedence relationships • complete project by specified time • nonnegativity

  33. Resource Loading BBUS541 Hiroshi Ochiumi

  34. Resource Loading • Amount of specific resources that are scheduled for use on specific activities or projects at specific times. • Usually a list or table.

  35. Resource Leveling BBUS541 Hiroshi Ochiumi

  36. Last week • We evaluated project durations only in terms of time. • We have to consider when and for what purposes: • People • Equipment • Material • Facilities • are used.

  37. Resource Leveling • Overallocation must be resolved. • Move activities so that resources do not exceed their capacities. • Without extending the project duration if possible
