  1. Corrosion Conversion and Prevention Program for UST Sumps No Power Tools Required Presented By – The Grapple Hook Group Distributors of Iron Ox Products All Products are Nonflammable

  2. Before Treatment Corrosion on Copper As Well. Good Idea to remove water

  3. Before Treatment – Multiple Types of Corrosion

  4. Before Treatment – Removal of blue oxidation on copper is important. Brush lightly. Wear Mask.

  5. Be Prepared for Severe Dryness

  6. Before Treatment – Or Sometimes Full of Wet Corroded Mukk!!!!!

  7. Before You Start – Supplies and Tools Gloves Mask Multiple Rags Safety Glasses Vest Cup of Water Coveralls

  8. Before You Start – Supplies and Tools Non Sparking Brass Scrapers & Available At Grainger

  9. Before You Start – Supplies and Tools Non Sparking Brass Brushes – Available and Auto & Builder Supply Stores

  10. Before You Start – Supplies and Tools Disposable Paint Brushes and Disposable Paint Cups. Do not put chemical back into bottle. C Stores have cups if you forget.

  11. Before You Start – Supplies and Tools To Speed Up Spraying – We recommend using Milwaukee Sprayer Model A. If you plan to use, you will need portable air supply. Used For 24/7 Plus - Corrosion Inhibitor and Lubricant. If no sprayer , product can be brushed.

  12. Before You Start – Supplies and Tools One Pint of Iron Ox Steel Curtain Per STP Motor & Assembly One Can of Iron Ox 24 / 7 Per STP Motor & Assembly

  13. Before You Start – Supplies and Tools Six to Seven Feet of ¾ or 1” PVC Tool for Each Sump. + Cutting Tool

  14. Before You Start – Supplies and Tools One Iron Ox Vapor Emitter Bulb and Four 6-8” plastic tie wraps per stick

  15. Typical Station View Barriers set with Cones and Tape

  16. Open Lid Safely / Remove Water Ventilate Sump Area - Expose Air. Remove any water with rags or hand pump.

  17. Check with Safety Manager for Company Policy on Confined Space Entry.

  18. Removing Rust with Brass and Plastic Scraper and Brush Double Click If Necessary Debris on floor can be removed manually or approve d vacuum

  19. Removing Rust with Brass and Plastic Scraper and Brush cont. Segment 2 -Double Click If Necessary Just The Gross and Rust Scale – Ok to leave Surface Rust.

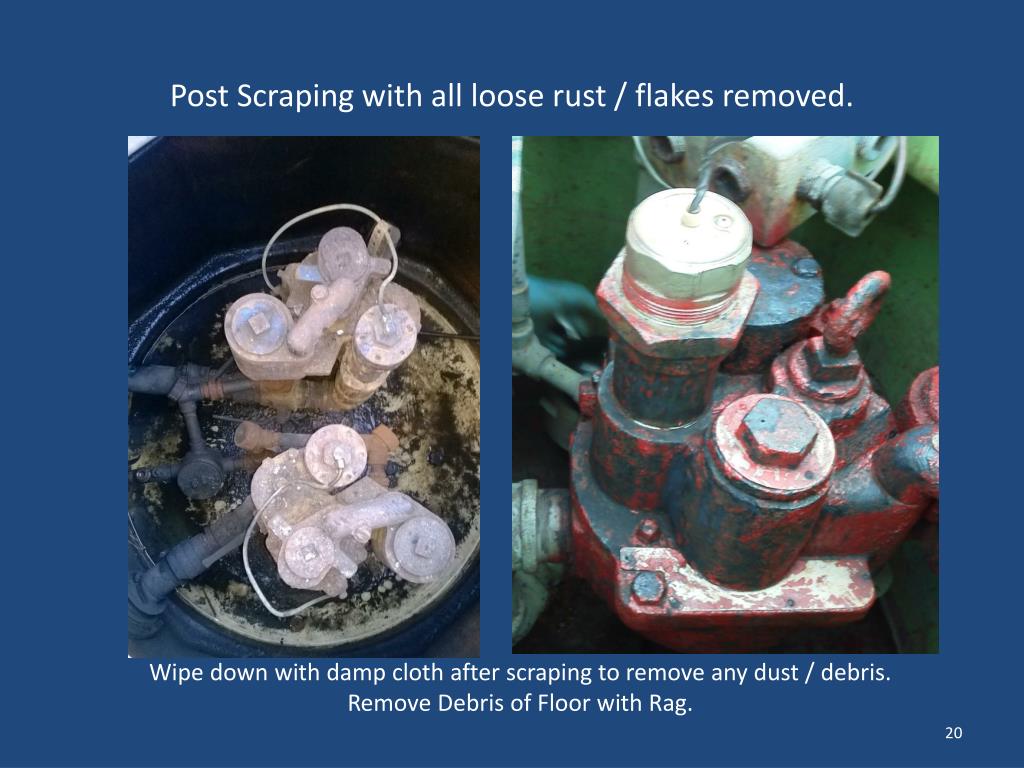

  20. Post Scraping with all loose rust / flakes removed. Wipe down with damp cloth after scraping to remove any dust / debris. Remove Debris of Floor with Rag.

  21. Rust Conversion Process with Steel Curtain Segment 1 -Double Click If Necessary Apply Steel Curtain Liberally to All Metal Surfaces in Sump Area. Only Metal Component with rust will turn dark. One pint per STP assembly.

  22. Rust Conversion Process with Steel Curtain Segment 2 -Double Click If Necessary Two Coats Recommended. Wait 30 Minutes Between Coats. Be Patient! Let it dry.

  23. Steel Curtain only affects areas with rust. No harm to plastics or other surfaces. No Polymer to interfere with future maintenance procedures. Post Rust Conversion. Rusted Surfaces Have Turned Darker.

  24. Apply 24/7 Plus Corrosion Inhibitor Treatment With Sprayer @ 80psi + Double Click if Necessary Two Coats. Spray First Coat 12 inches away from STP – Metal Component s. Wait 20 -30 minutes . Apply Second Coat with wide mist pattern. Use entire contents for one STP / Leak Detector.

  25. Results Surfaces will have light tackiness and wet look.

  26. Results Surfaces will have light tackiness and wet look.

  27. Results Surfaces will have light tackiness and wet look.

  28. Vapor Emitter Stick Attached Bulb to PVC Pipe. Make sure Bulb is as close to lid as possible. Lean or Tie. Mark date on bulb and replace with new one in6 months. Throw away bulb. Non Hazardous.

  29. Completed - Close Lid

  30. Maintenance and Inspection Wet Look Will Wear Off First. 24/7 Corrosion Inhibitor Will Eventually Wear Off Due To Environment We recommend repeat treatment in six months at time of vapor bulb replacement. 2nd Treatment will be much easier, less labor than first. Wipe down copper tube with 24/7 at every opportunity.

  31. Maintenance and Inspection Change Vapor Emitter Bulb every six months. Simply remove and replace bulb.

  32. Questions813-877-4665 www.theironox.com The Grapple Hook Group Home of the Iron Ox Products for Maintenance, Repair and Overhaul
