Presentation Transcript

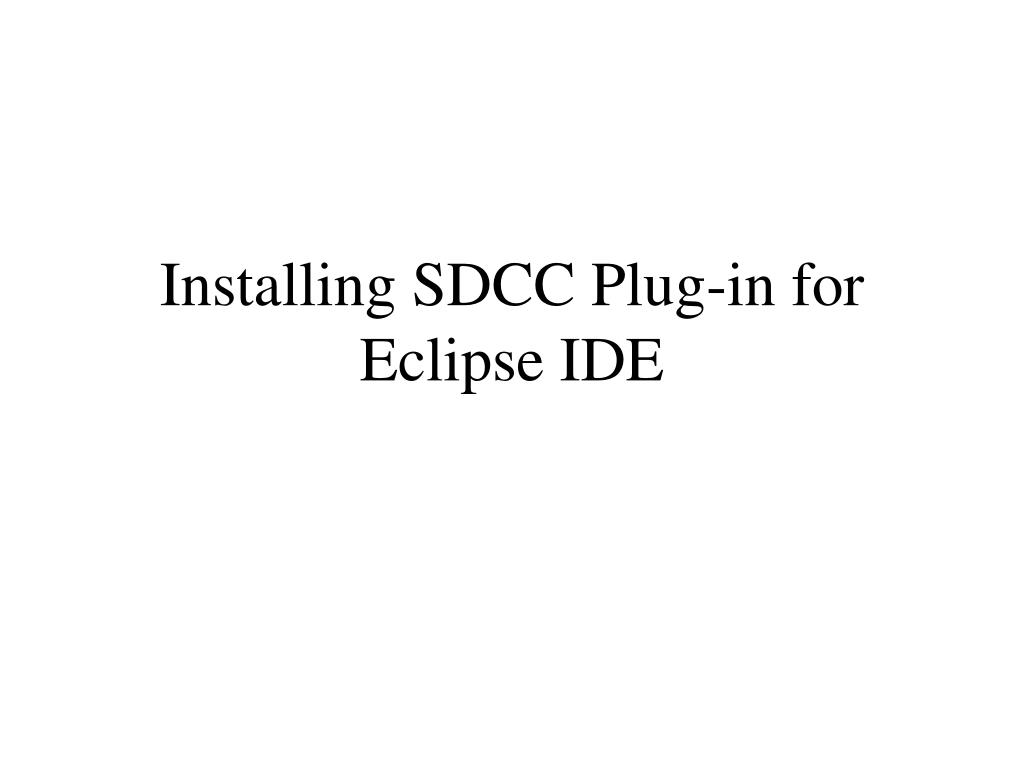

  1. Installing SDCC Plug-in for Eclipse IDE

  2. Software Required

  3. Installing JRE & SDCC & Eclipse • Download and install JRE • Note – you might already have JRE installed in your machine. Reinstall latest version if necessary. • Download and install SDCC 2.6.0 • SDCC is open-source and is constantly evolving. Make sure you download from sourceforge.net for latest working version • Download and install Eclipse

  4. Updating Eclipse with CDT • Start Eclipse – and create a workspace • Click on help->software updates -> find and install

  5. Choose “Search for new features to install” and click “next”

  6. Choose “Callisto Discovery Site” Choose “Ignore features not applicable to environment” Click “Finish”

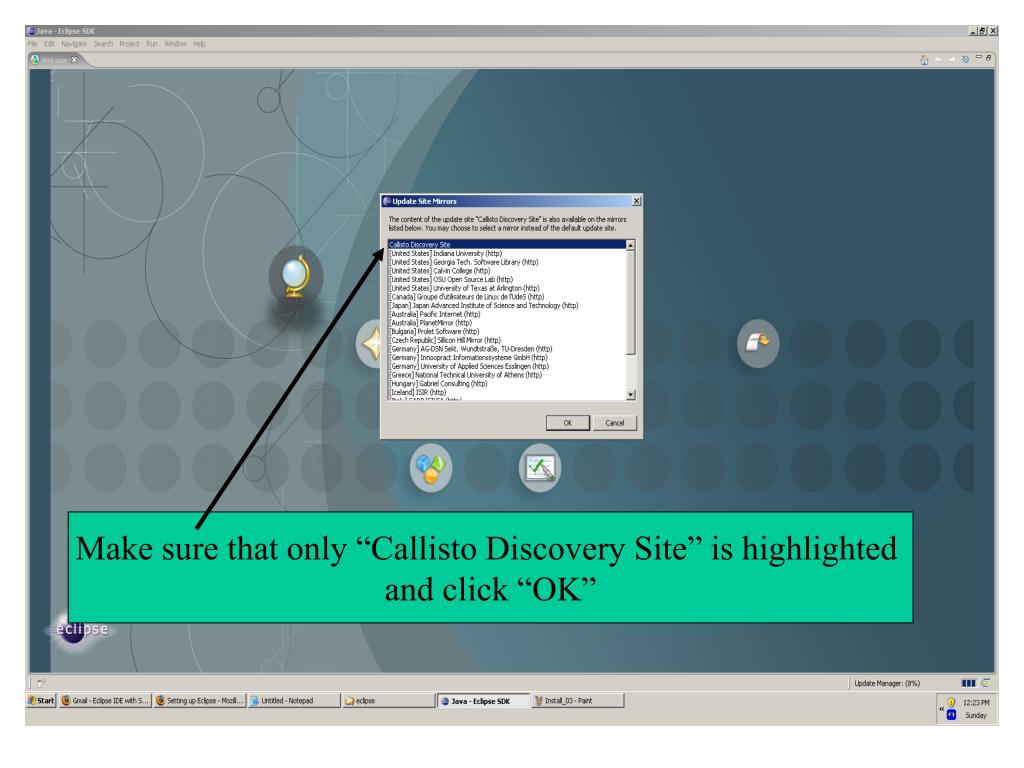

  7. Make sure that only “Callisto Discovery Site” is highlighted and click “OK”

  8. Select “C and C++ Development” Select “Show latest version of a feature only” Click “Next”

  9. Accept the License Agreement and Click “Next”

  10. Confirm that all your installation settings are correct And click “Finish” Else go “back” and make changes if necessary

  11. Installing…. May take quite some time

  12. Make sure you restart eclipse when done

  13. Installing the Plug-in • Download the SDCC plug-in for eclipse -- eclipseSDCC-1.0.0 from http://sourceforge.net/projects/eclipse-sdcc • Extract contents into a new folder • Browse into it and copy folders “plugins” and “features” into \eclipse\ folder. (where you installed eclipse before) • Read the help documents in \eclipse\plugins\net.sourceforge.eclipsesdcc_1.0.0\help for tips on how to create a new MCS51family(SDCC) project.
