  1. Genome Lesk, Introduction to Bioinformatics, Chapter 2

  2. Organisms and cells • All organisms consist of small cells • Human body has approx 6x1013 cells of about 320 different types • Cell size can vary greatly • Human red blood cell  5 microns (0.005 mm) • Neuron from spinal cord 1m long • Two types of organisms • Prokaryotes - Bacteria for example • Eukaryotes - most other organisms • Archaea – few organisms living in hostile environments

  3. Genomes and Genes: Not all DNA codes for genes

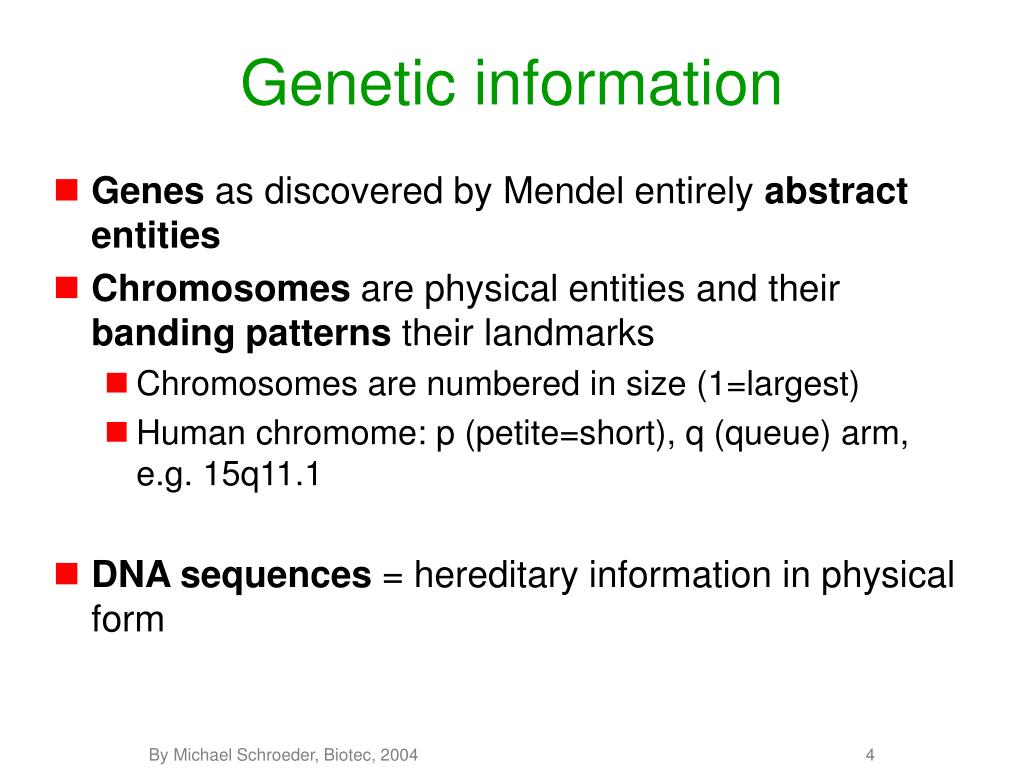

  4. Genetic information • Genes as discovered by Mendel entirely abstract entities • Chromosomes are physical entities and their banding patterns their landmarks • Chromosomes are numbered in size (1=largest) • Human chromome: p (petite=short), q (queue) arm, e.g. 15q11.1 • DNA sequences = hereditary information in physical form

  5. Locating genes • The disease cystic fibrosis is known since middle ages, the relevant protein was not • Folklore: „Children with excessive salt in sweat - noticable when kissing them on forehead - were short lived“ • Implication: Chloride channel in epithelial tissues • Search in family pedrigrees identified various genetic markers (Variable Number Tandem Repeat), which limited the genomic region first from 1-2 Mio bp to 300kb • Finally the deletion 508Phe in the CFTR gene was identified as cause

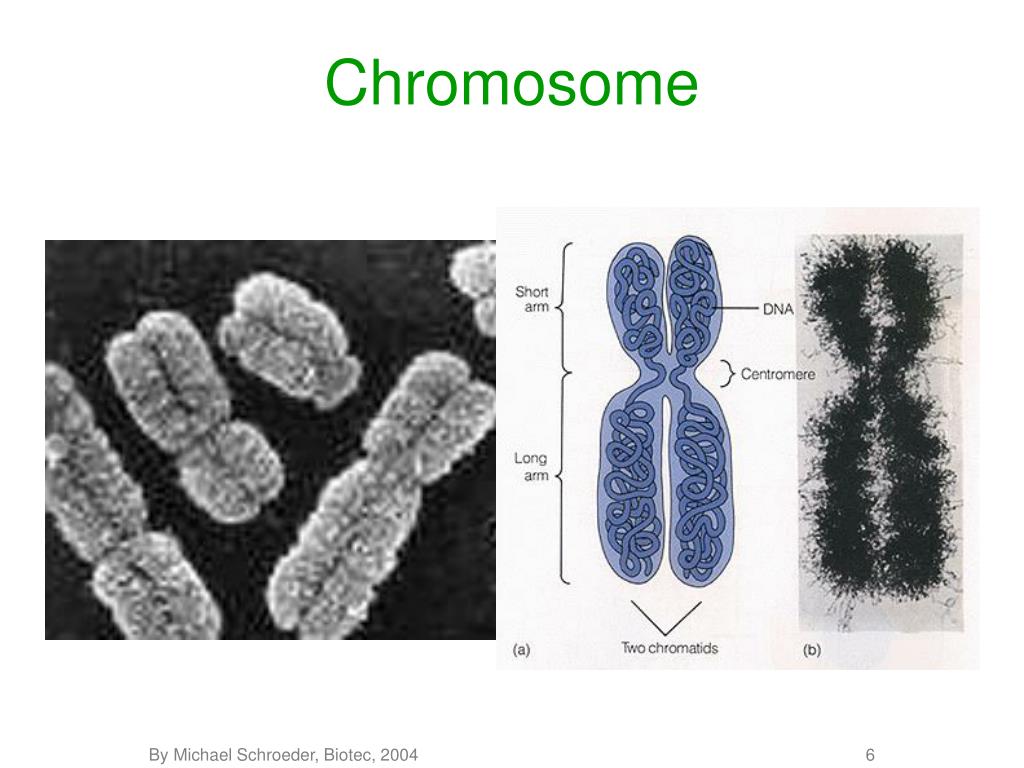

  6. Chromosome

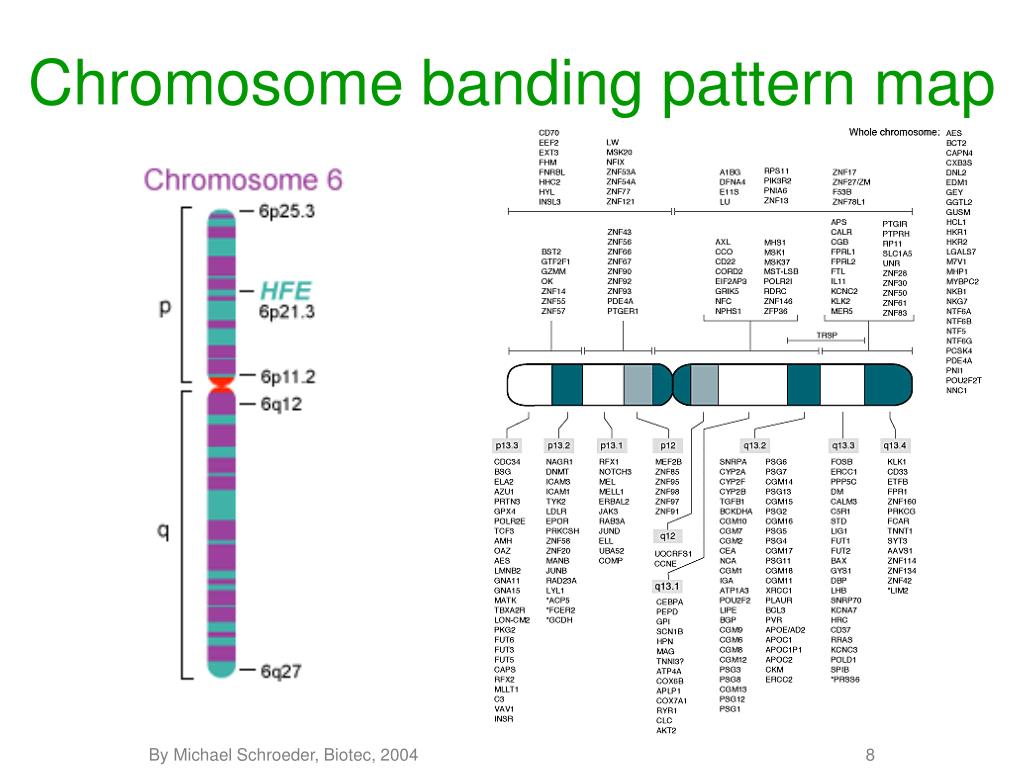

  7. Chromosome banding pattern map

  8. Chromosome banding pattern map

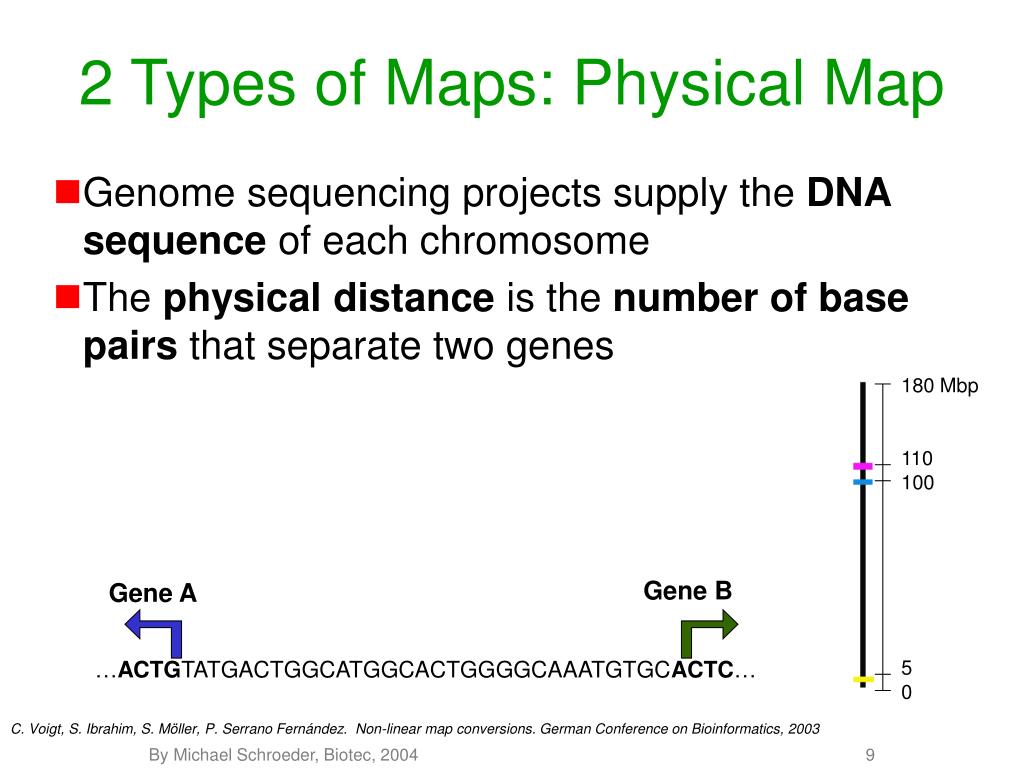

  9. 2 Types of Maps: Physical Map • Genome sequencing projects supply the DNA sequence of each chromosome • The physical distance is the number of base pairs that separate two genes 180 Mbp 110 100 Gene B Gene A …ACTGTATGACTGGCATGGCACTGGGGCAAATGTGCACTC… 5 0 C. Voigt, S. Ibrahim, S. Möller, P. Serrano Fernández. Non-linear map conversions. German Conference on Bioinformatics, 2003

  10. 2 Types of Maps: Genetic Map • Chromosomes are carriers of genetic information • Genetic information is linked and linearly arranged inside the chromosome • This linkage is sometimes broken: recombination (crossing-over) Genetic Maps C. Voigt, S. Ibrahim, S. Möller, P. Serrano Fernández. Non-linear map conversions. German Conference on Bioinformatics, 2003

  11. 110 cM 78 70 2 0 2 Types of Maps: Genetic Maps • Genes located far from each other are more likely to be uncoupled during a crossing-over • A Morgan is the genetic distance in which 1 crossing-over is expected to occur C. Voigt, S. Ibrahim, S. Möller, P. Serrano Fernández. Non-linear map conversions. German Conference on Bioinformatics, 2003

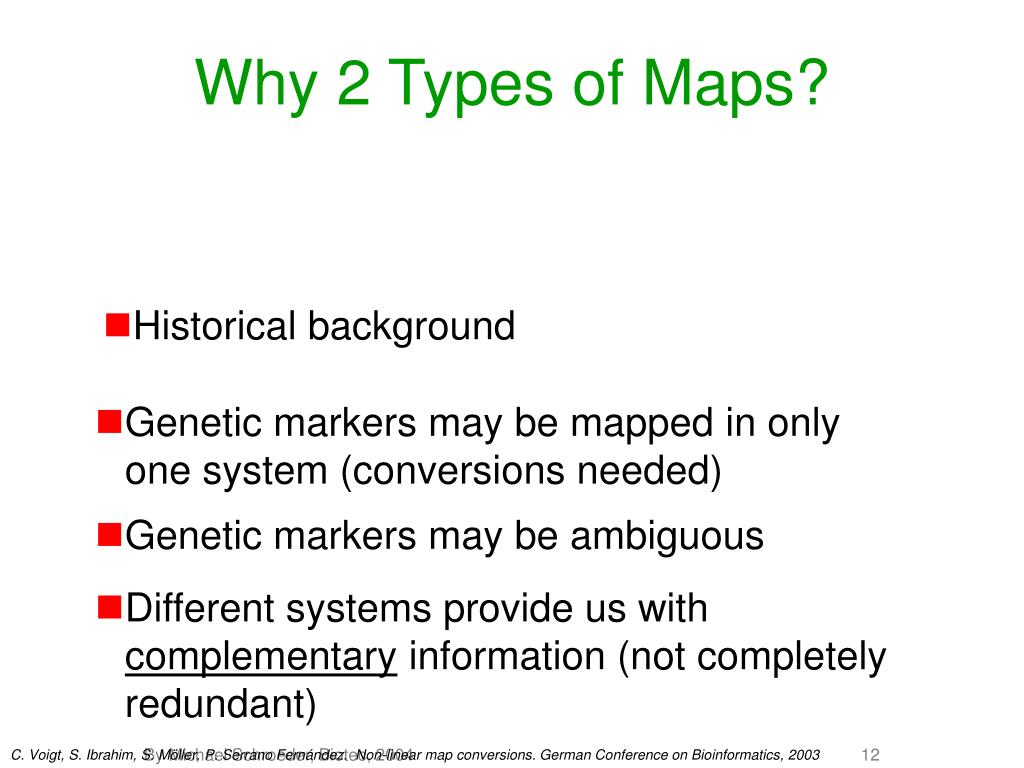

  12. Why 2 Types of Maps? • Historical background • Genetic markers may be mapped in only one system (conversions needed) • Genetic markers may be ambiguous • Different systems provide us with complementary information (not completely redundant) C. Voigt, S. Ibrahim, S. Möller, P. Serrano Fernández. Non-linear map conversions. German Conference on Bioinformatics, 2003

  13. Expected Map Conversion bps / cM Linear relationship bps / cM C. Voigt, S. Ibrahim, S. Möller, P. Serrano Fernández. Non-linear map conversions. German Conference on Bioinformatics, 2003

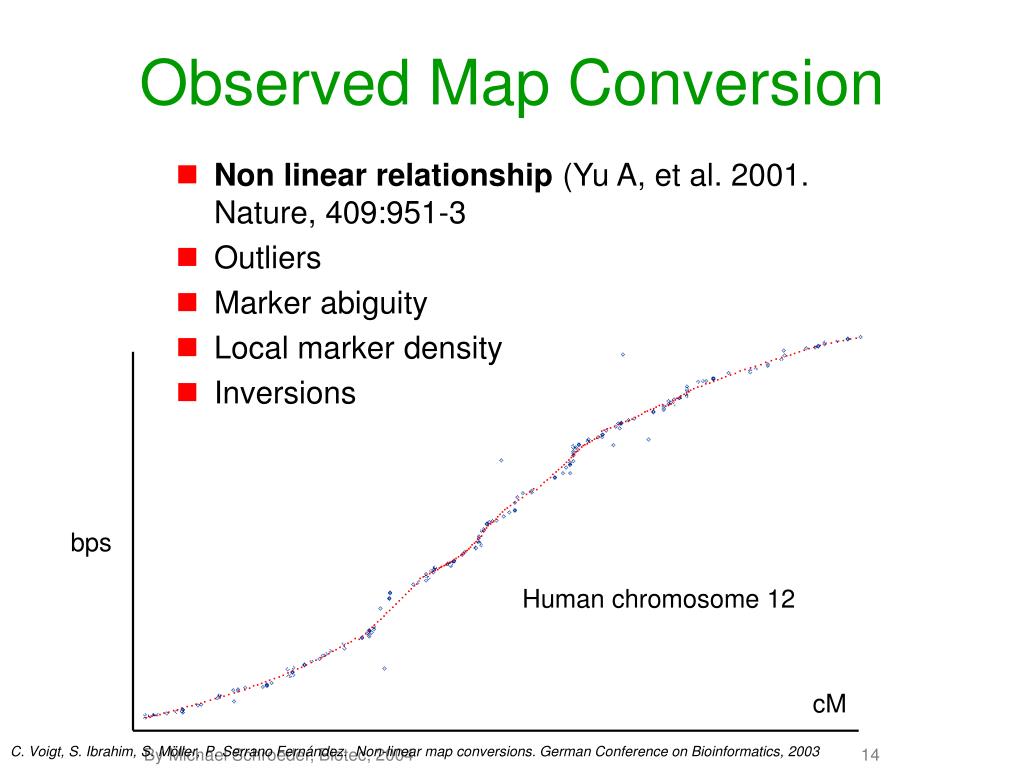

  14. Observed Map Conversion • Non linear relationship (Yu A, et al. 2001. Nature, 409:951-3 • Outliers • Marker abiguity • Local marker density • Inversions bps / cM / cR Linear relationship bps Human chromosome 12 bps / cM / cR cM C. Voigt, S. Ibrahim, S. Möller, P. Serrano Fernández. Non-linear map conversions. German Conference on Bioinformatics, 2003

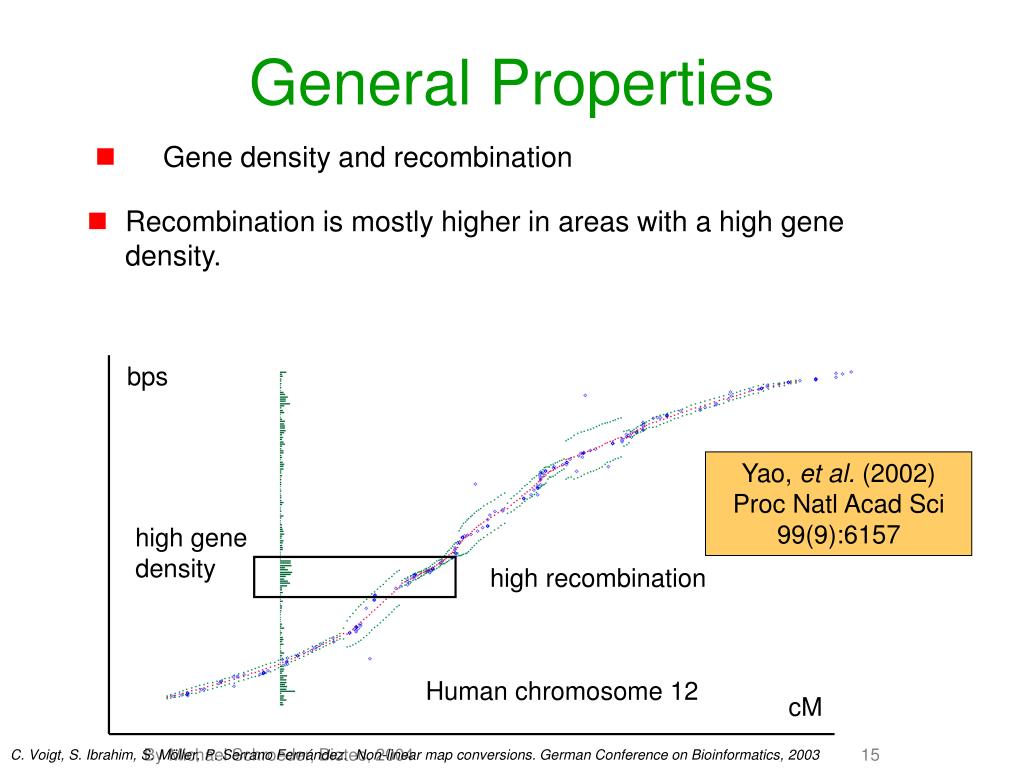

  15. General Properties • Gene density and recombination • Recombination is mostly higher in areas with a high gene density. bps Yao, et al. (2002) Proc Natl Acad Sci 99(9):6157 high gene density high recombination Human chromosome 12 cM C. Voigt, S. Ibrahim, S. Möller, P. Serrano Fernández. Non-linear map conversions. German Conference on Bioinformatics, 2003

  16. How to Detect Genes? • Detecting of regions similar to known coding regions from other organisms • Gene expressed (in another organism)  mRNA  cDNA = EST (Expressed Sequence Tags) • search for start of EST • Ab initio: derive gene from sequence itself • Bacteria easy as genes are contiguous • Eucaryotes problem: alternative splicing • Initial exon: • Search for TATA box ~30bp upstream, • no in-frame stop codon, • ends before GT splice signal • Internal exon: • AG splice signal, • no in-frame stop codons, • ends before GT splice signal • Final exon followed by polyadenylation

  17. Brent, Nat Biotech, 2007 By Michael Schroeder, Biotec, 2004 18

  18. How to detect genes: De novo prediction • GenScan (late 90s) • predicts 10% of ORFs in human genome • Overprediction of 45,000 genes (~22,000 current estimate) • TwinScan (ealry 2000s): • Use alignment between target and a related genome: detect one third of ORFs in human genome • N-Scan • Includes pseudo gene detection • Predicts 20,138 genes By Michael Schroeder, Biotec, 2004 19

  19. Applications • Genetic diversity and anthropology • Cheetahs very closely related to each other pointing to a population bottleneck 10,000 years ago • Humans: mitochondrial DNA passed on through maternal line, Y chromosome from father to son • Variation in mitochondrial DNA in humans suggests single maternal ancestor 140,000-200,000 years ago • Population of Iceland (first inhabited 1100 years ago) descended from Scandinavian males and femals from Scandinavia and the British Isles • Basques linguistically and genetically isolated

  20. Evolution of Genomes • Phylogenetic profiles • What genes do different phyla share? • What homologous proteins do different phyla share • What functions to different phyla share?

  21. Shared functions of bacteria, archaea, and eucarya • Functions shared by Haemophilus influenza (bacteria), Methanococus jannaschii (archaea), Saccharomyces cerevisiae (eucarya) • Energy: • Biosyntehsis of cofactors, amino acids • Central and intermediary metabolism • Energy metabolism • Fatty acids and phospholipids • Nucleotide biosynthesis • Transport • Information: • Replication • Transcription • Translation • Communication and regulation • Regulatory functions • Cell envelope/cell wall • Cellular processes • Can we construct a minimal organism?

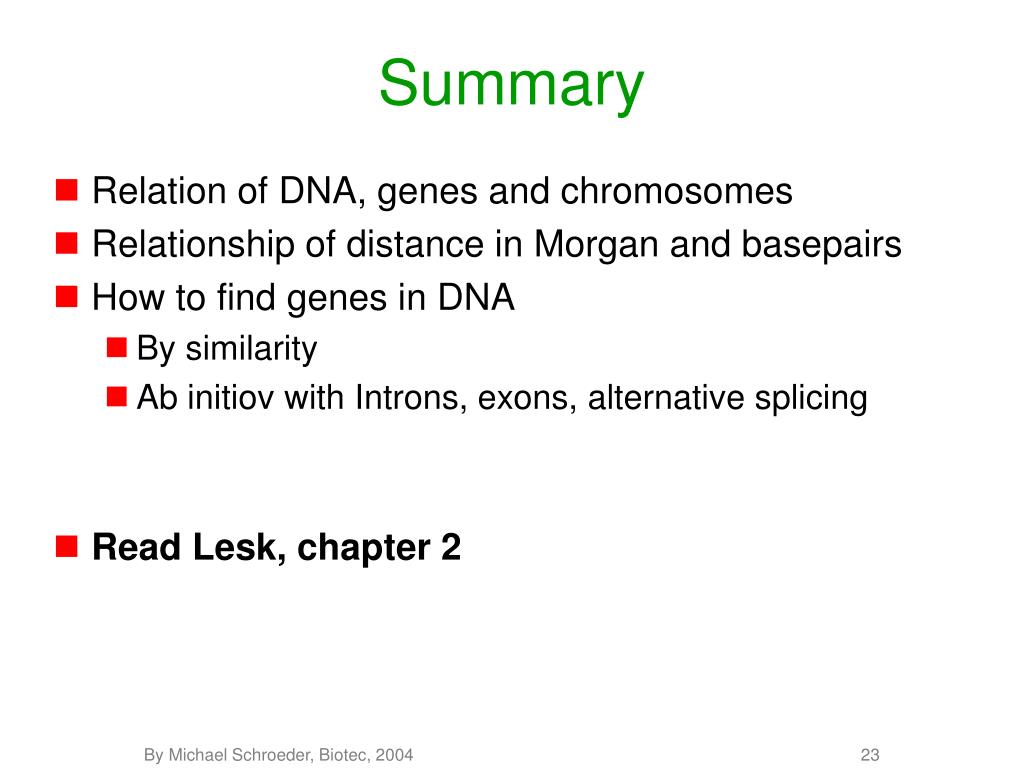

  22. Summary • Relation of DNA, genes and chromosomes • Relationship of distance in Morgan and basepairs • How to find genes in DNA • By similarity • Ab initiov with Introns, exons, alternative splicing • Read Lesk, chapter 2
