MATLAB – Advanced For Loops

MATLAB – Advanced For Loops. Topics Covered: Loops in MATLAB - for–end loops - the break command - the continue command. Examples of for–end Loops. for k = 10 : 2 : 14 disp(k) end. for i = 25: -5 : 10 disp(i) end. Output: 25

theola
Télécharger la présentation

MATLAB – Advanced For Loops

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

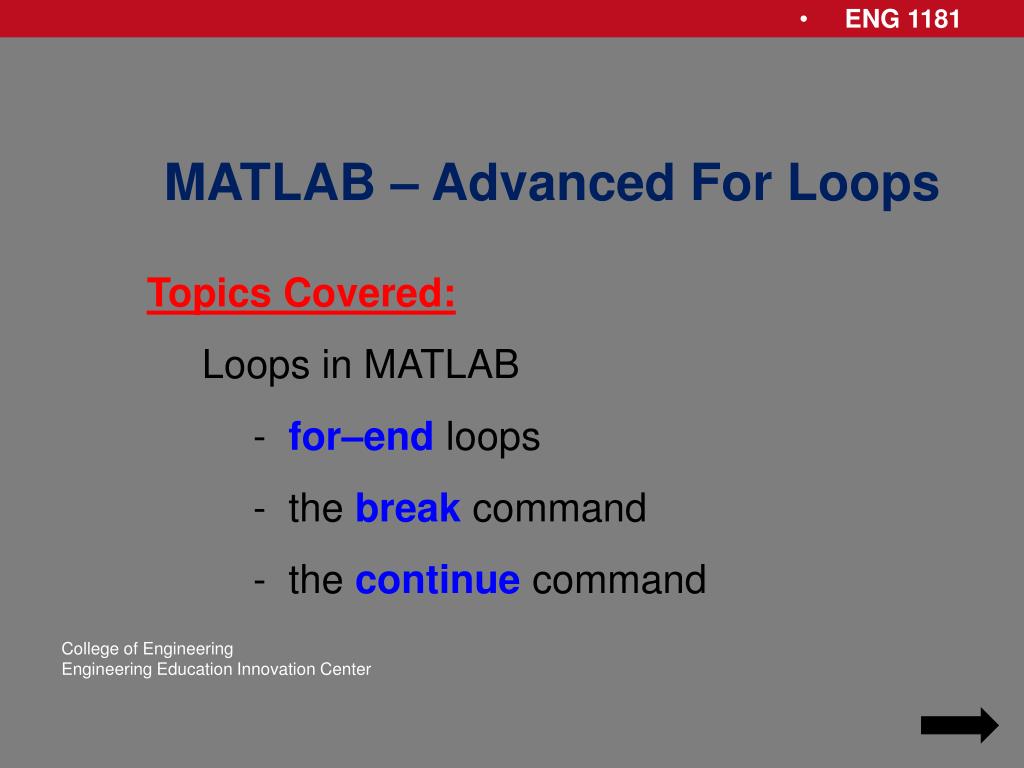

  1. MATLAB – Advanced For Loops Topics Covered: Loops in MATLAB - for–endloops - the break command - the continue command

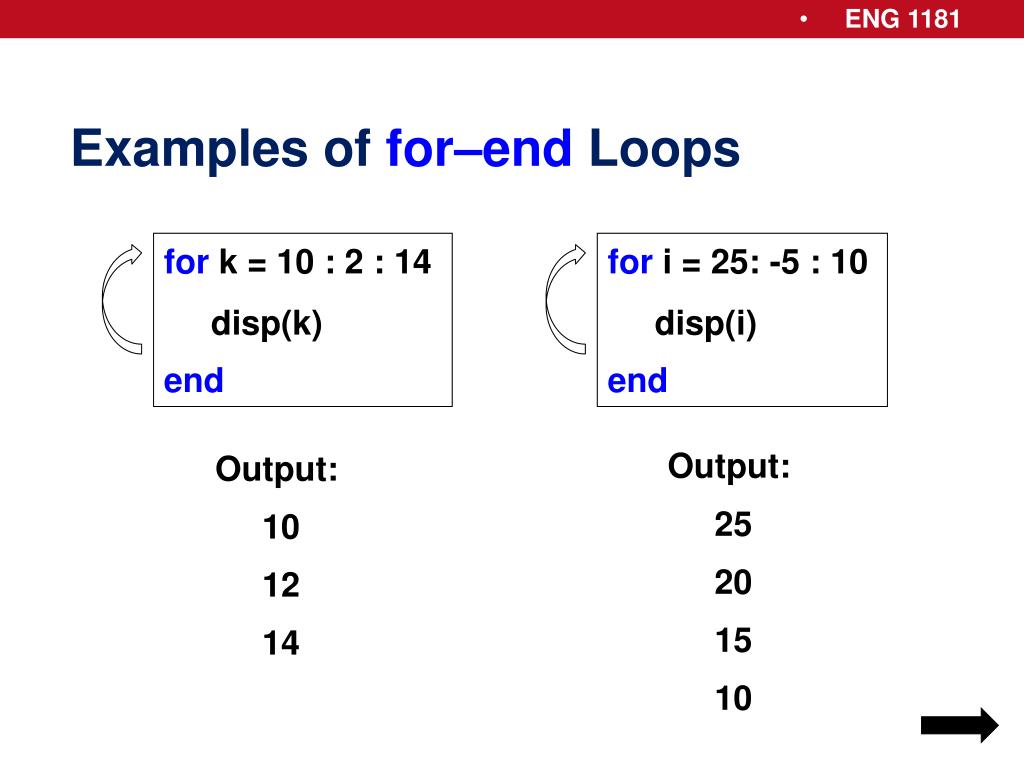

  2. Examples of for–end Loops for k = 10 : 2 : 14 disp(k) end for i = 25: -5 : 10 disp(i) end Output: 25 20 15 10 Output: 10 12 14

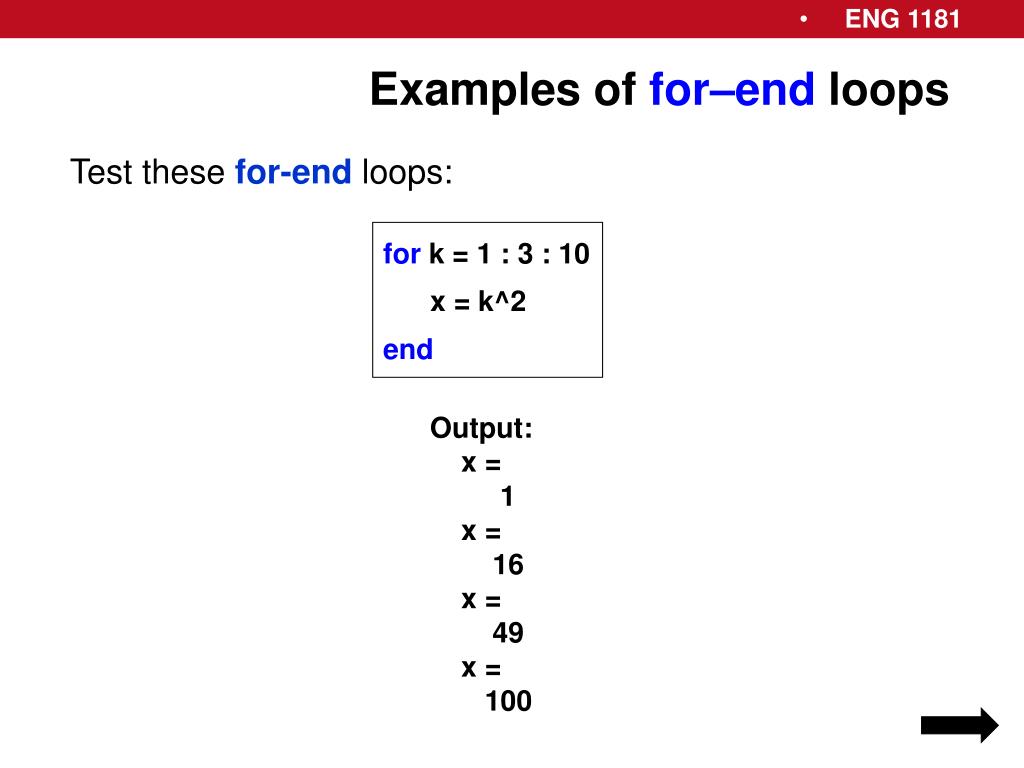

  3. Examples of for–end loops Test these for-end loops: for k = 1 : 3 : 10 x = k^2 end Output: x = 1 x = 16 x = 49 x = 100

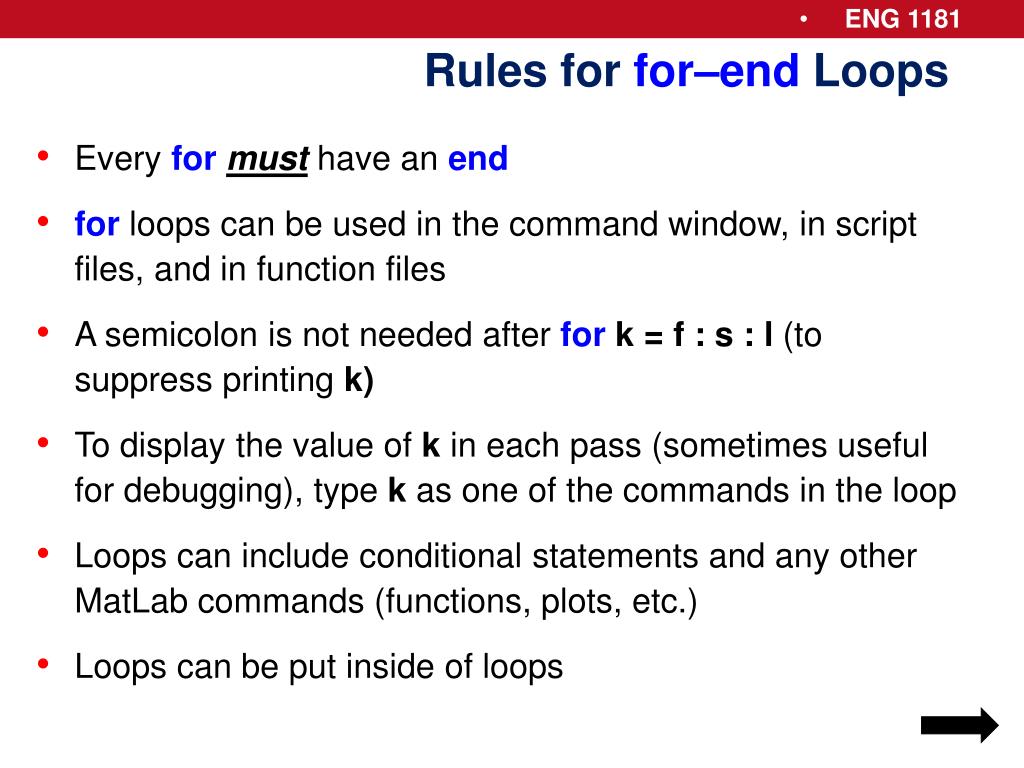

  4. Rules for for–end Loops • Every formust have an end • for loops can be used in the command window, in script files, and in function files • A semicolon is not needed after fork = f : s : l (to suppress printing k) • To display the value of k in each pass (sometimes useful for debugging), type k as one of the commands in the loop • Loops can include conditional statements and any other MatLab commands (functions, plots, etc.) • Loops can be put inside of loops

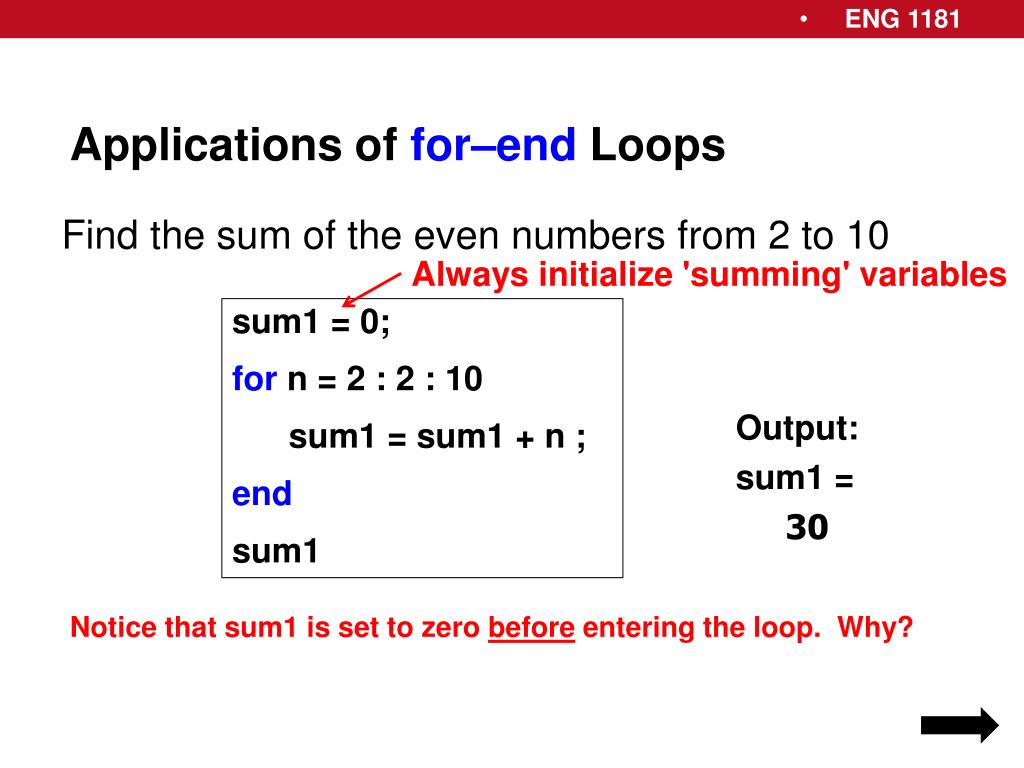

  5. Applications of for–end Loops Find the sum of the even numbers from 2 to 10 Always initialize 'summing' variables sum1 = 0; for n = 2 : 2 : 10 sum1 = sum1 + n ; end sum1 Output: sum1 = 30 Notice that sum1 is set to zero before entering the loop. Why?

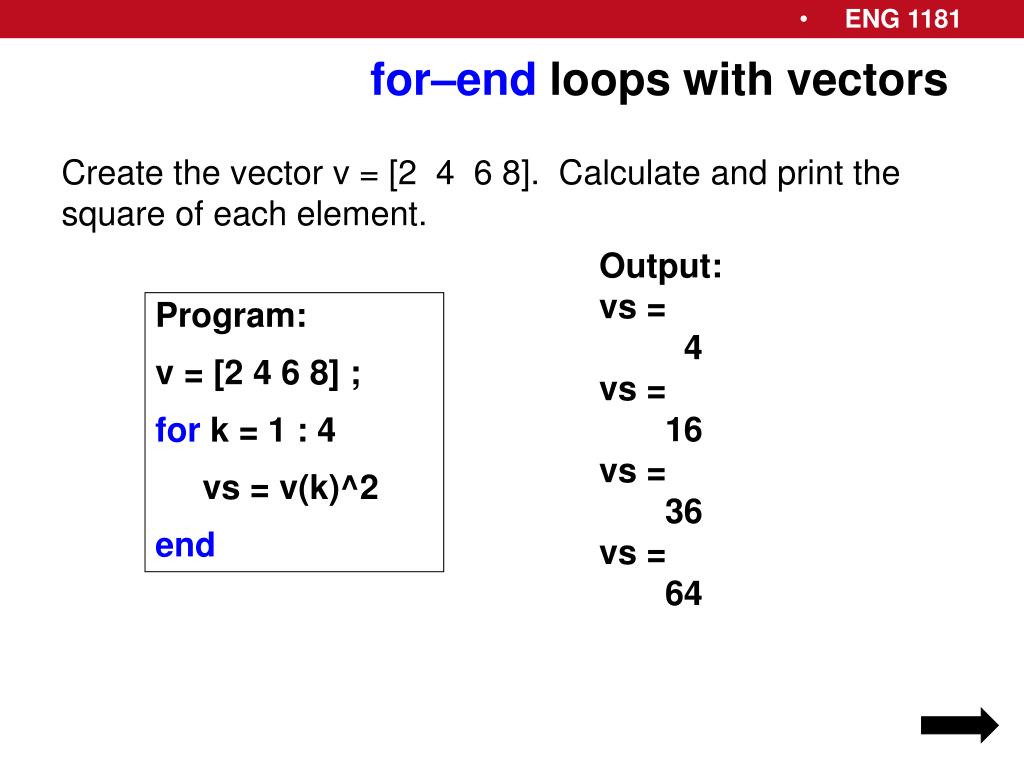

  6. for–end loops with vectors Create the vector v = [2 4 6 8]. Calculate and print the square of each element. Output: vs = 4 vs = 16 vs = 36 vs = 64 Program: v = [2 4 6 8] ; for k = 1 : 4 vs = v(k)^2 end

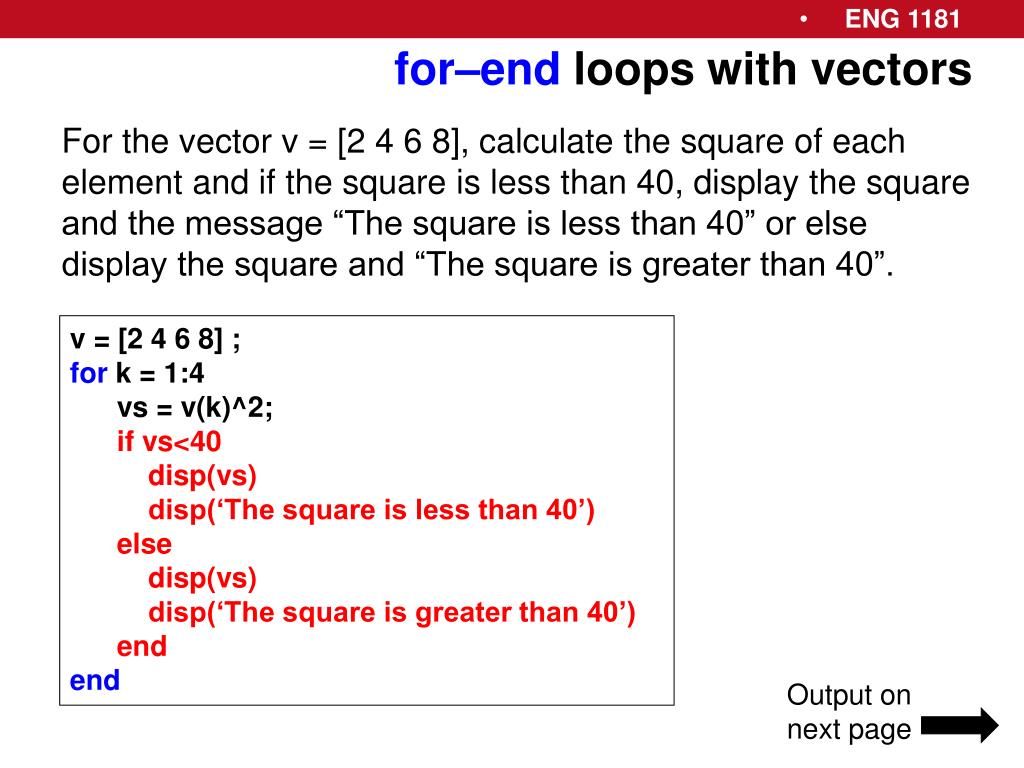

  7. for–end loops with vectors For the vector v = [2 4 6 8], calculate the square of each element and if the square is less than 40, display the square and the message “The square is less than 40” or else display the square and “The square is greater than 40”. v = [2 4 6 8] ; for k = 1:4 vs = v(k)^2; if vs<40 disp(vs) disp(‘The square is less than 40’) else disp(vs) disp(‘The square is greater than 40’) end end Output on next page

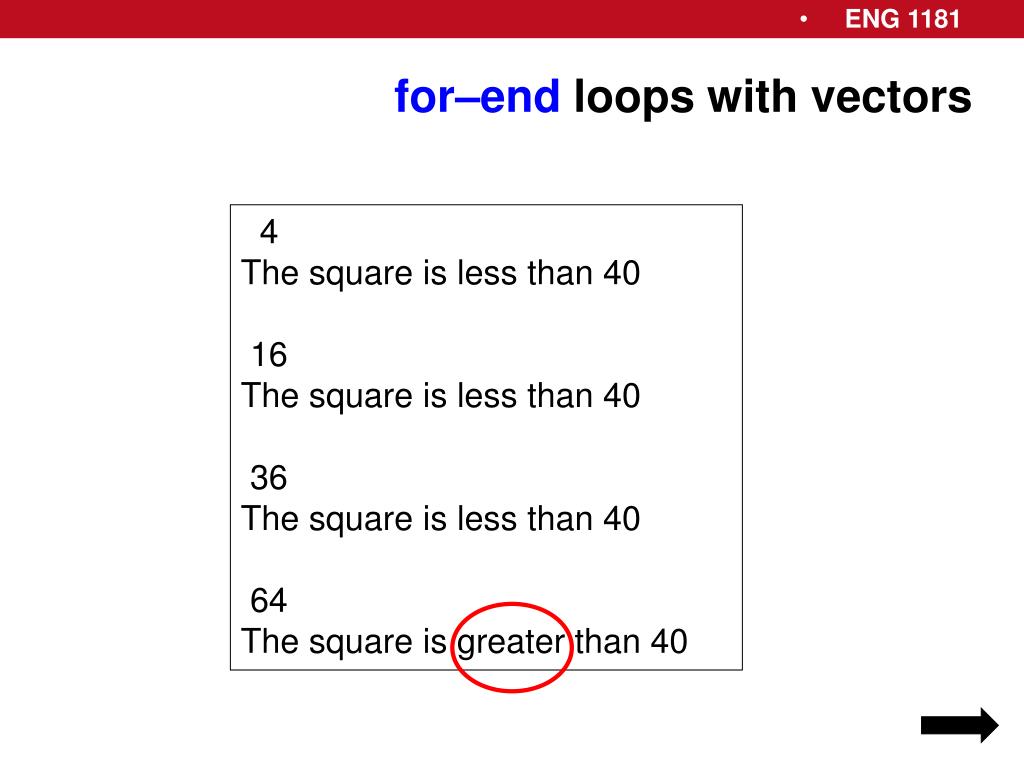

  8. for–end loops with vectors 4 The square is less than 40 16 The square is less than 40 36 The square is less than 40 64 The square is greater than 40

  9. 180- 184 a = 0; for x=1:10 a = a + 1; if (a == 5) break end disp (a) end … EXAMPLE OF break What will this loop display? 1 2 3 4

  10. 180- 184 a = 0; for x=1:10 a = a + 1; if (a == 5) continue end disp (a) end 1 2 3 4 6 7 8 9 10 EXAMPLE OF continue What will this loop display?
