  1. Process Analyzer Sampling with Astute System IFPAC 2008 – Baltimore January 29 ,2008

  2. EIF FILTRES French compagny specialized since 30 years in filtration equipments and sampling treatments. IFPAC 2008 – Baltimore January 29 ,2008 January 30 ,2008 January 30 ,2008

  3. Our philosophy: • Leave the contaminants in process • Separate as fast as possible the contaminants from the sample • Reduce the treated volumes • Reduce and make easier the maintenance IFPAC 2008 – Baltimore January 29 ,2008 January 30 ,2008

  4. For that, we have developed : • Cross flow filtration with blow back systems • Liq/liq coalescing filter with jet fuel separator • Gas treament column • L Type housings • Modular and smart systems IFPAC 2008 – Baltimore January 29 ,2008

  5. CROSS FLOW FILTRATION • / BLOW BACK SYSTEMS IFPAC 2008 – Baltimore January 29 ,2008

  6. Process Analyser High flow rate High contaminant amount Process Pipe IFPAC 2008 – Baltimore January 29 ,2008

  7. Traditional solution Process Analyser High flow filter 2 Filter 1 Large Coalescor Process Pipe IFPAC 2008 – Baltimore January 29 ,2008

  8. Alternative way Process Analyser Low flow rate Small contaminant amount Cross flow filter Fine filtration Small Coalescor Fast loop Low drain flow Process Pipe IFPAC 2008 – Baltimore January 29 ,2008

  9. Cross flow filters IFPAC 2008 – Baltimore January 29 ,2008

  10. CROSS FLOW FILTERS TAN - TAN GM with different kind of elements LIF – LIF GM – LIF - Mini with Sintered St/St element IFPAC 2008 – Baltimore January 29 ,2008

  11. MINI – CROSS FLOW FILTER • Low dead volume • Low flow fast loop IFPAC 2008 – Baltimore January 29 ,2008

  12. Sizing reduction IFPAC 2008 – Baltimore January 29 ,2008

  13. BLOW BACK SYSTEM IFPAC 2008 – Baltimore January 29 ,2008

  14. Liquid / Liquid coalescor Coalescing Element Hydrophobic membrane IFPAC 2008 – Baltimore January 29 ,2008

  15. NESSI • Global industry initiative, formed June 2000 to drive permanent change in how process Analytical is done • CPAC sponsorised ( Center of Process Analytical Industrial) • Modular, miniature & smart sample system technilogy • SP 76 standard • Micro analytical devices IntraFlow™ IFPAC 2008 – Baltimore January 29 ,2008

  16. This New technology Reduce the System Design Time Cut the Fabrication Expenses Improve the Analyzer Reliability Advance the Process Maintenance Easier IntraFlow™ IFPAC 2008 – Baltimore January 29 ,2008

  17. EIF Filtres Parker representative for French analytical market IntraFlow™ IFPAC 2008 – Baltimore January 29 ,2008

  18. ParkerIntraFlow™ PatentPending IntraFlow™ IFPAC 2008 – Baltimore January 29 ,2008

  19. Realisations IFPAC 2008 – Baltimore January 29 ,2008

  20. Realisations IFPAC 2008 – Baltimore January 29 ,2008

  21. COALESCING FILTER BLOW BACK SYSTEM SEPARATOR FILTER EIF TOPWORK COMPONENTS ISA/ANSI S 76.00.02 Compliant SPECIFIC ADAPTATOR FOR ROTAMETER GAS EJECTOR

  22. Petrochemical application IFPAC 2008 – Baltimore January 29 ,2008

  23. Typical gazoline sampling in front of Chromatograph IFPAC 2008 – Baltimore January 29 ,2008

  24. IFPAC 2008 – Baltimore January 29 ,2008

  25. Specifications : • Fluid : gazoline • Filtration needed • liquid-liquid coalescing needed IFPAC 2008 – Baltimore January 29 ,2008

  26. New design in beginning of 2006 • Cross flow filtration with blow back system • modular Intraflow assy • liquid-liquid coalescing with separator • Pneumatic control ( specific for the test) IFPAC 2008 – Baltimore January 29 ,2008

  27. Gazoline sampling for sulphur analyzer IFPAC 2008 – Baltimore January 29 ,2008

  28. TM Cross flow filtration To analyzer via Intra flow Blow back system DECLIF HP MINI (low dead volume) Fast loop Cross flow filter 2S2LIF GM MINI 2 microns (low dead volume) IFPAC 2008 – Baltimore January 29 ,2008

  29. TM Gazoline treatment Coalescing housing Séparator IFPAC 2008 – Baltimore January 29 ,2008

  30. first installations comments • Flow sheet needed • Free space needed around components with maintenance ( filters for example …) • How to install , vertically or horizontally • Drain and vent take into consideration IFPAC 2008 – Baltimore January 29 ,2008

  31. The Answer !! IFPAC 2008 – Baltimore January 29 ,2008

  32. 3 D Solution IFPAC 2008 – Baltimore January 29 ,2008

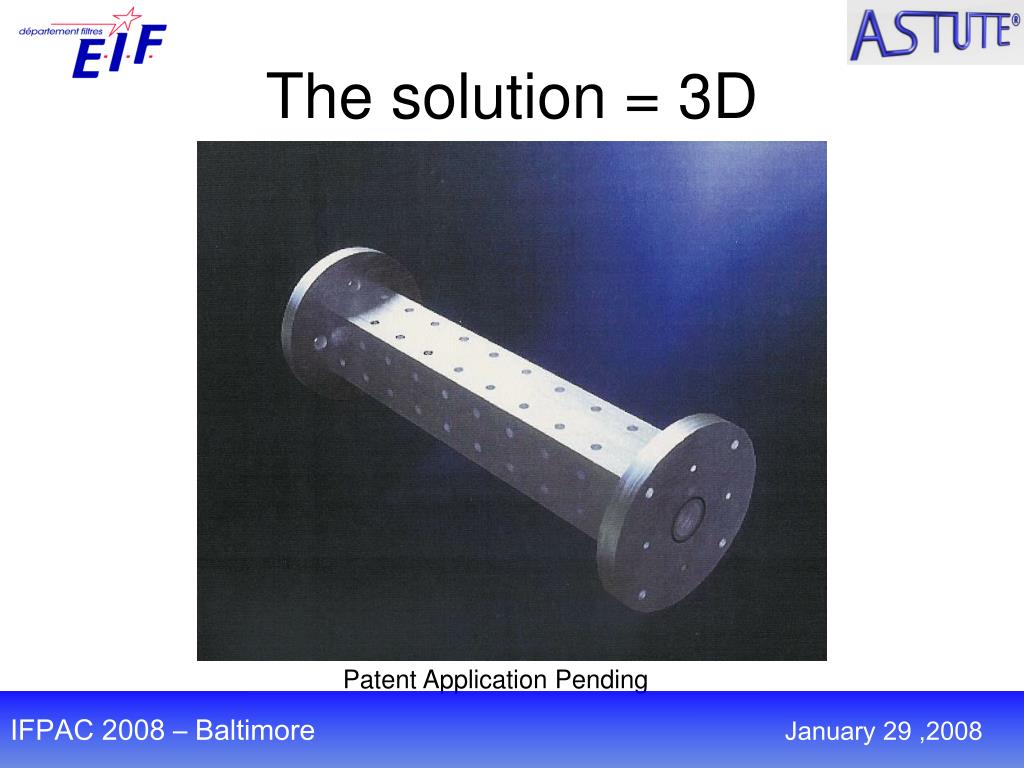

  33. The solution = 3D Patent Application Pending IFPAC 2008 – Baltimore January 29 ,2008

  34. Video

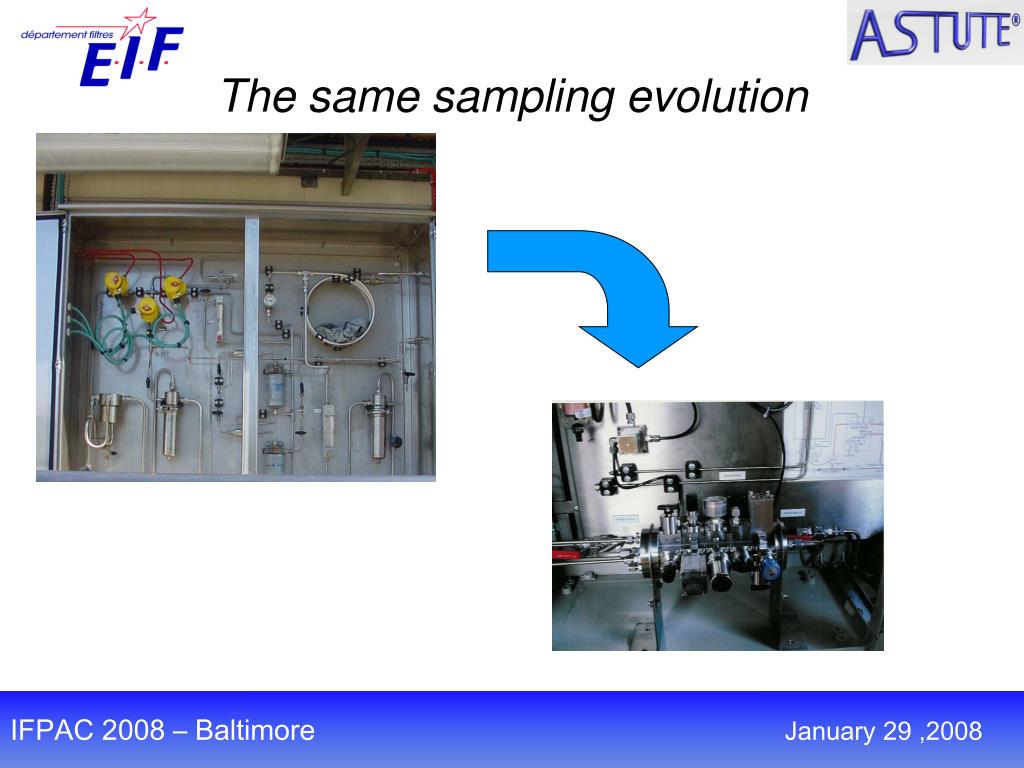

  35. The same sampling evolution IFPAC 2008 – Baltimore January 29 ,2008

  36. TM Fast loop Astute SCF with tangential element 0,5 microns • Compact • Top equipment easily accessible • Low dead volume IFPAC 2008 – Baltimore January 29 ,2008

  37. ASTUTE : • SP 76 compliant • Integrated cross flow filter • Modular • Compact • Low dead volume • Upgradeable IFPAC 2008 – Baltimore January 29 ,2008

  38. ASTUTE : • Top equipment easily accessible • Vertical and horizontal position installation possible • On the fast loop or in derivation • All the different paths on the same module( sample, standard, drain, vent ..) IFPAC 2008 – Baltimore January 29 ,2008

  39. For the sampling: • Reduce or eliminate the sampling line • Decrease the response time • Reduce the product and drain volumes • Temperature control and heating easier • Reduce the sample contamination risk IFPAC 2008 – Baltimore January 29 ,2008

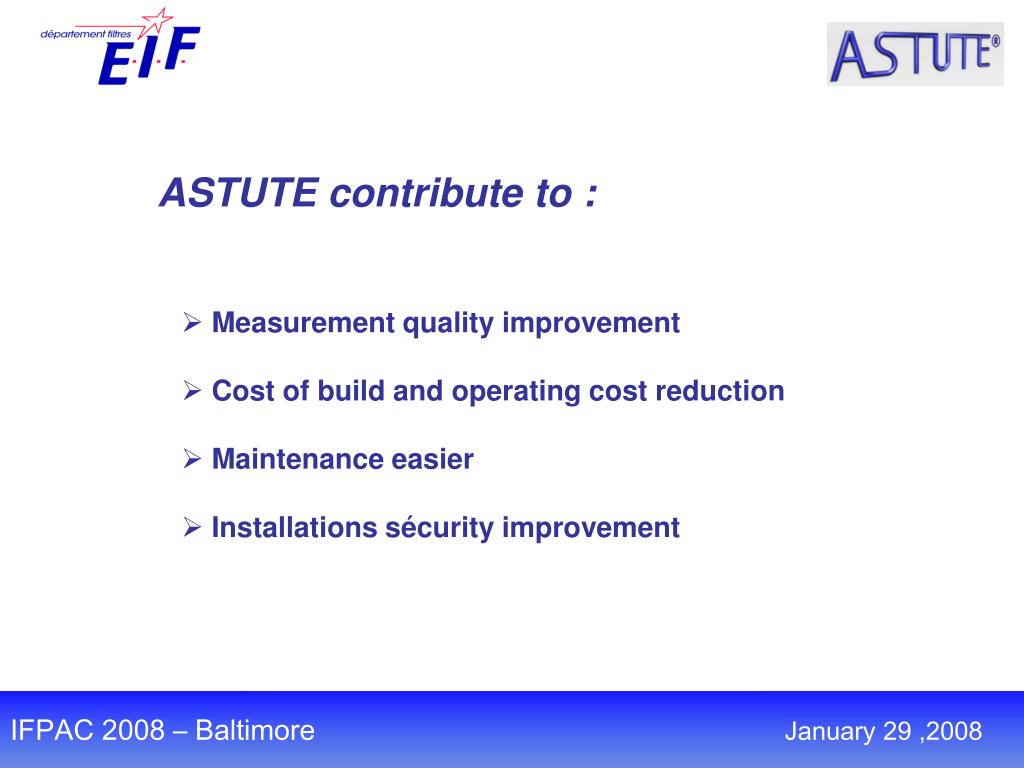

  40. ASTUTE contribute to : • Measurement quality improvement • Cost of build and operating cost reduction • Maintenance easier • Installations sécurity improvement IFPAC 2008 – Baltimore January 29 ,2008

  41. APPLICATIONS IFPAC 2008 – Baltimore January 29 ,2008

  42. Flow meter Moisture sensor Pressure regulator filter IFPAC 2008 – Baltimore January 29 ,2008

  43. TM TM DIRECT CONNECTION ON PROCESS CCIMS System ISOLATING VALVES CCIMS CLAMPS PROCESS PIPE IFPAC 2008 – Baltimore January 29 ,2008

  44. Direct connection on process • Very short response time • Easy maintenance clamp connection • Low contamination level • Sampling reduction cost • No drain IFPAC 2008 – Baltimore January 29 ,2008

  45. Thank you for your attention ! And welcome to our Booth 402 IFPAC 2008 – Baltimore January 29 ,2008
