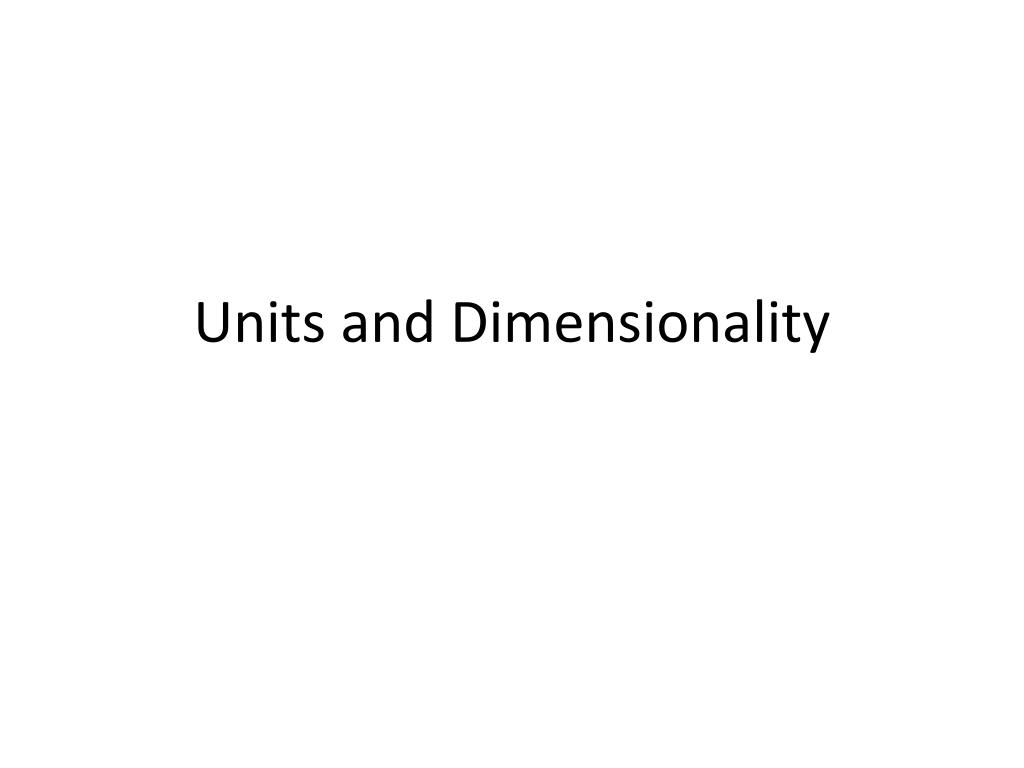

  1. Units and Dimensionality

  2. Systems of Units • SI or metric system • US or Conventional system

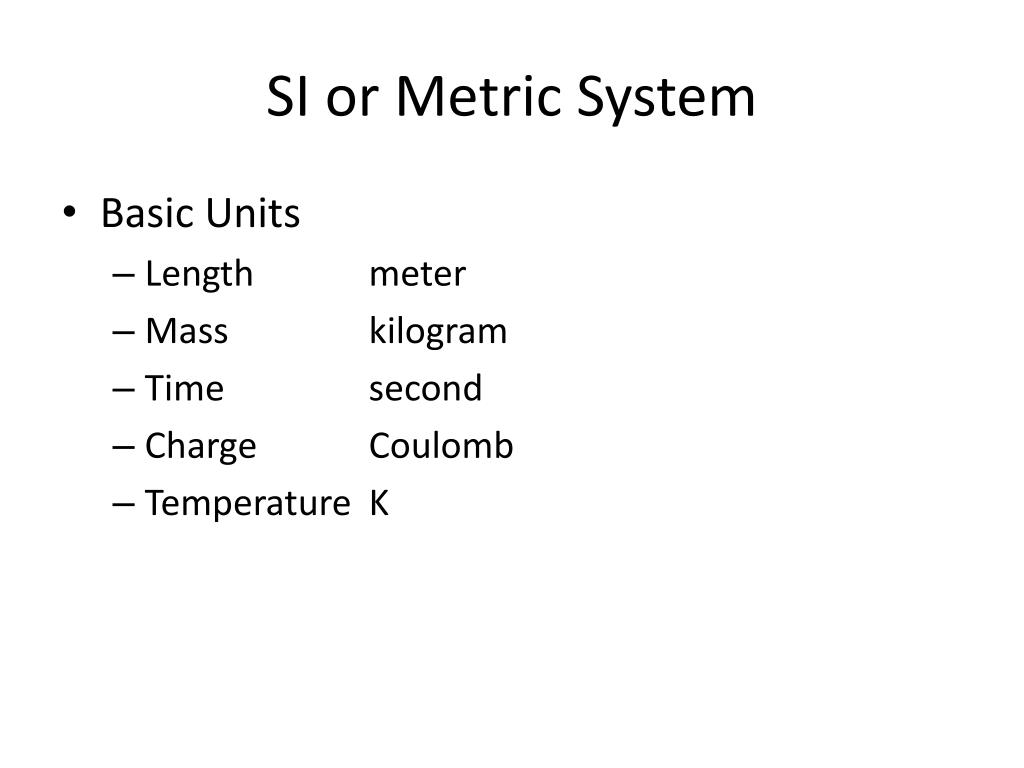

  3. SI or Metric System • Basic Units • Length meter • Mass kilogram • Time second • Charge Coulomb • Temperature K

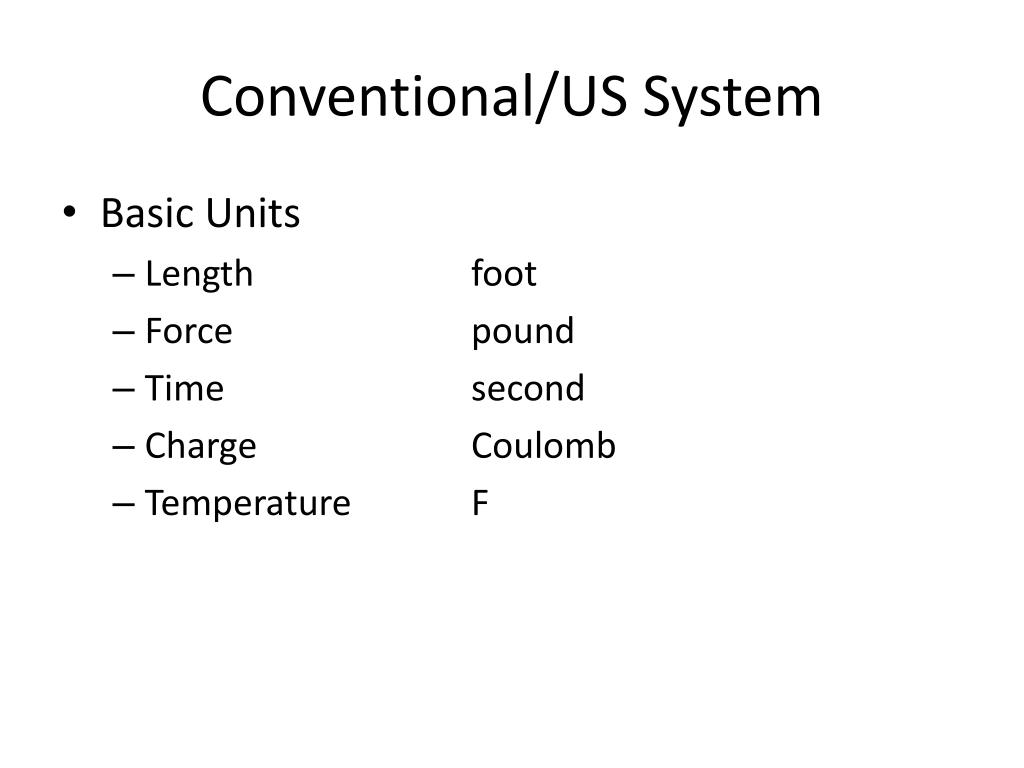

  4. Conventional/US System • Basic Units • Length foot • Force pound • Time second • Charge Coulomb • Temperature F

  5. Derived Units/SI • Force Newton • Work Newton meter • Energy Newton meter, Joule • Power Watt • Velocity meter/sec • Acceleration meter/sec/sec

  6. Derived Units/US • Mass slugs • Work foot pounds, BTU • Energy foot pounds, BTU • Power Horsepower • Velocity ft/sec • Acceleration ft/sec/sec

  7. Dimensionality • Mass M • Length L • Time T

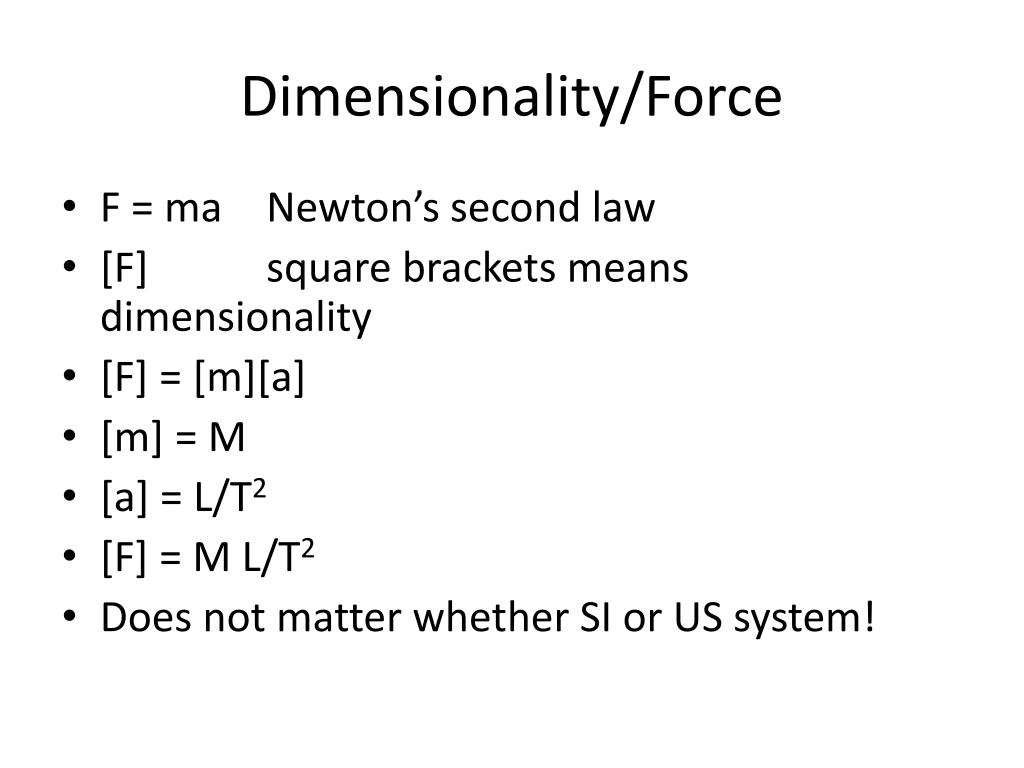

  8. Dimensionality/Force • F = ma Newton’s second law • [F] square brackets means dimensionality • [F] = [m][a] • [m] = M • [a] = L/T2 • [F] = M L/T2 • Does not matter whether SI or US system!

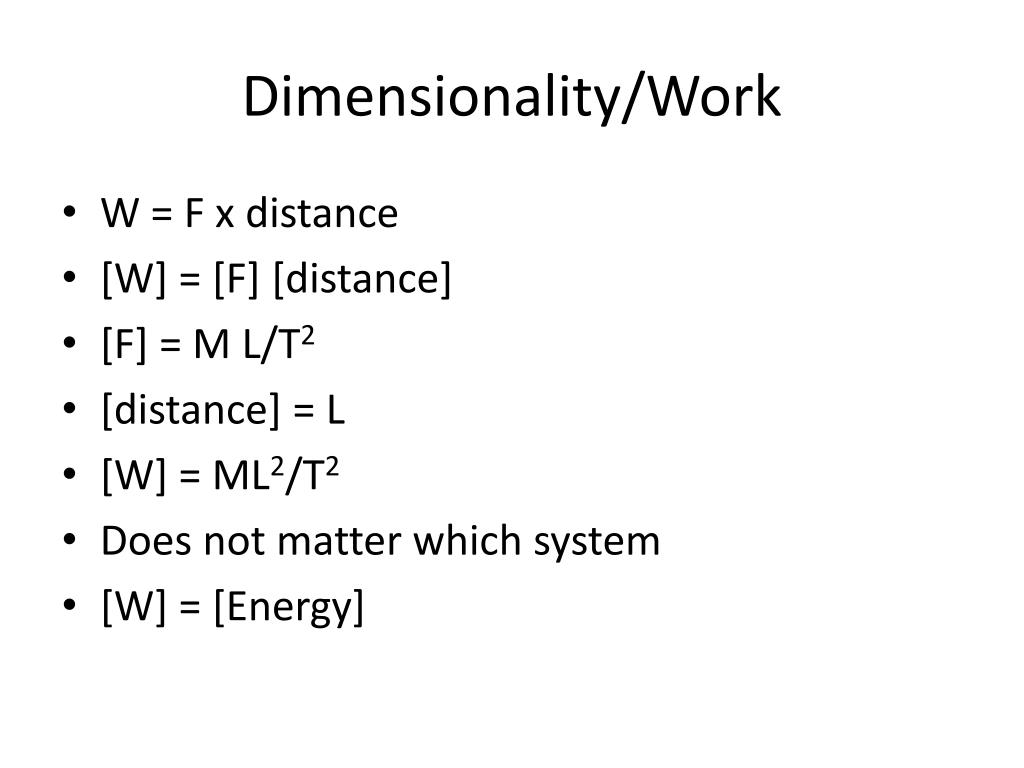

  9. Dimensionality/Work • W = F x distance • [W] = [F] [distance] • [F] = M L/T2 • [distance] = L • [W] = ML2/T2 • Does not matter which system • [W] = [Energy]

  10. Dimensionality/Power • P = Work/time = Energy/time • [P] = [W]/[time] • [W] = ML2/T2 • [time] = T • [P] = ML2/T3 • Does not matter which system.

  11. Dimensionality/Velocity • v = distance/time • [v] = L/T

  12. Dimensionality/Acceleration • a = distance/sec/sec • [a] = L/T2

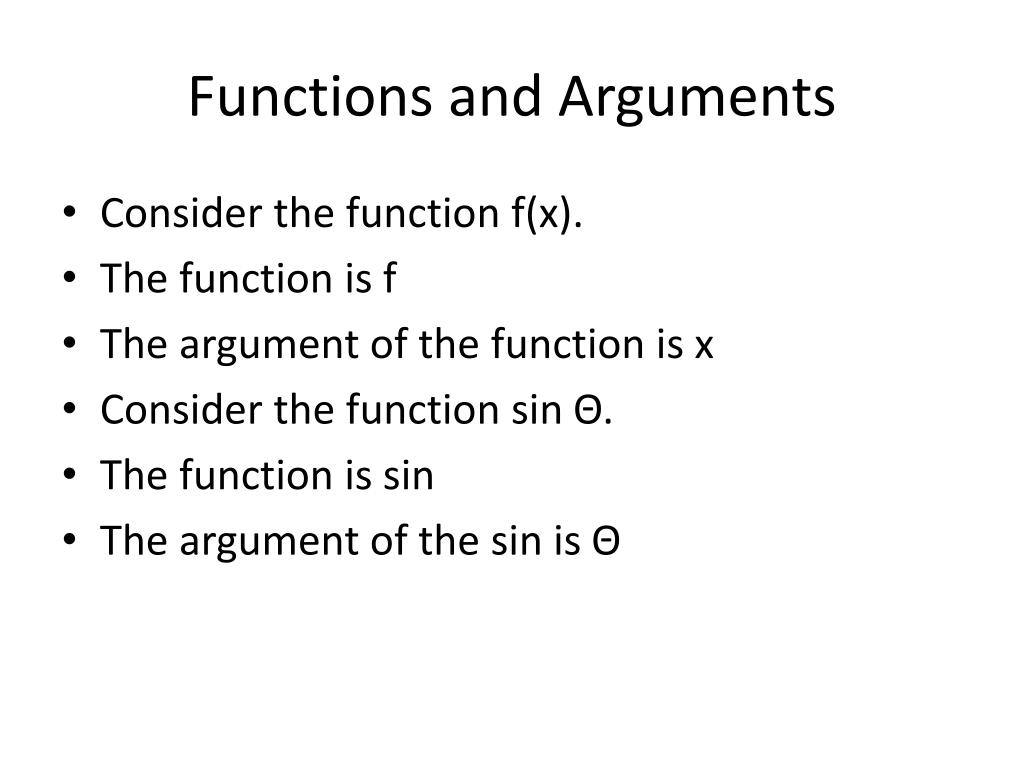

  13. Functions and Arguments • Consider the function f(x). • The function is f • The argument of the function is x • Consider the function sin Θ. • The function is sin • The argument of the sin is Θ

  14. Consider the function ln x • The function is ln (the natural logarithm) • The argument of ln is x. • Consider the function ex or exp x • The function is e or exponential • The argument is x

  15. Rules • The argument of a trigonometric, logarithmic, exponential, etc. function must be dimensionless! • Sin Θ • Θ must be dimensionless • Angles in radians or in degrees are dimensionless • Sin αt • [αt] = 1, so [α][t] = (1/T)(T) = 1

  16. Log x • x must be dimensionless • Log ax • ax must be dimensionless • If [x] = L • Then [a] = 1/L • So that [ax] = (1/L)(L) = 1

  17. Exp (- Q/RT) = e-(Q/RT) • [Q/RT] = 1 • If T is temperature and [T] = K • And Q is expressed in Joules/mole • Then R must be expressed in Joules/mole/K

  18. Dimensionally Homogeneous Equations • Every term on both the left hand side and the right hand side of an equation must have the same dimensionality. • Consider the equation • E = 0.5mv2 + mgh • E = kinetic energy plus potential energy • [E] = ML2/T2 • [0.5mv2] = M(L/T)2 [mgh] = M(L/T2)(L) • So all terms have the same dimensionality • And equation is dimensionally homnogeneous!

  19. Consider the equation for the distance y • y = 0.5mgh • [y] = L • [mgh] = (M)(L/T2)(L) • [LHS] = L • [RHS] = ML2/T2 • This equation is NOT dimensionally homgeneous!

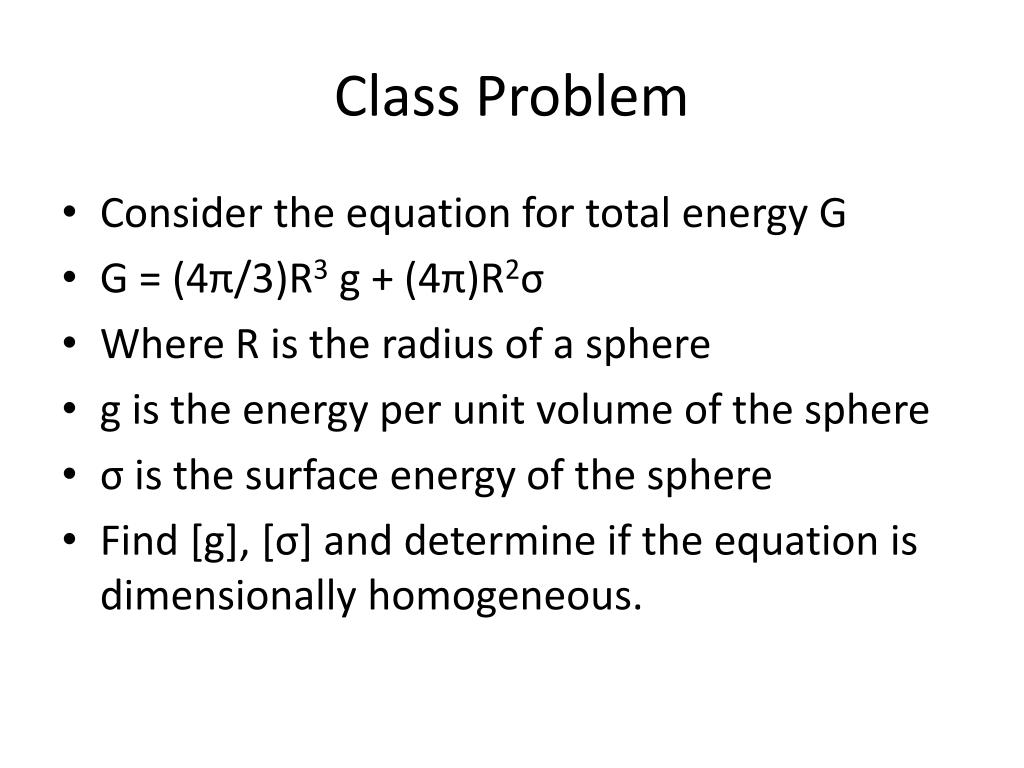

  20. Class Problem • Consider the equation for total energy G • G = (4π/3)R3 g + (4π)R2σ • Where R is the radius of a sphere • g is the energy per unit volume of the sphere • σ is the surface energy of the sphere • Find [g], [σ] and determine if the equation is dimensionally homogeneous.
