  1. Design ReviewP13418 John Markidis Dan Charles Israel Powell An Vu

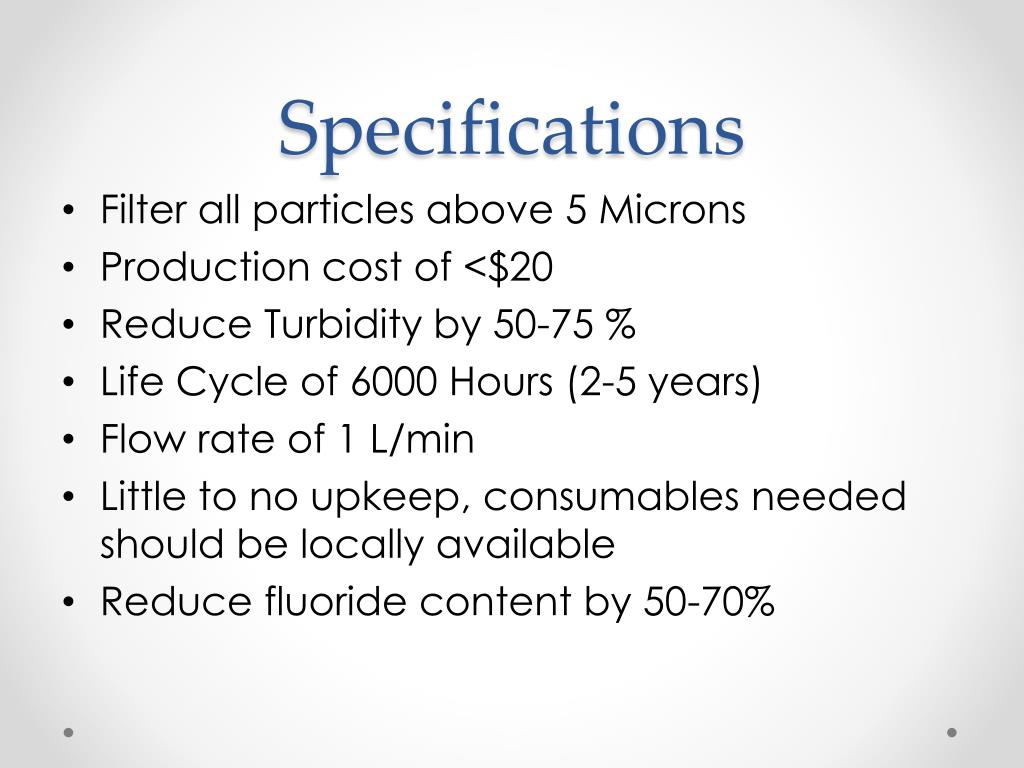

  2. Specifications • Filter all particles above 5 Microns • Production cost of <$20 • Reduce Turbidity by 50-75 % • Life Cycle of 6000 Hours (2-5 years) • Flow rate of 1 L/min • Little to no upkeep, consumables needed should be locally available • Reduce fluoride content by 50-70%

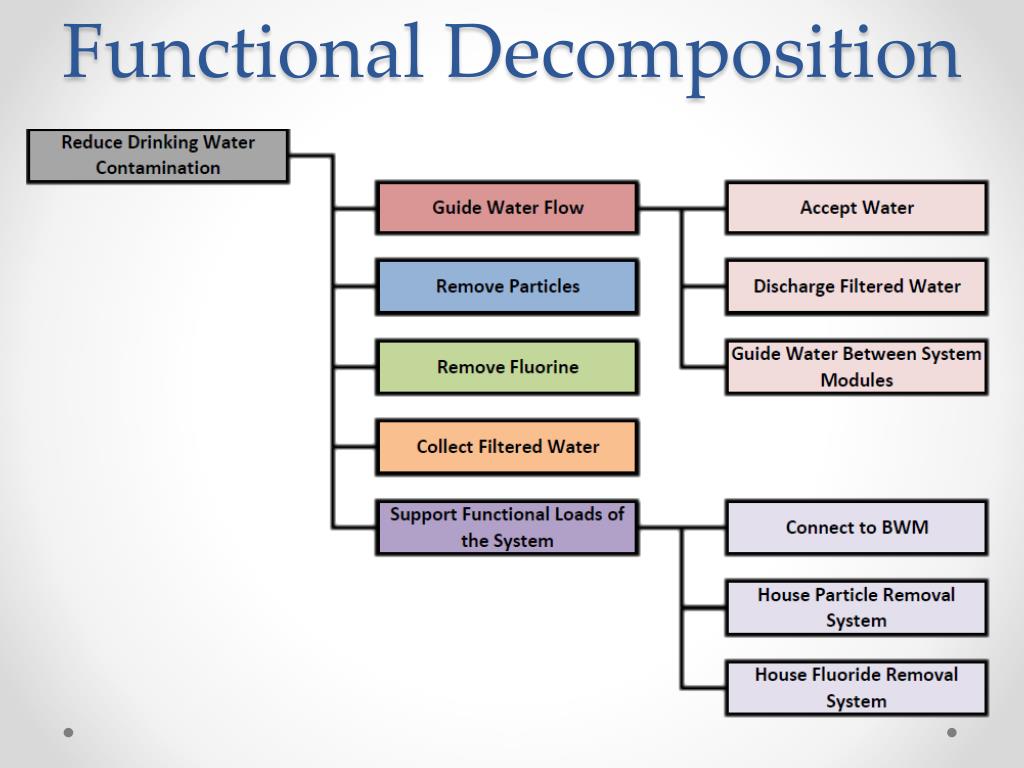

  3. Functional Decomposition

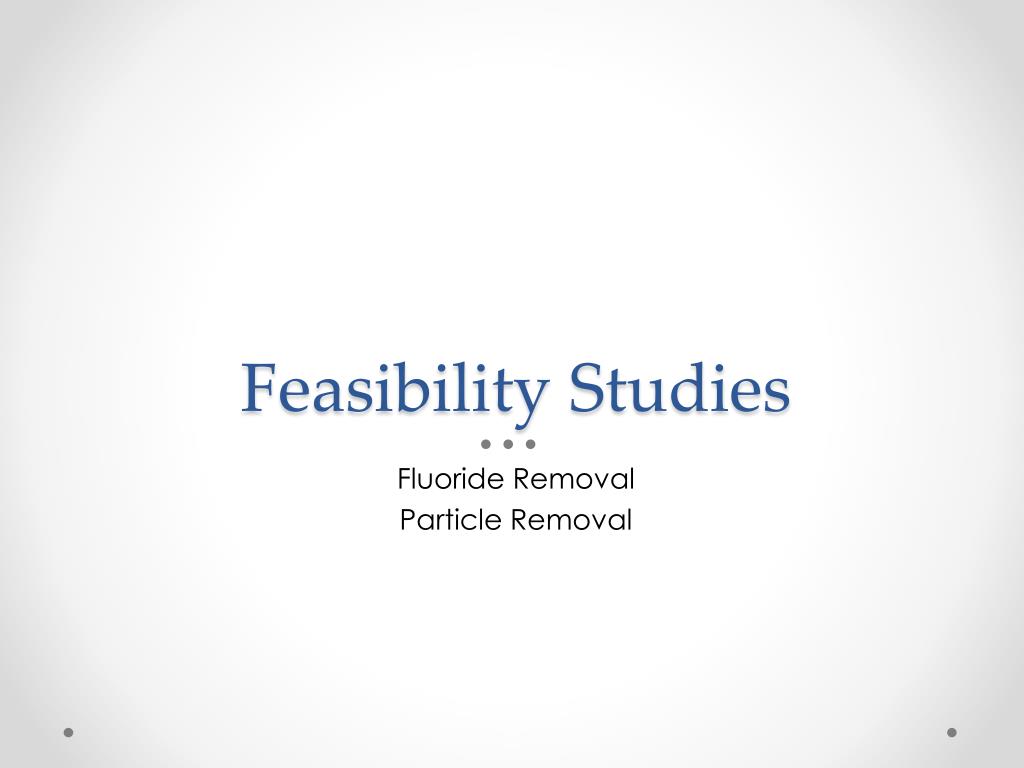

  4. Feasibility Studies Fluoride Removal Particle Removal

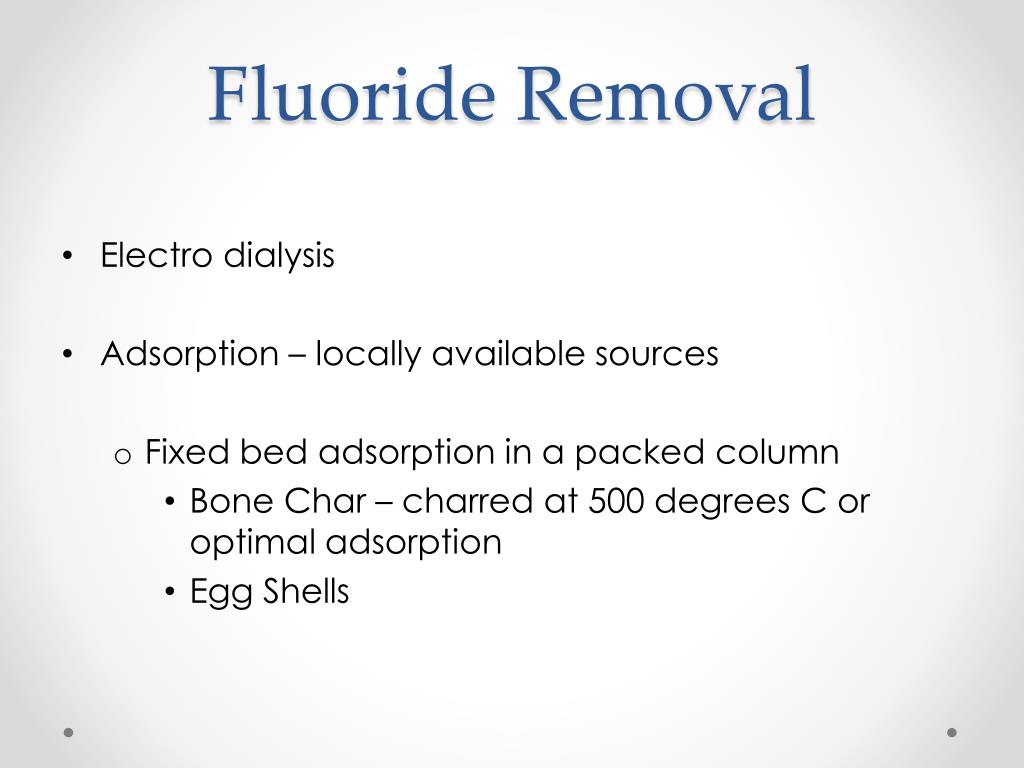

  5. Fluoride Removal • Electro dialysis • Adsorption – locally available sources • Fixed bed adsorption in a packed column • Bone Char – charred at 500 degrees C or optimal adsorption • Egg Shells

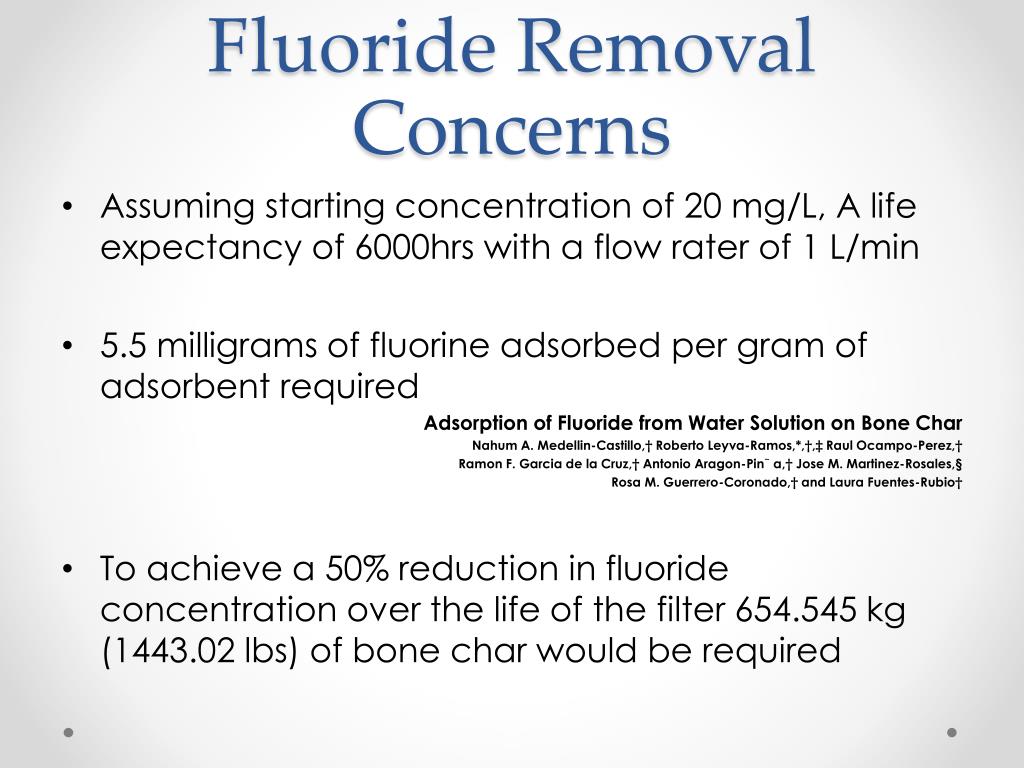

  6. Fluoride Removal Concerns • Assuming starting concentration of 20 mg/L, A life expectancy of 6000hrs with a flow rater of 1 L/min • 5.5 milligrams of fluorine adsorbed per gram of adsorbent required Adsorption of Fluoride from Water Solution on Bone Char Nahum A. Medellin-Castillo,† Roberto Leyva-Ramos,*,†,‡ Raul Ocampo-Perez,† Ramon F. Garcia de la Cruz,† Antonio Aragon-Pin˜ a,† Jose M. Martinez-Rosales,§ Rosa M. Guerrero-Coronado,† and Laura Fuentes-Rubio† • To achieve a 50% reduction in fluoride concentration over the life of the filter 654.545 kg (1443.02 lbs) of bone char would be required

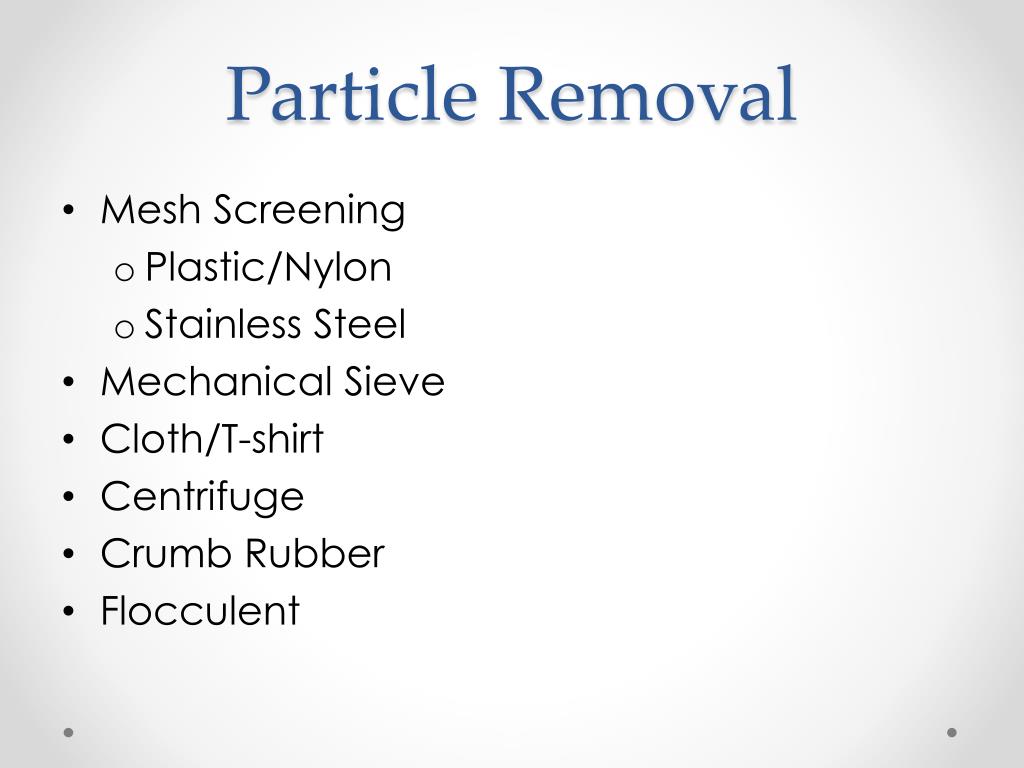

  7. Particle Removal • Mesh Screening • Plastic/Nylon • Stainless Steel • Mechanical Sieve • Cloth/T-shirt • Centrifuge • Crumb Rubber • Flocculent

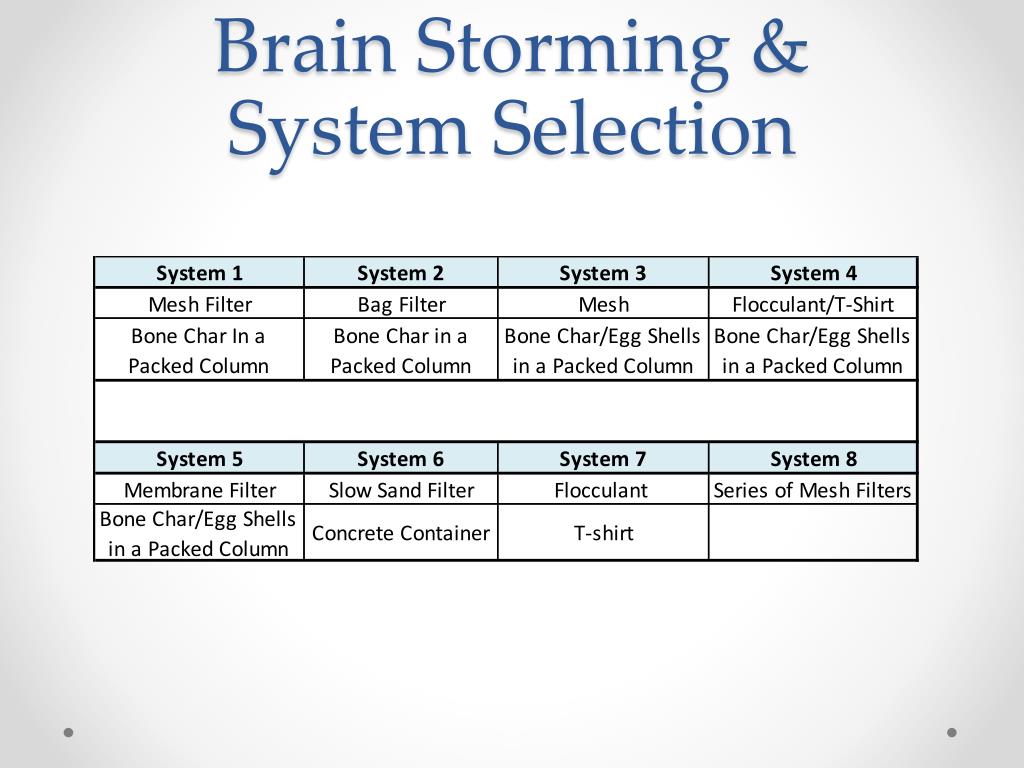

  8. Brain Storming &System Selection

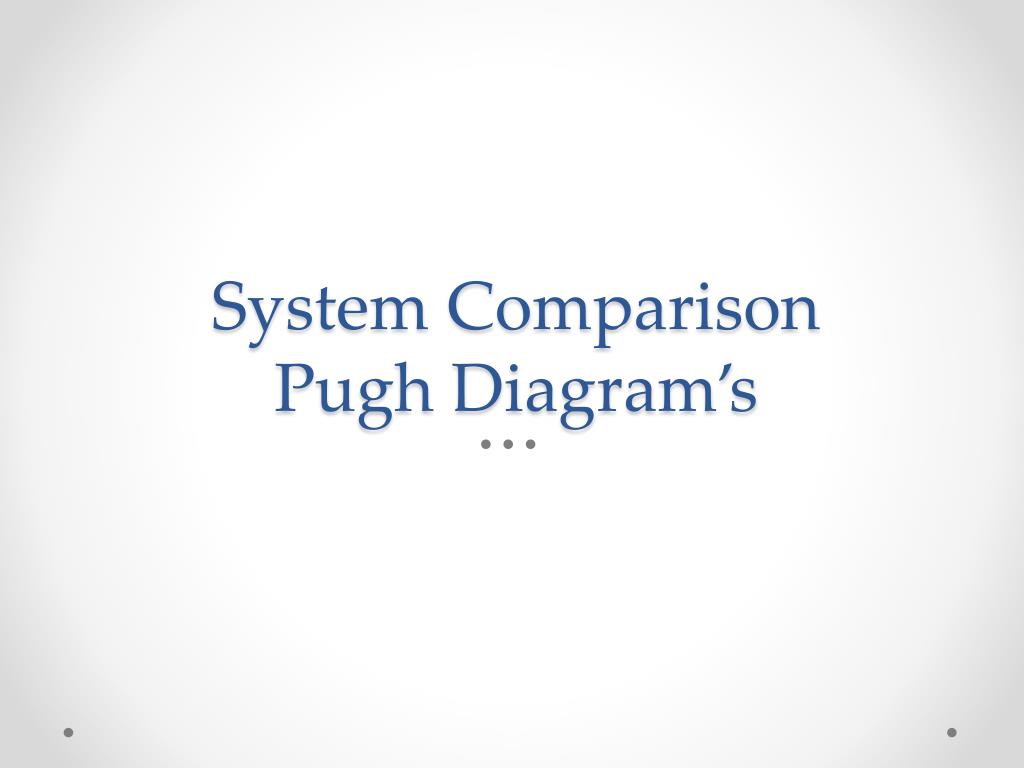

  9. System ComparisonPugh Diagram’s

  10. Pugh T-shirt

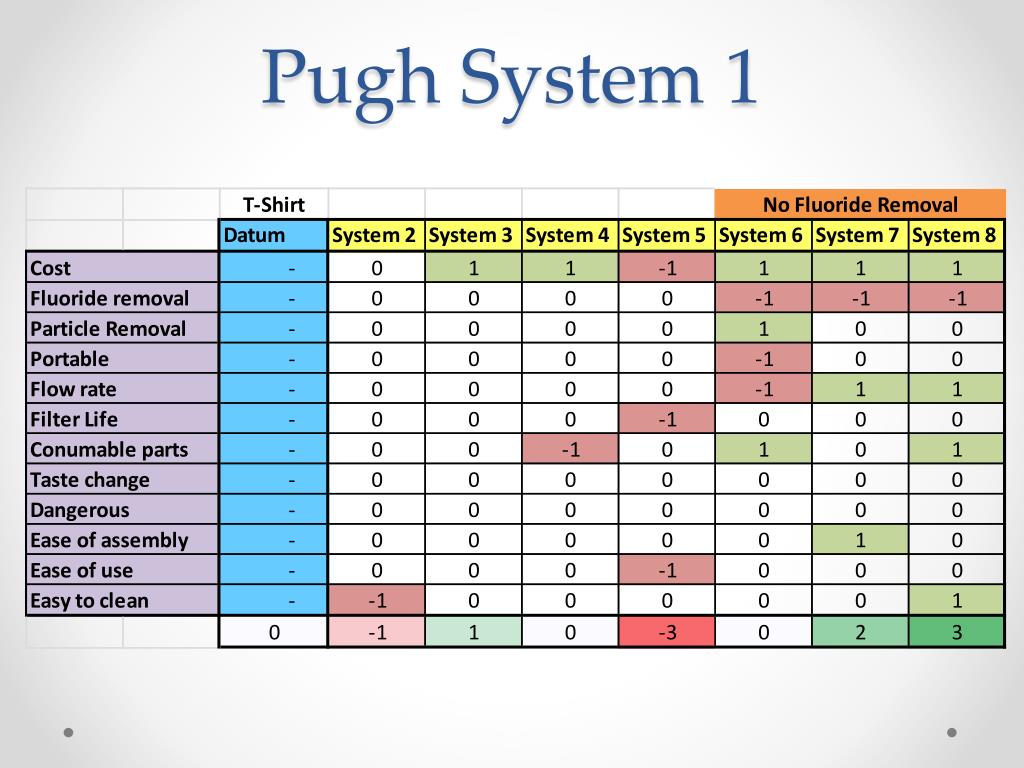

  11. Pugh System 1

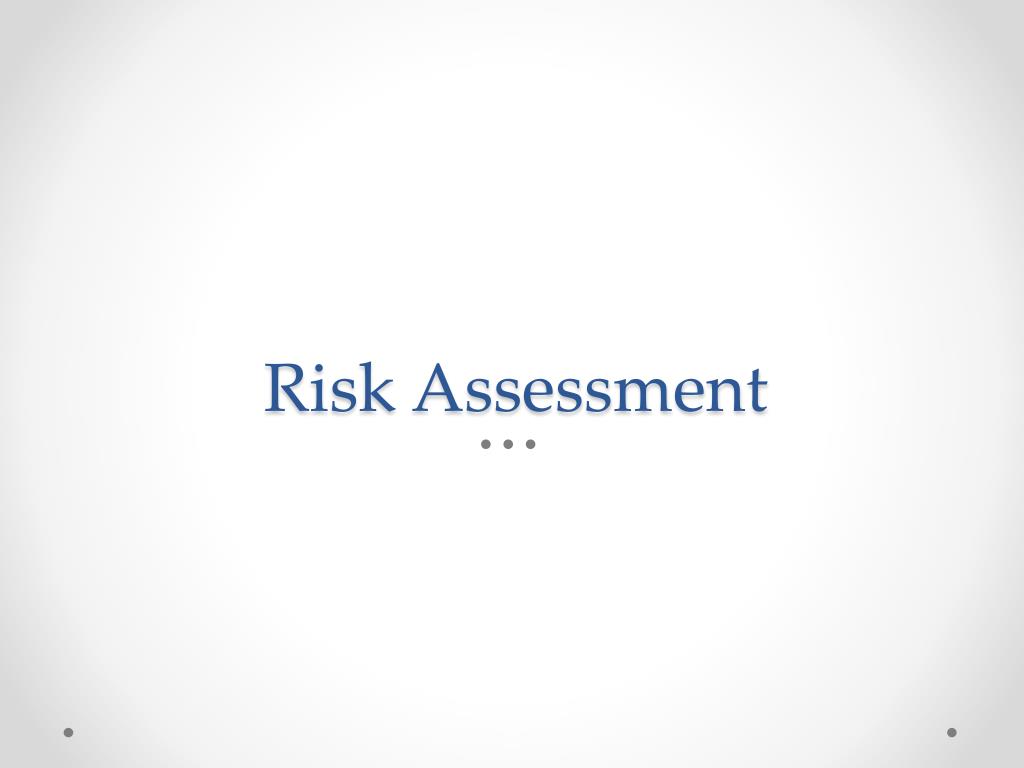

  12. Risk Assessment

  13. Project Planning Gantt Chart Critical Path Next Steps

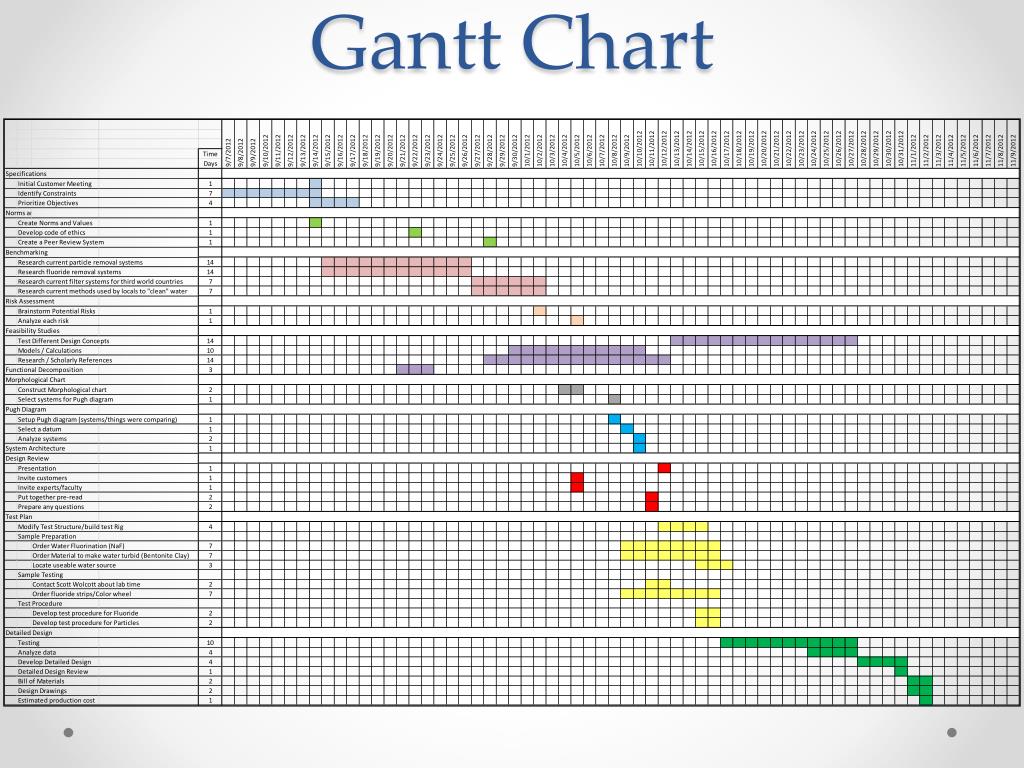

  14. Gantt Chart

  15. Critical Path

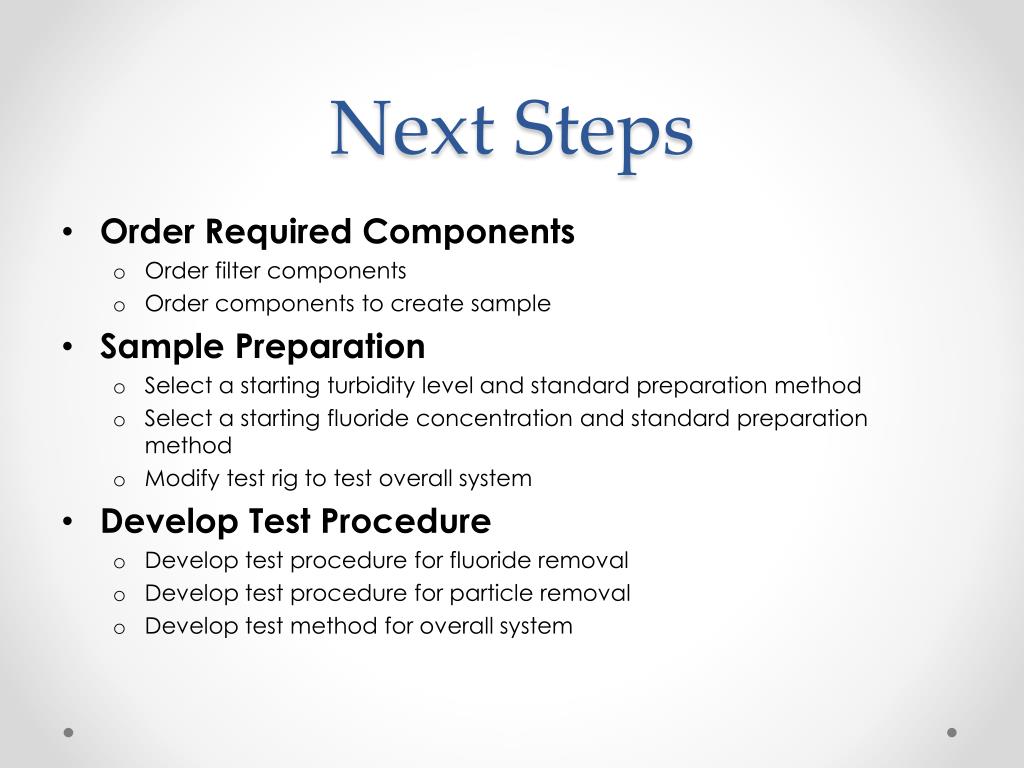

  16. Next Steps • Order Required Components • Order filter components • Order components to create sample • Sample Preparation • Select a starting turbidity level and standard preparation method • Select a starting fluoride concentration and standard preparation method • Modify test rig to test overall system • Develop Test Procedure • Develop test procedure for fluoride removal • Develop test procedure for particle removal • Develop test method for overall system
