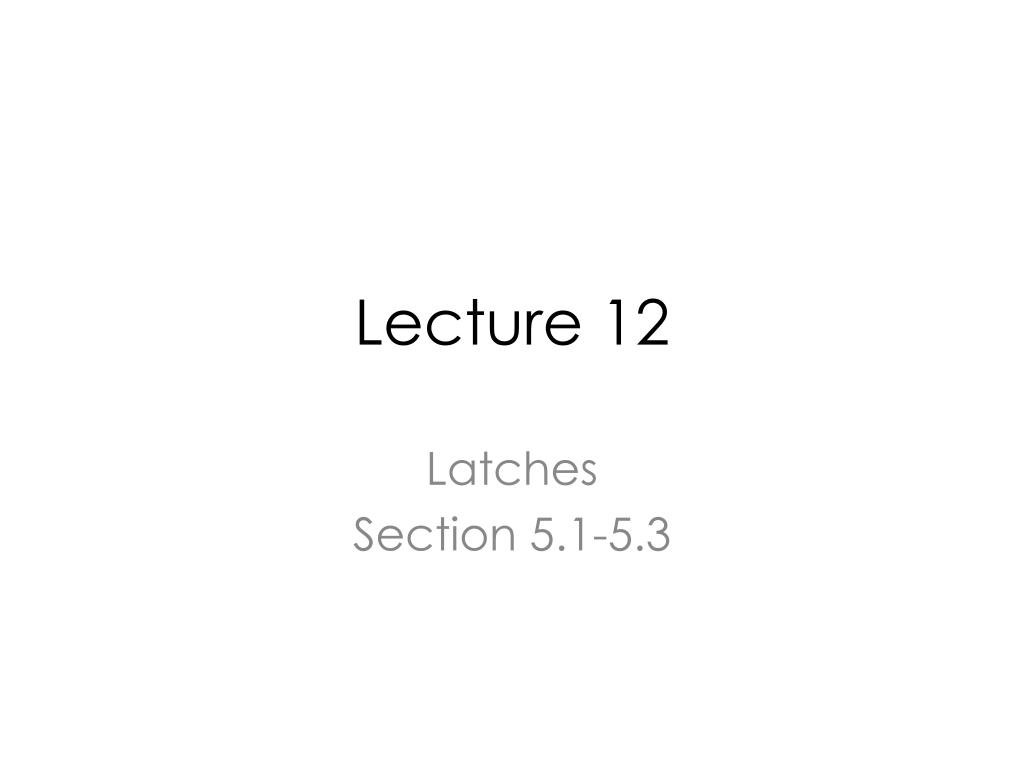

  1. Lecture 12 Latches Section 5.1-5.3

  2. Schedule Please bring a functional random number generator to class on Thursday (3/13).

  3. Outline • A brief overview of sequential circuits • Memory elements • NAND based SR latch • NAND based D latch • Verilog Modeling

  4. Combinational Circuits The outputs { are determined exclusively by the inputs, i.e., and .

  5. Block Diagram of Sequential Circuit New output is dependent on the inputs and the preceding states of the circuit stored in the memory. Characteristic: the output node is intentionally connected back to inputs of combinational circuits.

  6. Combinational Vs. Sequential Circuits Combinational Circuit Sequential Circuit

  7. Sequential Circuits • Two types of sequential circuits • Synchronous: circuits whose behavior can be defined from its signals at discrete instants of time. Clocks are to achieve synchronization. • Asynchronous circuits depend on input signals and the order in which the inputs change. (No clock pulses are used!)

  8. Block Diagram of Sequential Circuit Sychronous circuits: Used clocked flip-flops Asychronous circuits: Use unclocked flip-flops or time delay elements Revise

  9. Applications of Asynchronous Circuits • Asynchronous circuits are important where the digital system must respond quickly without having to wait for a clock pulse • Useful in small independent circuits that require only a few components—where it may not be practical to go to the expense of providing a circuit for generating clock pulses!

  10. Asynchronous Sequential Circuit(Optional Slides) Y1=xy1+x’y2 Y2=xy’1+x’y2

  11. Maps and Transition Table (Optional Slides) stable states: y1y2=Y1Y2

  12. Toggle x (Optional Slides) X= 0→1→0→1

  13. Memory Storage Elements

  14. Latches • Latches are level sensitive. • Latches propagate values from input to output continuously. • Inputs • Active low inputs are enabled by 0s. • Active high inputs are enabled by 1s.

  15. S=1 and R=1 1 1 S=1 and R=1: holds the current state

  16. S=0 and R=0 0 1 0 S=0 and R=0: The outputs are not complementary. This is not a state we want to be in.

  17. S=1 and R=0 1 1 0 S=1 and R=0: The outputs (and )are complementary.

  18. S=0 and R=1 0 0 1 S=0 and R=1: The outputs (and )are complementary.

  19. Observations 0 1 0 1 1 0 S=0 and R=1: S=1 and R=0: Use active low inputs (i.e. logic “0”) to produce changes at the outputs.

  20. SR Latch with NAND Gates S must go back to 1 (the hold mode) in order to avoid S=R=0. Q and Q’ do not change states when S goes back to 1. R must go back to 1 (the hold mode) in order to avoid S=R=0. Q and Q’ do not change states when R goes back to 1. Both inputs of the latch remain at 1 unless the state has to be changed. When both S and R are equal to 1, the latch can be in either the set or the reset, depending on which input was most recently a 1.

  21. Symbol of the NAND based SR latch Active low inputs

  22. SR latch with Control Line (En=0) 1 0 1 1. En=0, Q and Q’ will not be changed!

  23. SR latch with Control Line (En=1) S’ 1 R’ En=1, Q and Q’ will be affected by S and R. We now have active-high enabled circuit!

  24. Comparison

  25. D Latch(An Improvement Over SR Latch)

  26. D Latch

  27. D Latch (En=0) (hold mode) 1 0 1

  28. D Latch (En=1) D’ 1 D Q follows D as long as En is asserted (En=1). Data is temporary stored when En is disabled.

  29. D-latch Operation

  30. Verilog

  31. Outline • Continuous Assignment • Procedural statement • Blocking statement • Non-blocking statement

  32. Continuous Statement The updating of a continuous statement is triggered whenever there is a change on the right hand side of the equation. The assign keyword is used is used.

  33. Procedural Statements • Procedural statements are executed when the condition is met. • Usually the condition is implemented with initial and always statements. • There are two types of procedural statements: blocking and non-blocking statements. • The left-hand side of the procedural statements must be the reg data type.

  34. Blocking versus Nonblocking Statements • There are two kinds of procedural assignments: • Blocking statements • Use (=) as the assignment operator • Blocking statements are executed sequentially in the order they are listed. • Used to model behavior that are level sensitive (i.e. in combinational logic) • Nonblocking statements • Use (<=) as the assignment operator • Non-blocking statements are executed concurrently. • Used to model synchronous/concurrent behavior.

  35. Blocking Statements • B=A (transfers A to B) • C=B+1 (increments B and writes the value to C)

  36. Non-blocking Statements • B<=A • C<=B+1 • The value of A is kept in one storage location • The value of B+1 is stored in another storage location • After all the expressions in the block are evaluated and stored, the assignment to the targets on the left-hand side is made. • C will contain the original value of B, plus 1. This is the value of B before A is written into B.

  37. Example of a Non-blocking Statements X,Y, vectornum are updated concurrently.

  38. Verilog Model of a D Latch

  39. Partial Listing of a Verilog Test Bench

  40. Output
