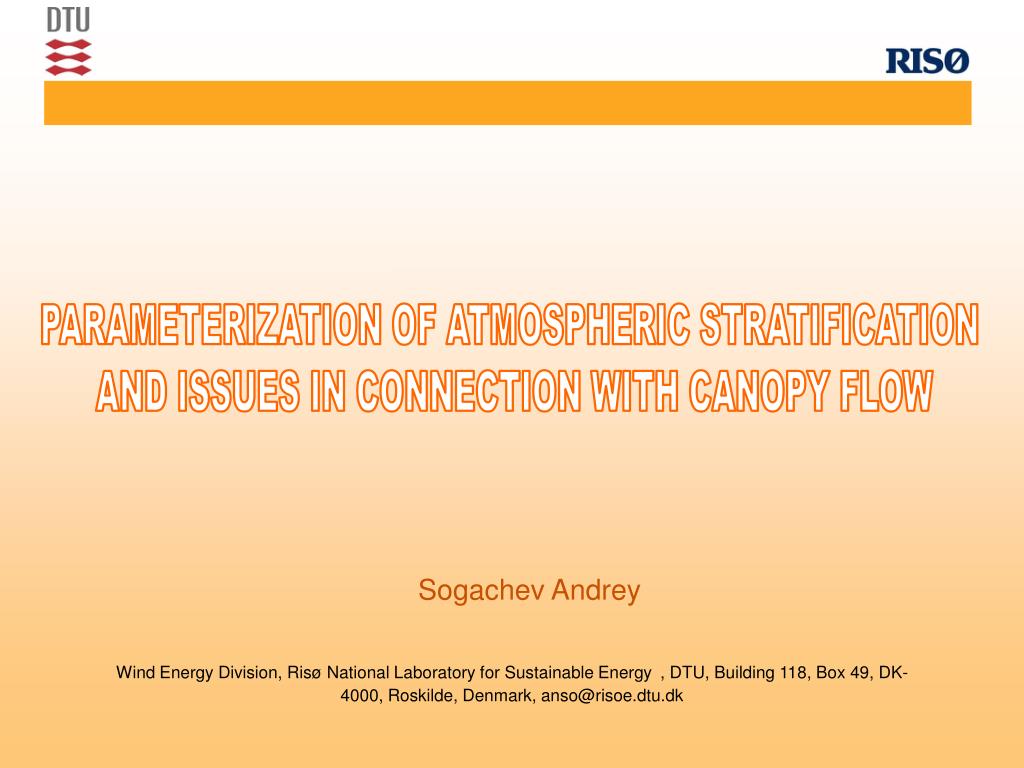

  1. Parameterization of atmospheric stratification and issues in connection with canopy flow Sogachev Andrey Wind Energy Division, Risø National Laboratory for Sustainable Energy, DTU, Building 118, Box 49, DK-4000, Roskilde, Denmark, anso@risoe.dtu.dk

  2. SCADIS(scalar distribution) model:overview • Basic equations: • momentum, • heat, • moisture, • scalars (CO2, SO2, O3), • turbulent kinetic energy (E) • One-and-a-half-order turbulence closure • based on equations of E and ε (dissipation rate) : ( E-l, E-ε.) • E-ω closure based on ω (ε/E) equation • Terrain-following coordinate system • Horizontal and vertical resolutions • (depending on a specific problem) (Sogachev et al., 2002, 2004; Sogachev and Panferov, 2006; Sogachev et al., 2008, Sogachev 2009)

  3. Upper boundary conditions V(t), Q ( t), T(t), q(t), C(t), U(t) 0 3 - 5 km ) Clouds ( t 1 - 10 km T q F V = 0 U = 0 ( ( soil ), soil ), ( soil ), , CO2 l o w e r b o u n d a r y c o n d i t i o n s SCADISmodel: domain (Sogachev et al., 2002, 2004; Sogachev and Panferov, 2006; Sogachev et al., 2008, Sogachev 2009)

  4. 10 - 100 m advection F E R H CO2 ¶ ¶ f f , ¶ ¶ x y G SCADISmodel: physical processes in the model grid-cell (Sogachev et al., 2002, 2004; Sogachev and Panferov, 2006; Sogachev et al., 2008, Sogachev 2009)

  5. Turbulence model: governing equations with with

  6. Accounting for plant drag and buoyancy: the traditional way ? ( Raupach and Shaw, 1982 ) ( Apsley and Castro, 1997) (Blackadar, 1962)

  7. Modelling of Askervein flow Askervein Hill topographic map (brawn isolines) and dimensionless speed-up, ΔS estimated by SCADIS at z = 10 m above the ground (colored field). Figure 1 also shows the reference site (RS) (with ΔS = 0 ), the 210o wind direction in our simulations and the lines A, AA and B along which the measurements were made. Background of Figure 1 is taken from Castro et al., 2003.

  8. Modelling of Askervein flow (b) (a) Dimensionless speed-up, ΔS at z = 10 m above the ground along lines A (a) and AA (b). During measurements along line AA two different sets of instruments were used.

  9. Uncertainties: buoyancy (Baumert and Peters, 2000)

  10. Uncertainties: dissipation ( Ayotte et al., 1999 ) (Sogachev and Panferov., 2006)

  11. Accounting for plant drag and buoyancy: the revised way (Seginer et al., 1976) ( Raupach and Shaw, 1982 ) (Blackadar, 1962) ( Apsley and Castro, 1997) (Sogachev and Panferov, 2006 ) (Sogachev 2009 )

  12. Accounting for plant drag and buoyancy: the revised way

  13. Treatment of the plant drag ►The Elora corn canopy (Wilson et al., 1982; Wilson, 1988) ▲The Pine forest canopy (Katul and Chang, 1999) ◄Furry hill wind-tunnel experiment (Finnigan and Brunet, 1995) (after Sogachev and Panferov, 2006)

  14. Treatment of the plant drag The basic requirement of K-theory – that the length scale of the mixing process be substantially smaller than that of the inhomogeneity in the mean scalar or momentum gradient (Corrsin 1974) – is not violated for disturbed flow and for slow spatial variation of cdA (Finnigan and Belcher, 2004). SCADIS reproduces the experimental variation in length scales (Sogachev and Panferov, 2006)

  15. Verification: low-roughness surface Wind speed ( m s-1 ) Fig. 1 (a) ABL wind evolution and (b) surface characteristics: u* and Monin-Obukhov length, L, during fair weather over low-roughness land derived by E-ω model. Converse Prandtl number (Businger et al. 1971, Sogachev et al. 2002)

  16. Uncertainties: Turbulent Prandtl number, Pr versus Ri

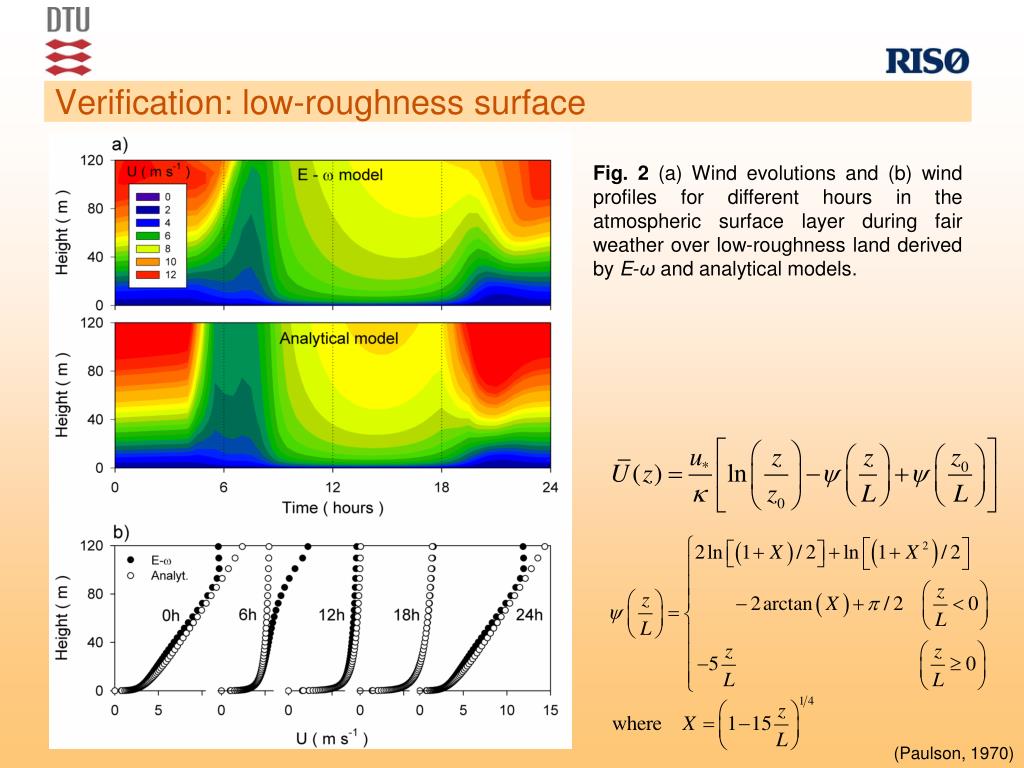

  17. Verification: low-roughness surface Fig. 2 (a) Wind evolutions and (b) wind profiles for different hours in the atmospheric surface layer during fair weather over low-roughness land derived by E-ω and analytical models. (Paulson, 1970)

  18. Verification: forested surface (Laakso et al., 2007)

  19. Uncertainties: buoyancy inside canopy

  20. Uncertainties: buoyancy inside canopy (Sogachev and Panferov, 2006 ) ?

  21. Uncertainties: buoyancy inside canopy

  22. Uncertainties: buoyancy inside canopy H =16 m, LAI = 1.38 (Christen and Novak, 2008)

  23. ABL evolution

  24. Energy budget above canopy layer

  25. Ri in ABL

  26. Low-level jet

  27. Low-level jet effects on wind energy related variables

  28. Summary Much work remains to be done…
