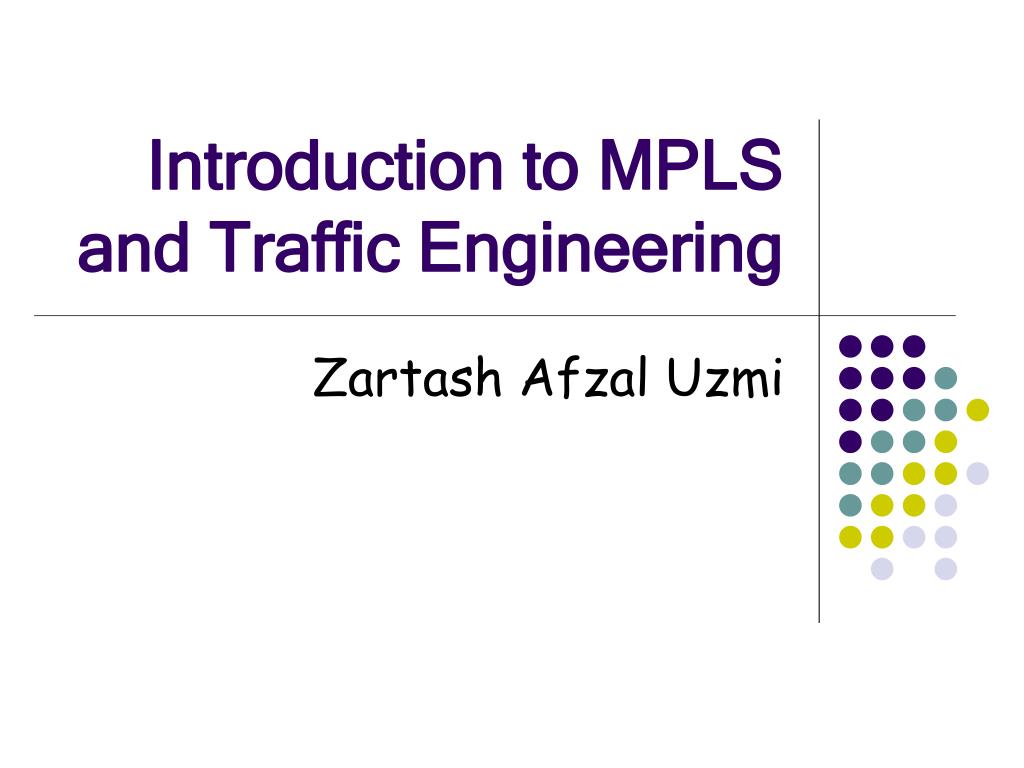

  1. Introduction to MPLS and Traffic Engineering Zartash Afzal Uzmi

  2. Outline • Traditional IP Routing • Forwarding and routing • Problems with IP routing • Motivations behind MPLS • MPLS Terminology and Operation • MPLS Label, LSR and LSP, LFIB Vs FIB • Transport of an IP packet over MPLS • More MPLS terminology • Traffic Engineering [with MPLS] • Nomenclature • Requirements • Examples CS 573: Network Protocols and Standards

  3. Outline • Traditional IP Routing • Forwarding and routing • Problems with IP routing • Motivations behind MPLS • MPLS Terminology and Operation • MPLS Label, LSR and LSP, LFIB Vs FIB • Transport of an IP packet over MPLS • More MPLS terminology • Traffic Engineering [with MPLS] • Nomenclature • Requirements • Examples CS 573: Network Protocols and Standards

  4. Forwarding and routing • Forwarding: • Passing a packet to the next hop router • Routing: • Computing the “best” path to the destination • IP routing – includes routing and forwarding • Each router makes the forwarding decision • Each router makes the routing decision • MPLS routing • Only one router (source) makes the routing decision • Intermediate routers make the forwarding decision CS 573: Network Protocols and Standards

  5. IP versus MPLS routing • IP routing • Each IP datagram is routed independently • Routing and forwarding is destination-based • Routers look at the destination addresses • May lead to congestion in parts of the network • MPLS routing • A path is computed “in advance” and a “virtual circuit” is established from ingress to egress • An MPLS path from ingress to egress node is called a label switched path (LSP) CS 573: Network Protocols and Standards

  6. How IP routing works Searching Longest Prefix Match in FIB (Too Slow) CS 573: Network Protocols and Standards

  7. Problems with IP routing • Too slow • IP lookup (longest prefix matching) “was” a major bottleneck in high performance routers • This was made worse by the fact that IP forwarding requires complex lookup operation at every hop along the path • Too rigid – no flexibility • Routing decisions are destination-based • Not scalable in some desirable applications • When mapping IP traffic onto ATM CS 573: Network Protocols and Standards

  8. IP routing rigidity example D 1 1 A S A B B 1 2 C • Packet 1: Destination A • Packet 2: Destination B • S computes shortest paths to A and B; finds D as next hop • Both packets will follow the same path • Leads to IP hotspots! • Solution? • Try to divert the traffic onto alternate paths CS 573: Network Protocols and Standards

  9. IP routing rigidity example D 1 4 A S A B B 1 2 C • Increase the cost of link DA from 1 to 4 • Traffic is diverted away from node D • A new IP hotspot is created! • Solution(?): Network Engineering • Put more bandwidth where the traffic is! • Leads to underutilized links; not suitable for large networks CS 573: Network Protocols and Standards

  10. Motivations behind MPLS • Avoid [slow] IP lookup • Led to the development of IP switching in 1996 • Provide some scalability for IP over ATM • Evolve routing functionality • Control was too closely tied to forwarding • Evolution of routing functionality led to some other benefits • Explicit path routing • Provision of service differentiation (QoS) CS 573: Network Protocols and Standards

  11. IP routing versus MPLS routing Traditional IP Routing Multiprotocol Label Switching (MPLS) 1 2 S D 3 4 5 MPLS allows overriding shortest paths! CS 573: Network Protocols and Standards

  12. Outline • Traditional IP Routing • Forwarding and routing • Problems with IP routing • Motivations behind MPLS • MPLS Terminology and Operation • MPLS Label, LSR and LSP, LFIB Vs FIB • Transport of an IP packet over MPLS • More MPLS terminology • Traffic Engineering [with MPLS] • Nomenclature • Requirements • Examples CS 573: Network Protocols and Standards

  13. MPLS label • To avoid IP lookup MPLS packets carry extra information called “Label” • Packet forwarding decision is made using label-based lookups • Labels have local significance only! • How routing along explicit path works? Label IP Datagram CS 573: Network Protocols and Standards

  14. Routing along explicit paths • Idea: Let the source make the complete routing decision • How is this accomplished? • Let the ingress attach a label to the IP packet and let intermediate routers make forwarding decisions only • On what basis should you choose different paths for different flows? • Define some constraints and hope that the constraints will take “some” traffic away from the hotspot! • Use CSPF instead of SPF (shortest path first) CS 573: Network Protocols and Standards

  15. 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 Label | Exp|S| TTL Label = 20 bits Exp = Experimental, 3 bits S = Bottom of stack, 1bit TTL = Time to live, 8 bits Label, LSP and LSR • Label • Router that supports MPLS is known as label switching router (LSR) • An “Edge” LSR is also known as LER (edge router) • Path which is followed using labels is called LSP CS 573: Network Protocols and Standards

  16. LFIB versus FIB • Labels are searched in LFIB whereas normal IP Routing uses FIB to search longest prefix match for a destination IP address • Why switching based on labels is faster? • LFIB has fewer entries • Routing table FIB has larger number of entries??? • In LFIB, label is an exact match • In FIB, IP is longest prefix match CS 573: Network Protocols and Standards

  17. Mpls Flow Progress D R1 LSR4 R2 LSR1 D destination LSR6 LSR3 LSR2 R1 and R2 are regular routers LSR5 1 - R1 receives a packet for destination D connected to R2 CS 573: Network Protocols and Standards

  18. Mpls Flow Progress D R1 LSR4 R2 LSR1 D destination LSR6 LSR3 LSR2 LSR5 2 - R1 determines the next hop as LSR1 and forwards the packet (Makes a routing as well as a forwarding decision) CS 573: Network Protocols and Standards

  19. Mpls Flow Progress R1 LSR4 R2 LSR1 31 D D destination LSR6 LSR3 LSR2 LSR5 3 – LSR1 establishes a path to LSR6 and “PUSHES” a label (Makes a routing as well as a forwarding decision) CS 573: Network Protocols and Standards

  20. Mpls Flow Progress R1 LSR4 R2 LSR1 D destination LSR6 LSR3 17 D LSR2 Labels have local signifacance! LSR5 4 – LSR3 just looks at the incoming label LSR3 “SWAPS” with another label before forwarding CS 573: Network Protocols and Standards

  21. MPLS Flow Progress R1 LSR4 R2 LSR1 D destination LSR6 LSR3 17 D LSR2 Path within MPLS cloud is pre-established: LSP (label-switched path) LSR5 5 – LSR6 looks at the incoming label LSR6 “POPS” the label before forwarding to R2 CS 573: Network Protocols and Standards

  22. MPLS and explicit routing recap • Who establishes the LSPs in advance? • Ingress routers • How do ingress routers decide not to always take the shortest path? • Ingress routers use CSPF (constrained shortest path first) instead of SPF • Examples of constraints: • Do not use links left with less than 7Mb/s bandwidth • Do not use blue-colored links for this request • Use a path with delay less than 130ms CS 573: Network Protocols and Standards

  23. CSPF • What is the mechanism? (in typical cases!) • First prune all links not fulfilling constrains • Now find shortest path on the rest of the topology • Requires some reservation mechanism • Changing state of the network must also be recorded and propagated • For example, ingress needs to know how much bandwidth is left on links • The information is propagated by means of routing protocols and their extensions CS 573: Network Protocols and Standards

  24. Data More MPLS terminology Upstream Downstream 172.68.10/24 LSR1 LSR2 CS 573: Network Protocols and Standards

  25. Use label 5 for destination 171.68.32/24 MPLS Data Packet with label 5 travels Label advertisement • Always downstream to upstream label advertisement and distribution Downstream Upstream 171.68.32/24 LSR2 LSR1 CS 573: Network Protocols and Standards

  26. Sends label ONLY after receiving request Sends label Without any Request Request For label Label advertisement • Label advertisement can be downstream unsolicited or downstream on-demand Downstream Upstream 171.68.32/24 LSR2 LSR1 Downstream Upstream 171.68.32/24 LSR1 LSR2 CS 573: Network Protocols and Standards

  27. Egress LSR Ingress LSR Label distribution • Label distribution can be ordered or unordered • First we see an example of ordered label distribution Label CS 573: Network Protocols and Standards

  28. Egress LSR Ingress LSR Label distribution • Label distribution can be ordered or unordered • Next we see an example of unordered label distribution Label Label CS 573: Network Protocols and Standards

  29. Label retention modes • Label retention can be conservative or liberal ? Destination Label LSR1 Label CS 573: Network Protocols and Standards

  30. Label operations • Advertisement • Downstream unsolicited • Downstream on-demand • Distribution • Ordered • Unordered • Retention • Liberal • Conservative CS 573: Network Protocols and Standards

  31. Outline • Traditional IP Routing • Forwarding and routing • Problems with IP routing • Motivations behind MPLS • MPLS Terminology and Operation • MPLS Label, LSR and LSP, LFIB Vs FIB • Transport of an IP packet over MPLS • More MPLS terminology • Traffic Engineering [with MPLS] • Nomenclature • Requirements • Examples CS 573: Network Protocols and Standards

  32. Traffic Engineering Traffic Engineering with MPLS (Application of CSPF)

  33. What is traffic engineering? • Performance optimization of operational networks • optimizing resource utilization • optimizing traffic performance • reliable network operation • How is traffic engineered? • measurement, modeling, characterization, and control of Internet traffic • Why? • high cost of network assets • service differentiation CS 573: Network Protocols and Standards

  34. Traffic engineering • Recall the IP hotspot problem • The ability to move traffic away from the shortest path calculated by the IGP (such as OSPF) to a less congested path • IP: changing a metric will cause ALL the traffic to divert to the less congested path • MPLS: allows explicit routing (using CSPF) and setup of such explicitly computed LSPs CS 573: Network Protocols and Standards

  35. MPLS-TE: How to do it? • LSPs are set up by LSRs based on information they learn from routing protocols (IGPs) • This defeats the purpose! • If we were to use “shortest path”, IGP was okay CS 573: Network Protocols and Standards

  36. MPLS TE: How we actually do it? • MPLS TE Requires: • Enhancements to routing protocols • OSPF-TE • ISIS-TE • Enhancement to signaling protocols to allow explicit constraint based routing • RSVP-TE and CR-LDP • Constraint based routing • Explicit route selection • Recovery mechanisms defined CS 573: Network Protocols and Standards

  37. Signaling mechanisms • RSVP-TE • Extensions to RSVP for traffic engineering • BGP-4 • Carrying label information in BGP-4 • CR-LDP • A label distribution protocol that distributes labels determined based on constraint based routing • RSVP-TE and CR-LDP both do label distribution and path reservation – use any one of them! CS 573: Network Protocols and Standards

  38. RSVP-TE Basic flow of LSP set-up using RSVP CS 573: Network Protocols and Standards

  39. RSVP-TE PATH Message • PATH message is used to establish state and request label assignment • R1 transmits a PATH message addressed to R9 CS 573: Network Protocols and Standards

  40. RSVP-TE RESV Message • RESV is used to distribute labels after reserving resources • R9 transmits a RESV message, with label=3, to R8 • R8 and R4 store “outbound” label and allocate an “inbound” label. They also transmits RESV with inbound label to upstream LSR • R1 binds label to forwarding equivalence class (FEC) CS 573: Network Protocols and Standards

  41. Rerouting LSP tunnels • When a more “optimal” route/path becomes available • When a failure of a resource occurs along a TE LSP • Make-before-break mechanism • Adaptive, smooth rerouting and traffic transfer before tearing down the old LSP • Not disruptive to traffic CS 573: Network Protocols and Standards

  42. Recovering LSP tunnels LSP Set-up CS 573: Network Protocols and Standards

  43. Protection LSP set up CS 573: Network Protocols and Standards

  44. Protection LSP CS 573: Network Protocols and Standards

  45. References • RFC 2702 “Requirements for Traffic Engineering Over MPLS” • RFC 3031 “Multiprotocol Label Switching Architecture” • RFC 3272 “Overview and Principles of Internet Traffic Engineering” • RFC 3346 “Applicability Statement for Traffic Engineering with MPLS” • MPLS Forum (http://www.mplsforum.org) CS 573: Network Protocols and Standards
