  1. Migrating to 11g – Step Ordered Approach April Sims OCP 8i 9i 10g Southern Utah University

  2. Submit an Article or become a Reviewer April Sims, Editor

  3. Are you a Dinosaur? • Do you still do weekly cold backups? • Do you stay in your office, cubicle, work area?  • Rarely go to meetings with other human beings?  • Do people wonder what do you do all day? • Did you bring any business cards to pass around? • Do you only “linger” on technical email discussion lists? • Do you have a migration to the next patchset, version, hardware replacement in progress?

  4. Step Ordered Approach • Narrows the amount/time of outage needed • Interim steps • Oracle is backwards compatible – generally • What is compatible? • Patching, upgrades and migrations – Tips and Techniques.

  5. Compatible Components – Higher version than database • Oracle Net Services • Clients • RMAN binary, Virtual/Catalog and Database • Grid Control Repository Database • Grid Control Intelligent Agents • ASM **EXPORT/IMPORT and DATAPUMP will have issues

  6. Oracle Application Server Cross Compatibility • Deploy Ear files from 10.1.3.x  10.1.2.x • Utilize latest OC4J enhancements without starting another HTTP Server. • Using static ports – Note 184826.1 Deploy the ear file, default-web-site.html to find the port number, add lines to 10.1.2 mod_oc4j.conf Oc4jMount /instance ajp13://localhost:12507 Oc4jMount /instance/* ajp13://localhost:12507

  7. Recommended Order of Implementation • Listener • Rman • Rman Catalog • GC database • Clients • ASM • Database and Optimizer

  8. Planning for Change – Keeping things clean! • Maximum Availability Architecture – OTN • Multiple Oracle Homes • Multiple Operating System Accounts • Environmental Variables – SID.cnf for variables not in .profile which is executed using oraenv • Scripting

  9. Why Clean Things Up? • It is enough work to install, maintain and upgrade multiple instances with multiple ORACLE_HOMES (OH)…. • Less need to modify scripts after an upgrade • Less errors and/or problems when the environment becomes “cloudy” with more than one OH. • Less core dumps. • Less off-hours work due to installs/patches/upgrades/testing

  10. Multiple $ORACLE_HOMES Core dumps, fatal tns errors or hanging if exp, imp, sqlplus from one OH to a database in a different OH Different OH’s different versions or patches. Recommended by Oracle Support & other DBA’s. Multiple listeners running in different OH’s can also cause problems as well as multiple OMS Intelligent Agents It is normal to have several OH’s at any point in time. Now what is the best way to do this safely? It can be done by the same “oracle” unix account or by using two different “oracle” unix accounts (multiple is safer)…..who does this? Reality check.

  11. Multiple OraInventory’s Contents of /etc/oraInst.loc inst_group=oinstall #inventory_loc=/u01/10.2/oraInventory inventory_loc=/u01/11.1/oraInventory *This is for those who survived an oraInventory corruption and lived to tell about it. Comment or uncomment as needed for each install. Not recommended by Oracle.

  12. I don’t need no stinking patches…… Patch Set Number of bugs 8.1.7.4 1757 9.0.1.5 1000 9.2.0.7 2000 10.1.0.5 2500 10.2.0.2 1173 10.2.0.3 2007 10.2.0.4 4326

  13. Upgrades and Patches Have at least 2 $ORACLE_HOMES one for production, one for testing patches – ALWAYS!!!! Find the most stable, what is the terminal release? Put in the latest CPU patch. Bad version that is x.0.0.0 (unpatched) because it is rare that you can truly simulate production load….Bugs come out under pressure. Cancel out of the install when it starts to configure Net Manager and the Intelligent Agent (configure later). Switch to new listener during off peak hours.

  14. PSU – Patch Set Update 1st Digit - Major release number 2nd Digit - Maintenance release 3rd Digit - Application server release 4th Digit - Release component specific 5th Digit - Platform specific release First PSU – 10.2.0.4.1 Second PSU – 10.2.0.4.2 MetaLink Doc ID 850471.1 **Includes latest CPU at release time

  15. Oracle Recommended Patches • Common issues in targeted configurations. • Stabilize production environments. • Save time and cost with known issues. • Tested as a single combined unit, reducing risk. • Easier to identify applicable patches. https://metalink2.oracle.com/metalink/plsql/docs/10g_Upgrade_Companion.htm • Released between quarterly PSU’s

  16. Oracle Target Configurations • Generic • Real Application Clusters and CRS • DataGuard (and/or Streams) • Exadata • Ebusiness Suite Certification

  17. PSUs vs. CPUs Information • Apply PSUs from now on (since DB Version 10.2.0.4) • Both CPU & PSU Released Quarterly • PSUs include CPUs • PSUs are a Superset of CPUs • Might need merge patch if migrating from a CPU • Don’t revert back to CPU once on PSU http://blogs.oracle.com/gridautomation/

  18. Download patch then… Install….if conflict then Check if any key patches rolled back Merge request…..then Wait….might be too late for this CPU, narrow window….maybe next quarter! Patch Plan Auto checks prerequisites Checks Conflicts before downloading Request Merge before downloading Check Recommendations Deployment Plan Available Issues with Conflicts and Rollbacks With Uploaded Configs Without Uploaded Configs

  19. Net Services – Listener Pre-Spin • Give each database a different listener port, use naming convention • I don’t use port 1521 for any listener (because of autoregister feature) • Put ORACLE_HOME of database if using Listener in a different ORACLE_HOME • Define local_listener in init.ora • TCP, BEQ

  20. Listener.ora LISTENER_TEST = (ADDRESS = (PROTOCOL = TCP)(HOST = FQ.NODENAME)(PORT = 1540)) SID_LIST_LISTENER_TEST =(SID_LIST = (SID_DESC = (SID_NAME = TEST) (ORACLE_HOME = /u01/app/oracle/product/10gR2) ) ) ADMIN_RESTRICTIONS_LISTENER_TEST=ON LOG_FILE_LISTENER_TEST=listener_test.log

  21. Rotate Listener Log export dat="`date '+%y%m%d'`" lsnrctl << EOF set current_listener listener_test set log_file listener_tmp.log exit EOF mv listener_test.log listener_test.${dat} cat listener_temp.log >> listener_test.${dat}

  22. Clients • ODBC,SQLPLUS, Instant Client **** • Database Links **** • 32/bit to 64/bit **** • JDBC, JDK ** • Precompilers ** • Features Availability ** • Exp/Imp or Datapump * • BEQUEATH not supported b/t diff releases ****Highly recommended, usually minor issues ** Needs testing, maybe application specific * Definitely has issues

  23. RMAN • Migrating the catalog database • Multiple schemas- One for each release and/or database • Upgrading the rman catalog • Differences in 11g

  24. RMAN Duplicate – Upgrading • RMAN is configured so that a higher release is able to restore a lower release SQL>  alter database open resetlogs upgrade; SQL>  alter database open resetlogs downgrade; Then run CATUPGRD.SQL or CATDWGRD.SQL • Can’t use duplicate command • Different OS levels • Switch between word sizes (32 vs 64) • Use Transportable Tablespace Conversion between different OS’s

  25. Grid Control • Migrating Repository Database to 11g – if uncoupled install – Use GC 10.2.0.5+ • Co-locate RMAN Catalog (s) -much easier to move, migrate or drag along with GC.

  26. ASM/CRS/RDBMS • CRS must have its own $ORACLE_HOME • ASM can be separate as of 10gR2 • Push to move ASM, CRS and RDBMS to three different operating accounts • One-off patches - separate ASM and RDBMS • Rolling Upgrades

  27. 11g Diagnosability Framework • Environmental Variable – ORACLE_BASE • adrci command-line utility • Scripting changes • Rotating, purging logs, trace files, core dumps and incidents • Can disable ADR, especially for troubleshooting

  28. Surprises • SYSTEM password expires with default profile – 11gR1 • Case sensitivity issue between primary and physical standby – new security feature, 11gR1 • MOS NoteID:579523.1 dangling (orphaned) rows in dictionary table SYS.KOTTD$ - affects all upgrades

  29. Characterset Selection – UTF8 Any implications for migration? options are usually some sort of csalter and/or exp/imp, datapump. Transitional Steps – convert to a superset to remove some types of lossy data. See blog also NLS by Gary Gordhammer articles in IOUG “SELECT” Grid Control and RMAN catalog can be UTF8

  30. Database Upgrade Methods • EXP/IMP or DataPump - • Transportable Tablespaces - same or different node • DBUA • Manual Upgrade • Transient Logical Standby • Physical Standby • Snapshot Standby

  31. Upgrade Testing Environment • Data Guard copy of production • Break DG Apply process to standby • Enable flashback, guaranteed restore point • Upgrade to 11g for testing….TEST….TEST • Downgrade to 10g • ???? Exact steps will post to blog. • Restore to guaranteed restore point…repeat • Data Guard site is also fallback position during go-live, break connection leave at 10g.

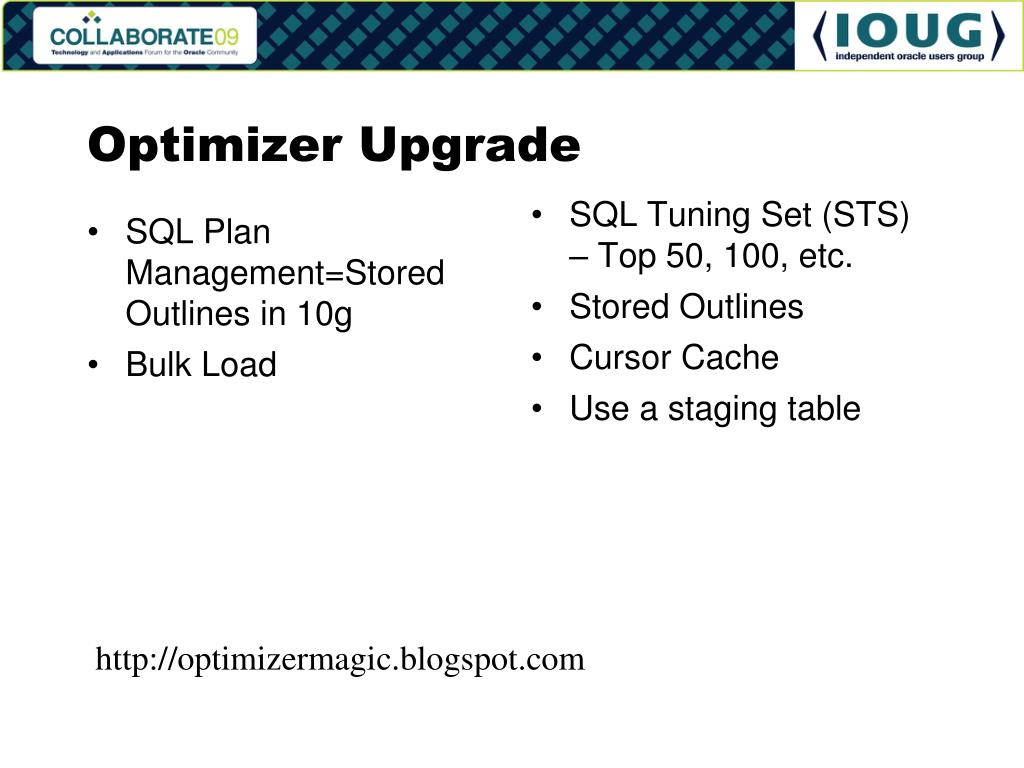

  32. SQL Plan Management=Stored Outlines in 10g Bulk Load SQL Tuning Set (STS) – Top 50, 100, etc. Stored Outlines Cursor Cache Use a staging table Optimizer Upgrade http://optimizermagic.blogspot.com

  33. PreUpgrade Optimizer • STS – Top 50…etc. • Source database – instance-wide stats at peak load, AWR - 7 days • Statspack – Level 7 – generates plans • OS stats - CPU, memory and IO (such as sar, vmstat, iostat)

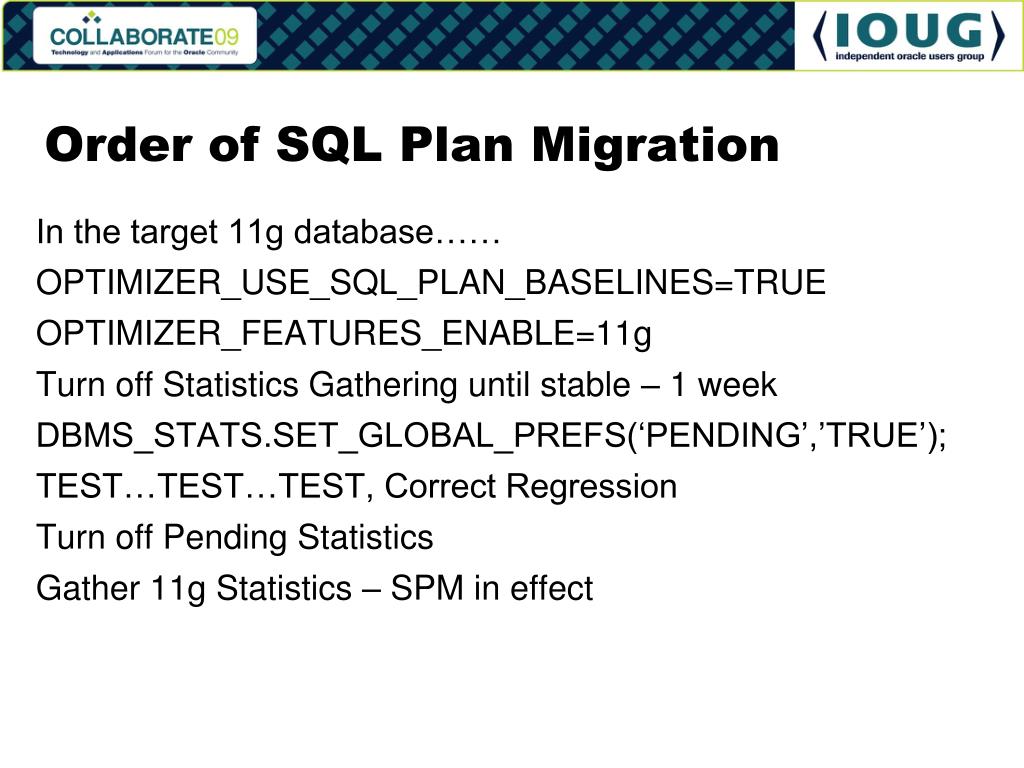

  34. In the target 11g database…… OPTIMIZER_USE_SQL_PLAN_BASELINES=TRUE OPTIMIZER_FEATURES_ENABLE=11g Turn off Statistics Gathering until stable – 1 week DBMS_STATS.SET_GLOBAL_PREFS(‘PENDING’,’TRUE’); TEST…TEST…TEST, Correct Regression Turn off Pending Statistics Gather 11g Statistics – SPM in effect Order of SQL Plan Migration

  35. Backpedal to 10g Stats In the target 11g database…… OPTIMIZER_USE_SQL_PLAN_BASELINES=TRUE OPTIMIZER_FEATURES_ENABLE=10g Turn off Statistics Gathering Re-import 10g Stats from Bulk Load DBMS_STATS.SET_GLOBAL_PREFS(‘PENDING’,’TRUE’); TEST…TEST…TEST, Correct Regression Turn off Pending Statistics Gather 11g Statistics – SPM in effect

  36. Migration – Step Ordered Approach • Narrows the amount/time of outage needed • Interim steps • Oracle is backwards compatible – generally • What is compatible? • Patching, upgrades and migrations

  37. Questions? Leave Business Card – put question or interest on back. http://www.twitter.com/aprilcsims http://www.twibes.com/novicedba http://www.twibes.com/lone_dba Twitter hash tags # IOUG_SELECT # NOVICEDBA #LONE_DBA @aprilcsims BLOG http://aprilcsims.wordpress.com 38
