Range Minimization

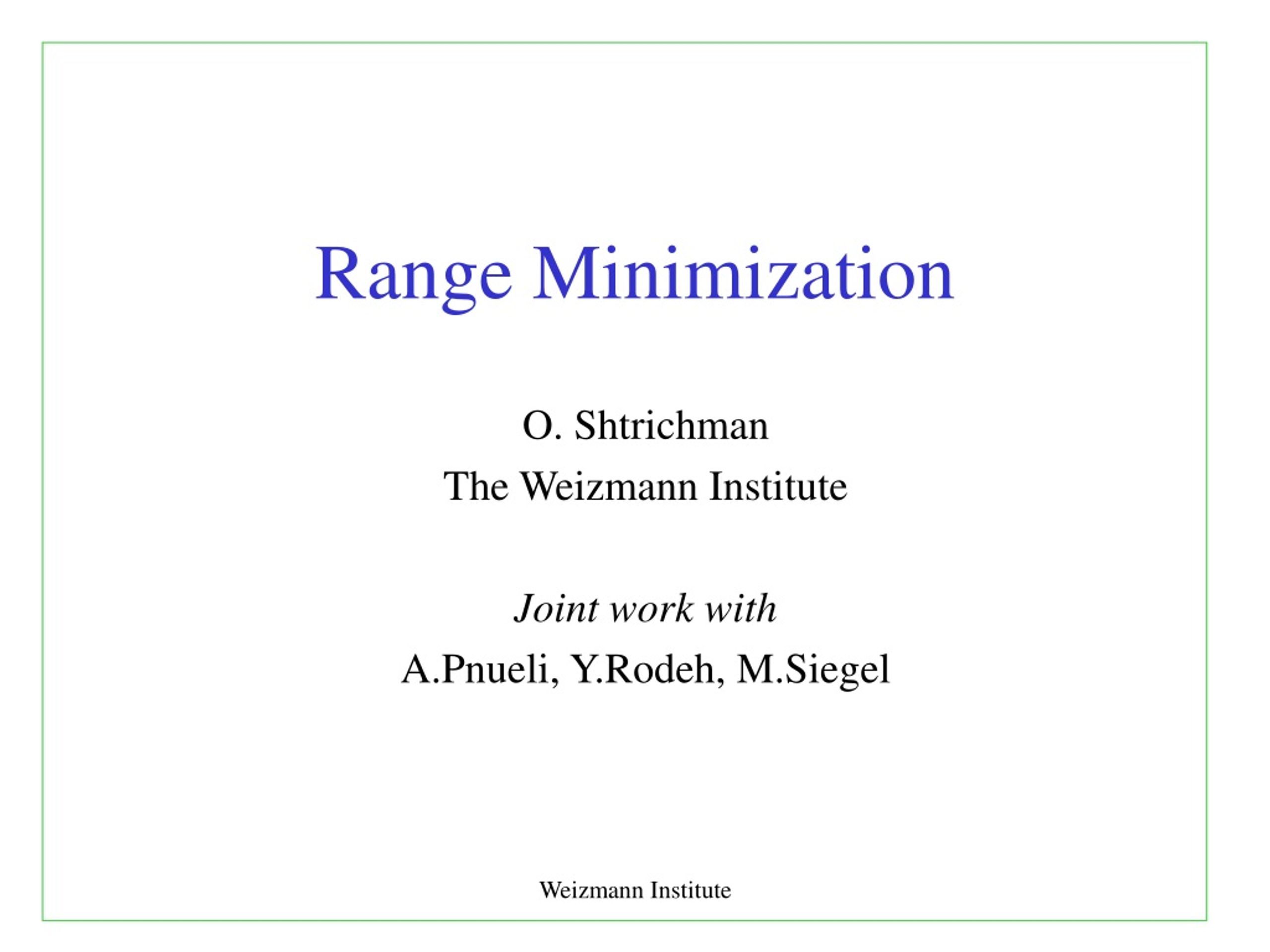

Range Minimization. O. Shtrichman The Weizmann Institute Joint work with A.Pnueli, Y.Rodeh, M.Siegel. Code generation. C. DC+. CVT. Verification Condition Generator. Auto-decomposition. Abstraction. Abstraction Level ++. Range Minimizer. TLV (verifier). Uninterpreted functions.
