  1. Autonomous Anti-DDoS Network V2.0(A2D2-2) Sarah Jelinek University Of Colorado, Colo. Spgs. sarah.jelinek@sun.com Spring Semester 2003, CS691 Project

  2. Project Goals • Ultimate goal of project • To make DDoS technology more robust • Relationship to other projects • Enhancements of existing A2D2 architecture to incorporate IDIP and Alternate Proxy Servers • High-level timing goals • Research and new architecture, now • Project completion planned for 9/03

  3. Description - A2D2 • Developed by Angela Cearns, UCCS Masters Thesis • DDoS Intrusion Detection and Response • Uses freeware as main detection component • Modifications made to affect better response FOR MORE INFO... http://cs.uccs.edu/~chow/pub/master/acearns/doc/angThesis-final.pdf

  4. A2D2, cont..

  5. A2D2, cont.. • Strengths • Uses open source components • Portable • Configurable • Weaknesses • Host Based • Local Network response • No attempt made to actively trace intruder • Possible bottleneck at firewall • Static thresholds

  6. A2D2-2 Technology • New technology being used • Intrusion Detection and Isolation Protocol (IDIP) • Alternate Proxy Servers • Standards being adopted • IDIP • Will work with other IDIP enabled Intrusion Detection Networks • Service Location Protocol (SLP) • Allows discovery of registered IDIP Nodes

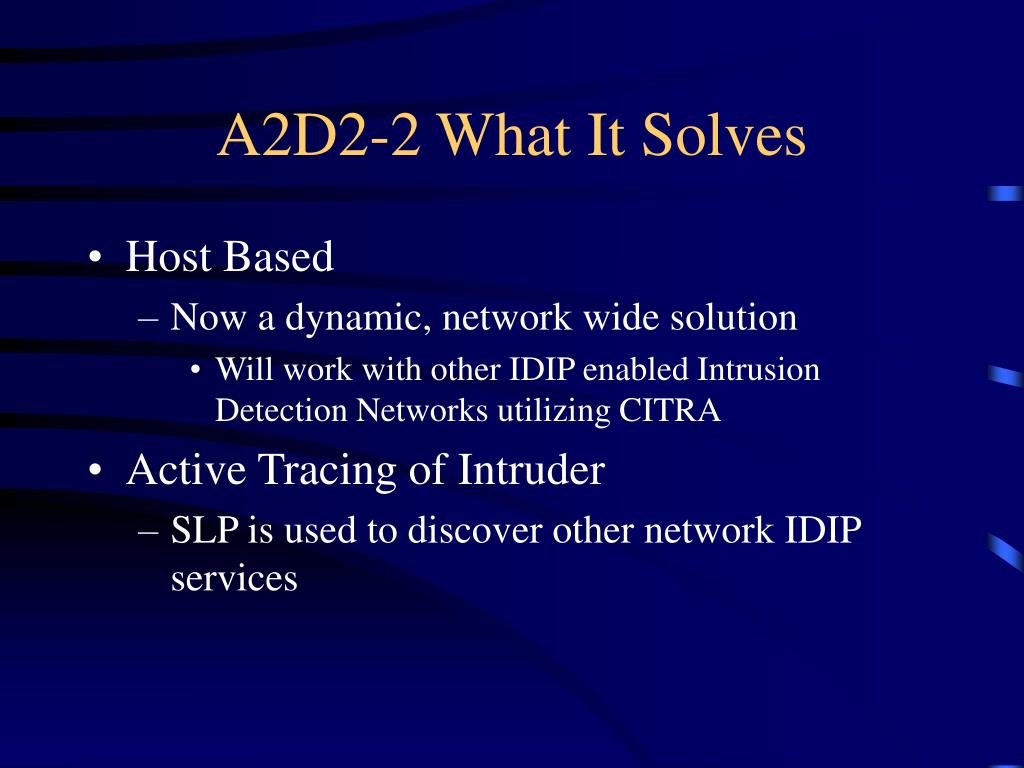

  7. A2D2-2 What It Solves • Host Based • Now a dynamic, network wide solution • Will work with other IDIP enabled Intrusion Detection Networks utilizing CITRA • Active Tracing of Intruder • SLP is used to discover other network IDIP services

  8. A2D2-2 What It Solves, cont.. • Local Response • SLP used for location of alternate proxy servers for more global response • Firewall Bottleneck • Response Coordination Centralized

  9. A2D2-2 & IDIP • IDIP • Developed by Boeing and NAI Labs • Supports real-time tracking and containment of DDoS attacks • Three layers: • Application Layer • Message Layer • Discovery Coordinator

  10. A2D2-2 - Discovery Coordinator • IDIP Discovery Coordinator • Bulk of the work done here • Network wide response coordinator • Will notify clients and client dns of alternate routes available • Standardized language used for messages and topology (CISL) • Local attack response still active if down

  11. IDIP Nodes FOR MORE INFO... http://zen.ece.ohiou.edu/~inbounds/DOCS/reldocs/IDIP_Architecture.doc

  12. A2D2-2 Proposed Architecture

  13. Alternate Routes FOR MORE INFO... http://cs.uccs.edu/%7Echow/research/security/uccsSecurityResearch.ppt

  14. Alternate Routes, cont..

  15. Proxy3 IDIP Node Proxy2 IDIP Node Proxy1 IDIP Node A2D2-2 & SLP -> Alternate Routes net-a.com net-b.com net-c.com ... ... ... ... A A A A A A A A DNS3 DNS1 DNS2 R R R New route via Proxy3 to R3 Attack msgs blocked by IDS Block and traceback R IDIP Node R2 R3 R1 A2D2-2 IDIP DC SLP Discovery and communication Local IDS Response A2D2-2 Network IDS

  16. A2D2-2 Futures • IDIP Redundant/Cooperative Discovery Coordinators • Discovery Coordinator Response Optimization Enhancements • Updates To Snort • Secure DNS (already started?)
