Structure function relationships in arteries

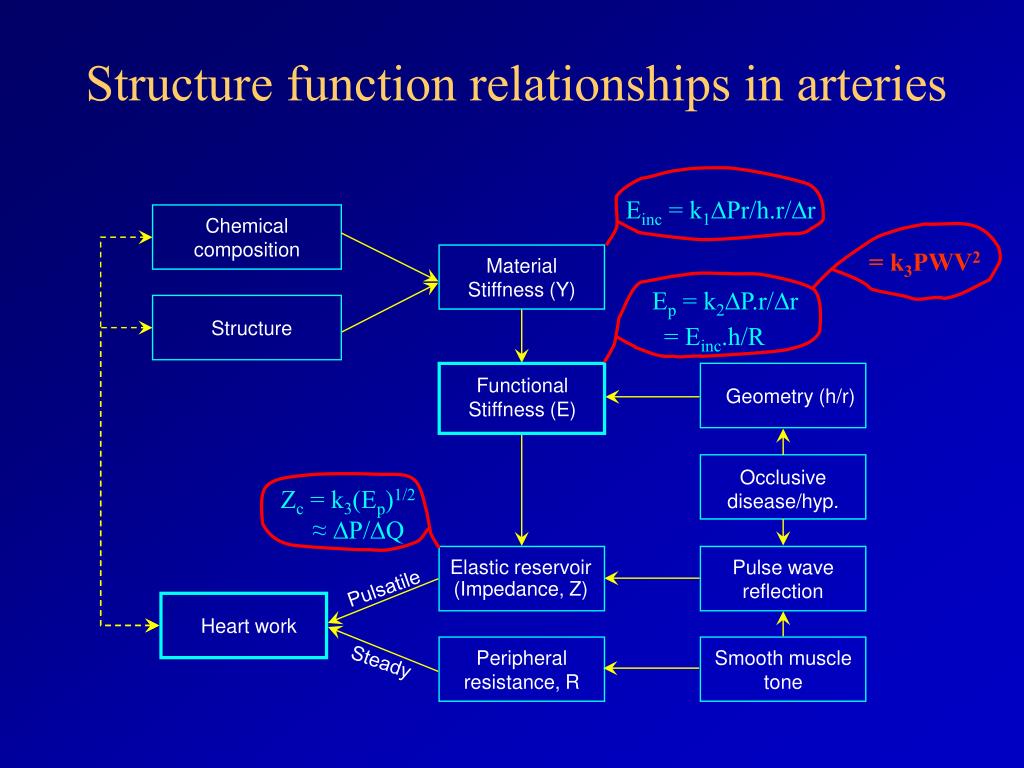

E inc = k 1 ∆Pr/h.r/∆r. = k 3 PWV 2. E p = k 2 ∆P.r/∆r. Functional Stiffness (E). Geometry (h/r). Occlusive disease/hyp. Z c = k 3 (E p ) 1/2 ≈ ∆P/∆Q. Pulse wave reflection. Elastic reservoir (Impedance, Z). Pulsatile. Peripheral resistance, R. Smooth muscle tone. Steady.

tomai
Télécharger la présentation

Structure function relationships in arteries

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Einc = k1∆Pr/h.r/∆r = k3PWV2 Ep = k2∆P.r/∆r Functional Stiffness (E) Geometry (h/r) Occlusive disease/hyp. Zc = k3(Ep)1/2 ≈ ∆P/∆Q Pulse wave reflection Elastic reservoir (Impedance, Z) Pulsatile Peripheral resistance, R Smooth muscle tone Steady Structure function relationships in arteries Chemical composition Material Stiffness (Y) = Einc.h/R Structure Heart work

  2. Changes in pressure waveform shape with age Safar, ME and Struijker-Boudier, Hypertension, 46, 205-209 (2005)

  3. As it moves away from the heart,the pressure wave changes shape

  4. Pulse pressure amplification and age Safar, ME and Laurent, S. Am.\J. Physiol, 285, H1363-H1369, 2003

  5. Why does the mean pressure drop so much in the arterioles? • Poiseuille’s law: resistance, (W) = kL/R4 = DP/Q • Assume • aortic radius = 15mm & length = 500mm • arteriolar radius = 7.5µm & length = 1mm • Radius ratio = 15000/7.5 = 2000 • Length ratio = 500/1 = 500 • Resistance ratio = (2000)4/500 = 3.2x1010 (aorta:arterioles) BUT • There are about 300 million (3x108) arterioles • Therefore their total resistance is one 300 millionth of the resistance of a single arteriole • Actual resistance ratio = 3.2x1010/3x108 ≈ 100

  6. Q Q Q = = aorta arterioles P x Q D = W aorta aorta P x Q D = W arterioles arterioles P D W arterioles arterioles 100 = ≈ P D W aorta aorta Arteriolar pressure drop (2) • Poiseuille’s law: resistance, (W) = kL/R4 = DP/Q †

  7. Capillary pressure drop • Capillaries have approx. same diam. as arterioles (but remember the glycocalyx) • There are approx. 3x109 capillaries so their combined resistance is about 1/10th of the arterioles • Venules are bigger than their arterioles and their resistance is approx 1/20th of the arterioles [1]. Westerhof, N., Stergiopulos, N. and Noble, M.I.M., Snapshots of Haemodynamics. An aid for clinical research and graduate education. 2005, New York: Springer.

  8. Aorta Venules Arterioles Small arts Large arts Capillaries Large veins 100 Summary Pressure [mmHg] 0 150 50000 Cross section area [mm2] Velocity [mm/s] 1 1000

  9. Body weight and mean arterial pressure Wolinsky, H. and Glagov, S. A lamellar unit of aortic medial structure and function in mammals. Circ. Res.:20;99-111. (1967)

  10. Red blood cell diameters From Altman, P.L. & Ditmer, P.S., Blood and other body fluids. Federation of American Societies for Exp. Biol. Washington (1961) Cited by Schmid-Neilsen, K. Scaling. CUP, (1984)

  11. approximately Why do most mammals have the same mean BP? • Little interspecies variation in the size of the mammalian red blood cell • Affinity between haemoglobin and oxygen • Diffusion coefficient of oxygen • Greater variation in the diameter of capillaries (≈ x2), but still small compared to the variation in mass (≈ x107). • Need to allow red blood cells access to the capillary wall

  12. Why do most mammals have the same mean BP? (2) • Little variation in the number of capillaries per unit volume of tissue • Depends on tissue function • and on diffusion constant of oxygen in tissue • Therefore little variation in muscular resistance vessels per unit volume • Therefore little variation in resistance of tissue per unit volume

  13. Why do most mammals have the same mean BP? (3) • Little variation of resistance per unit tissue volume, therefore total resistance k1/ V • Cardiac output µ volume = k2x V • Pressure = Cardiac output x total resistance = k2 V x k1/V = Constant

  14. Body weight and aortic pulse pressure Hypertension37, 313-21. (2001) Physiology & Behavior30, 719-22. (1983) Circulation101, 2097-102. (2000) Pflugers Archiv - European Journal of Physiology372, 95-9. (1977) J Appl Physiol88, 1537-44. (2000) Data book on mechanical properties of living cells, tissues and organs. Tokyo: Springer (1996)

  15. Why do most animals have approximately the samepulse pressure?

  16. Body weight and aortic functional stiffness (Strongly dependent on anatomical site, mean pressure, age, vascular disease) Ep ≈ kE.h/R W.W. Nichols and M.F. O'Rourke, McDonald's Blood Flow in Arteries (1998) Abé, H., Hayashi, K. & Sato, Data book on mechanical properties of living cells, tissues and organs. (1996)

  17. Structure Geometry Pulse pressure proportional to aortic stiffness ∆P = k1Ep = k2√E.h/R • E is determined by: • the elastic properties of elastin and collagen (& smooth muscle) • their relative amounts (assuming they bear stress in parallel) • In adulthood, arteries from a given location have constant ratio of elastin to collagen

  18. Vascular structure has to withstand relatively constant loads. • The lamellar unit has evolved to do this • Found in mammals, birds, reptiles and amphibians. • To make a bigger artery just add more lamellar units.

  19. Wolinsky H, Glagov S. Circulation Research 1967; 20: 99-111

  20. Wolinsky H, Glagov S. Circulation Research 1967; 20: 99-111

  21. Vascular structure has to withstand relatively constant loads. • The lamellar unit has evolved to do this • Found in mammals, birds, reptiles and amphibians. • To make a bigger artery just add more lamellar units.
