Presentation Transcript

  1. 寬頻無線網路 發展藍圖 A Blueprint of Broadband Wireless Networks 陳建國 Michael Chen 資策會 南區資訊處 高雄大學 95. 10. 11.

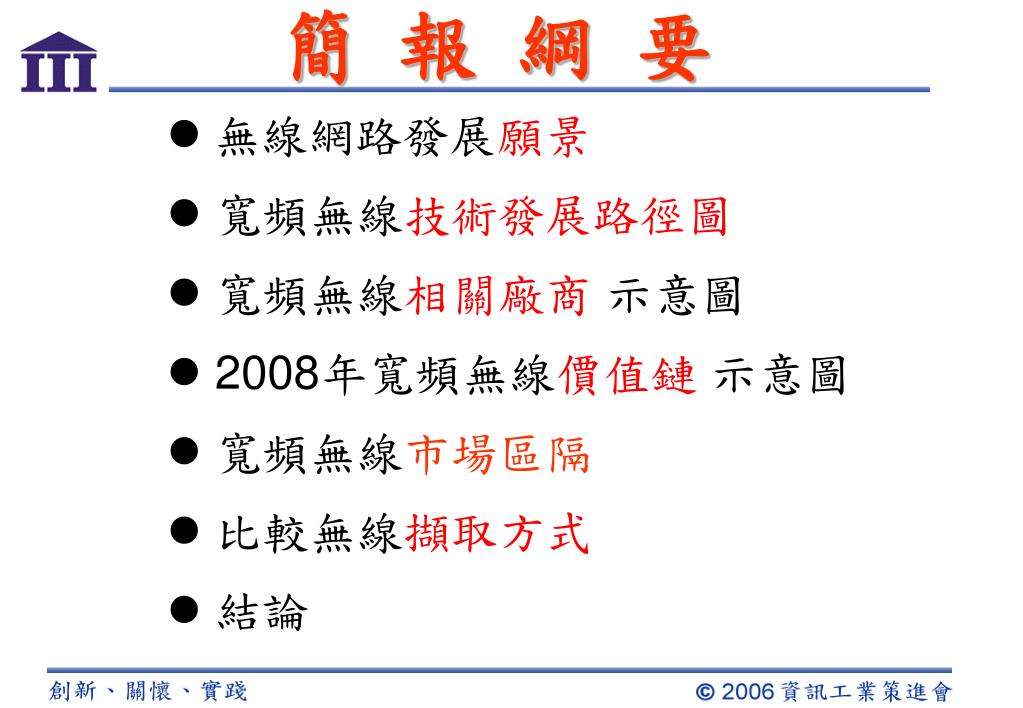

  2. 簡 報 綱 要 • 無線網路發展願景 • 寬頻無線技術發展路徑圖 • 寬頻無線相關廠商 示意圖 • 2008年寬頻無線價值鏈 示意圖 • 寬頻無線市場區隔 • 比較無線擷取方式 • 結論

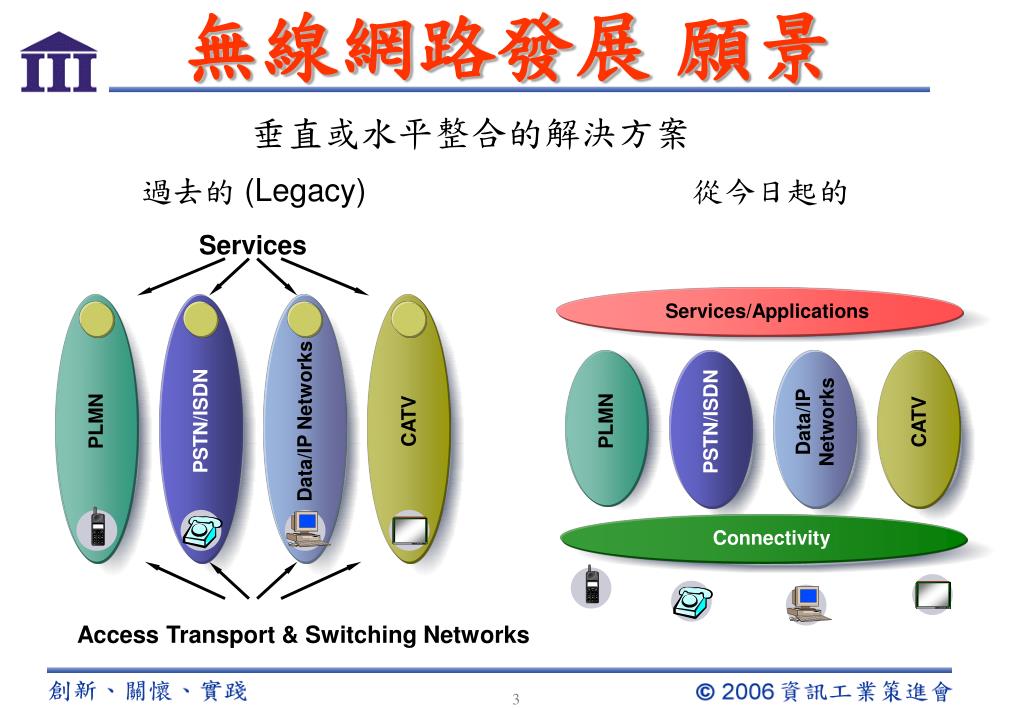

  3. 無線網路發展 願景 垂直或水平整合的解決方案 過去的 (Legacy) 從今日起的 Services Services/Applications CATV PLMN PSTN/ISDN PLMN Data/IP Networks Data/IPNetworks PSTN/ISDN CATV Connectivity Access Transport & Switching Networks

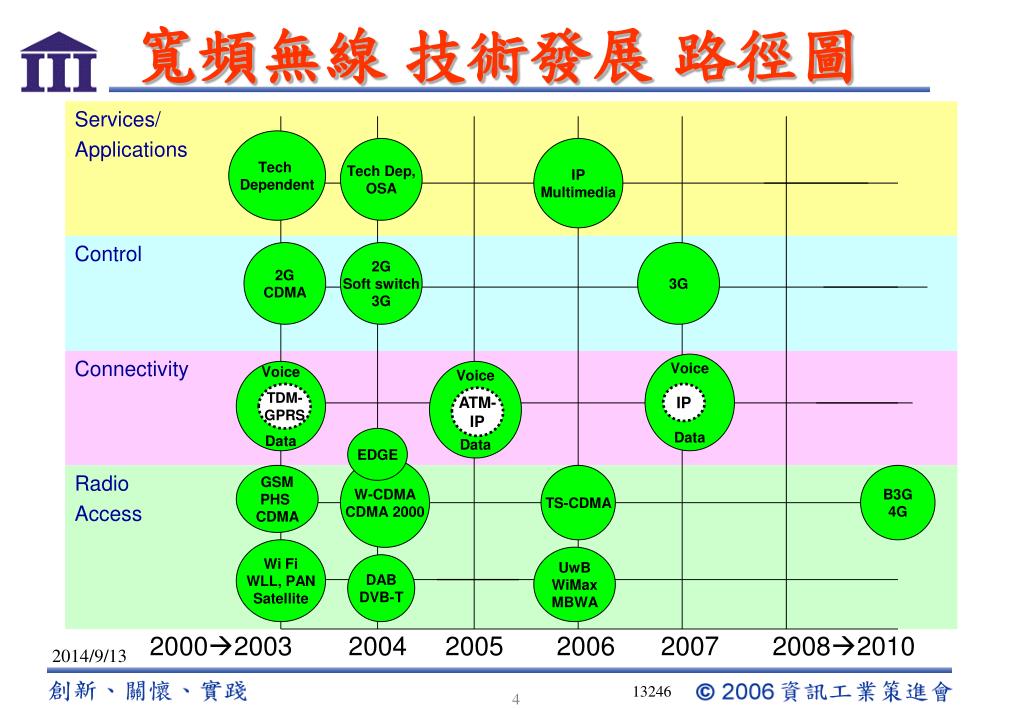

  4. 寬頻無線 技術發展 路徑圖 Tech Dependent Tech Dep, OSA IP Multimedia 2G CDMA 2G Soft switch 3G 3G Voice Data Voice Data Voice Data TDM- GPRS IP ATM- IP EDGE W-CDMA CDMA 2000 GSM PHS CDMA TS-CDMA B3G 4G Wi Fi WLL, PAN Satellite UwB WiMax MBWA DAB DVB-T 20002003 2004 2005 2006 2007 20082010 2014/9/13 13246

  5. 寬頻無線 相關廠商 路徑圖 Tech Dependent Tech Dep, OSA IP Multimedia Ericsson, Nokia Sun,Clearwire 遠傳, 台哥大 曜碩 2G CDMA 2G Soft switch 3G 3G 訊真 Ericsson, Nokia Nortel, Lucent 寬研 Voice Data Voice Data Voice Data TDM- GPRS ATM- IP IP EDGE W-CDMA CDMA 2000 GSM PHS CDMA TS-CDMA B3G 4G 大唐 大霸, 鴻海 威盛 Wi Fi WLL, PAN Satellite UwB WiMax MBWA DAB DVB-T Motorola, Intel, Aperto, Soma, Flarion 仁寶 義聯 20002003 20082010 2004 2005 2006 2007 2014/9/13 13246

  6. 2008年寬頻無線 價值鏈 示意圖 Internet Services Terminals/ Applications Service Network IMS OSA 3G Control IP Data & Voice/IP SDH/WDMLayer 1 Multimedia/IP MBWA WiMax Wi Fi WCDMA CDMA 2000 UwB DVB-T

  7. 寬頻無線價值鏈 傳送連結部份 Radio Access Connectivity Control Services Terminals and Applications

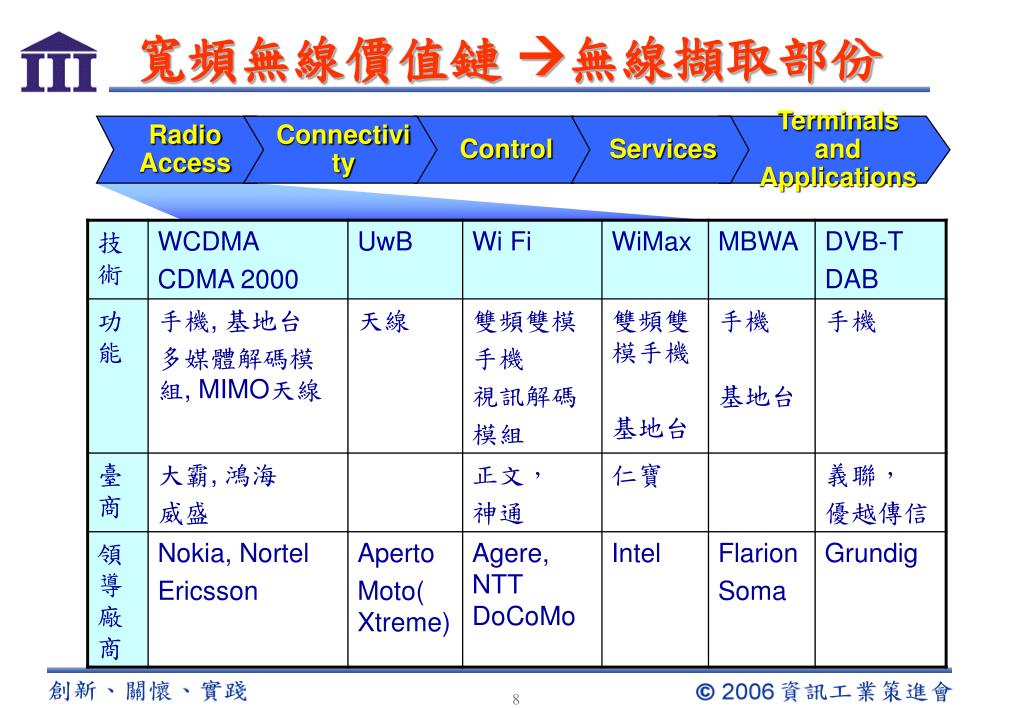

  8. 寬頻無線價值鏈 無線擷取部份 Radio Access Connectivity Control Services Terminals and Applications

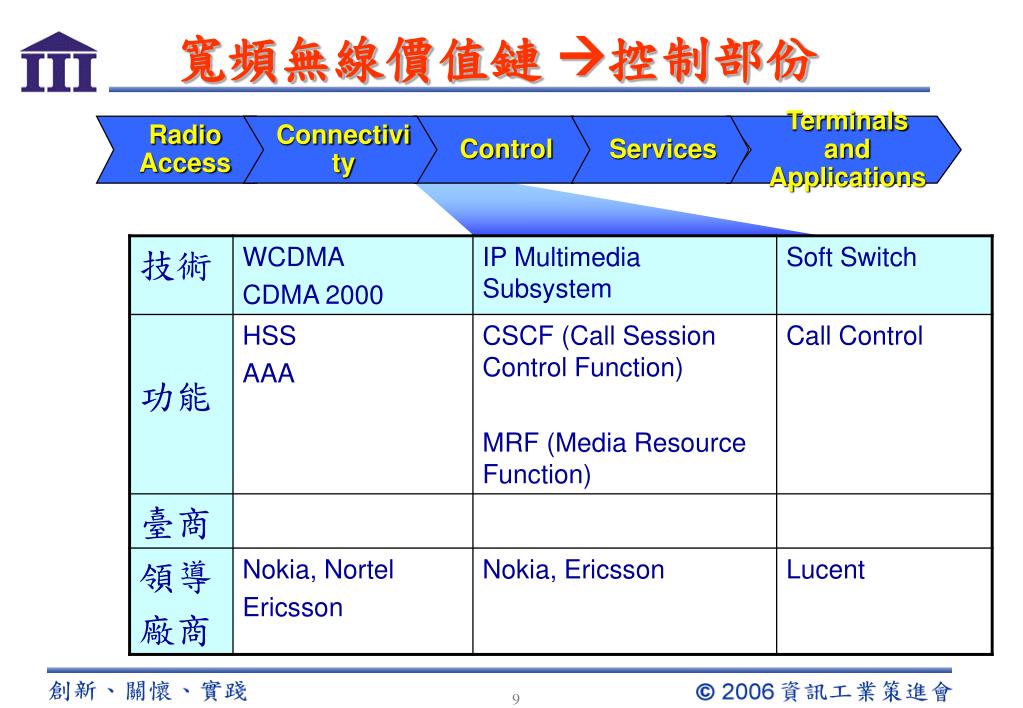

  9. 寬頻無線價值鏈 控制部份 Radio Access Connectivity Control Services Terminals and Applications

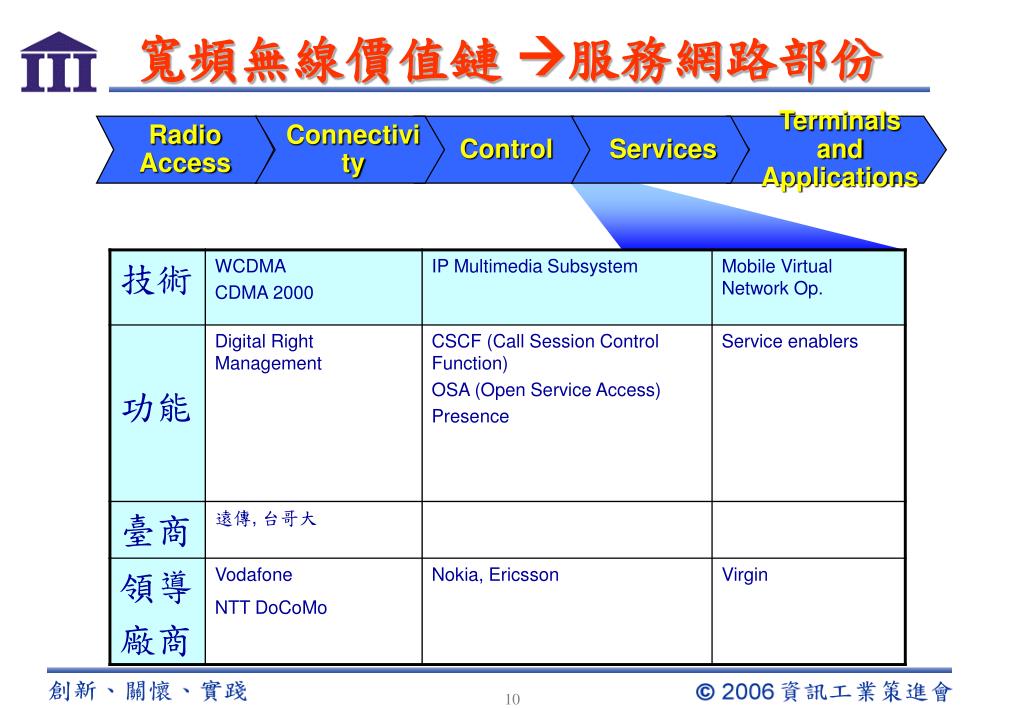

  10. 寬頻無線價值鏈 服務網路部份 Radio Access Connectivity Control Services Terminals and Applications

  11. 寬頻無線價值鏈 終端與應用部份 Radio Access Connectivity Control Services Terminals and Applications

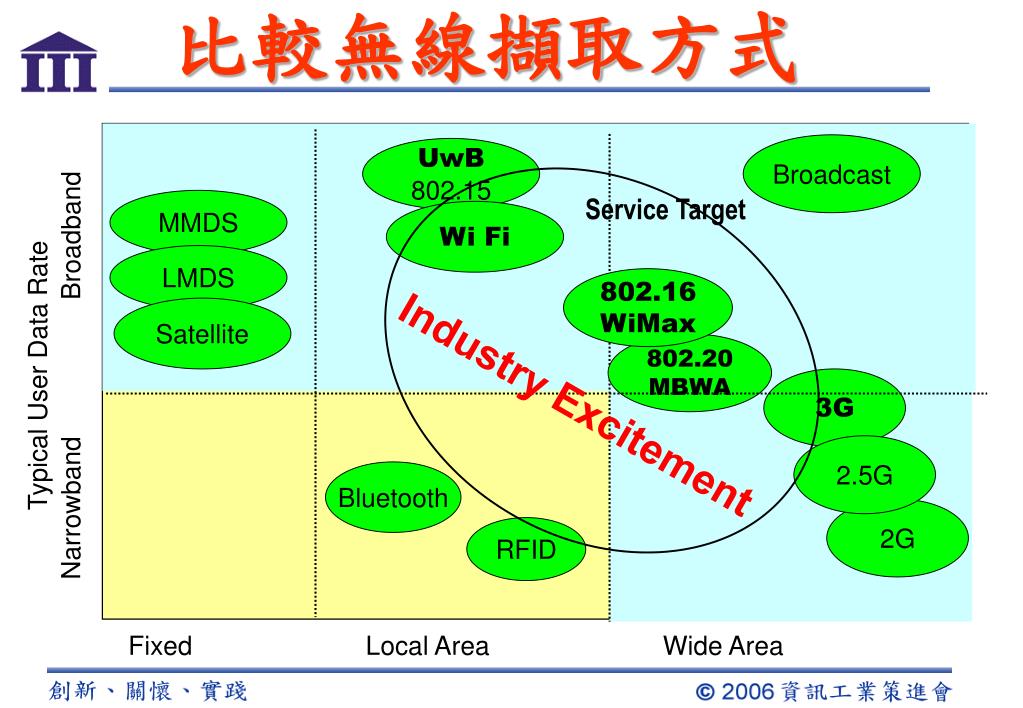

  12. 比較無線擷取方式 Typical User Data Rate Narrowband Broadband Broadcast UwB 802.15 Industry Excitement Service Target MMDS Wi Fi LMDS 802.16 WiMax Satellite 802.20 MBWA 3G 2.5G Bluetooth 2G RFID Fixed Local Area Wide Area

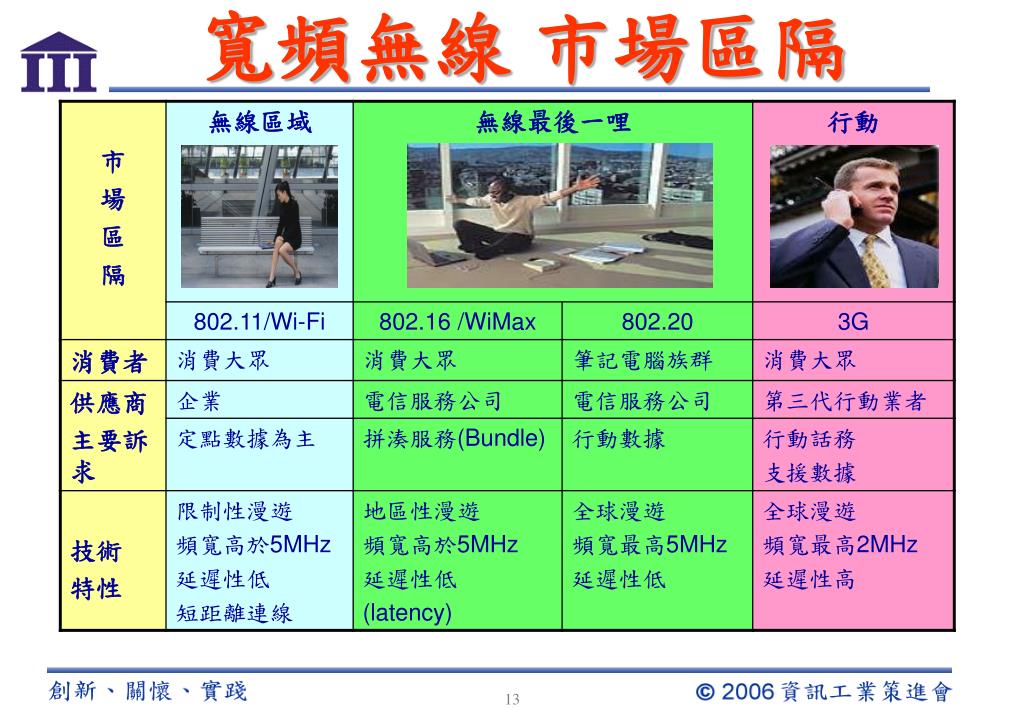

  13. 寬頻無線 市場區隔

  14. 結 論 寬頻無線網路發展藍圖 就是從 技術發展路徑圖(Roadmap) 與價值鏈(Value Chain) 之中 尋找開發新標的

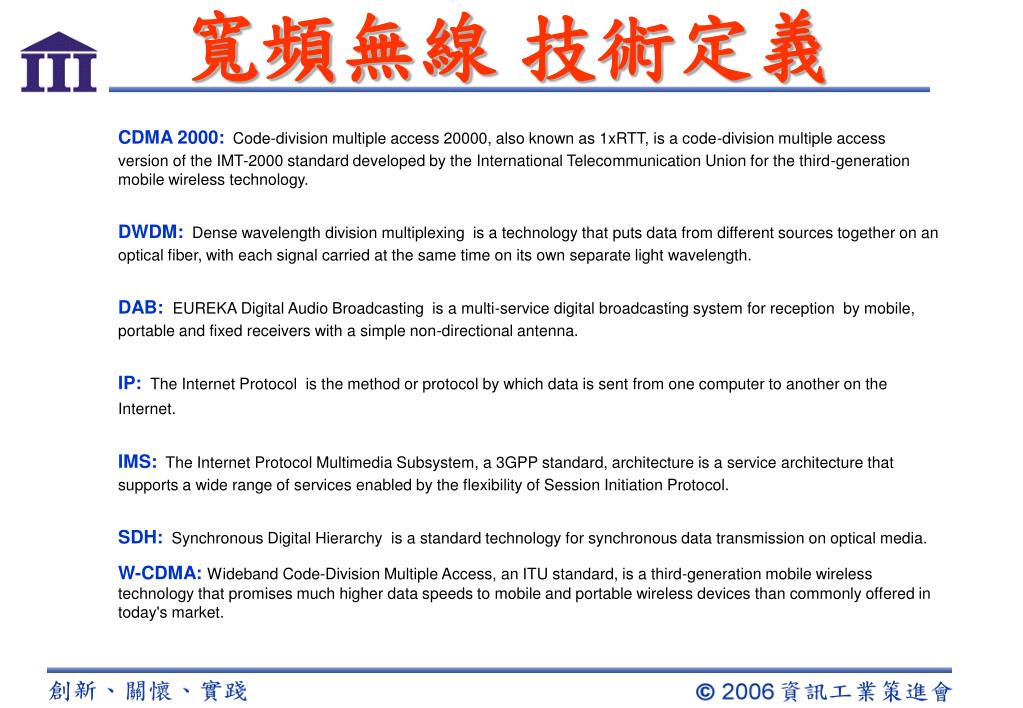

  15. 寬頻無線 技術定義 CDMA 2000:Code-division multiple access 20000, also known as 1xRTT, is a code-division multiple access version of the IMT-2000 standard developed by the International Telecommunication Union for the third-generation mobile wireless technology. DWDM:Dense wavelength division multiplexing is a technology that puts data from different sources together on an optical fiber, with each signal carried at the same time on its own separate light wavelength. DAB:EUREKA Digital Audio Broadcasting is a multi-service digital broadcasting system for reception by mobile, portable and fixed receivers with a simple non-directional antenna. IP:The Internet Protocol is the method or protocol by which data is sent from one computer to another on the Internet. IMS:The Internet Protocol Multimedia Subsystem, a 3GPP standard, architecture is a service architecture that supports a wide range of services enabled by the flexibility of Session Initiation Protocol. SDH:Synchronous Digital Hierarchy is a standard technology for synchronous data transmission on optical media. W-CDMA:Wideband Code-Division Multiple Access, an ITU standard, is a third-generation mobile wireless technology that promises much higher data speeds to mobile and portable wireless devices than commonly offered in today's market.

  16. 參考資料 張嘉祥，“通訊軟體關鍵技術開發五年計畫” ，資訊工業策進會， 93.6.16. 柯獻堂，”寬頻暨無線通訊產業發展推動計畫 -- 委辦資策會計畫”，經濟部工業局，93.3.19. “The IEEE 802.16 Wireless MAN Standard for Broadband Wireless Metropolitan Area Networks,” Roger B. Marks, IEEE, 2003. Wireless Metropolitan Area Networks, http://wirelessman.org WiMax Forum, http://www.wimaxforum.org IEEE 802.20 (MBWA), http://grouper.ieee.org/groups/802/20/ Ultra wide band Working Group, http://www.uwb.org/about/about.html 3GPP, http://www.3gpp.org/
