1 / 12

CH 11

CH 11. PARAMETRIC EQUATIONS AND POLAR COORDINATES 參數方程式與極座標. 學習內容. 參數曲線. 11.2 Parametric Curves 11.3 Polar Coordinates. 極座標. 11.2. Parametric Curves 參數曲線. 學習重點. 知道函數的極座標表示法 會求極座標之曲線的切線斜率. 直角座標與極座標. P 點的直角座標與 P 點的極座標. P 點的直角座標 = ( x, y ) P 點的極座標 = ( r , θ). ‧. 極座標曲線之導函數.

topper
Télécharger la présentation

CH 11

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

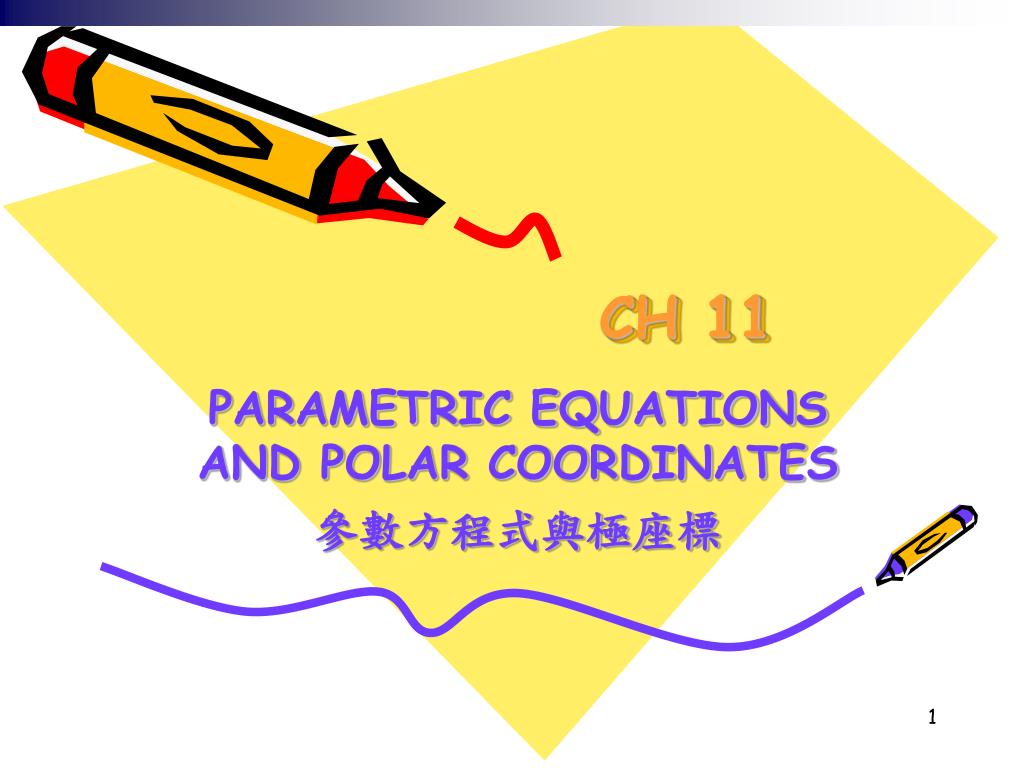

  1. CH 11 PARAMETRIC EQUATIONS AND POLAR COORDINATES 參數方程式與極座標

  2. 學習內容 參數曲線 • 11.2 Parametric Curves • 11.3 Polar Coordinates 極座標

  3. 11.2 Parametric Curves 參數曲線

  4. 學習重點 • 知道函數的極座標表示法 • 會求極座標之曲線的切線斜率

  5. 直角座標與極座標

  6. P點的直角座標與P點的極座標 • P點的直角座標 = (x, y) • P點的極座標 = (r, θ) ‧

  7. 極座標曲線之導函數 • a polar curve r = f (θ) x =r cosθ = f (θ) cosθ y =r sinθ = f (θ) sinθ

  8. Example 9 (a) For the cardioid r =f (θ) = 1 + sinθ, find the slope of the tangent line whenθ = π/3.

  9. θ=π/3 θ θ θ θ

  10. Example 9 (b) Find the points on the cardioid where the tangent line is horizontal or vertical. Horizontal tangent Vertical tangent

  11. horizontal tangents at the points • (2, π/2), (½, 7π/6), (½, 11π/6) • vertical tangents at at the points • (3/2, π/6), (3/2, 5π/6)

  12. Q1 Find the slope of the tangent line to the curve r=1/θ at θ=π. (a) (b) (c) (d)
