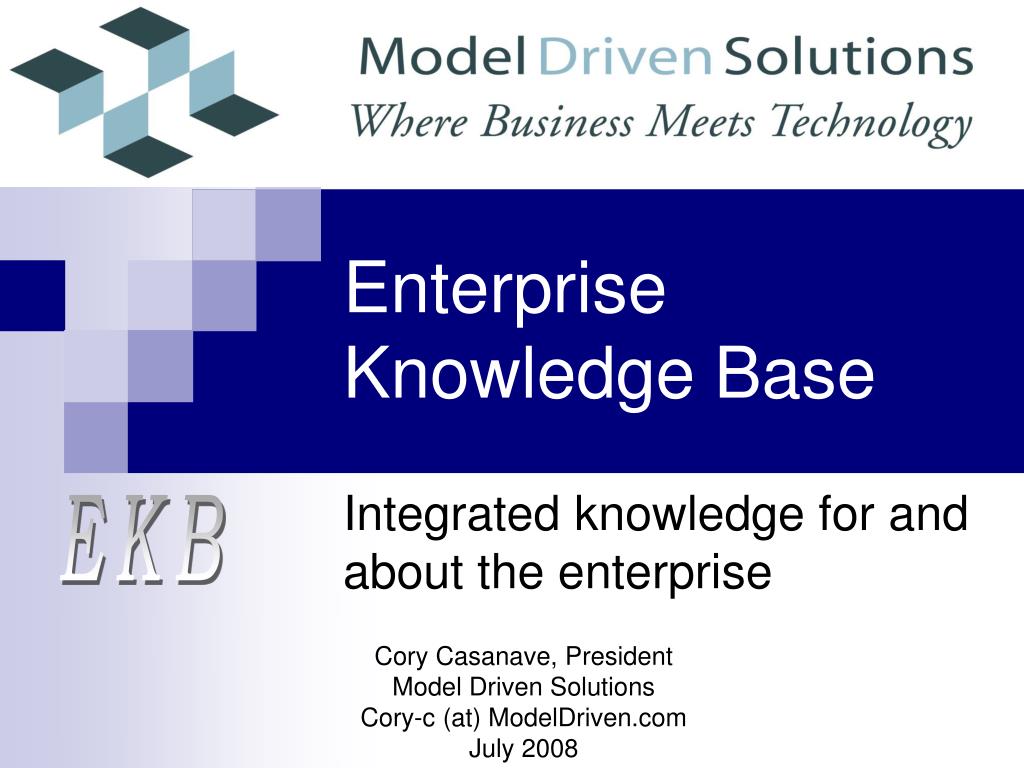

  1. Enterprise Knowledge Base Integrated knowledge for and about the enterprise EKB Cory Casanave, President Model Driven Solutions Cory-c (at) ModelDriven.com July 2008

  2. EKB Goals • Management, Integration & Analysis of Enterprise Architectural, Systems, Metadata and Governance Information • Authored and managed by multiple authorities • Using different tools, models, diagrams, standards, paradigms and formats • Presented in user-friendly views appropriate to the role and task • Provisioned to tools & technologies for execution • Federated across the Enterprise, Government and Supply Chain

  3. MDA Terms Computation Independent Model Platform Independent Model Refinement & Automation Line-Of-Sight Platform Specific Model Business Focused Architected Solutions Business Concerns Goals Policy Customers Costs Agility Business Architecture Enterprise Services (e-SOA) Roles, Collaborations & Interactions Business Process & Information Logical Systems Architecture Technology Services (t-SOA), Components, Process Execution Interfaces, Messages & Data Technology Specification JMS, JEE, Web Services WSDL, BPEL, XML Schema

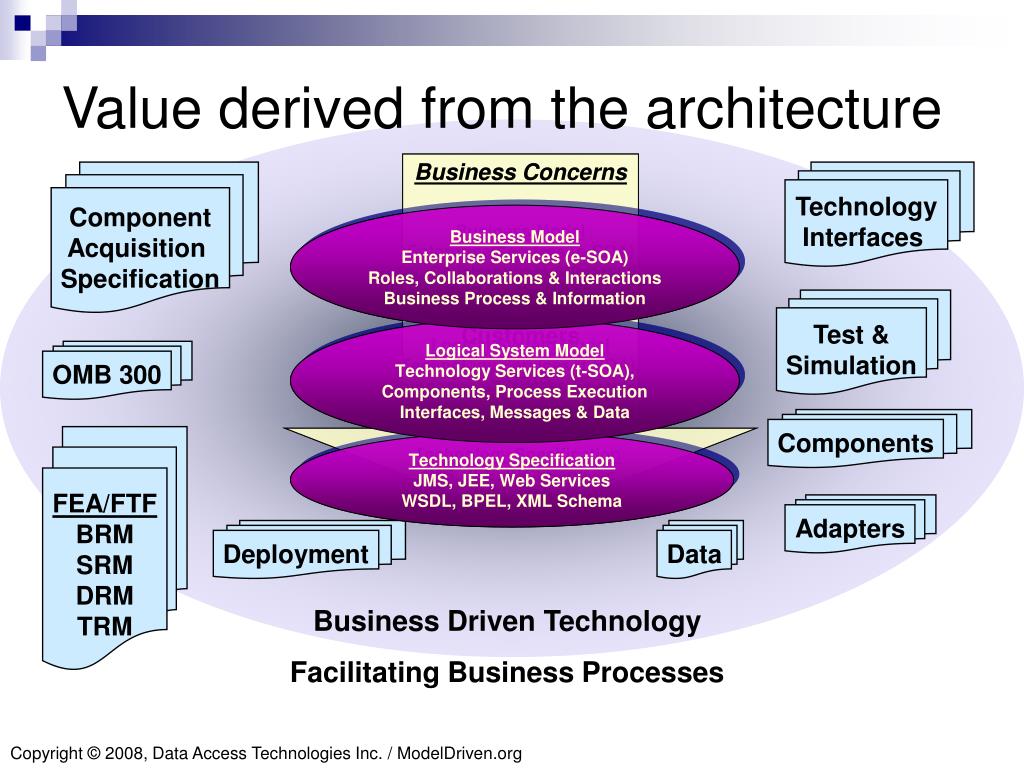

  4. Value derived from the architecture Component Acquisition Specification Technology Interfaces Test & Simulation OMB 300 Components FEA/FTF BRM SRM DRM TRM Adapters Deployment Data Business Driven Technology Facilitating Business Processes

  5. There is no one enterprise view! • What is King? • Information & Data • Services (SOA) • Process (BPM) • Finances • Rules • Goals • Governance • Systems Design • Organizational Structure Yes Every one, and more, are part of the Enterprise and Systems Architectures But none of them can stand alone A solution must integrate information, while providing the view of that information appropriate to each stakeholder

  6. The “Meta Muddle” • There are hundreds of “meta models”, tools, diagrams and exchange formats, all associated with our business architectures, solution architectures and systems implementations. • These are “stovepiped”, and not designed to work together. • Users struggle to keep different views of the same thing and related things coherent and consistent • The result is an error prone, expensive and ineffective process for managing our information assets and system implementations. • Business and systems goals and requirements are not integrated and thus not fully realized. • Information defined in a “foreign” format, tool or methodology is frequently lost, inconsistent or manually synchronized. • Each new standard or proprietary product is just another stovepipe. • Different contractors and technologies introduce more of the same, or proprietary ways to integrate information that attempt to lock the enterprise into a single vendor’s solution.

  7. EKB Approach

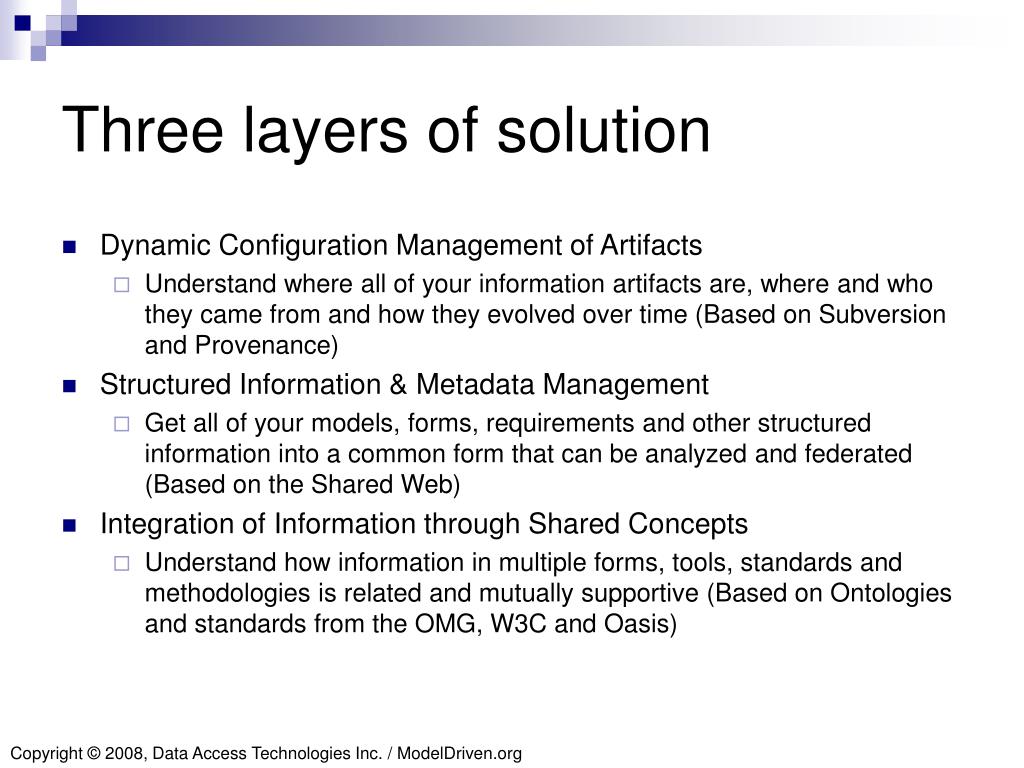

  8. Three layers of solution • Dynamic Configuration Management of Artifacts • Understand where all of your information artifacts are, where and who they came from and how they evolved over time (Based on Subversion and Provenance) • Structured Information & Metadata Management • Get all of your models, forms, requirements and other structured information into a common form that can be analyzed and federated (Based on the Shared Web) • Integration of Information through Shared Concepts • Understand how information in multiple forms, tools, standards and methodologies is related and mutually supportive (Based on Ontologies and standards from the OMG, W3C and Oasis)

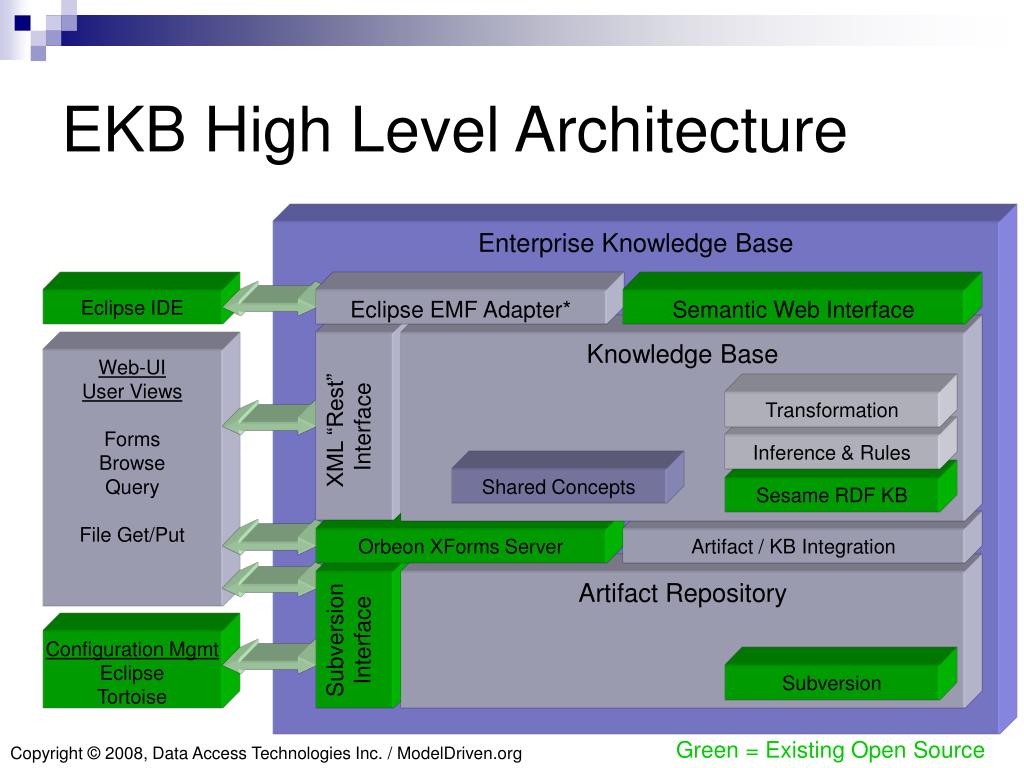

  9. EKB High Level Architecture Enterprise Knowledge Base Eclipse IDE Eclipse EMF Adapter* Semantic Web Interface Knowledge Base Web-UI User Views Forms Browse Query File Get/Put XML “Rest” Interface Transformation Inference & Rules Shared Concepts Sesame RDF KB Orbeon XForms Server Artifact / KB Integration Artifact Repository Subversion Interface Configuration Mgmt Eclipse Tortoise Subversion Green = Existing Open Source

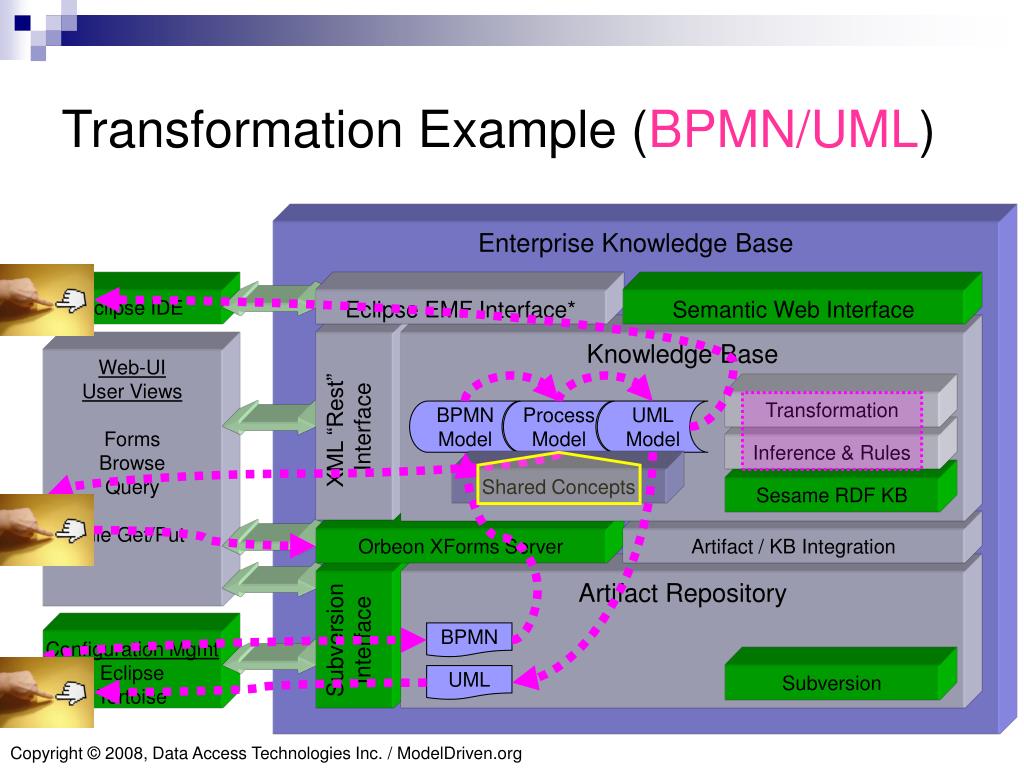

  10. Transformation Example (BPMN/UML) Enterprise Knowledge Base Eclipse IDE Eclipse EMF Interface* Semantic Web Interface Knowledge Base Web-UI User Views Forms Browse Query File Get/Put XML “Rest” Interface Transformation BPMN Model Process Model UML Model Inference & Rules Shared Concepts Sesame RDF KB Orbeon XForms Server Artifact / KB Integration Artifact Repository Subversion Interface BPMN Configuration Mgmt Eclipse Tortoise UML Subversion

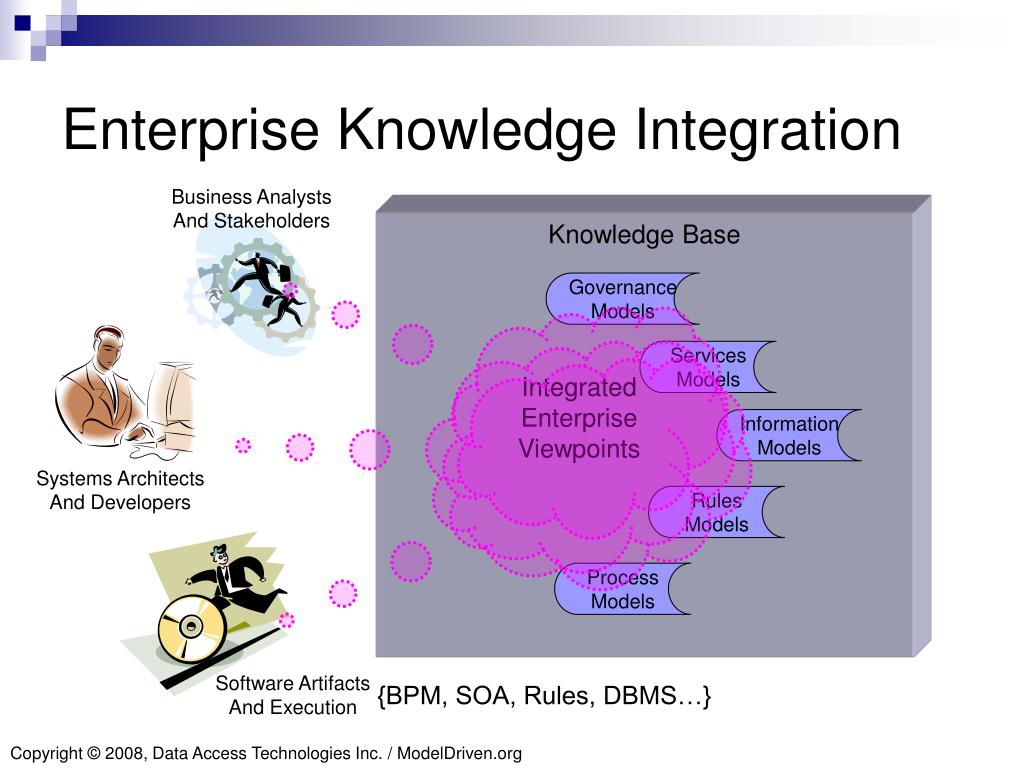

  11. Enterprise Knowledge Integration Business Analysts And Stakeholders Knowledge Base Governance Models Integrated Enterprise Viewpoints Services Models Information Models Systems Architects And Developers Rules Models Process Models Software Artifacts And Execution {BPM, SOA, Rules, DBMS…}

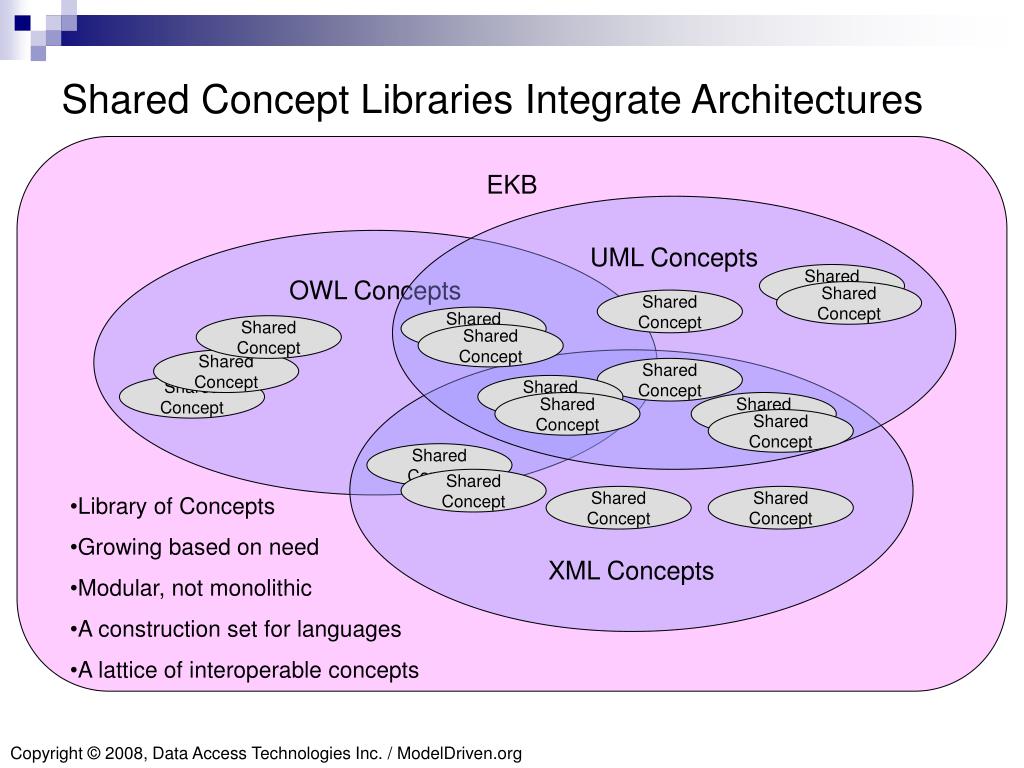

  12. Shared Concept Libraries Integrate Architectures EKB UML Concepts OWL Concepts Shared Concept Shared Concept Shared Concept Shared Concept Shared Concept Shared Concept Shared Concept XML Concepts Shared Concept Shared Concept Shared Concept Shared Concept Shared Concept Shared Concept Shared Concept Shared Concept • Library of Concepts • Growing based on need • Modular, not monolithic • A construction set for languages • A lattice of interoperable concepts Shared Concept Shared Concept

  13. Provision Web Services Documentation Workflow Legacy Java/J2EE BPEL “Views” of Integrated Information Ontologies UML FEA EKB DoDAF Projection Projection Requirements BPMN Shared Concepts XML EDOC OWL SQL E/R Models Security * Conceptual - Not all of these models are implemented!

  14. Managing Change & Provenance Knowledge Base A managed set of information, I.E. “A process kodel” • Enterprise knowledge must be trusted and managed. • The source and authority of each fact in the knowledge base is traceable to the “speech act” of some individual at a particular time. What is stated by a particular authority at a particular time with respect to a particular data resource Data Asset Speech Act Version Speech Act Version Speech Act Version Speech Act Version Speech Act Version A view of the data resource at a particular point in time informed by a authorized set of speech acts “Head” version – is up to date

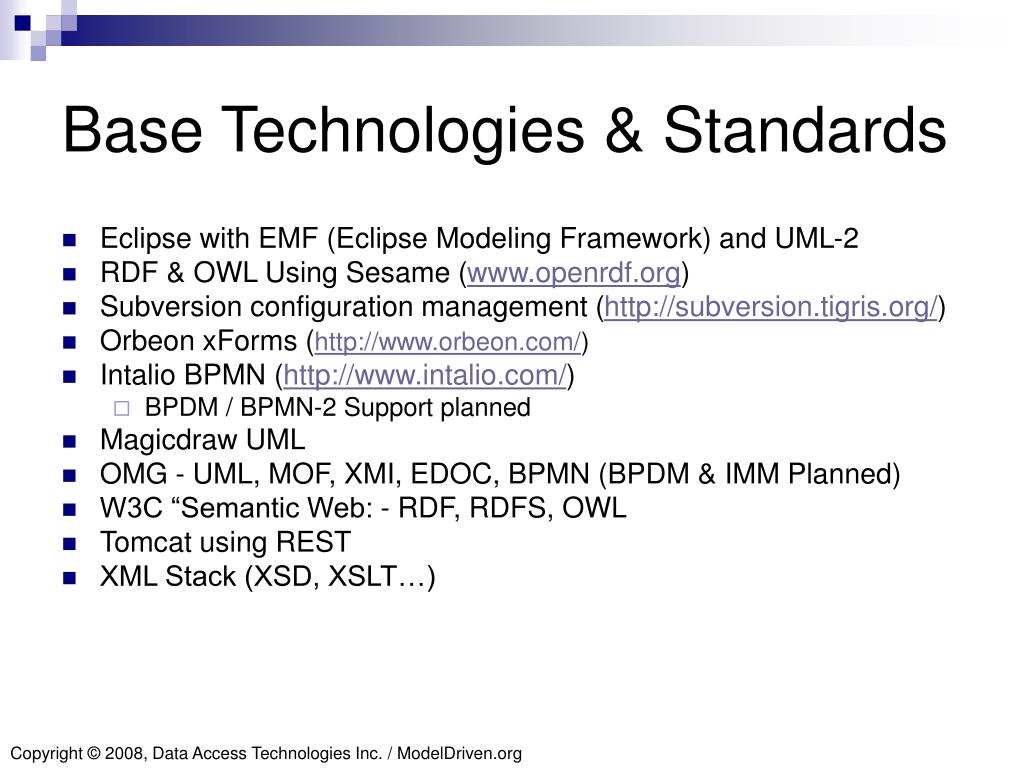

  15. Base Technologies & Standards • Eclipse with EMF (Eclipse Modeling Framework) and UML-2 • RDF & OWL Using Sesame (www.openrdf.org) • Subversion configuration management (http://subversion.tigris.org/) • Orbeon xForms (http://www.orbeon.com/) • Intalio BPMN (http://www.intalio.com/) • BPDM / BPMN-2 Support planned • Magicdraw UML • OMG - UML, MOF, XMI, EDOC, BPMN (BPDM & IMM Planned) • W3C “Semantic Web: - RDF, RDFS, OWL • Tomcat using REST • XML Stack (XSD, XSLT…)

  16. Licensing • The EKB is an open source project • https://sourceforge.net/projects/enterpisekb • Not announced yet • Licensed as “GPL” • Free for open source and internal use • Licensed for commercial use • Initially funded as part of a U.S. Government project of the G.S.A (osera.gov) • Planned as commercial open source under ModelDriven.org

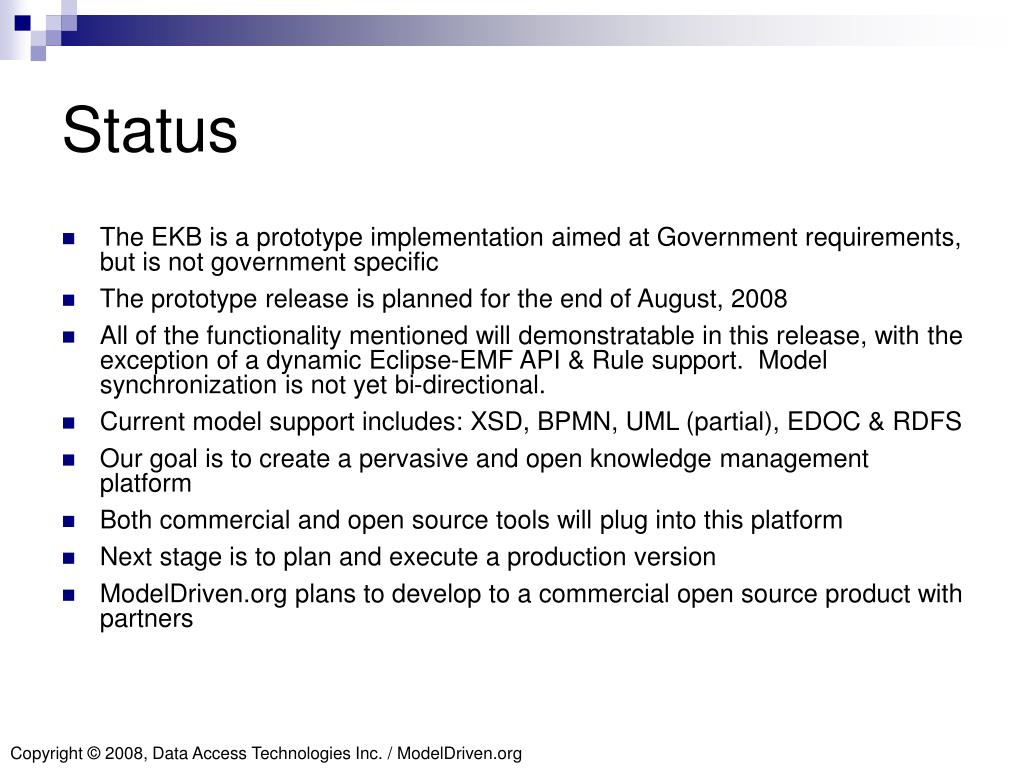

  17. Status • The EKB is a prototype implementation aimed at Government requirements, but is not government specific • The prototype release is planned for the end of August, 2008 • All of the functionality mentioned will demonstratable in this release, with the exception of a dynamic Eclipse-EMF API & Rule support. Model synchronization is not yet bi-directional. • Current model support includes: XSD, BPMN, UML (partial), EDOC & RDFS • Our goal is to create a pervasive and open knowledge management platform • Both commercial and open source tools will plug into this platform • Next stage is to plan and execute a production version • ModelDriven.org plans to develop to a commercial open source product with partners

  18. Opportunities • Enable better integration of architectural and governance information for our enterprise customers • Open and pervasive governance and metadata platform throughout the government and large organizations • Enabling communities and virtual organizations • SOA & BPM Governance • Better execution of architecture and implementation projects • Products and services that leverage and build on the core repository capabilities • Solve our own problems with multiple tools, standards and methodologies.

  19. EKB Demo • DRM (Data Reference Model) View • Configuration Management UI • SVN Integration / Artifact versions & Provenance • Model/Configuration management integration • Model Transformation (Not fully integrated yet)

  20. Support slides

  21. Ways To Specify Things UML Joint Behavior Part Of Shared Core XML Describes Describes Describes Library of common concepts Can grow over time Integration Via Semantic Hubs Dis-Integrated Information Is Mapped Shared Concepts Semantic Hub Concepts We Specify Part Of Buy Monetary Trade Reference Ontologies Purchase Mapping is not “one-one”

  22. EKB Layers SOAEDOC SOA-Pro Process BPMN UML Information ERD UML OWL Rules SBVR SWRL FEA DRM BRM SRM Governance EKB (Enterprise Knowledge Base) Asset Categorization, Provenance, Dependencies (OWL) Articles About Anything (RDF) Shared Concept Hubs (OWL Ontologies) Mapping Facility Shared Metadata Concepts Ontology of Architecture Governance Business concepts AssetManagement Concepts View specific User Interface Views Extended Knowledge Analysis Plug-ins Query XML Import/ Export Technology Provisioning Artifact Management / Configuration Management (Subversion)
