  1. The Platforms enabling Wireless Sensor Networks Hill, Horton, Kling, Krishnamurthy CACM, June 2004

  2. Goals • Explore the different sensor network platforms (4) • Since these devices often work together in the real world, also explore their architectural similarities and core differences • Recent progress in hardware and possible future capabilities

  3. Platform Classes • Not all nodes are the same! • Tiered architecture. • Consider an example: Advanced Security system. Includes: • Simple battery powered sensors for motion, window breakage etc. • Advanced sensors like cameras, acoustic, chemical sensors

  4. Platform classes • Simple sensors have a specific function and require long term battery operation • Also – minimal processing and bandwidth requirements • Complex Acoustic, Video etc require more computation and communication resources • Often also require to be ‘plugged’ in

  5. Platform classes • A third sensor class is “Mini-Motes” • Low cost security tags for asset management, personnel tracking etc • Highly integrated and very inexpensive • ‘Smart-dust’ • Finally – One or more endpoints containing database or aggregation capabilities – Gateway nodes

  6. Hierarchical deployment of platforms

  7. Operating characteristics of the node classes

  8. Examples • Asset tags – Spec node (Berkley) • General class sensing – Berkley motes (Mica2) • High bandwidth sensing- iMote (Intel) • Gateway – Stargate platform (Intel, Crossbow)

  9. Architectural Differences • A lot of similarity between the four classes despite significant capability differences • This is because of the requirement that Network support is seamless and self configuring • Core differences come from optimizations in power for certain classes of

  10. Architectural Differences • Major difference between sensors and more traditional computers/PDA’s is the emphasis on power management • To manage power efficiently, each subsystem is powered individually • TinyOS controls activity and power state of various subsytems.

  11. Architectural Differences • Sensor platforms give applications direct, fine grained control over the hardware • Traditional stacks inefficient • 3 pronged approach: - General purpose component framework that eliminates layering - Hardware func exposed to applications/middleware - Virtualization/ Abstraction to write sensor applications

  12. Architectural Differences

  13. Platform Roadmap • Hardware Progression – Moore’s law insures increase in performance for a given power budget. Mica2 is 8 times more memory, bandwidth than its predecessor Rene for same cost • New CMOS radios for low data rates, and using low power

  14. Platform Roadmap • Software and Interface standards • 802.15.4 determines what radio hardware to use • Zigbee determines the content of messages

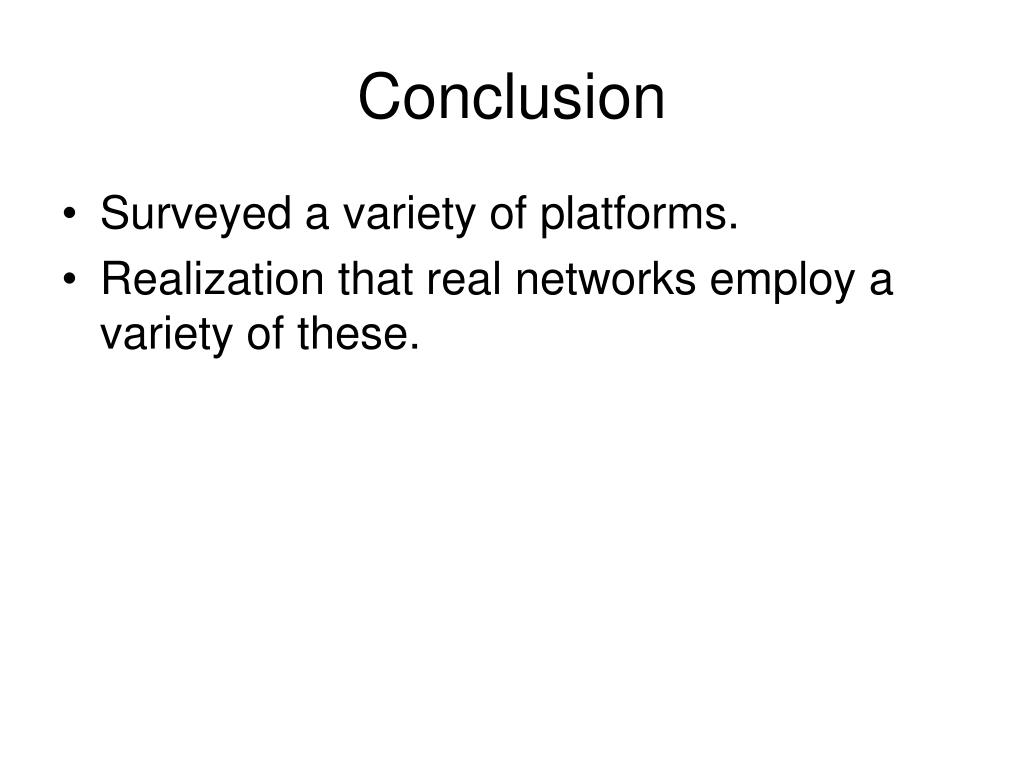

  15. Conclusion • Surveyed a variety of platforms. • Realization that real networks employ a variety of these.
