  1. Find A Homolog in Protein Structure Database ? Homology Modeling YES Secondary Structure Prediction NO

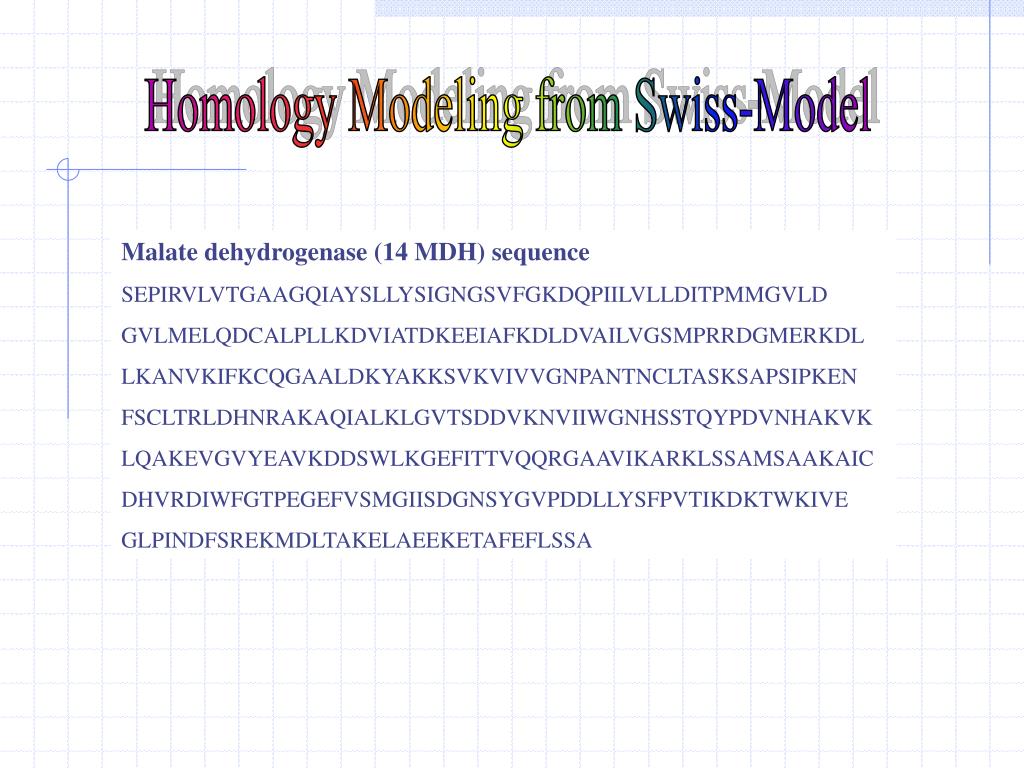

  2. Homology Modeling from Swiss-Model Malate dehydrogenase (14 MDH) sequence SEPIRVLVTGAAGQIAYSLLYSIGNGSVFGKDQPIILVLLDITPMMGVLD GVLMELQDCALPLLKDVIATDKEEIAFKDLDVAILVGSMPRRDGMERKDL LKANVKIFKCQGAALDKYAKKSVKVIVVGNPANTNCLTASKSAPSIPKEN FSCLTRLDHNRAKAQIALKLGVTSDDVKNVIIWGNHSSTQYPDVNHAKVK LQAKEVGVYEAVKDDSWLKGEFITTVQQRGAAVIKARKLSSAMSAAKAIC DHVRDIWFGTPEGEFVSMGIISDGNSYGVPDDLLYSFPVTIKDKTWKIVE GLPINDFSREKMDLTAKELAEEKETAFEFLSSA

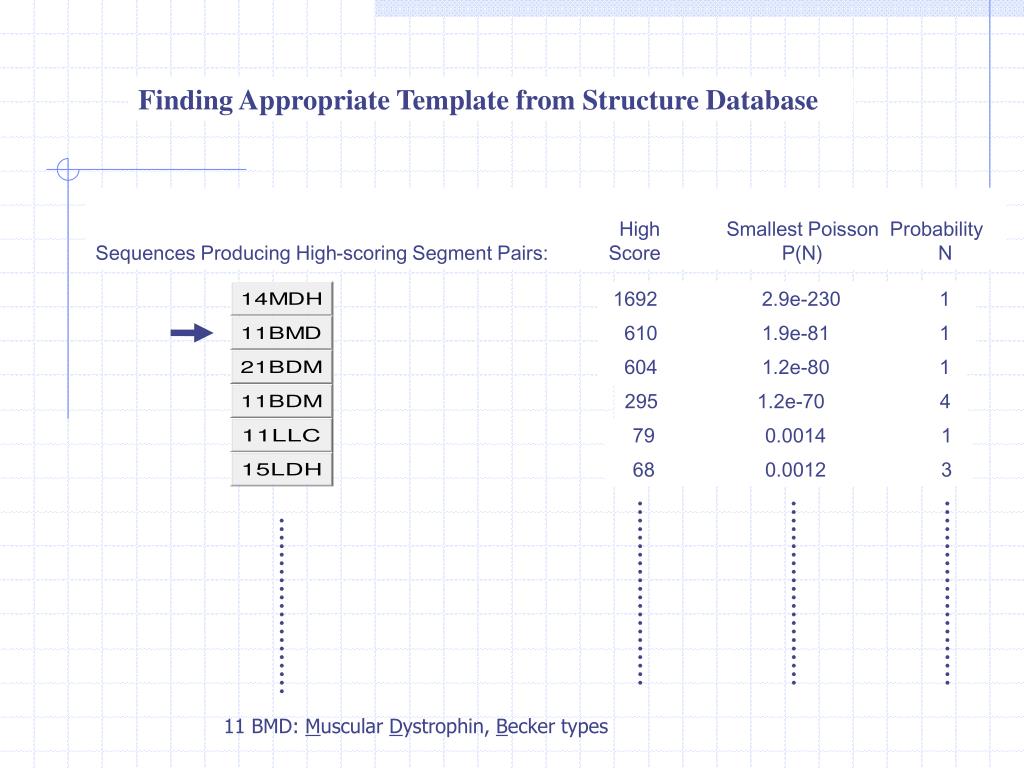

  3. Finding Appropriate Template from Structure Database High Smallest Poisson Probability Sequences Producing High-scoring Segment Pairs: Score P(N) N 1692 2.9e-230 1 610 1.9e-81 1 604 1.2e-80 1 295 1.2e-70 4 79 0.0014 1 68 0.0012 3 11 BMD: Muscular Dystrophin, Becker types

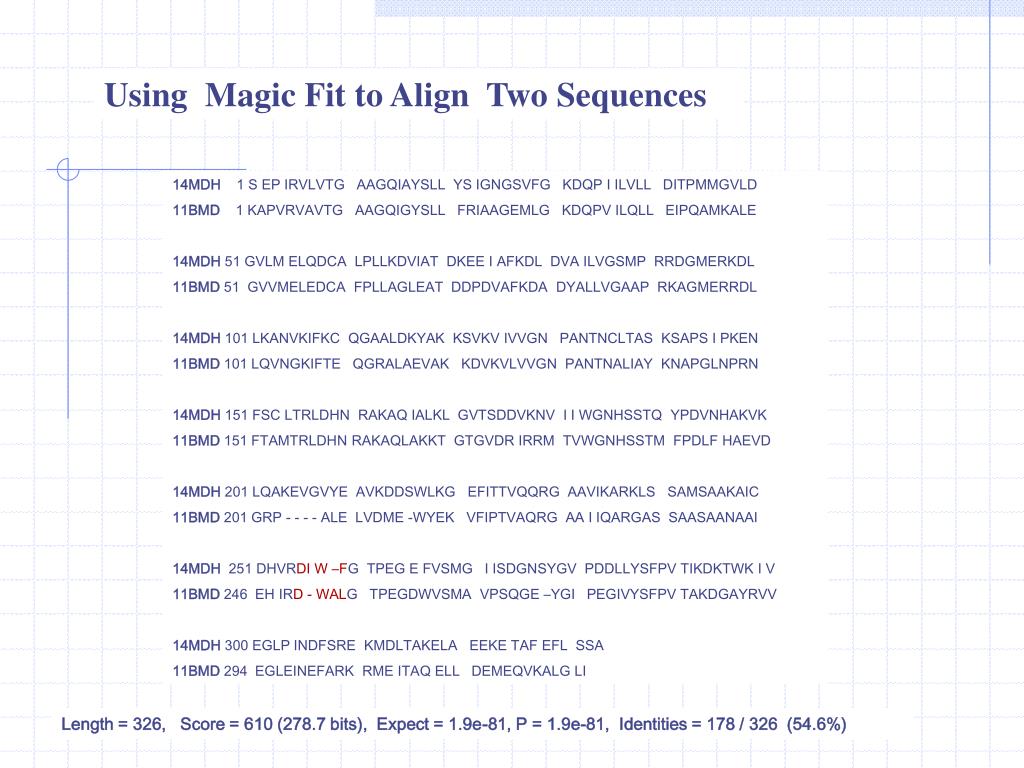

  4. Using Magic Fit to Align Two Sequences 14MDH 1 S EP IRVLVTG AAGQIAYSLL YS IGNGSVFG KDQP I ILVLL DITPMMGVLD 11BMD 1 KAPVRVAVTG AAGQIGYSLL FRIAAGEMLG KDQPV ILQLL EIPQAMKALE 14MDH 51 GVLM ELQDCA LPLLKDVIAT DKEE I AFKDL DVA ILVGSMP RRDGMERKDL 11BMD 51 GVVMELEDCA FPLLAGLEAT DDPDVAFKDA DYALLVGAAP RKAGMERRDL 14MDH 101 LKANVKIFKC QGAALDKYAK KSVKV IVVGN PANTNCLTAS KSAPS I PKEN 11BMD 101 LQVNGKIFTE QGRALAEVAK KDVKVLVVGN PANTNALIAY KNAPGLNPRN 14MDH 151 FSC LTRLDHN RAKAQ IALKL GVTSDDVKNV I I WGNHSSTQ YPDVNHAKVK 11BMD 151 FTAMTRLDHN RAKAQLAKKT GTGVDR IRRM TVWGNHSSTM FPDLF HAEVD 14MDH 201 LQAKEVGVYE AVKDDSWLKG EFITTVQQRG AAVIKARKLS SAMSAAKAIC 11BMD 201 GRP - - - - ALE LVDME -WYEK VFIPTVAQRG AA I IQARGAS SAASAANAAI 14MDH 251 DHVRDI W –FG TPEG E FVSMG I ISDGNSYGV PDDLLYSFPV TIKDKTWK I V 11BMD 246 EH IRD - WALG TPEGDWVSMA VPSQGE –YGI PEGIVYSFPV TAKDGAYRVV 14MDH 300 EGLP INDFSRE KMDLTAKELA EEKE TAF EFL SSA 11BMD 294 EGLEINEFARK RME ITAQ ELL DEMEQVKALG LI Length = 326, Score = 610 (278.7 bits), Expect = 1.9e-81, P = 1.9e-81, Identities = 178 / 326 (54.6%)

  5. Modifying Sequence Alignment 14MDH 1 S EPIRVLVTG AAGQIAYSLL YS IGNGSVFG KDQPI ILVLL DITPMMGVLD 11BMD 1 KAPVRVAVTG AAGQIGYSLL FRIAAGEMLG KDQPV ILQLL EIPQAMKALE 14MDH 51 GVLM ELQDCA LPLLKDVIAT DKEE I AFKDL DVA ILVGSMP RRDGMERKDL 11BMD 51 GVVMELEDCA FPLLAGLEAT DDPDVAFKDA DYALLVGAAP RKAGMERRDL 14MDH 101 LKANVKIFKC QGAALDKYAK KSVKV IVVGN PANTNCLTAS KSAPSI PKEN 11BMD 101 LQVNGKIFTE QGRALAEVAK KDVKVLVVGN PANTNALIAY KNAPGLNPRN 14MDH 151 FSC LTRLDHN RAKAQ IALKL GVTSDDVKNV I I WGNHSSTQ YPDVNHAKVK 11BMD 151 FTAMTRLDHN RAKAQLAKKT GTGVDR IRRM TVWGNHSSTM FPDLF HAEVD 14MDH 201 LQAKEVGVYE AVKDDSWLKG EFITTVQQRG AAVIKARKLS SAMSAAKAIC 11BMD 201 GRP - - - -ALE LVDME -WYEK VFIPTVAQRG AA I IQARGAS SAASAANAAI 14MDH 251 DHVRD I WFGT PEGE F VSMG I I SDGNSYGVP DDLLYSFPVT I KDKTWK IVE 11BMD 246 EH I RDWALGT PEGDWVSMAV PSQGE –YG IP E GIVYSFPVT AKDGAYRVVE 14MDH 301 GLPINDF SRE KMDLTAKELA EEKETA F E FL SSA 11BMD 295 GLEINEFARK RME I TAQELL DEMEQVKALG LI

  6. Obtaining Atomic Coordinates of The Model ATOM 1 C ACE A 0 11.590 2.938 35.017 1.00 45.90 14B 5 ATOM 2 O ACE A 0 12.581 2.371 35.517 1.00 28.75 14B 6 ATOM 3 CH3 ACE A 0 10.179 2.477 35.417 1.00 36.75 14B 7 ATOM 4 N SER A 1 11.648 3.946 34.081 1.00 49.10 14 341 ATOM 5 CA SER A 1 12.901 4.557 33.573 1.00 52.42 14 342 ATOM 6 C SER A 1 12.733 5.624 32.482 1.00 48.48 14 343 ATOM 7 O SER A 1 13.238 5.432 31.363 1.00 57.03 14 344 ATOM 8 CB SER A 1 13.990 3.553 33.162 1.00 41.45 14 345 ATOM 9 OG SER A 1 15.105 3.679 34.039 1.00 42.59 14 346 ATOM 10 N GLU A 2 12.073 6.774 32.772 1.00 37.72 14 347 ATOM 11 CA GLU A 2 11.948 7.788 31.721 1.00 20.88 14 348 ATOM 12 C GLU A 2 12.042 9.235 32.169 1.00 28.31 14 349

  7. Building The Model

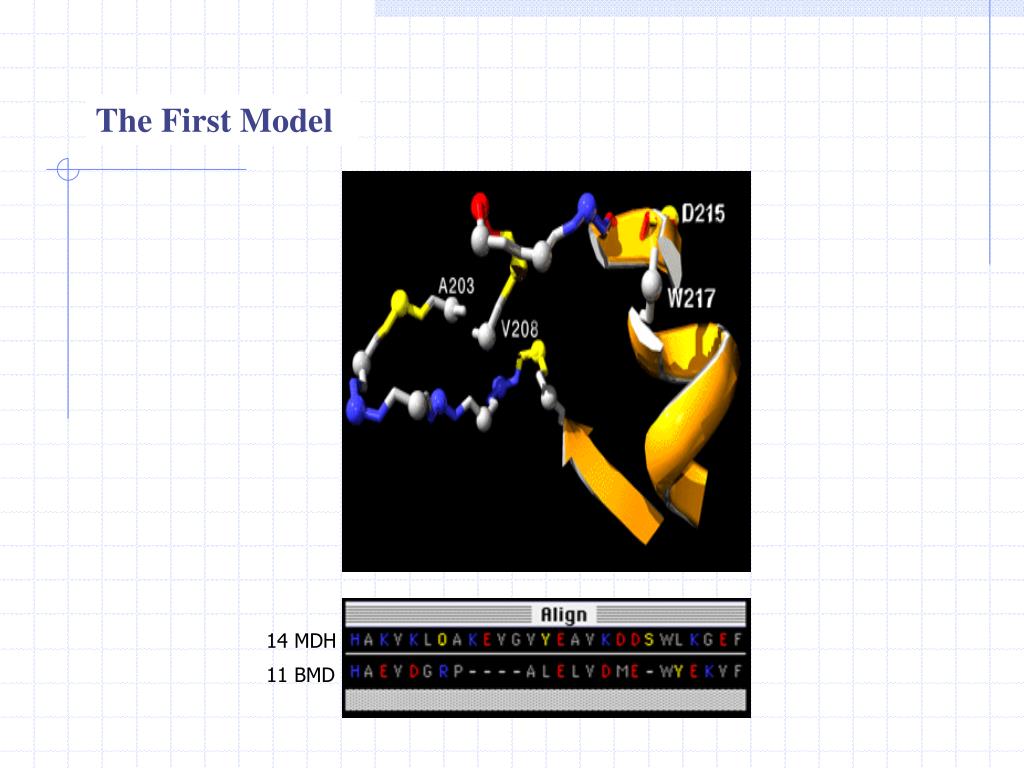

  8. The First Model 14 MDH 11 BMD

  9. Refining The Model 14 MDH 11 BMD

  10. The Refined Model

  11. Models & Real Structure First Model Refined Model Real 14 MDH Structure

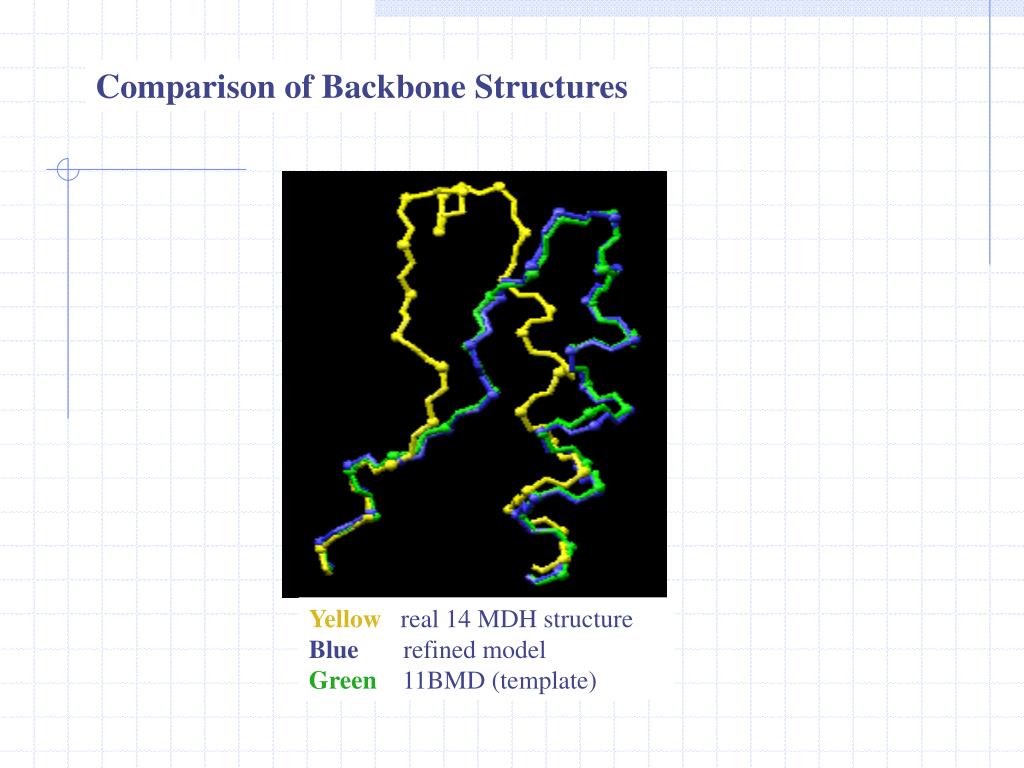

  12. Comparison of Backbone Structures Yellow real 14 MDH structure Blue refined model Green 11BMD (template)

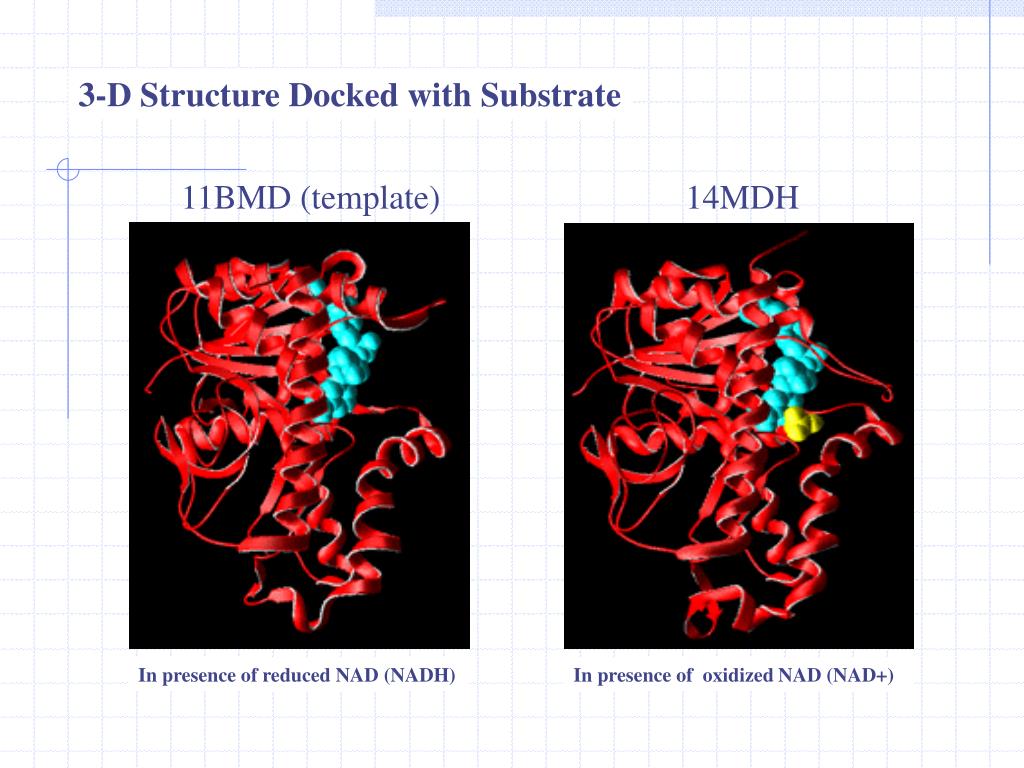

  13. 3-D Structure Docked with Substrate 11BMD (template) 14MDH In presence of reduced NAD (NADH) In presence of oxidized NAD (NAD+)

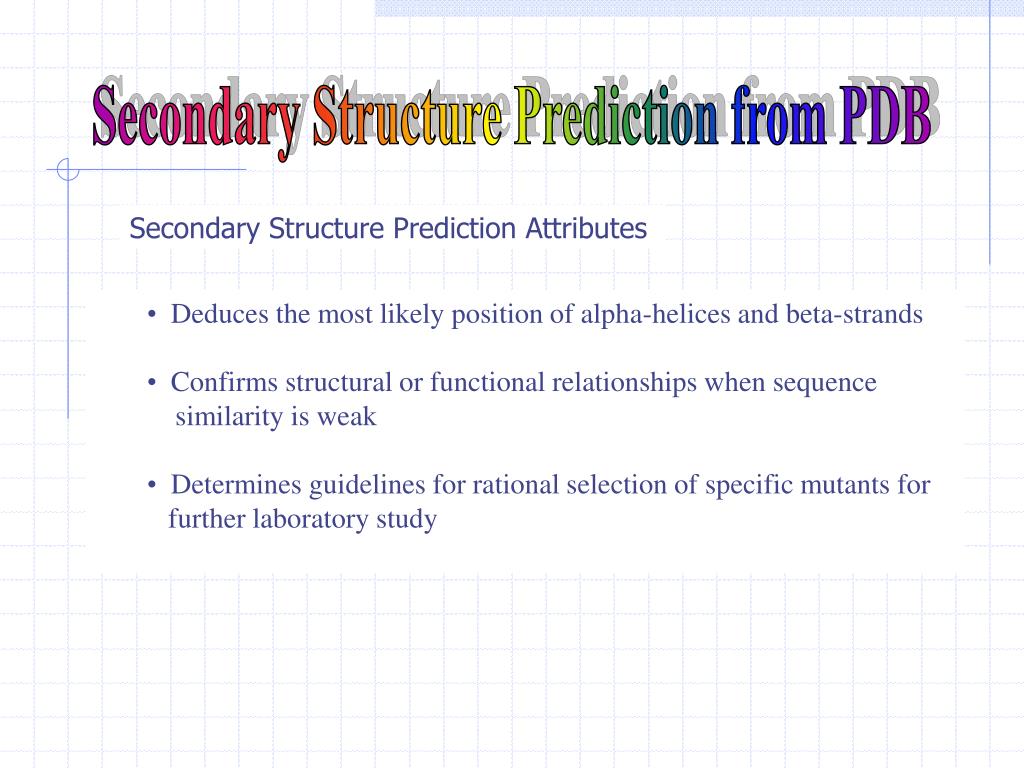

  14. Secondary Structure Prediction from PDB Secondary Structure Prediction Attributes • Deduces the most likely position of alpha-helices and beta-strands • Confirms structural or functional relationships when sequence • similarity is weak • Determines guidelines for rational selection of specific mutants for • further laboratory study

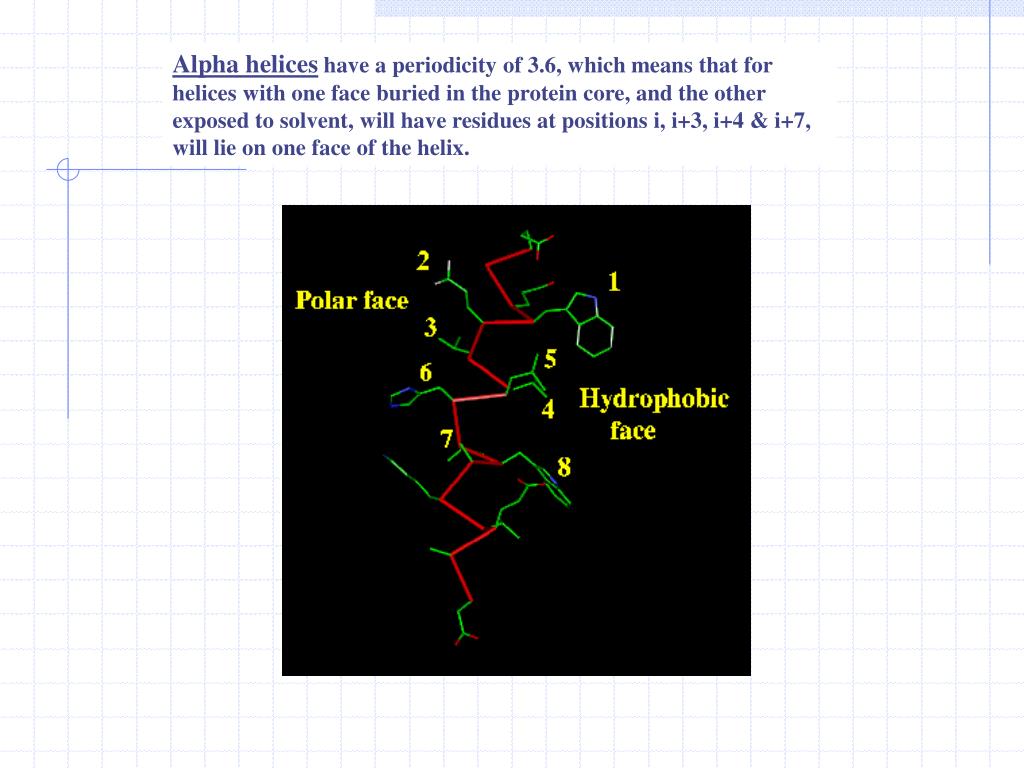

  15. Alpha helices have a periodicity of 3.6, which means that for helices with one face buried in the protein core, and the other exposed to solvent, will have residues at positions i, i+3, i+4 & i+7, will lie on one face of the helix.

  16. Beta strands that are half buried in the protein core will tend to have hydrophobic residues at positions i, i+2, i+4, i+8 etc, and polar residues at positions i+1, i+3, i+5, etc.

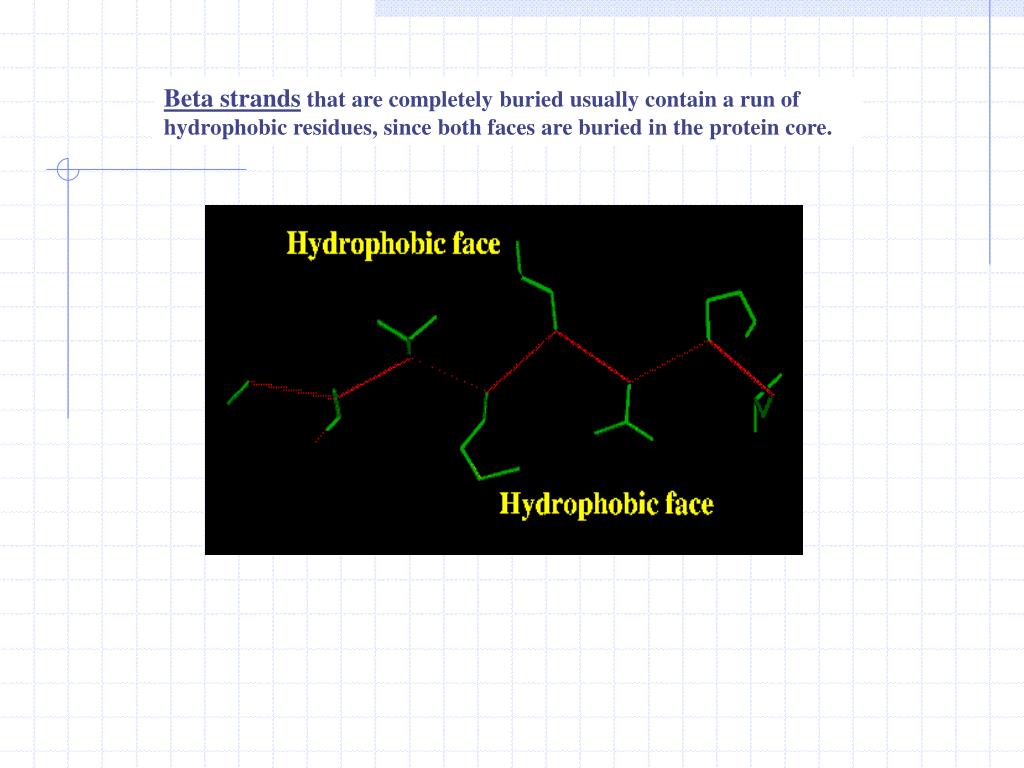

  17. Beta strands that are completely buried usually contain a run of hydrophobic residues, since both faces are buried in the protein core.

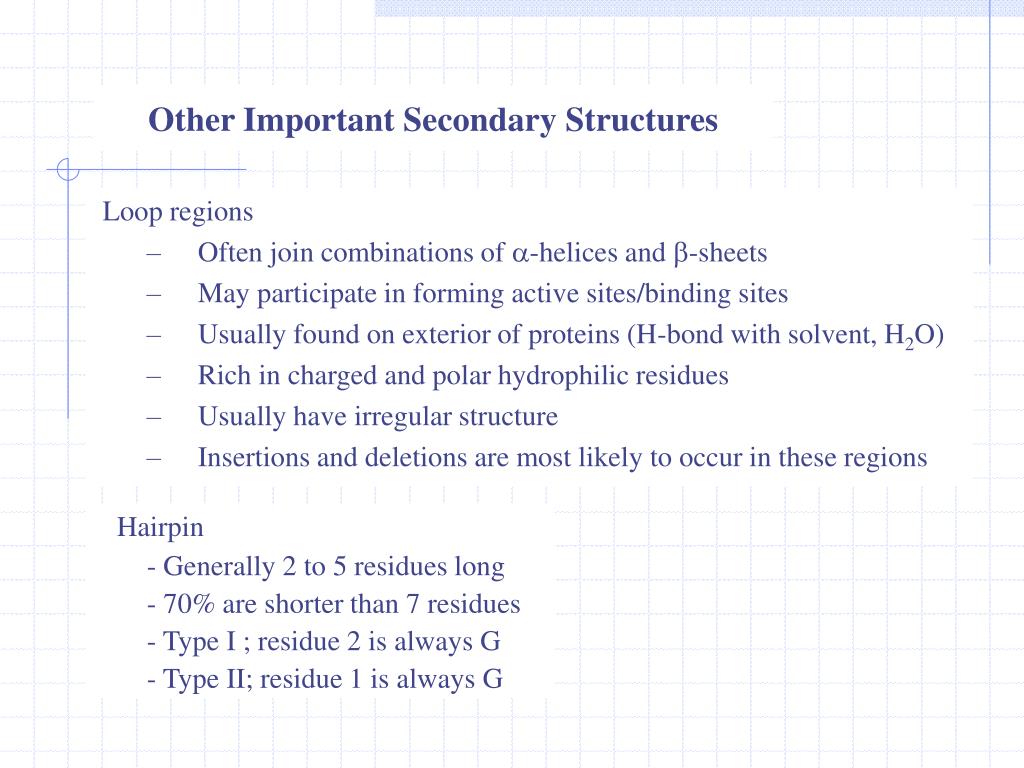

  18. Other Important Secondary Structures • Loop regions • Often join combinations of -helices and -sheets • May participate in forming active sites/binding sites • Usually found on exterior of proteins (H-bond with solvent, H2O) • Rich in charged and polar hydrophilic residues • Usually have irregular structure • Insertions and deletions are most likely to occur in these regions • Hairpin • - Generally 2 to 5 residues long • - 70% are shorter than 7 residues • - Type I ; residue 2 is always G • - Type II; residue 1 is always G

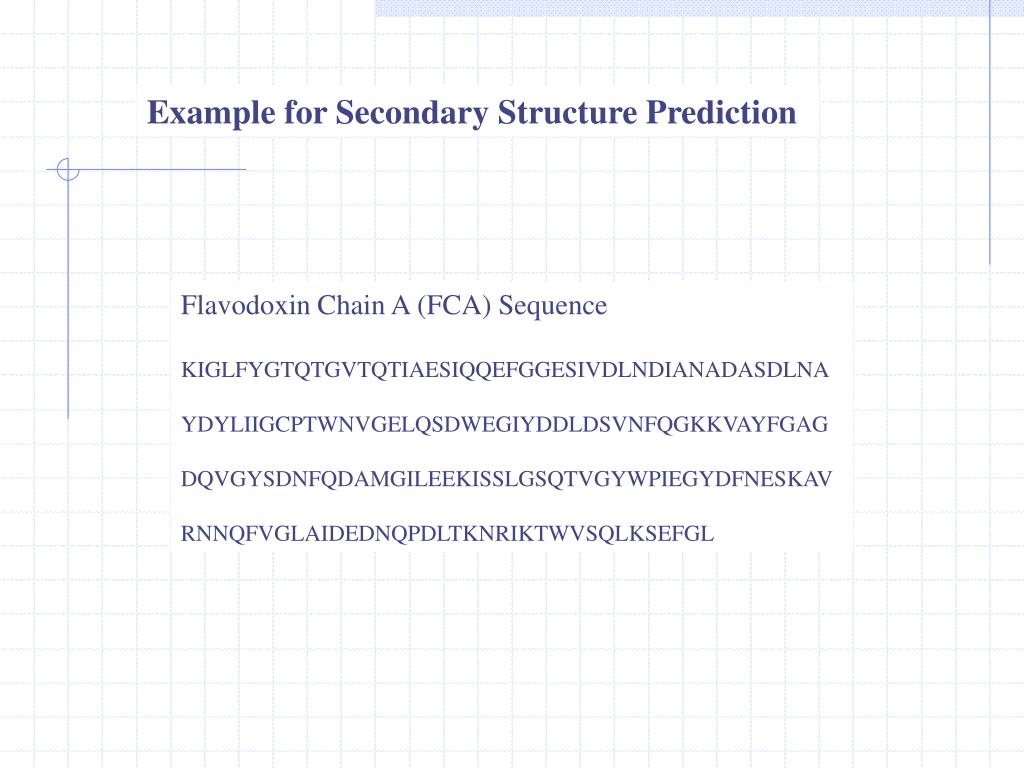

  19. Example for Secondary Structure Prediction Flavodoxin Chain A (FCA) Sequence KIGLFYGTQTGVTQTIAESIQQEFGGESIVDLNDIANADASDLNA YDYLIIGCPTWNVGELQSDWEGIYDDLDSVNFQGKKVAYFGAG DQVGYSDNFQDAMGILEEKISSLGSQTVGYWPIEGYDFNESKAV RNNQFVGLAIDEDNQPDLTKNRIKTWVSQLKSEFGL

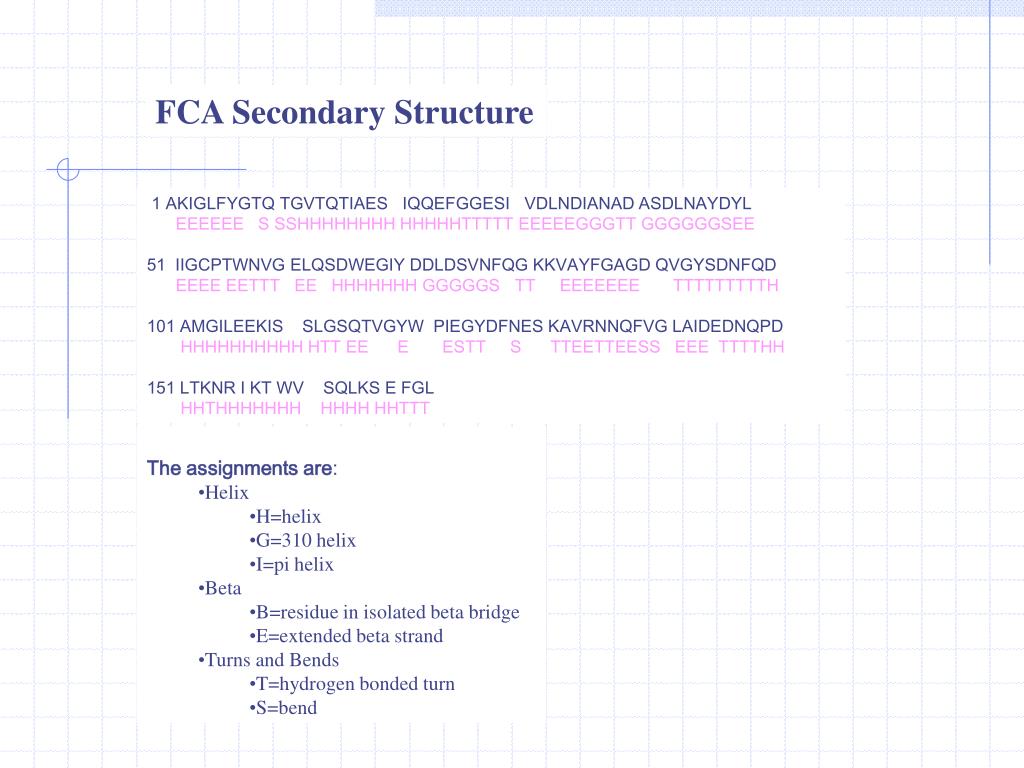

  20. FCA Secondary Structure 1 AKIGLFYGTQ TGVTQTIAES IQQEFGGESI VDLNDIANAD ASDLNAYDYL         EEEEEE S SSHHHHHHHH HHHHHTTTTT EEEEEGGGTT GGGGGGSEE    51 IIGCPTWNVG ELQSDWEGIY DDLDSVNFQG KKVAYFGAGD QVGYSDNFQD       EEEE EETTT EE HHHHHHH GGGGGS  TT  EEEEEEE   TTTTTTTTTH    101 AMGILEEKIS SLGSQTVGYW PIEGYDFNES KAVRNNQFVG LAIDEDNQPD       HHHHHHHHHH HTT EE   E ESTT   S    TTEETTEESS EEE TTTTHH    151 LTKNR I KT WV SQLKS E FGL       HHTHHHHHHH HHHH HHTTT • The assignments are: • Helix • H=helix • G=310 helix • I=pi helix • Beta • B=residue in isolated beta bridge • E=extended beta strand • Turns and Bends • T=hydrogen bonded turn • S=bend

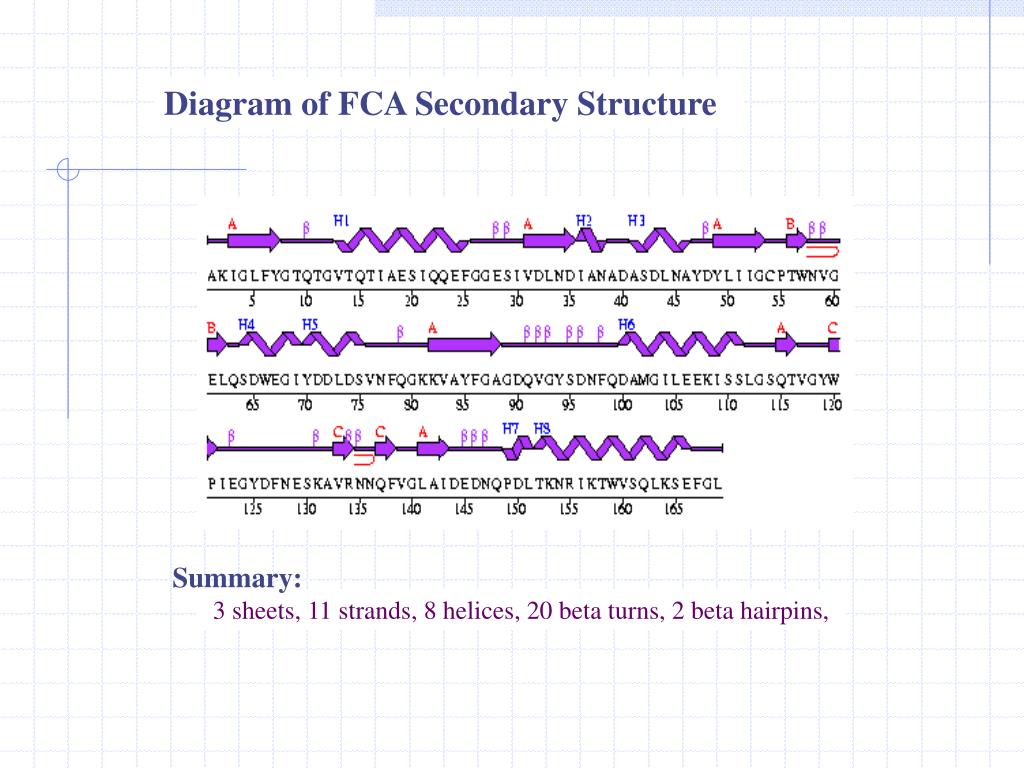

  21. Diagram of FCA Secondary Structure Summary: 3 sheets, 11 strands, 8 helices, 20 beta turns, 2 beta hairpins,

  22. 3-D Structure of FCA Docked with Substrate (flavin)
