CPRE 583 Reconfigurable Computing Lecture 2: 8/26/2011 (VHDL Overview 1 )

1. CPRE 583Reconfigurable Computing Lecture 2: 8/26/2011(VHDL Overview 1 ) Instructor: Dr. Phillip Jones (phjones@iastate.edu) Reconfigurable Computing Laboratory Iowa State University Ames, Iowa, USA http://class.ece.iastate.edu/cpre583/

2. Overview • VHDL review 1 • Highly recommend VHDL tutorial • 120 pages with a LOT of examples • http://courseware.ee.calpoly.edu/~bmealy/shock_awe_vhdl_adobe.pdf • Quick reference • http://hapssupportnet.synplicity.com/download/VHDL-Handbook.pdf (quick ref) • Some links other VHDL tutorials • http://www.seas.upenn.edu/~ese201/vhdl/vhdl_primer.html • http://www.vhdl-online.de/tutorial/ • HW 1 overview

3. VHDL basics • VHDL: (V)HSIC (H)ardware (D)escription (L)anguage • VHSIC: (V)ery (H)igh (S)peed (I)ntegrated (C)ircuit • It is NOT a programming language!!! • It is a Hardware Description Language (HDL) • Conceptually VERY different form C,C++

4. Some Key Differences from C • C is inherently sequential (serial), one statement executed at a time • VHDL is inherently concurrent (parallel), many statements executed at a time

5. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X Current Values: A = 1 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1 Current Values: A = 1 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1

6. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X Current Values: A = 2 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1 Current Values: A = 1 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1

7. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 1 Current Values: A = 1 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1

8. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4 Current Values: A = 1 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1

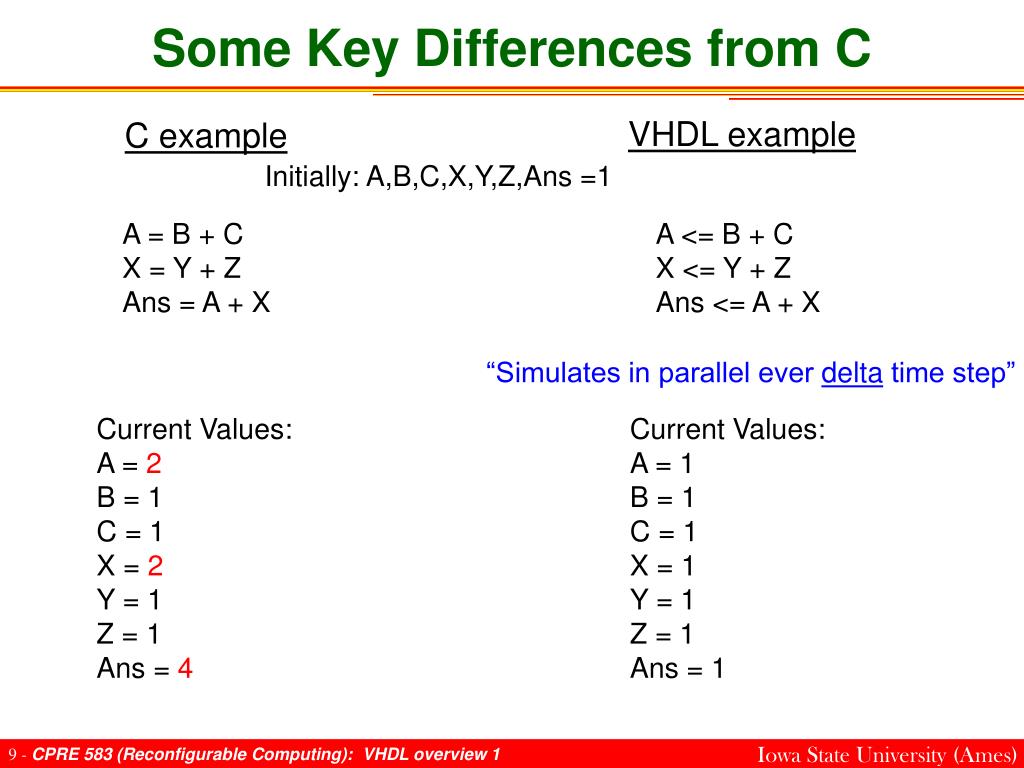

9. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4 Current Values: A = 1 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1

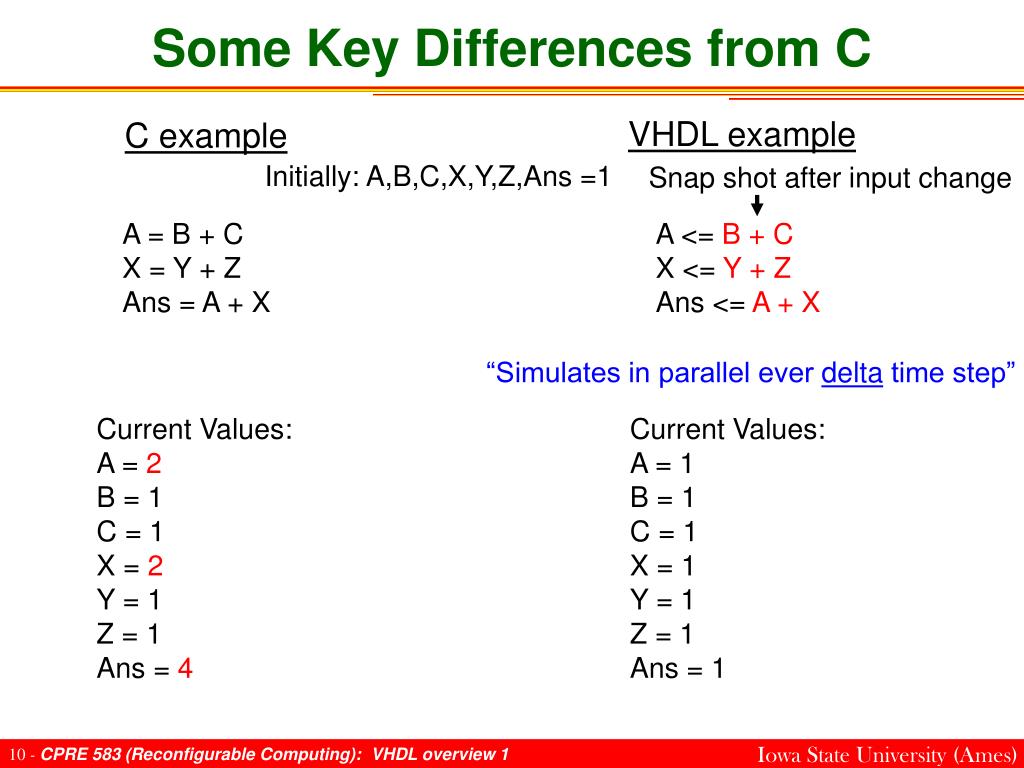

10. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 Snap shot after input change A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4 Current Values: A = 1 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1

11. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4 Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 2

12. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4 Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 2 Different

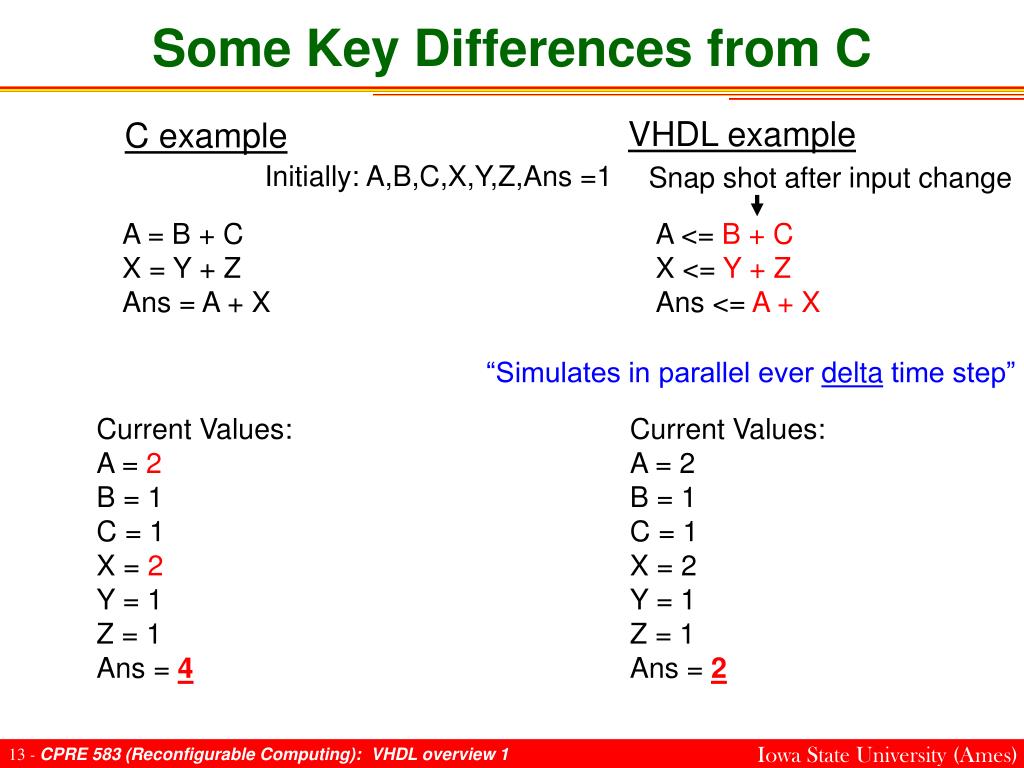

13. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 Snap shot after input change A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4 Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 2

14. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4 Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 2

15. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 A = B + C X = Y + Z Ans = A + X A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4 Current Values: A = 2 B = 1 C = 1 X = 2 Y = 1 Z = 1 Ans = 4

16. Some Key Differences from C VHDL example C example Initially: A,B,C,X,Y,Z,Ans =1 Ans = A + X A = B + C X = Y + Z Ans <= A + X A <= B + C X <= Y + Z Change order of statements Current Values: A = 1 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1 Current Values: A = 1 B = 1 C = 1 X = 1 Y = 1 Z = 1 Ans = 1

17. Corresponding circuit VHDL example Initially: A,B,C,X,Y,Z,Ans =1 A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step”

18. Corresponding circuit VHDL example Initially: A,B,C,X,Y,Z,Ans =1 A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” B(1) + A(1) C(1) + Ans(1) Y(1) + X(1) Z(1)

19. Corresponding circuit VHDL example Initially: A,B,C,X,Y,Z,Ans =1 A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” B(1) + A(2) C(1) + Ans(2) Y(1) + X(2) Z(1)

20. Corresponding circuit VHDL example Initially: A,B,C,X,Y,Z,Ans =1 A <= B + C X <= Y + Z Ans <= A + X “Simulates in parallel ever delta time step” B(1) + A(2) C(1) + Ans(4) Y(1) + X(2) Z(1)

21. Corresponding circuit (More realistic) VHDL example Initially: A,B,C,X,Y,Z,Ans =1 A <= B + C after 2ns X <= Y + Z after 2ns Ans <= A + X after 2ns “Simulates in parallel ever delta time step” B(1) + A(1) C(1) 2ns + Ans(1) Y(1) 2ns + X(1) Z(1) 2ns

22. Corresponding circuit (More realistic) VHDL example Initially: A,B,C,X,Y,Z,Ans =1 A <= B + C after 2ns X <= Y + Z after 2ns Ans <= A + X after 2ns “Simulates in parallel ever delta time step” B(1) + A(2) C(1) 2ns + Ans(2) Y(1) 2ns + X(2) Z(1) 2ns

23. Corresponding circuit (More realistic) VHDL example Initially: A,B,C,X,Y,Z,Ans =1 A <= B + C after 2ns X <= Y + Z after 2ns Ans <= A + X after 2ns “Simulates in parallel ever delta time step” B(1) + A(2) C(1) 2ns + Ans(4) Y(1) 2ns + X(2) Z(1) 2ns

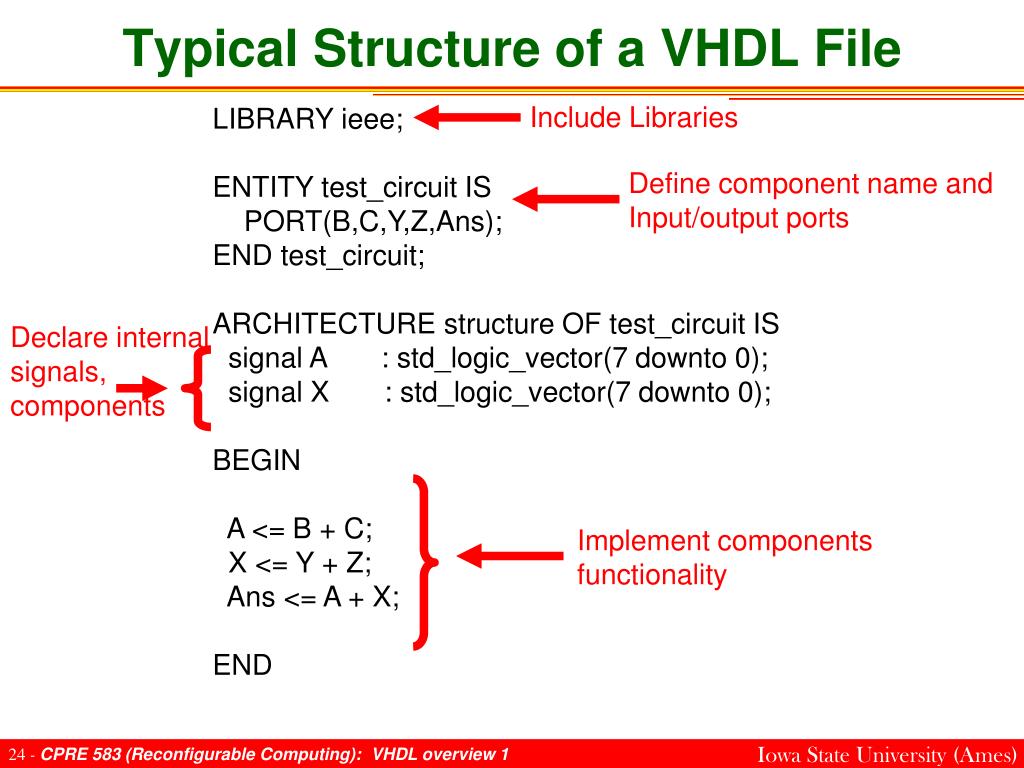

24. Typical Structure of a VHDL File Include Libraries LIBRARY ieee; ENTITY test_circuit IS PORT(B,C,Y,Z,Ans); END test_circuit; ARCHITECTURE structure OF test_circuit IS signal A : std_logic_vector(7 downto 0); signal X : std_logic_vector(7 downto 0); BEGIN A <= B + C; X <= Y + Z; Ans <= A + X; END Define component name and Input/output ports Declare internal signals, components Implement components functionality

25. Process • Process provide a level serialization in VHDL (e.g. variables, clocked processes) • Help separate and add structure to VHDL design

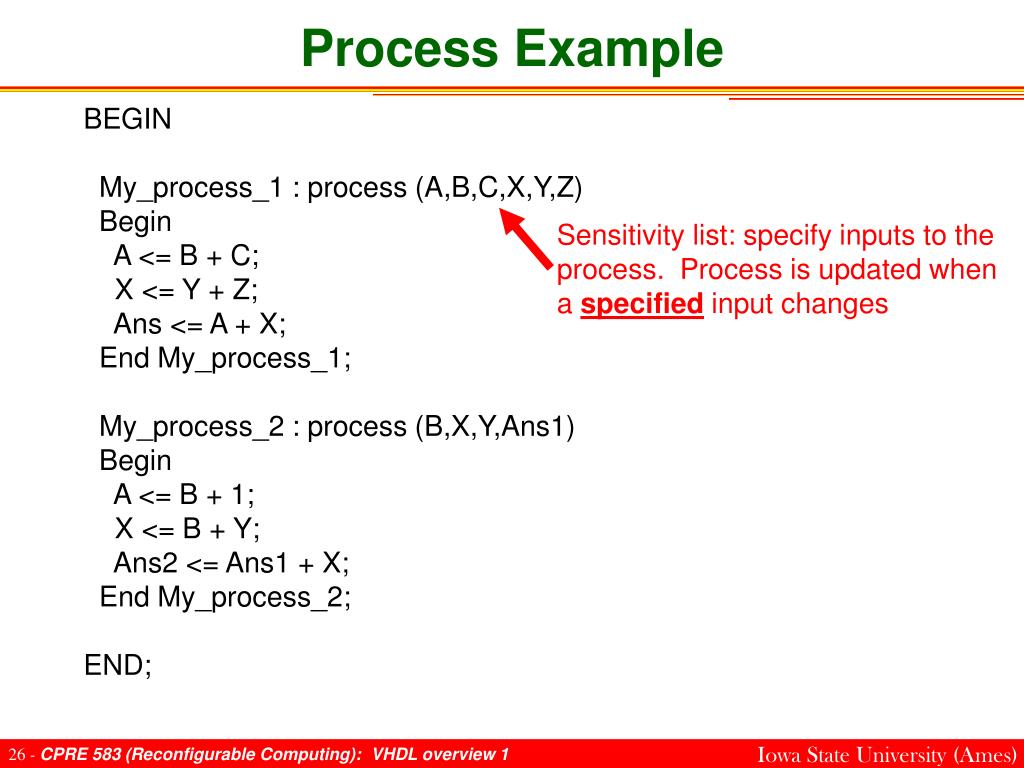

26. Process Example BEGIN My_process_1 : process (A,B,C,X,Y,Z) Begin A <= B + C; X <= Y + Z; Ans <= A + X; End My_process_1; My_process_2 : process (B,X,Y,Ans1) Begin A <= B + 1; X <= B + Y; Ans2 <= Ans1 + X; End My_process_2; END; Sensitivity list: specify inputs to the process. Process is updated when a specified input changes

27. Process Example (Multiple Drivers) BEGIN My_process_1 : process (A,B,C,X,Y,Z) Begin A <= B + C; X <= Y + Z; Ans <= A + X; End My_process_1; My_process_2 : process (B,X,Y,Ans1) Begin A <= B + 1; X <= B + Y; Ans2 <= Ans1 + X; End My_process_2; END; A signal can only be Driven (written) by one process. But can be read by many Compile or simulator may give a “multiple driver” Error or Warning message

28. Process Example (Multiple Drivers) BEGIN My_process_1 : process (A,B,C,X,Y,Z) Begin A <= B + C; X <= Y + Z; Ans <= A + X; End My_process_1; My_process_2 : process (B,X,Y,Ans1) Begin A1 <= B + 1; X1 <= B + Y; Ans2 <= Ans1 + X; End My_process_2; END; Maybe A,X were suppose to be A1,X1. Cut and paste error. Or may need to rethink Hardware structure to remove multiple driver issue.

29. Process Example (if-statement) BEGIN My_process_1 : process (A,B,C,X,Y,Z) Begin if (B = 0) then C <= A + B; Z <= X + Y; Ans1 <= A + X; else C <= 1; Z <= 0; Ans1 <= 1; end if; End My_process_1; END;

30. Clock Process Example BEGIN My_process_1 : process (clk) Begin IF (clk’event and clk = ‘1’) THEN C <= A or B; Z <= X or Y; Ans <= C and Z; END IF; End My_process_1; END; circuit not clocked A() or C() B() and Ans() X() or Z() Y()

31. Clock Process Example BEGIN My_process_1 : process (clk) Begin IF (clk’event and clk = ‘1’) THEN C <= A or B; Z <= X or Y; Ans <= C and Z; END IF; End My_process_1; END; D Flip-Flop DFF Register circuit with clock A() or C() B() and Ans() X() Z() or Y() clk

32. Clock Process Example BEGIN My_process_1 : process (clk) Begin IF (clk’event and clk = ‘1’) THEN C <= A or B; Z <= X or Y; Ans <= C and Z; END IF; End My_process_1; END; circuit with clock A() or C() B() Ans() and X() Z() or Y() clk

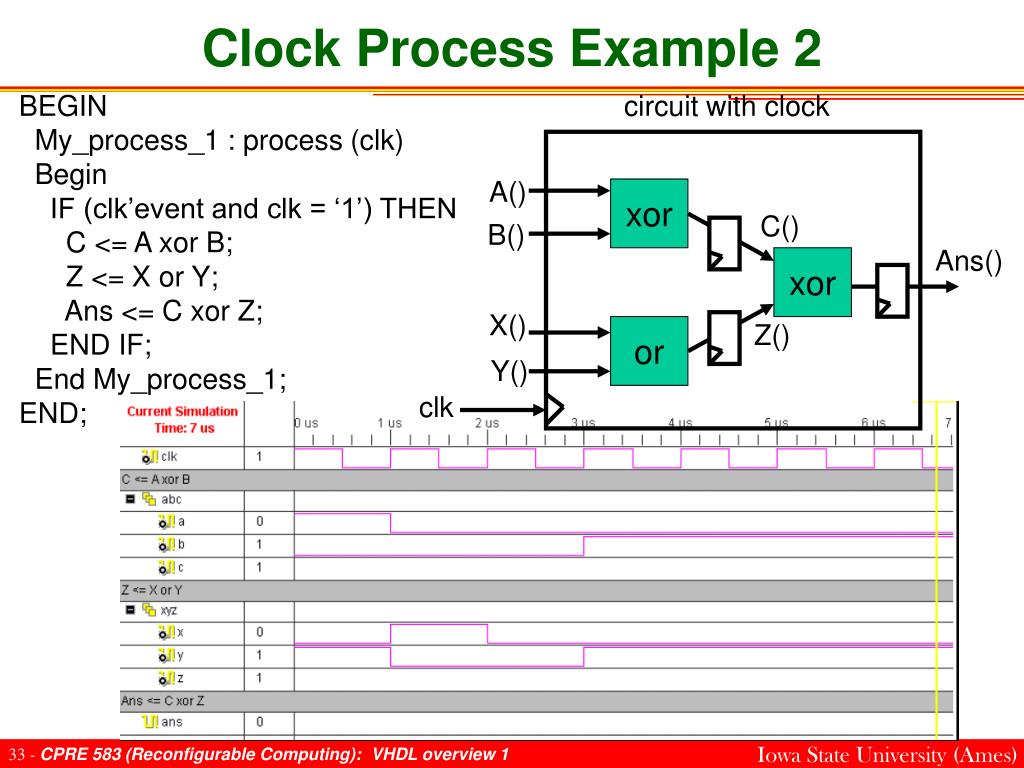

33. Clock Process Example 2 BEGIN My_process_1 : process (clk) Begin IF (clk’event and clk = ‘1’) THEN C <= A xor B; Z <= X or Y; Ans <= C xor Z; END IF; End My_process_1; END; circuit with clock A() xor C() B() Ans() xor X() Z() or Y() clk

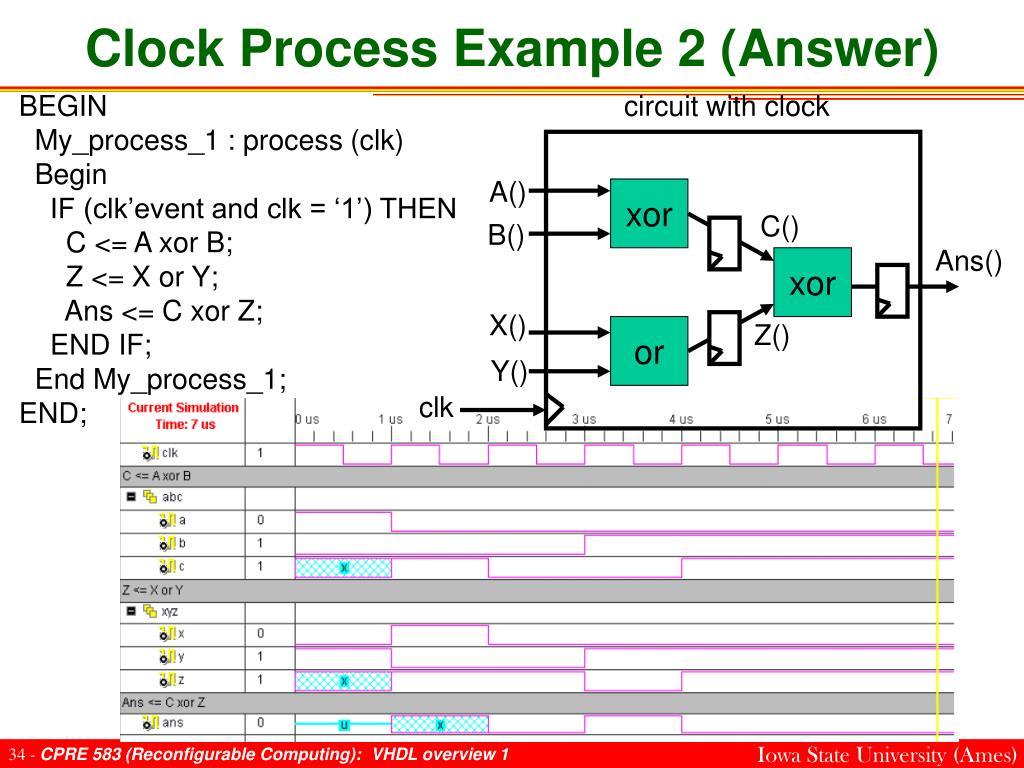

34. Clock Process Example 2 (Answer) BEGIN My_process_1 : process (clk) Begin IF (clk’event and clk = ‘1’) THEN C <= A xor B; Z <= X or Y; Ans <= C xor Z; END IF; End My_process_1; END; circuit with clock A() xor C() B() Ans() xor X() Z() or Y() clk

35. VHDL Constructs • Entity • Process • Signal, Variable, Constants, Integers • Array, Record • VHDL on-line tutorials: • http://www.seas.upenn.edu/~ese201/vhdl/vhdl_primer.html • http://www.vhdl-online.de/tutorial/

36. Signals and Variables • Signals • Updated at the end of a process • Have file scope • Variables • Updated instantaneously • Have process scope

37. std_logic, std_logic_vector • Very common data types • std_logic • Single bit value • Values: U, X, 0, 1, Z, W, H, L, - • Example: signal A : std_logic; • A <= ‘1’; • Std_logic_vector: is an array of std_logic • Example: signal A : std_logic_vector (4 downto 0); • A <= x“00Z001”

38. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ Time step 0

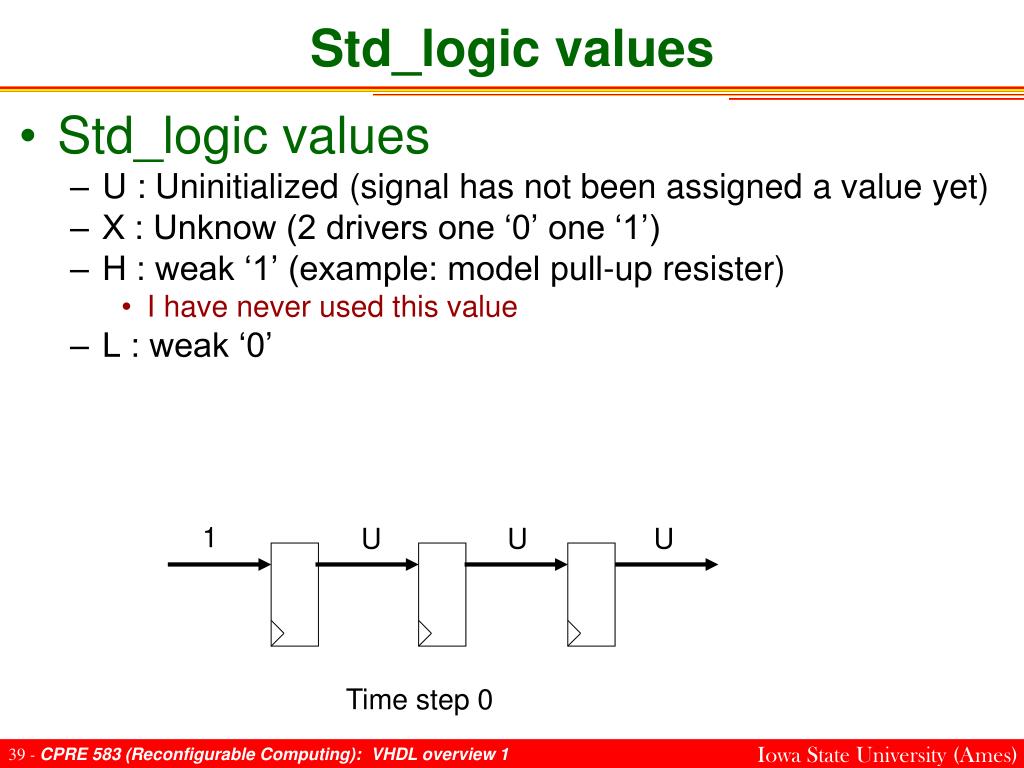

39. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ 1 U U U Time step 0

40. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ 0 1 U U Time step 1

41. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ 1 0 1 U Time step 2

42. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ 1 1 0 1 Time step 3

43. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ 0 1 1 1 0 X 1 Time step 3

44. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ 0 1 1 1 0 X 1 0 1 Time step 3

45. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ 0 0 1 1 1 X X X 1 Time step 3

46. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ Pull-up resistor ‘1’ Time step 0

47. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ Pull-up resistor ‘1’ 0 U H U Time step 0

48. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ Pull-up resistor ‘1’ 1 0 H 1 Time step 1

49. Std_logic values • Std_logic values • U : Uninitialized (signal has not been assigned a value yet) • X : Unknow (2 drivers one ‘0’ one ‘1’) • H : weak ‘1’ (example: model pull-up resister) • I have never used this value • L : weak ‘0’ Pull-up resistor ‘1’ Resolution(H,0) = 0 0 1 0 1 Time step 2

50. Pre-defined VHDL attributes • mysignal’event (mysignal changed value) • mysignal’high (highest value of mysignal’s type) • mysignal’low • Many other attributes • http://www.cs.umbc.edu/help/VHDL/summary.html
