EXAMPLE 1

a. Because = , the scale factor is k = . The image P’ is an enlargement. a. CP’. 12. 3. CP. 8. 2. EXAMPLE 1. Identify dilations. Find the scale factor of the dilation. Then tell whether the dilation is a reduction or an enlargement . SOLUTION. b. b.

tracey
Télécharger la présentation

EXAMPLE 1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

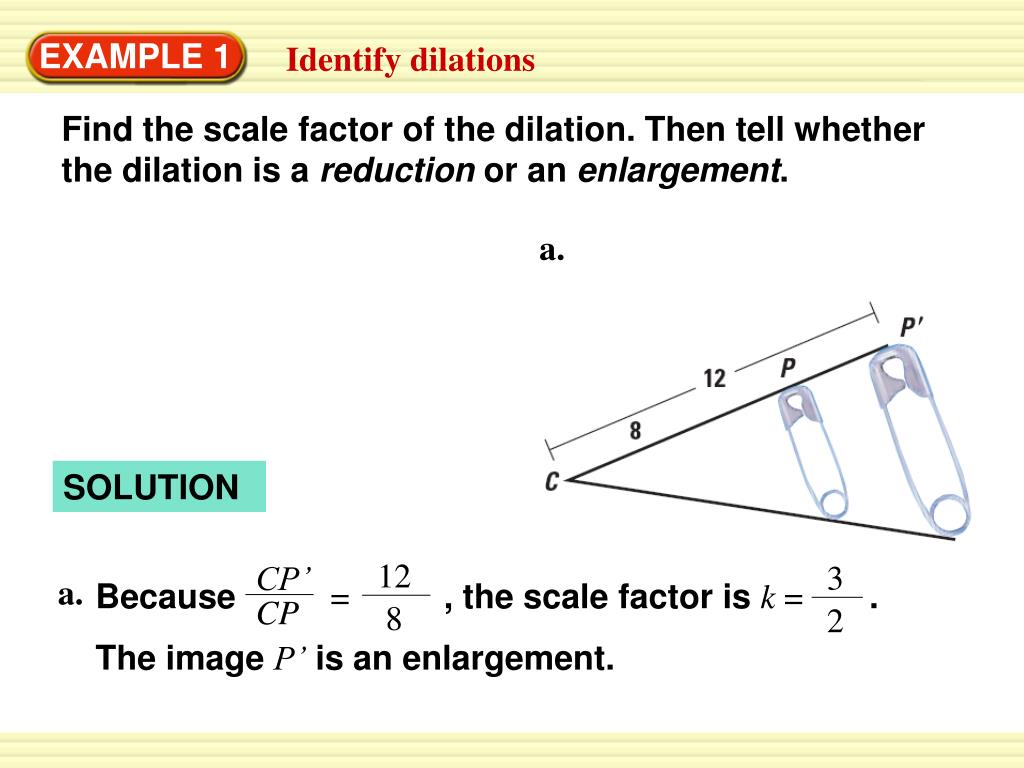

  1. a. Because = , the scale factor is k = . The image P’ is an enlargement. a. CP’ 12 3 CP 8 2 EXAMPLE 1 Identify dilations Find the scale factor of the dilation. Then tell whether the dilation is a reduction or an enlargement. SOLUTION

  2. b. b. Because = , the scale factor is k = . The image P’ is a reduction. CP’ 3 CP 5 18 30’ EXAMPLE 1 Identify dilations Find the scale factor of the dilation. Then tell whether the dilation is a reduction or an enlargement. SOLUTION

  3. Draw and label DEFG. Then construct a dilation of DEFGwith point Das the center of dilation and a scale factor of 2. EXAMPLE 2 Draw a dilation SOLUTION STEP 1 Draw DEFG. Draw rays from Dthrough vertices E, F, and G.

  4. Open the compass to the length of DE. Locate E’ on DEsoDE’ = 2(DE). Locate F’ and G’ the same way. EXAMPLE 2 Draw a dilation STEP 2

  5. EXAMPLE 2 Draw a dilation STEP 3 Add a second label D’ to point D. Draw the sides ofD’E’F’G’.

  6. 1. In a dilation, CP’ = 3 and CP = 12. Tell whether the dilation is a reduction or an enlargement and find its scale factor. ANSWER Because = , the scale factor is k = . The image P’ is a reduction. CP’ 1 CP 4 3 12 for Examples 1 and 2 GUIDED PRACTICE

  7. 2. Draw and label RST. Then construct a dilation of RSTwith Ras the center of dilation and a scale factor of 3. ANSWER for Examples 1 and 2 GUIDED PRACTICE
