  1. Symbolic and Computational Analysis of Network Protocol Security John Mitchell Stanford University Asian 2006

  2. Outline • Protocols • Some examples, some intuition • Symbolic analysis of protocol security • Models, results, tools • Computational analysis • Communicating Turing machines, composability • Combining symbolic, computational analysis • Some alternate approaches • Protocol Composition Logic (PCL) • Symbolic and computational semantics

  3. Many Protocols • Authentication • Kerberos • Key Exchange • SSL/TLS handshake, IKE, JFK, IKEv2, • Wireless and mobile computing • Mobile IP, WEP, 802.11i • Electronic commerce • Contract signing, SET, electronic cash, See http://www.lsv.ens-cachan.fr/spore/, http://www.avispa-project.org/library

  4. IPv6 Mobile IPv6 Architecture • Authentication is a requirement • Early proposals weak Mobile Node (MN) Direct connection via binding update Corresponding Node (CN) Home Agent (HA)

  5. EAP/802.1X/RADIUS Authentication Data Communication 802.11i Wireless Authentication Supplicant UnAuth/UnAssoc 802.1X Blocked No Key Supplicant Auth/Assoc 802.1X UnBlocked PTK/GTK 802.11 Association MSK 4-Way Handshake Group Key Handshake

  6. m1 m2 IKE subprotocol from IPSEC A, (ga mod p) B, (gb mod p) ,signB(m1,m2) signA(m1,m2) A B Result: A and B share secret gab mod p Analysis involves probability, modular exponentiation, complexity, digital signatures, communication networks

  7. Initiate Respond Attacker C D Run of a protocol B A Correct if no security violation in any run

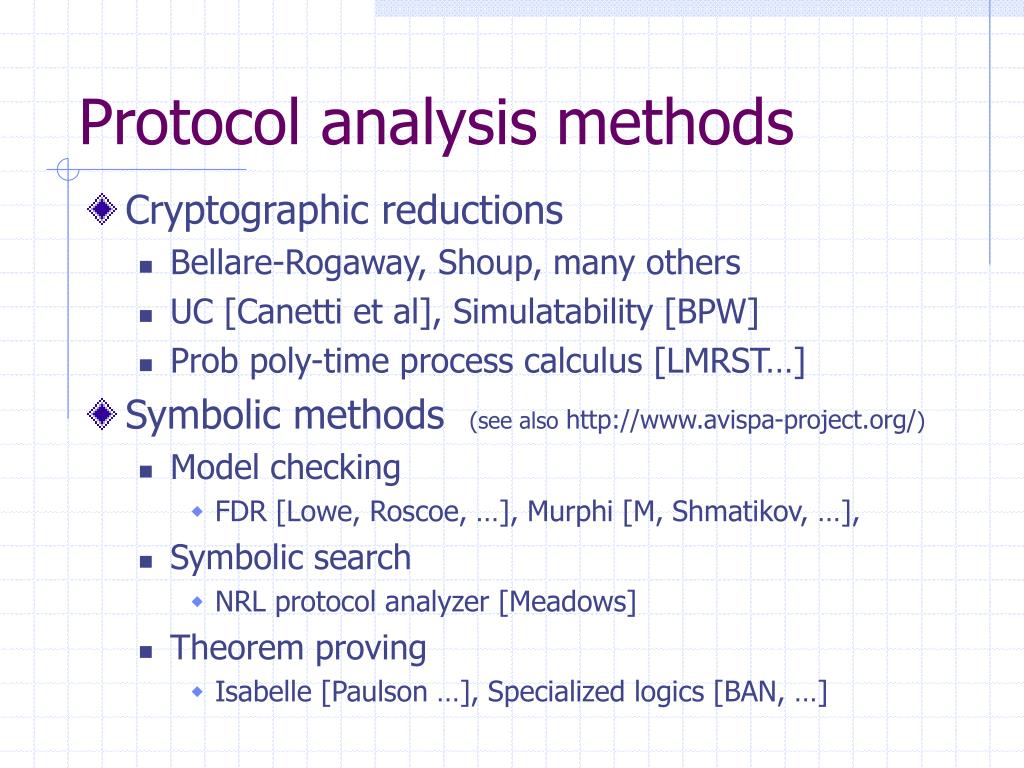

  8. Protocol analysis methods • Cryptographic reductions • Bellare-Rogaway, Shoup, many others • UC [Canetti et al], Simulatability [BPW] • Prob poly-time process calculus [LMRST…] • Symbolic methods (see also http://www.avispa-project.org/) • Model checking • FDR [Lowe, Roscoe, …], Murphi [M, Shmatikov, …], • Symbolic search • NRL protocol analyzer [Meadows] • Theorem proving • Isabelle [Paulson …], Specialized logics [BAN, …]

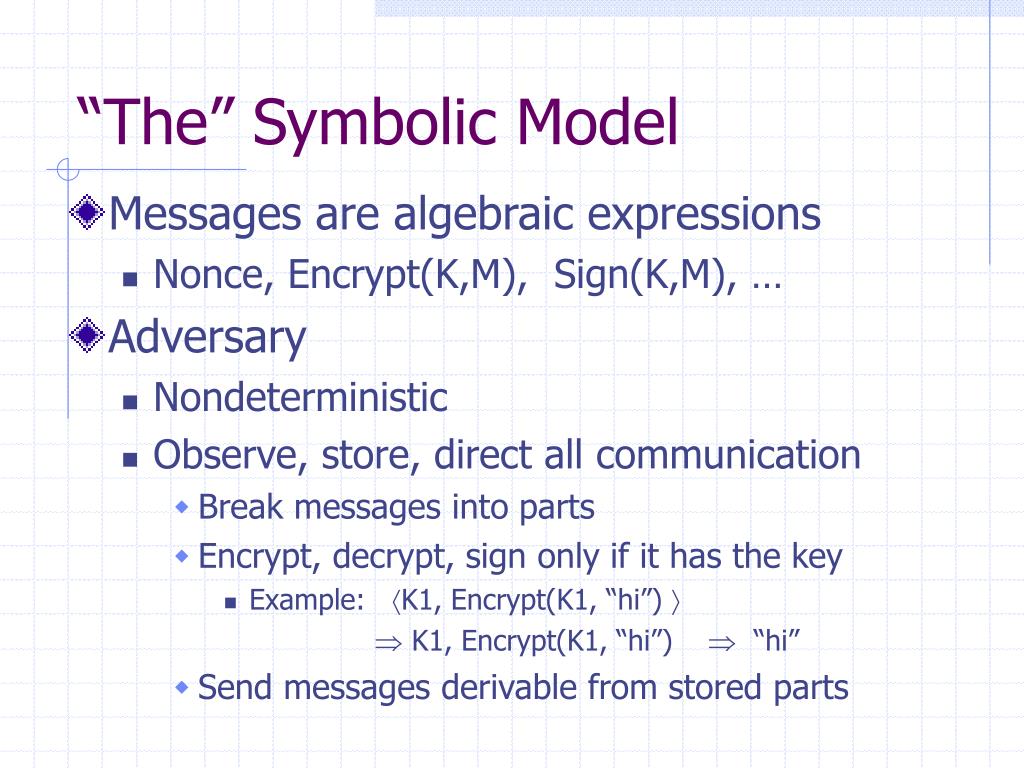

  9. “The” Symbolic Model • Messages are algebraic expressions • Nonce, Encrypt(K,M), Sign(K,M), … • Adversary • Nondeterministic • Observe, store, direct all communication • Break messages into parts • Encrypt, decrypt, sign only if it has the key • Example: K1, Encrypt(K1, “hi”)   K1, Encrypt(K1, “hi”)  “hi” • Send messages derivable from stored parts

  10. Many formulations • Word problems [Dolev-Yao, Dolev-Even-Karp, …] • Each protocol step is symbolic function from input message to output message; cancellation law dkekx = x • Rewrite systems [CDLMS, …] • Each protocol step is symbolic function from state and input message to state and output message • Logic programming [Meadows NRL Analyzer] • Each protocol step can be defined by logical clauses • Resolution used to perform reachability search • Constraint solving [Amadio-Lugiez, … ] • Write set constraints defining messages known at step i • Strand space model [MITRE] • Partial order (Lamport causality), reasoning methods • Process calculus [CSP, Spi-calculus, applied , …) • Each protocol step is process that reads, writes on channel • Spi-calculus: use  for new values, private channels, simulate crypto

  11. Complexity results (see [Cortier et al]) Additional results for variants of basic model (AC, xor, modular exp, …)

  12. Many protocol case studies • Murphi [Shmatikov, He, …] • SSL, Contract signing, 802.11i, … • Meadows NRL tool • Participation in IETF, IEEE standards • Many important examples • Paulson inductive method; Scedrov et al • Kerberos, SSL, SET, many more • Protocol logic • BAN logic and successors (GNY, SvO, …) • DDMP … Automated tools based on the symbolic model detect important, nontrivial bugs in practical, deployed, and standardized protocols

  13. Computational model I “Alice” “Bob” oracle tape oracle tape Adversary input tape work tape [Bellare-Rogaway, Shoup, …]

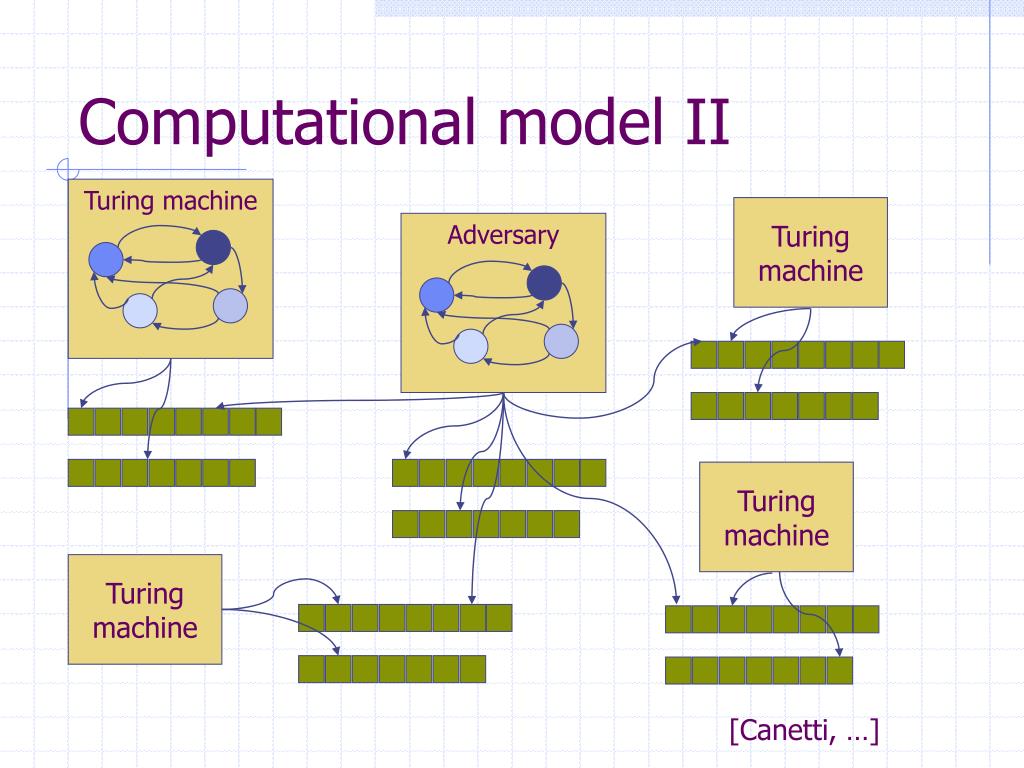

  14. Computational model II Turing machine Turing machine Adversary Turing machine Turing machine [Canetti, …]

  15. Computational model III Program Program Adversary In(c, x).Send(…) | In(d,y).new z. Send(…y z ..) | In(c, encrypt(k,…)). … program Program [Micciancio-Warinschi, …]

  16. Computational security: encryption • Several standard conditions on encryption • Passive adversary • Semantic security • Chosen ciphertext attacks (CCA1) • Adversary can ask for decryption before receiving a challenge ciphertext • Chosen ciphertext attacks (CCA2) • Adversary can ask for decryption before and after receiving a challenge ciphertext • Computational model offers more choices than the symbolic model

  17. m0, m1 E(mi) guess 0 or 1 Passive Adversary Challenger Attacker

  18. c D(c) m0, m1 E(mi) guess 0 or 1 Chosen ciphertext CCA1 Challenger Attacker

  19. c D(c) m0, m1 E(mi) c  E(mj) D(c) guess 0 or 1 Chosen ciphertext CCA2 Challenger Attacker

  20. Z input input P2 P1 S A P4 attacker P3 simulator F output Ideal functionality output Z Slide: R Canetti Protocol execution Equivalence-based methods: UC, RSIM P2 P1  P4 P3

  21. Can we have best of both worlds?

  22. Some relevant approaches • Simulation framework • Backes, Pfitzmann, Waidner • Correspondence theorems • Micciancio, Warinschi • Kapron-Impagliazzo logics • Abadi-Rogaway passive equivalence  (K2,{01}K3) ,  {({101}K2,K5 )}K2, {{K6}K4}K5    (K2,  ) ,  {({101}K2,K5 )}K2, {  }K5    (K1,  ) ,  {({101}K1,K5 )}K1, {  }K5    (K1,{K1}K7) ,  {({101}K1,K5 )}K1, {{K6}K7}K5  Proposed as start of larger plan for computational soundness … … [Abadi-Rogaway00, …, Adao-Bana-Scedrov05]

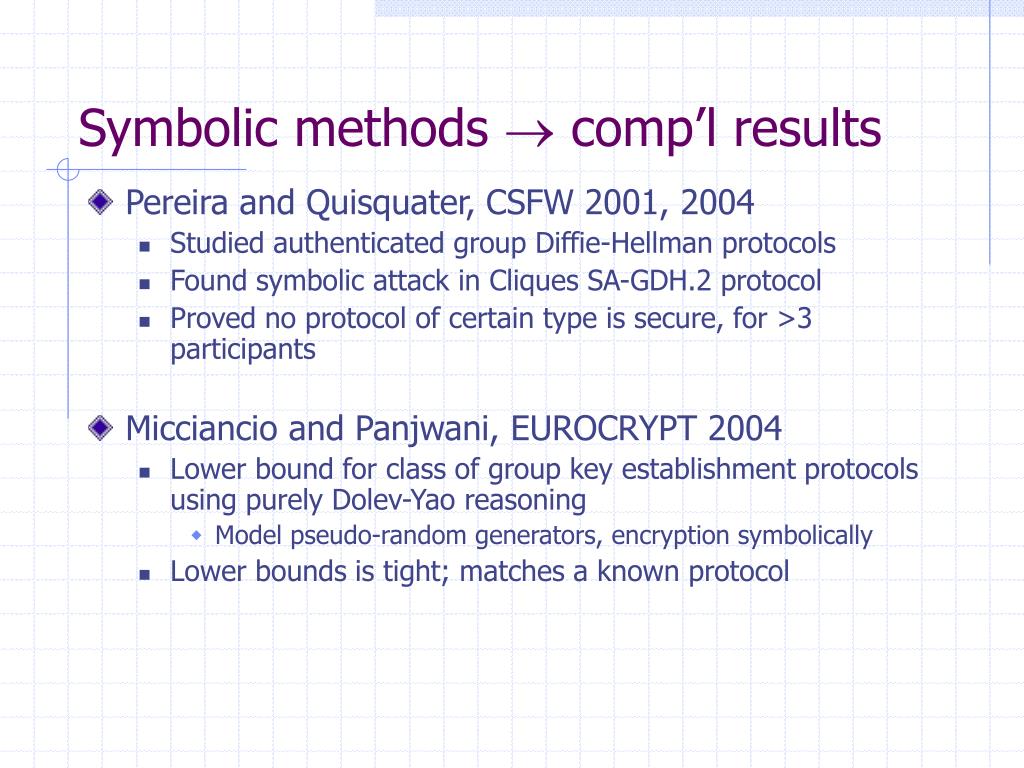

  23. Symbolic methods  comp’l results • Pereira and Quisquater, CSFW 2001, 2004 • Studied authenticated group Diffie-Hellman protocols • Found symbolic attack in Cliques SA-GDH.2 protocol • Proved no protocol of certain type is secure, for >3 participants • Micciancio and Panjwani, EUROCRYPT 2004 • Lower bound for class of group key establishment protocols using purely Dolev-Yao reasoning • Model pseudo-random generators, encryption symbolically • Lower bounds is tight; matches a known protocol

  24. Rest of talk: Protocol composition logic Protocol Honest Principals, Attacker • Alice’s information • Protocol • Private data • Sends and receives Private Data Send Receive Logic has symbolic and computational semantics

  25. Example { A, Noncea } { Noncea, … } Kb A B Ka • Alice assumes that only Bob has Kb-1 • Alice generated Noncea and knows that some X decrypted first message • Since only X knows Kb-1, Alice knows X=Bob

  26. More subtle example: Bob’s view { A, Noncea } { Noncea, B, Nonceb } { Nonceb} Kb A B Ka Kb • Bob assumes that Alice follows protocol • Since Alice responds to second message, Alice must have sent the first message

  27. Execution model • Protocol • “Program” for each protocol role • Initial configuration • Set of principals and key • Assignment of 1 role to each principal • Run Position in run send{x}B new x A recv{z}B recv{x}B decr B send{z}B new z C

  28. Formulas true at a position in run • Action formulas a ::= Send(P,m) | Receive (P,m) | New(P,t) | Decrypt (P,t) | Verify (P,t) • Formulas  ::= a | Has(P,t) | Fresh(P,t) | Honest(N) | Contains(t1, t2) |  | 1 2 | x  |  |  • Example a < b = (b a) Notation in papers varies slightly …

  29. Modal Formulas • After actions, condition [ actions ] P where P = princ, role id • Before/after assertions  [ actions ] P  • Composition rule  [ S ] P  [ T ] P   [ ST ] P Logic formulated: [DMP,DDMP] Related to: BAN, Floyd-Hoare, CSP/CCS, temporal logic, NPATRL

  30. msg1 msg3 Example: Bob’s view of NSL • Bob knows he’s talking to Alice [ receive encrypt( Key(B), A,m ); new n; send encrypt( Key(A), m, B, n ); receive encrypt( Key(B), n ) ] B Honest(A)  Csent(A, msg1)  Csent(A, msg3) where Csent(A, …)  Created(A, …)  Sent(A, …)

  31. Proof System • Sample Axioms: • Reasoning about possession: • [receive m ]A Has(A,m) • Has(A, {m,n})  Has(A, m)  Has(A, n) • Reasoning about crypto primitives: • Honest(X)  Decrypt(Y, enc(X, {m}))  X=Y • Honest(X)  Verify(Y, sig(X, {m}))   m’ (Send(X, m’)  Contains(m’, sig(X, {m})) • Soundness Theorem: • Every provable formula is valid in symbolic model

  32. Modal Formulas • After actions, condition [ actions ] P where P = princ, role id • Before/after assertions  [ actions ] P  • Composition rule  [ S ] P  [ T ] P   [ ST ] P

  33. Shared secret (with someone) A deduces: Knows(Y, gab) (Y = A) ۷ Knows(Y,b) Authenticated Composition example: Part 1 Diffie Hellman A  B: ga B  A: gb

  34. Shared secret Authenticated A deduces: Received (B, msg1) Λ Sent (B, msg2) Composition example: Part 2 Challenge-Response A  B: m, A B  A: n, sigB {m, n, A} A  B: sigA {m, n, B}

  35. Shared secret: gab Authenticated Composition: Part 3 m := ga n := gb ISO-9798-3 A  B: ga, A B  A: gb, sigB {ga, gb, A} A  B: sigA {ga, gb, B}

  36. Additional issues • Reasoning about honest principals • Invariance rule, called “honesty rule” • Preserve invariants under composition • If we prove Honest(X)   for protocol 1 and compose with protocol 2, is formula still true?

  37. More about composing protocols  ’ DH Honest(X)  … CR Honest(X)  … ’ |- Authentication  |- Secrecy ’ |- Secrecy ’ |- Authentication ’ |- Secrecy  Authentication [additive] DH  CR’[nondestructive] = ISOSecrecy  Authentication

  38. PCL  Computational PCL • PCL • Syntax • Proof System • Computational PCL • Syntax ±  • Proof System ±  • Symbolic model • Semantics • Complexity-theoretic model • Semantics

  39. Some general issues • Computational PCL • Symbolic logic for proving security properties of network protocols using public-key encryption • Soundness Theorem: • If a property is provable in CPCL, then property holds in computational model with overwhelming asymptotic probability. • Benefits • Retain compositionality • Symbolic proofs about computational model • Computational reasoning in soundness proof (only!) • Different axioms rely on different crypto assumptions • symbolic  computational generally uses strong crypto assumptions

  40. PCL  Computational PCL • Syntax, proof rules mostly the same • Retain compositional approach • But some issues with propositional connectives… • Significant differences • Symbolic “knowledge” • Has(X,t) : X can produce t from msgs that have been observed, by symbolic algorithm • Computational “knowledge” • Possess(X,t) : can produce t by ppt algorithm • Indist(X,t) : cannot distinguish from rand value in ppt • More subtle system • Some axioms rely on CCA2, some info-theoretically sound, etc.

  41. Computational Traces • Computational trace contains • Symbolic actions of honest parties • Mapping of symbolic variables to bitstrings • Send-receive actions (only) of the adversary • Runs of the protocol • Set of all possible traces • Each tagged with random bits used to generate trace • Tagging  set of equi-probable traces

  42. Complexity-theoretic semantics • Given protocol Q, adversary A, security parameter n, define • T=T(Q,A,n), set of all possible traces • [[]](T) a subset of T that respects  in a specific way • Intuition:  valid when [[]](T) is an asymptotically overwhelming subset of T

  43. Semantics of trace properties • Defined in a straight forward way [[Send(X, m)]](T) All traces t such that • t contains a Send(msg) action by X • the bistring value of msg is the bitstring value of m

  44. Inductive Semantics • [[1  2]] (T) = [[1]] (T) [[2]] (T) • [[1  2]] (T) = [[1]] (T) [[2]] (T) • [[ ]] (T) = T - [[]] (T) Implication uses a form of conditional probability • [[1  2]] (T) = [[1]] (T)  [[2]] (T’) where T’ = [[1]] (T)

  45. Protocol Attacker m View(X) if b then m else rand C D b’ Semantics of Indistinguishable • Not a trace property • Intuition: Indist(X, m) holds if no algorithm can distinguish m from a random value, given X’s view of the run [[Indist(X, m)]] (T, D, e) = T if | #(t: b=b’)-|T|/2 | < e

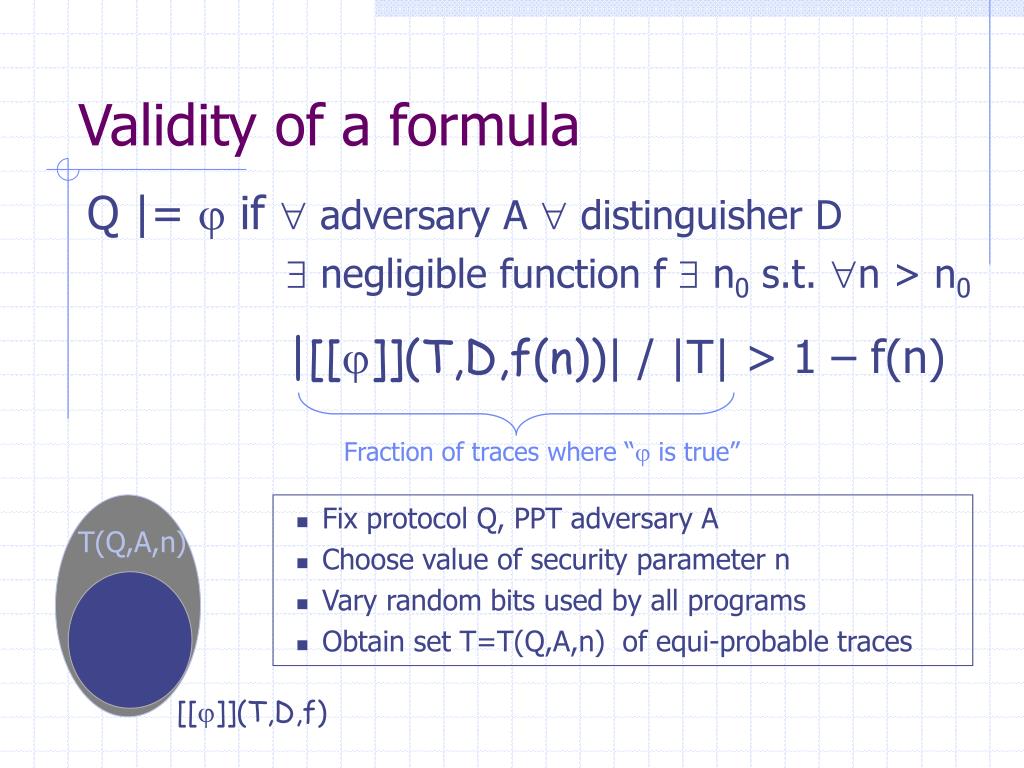

  46. Validity of a formula Q |=  if  adversary A  distinguisher D  negligible function f  n0 s.t. n > n0 |[[]](T,D,f(n))| / |T| > 1 – f(n) Fraction of traces where “ is true” • Fix protocol Q, PPT adversary A • Choose value of security parameter n • Vary random bits used by all programs • Obtain set T=T(Q,A,n) of equi-probable traces T(Q,A,n) [[]](T,D,f)

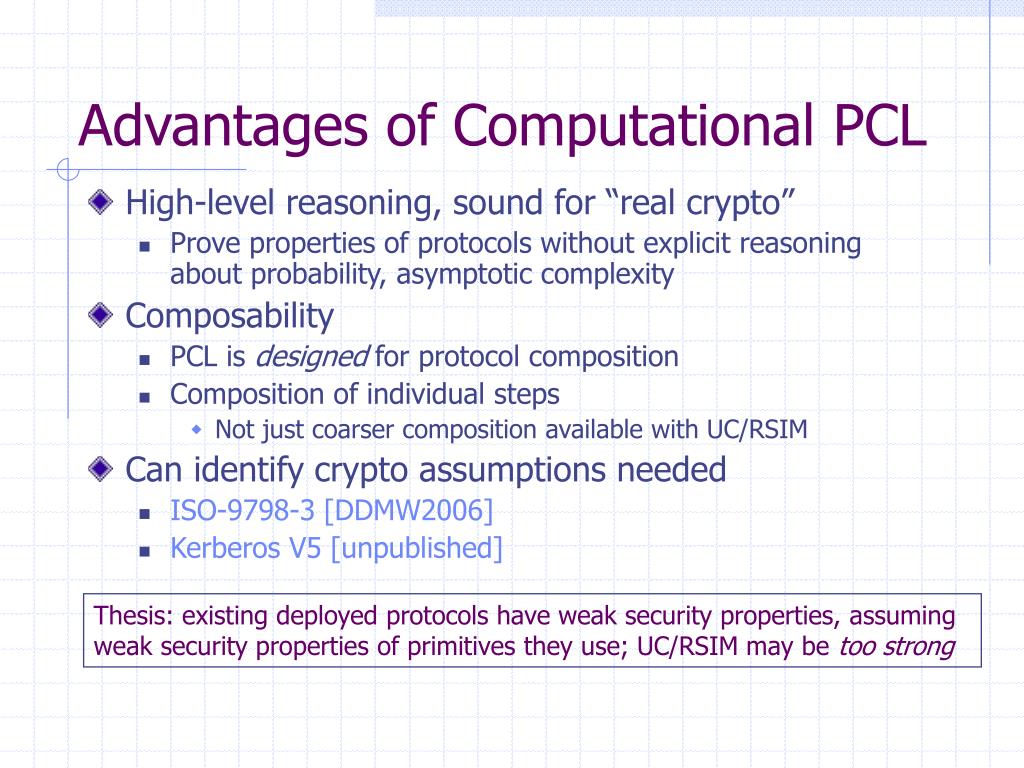

  47. Advantages of Computational PCL • High-level reasoning, sound for “real crypto” • Prove properties of protocols without explicit reasoning about probability, asymptotic complexity • Composability • PCL is designed for protocol composition • Composition of individual steps • Not just coarser composition available with UC/RSIM • Can identify crypto assumptions needed • ISO-9798-3 [DDMW2006] • Kerberos V5 [unpublished] Thesis: existing deployed protocols have weak security properties, assuming weak security properties of primitives they use; UC/RSIM may be too strong

  48. CPCL analysis of Kerberos V5 • Kerberos has a staged architecture • First stage generates a nonce and sends it encrypted • Second stage uses nonce as key to encrypt another nonce • Third stage uses second-stage nonce to encrypt other msgs • Secrecy • Logic proves “GoodKey” property of both nonces • Authentication • Proved assuming encryption provides ciphertext integrity • Modular proofs using composition theorems

  49. Challenges for computational reasoning • More complicated adversary • Actions of computational adversary do not have a simple inductive characterization • More complicated messages • Computational messages are arbitrary sequences of bits, without an inductively defined syntactic structure • Different scheduler • Simpler “non-preemptive” scheduling is typically used in computational models (change symbolic model for equiv) • Power of induction ? • Indistinguishability, other non-trace-based properties appear unsuitable as inductive hypotheses • Solution: prove trace property inductively and derive secrecy

  50. Current and Future Work • Investigate nature of propositional fragment • Non-classical implication related to conditional probability • complexity-theoretic reductions • connections with probabilistic logics (e.g. Nilsson86) • Generalize reasoning about secrecy • Work in progress, thanks to Arnab • Need to incorporate insight of “Rackoff’s attack” • Extend logic • More primitives: signature, hash functions,… • Complete case studies • Produce correctness proofs for all widely deployed standards • Collaborate on • Foundational work – please join us ! • Implementation and case studies – please help us !
