  1. Cynthia Atherton REU Program:Week 6 Presentation

  2. Topics • Test Results • Progressive Backgrounds • Fingernails • Dissecting the get_points.cpp code • Relearning C++ • Plans for next week

  3. Progressive Backgrounds White Background Dark background

  4. Progressive Backgrounds Mixed Background Complex background

  5. The Difference Fingernails Make W/Nails W/O Nails

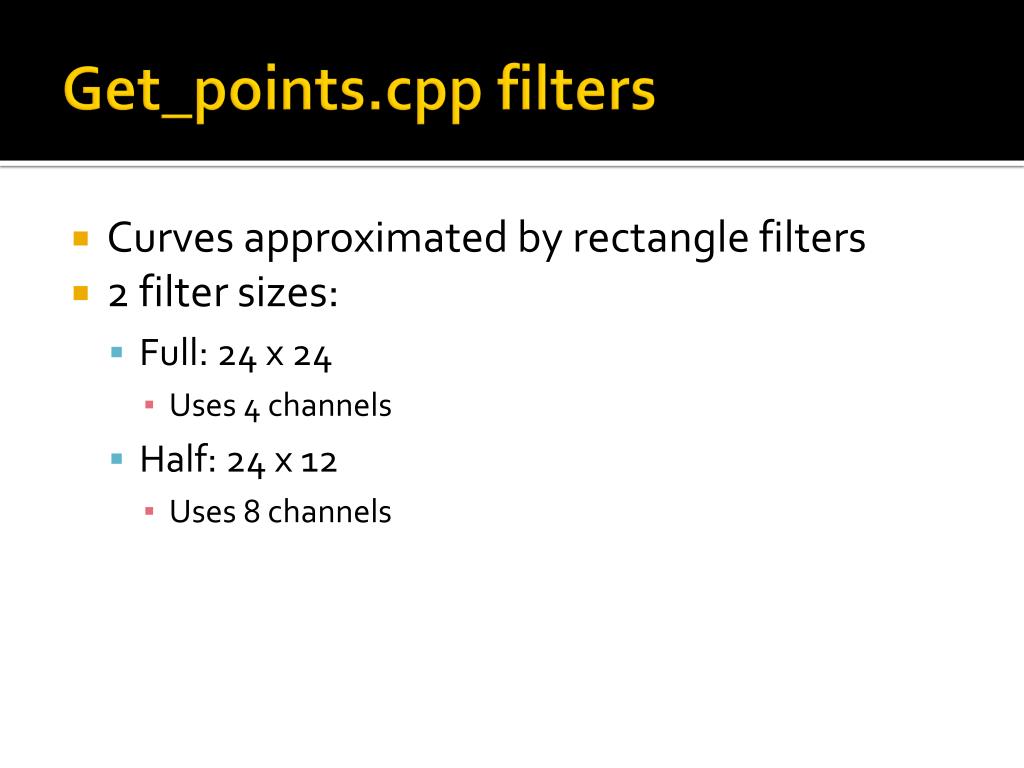

  6. Get_points.cpp filters • Curves approximated by rectangle filters • 2 filter sizes: • Full: 24 x 24 • Uses 4 channels • Half: 24 x 12 • Uses 8 channels

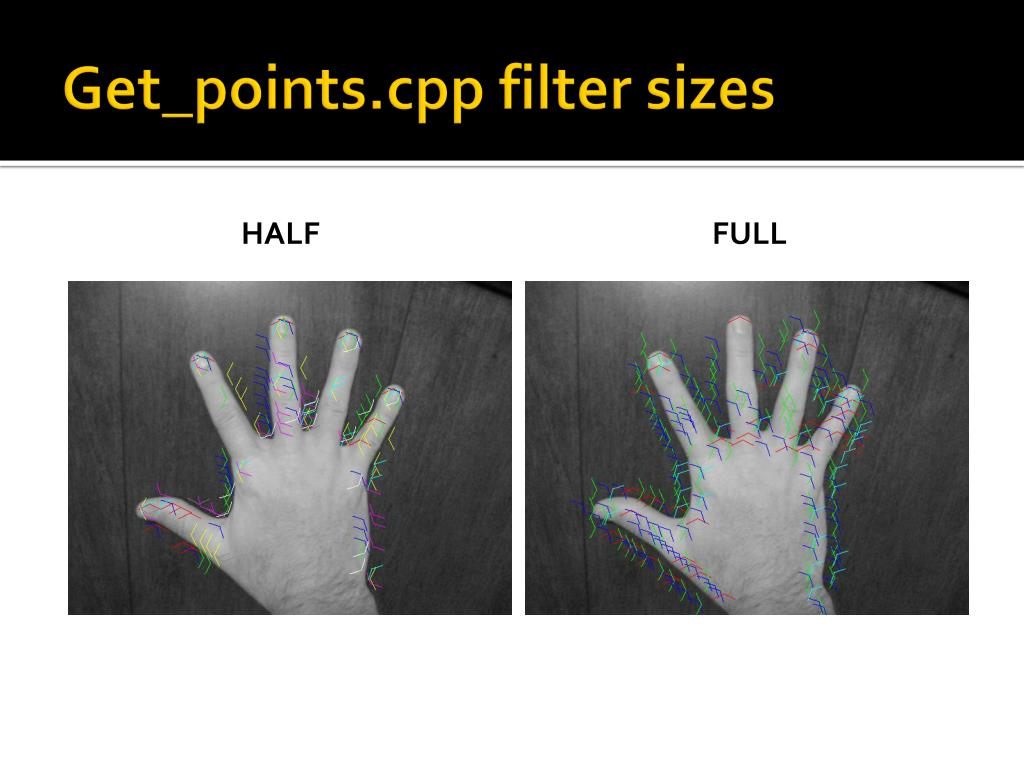

  7. Get_points.cpp filter sizes Half Full

  8. Plans • Continue working with get_points.cpp (chevrons) software How does software determine curves? • How does software apply chevrons? • Why are angle chevrons applied so stingy? • Why are some curves ignored?
