  1. Capstone PDR • Group: AquaLung • Robin Elliott • Greg Newcomb • Wilfredo Oteromatos • Mir Minhaz Ali

  2. Presentation Overview • Purpose and History of Bronchoscope • System Overview • Hardware Assembly • OS and Image processing software • Time Chart • Estimated Prototype COST • Projected Product Revenue • Technical Challenges

  3. Bronchoscope: An Overview • Bronchoscopy is a procedure to examine the bronchial tree • Bronchoscope – leading invasive tool for evaluation, diagnosis and treatment of disorders of the lung • Catheter – a thin, tube like instrument inserted into the lungs with a small light and camera on the tip which transmits images • Direct Examination, Diagnosis & Treatment • Allows for removal of obstructions and foreign bodies • Tissue may be biopsied (removed for microscopic observation)

  4. Bronchoscope: An Overview • Approximately 460,000 patients per year in U.S. • Diagnosis of • Lung Cancer, Unexplained collapse of the airways (atelectasis), tracheal narrowing (stenosis), Gastric content aspiration • Treatment of • Lung transplant complications and care, Cystic Fibrosis, AIDS, Airway inflamation, Injury due to noxious fumes

  5. A Brief History of Bronchoscopy Gustav Killian (1860-1921) German Laryngologist 1895 – Experimented with a similar device Chevalier Jackson (1865-1958) Professor of Laryngology at the University of Pittsburgh Invented one of the two main types of bronchoscopes 1903 – Adapted the bronchoscope for use in surgical procedures Regarded as the ‘Father of Bronchoscopy’

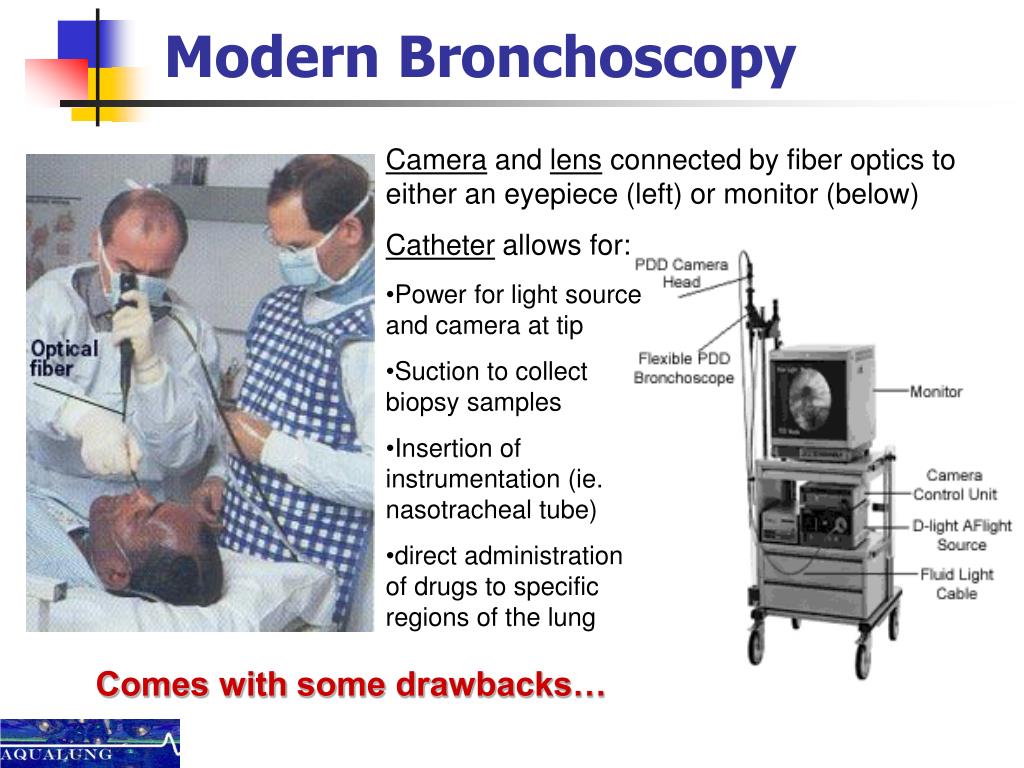

  6. Modern Bronchoscopy Camera and lens connected by fiber optics to either an eyepiece (left) or monitor (below) Catheter allows for: • Power for light source and camera at tip • Suction to collect biopsy samples • Insertion of instrumentation (ie. nasotracheal tube) • direct administration of drugs to specific regions of the lung Comes with some drawbacks…

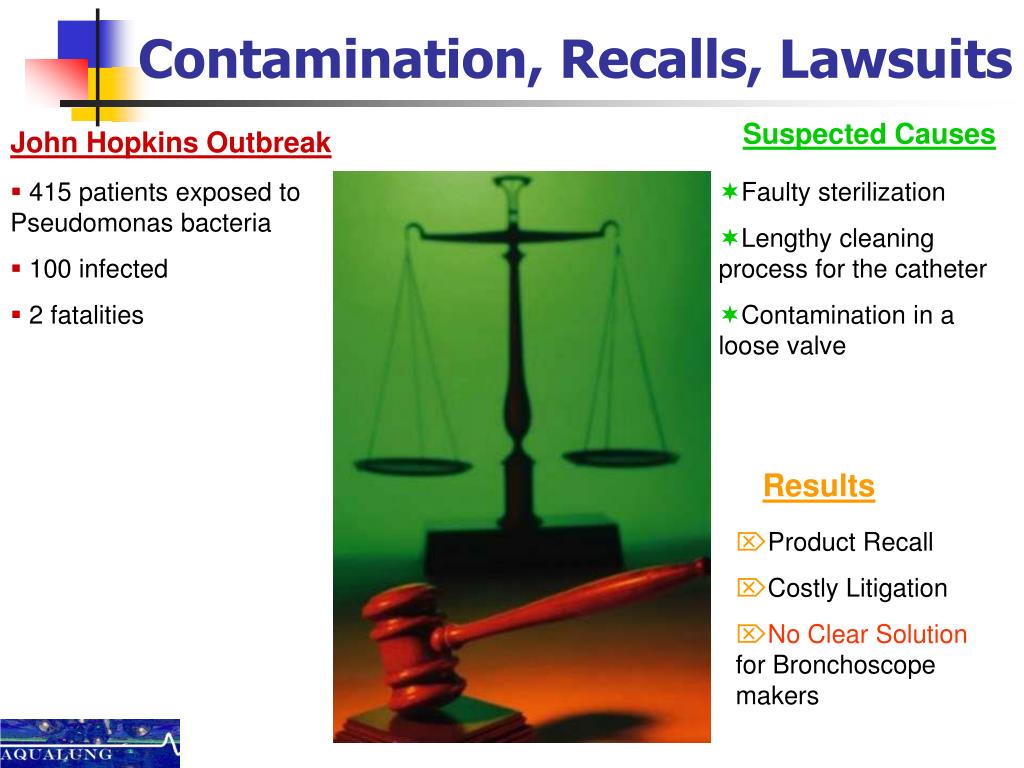

  7. Contamination, Recalls, Lawsuits Suspected Causes John Hopkins Outbreak • 415 patients exposed to Pseudomonas bacteria • 100 infected • 2 fatalities • Faulty sterilization • Lengthy cleaning process for the catheter • Contamination in a loose valve Results • Product Recall • Costly Litigation • No Clear Solution for Bronchoscope makers

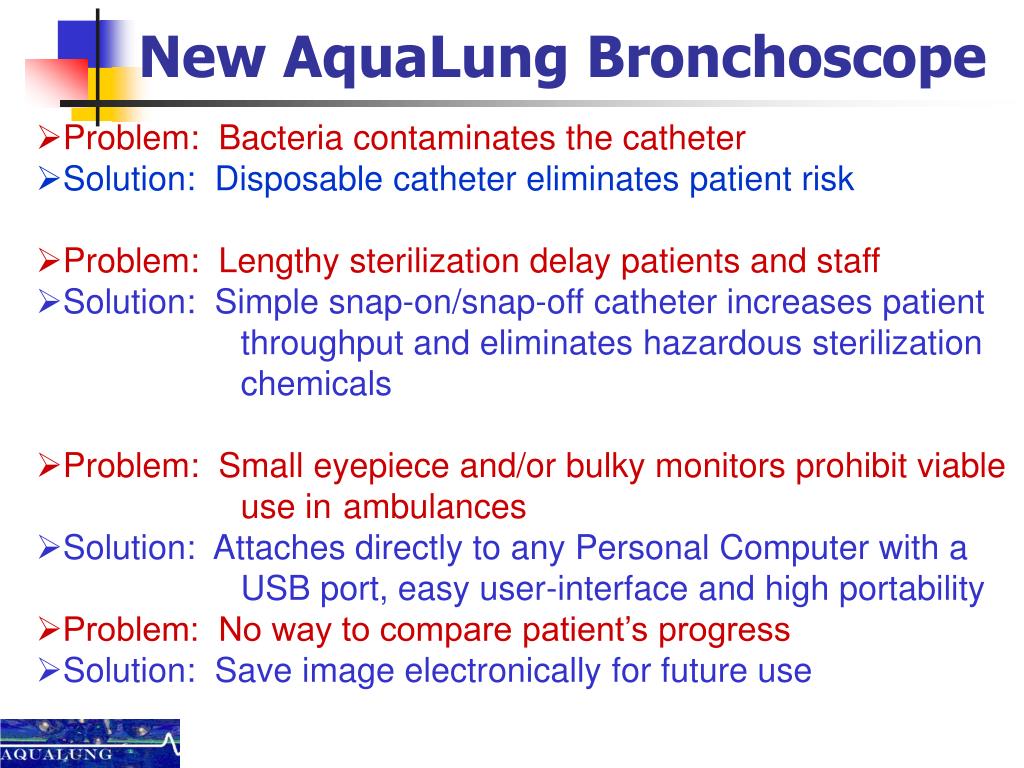

  8. New AquaLung Bronchoscope • Problem: Bacteria contaminates the catheter • Solution: Disposable catheter eliminates patient risk • Problem: Lengthy sterilization delay patients and staff • Solution: Simple snap-on/snap-off catheter increases patient throughput and eliminates hazardous sterilization chemicals • Problem: Small eyepiece and/or bulky monitors prohibit viable use in ambulances • Solution: Attaches directly to any Personal Computer with a USB port, easy user-interface and high portability • Problem: No way to compare patient’s progress • Solution: Save image electronically for future use

  9. Camera/lens Assembly Preliminary Processing Unit (PPU) Preliminary Processing Unit (PPU) PC Image Fiber P.C. USB USB LED PWR System Overview

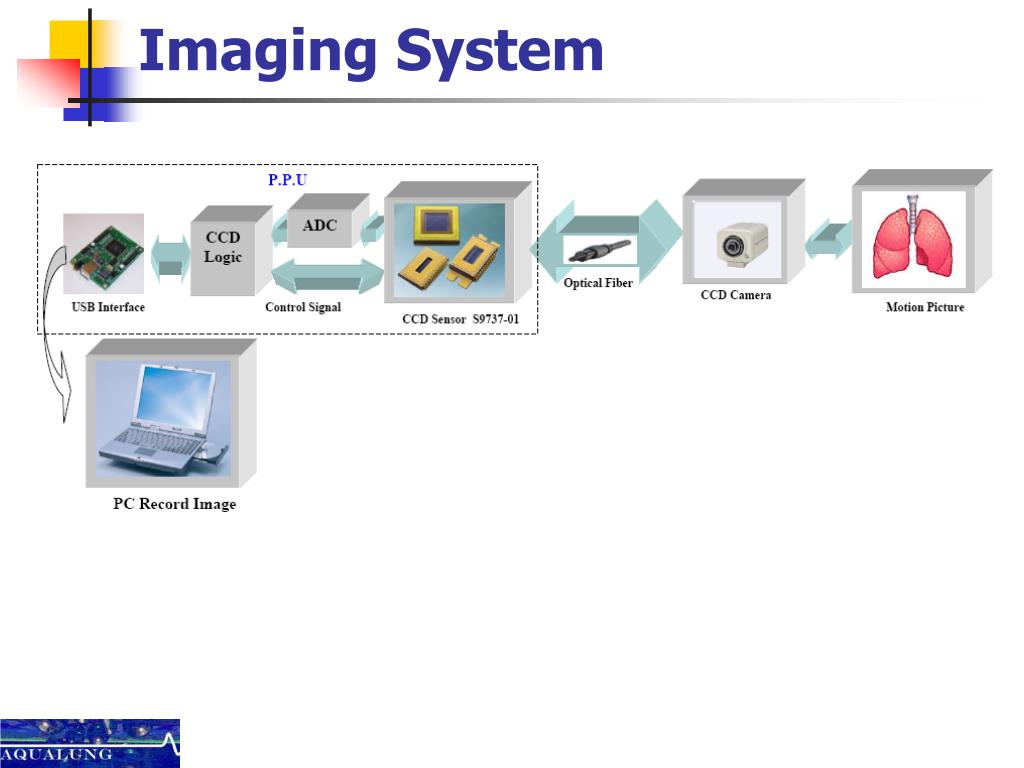

  10. Imaging System

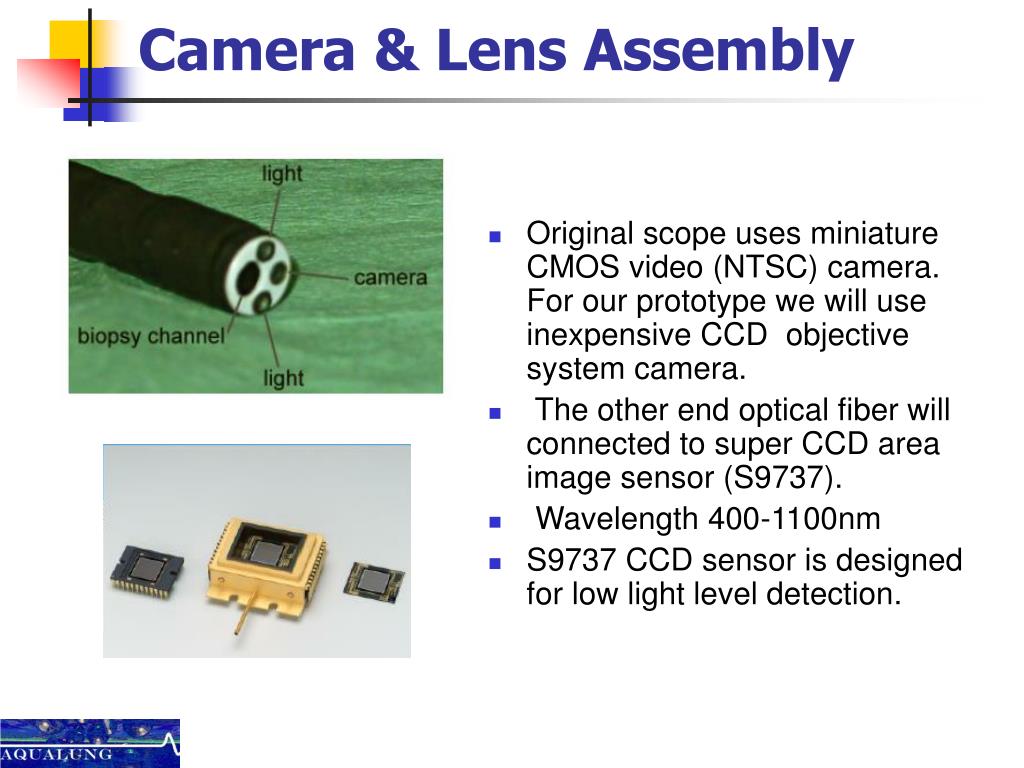

  11. Camera & Lens Assembly • Original scope uses miniature CMOS video (NTSC) camera. For our prototype we will use inexpensive CCD  objective system camera. • The other end optical fiber will connected to super CCD area image sensor (S9737). • Wavelength 400-1100nm • S9737 CCD sensor is designed for low light level detection.

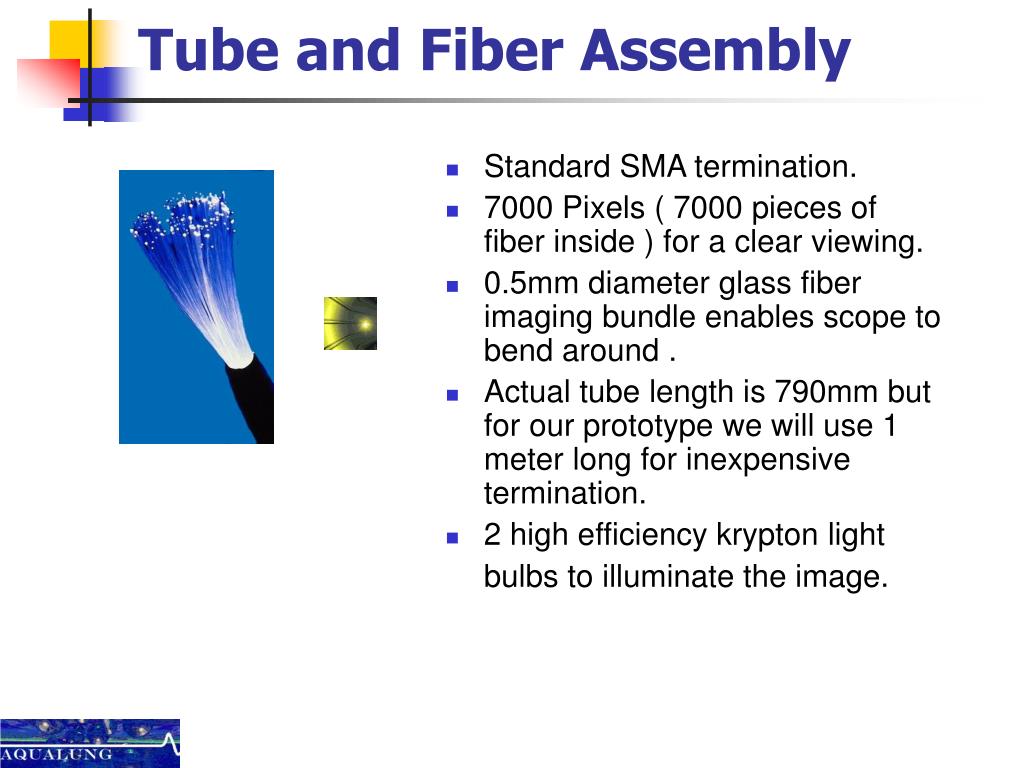

  12. Tube and Fiber Assembly • Standard SMA termination. • 7000 Pixels ( 7000 pieces of fiber inside ) for a clear viewing. • 0.5mm diameter glass fiber imaging bundle enables scope to bend around . • Actual tube length is 790mm but for our prototype we will use 1 meter long for inexpensive termination. • 2 high efficiency krypton light bulbs to illuminate the image.

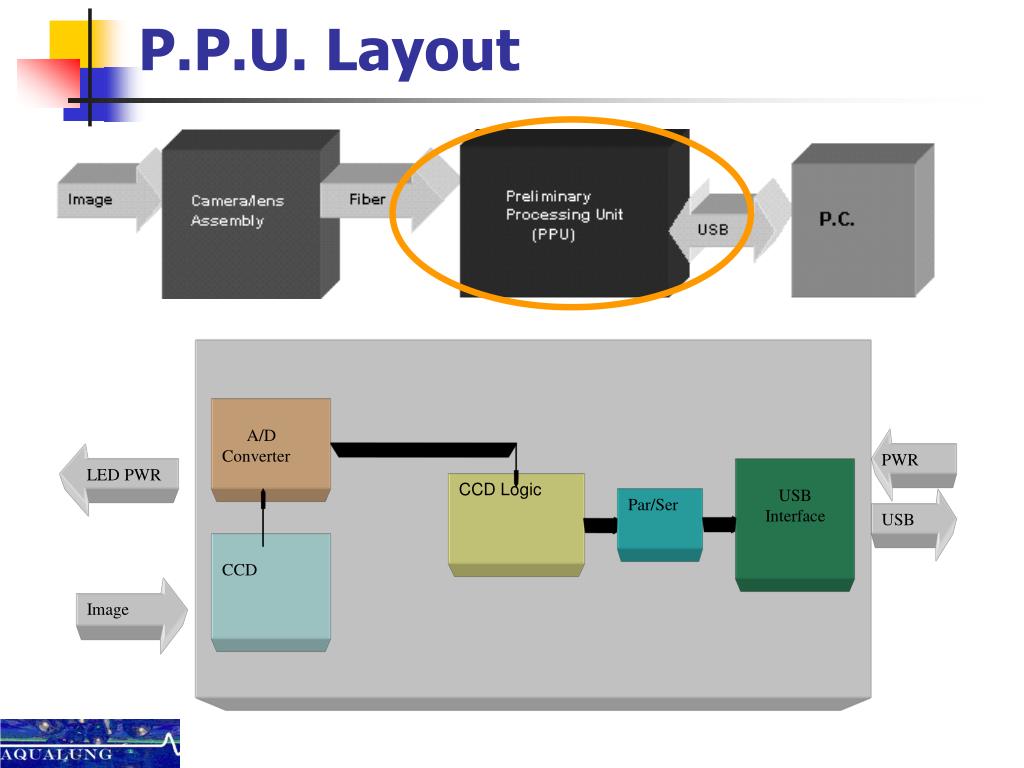

  13. A/D Converter PWR LED PWR USB Interface CCD Logic Par/Ser USB CCD Image P.P.U. Layout

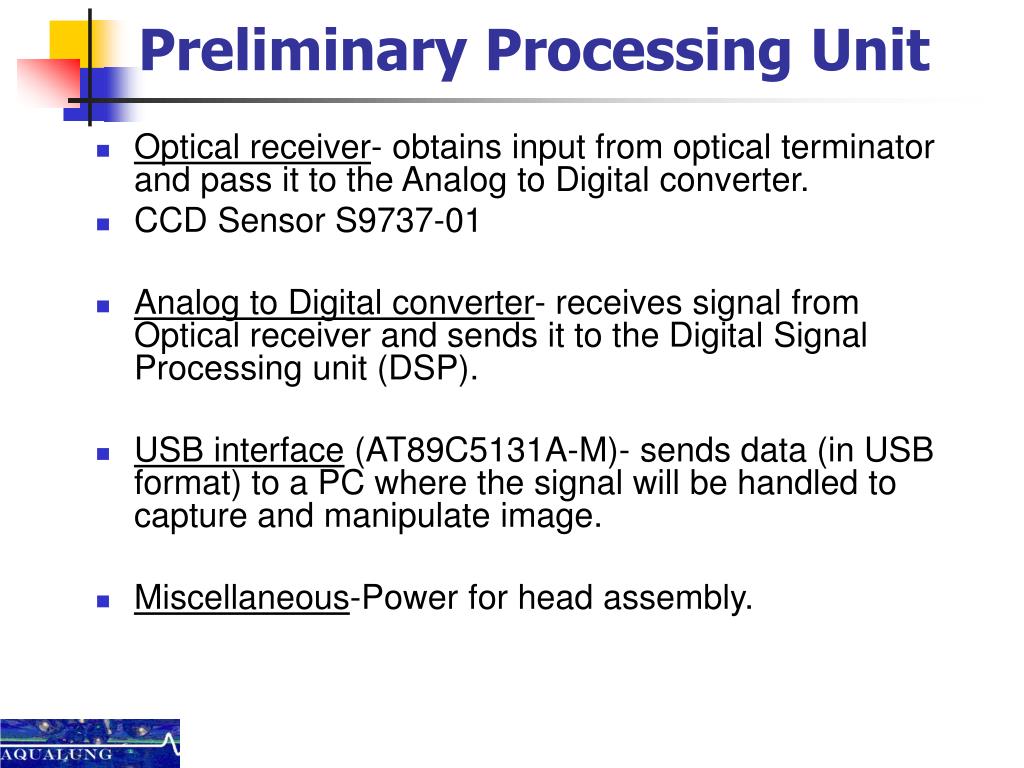

  14. Preliminary Processing Unit • Optical receiver- obtains input from optical terminator and pass it to the Analog to Digital converter. • CCD Sensor S9737-01 • Analog to Digital converter- receives signal from Optical receiver and sends it to the Digital Signal Processing unit (DSP). • USB interface (AT89C5131A-M)- sends data (in USB format) to a PC where the signal will be handled to capture and manipulate image. • Miscellaneous-Power for head assembly.

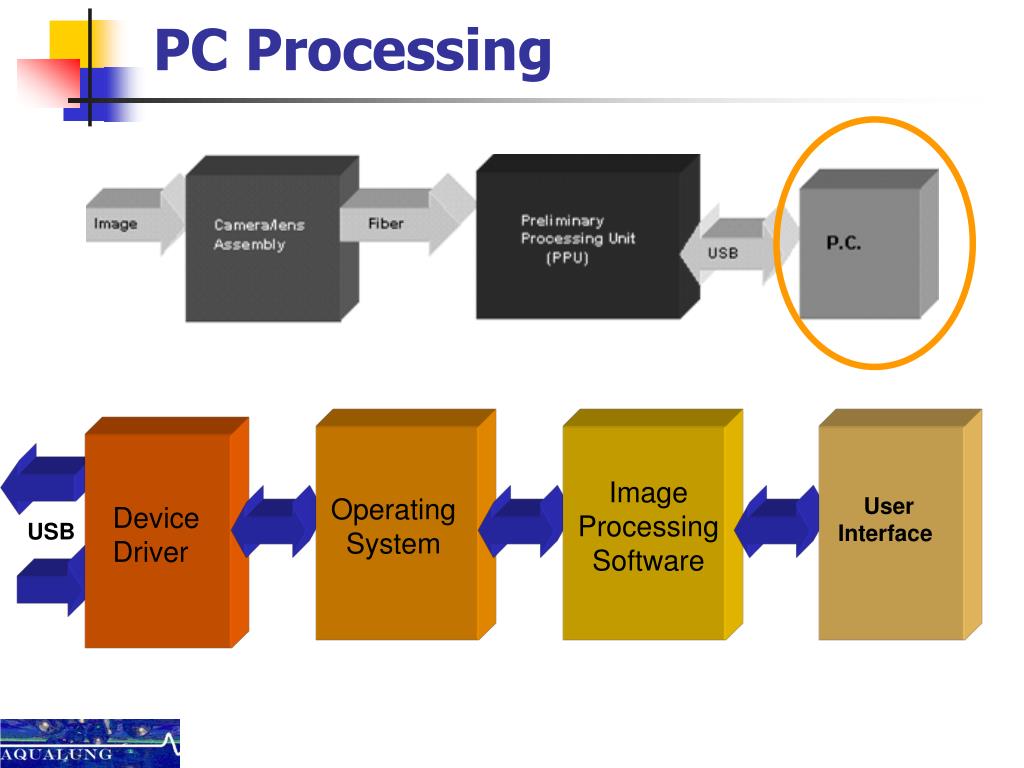

  15. PC Processing Image Processing Software Operating System User Interface Device Driver USB

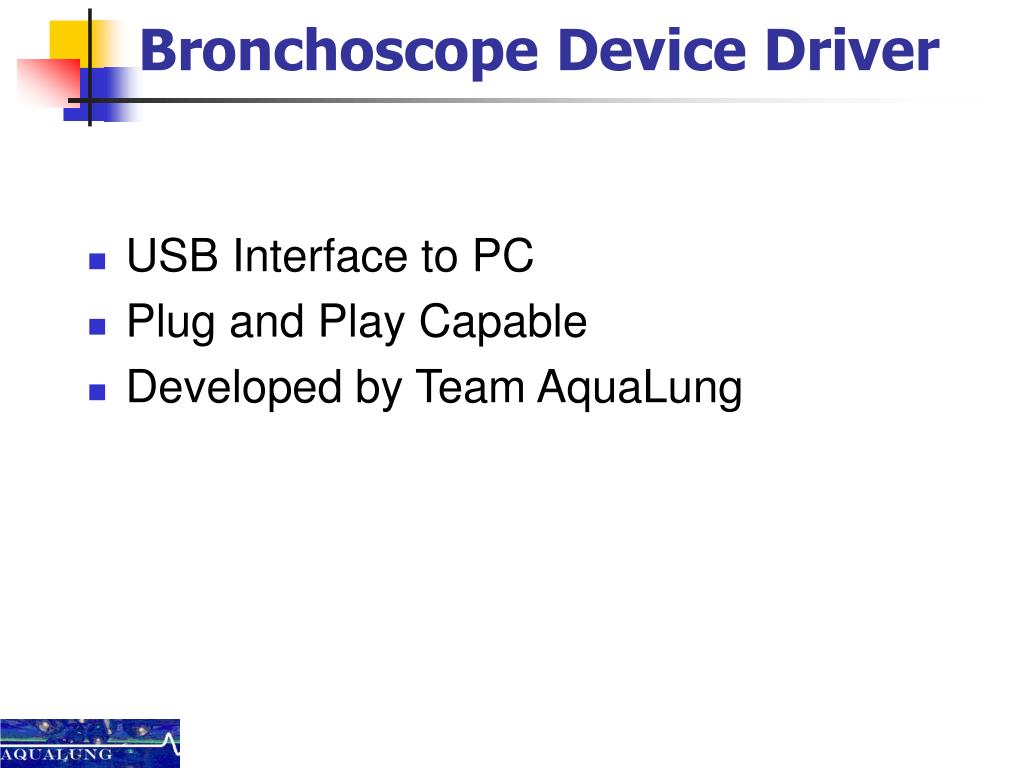

  16. Bronchoscope Device Driver • USB Interface to PC • Plug and Play Capable • Developed by Team AquaLung

  17. Operating System All software will be developed to use with Microsoft Windows XP, the current market leader.

  18. Image Processing Software • Functionality to Include • Display Real-Time Image • Zoom In/Zoom Out • Save • Crop and Rotate • Color/Contrast Enhancement

  19. Mechanical Connections • The following mechanical connections must be maintained where the catheter can be detached. • Power to the LEDs • Fiber Optic cable to the camera • A seal along the biopsy channel must be water-tight • Cable to control the tip of the scope

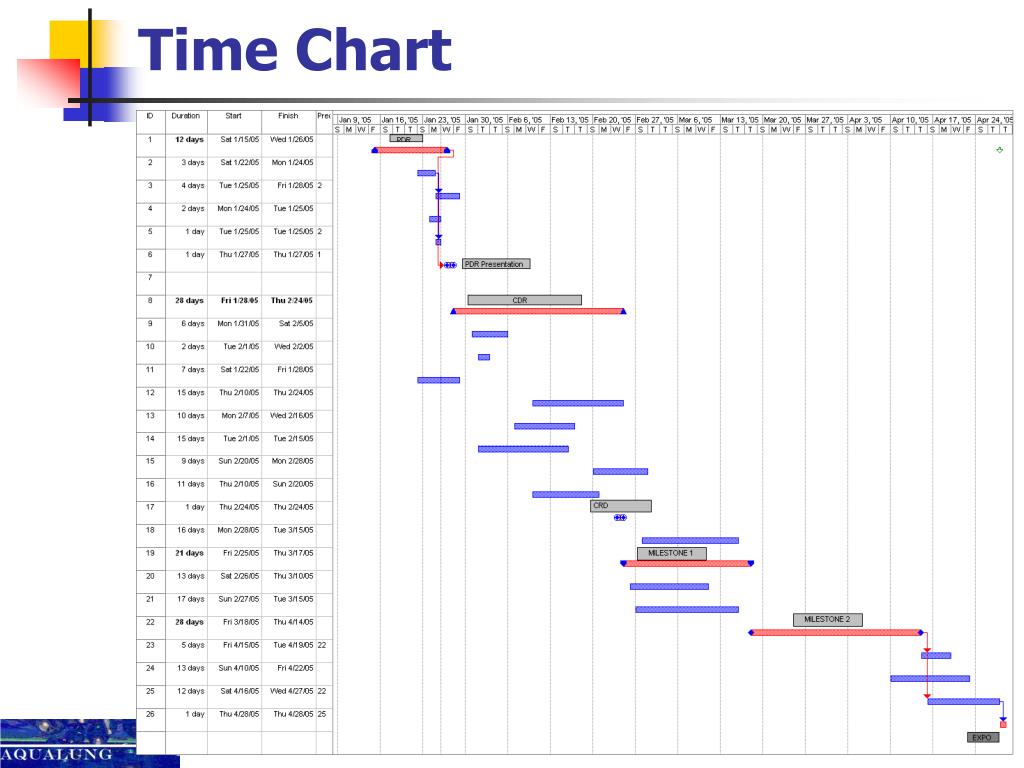

  20. Time Chart

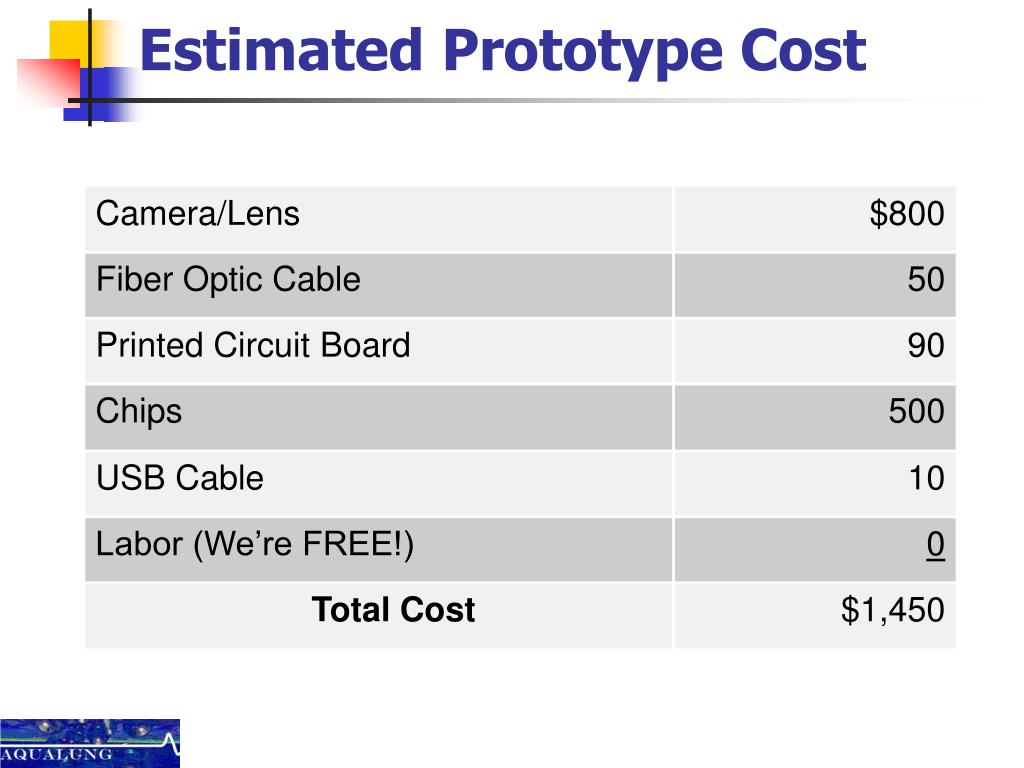

  21. Estimated Prototype Cost

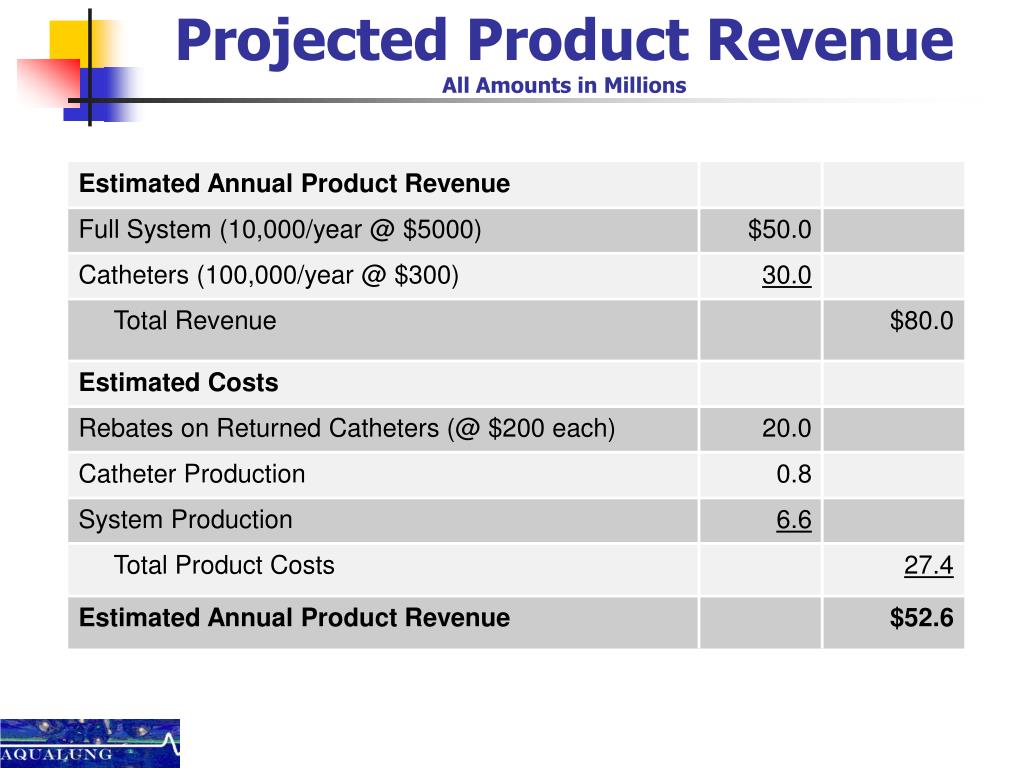

  22. Projected Product RevenueAll Amounts in Millions

  23. Technical Challenges • CCD Sensor extremely sensitive to ESD. • Focusing eye piece onto CCD window. • USB Interfacing. • Mechanical Connection (Air-Tight). • High Complexity Image Processing Software. • Window’s Device Drivers.

  24. Questions ??

  25. AquaLung Capstone PDR Thank You! • Robin Elliott • Greg Newcomb • Wilfredo Oteromatos • Mir Minhaz Ali
