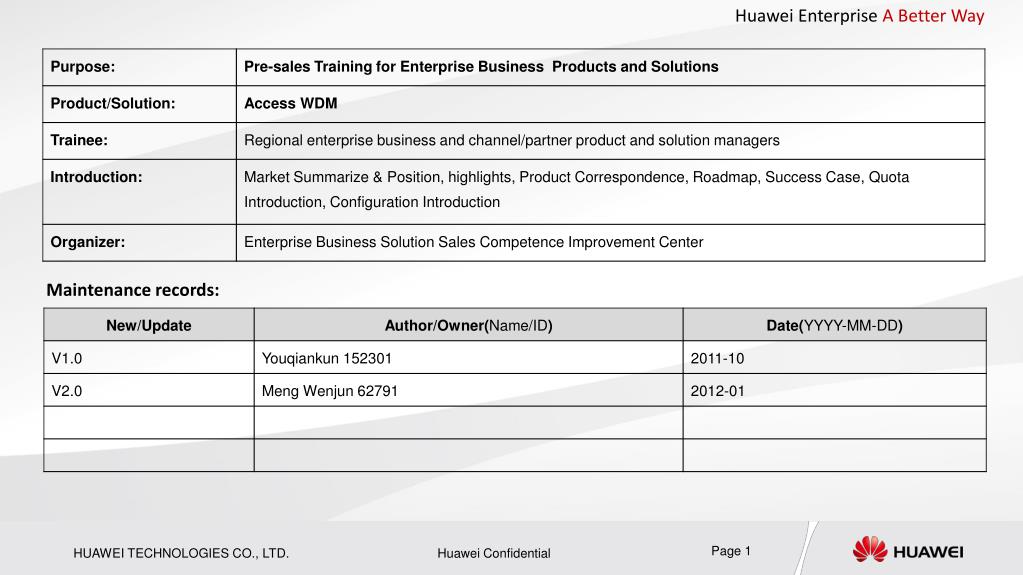

  1. Maintenance records:

  2. Access WDM OSN 1800 • Author/ Email: You Qiankun 152301 • Version:V1.0(20120123)

  3. Contents 1 Market Summarize & Position Click to add Title 2 Product Highlights Click to add Title 3 Successful Stories Click to add Title 4 Configuration Click to add Title

  4. Metro WDM Market Share Forecast by region by vertical Forecast by region by product The data of this page is only for Europe, MENA and Africa EMEA Market for Metro WDM Global Market for Metro WDM

  5. Internet Scenario 1: Data Center Disaster & Recovery Data Network WAN Transport Network (NG WDM) Backup Data Center Computing Server WAN SANSwitch Storage Storage Equipment • SAN interfaces: ESCON、FICON、FC 、IP、ATM • Large Bandwidth, Low Latency, High Reliability • Easy management and simple upgrade to get more capacity • Professional Certificated: Fully Certificated by top authority including EMC、HP、IBM、SUN、McDATA、Brocade, meanwhile deeply corporate with IBM to meet all SAN application scenarios.

  6. Scenario 2: Distance Teaching • Distance teaching for students • Distance training for teachers • Faculty communication • High-end training and meetings OSN8800 Learning at home NE40E Live broadcast room OSN 1800 Learning in the library OSN 1800 Virtual classroom Main classroom Learning in the classroom Learning in the office • OSN1800 as a WDM solution applied in access layer which is a cost-efficient and high broadband solution • 2M~10Gfull service access； • Smoothly expanse to 80G by plugging service card • 1+1 protection supported by client side, OUT, line side and equipment level; • Both single fiber and pair fiber transmission are supported; • Remote in-band management by G.709

  7. Scenario 3: Restful City-Efficient Video Transmission Database Restful City go to large-scale expansion SMS、CMS OTN: Video Transmission Solution for Police Bureau Department of Provincial Public Security 1st Level: MPLS VPN Developing phase Peak Phase Initial Phase Alarm Sys Make trail at Peking, Hangzhou, Jinan and Suzhou. At Aug of 2005，Peking, Shanghai and other 20 cities are listed in“3111 Trail Cities”Project. After 2007，totally 400 County Towns and Cities enter the building to the climax of Restful City. Optical Modem Optical Modem Police Bureau 2nd Level: MSTP Lease Line 3rd Level: Optical Terminator aggregation Police station With development of "Restful City, to satisfy the high capacity requirement of monitoring video transmission and the increasing requirement of video shared by government. OSN1800 as a WDM solution applied in access layer which is a cost-efficient and high broadband solution for customers could resolve the tension of fiber recourse. 4th level： Access Point … … Street Bus Station Square Gov Hotel Private Community

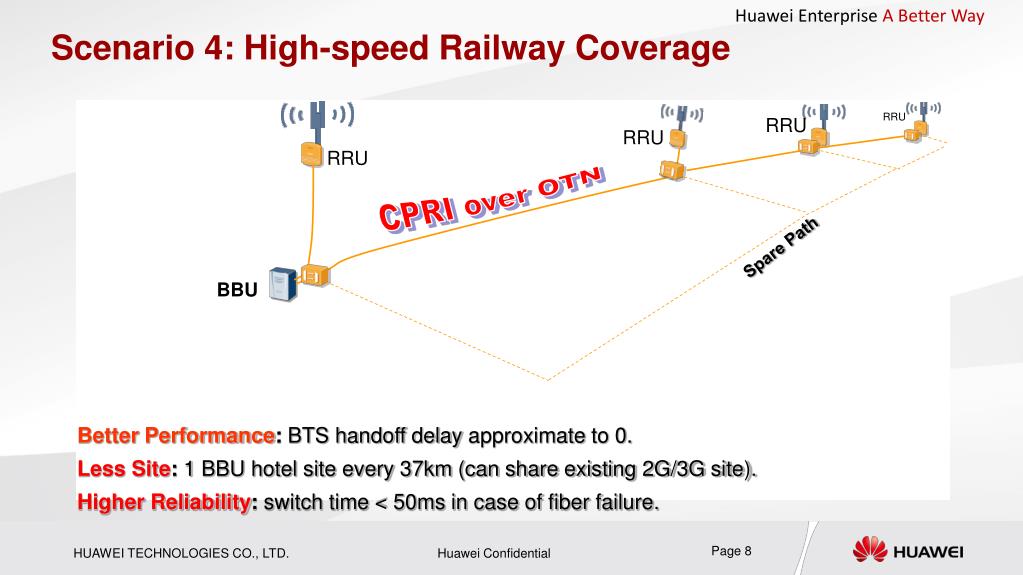

  8. RRU Scenario 4: High-speed Railway Coverage RRU RRU RRU CPRI over OTN Spare Path BBU Better Performance: BTS handoff delayapproximate to 0. Less Site: 1 BBU hotel site every 37km (can share existing 2G/3G site). Higher Reliability: switch time < 50ms in case of fiber failure.

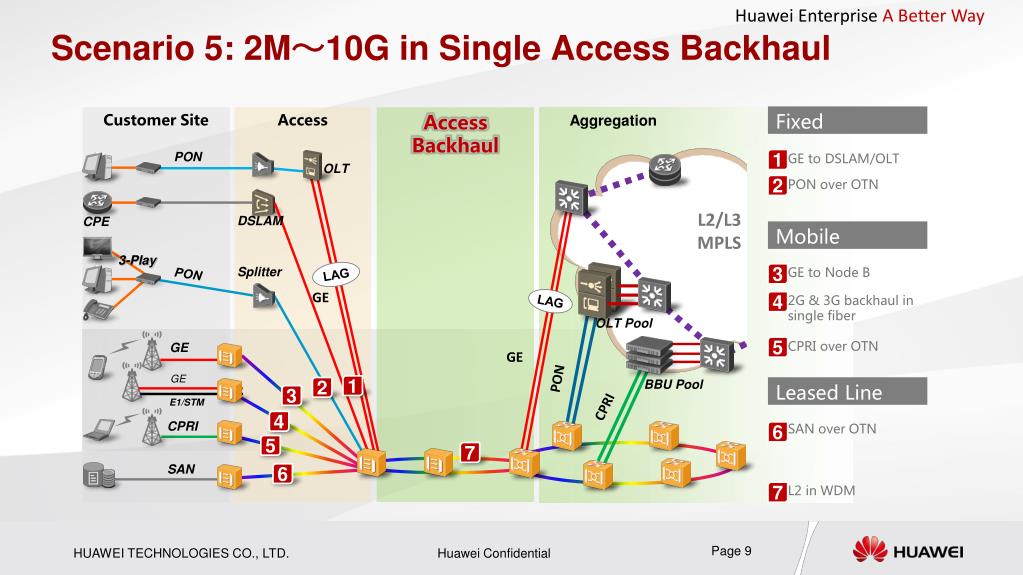

  9. Scenario 5: 2M～10G in Single Access Backhaul Fixed Customer Site Access Access Backhaul Aggregation GE toDSLAM/OLT PON 1 OLT PON over OTN 2 L2/L3 MPLS DSLAM CPE Mobile 3-Play GE toNode B LAG 3 Splitter PON GE 2G & 3G backhaul in single fiber LAG 4 OLT Pool CPRI over OTN 5 GE GE PON GE 1 BBU Pool Leased Line 2 3 CPRI E1/STM 4 SAN over OTN CPRI 6 5 7 SAN 6 L2 in WDM 7

  10. Contents 1 Market Summarize & Position Click to add Title 2 Product Highlights Click to add Title 3 Successful Stories Click to add Title 4 Configuration Click to add Title

  11. Full-Service Access 2Mbps-10Gbps in 1 System G.709 OTN Compliant STM-1/4 PDH SDH 21×E1/T1+2×STM-1 TDM OTU1 4/8×Any OTU1 FE GE 2×FE + 2*GE OTU5G 4×GE OTU2 8×GE /EPON λ OTU2 10G Broadband 10G Any Fiber EPON GPON 1×EPON, 1×GPON(3R) OTU1, 2 2×EPON, 8×EPON /GE OTU2 4×GPON /STM-16/OTU1 OTU2 Distributed BTS CPRI 4/8×CPRI /Any OTU1 SAN FC FICON ESCON 4/8×Any

  12. Fits Anywhere Rack-, outside cabinet-, wall-, pole-mount. And AC power supply In 19’’/23’’ Rack In Outdoor Cabinet Wall Mount Pole Mount AC Power Supply Temperature hardened ( -40°C～+65°C / -40°F~149°F ) Only for some specific configurations.

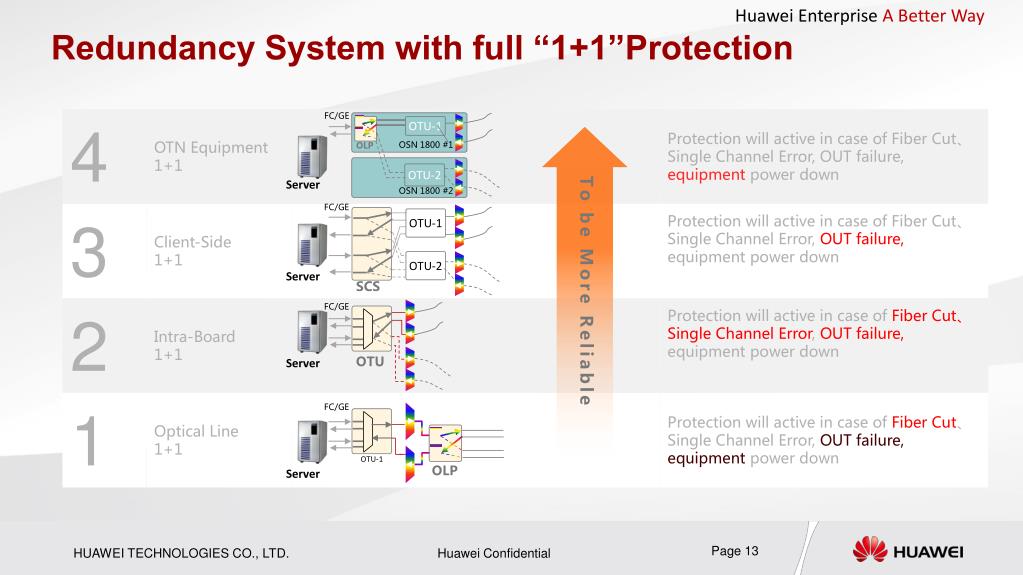

  13. Redundancy System with full “1+1”Protection FC/GE FC/GE OTU-1 OSN 1800 #1 OLP OTU-1 OTU-2 OLP Server To be More Reliable Server OSN 1800 #2 FC/GE OTU Server FC/GE OTU-1 OTU-2 Server SCS

  14. E2E 1588V2 BITS MSS/MGW/RNC MSS/MGW/RNC CO1 CO GE (Primary+Protection) core OSN 8800 T64/32 N*GE/10GE • Simpleengineering without measuration • Easy Operation by NMS • High clock reliability with protection; • 1588v2 over ESC without FIU board. Aggregation OSN 8800 T16 Backhaul OSN 1800 GE 2.5G×8-ch GE

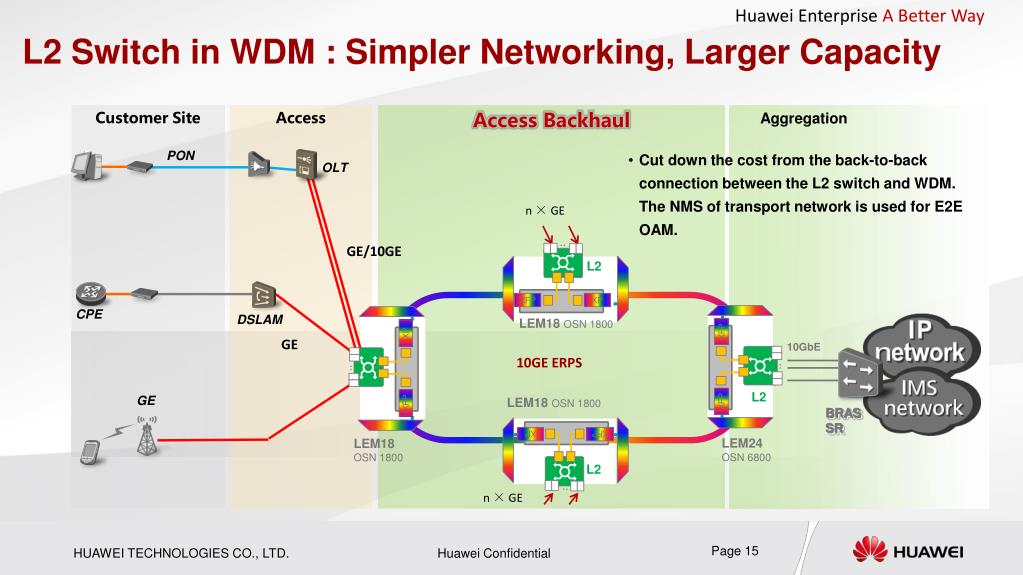

  15. L2 Switch in WDM : Simpler Networking, Larger Capacity Customer Site Access Access Backhaul Aggregation • Cut down the cost from the back-to-back connection between the L2 switch and WDM. The NMS of transport network is used for E2E OAM. PON OLT n × GE GE/10GE L2 CPE DSLAM LEM18 OSN 1800 GE 10GbE 10GE ERPS L2 LEM18 OSN 1800 GE XP XFP XP XP XFP XFP XFP XFP BRAS SR LEM24 OSN 6800 LEM18 OSN 1800 L2 n × GE

  16. Certification

  17. Contents 1 Market Summarize & Position Click to add Title 2 Product Highlights Click to add Title 3 Successful Stories Click to add Title 4 Configuration Click to add Title

  18. OSN 1800 Applied 10,000+ Sets • British Telecom • FT/Orange • KPN • Swisscom • Telecom Italia • Telefonica • Telekom Austria • Virgin Media • Vodafone • MTS • Svyazinvest • Vimpelcom • Megafon • China Mobile • China Unicom • China Telecom • Etisalat • Orascom Telecom • Saudi Telecom • Q-tel • America Movil • Oi/Telemar • TLATAM • TIM • Telmex • PCCW • KDDI • Optus • Hibernia • Over 80% market share in China, and mutually deployed in Restful Cites, Enterprises, Data Centers, Universities and so on. • Over 10,000 sets commercially available in global market. Cooperate with KDDI, PCCW, TA, FT, Vodafone, Telefonica, and private network customers from Government/Finance/Education/Enterprise.

  19. Belgium Syntigo Railway Project Background & Needs • Syntigo was set up in 1998 as a subsidiary of SNCB-Holding ,hold the second largest optical network in Belgium and cover 150000km, It provide service with involved Transport & Mobility, Enterprise & Public sector, and Telecom operator & Integrators. It is aimed to be the most reliable supplier of ICT solutions for mobility and communication. Huawei Solution • Huawei series products OSN 1800/ OSN 6800/ OSN 8800. • Multi-degree WSS ROADM and integrated OTN switching. • OSN 1800 for small granularity services access. • 80×40G provide enough capacity forextend. Benefits • Safety & Reliability: end to end fixed fiber, real-time, high-speed solution, elevate dispatch efficiency, enhance transportation safety. • Multi-Service access: support various applications (SCADA, Passenger-ticket Management Information System, etc.) • Easy maintenance: unified network deployment and management reduce operating expense

  20. Spain ADIF Railway Transmission Project Background & Needs Adif, the administrator of railway infrastructures , is the world leader with 99.6% of train arrived with less than 3’. Up to 2010, Adifhas 2,200Km high speed rail and 11,096Km conventional railway in service. Traditional SDH network is in use along the 1200km-long railway around Madrid. Adif wants to rebuild the network, which has two fibers and fifty sites, for higher capacity and unified TDM&IP access. High Capacity, Unified TDM&IP Access Huawei Solution • 108 OSN 1800 equipments for unified TDM&IP access. • C+DWDM: CWDM cost effective initial deployment + DWDM scalability (>1Tb/s). • Optical line protection for each fiber between two adjacent stations. Benefits • Multi-service access: E1, STM-1/4/16, FE, GE, 10GE.. etc. • High capacity: 8*10G(CWDM), and easy expansion to 16*10G(DWDM). • High reliability: switchover time < 50ms.

  21. Alibaba DC Disaster Recovery Project Background & Needs Alibaba is the largest e-business company in china and the second one in the world . Founded in 1999 in Hangzhou , China . Alibaba contains Taobao Marketplace , Alibaba cloud Computing , Alipay and Koubei.com . There are six DataCentrers in Alibaba HQ to support global service. Flexible Access, High Bandwidth Huawei Solution • OSN6800 for each node which support 80*40G, OSN1500B for E1 and FE service access • Tributary side support FC400 , 10GE , GE , FE and E1 port • In first phase , offer 42*10G bandwidth (42 wavelength, 10G each wavelength ) • The protection is ODUk SNCP . Benefits • High reliability: equipment-level protection(1+1 hot backup for key boards) and network-level protection(SNCP) , switchover time <50ms. • Easy bandwidth upgrade (42*10G to 80*40G) • U2000 unified network management to reduce operating expense

  22. EVN NPC DWDM Project Background & Needs Vietnam Electricity (EVN) is the largest power company in Vietnam having an installed electricity generation capacity of 8,860 MW and a distribution network of 19,396 kilometers . North Power Corporation (NPC) is one of the EVN’s seven subsidiaries .The DWDM network is used for twenty-four UHV substations connection , the longest distance among substations is 120 kilometers .. Flexible Access, Smooth Evolution Huawei Solution • OSN6800 for each node which support 80*40G, OSN1500B for E1 and FE service access • Tributary side support FC400 , 10GE , GE , FE and E1 port • In first phase , offer 42*10G bandwidth (42 wavelength, 10G each wavelength ) • The protection is ODUk SNCP . Benefits • High reliability: equipment-level protection(1+1 hot backup for key boards) and network-level protection(SNCP) , switchover time <50ms. • Easy bandwidth upgrade (42*10G to 80*40G) • U2000 unified network management to reduce operating expense

  23. Contents 1 Market Summarize & Position Click to add Title 2 Product Highlights Click to add Title 3 Successful Stories Click to add Title 4 Configuration Click to add Title

  24. OSN 1800 Major Components List

  25. OTU cards: Unique & Better features 2.5G 10G *Card labeled by Green is newly added at R3

  26. Same cards for both 2 devices OSN 1800 I: 4 channels + 1310nm in single 1U box OTU/OADM OTU/OADM 4 FAN 3 6 OTU/OADM PIU * 数字表示槽位序号 SCC 2 5 1 • 443mm×44mm×220mm(W×H×D) • 3 slots for OTU card • OTM: 4 C/DWDM channels + 1310nm • OADM: 2 protected C/DWDMchannels + 1310nm • 2 protected λ in single card (LWX2, LDGF2) • 2×GE + 2×STM-1 in single 2.5G λ(LQM, LQM2), or • 2×GE + 2×FE in single 2.5G λ (LDGF), or 2×10GE/GE+2×GE (LEM18)， 8×Any（ELOM) • PON、CPRI over OTN for Central office consolidation Unique Features

  27. Same cards for both 2 devices OSN 1800 II: 8 protected ch + 1310nm in single 2U box FAN OADM SCC 7 8 11 10 5 6 3 4 9 1 2 PIU Slot 1～ 6 for OTU/OADM cards * 数字表示槽位序号 • 2U device: 442mm×88mm×220mm(W×H×D) • 6 slots for OTU card • OTM: 8 C/DWDM channels + 1310nm • OADM: 8 Protected C/DWDM channels + 1310nm (e.g. 4×LDGF2/LWX2 + 2×MD8/MR8 + SCC ） • Capacity: 20Gfor single device in CWDM (4×LDGF2/LQM2/LQG); 60Gfor single device in DWDM(6×LSX)

  28. LEM 18 B OTU 2 A OTU OTU 2 C K 10 GE 10 GE P GE L GE … A 16 * GE … L 2 Switch GE 10 GE N GE GE/10GE E GE/10GE SLOT4 SLOT3 (SLOT6) SLOT5 SLOT2/SCC SLOT1 SLOT8/SCC SLOT7 SLOT9 SLOT5 SLOT6 SLOT11 SLOT4 SLOT3 SLOT10 SLOT1 SLOT2 LEM18: L2 card with high density GE/10GE One card with 2 slots: OSN1800-I • Card Feature： • High Density Ethernet Service Access： • Client side:16×GE/FE+2×10GE/GE. GE/FE service support electrical and optical module. • WDM line side: OTNmode and ETH mode.2×OTU2 in OTN mode, 2×10GE in ETH mode. • Pluggable SFP/SFP+/XFP/TXFP • Rich L2 feature, including EPL/EVPL/EPLAN/EVPLAN, QinQ, QoS, etc. • Protection： • Client side: LAG. • WDM side: ERPS in OTN/ETH mode. • Management：G.709 in-band (ESC) （Notes：under OTN mode） OSN1800-II Note：Slot4/6 & Slot3/5 is available

  29. 1 1 LEM18 LEM18 LEM18: OTN Mode & ETH Mode Dual Mode in One Card 2×10GE 2×10GE SFP+ SFP+ SFP+ SFP+ SFP SFP SFP SFP SFP SFP SFP SFP Mux & Map XFP Mux & Map XFP OTU2/ERPS 10GE/ERPS XFP XFP …… …… 16×GE 16×GE SFP SFP SFP SFP OTNMode ETHMode 1 2

  30. ELOM 1 ELOM: 8×Any (100M~10G) OTU2 WDM side Client Side Card Feature: • Client Side: 8×Any(100M~10G) including: • FE, GE, 10GE LAN, STM-1/4/16, OTU1 • FC 1G/2G/4G/8G, FICON，FICON Express, ESCON • InfiniBand 2.5G/ 5G • DVB-ASI, HDTV, HD-SDI, SDI • CPRI: 1.2288Gbit/s, 2.4576Gbit/s，6.1440Gbit/s • Pluggable SFP/SFP+/XFP/TXFP • ODU0/1/2Mapping • Protection： • WDM side： 1+1 line side • Client side： Client side 1+1 (working with another ELOM) • Management: G.709 in-band management(ESC) SFP SFP SFP OTU2 8×Any (100M~10G) OTU2 Map XFP SFP SFP OTU2 XFP SFP SFP SFP

  31. TSP: 21 E1/T1 + 2 STM-1/4 Client STM-1 Line STM-1/4 Client E1/T1 • Features: • Access 21 E1 orT1 (electrical port), and 2 STM-1(optical port) • All optical port support SFP • Data exchange with LQM2 card in paired slot 1 E1/T1 STM-1 STM-1 Map SFP 21 STM-1/4 693×693 VC-12 Matrix SFP SFP STM-1 SFP Bus on backplane 2×STM-1 TSP LQM2 (paired slot) SFP OTU1 SFP

  32. LDE LDE: 2 EPON/GEOTU1 目前还没有图 Client GE or EPON WDM Line • Features: • 2 EPON or GE optical input • Client & Line SFP • Protection (Optional): • OTU 1+1 (With external OLP) • Embedded WDM channel 1+1 • LPT (Link-state Pass Through) • Jumbo frame • ODU0 Mapping supported • G.709 In-band Management (ESC) OTU1 ODU0 Map ODU0 Map GE or EPON SFP SFP ODU1 Map SFP SFP

  33. LQPU、LQPL 1 LQPU & LQPL: 4 GPON/STM-16/OTU1OTU2 WDM Line Client GPON, STM-16, OTU1 SFP OTU2 GPON STM-16 OTU1 SFP ODU2 Map XFP SFP SFP Notes: different cards used in OLT side and ONU side.

  34. APIU: AC Power Input No actual picture. • Features: • AC Power(100 ~ 240 VAC, 47 - 63 Hz) Input • Occupy 2 vertical card-slots • Protection: • Card 1+1 (Default) Preferred slot to use

  35. Appendix Cards Naming Rule

  36. Appendix: Naming Rule of Cards (1/4) • Total naming rule Extension name, 1~2 symbols Card name, 3 symbols Hardware version, 1 symbol Fixed prefix

  37. Appendix: Naming Rule of Cards (2/4) • Naming rule of system card A B C D Extension name, A or B for different card • Card name, 3 symbols • SCC: Controller card • FAN: Fan tray unit • PIU: Power supply unit • Examples

  38. Appendix: Naming Rule of Cards (3/4) • Naming rule of OTU card A B C D • Extension name • Amount of line port. Default null • R: Regeneration unit • E: Enhanced • F: FEC. Only for LDGF • L: OLT side • U: ONU side • Client service type • M: Multi-rate • G: GbE • X: 10G • XI: 40G • P: GPON • E: EPON Amount of client side S: 1, D: 2, Q:4, O:8, • Card type • L: line & client side in 1 card • N: Line card. No client side • T: Tributary card. No line side • Examples  Exception: LWX2/LWXR2: Double Arbitrary Bit Rate (42Mb/s~2.67Gb/s) transparent transport/regeneration card.

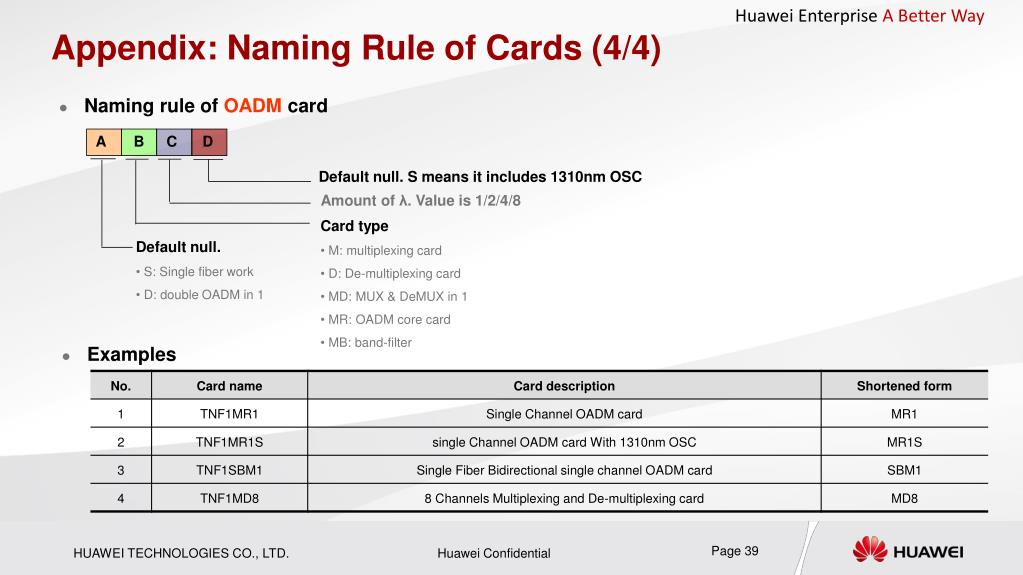

  39. Appendix: Naming Rule of Cards (4/4) • Naming rule of OADM card A B C D Default null. S means it includes 1310nm OSC Amount of λ. Value is 1/2/4/8 • Card type • M: multiplexing card • D: De-multiplexing card • MD: MUX & DeMUX in 1 • MR: OADM core card • MB: band-filter • Default null. • S: Single fiber work • D: double OADM in 1 • Examples

  40. Huawei Kung Fu Document - Weapons for you Weapon1: Enterprise Website Weapon 2: Bookshelf • Rich information • Quick access and search • Convenient navigation http://enterprise.huawei.com Training Brand Getting Huawei Pre-sales documents At any time ,anywhere from Enterprise Website! Test& Certification Customer Communications Weapon3: Document Email Weapon4: Powerful Material Where can I find it and feedback? Sales Guide Bidding WEUdoc@huawei.com

  41. How to Get Presales Help WEUpresales@huawei.com Huawei Experts Partners Call Center • 5*8hours presales email and telephone support • Products and solutions consulting 00800-33888888 Partners

  42. Open Discussion Any Question?
