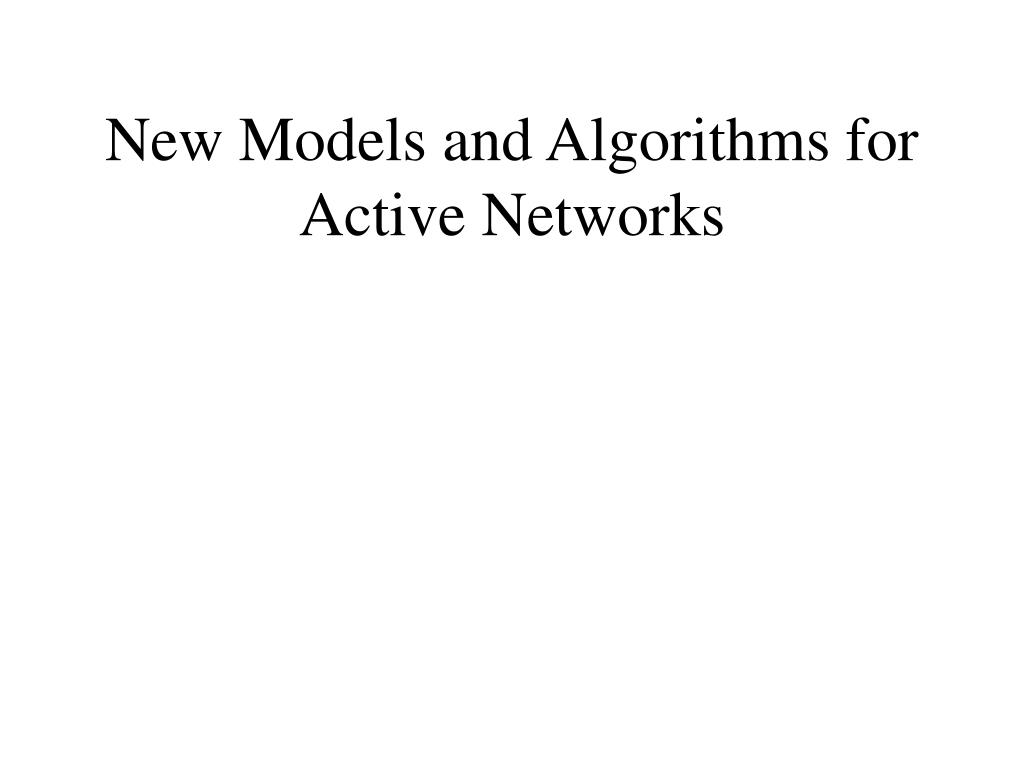

  1. New Models and Algorithms for Active Networks

  2. The Active Bell-Labs Engine • An adjunct active engine to any COTS router • Only some packets are diverted to the AE Packet • Delay depends on whether it passes thru the AE. • Processing time in the AE may depend on • data in the packet. • soft state in the AE. Active Engine (AE) session 1 session 2 manager MIB filter router

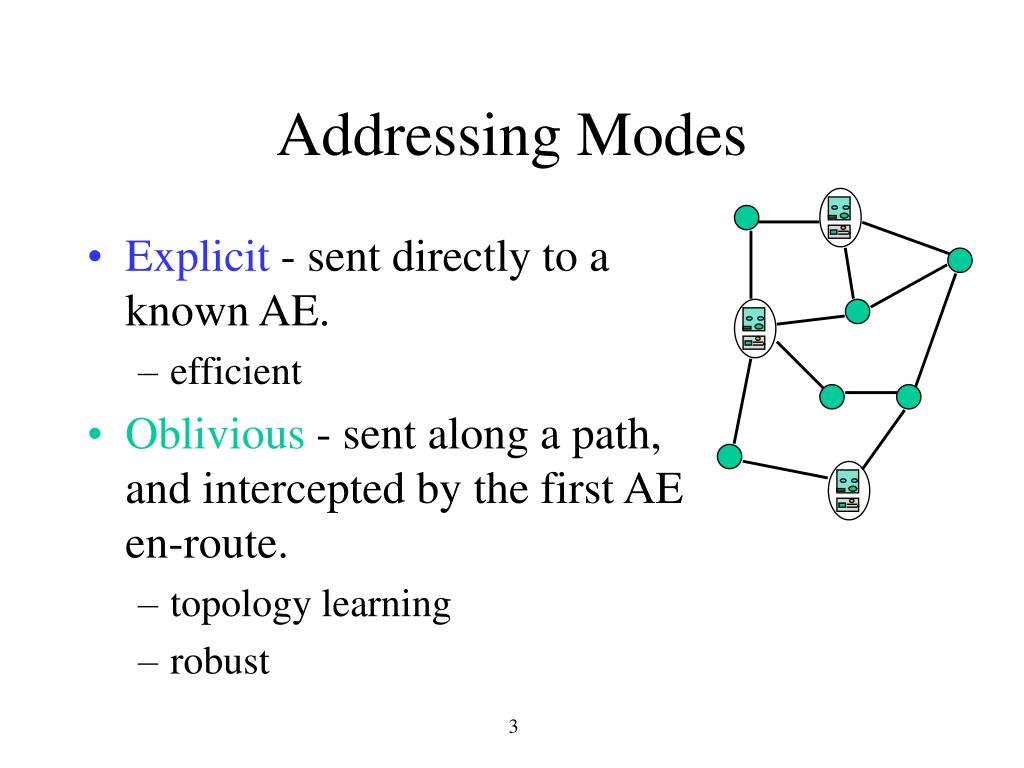

  3. Addressing Modes • Explicit - sent directly to a known AE. • efficient • Oblivious - sent along a path, and intercepted by the first AE en-route. • topology learning • robust

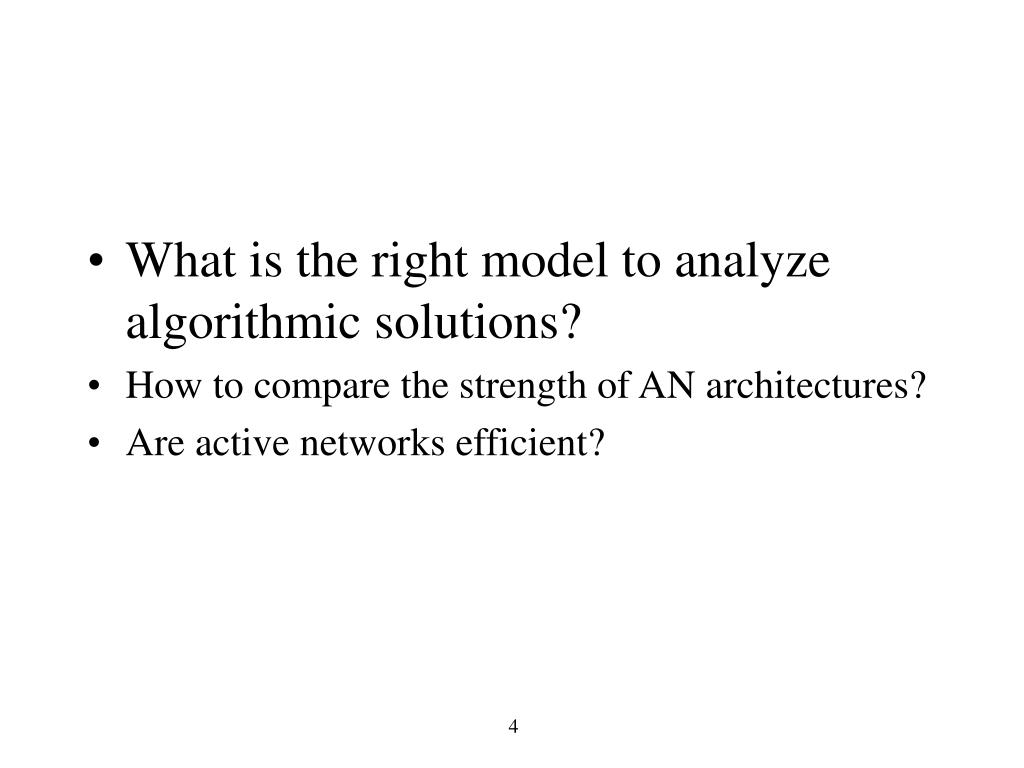

  4. What is the right model to analyze algorithmic solutions? • How to compare the strength of AN architectures? • Are active networks efficient?

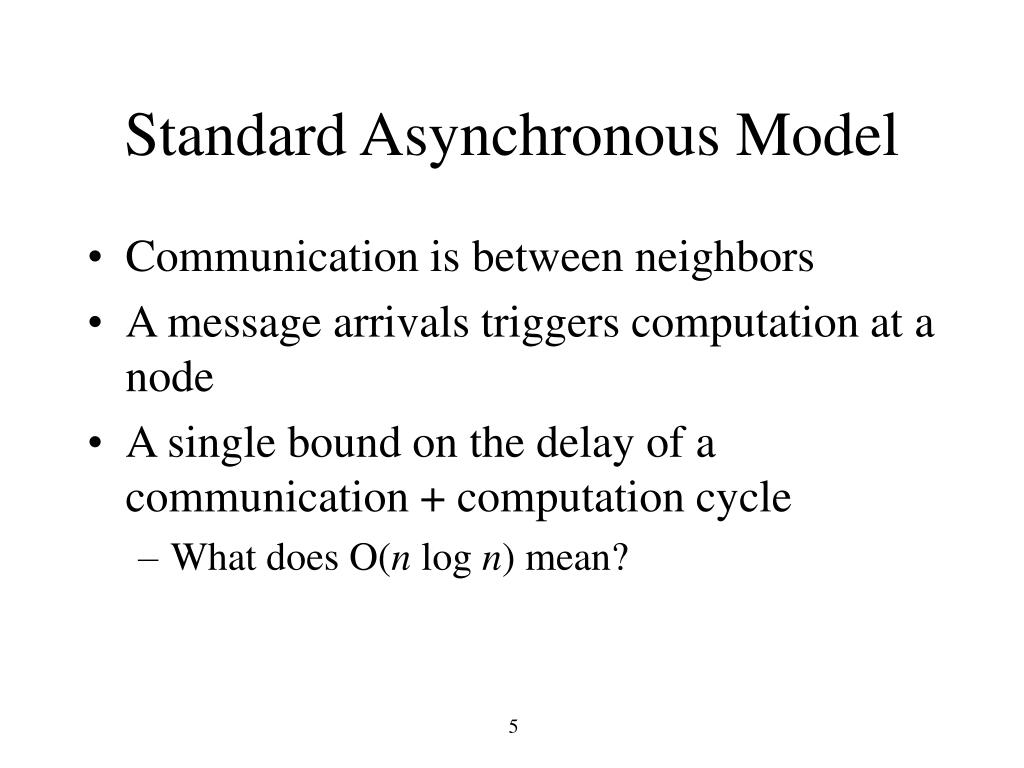

  5. Standard Asynchronous Model • Communication is between neighbors • A message arrivals triggers computation at a node • A single bound on the delay of a communication + computation cycle • What does O(n log n) mean?

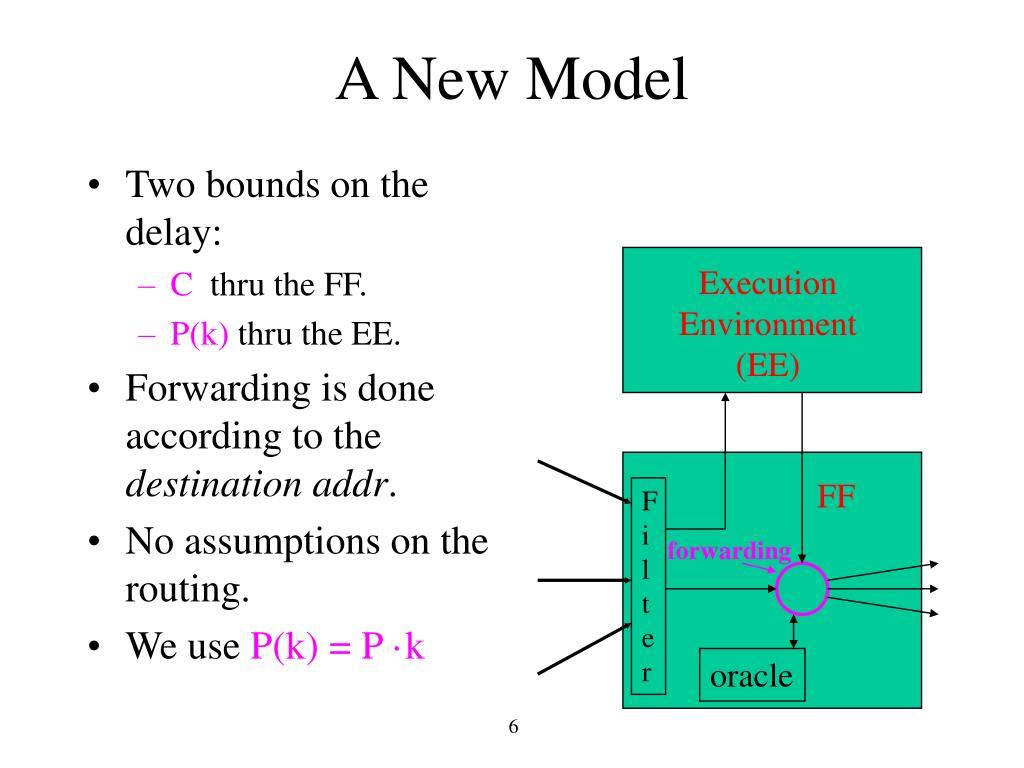

  6. A New Model • Two bounds on the delay: • C thru the FF. • P(k) thru the EE. • Forwarding is done according to the destination addr. • No assumptions on the routing. • We use P(k) = P ·k Execution Environment (EE) FF Filter forwarding oracle

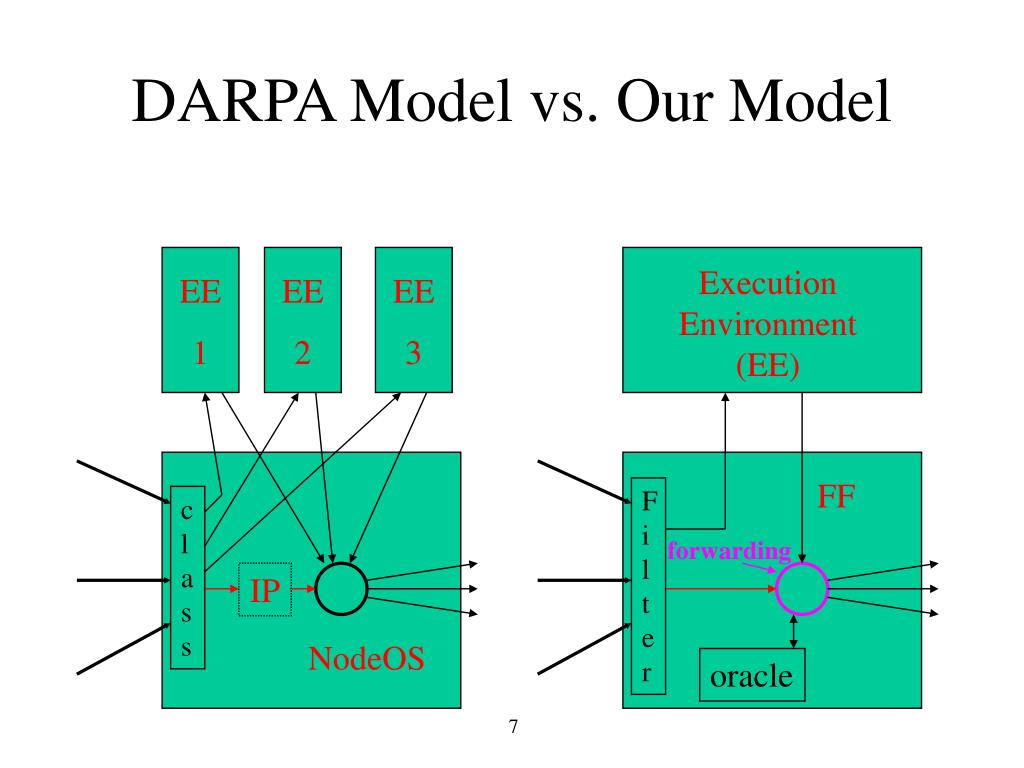

  7. DARPA Model vs. Our Model Execution Environment (EE) EE 1 EE 2 EE 3 FF Filter class forwarding IP NodeOS oracle

  8. Performance Measures • Communication (Message) complexity - hops traveled by messages • Time complexity - time to mission completion. • processing complexity - CPU time used.

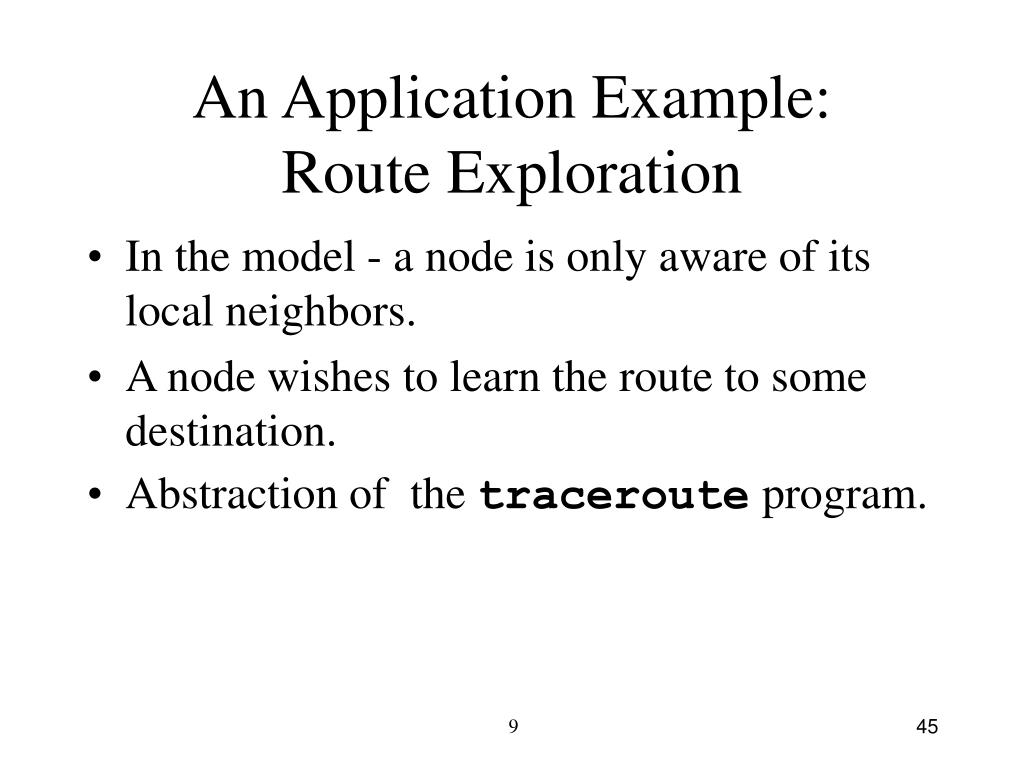

  9. An Application Example:Route Exploration • In the model - a node is only aware of its local neighbors. • A node wishes to learn the route to some destination. • Abstraction of the traceroute program. 45

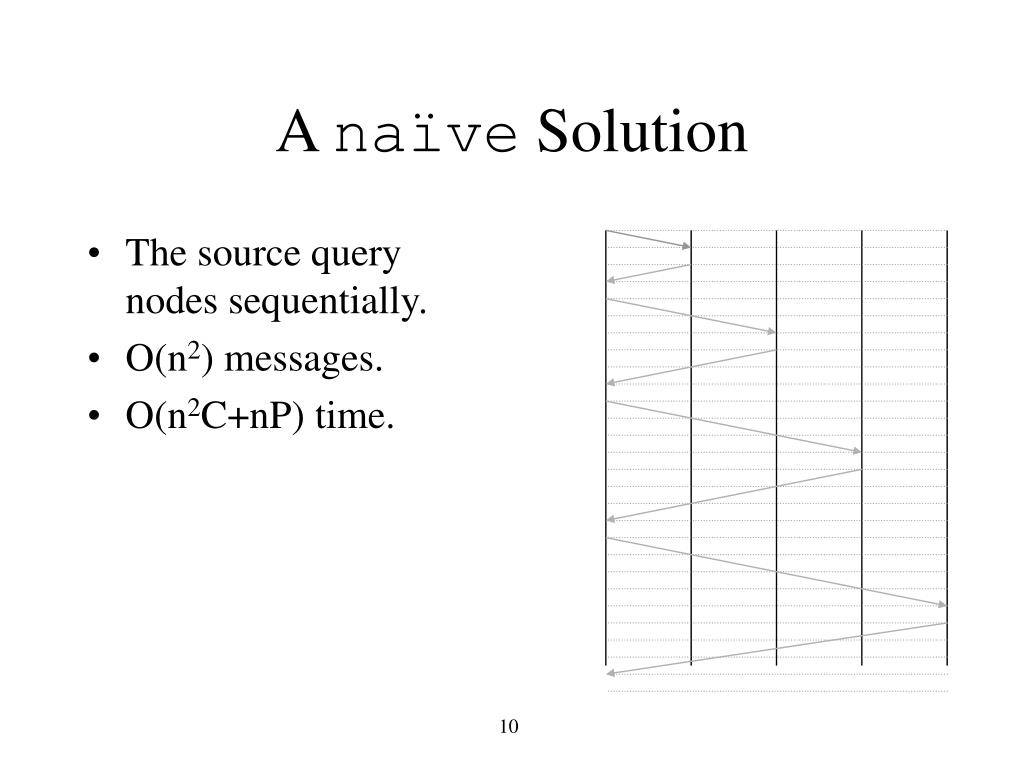

  10. A naïve Solution • The source query nodes sequentially. • O(n2) messages. • O(n2C+nP) time.

  11. A naïve Solution • The source query nodes sequentially. • O(n2) messages. • O(n2C+nP) time.

  12. report-en-route • A query process advances sequentially. • Reports are sent to the source for each query. • O(n2) messages. • O(nC+nP) time. send Report(id, c+1) to s if id send MSG*(s,d, c+1) to d

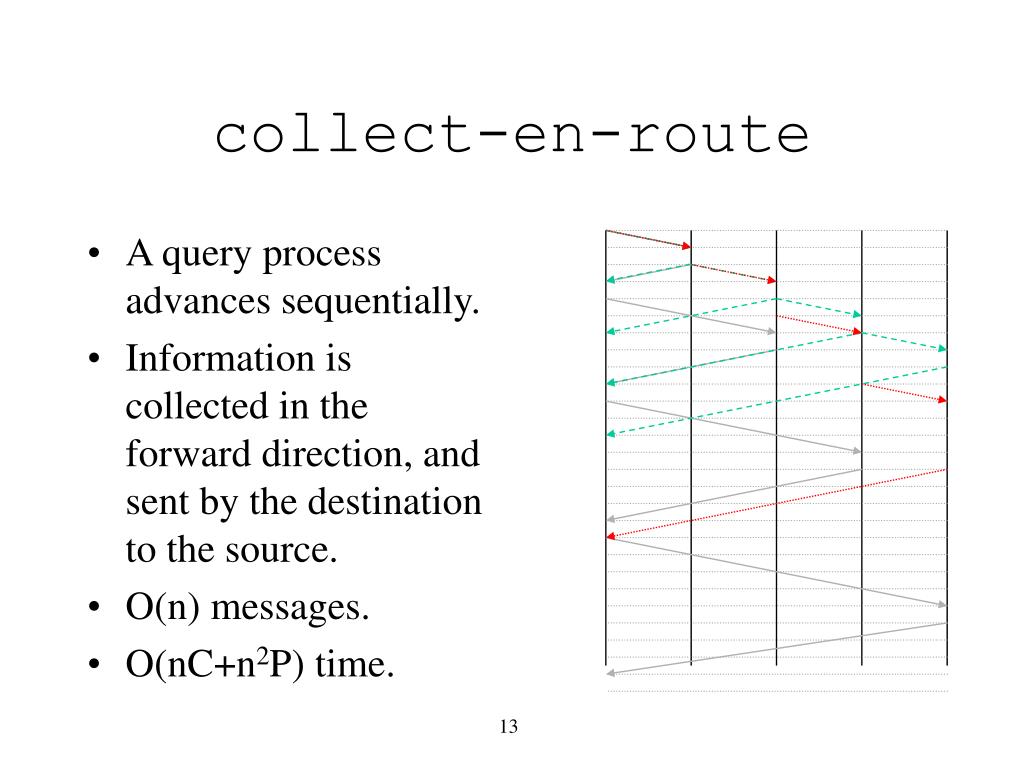

  13. collect-en-route • A query process advances sequentially. • Information is collected in the forward direction, and sent by the destination to the source. • O(n) messages. • O(nC+n2P) time.

  14. collect-en-route if i==d send Report(list|i) to s else send MSG*(s,d, list|i) to d

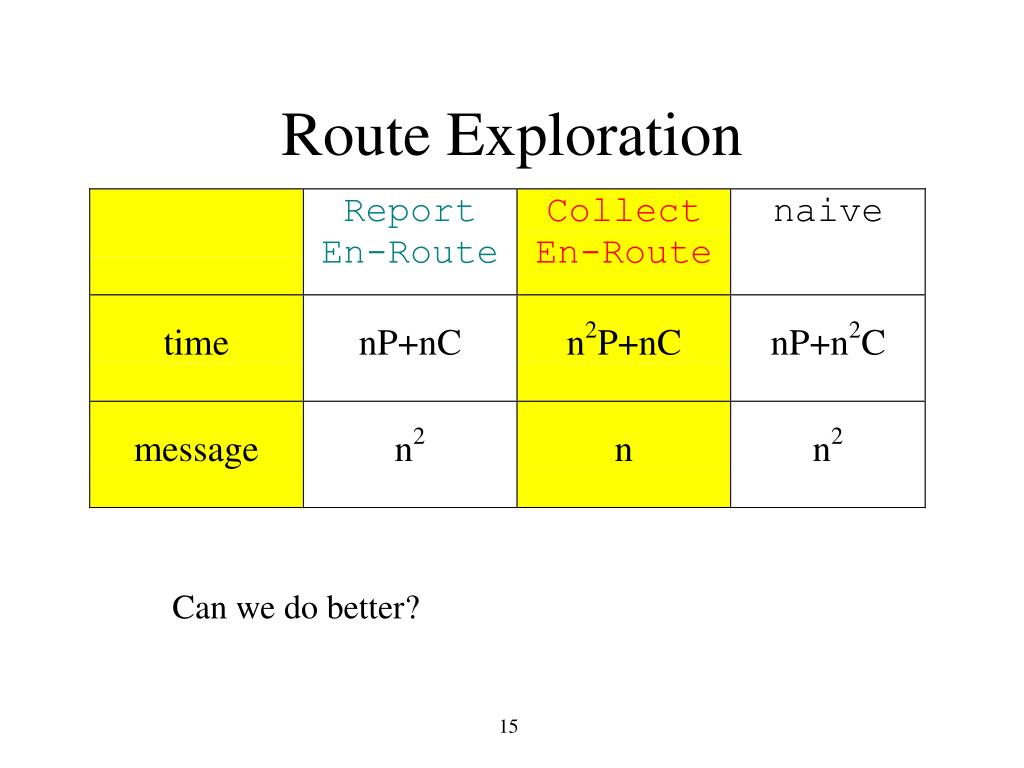

  15. Route Exploration Can we do better?

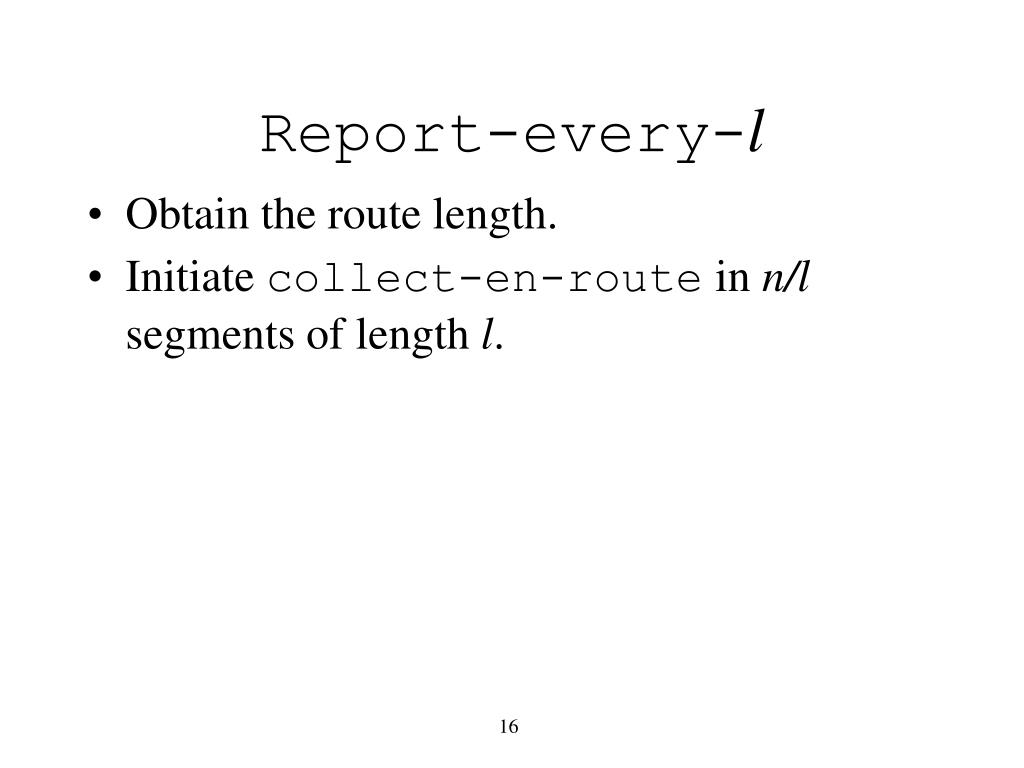

  16. Report-every-l • Obtain the route length. • Initiate collect-en-route in n/l segments of length l.

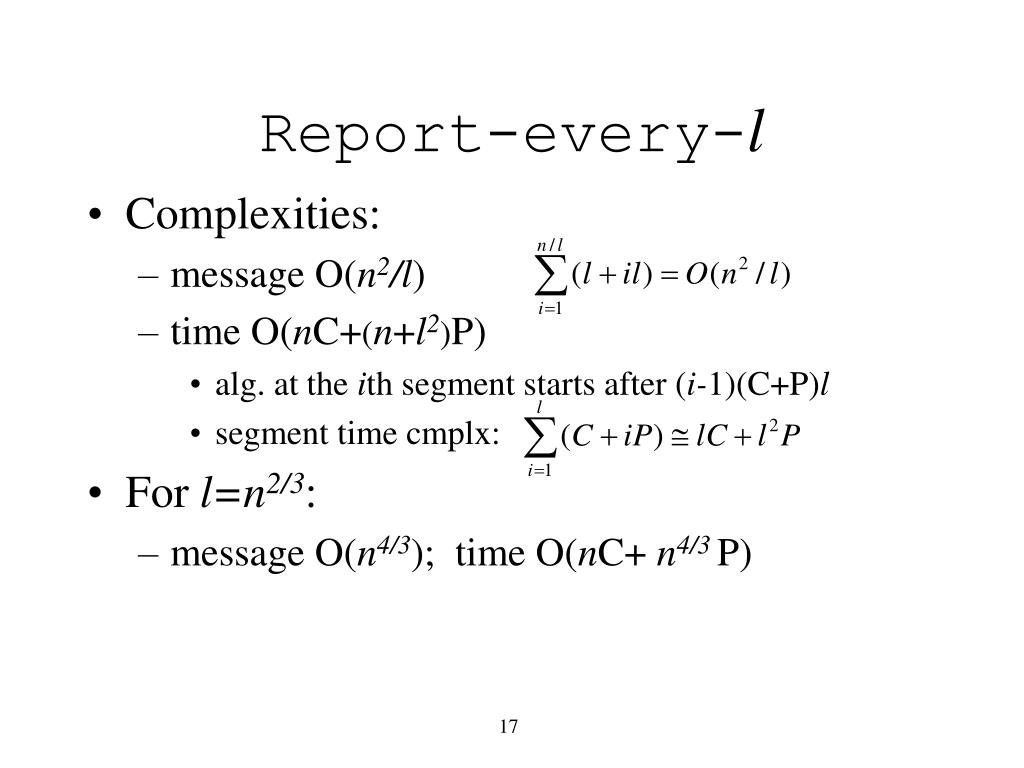

  17. Report-every-l • Complexities: • message O(n2/l) • time O(nC+(n+l2)P) • alg. at the ith segment starts after (i-1)(C+P)l • segment time cmplx: • For l=n2/3: • message O(n4/3); time O(nC+ n4/3 P)

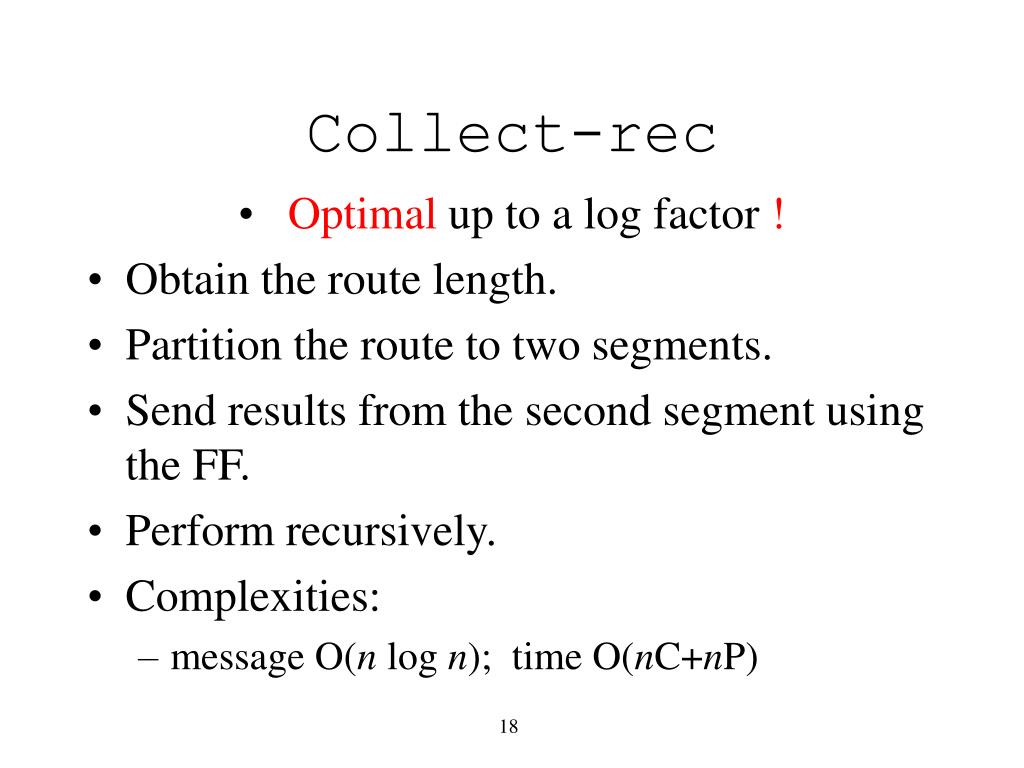

  18. Collect-rec • Optimal up to a log factor ! • Obtain the route length. • Partition the route to two segments. • Send results from the second segment using the FF. • Perform recursively. • Complexities: • message O(n log n); time O(nC+nP)

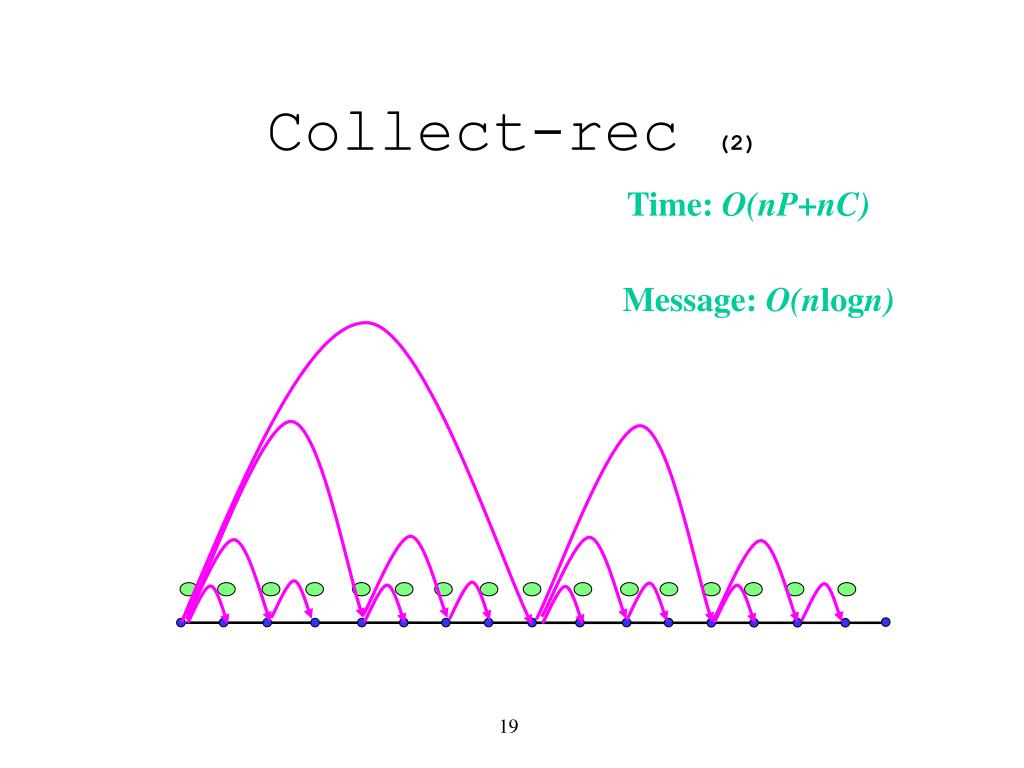

  19. Collect-rec(2) Time: O(nP+nC) Message: O(nlogn)

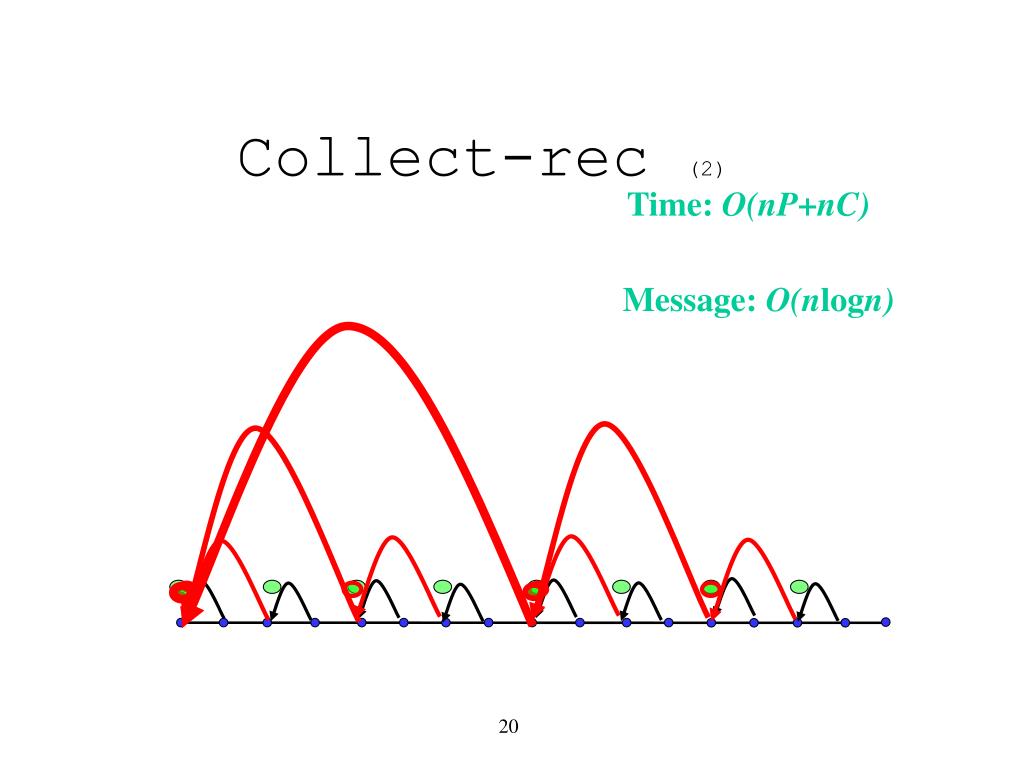

  20. Collect-rec (2) Time: O(nP+nC) Message: O(nlogn)

  21. Collect-reccomplexity • We can count messages/time per iteration. • Alternative approach: • TC(n) TC(n/2) + 4n(P+C) • MC(n) 2MC(n/2) + 4n

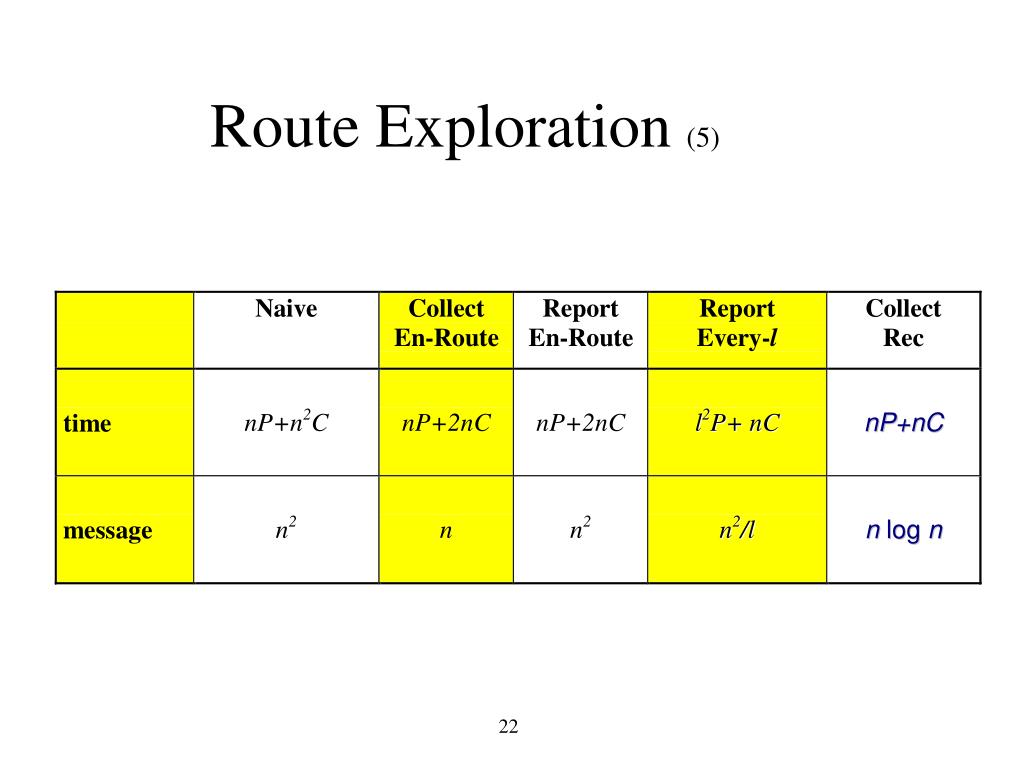

  22. Route Exploration (5)

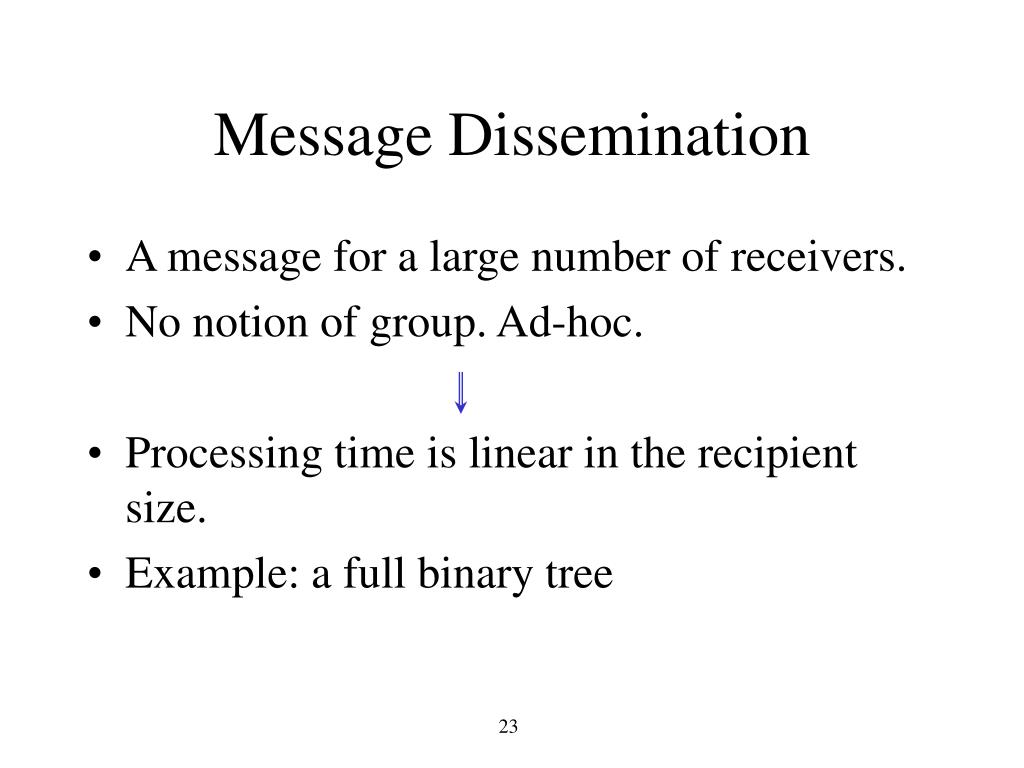

  23. Message Dissemination • A message for a large number of receivers. • No notion of group. Ad-hoc. • Processing time is linear in the recipient size. • Example: a full binary tree

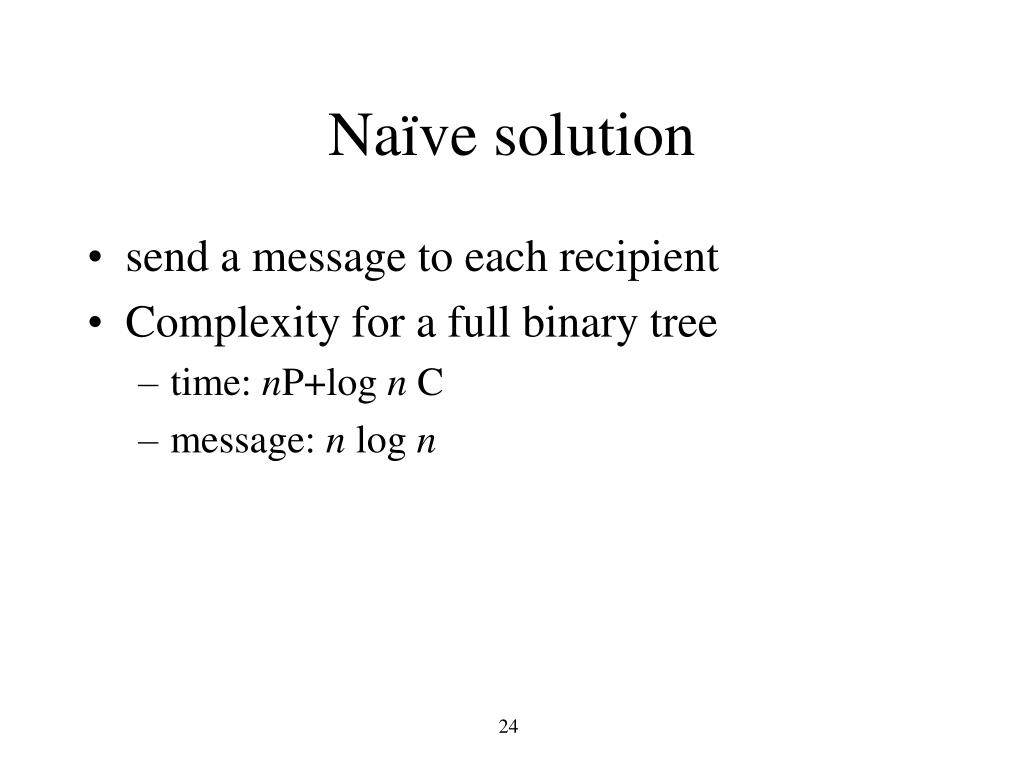

  24. Naïve solution • send a message to each recipient • Complexity for a full binary tree • time: nP+log n C • message: n log n

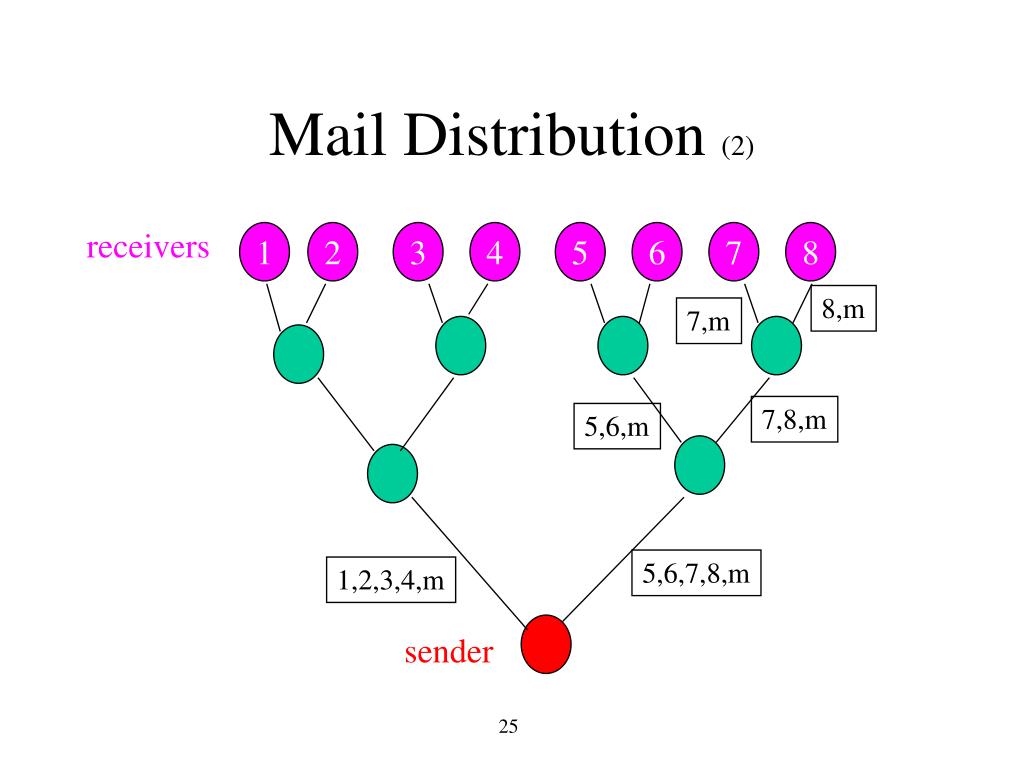

  25. Mail Distribution (2) receivers 1 2 3 4 5 6 7 8 8,m 7,m 7,8,m 5,6,m 5,6,7,8,m 1,2,3,4,m sender

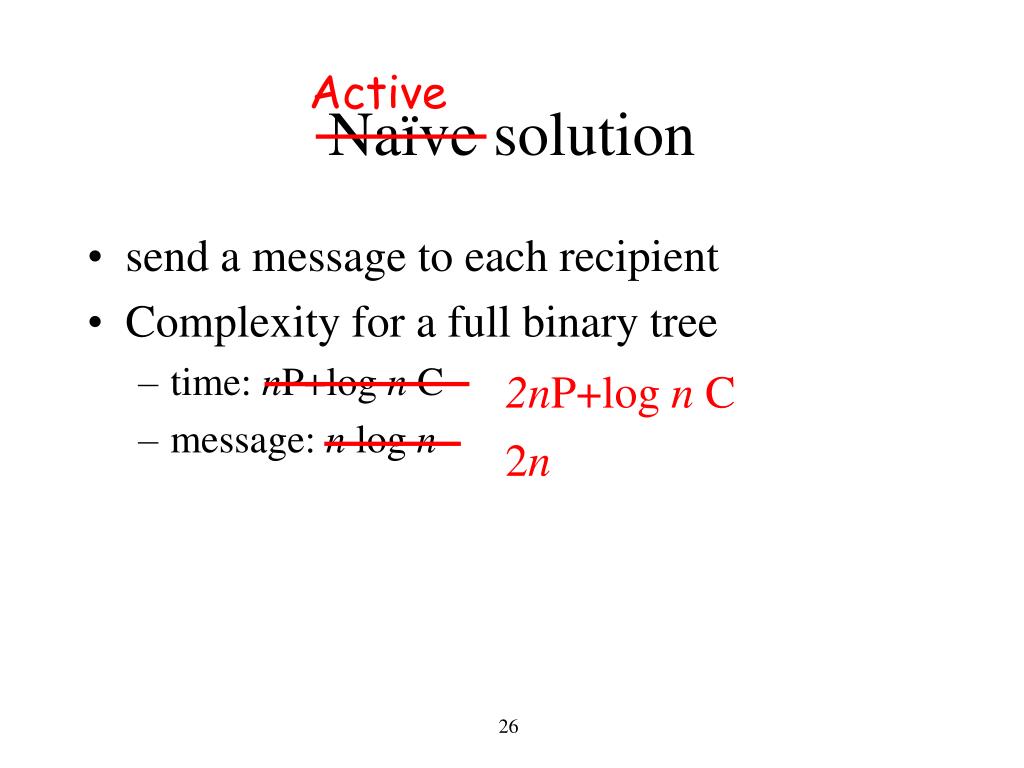

  26. Active Naïve solution • send a message to each recipient • Complexity for a full binary tree • time: nP+log n C • message: n log n 2nP+log n C 2n

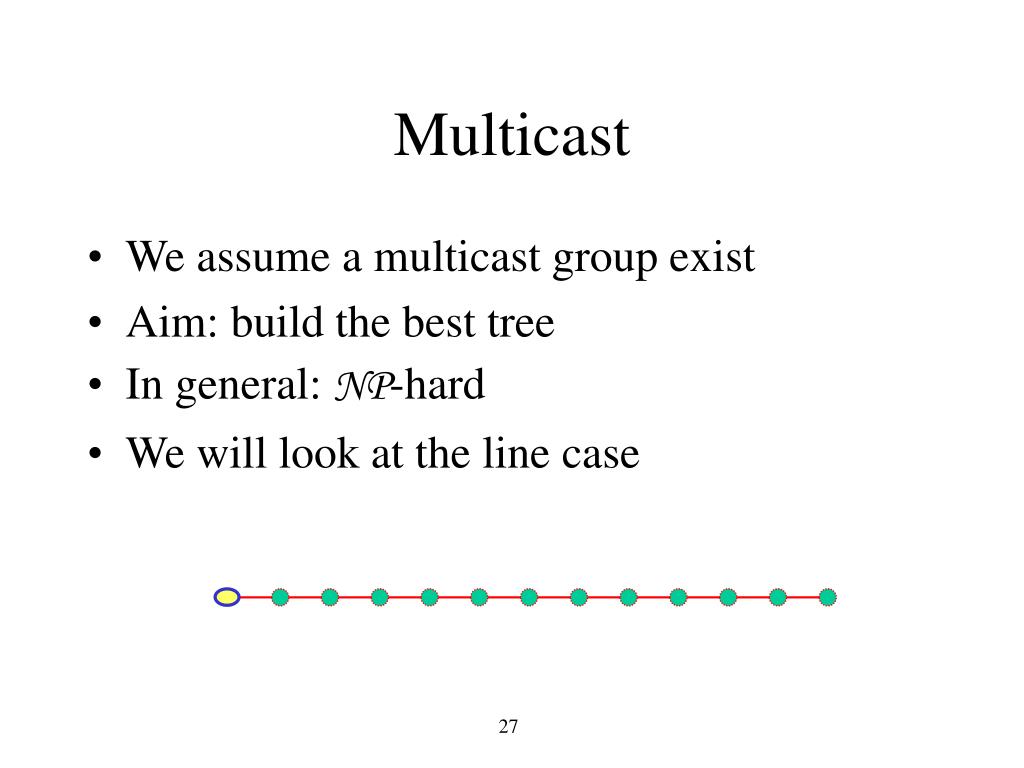

  27. Multicast • We assume a multicast group exist • Aim: build the best tree • In general: NP-hard • We will look at the line case

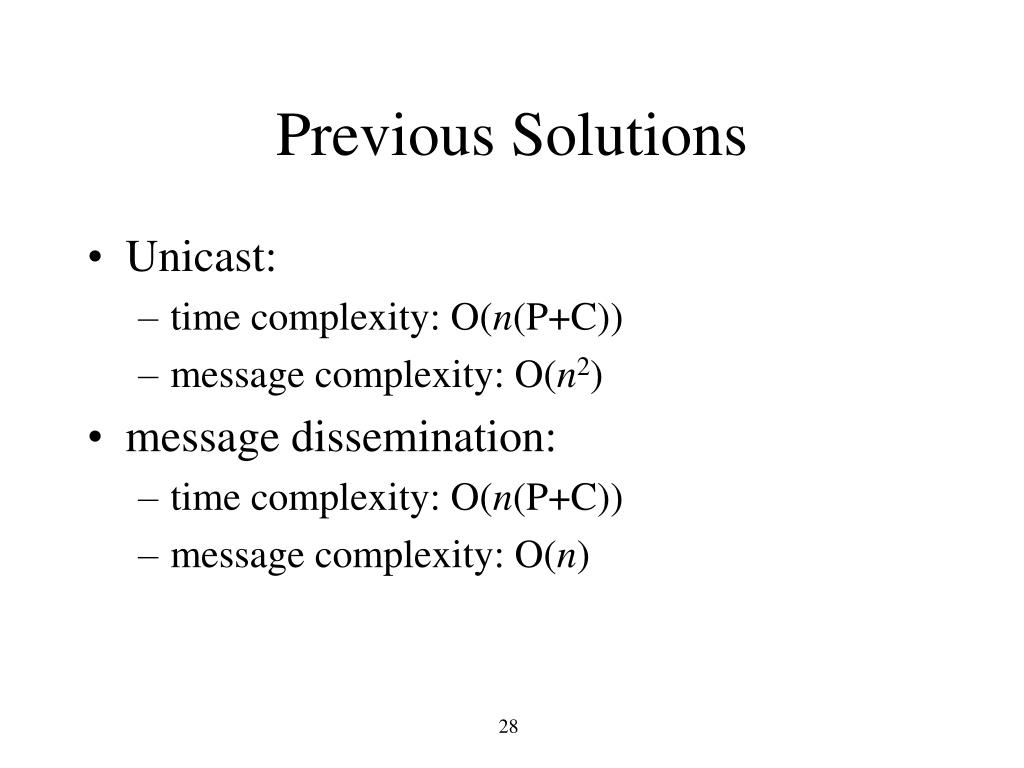

  28. Previous Solutions • Unicast: • time complexity: O(n(P+C)) • message complexity: O(n2) • message dissemination: • time complexity: O(n(P+C)) • message complexity: O(n)

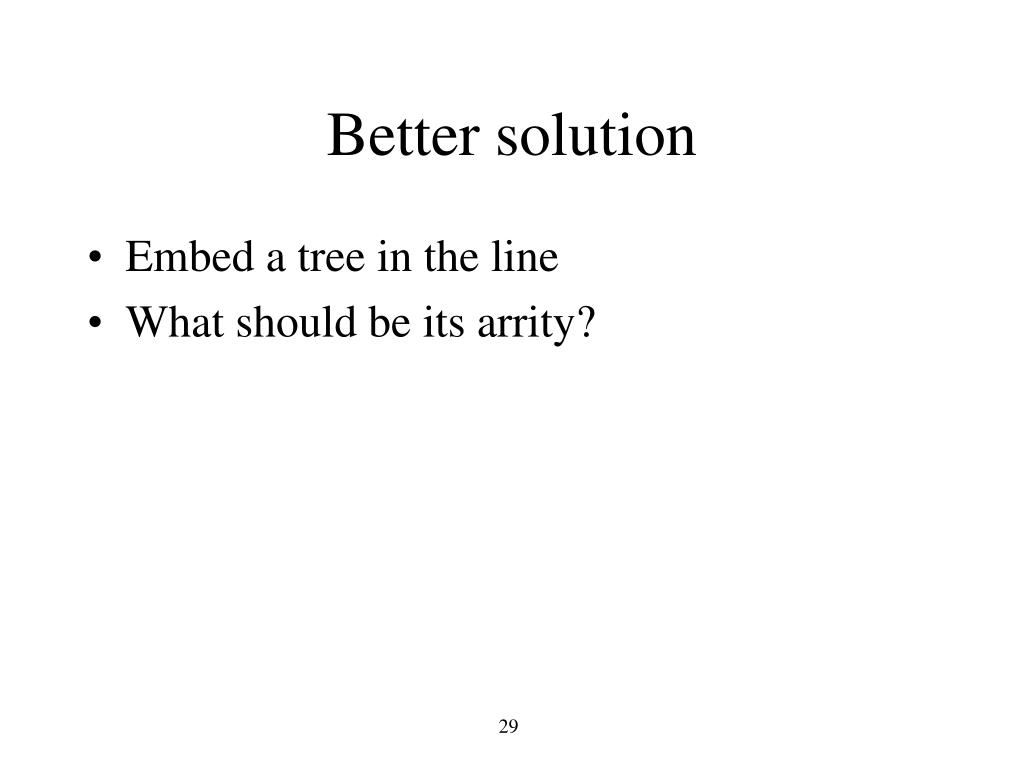

  29. Better solution • Embed a tree in the line • What should be its arrity?

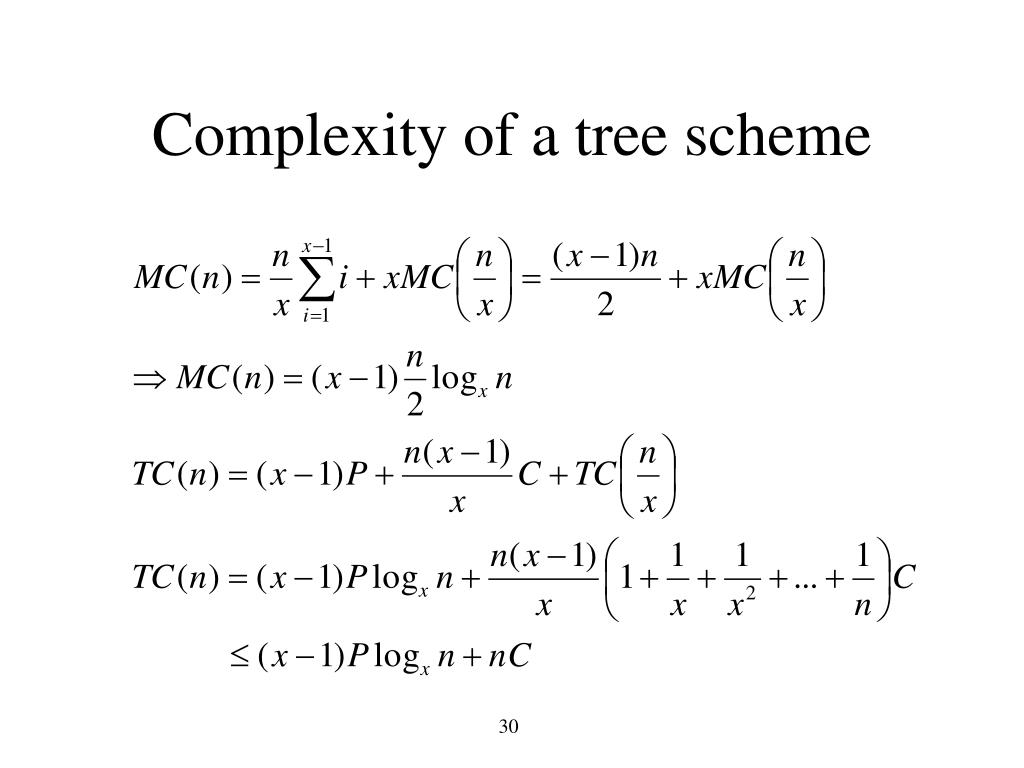

  30. Complexity of a tree scheme

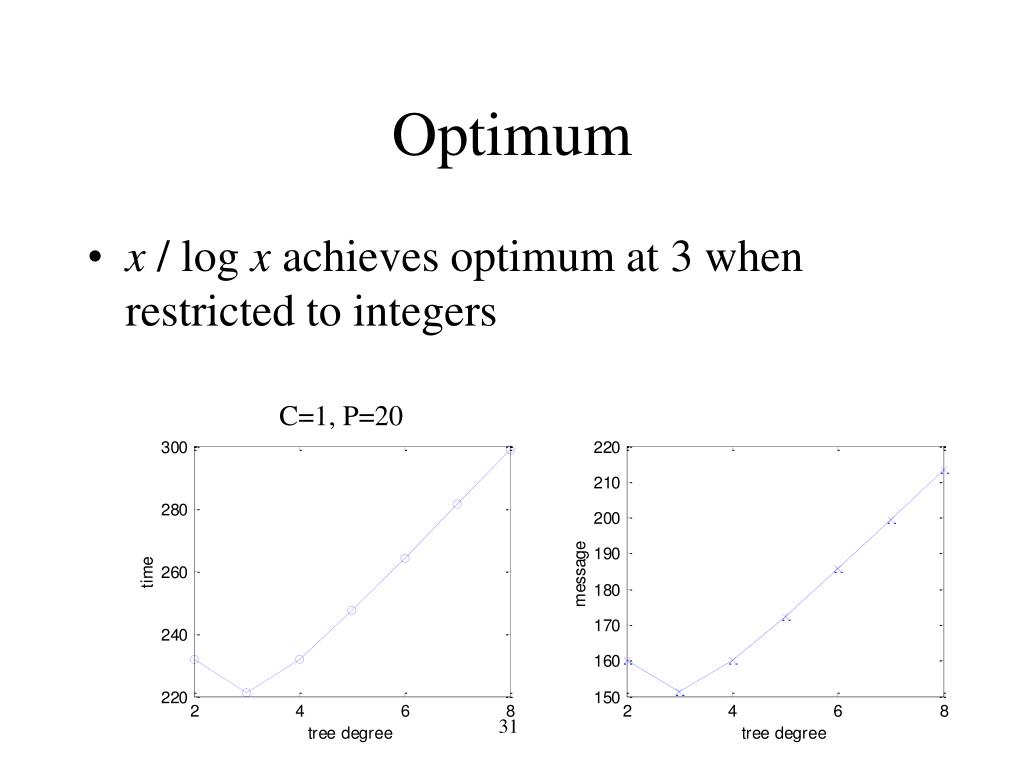

  31. Optimum • x / log x achieves optimum at 3 when restricted to integers C=1, P=20

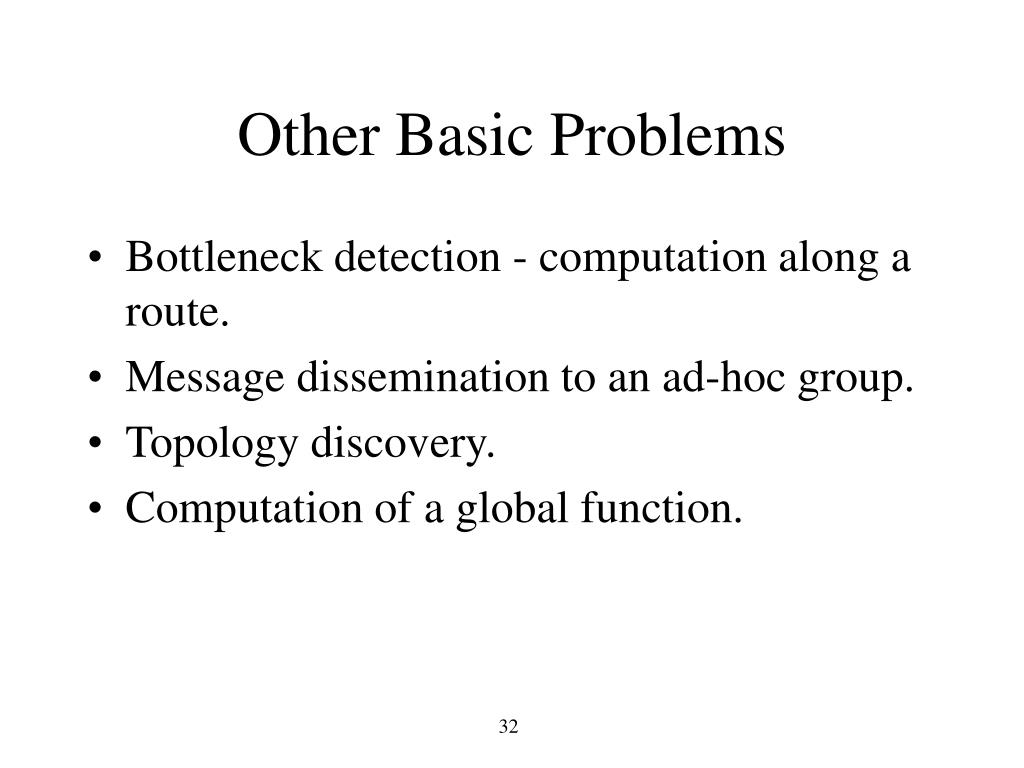

  32. Other Basic Problems • Bottleneck detection - computation along a route. • Message dissemination to an ad-hoc group. • Topology discovery. • Computation of a global function.

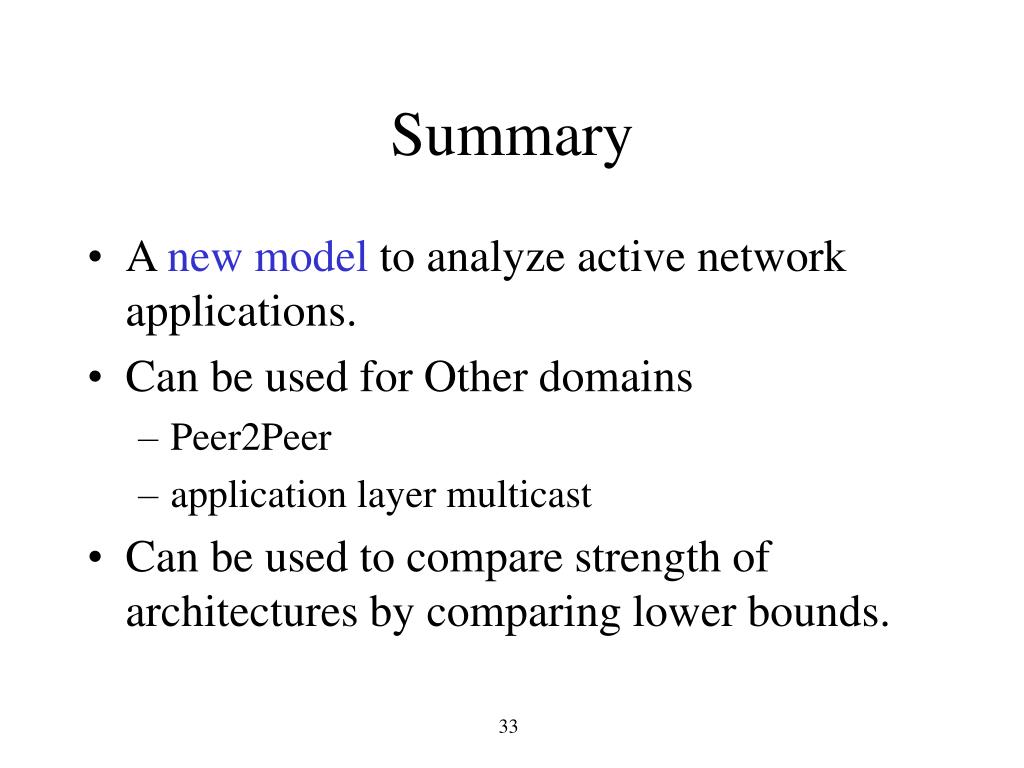

  33. Summary • A new model to analyze active network applications. • Can be used for Other domains • Peer2Peer • application layer multicast • Can be used to compare strength of architectures by comparing lower bounds.

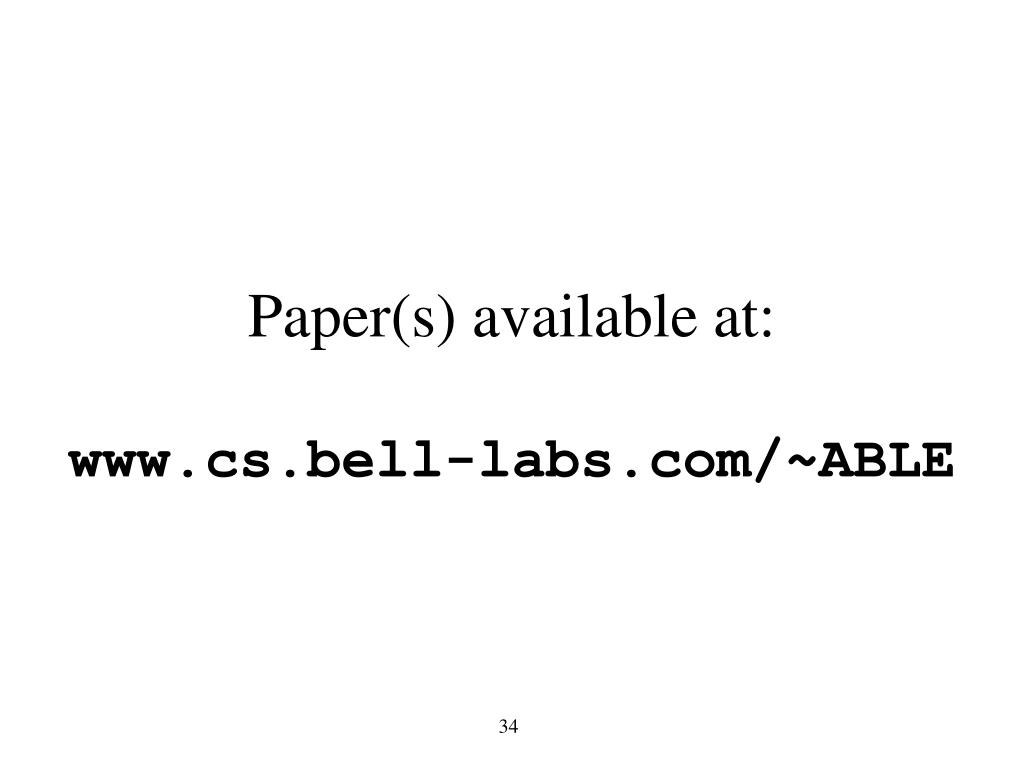

  34. Paper(s) available at: www.cs.bell-labs.com/~ABLE
