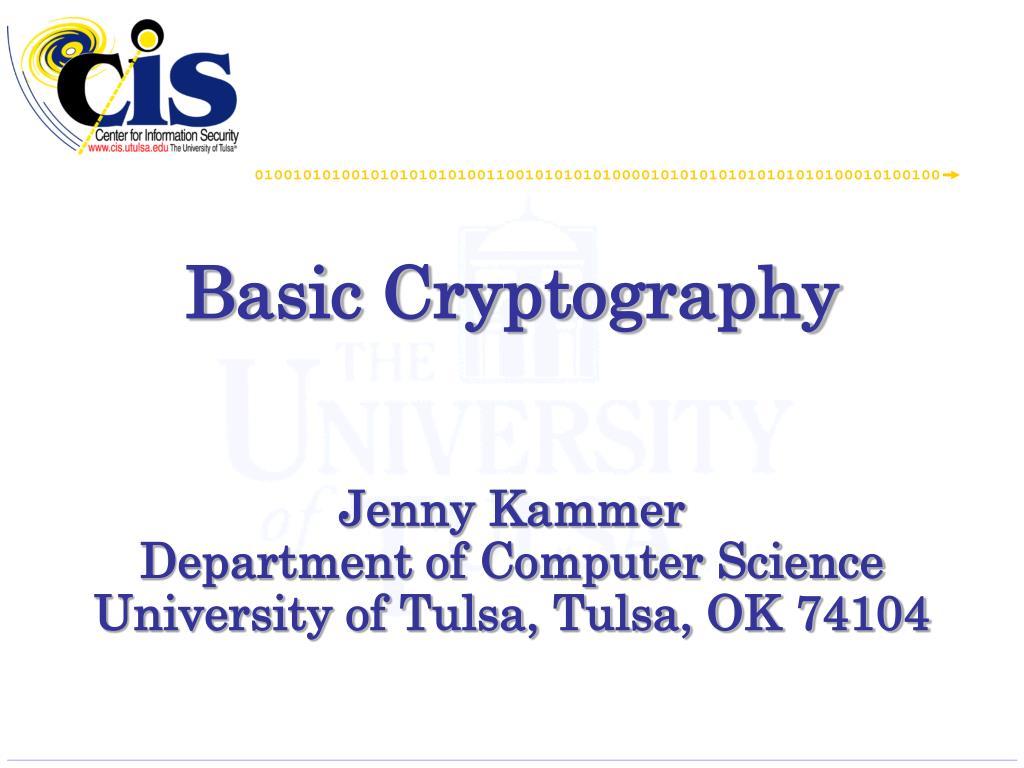

  1. Basic CryptographyJenny KammerDepartment of Computer ScienceUniversity of Tulsa, Tulsa, OK 74104

  2. What is Cryptography? • Cryptography – process of designing systems to communicate over non-secure channels • Encryption – making a message unreadable except to the intended recipient • Decryption – making an encrypted message readable to the intended recipient • Cryptanalysis – Examining cryptosystems in an attempt to break encryption techniques, allowing unintended recipients to view the message.

  3. Why do we Need Cryptography? • Want to transmit or send a message securely over an insecure medium • Ensures confidentiality – making sure data is secret from all except authorized persons

  4. Cryptography in a Nutshell Alice wants to send a message to Bob Bob Message: Hi Bob! Message: Hi Bob! ciphertext plaintext plaintext Message: qks9!h& Eve

  5. Secret Algorithm vs. Secret Key • Secret Algorithm – Only the two parties communicating know how to encrypt/decrypt • Secret Key – Everyone knows how to encrypt and decrypt, but you need a secret key to do it, and only the two parties communicating have the key(s) • Better if we want to communicate with large numbers of people

  6. Examples of Encryption in History • 1900 BC – Egyptian scribe uses non-standard hieroglyphs (1st documented example written cryptography) • Caesar used simple substitution cipher (Decoder rings) • German Enigma Machines

  7. Substitution vs. Transposition • Substitution – exchanging one letter for another • Monoalphabetic vs. Polyalphabetic • Vulnerable to frequency analysis • Transposition – scrambling the message up • Analyze digraphs and trigraphs

  8. Symmetric vs. Asymmetric Encryption • Symmetric – Same key used to encrypt and to decrypt message • How do we share the key? • Lots of keys to keep (n*(n-1)/2 ) • Asymmetric – Uses key pairs. Key pair is a set of a public and private key where public key is used to encrypt a message and private key is used to decrypt a message. • Don’t have to share secret keys • Fewer keys – (2n)

  9. Hashing and Checksums • Hashing and checksums are similar to encryption, but they are NOT the same • Encryption can be decrypted; hashes cannot be decrypted (hashes are one-way functions) • Hashes are used to verify the integrity of message, not ensure the confidentiality of a message

  10. Limitations of Cryptography • Flaws in cryptosystems • Start to finish problem • If data is encrypted during transport but stored on a server in plaintext, it is still vulnerable • Weak passwords • Moore’s Law • Human component

  11. Breaking Cryptography • Cryptanalysis • Try to find weaknesses in encryption algorithms • Gives weight to older algorithms – they have stood the test of time • Password Cracking • Brute Force – trying every possible password • Will find password on average in n/2 time • This is why longer passwords are “safer” • Dictionary – trying common passwords/English words first • This is why strong password rules are important! • Cryptosystems don’t have to be impossible to break, just computationally infeasible.

  12. Recent Standards • DES was standard from 1976 until 2002 • 1977 – Diffe and Hellman propose a parallel attack, which required 10^6 chips, each testing 1 key per microsecond would require 20 hrs and cost $20,000/solution • 1997 – An attack on DES cracked it in 120 days • 1998 – EFF broke DES in 56 hours • 1999 – EFF’s Deep Crack and a distributed net break DES in 22 hours • 2001 – AES is published • 2002 – AES is adopted as new standard

  13. DES vs. AES

  14. DES vs. AES • “Assuming that one could build a machine that could recover a DES key in a second (i.e., try 255 keys per second), then it would take that machine approximately 149 thousand-billion (149 trillion) years to crack a 128-bit AES key. To put that into perspective, the universe is believed to be less than 20 billion years old.”

  15. Keyspace size • Assume alphanumeric keyspace (A-Z, a-z, 0-9) • 5 character password: 916,132,832 • 6 character password: 56,800,235,584 • 7 character password: 3,521,614,606,208 • 8 character password: 218,340,105,584,896 • 9 character password: 13,537,086,546,263,552

  16. Questions?

  17. Sources • Trappe, Wade and Washington, Lawrence. Introduction to Cryptography with Coding Theory. Pearson Prentice Hall. New Jersey. 2006. • Loehr, Nick. Class Lecture. Cryptography I. Virginia Tech, Blacksburg, VA. 2008. • Shenoi, Sujeet. Class Lecture. Computer and Network Security. University of Tulsa, Tulsa, OK. Feb 2010.

  18. Sources • www.Cryptographyworld.com • http://www.ciphersbyritter.com/LEARNING.HTM#WhatCryptCanNotDo • http://www.sans.org/reading_room/whitepapers/vpns/history_of_encryption_730 • http://xkcd.com/ • http://www.cisco.com/web/about/ac123/ac147/archived_issues/ipj_4-2/goodbye_des.html • http://www.nist.gov/public_affairs/releases/aesq&a.htm • http://en.wikipedia.org/wiki/Data_Encryption_Standard
