  1. Real Time Component Reporting Package Configuration Tools The Components There are three main components of inDepth Lite, inDepth and inDepth+

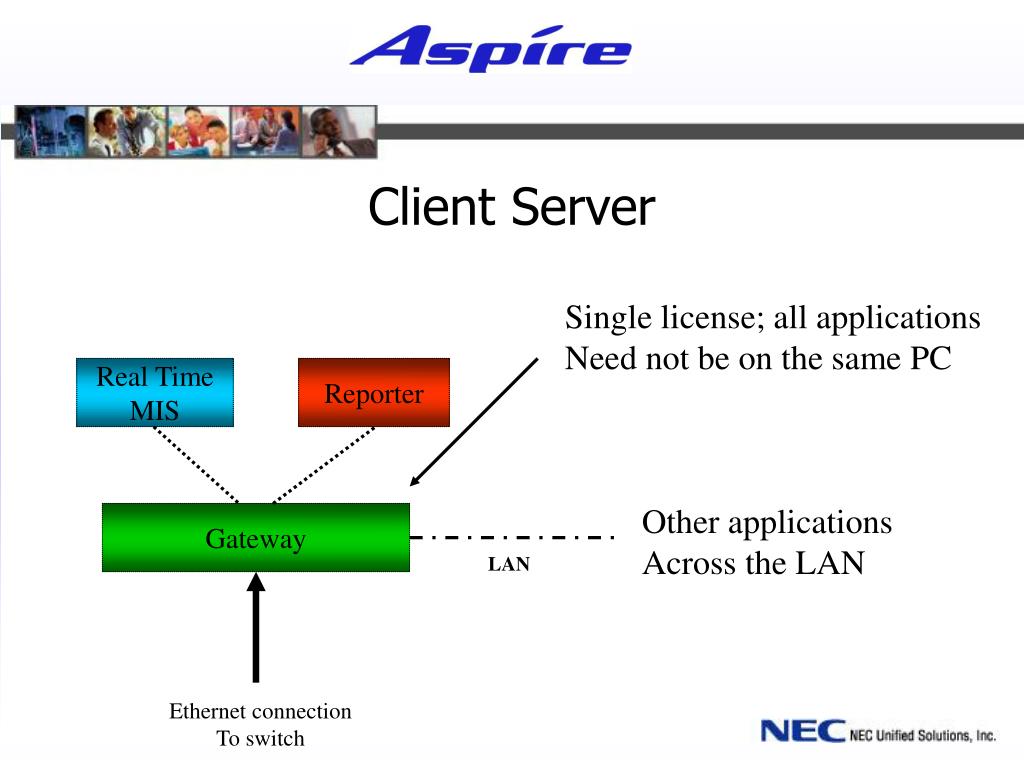

  2. Ethernet connection To switch Client Server Single license; all applications Need not be on the same PC Real Time MIS Reporter Other applications Across the LAN Gateway LAN

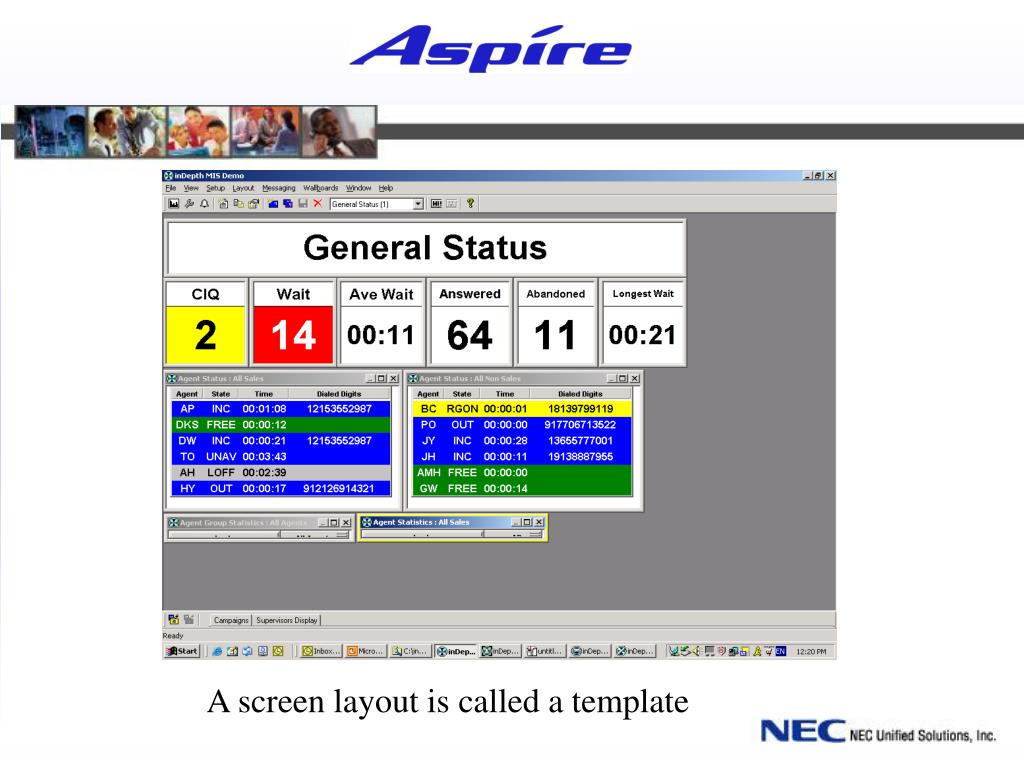

  3. Real Time A screen layout is called a template

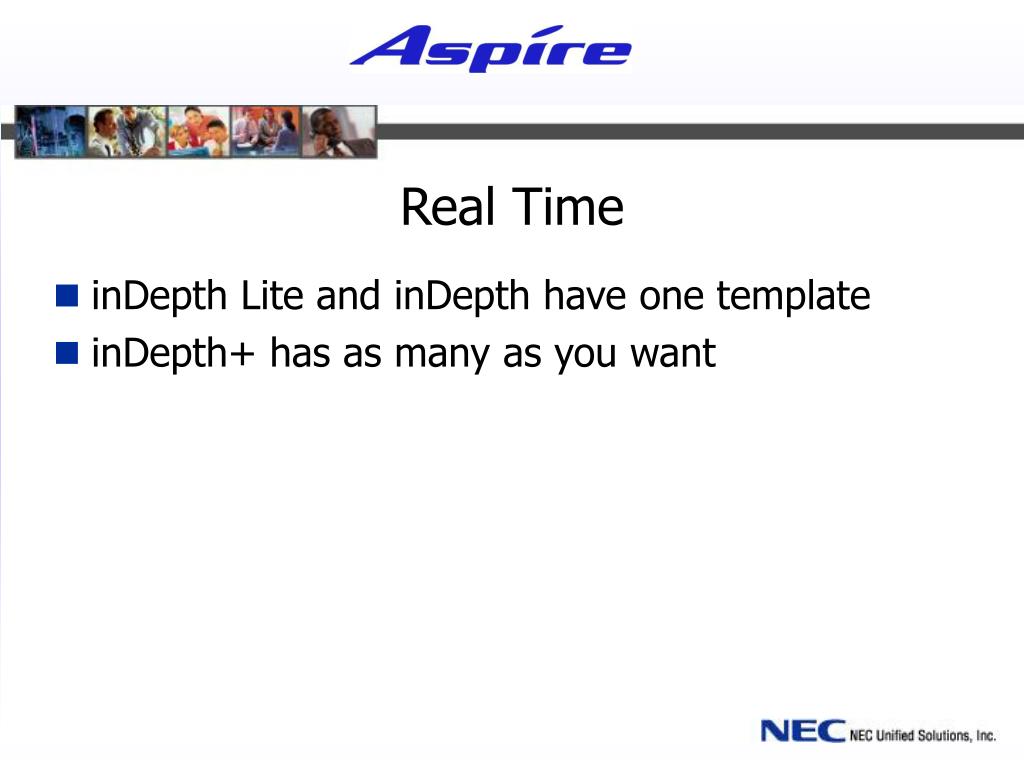

  4. Real Time • inDepth Lite and inDepth have one template • inDepth+ has as many as you want

  5. The Template • The template is made up of real time display windows • There are five types to choose from

  6. Free - Green Busy - Blue Ringing - Yellow Alarm - Red Logged Off - Gray Color Coding

  7. The Display Windows Real time status window • Agent status • Time in state • Connection information • Dialed digits Three options to choose from

  8. The Display Windows Large Character Window • Queue length • Wait time • Calls answered • Calls abandoned Over 300 Different Types

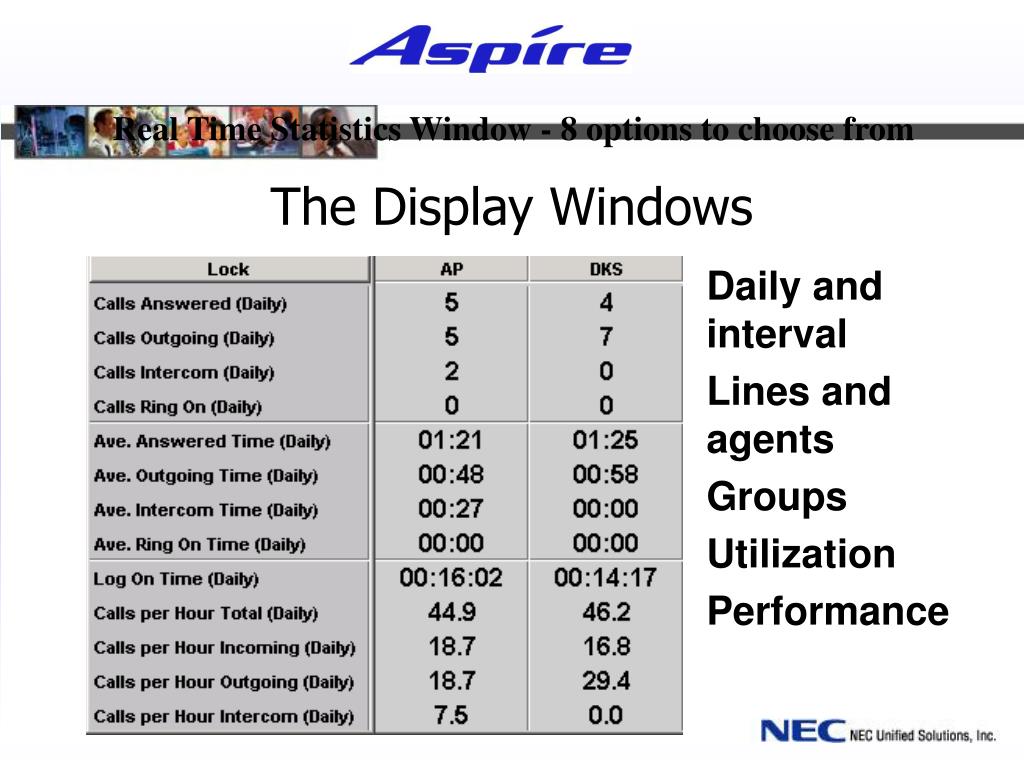

  9. Real Time Statistics Window - 8 options to choose from The Display Windows • Daily and interval • Lines and agents • Groups • Utilization • Performance

  10. The Display Windows Calls in QueueGraphical Display Wait TimeGraphical Display

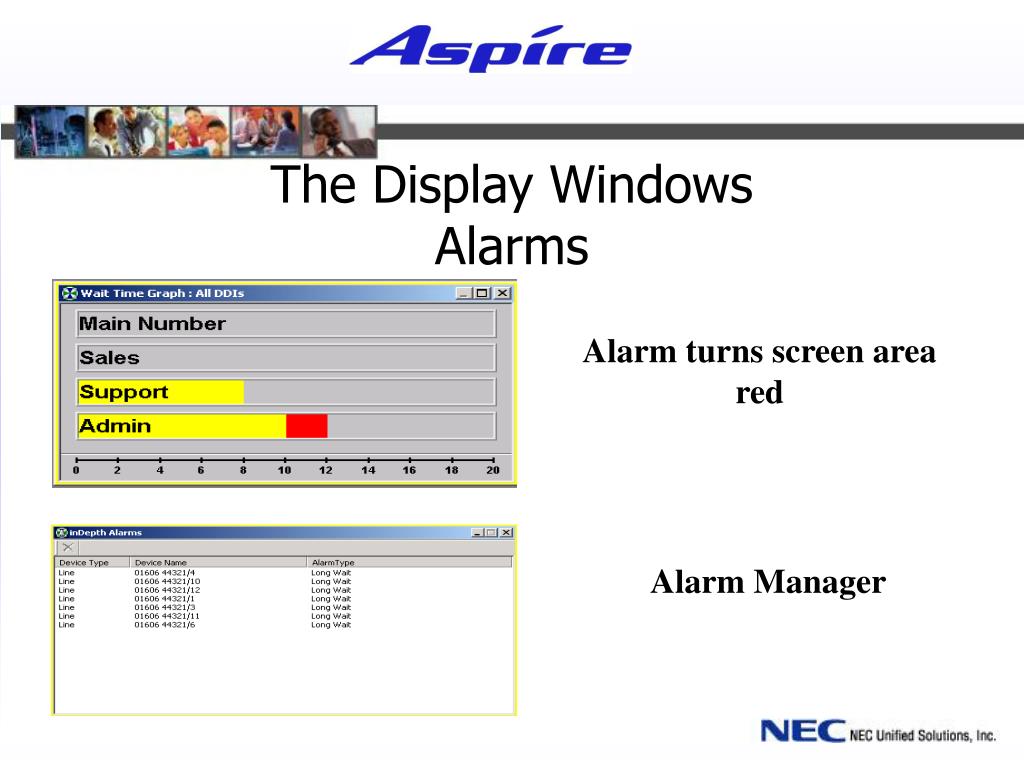

  11. The Display WindowsAlarms Alarm turns screen area red Alarm Manager

  12. The Combination

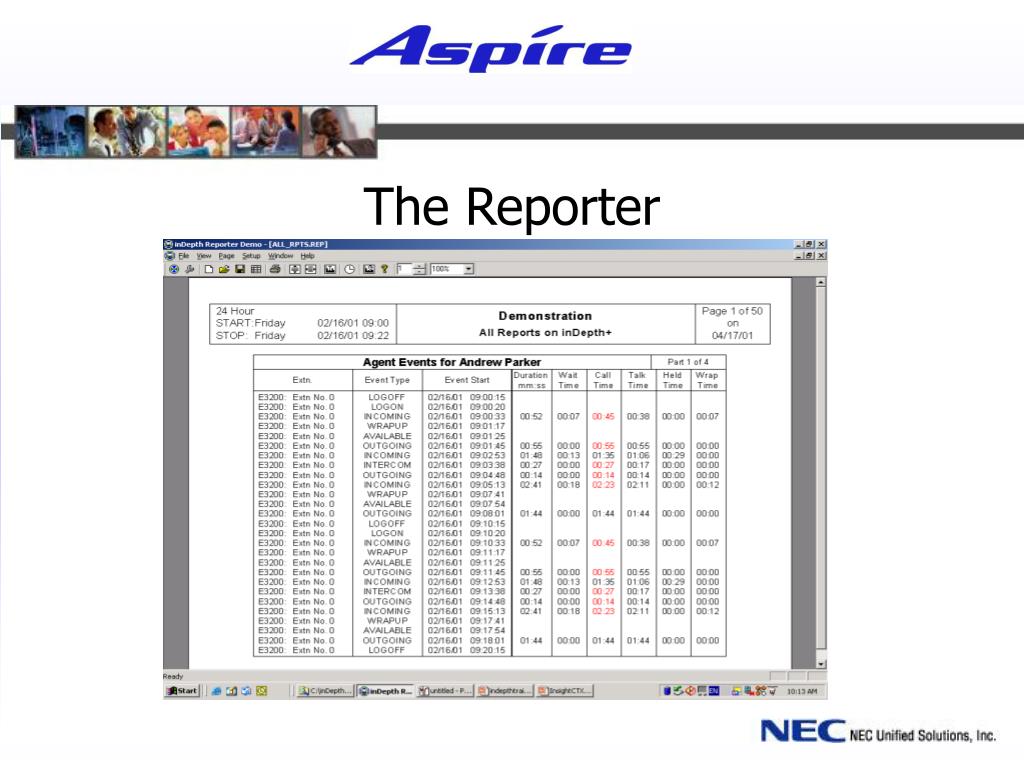

  13. The Reporter

  14. The Reporter • Both inDepth Lite, inDepth and inDepth+ have Report Templates • inDepth Lite and inDepth can create reports up to 31 days long • inDepth+366 days - except event reports

  15. The Templates Templates contain Report Items

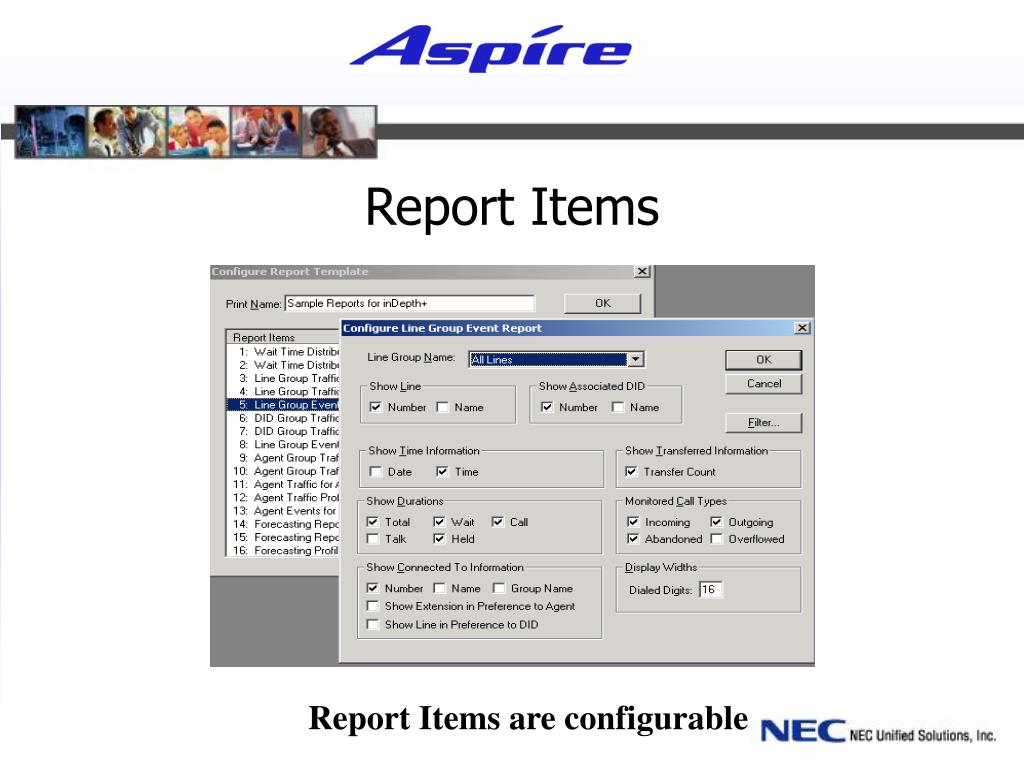

  16. Report Items Report Items are configurable

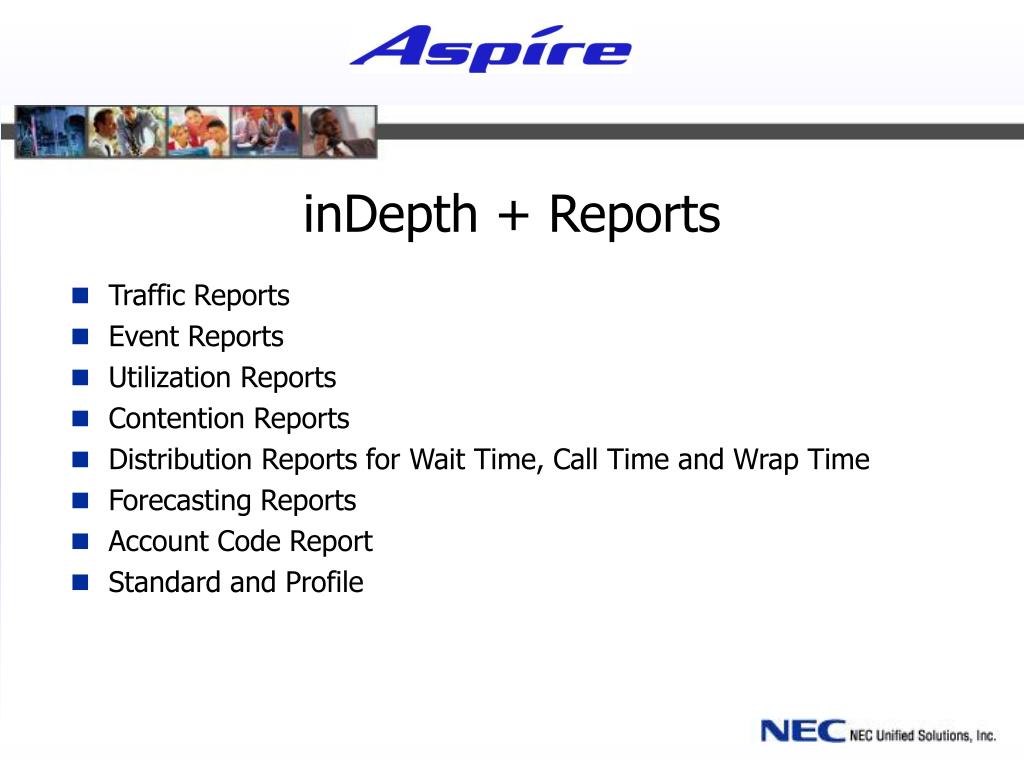

  17. inDepth + Reports • Traffic Reports • Event Reports • Utilization Reports • Contention Reports • Distribution Reports for Wait Time, Call Time and Wrap Time • Forecasting Reports • Account Code Report • Standard and Profile

  18. Report Types • Traffic Reports • These are summary reports and typically contain a single row or column of data for each device. The total values represent the data over the entire period of the report. • These reports are used to look at total volumes of calls handled by call time along with average or total times for each call type or activity • An example here would be an Agent Traffic report which will show activity by individual agent across the reporting period

  19. Traffic Report

  20. Report Types • Group Traffic Reports • Similar to Traffic Reports in that they are summaries but these are by Group rather than by individual. • An example here would be an Agent Group Traffic Report which would show the totals for the Group or Groups as a collection of agents which are members of those groups

  21. Group Traffic Report

  22. Event Reports • These are very detailed reports listing all calls across the Lines (Line Group Event Report) or calls and other activities by Agent or Extension (Agent/Extension Event Report) • They are used over short periods of time to track specific calls or activities as they can become very large reports very quickly • Configuring these to exclude unwanted call or activity types or applying filters for things like dialed digits allows you to “drill down” even further to the data required

  23. Event Report

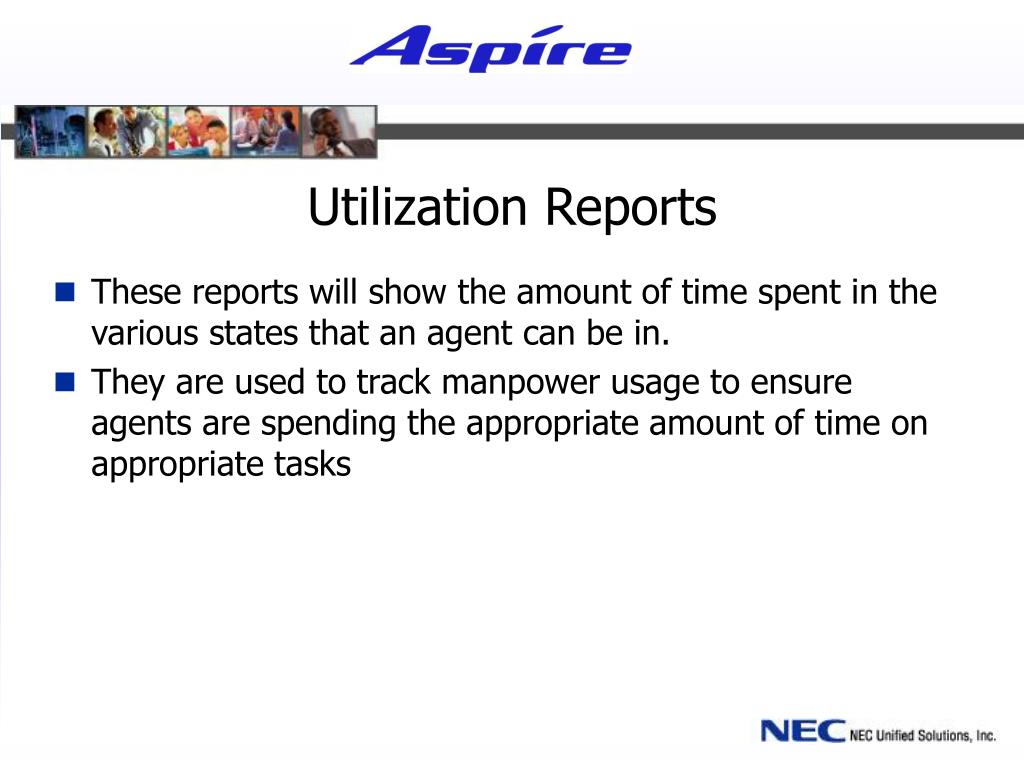

  24. Utilization Reports • These reports will show the amount of time spent in the various states that an agent can be in. • They are used to track manpower usage to ensure agents are spending the appropriate amount of time on appropriate tasks

  25. Utilization Report

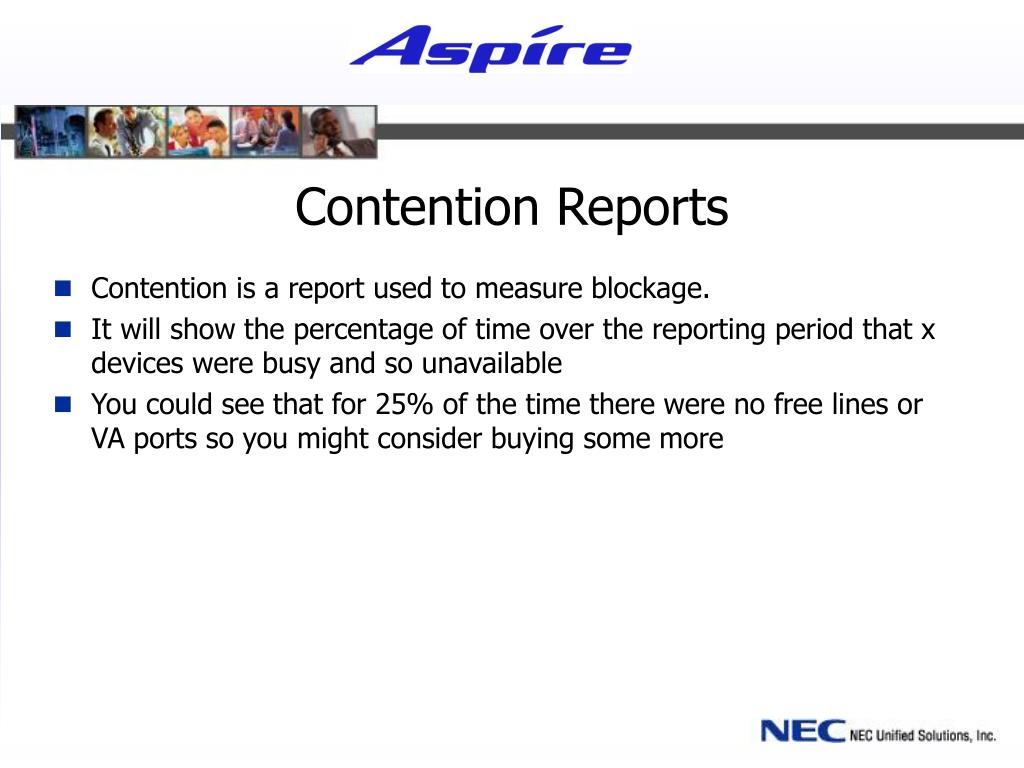

  26. Contention Reports • Contention is a report used to measure blockage. • It will show the percentage of time over the reporting period that x devices were busy and so unavailable • You could see that for 25% of the time there were no free lines or VA ports so you might consider buying some more

  27. Contention Report

  28. Forecasting Reports • Forecasting Reports allow the user to take existing historical data and, performing modifications to that data estimate what the effect would be. • So if the call volume changes how may people would I need might be a sensible report to run. • Many parameters can be modified and many results calculated • Multiple modifications and the effect can be calculated in a single report for comparison purposes

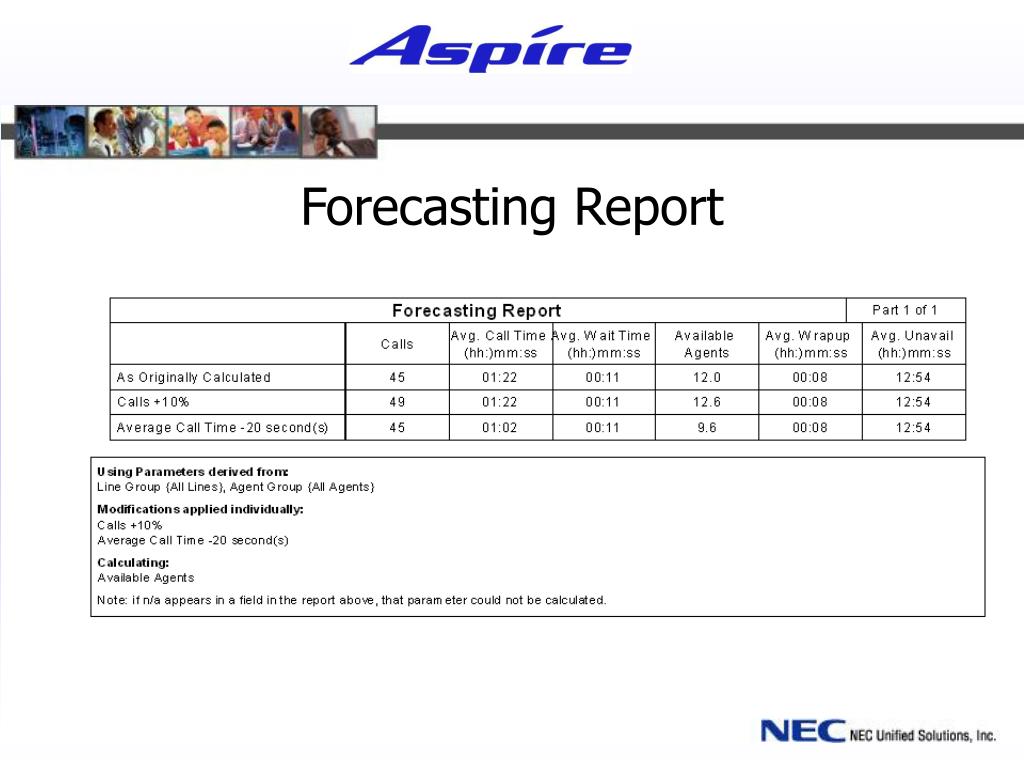

  29. Forecasting Report

  30. Distribution Reports • There are three types of Distribution Reports: • Wait Time Distribution Report • Call Time Distribution Report • Wrap Time Distribution Report

  31. Wait Time Distribution Report • A wait time distribution report provides the number of calls and percentage of calls whose wait time fell within a series of user configurable time bands. • The report can analyze the waiting time distribution of answered calls and/or abandoned calls within a single report item • A report item for each type can be added to a report template to enable analysis of both to be carried out separately

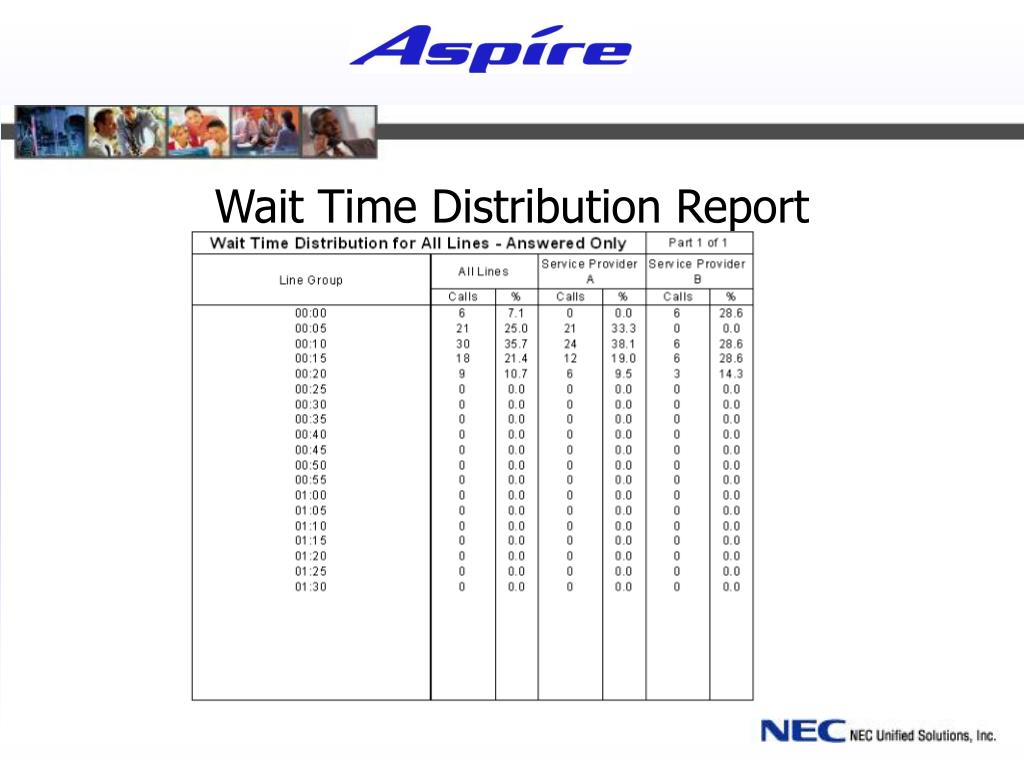

  32. Wait Time Distribution Report

  33. Call Time Distribution Report • A call time distribution report provides the number of calls and percentage of calls whose call time (defined as actual talk time and held time) fell within a series of user configurable time bands. • The report can analyze the call time distribution of incoming calls and/or outgoing calls.

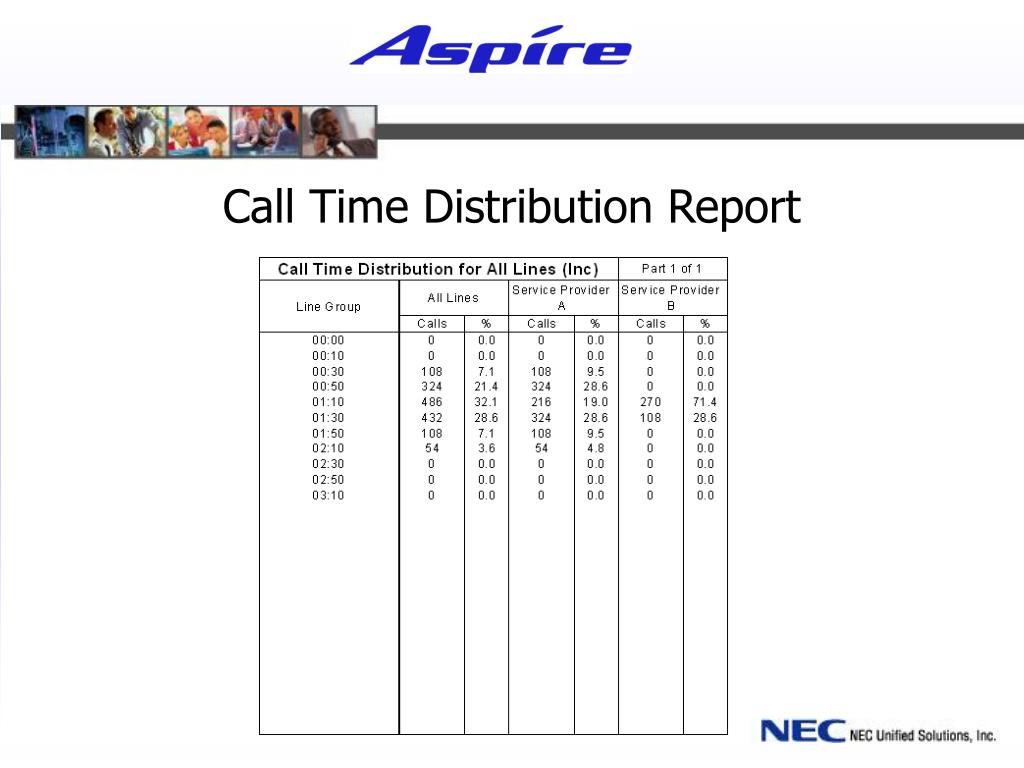

  34. Call Time Distribution Report

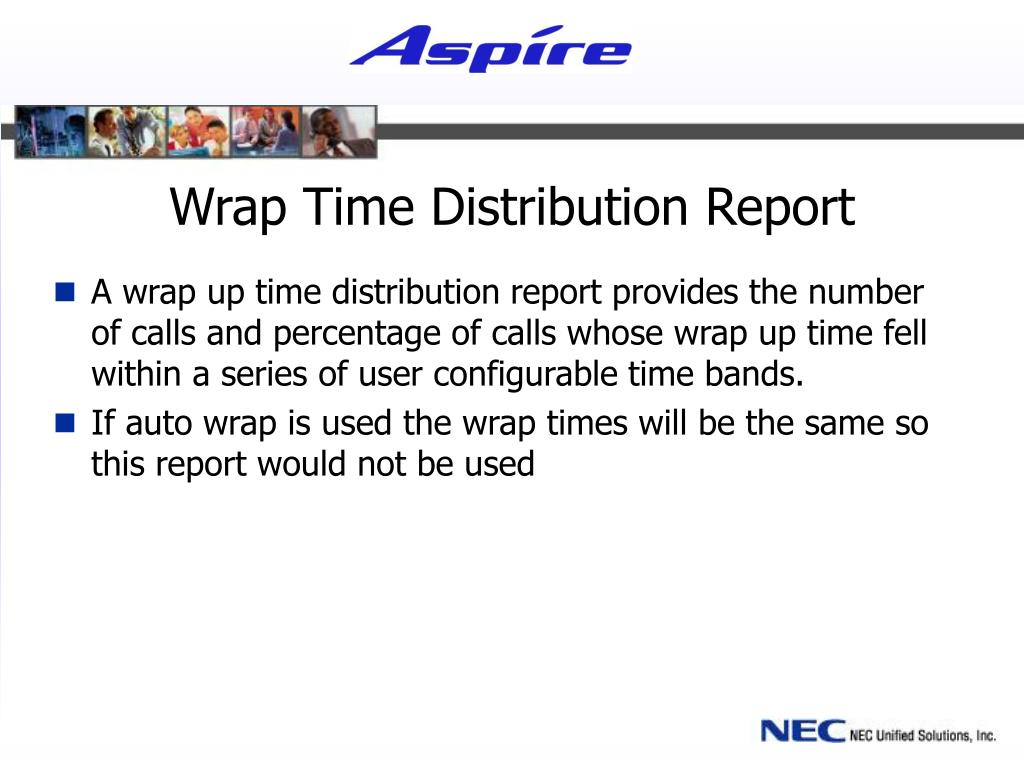

  35. Wrap Time Distribution Report • A wrap up time distribution report provides the number of calls and percentage of calls whose wrap up time fell within a series of user configurable time bands. • If auto wrap is used the wrap times will be the same so this report would not be used

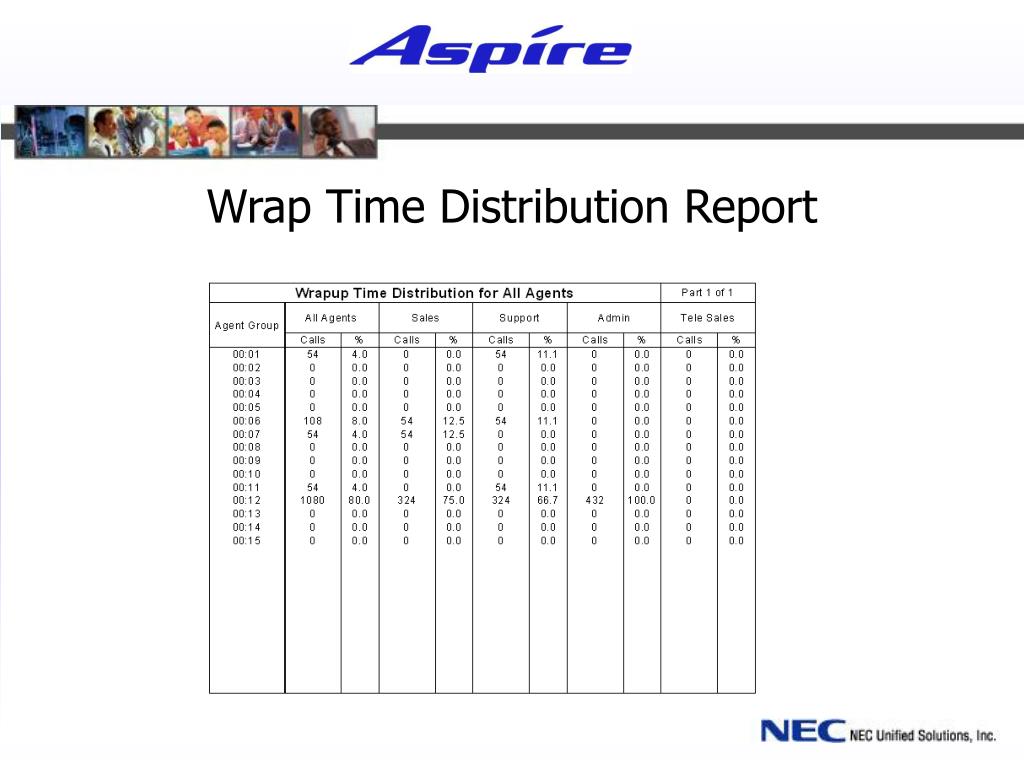

  36. Wrap Time Distribution Report

  37. Profile Reports • Many reports are available in Profile versions • A profile report provides historical call statistics data for a selected device type presented in a series of uniform time bands. • The interval time governing the time bands can be any number of minutes, hours, days or weeks. • The appropriate interval should be selected for the report period it will be used for. Hourly across the day would make sense whereas hourly across the week would not.

  38. Profile Reports

  39. The Reporter • Reports can be viewed on screen • Reports can be printed - On demand or Automatically • Reports in inDepth+ can be Saved • Reports in inDepth + can be Exported

  40. Why don’t they match? • Lines and DID’s • Line based reports will cover all calls • DID reports will only cover incoming calls that match the DID • Lines and agents/extensions • Calls showing on line side could go to any agent or even extension

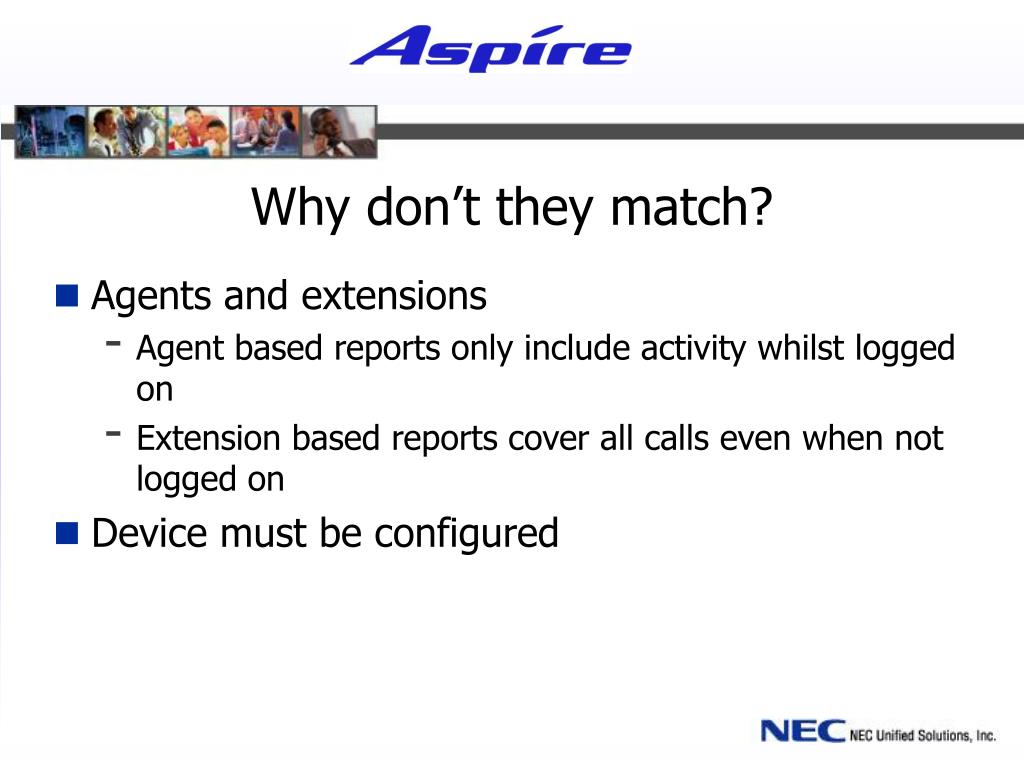

  41. Why don’t they match? • Agents and extensions • Agent based reports only include activity whilst logged on • Extension based reports cover all calls even when not logged on • Device must be configured

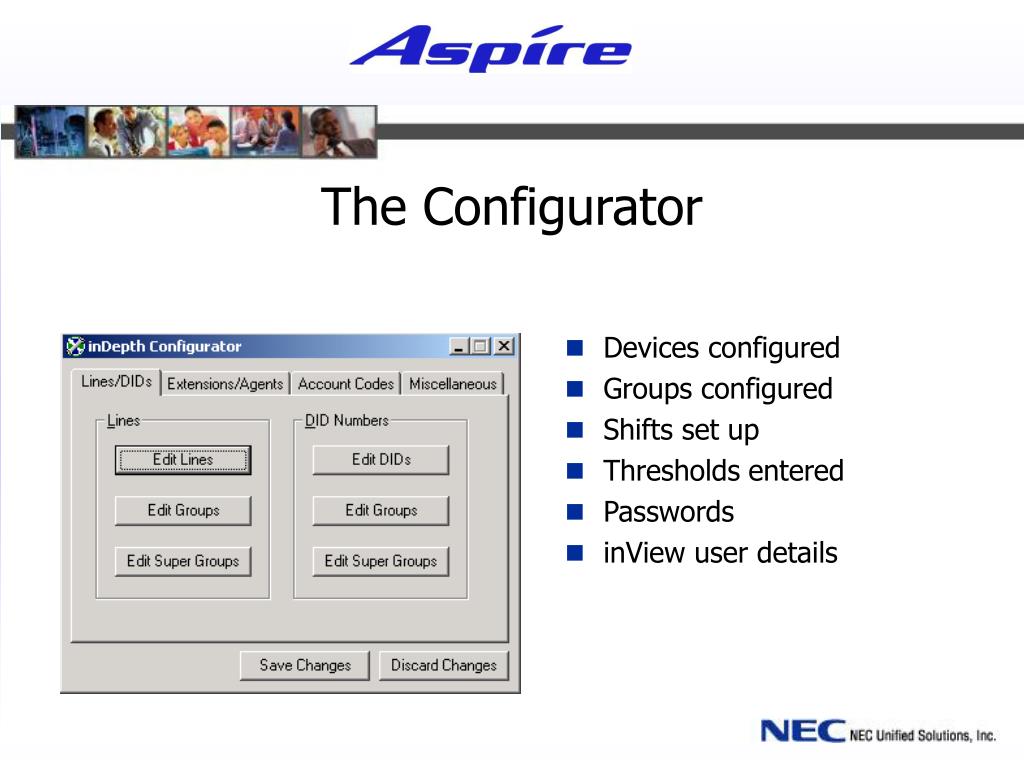

  42. The Configurator • Devices configured • Groups configured • Shifts set up • Thresholds entered • Passwords • inView user details

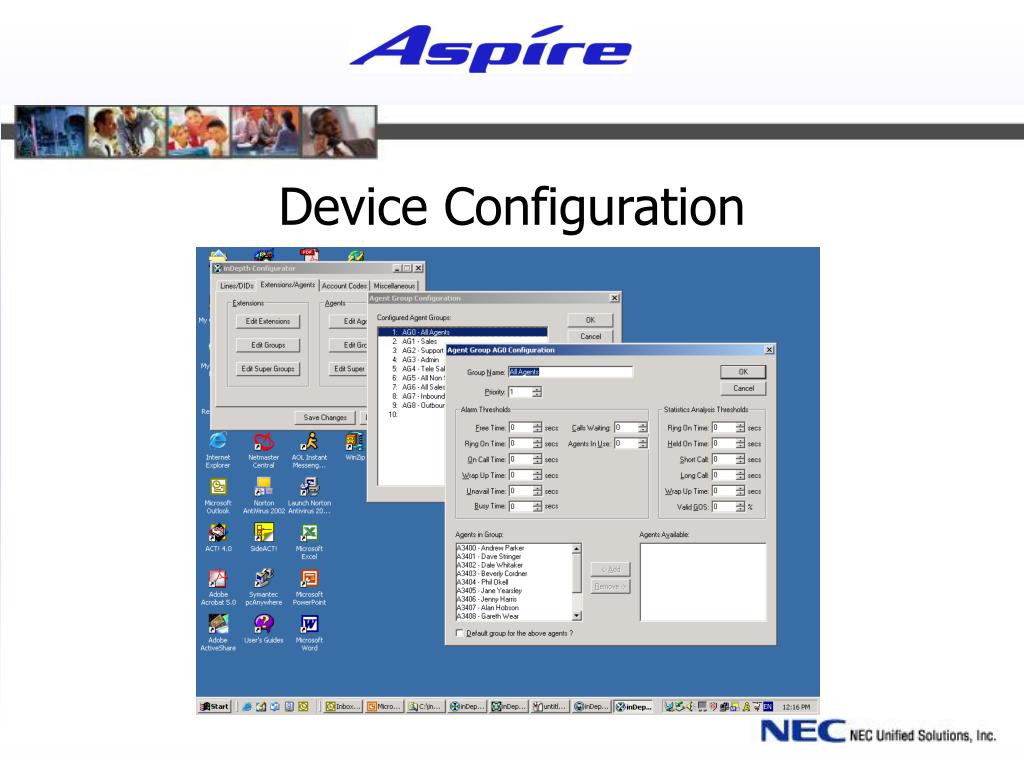

  43. Device Configuration

  44. Wallboard Template Wallboard Schedule Traditional Wallboards • Information • Performance • Motivation • Real time status • Statistics • Messages

  45. inView LAN Wallboard - View 1 Up to 8 large character windows can be displayed Pop on alarm WAN and well as LAN

  46. inView LAN Wallboards View 2 Agent status color coded Different groups selectable Long Name or Short Name

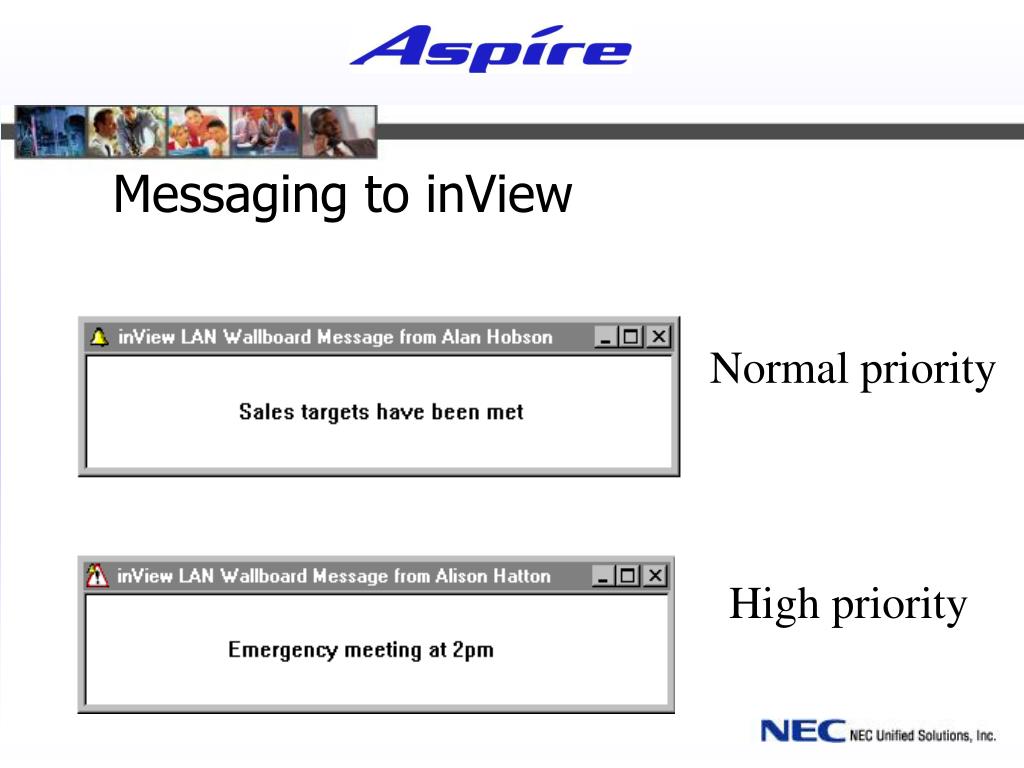

  47. Messaging to inView Normal priority High priority
