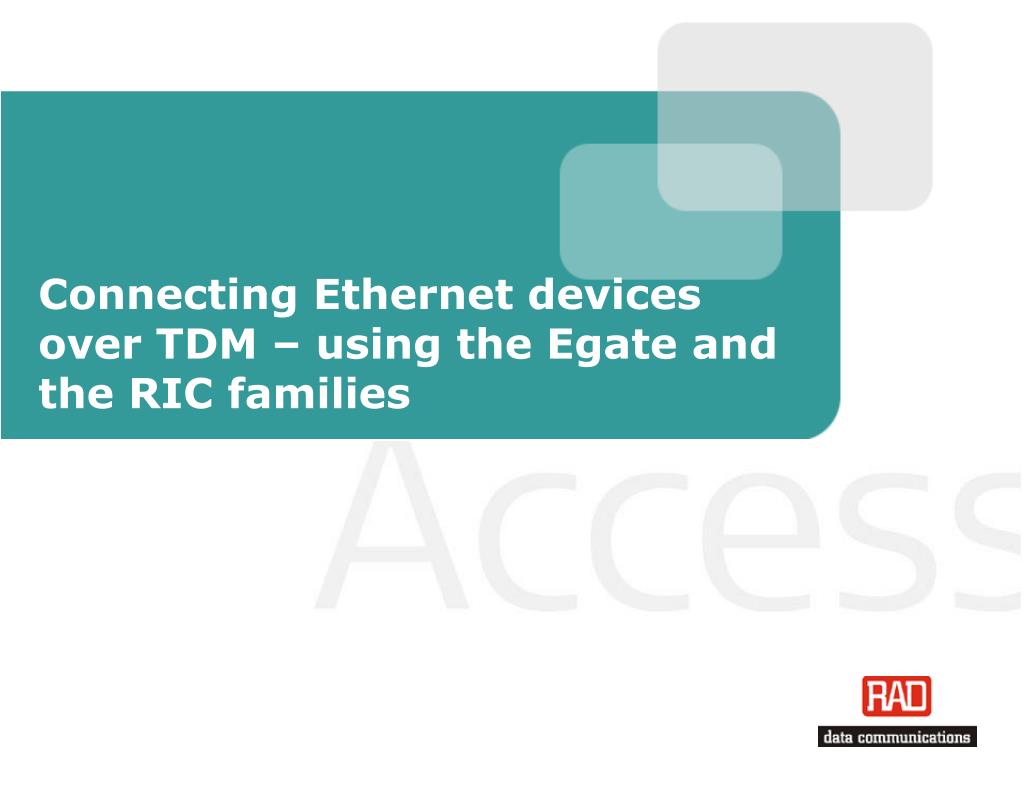

Connecting Ethernet devices over TDM – using the Egate and the RIC families

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Connecting Ethernet devices over TDM – using the Egate and the RIC families

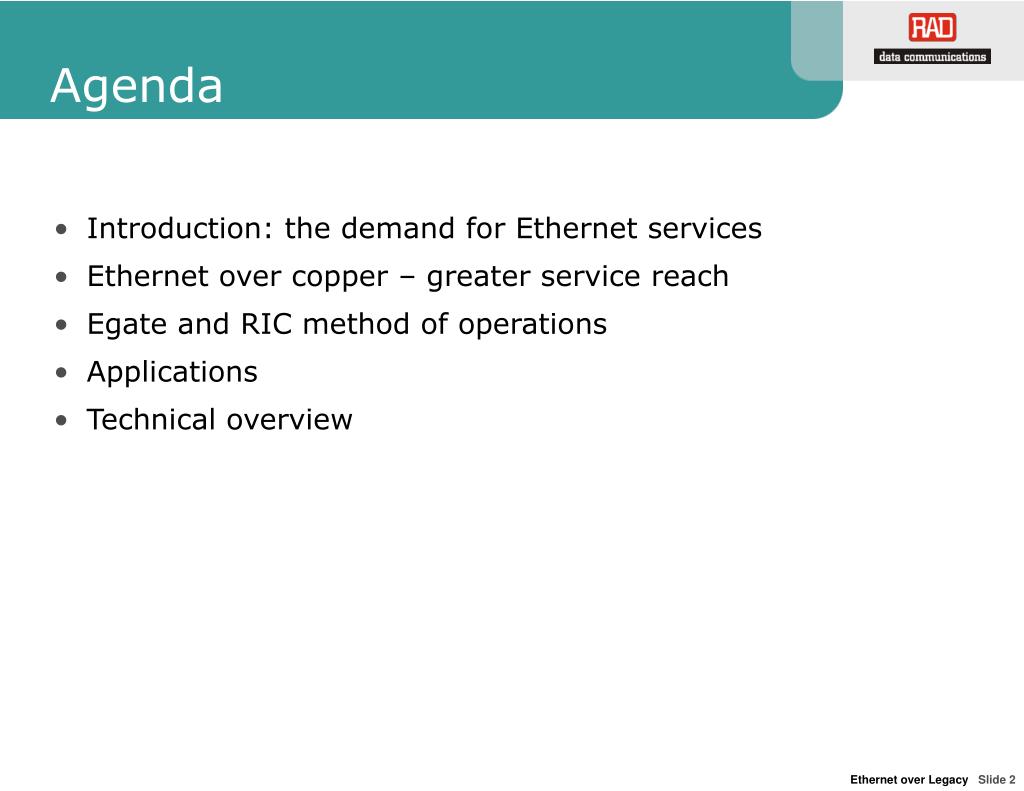

  2. Agenda • Introduction: the demand for Ethernet services • Ethernet over copper – greater service reach • Egate and RIC method of operations • Applications • Technical overview

  3. Enterprises Are Enthusiastically Embracing Ethernet… • Top 5 Services In Enterprise Budgets In 2005 • Internet (Ethernet-based or Other) • Multipoint Ethernet • VOIP • IPsec VPNs • Point-to-Point Ethernet Source: Heavy Reading 2004 Enterprise User Survey On Ethernet Services, July 2004. Surveyed 300 managers at 200 enterprises worldwide.

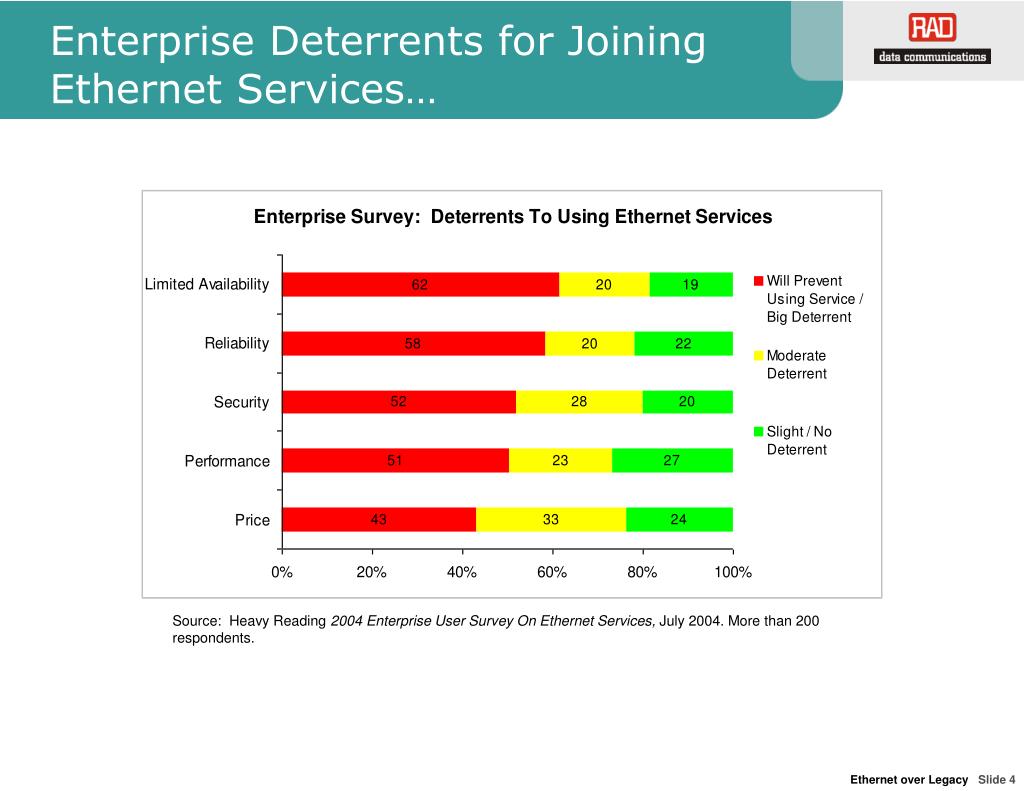

  4. Enterprise Deterrents for Joining Ethernet Services… Source: Heavy Reading 2004 Enterprise User Survey On Ethernet Services, July 2004. More than 200 respondents.

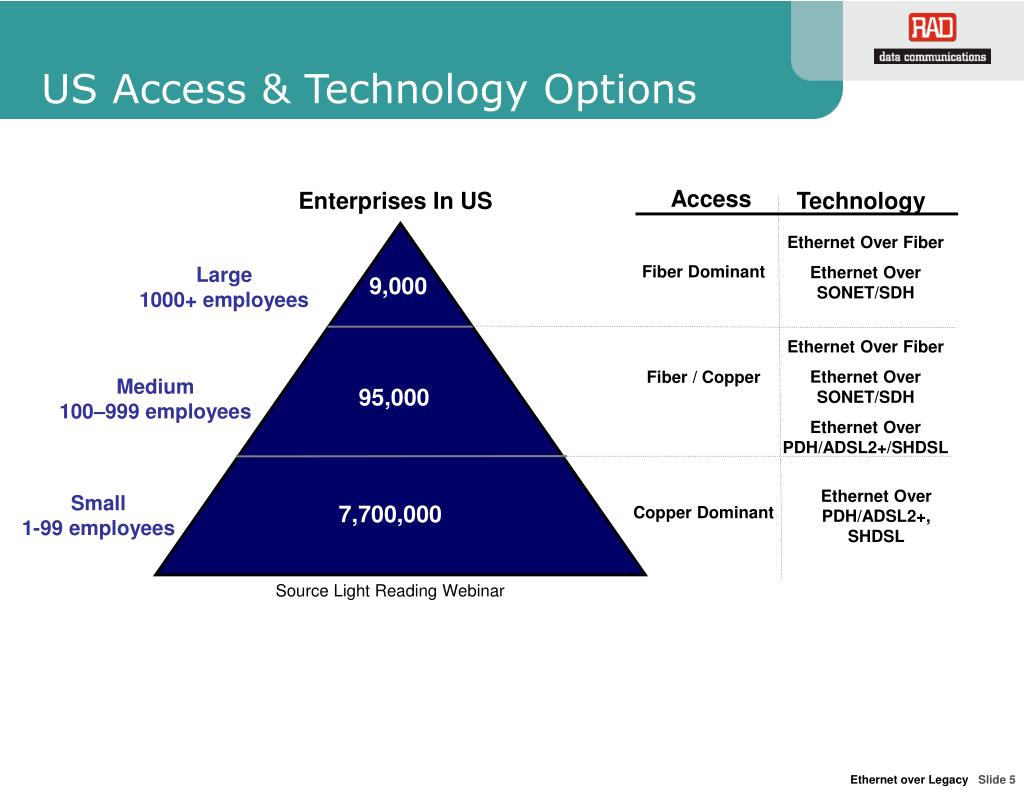

  5. US Access & Technology Options Access Enterprises In US Technology Ethernet Over Fiber Ethernet Over SONET/SDH Fiber Dominant Large1000+ employees 9,000 Ethernet Over Fiber Ethernet Over SONET/SDH Ethernet Over PDH/ADSL2+/SHDSL Fiber / Copper Medium100–999 employees 95,000 Ethernet Over PDH/ADSL2+, SHDSL Small1-99 employees Copper Dominant 7,700,000 Source Light Reading Webinar

  6. Ethernet Services Over Copper – Greater Reach Customer • Most customers within service reach (and out of fiber reach) • Well known technology • Port base granularity: E1/T1, n*E1/T1, E3/T3 • Higher bandwidth utilizing bonding technologies (MLPPP/VCAT) • Inherent link redundancy • Infrastructure for Ethernet Private Line (EPL) and Ethernet Private LAN (EPLAN) CO RICi-8E1 n x E1/T1 F.Ethernet Egate-100 Gigabit Ethernet OC-3/STM-1 PSN SDH/SONET Customer RICiE1 F.Ethernet E1/T1

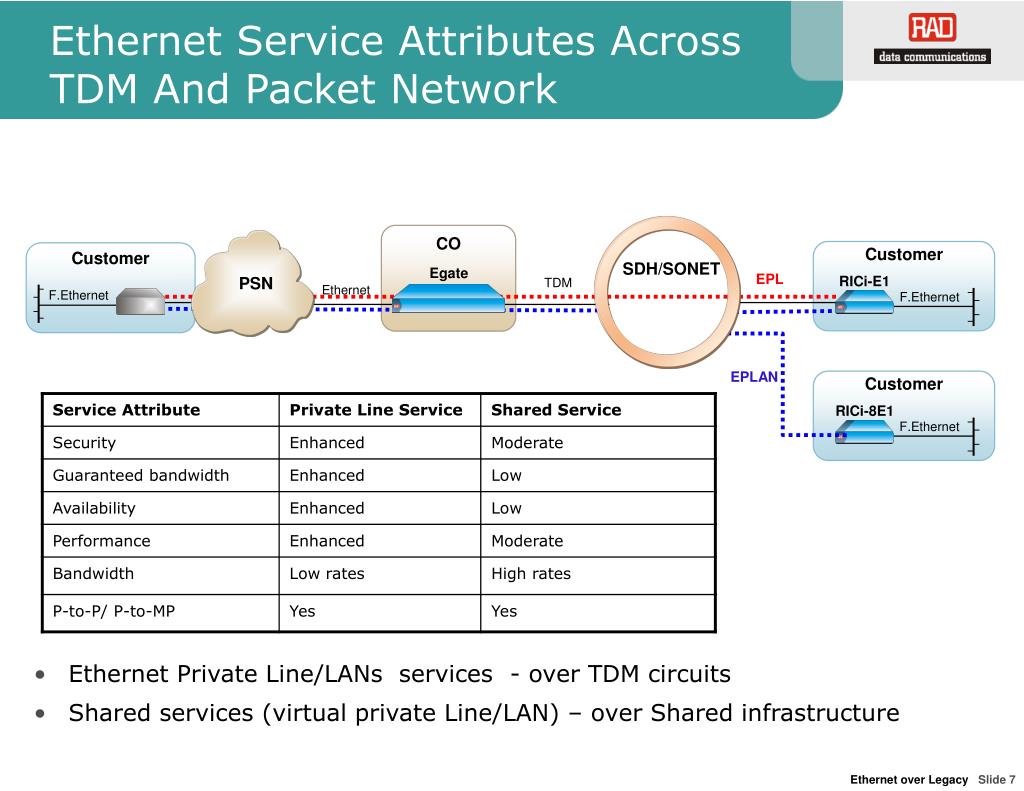

  7. EPL EPLAN Customer RICi-8E1 F.Ethernet Ethernet Service Attributes Across TDM And Packet Network • Ethernet Private Line/LANs services - over TDM circuits • Shared services (virtual private Line/LAN) – over Shared infrastructure CO Customer Customer SDH/SONET Egate RICi-E1 PSN TDM Ethernet F.Ethernet F.Ethernet

  8. Ethernet over Copper - High QoS Enables High Enterprise Penetration Source: Heavy Reading 2004 Enterprise User Survey On Ethernet Services, July 2004. More than 200 respondents.

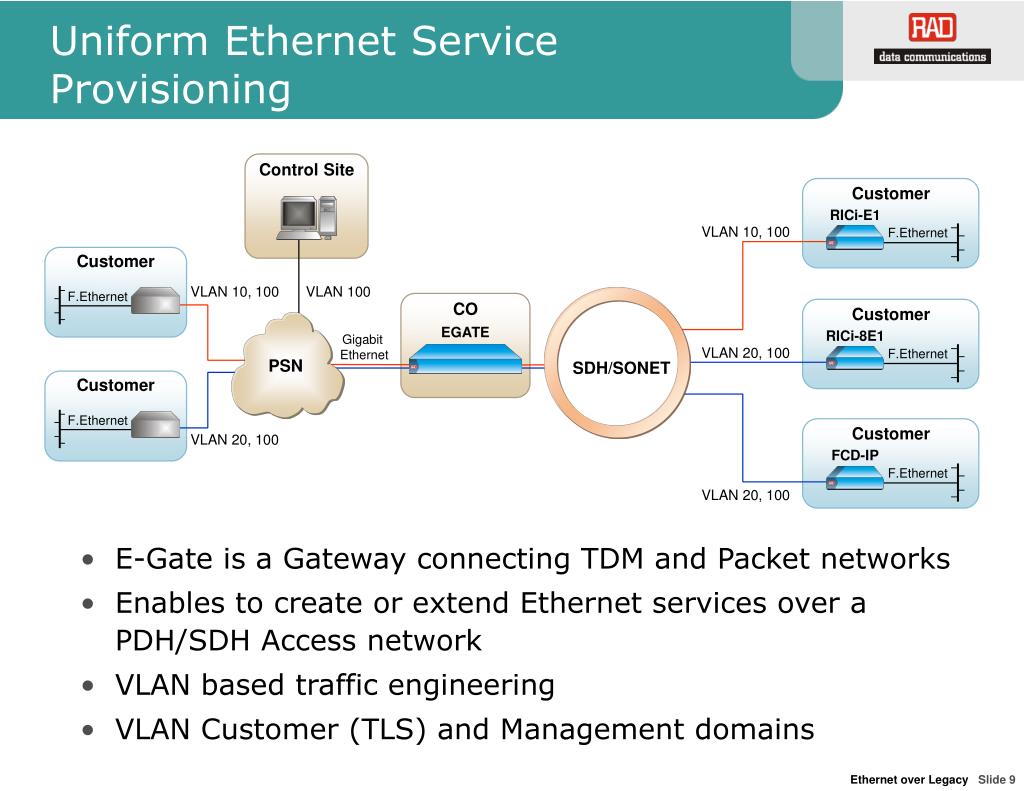

  9. Uniform Ethernet Service Provisioning Control Site Customer RICi-E1 • E-Gate is a Gateway connecting TDM and Packet networks • Enables to create or extend Ethernet services over a PDH/SDH Access network • VLAN based traffic engineering • VLAN Customer (TLS) and Management domains VLAN 10, 100 F.Ethernet Customer VLAN 10, 100 VLAN 100 F.Ethernet CO Customer EGATE RICi-8E1 Gigabit Ethernet VLAN 20, 100 F.Ethernet PSN SDH/SONET Customer F.Ethernet Customer VLAN 20, 100 FCD-IP F.Ethernet VLAN 20, 100

  10. Traffic Management Egate and RICService Delivery Concept Other Carriers Network Carrier CO • Ethernet service is defined by mapping a VLAN and one or more TDM interfaces • VLAN tagging/stacking at customer edge or provider edge • Ensures transparency to customer VLAN settings • Seamless VLAN handoff to the Packet network • Secured separation of customer and management traffic Customer SDH/ SONET Egate RICi-E1/T1 Ethernet F.Ethernet PSN OC-3/STM-1 NMS

  11. Customer Located Equipment Central Office Customer Operating with Egate: • FCD-x (FCD-IP, FCD-E1,etc.): Fast Ethernet over fractional E1 or T1 and sub channel • RICi-E1/ RICi-T1: Fast Ethernet over FE1/E1 or FT1/T1 • RICi-8E1/RICi-8T1: Fast Ethernet over four or Eight E1/T1- Beta Now Additional CLEs: • RIC-155GE:Gigabit Ethernet over STM-1/OC-3c • RIC-155: Fast Ethernet over STM-1/OC-3c • RICi-E3 or RICi-T3: Fast Ethernet over E3 or Framed T3 • RIC-622GE: Gigabit Ethernet over STM-4/OC-12c or 4* STM-1/OC-3c • Beta Q4/2005 RIC TDM circuit TDM circuit RIC Other carrier SDH/SONET 10/100BaseT PSN NMS

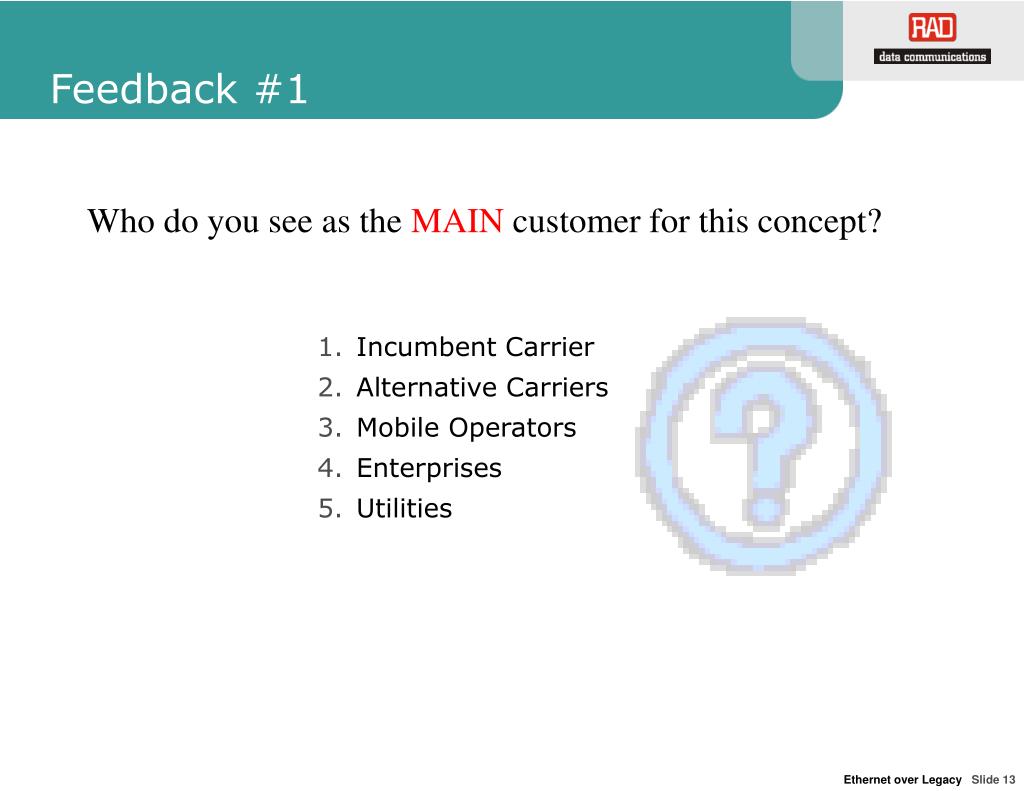

  12. Feedback #1 Who do you see as the MAIN customer for this concept? • Incumbent Carrier • Alternative Carriers • Mobile Operators • Enterprises • Utilities

  13. Feedback #2 Who do you see as the SECOND customer for this concept? • Incumbent Carrier • Alternative Carriers • Mobile Operators • Enterprises • Utilities

  14. Optimized for Ethernet services RIC Product Line Features and Benefits Highlights

  15. Applications Applications

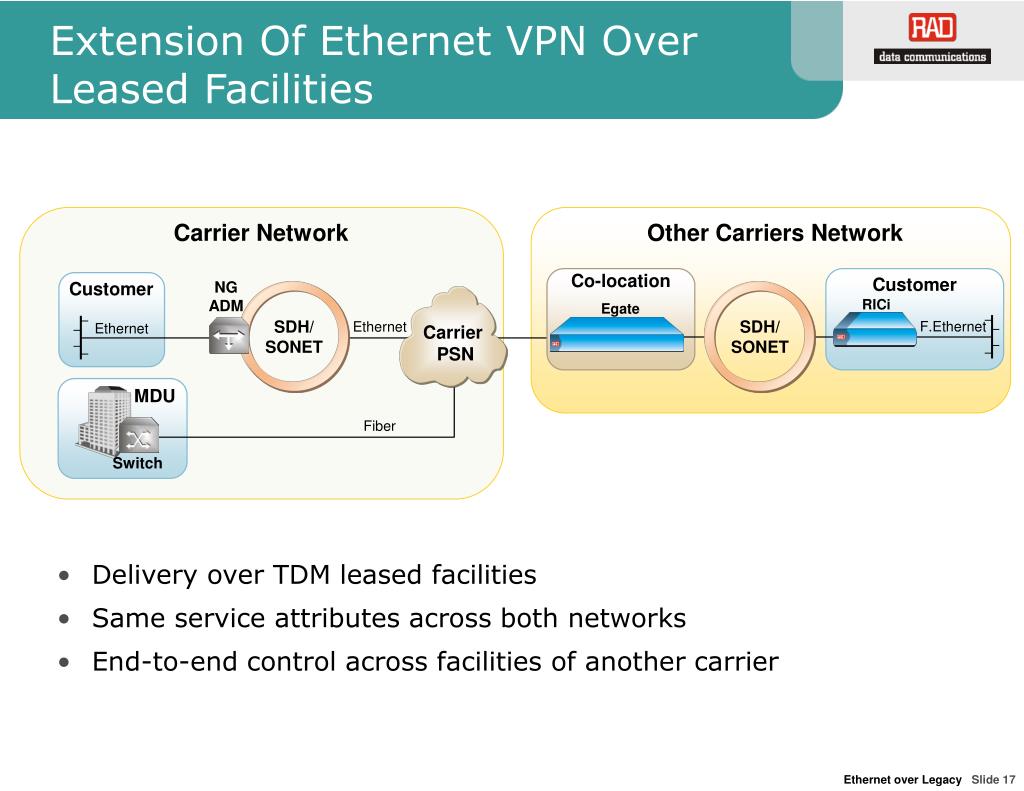

  16. Extension Of Ethernet VPN Over Leased Facilities • Delivery over TDM leased facilities • Same service attributes across both networks • End-to-end control across facilities of another carrier Carrier Network Other Carriers Network Co-location Customer Customer NG ADM RICi Egate F.Ethernet Ethernet Ethernet SDH/ SONET SDH/ SONET Carrier PSN MDU Fiber Switch

  17. Quiz #1 What’s the minimum SDH/SONET rate for Ethernet over NG ADMs? • 64 kbps • N x E1/T1 • E3/T3 • STM-1/OC-3

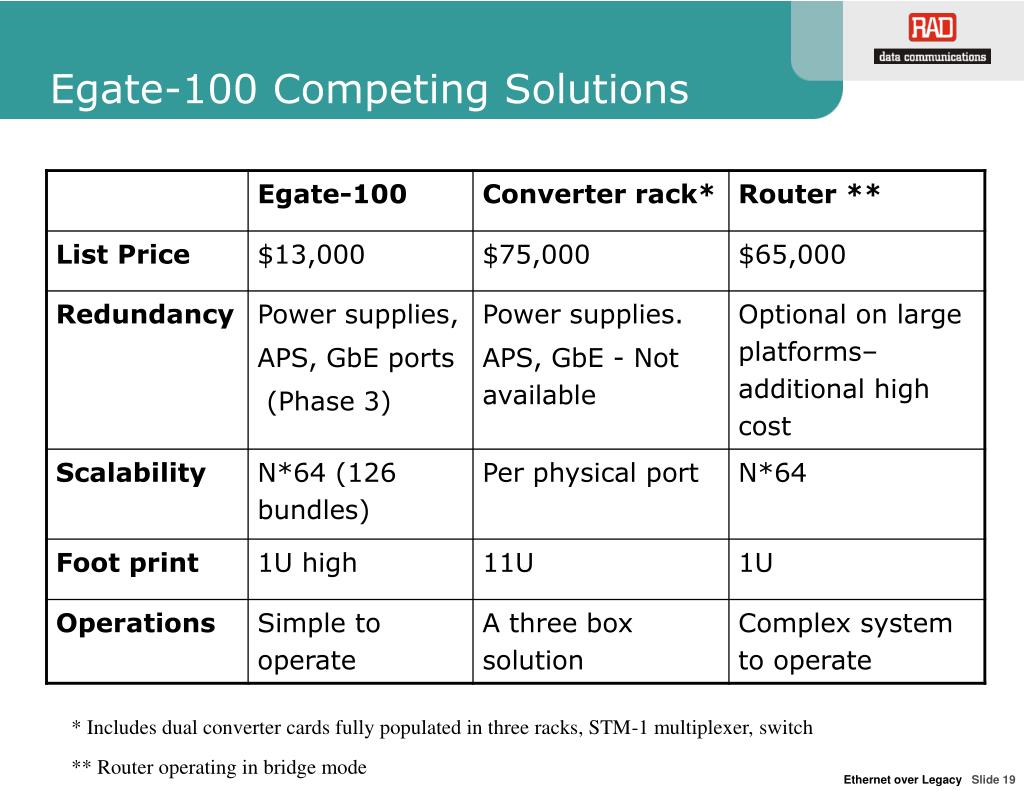

  18. Egate-100 Competing Solutions * Includes dual converter cards fully populated in three racks, STM-1 multiplexer, switch ** Router operating in bridge mode

  19. Killer Application: GbE IP DSLAM Backhauling • The RIC-155GE offers a migration path, connecting a future ready IP DSLAM with 1GbE uplink into the existing SDH/SONET • Large deployments at Telefonica and Jazztel • RIC-622GE for GbE over STM-4/OC-12c: Beta Q4/2005 Central Office POP IP-DSLAM ADM ADM RIC-155GE RIC-155GE GE STM-1/ OC-3 SDH/SONET GE PSN STM-1/ OC-3 NMS

  20. IP DSLAM & IP BTS Backhaul Remote Location IP BTS BSC • Aggregates multiple IP DSLAM/IP BTS traffic over several E1s or T1s (up to 8) • Simple and cost effective alternative to channelized router • Layer 2 simplicity at Edge reduces operation costs • No need to manage IP subnets and addresses • Simple to add new sites RICi-8E1/T1 10/100BaseT CO/HQ n x E1/T1 Egate Gigabit Ethernet OC-3/STM-1 Remote Location PSN SDH/SONET IP DSLAM RICi-8E1/T1 10/100BaseT n x E1/T1 Router

  21. Enterprises Ethernet Private LAN Internet • Headquarters and remote branches enjoy L2 VPN connection – as if on the same LAN • Egate located at enterprise headquarters managed in-band or out-of-band • All Remote units are managed in-band via the Egate Remote Branch CO/POP RICi-E1/T1 Enterprise/ ISP Headquarters F.Ethernet Carrier PSN Ethernet Leased SDH Lines NMS Egate-20 8*E1 Remote Branch 10/100BaseT RICi-E1/T1 F.Ethernet

  22. Egate-20 Fully Channelized Application CO/POP Remote sites IP • Fully Channelized Ethernet over 248 (8*31) Time Slots • Supports low rate data services • Remote branches are managed in-band • Beta August 2005 Ethernet FCD-E1LC NMS FE1 POP FE1 Router POP/CO FE1 Ethernet Egate-20 FCD--IP 8*E1 FE1 SDH PSN 10/100BaseT N*E1 DACS FE1/FXS N*E1 RICi-E1/T1 Class 5 switch FE1 PSTN Ethernet

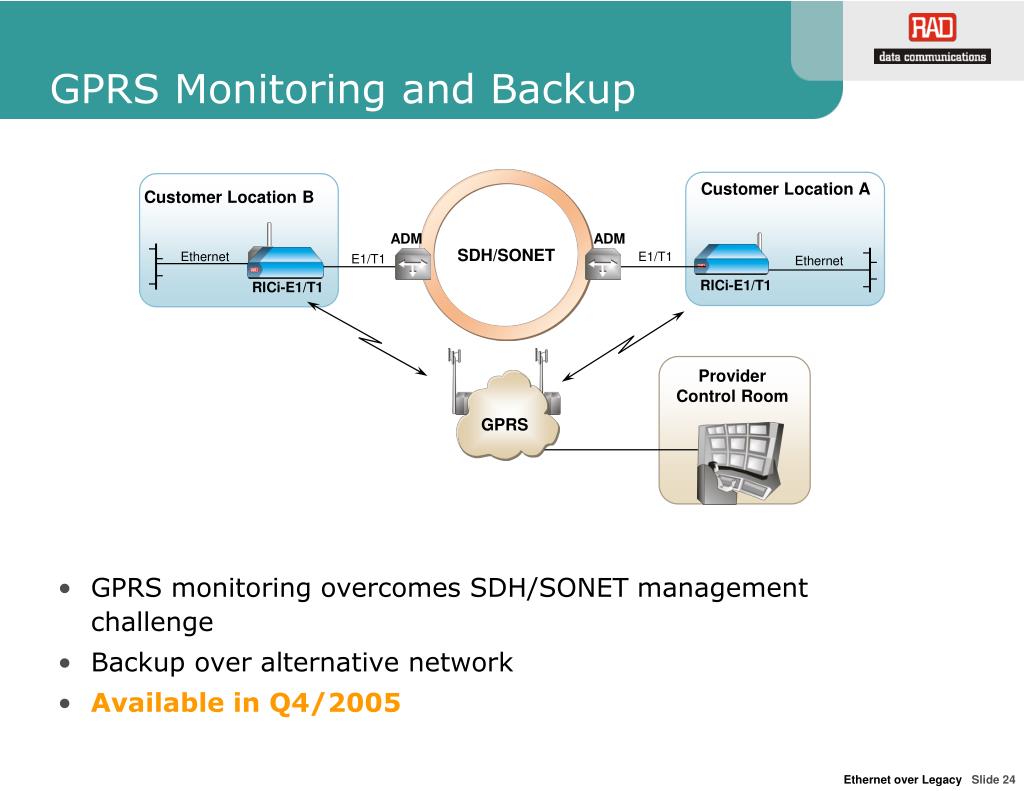

  23. GPRS Monitoring and Backup Customer Location A Customer Location B • GPRS monitoring overcomes SDH/SONET management challenge • Backup over alternative network • Available in Q4/2005 ADM ADM Ethernet E1/T1 SDH/SONET E1/T1 Ethernet RICi-E1/T1 RICi-E1/T1 Provider Control Room GPRS

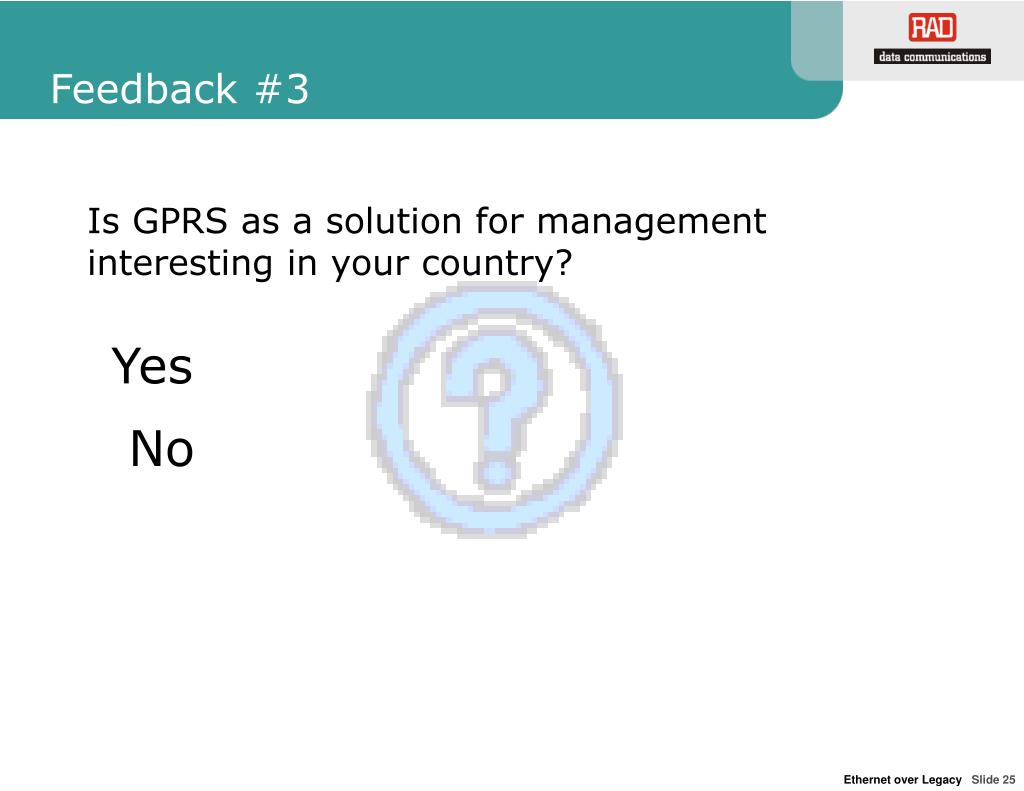

  24. Feedback #3 Is GPRS as a solution for management interesting in your country? Yes No

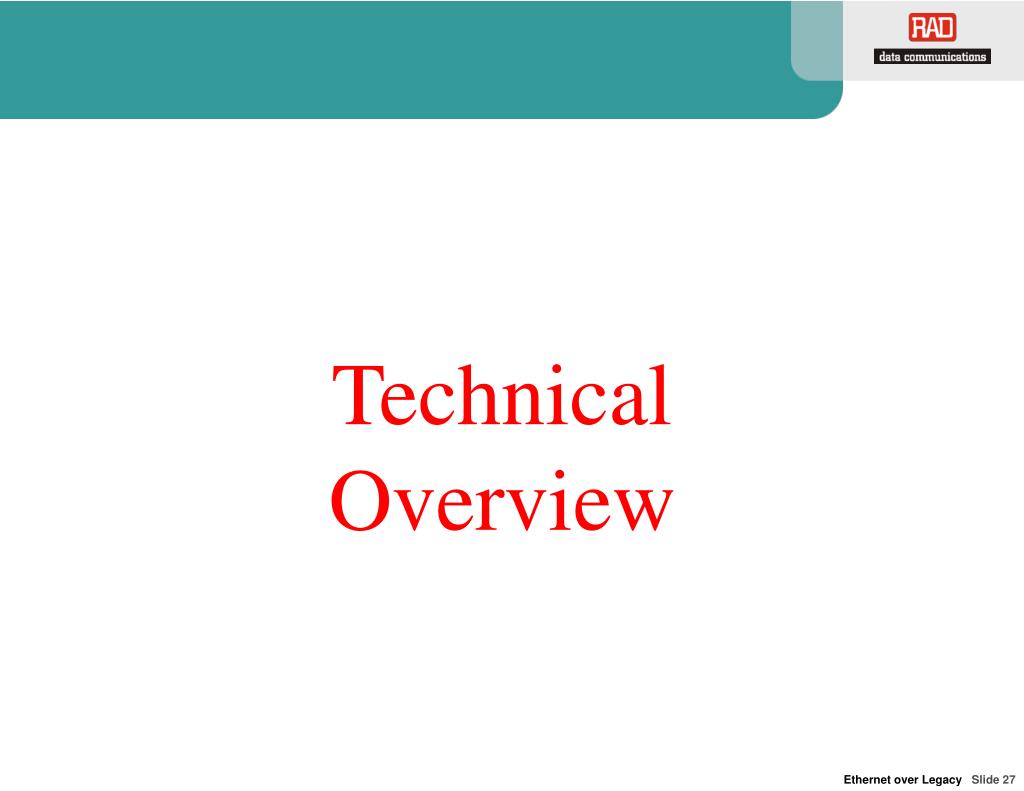

  25. Technical Overview

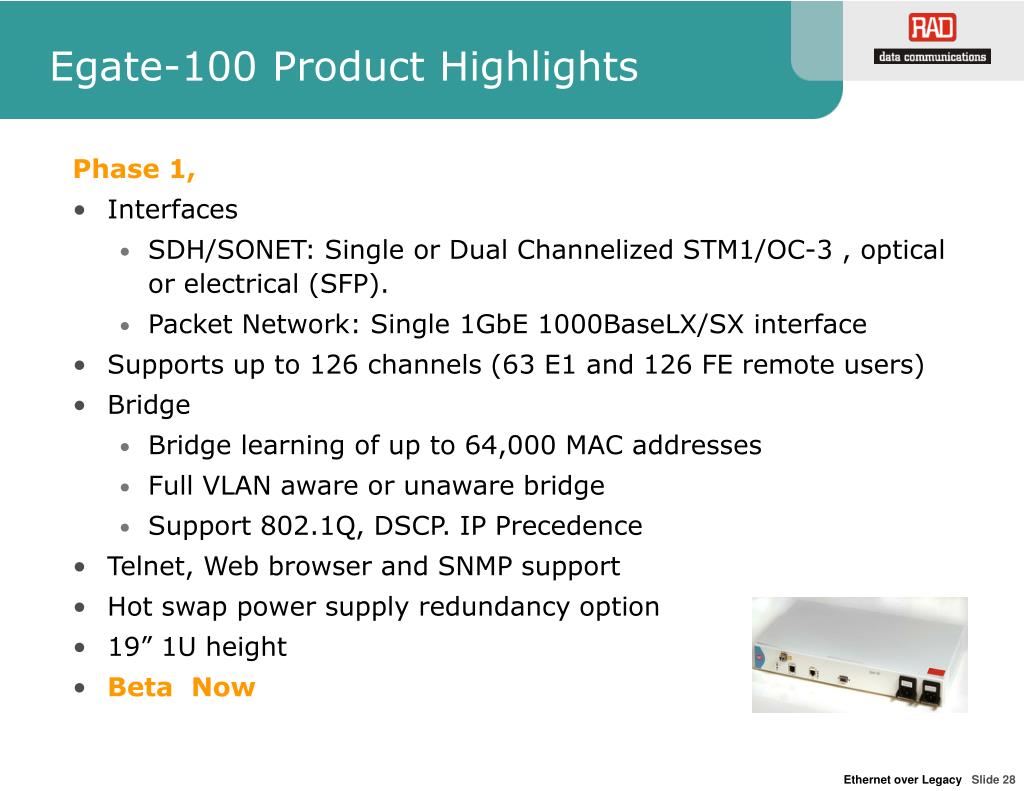

  26. Egate-100 Product Highlights Phase 1, • Interfaces • SDH/SONET: Single or Dual Channelized STM1/OC-3 , optical or electrical (SFP). • Packet Network: Single 1GbE 1000BaseLX/SX interface • Supports up to 126 channels (63 E1 and 126 FE remote users) • Bridge • Bridge learning of up to 64,000 MAC addresses • Full VLAN aware or unaware bridge • Support 802.1Q, DSCP. IP Precedence • Telnet, Web browser and SNMP support • Hot swap power supply redundancy option • 19” 1U height • Beta Now

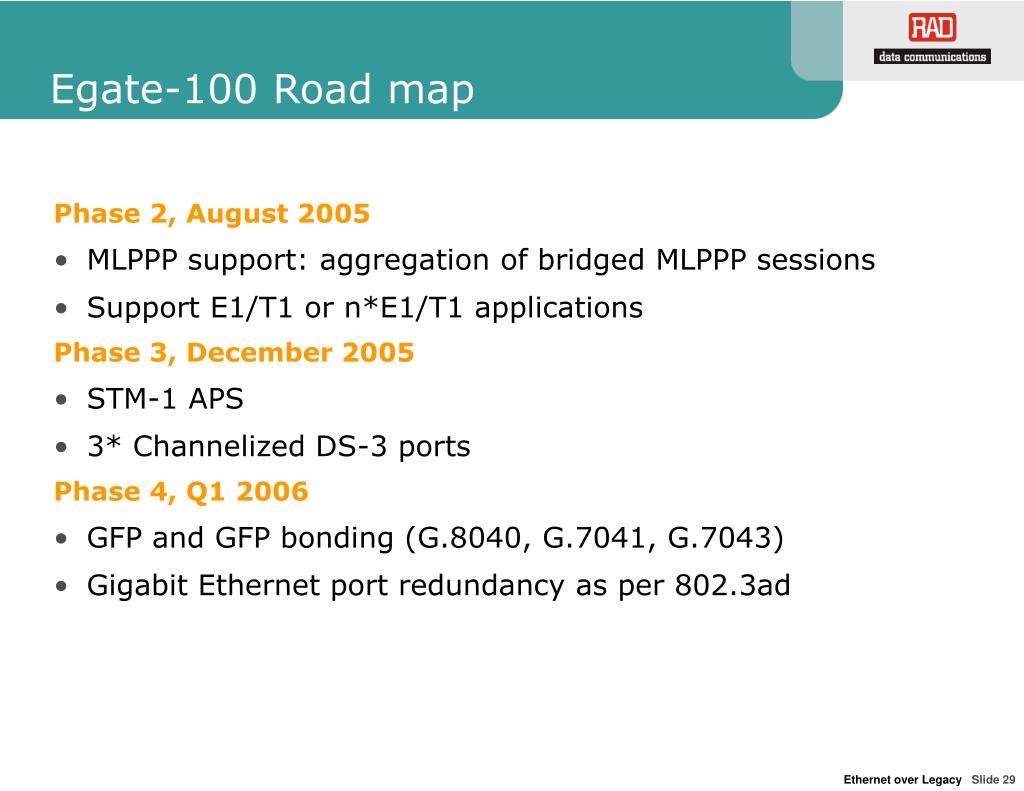

  27. Egate-100 Road map Phase 2, August 2005 • MLPPP support: aggregation of bridged MLPPP sessions • Support E1/T1 or n*E1/T1 applications Phase 3, December 2005 • STM-1 APS • 3* Channelized DS-3 ports Phase 4, Q1 2006 • GFP and GFP bonding (G.8040, G.7041, G.7043) • Gigabit Ethernet port redundancy as per 802.3ad

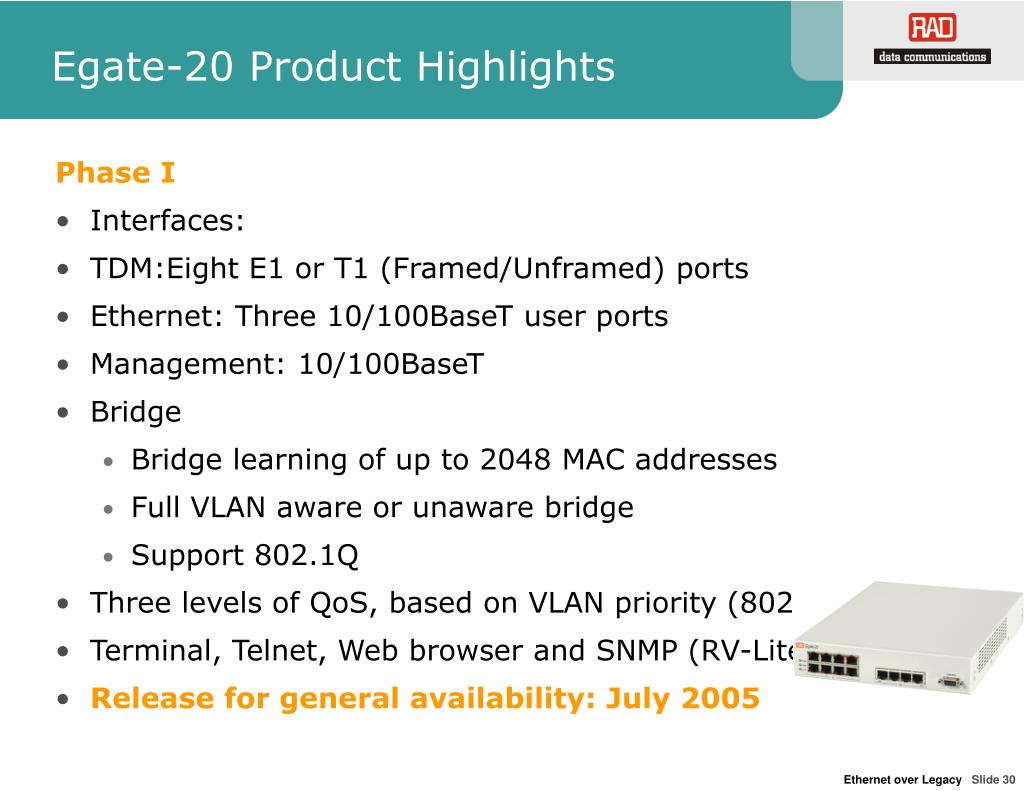

  28. Egate-20 Product Highlights Phase I • Interfaces: • TDM:Eight E1 or T1 (Framed/Unframed) ports • Ethernet: Three 10/100BaseT user ports • Management: 10/100BaseT • Bridge • Bridge learning of up to 2048 MAC addresses • Full VLAN aware or unaware bridge • Support 802.1Q • Three levels of QoS, based on VLAN priority (802.1p) • Terminal, Telnet, Web browser and SNMP (RV-Lite) • Release for general availability: July 2005

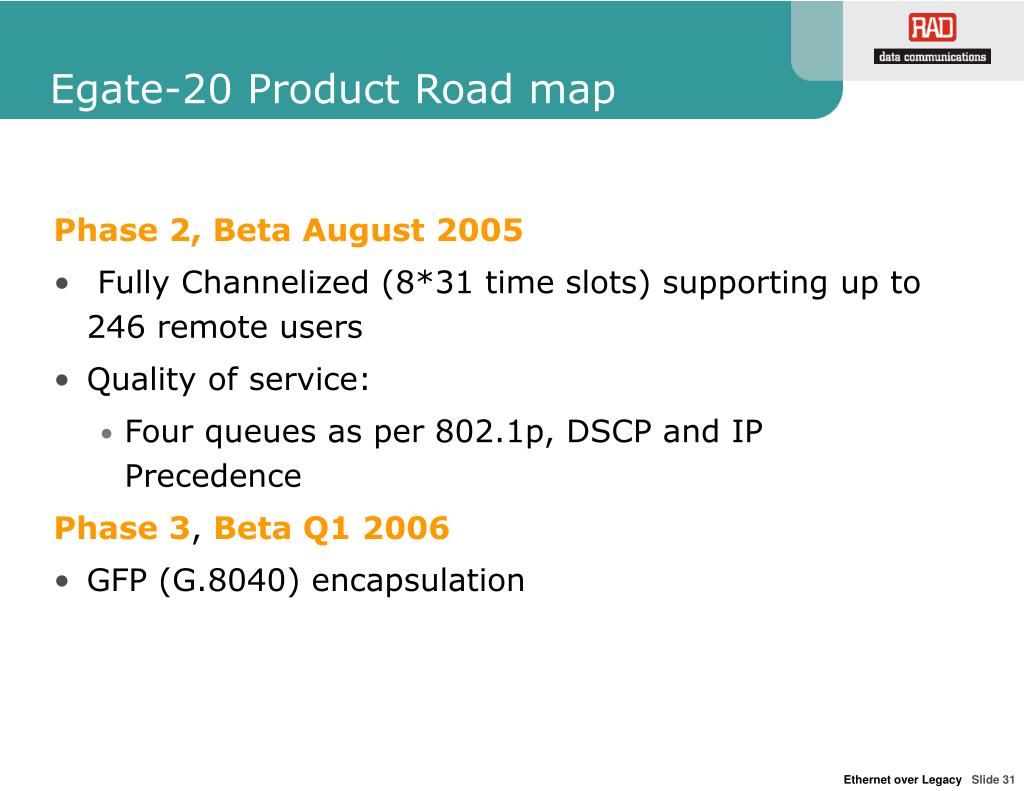

  29. Egate-20 Product Road map Phase 2, Beta August 2005 • Fully Channelized (8*31 time slots) supporting up to 246 remote users • Quality of service: • Four queues as per 802.1p, DSCP and IP Precedence Phase 3, Beta Q1 2006 • GFP (G.8040) encapsulation

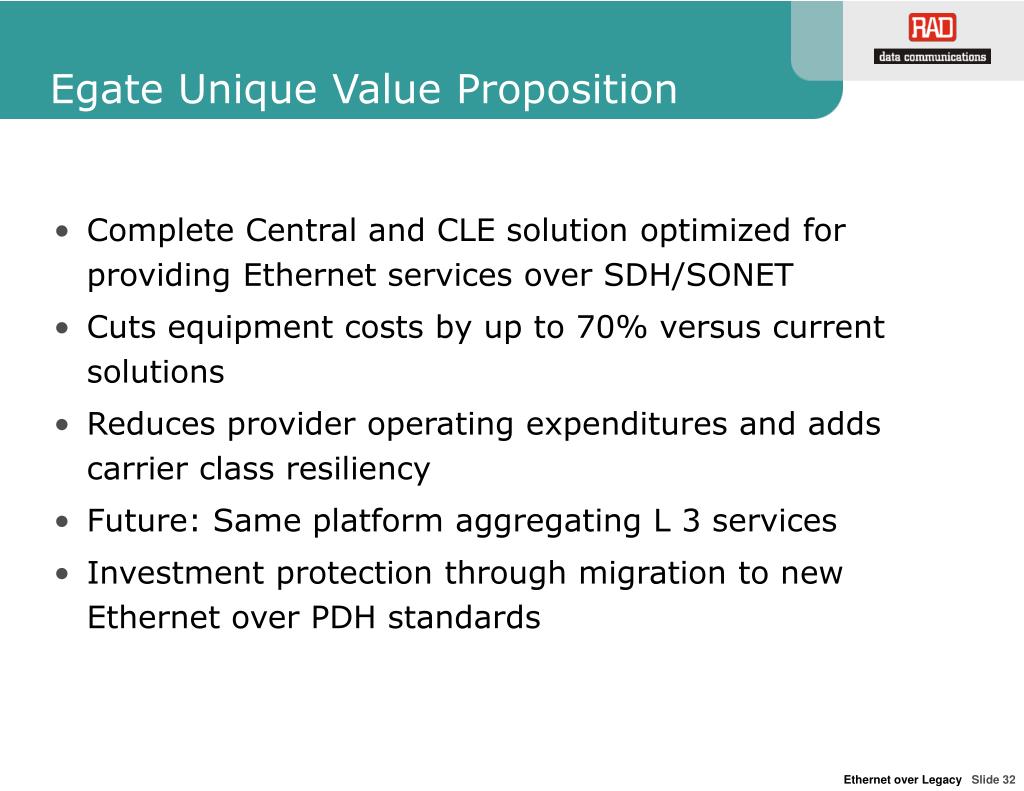

  30. Egate Unique Value Proposition • Complete Central and CLE solution optimized for providing Ethernet services over SDH/SONET • Cuts equipment costs by up to 70% versus current solutions • Reduces provider operating expenditures and adds carrier class resiliency • Future: Same platform aggregating L 3 services • Investment protection through migration to new Ethernet over PDH standards

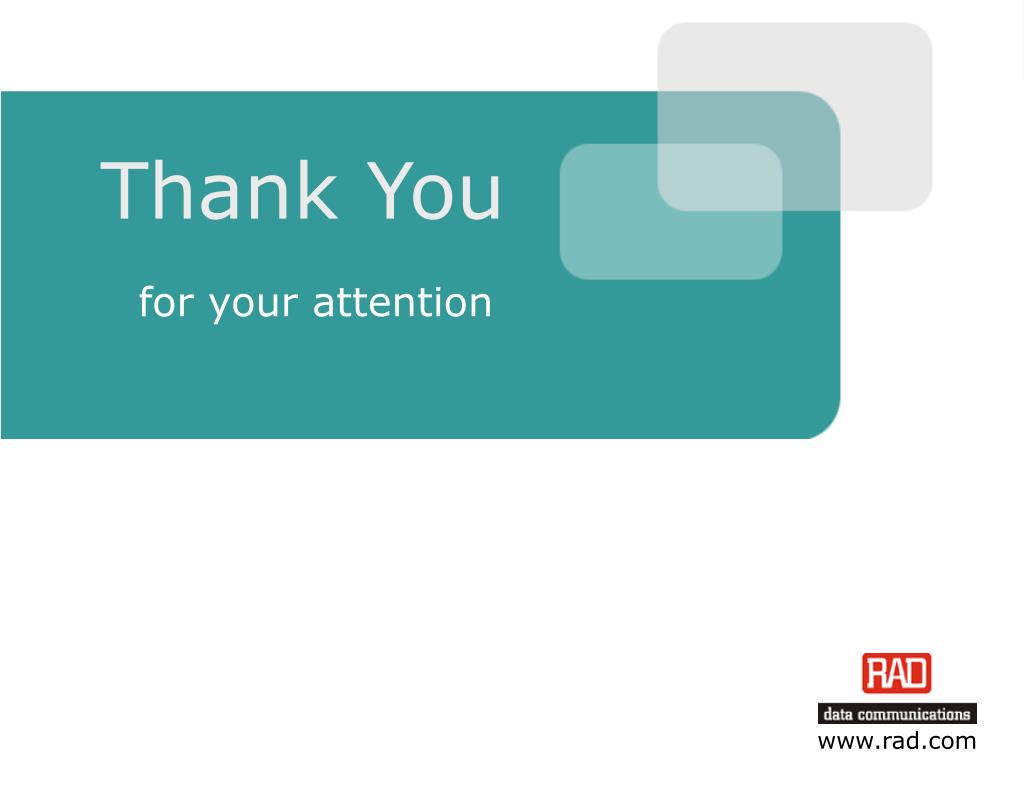

  31. Thank You for your attention www.rad.com
