  1. MUON HV-system Status of WINCC OA projects And Possible improvements Alexsei Chubykin, Oleg Maev

  2. Present status from MUSIDES From Top that’s all Script generated HV top panel updated by Clara on 08/07/14 Alexsei Chubykin, Oleg Maev

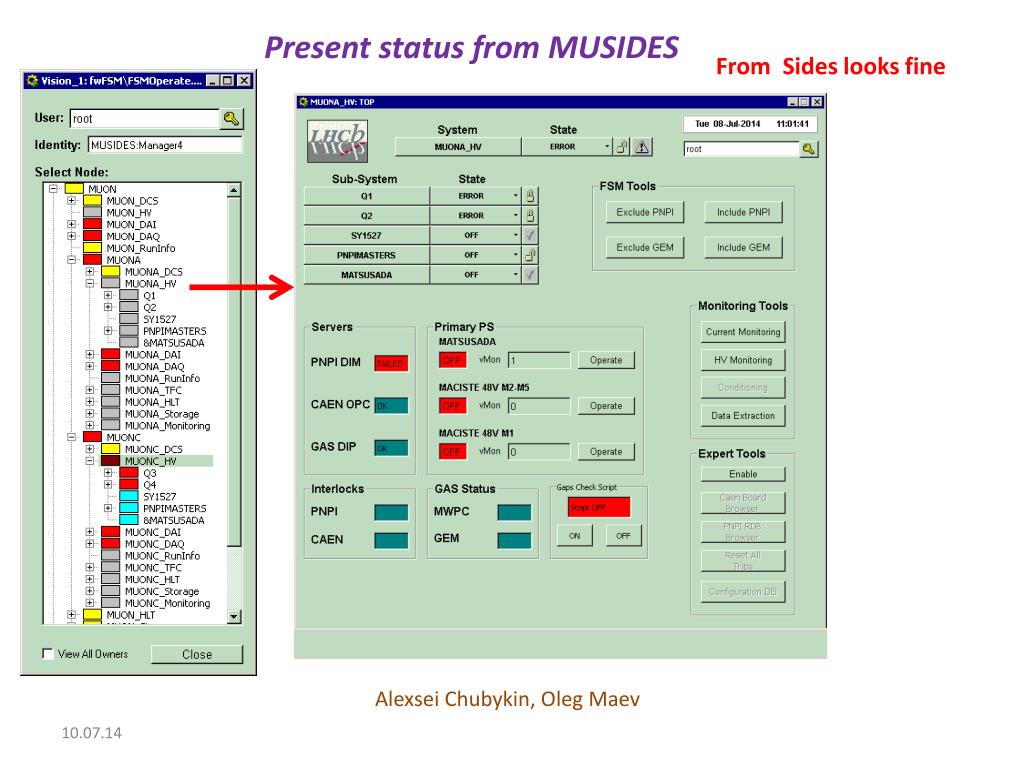

  3. Present status from MUSIDES From Sides looks fine Alexsei Chubykin, Oleg Maev

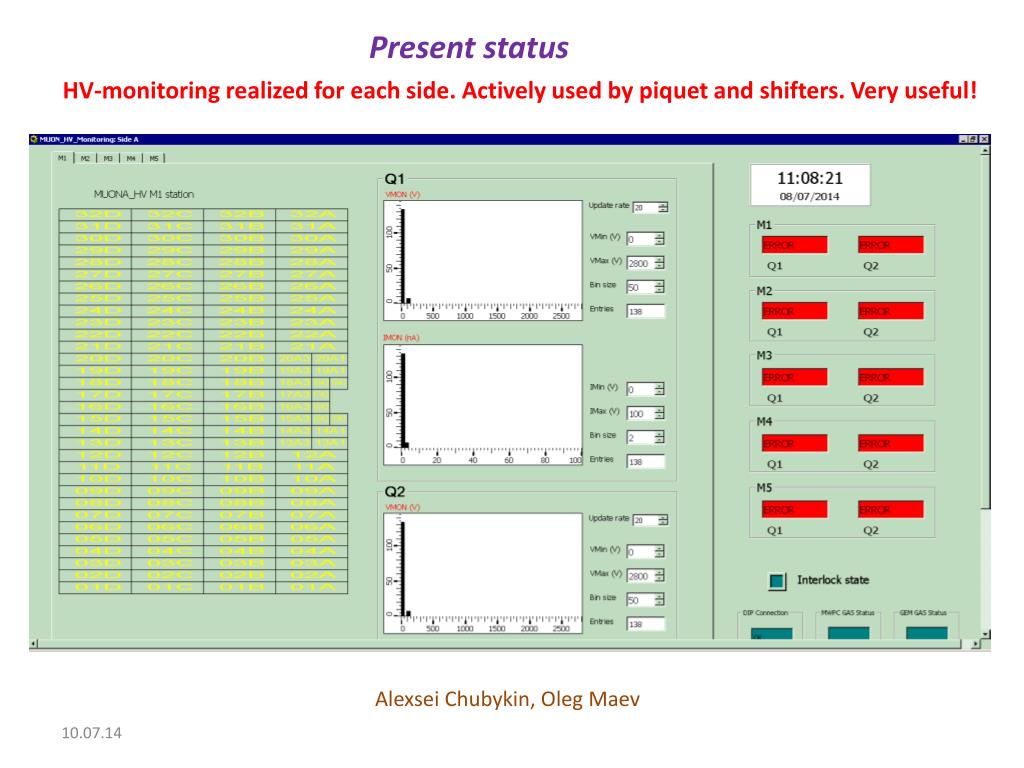

  4. Present status HV-monitoring realized for each side. Actively used by piquet and shifters. Very useful! Alexsei Chubykin, Oleg Maev

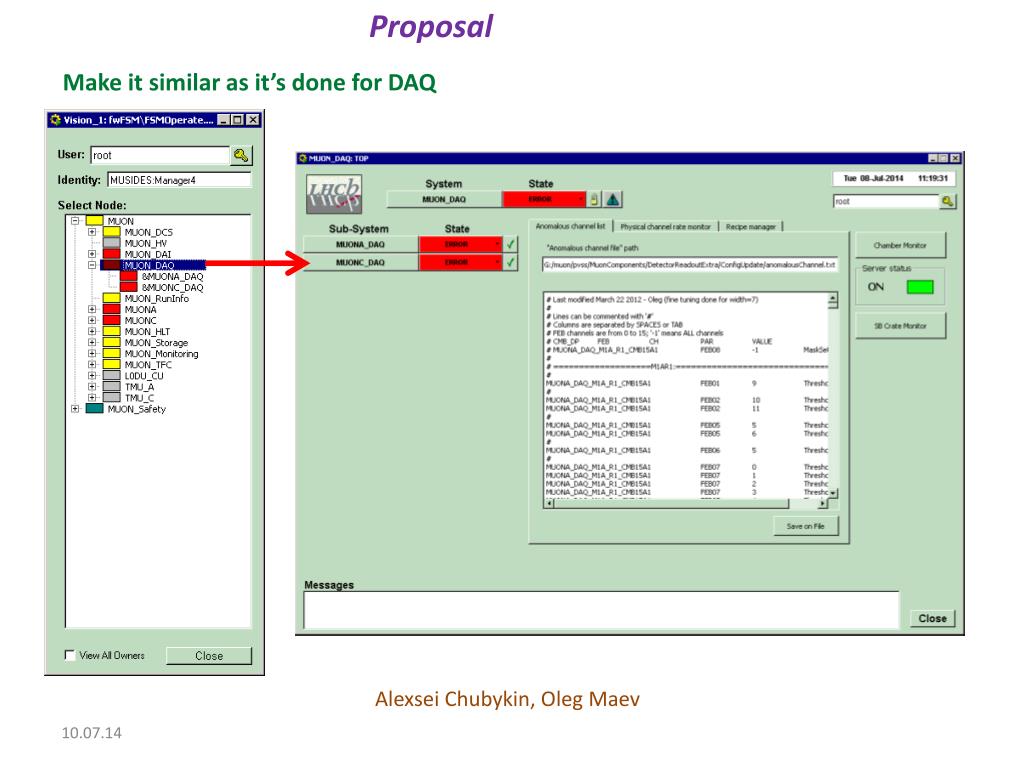

  5. Proposal Make it similar as it’s done for DAQ Alexsei Chubykin, Oleg Maev

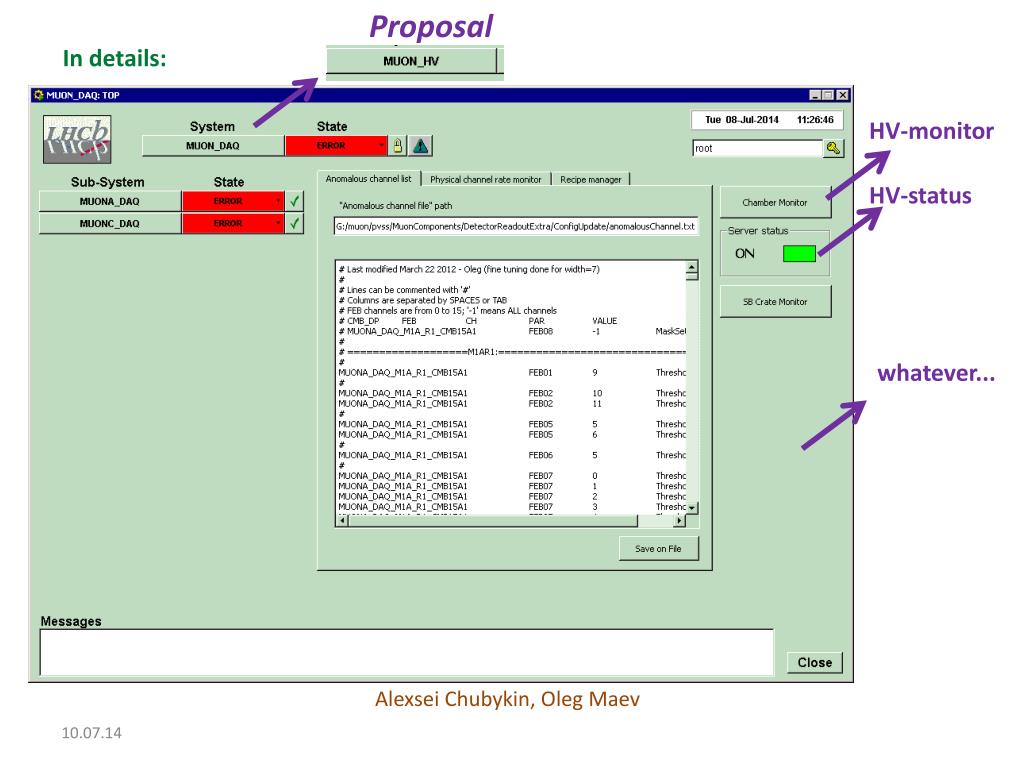

  6. Proposal In details: HV-monitor HV-status whatever... Alexsei Chubykin, Oleg Maev

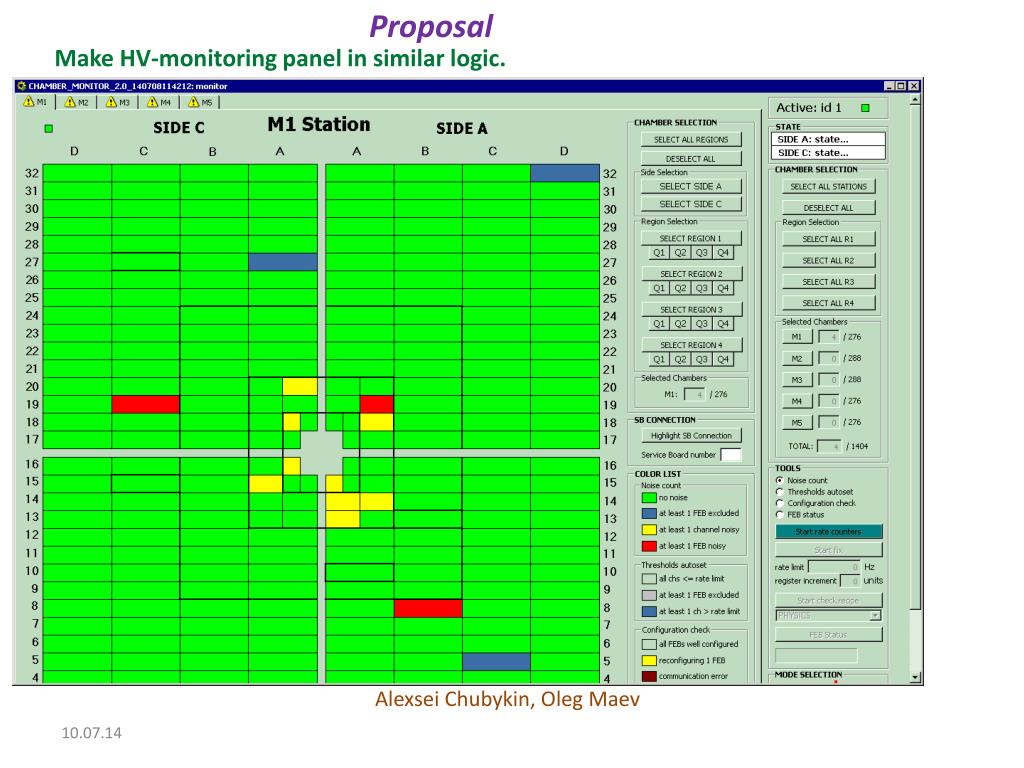

  7. Proposal Make HV-monitoring panel in similar logic. Alexsei Chubykin, Oleg Maev

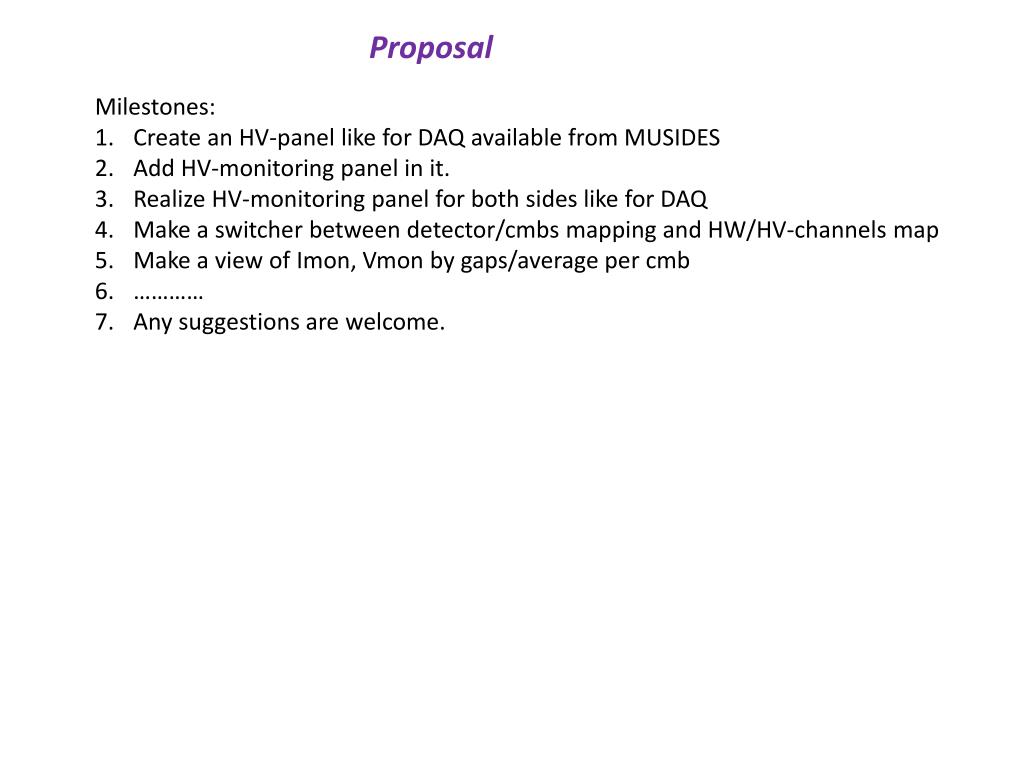

  8. Proposal • Milestones: • Create an HV-panel like for DAQ available from MUSIDES • Add HV-monitoring panel in it. • Realize HV-monitoring panel for both sides like for DAQ • Make a switcher between detector/cmbs mapping and HW/HV-channels map • Make a view of Imon, Vmon by gaps/average per cmb • ………… • Any suggestions are welcome.
