  1. HOW DOES THE LATITUDE OF A LOCATION IMPACT THE INSOLATION THAT IT RECEIVES?

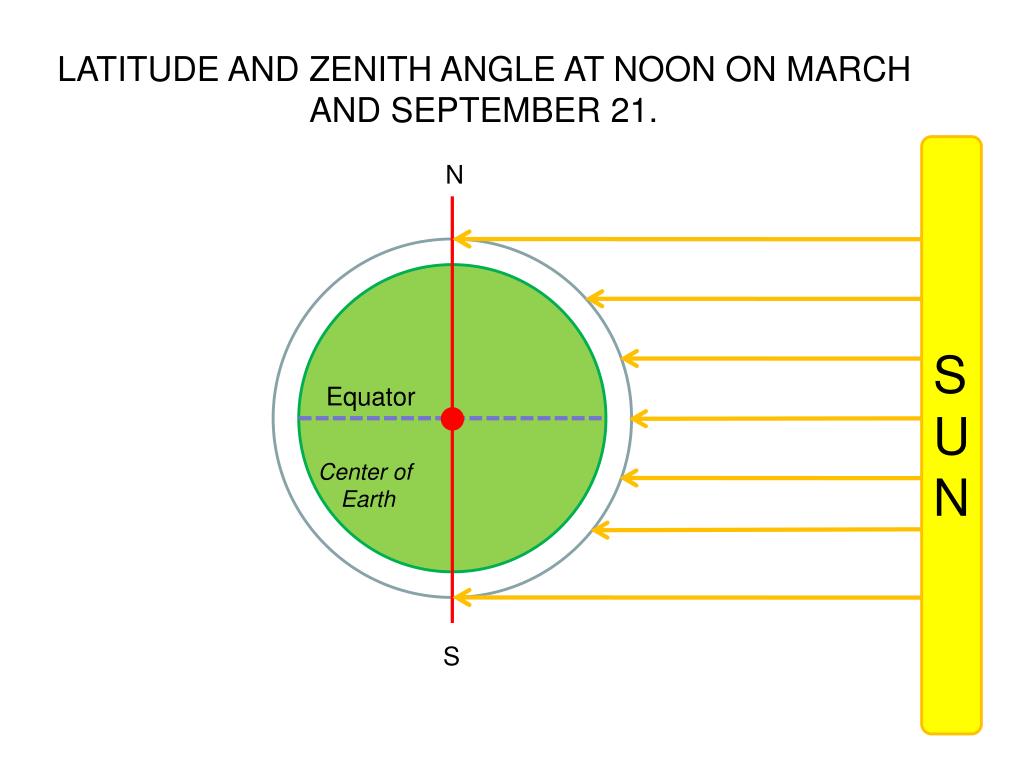

  2. LATITUDE AND ZENITH ANGLE AT NOON ON MARCH AND SEPTEMBER 21. SUN N Equator Center of Earth S

  3. LATITUDE AND ZENITH ANGLE AT NOON ON MARCH AND SEPTEMBER 21. SUN North Pole Latitude = 90°N Lat. = 90° Equator South Pole Latitude = 90°S

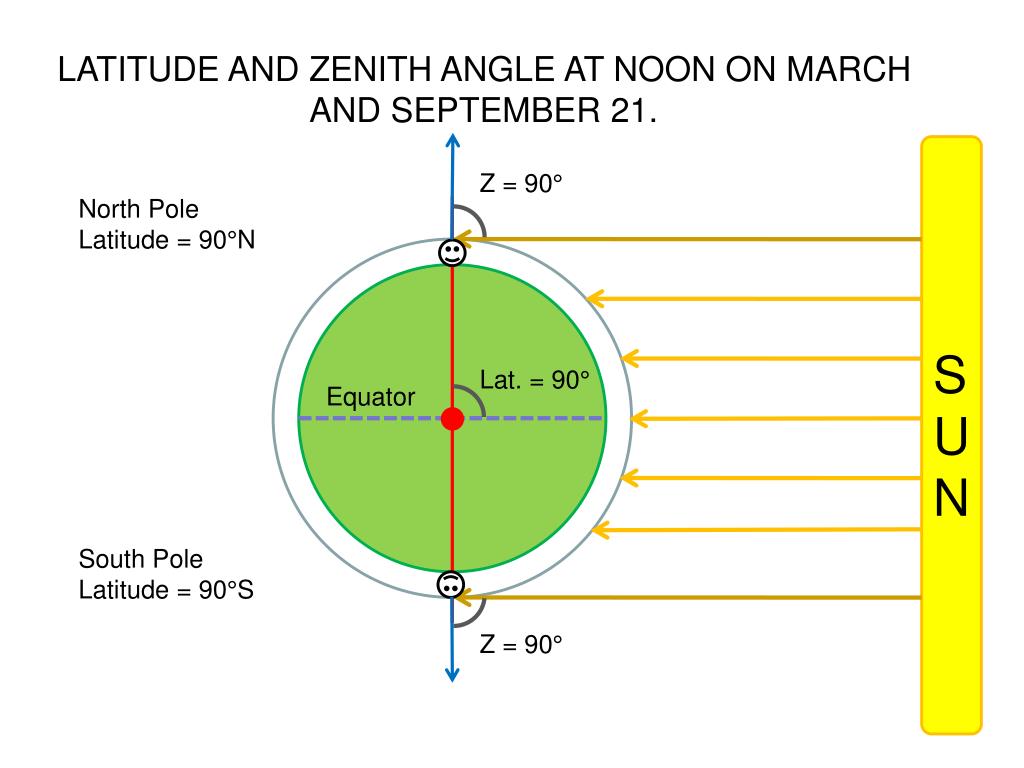

  4. LATITUDE AND ZENITH ANGLE AT NOON ON MARCH AND SEPTEMBER 21. SUN Z = 90° North Pole Latitude = 90°N Lat. = 90° Equator South Pole Latitude = 90°S Z = 90°

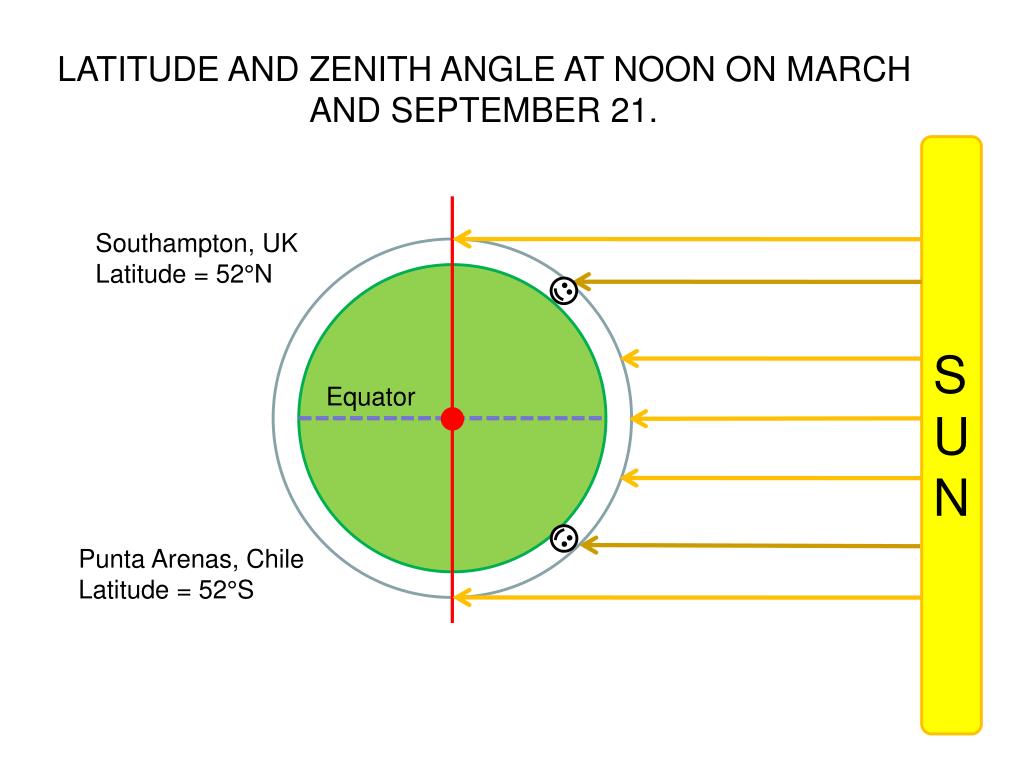

  5. LATITUDE AND ZENITH ANGLE AT NOON ON MARCH AND SEPTEMBER 21. SUN Southampton, UK Latitude = 52°N Equator Punta Arenas, Chile Latitude = 52°S

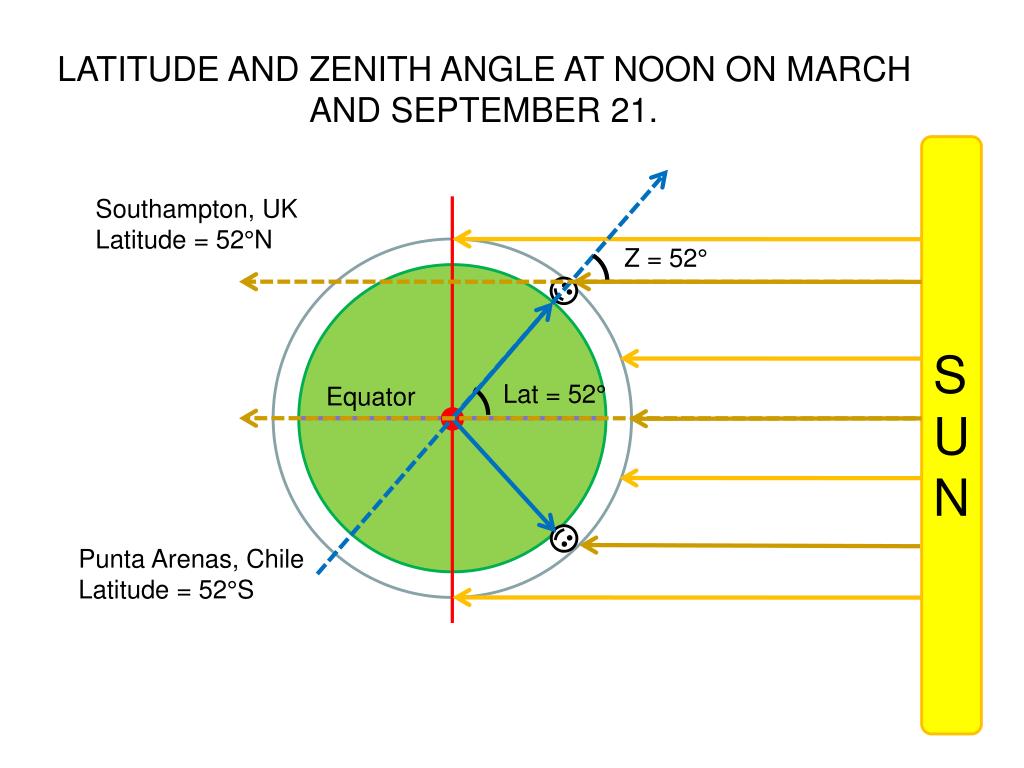

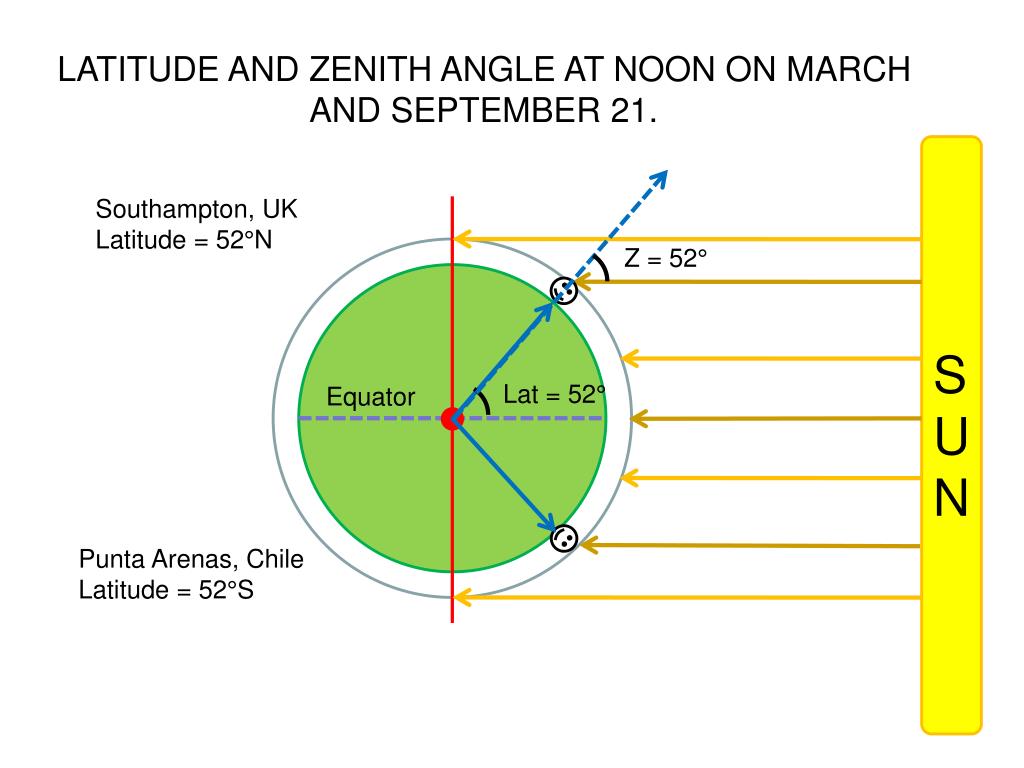

  6. LATITUDE AND ZENITH ANGLE AT NOON ON MARCH AND SEPTEMBER 21. SUN Southampton, UK Latitude = 52°N Z = 52° Lat = 52° Equator Punta Arenas, Chile Latitude = 52°S

  7. LATITUDE AND ZENITH ANGLE AT NOON ON MARCH AND SEPTEMBER 21. SUN Southampton, UK Latitude = 52°N Z = 52° Lat = 52° Equator Punta Arenas, Chile Latitude = 52°S

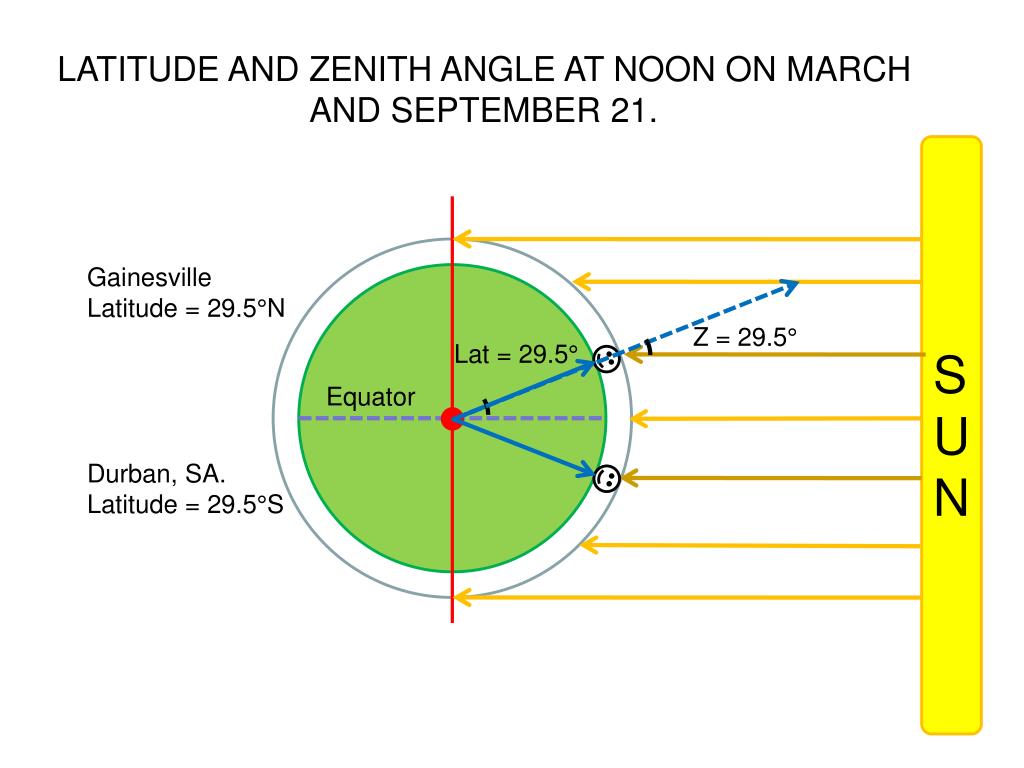

  8. LATITUDE AND ZENITH ANGLE AT NOON ON MARCH AND SEPTEMBER 21. SUN Gainesville Latitude = 29.5°N Z = 29.5° Lat = 29.5° Equator Durban, SA. Latitude = 29.5°S

  9. LATITUDE AND ZENITH ANGLE AT NOON ON MARCH AND SEPTEMBER 21. SUN Quito, Ecuador Latitude = 0° Equator Lat = 0° Z = 0°

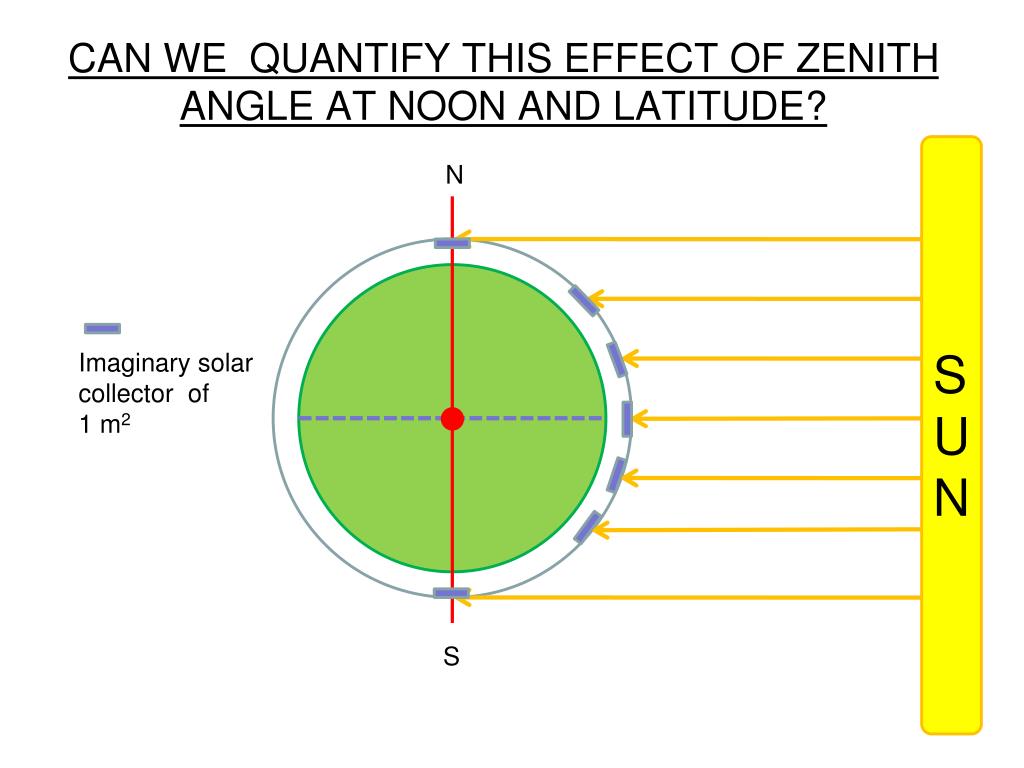

  10. CAN WE QUANTIFY THIS EFFECT OF ZENITH ANGLE AT NOON AND LATITUDE? SUN N Imaginary solar collector of 1 m2 S

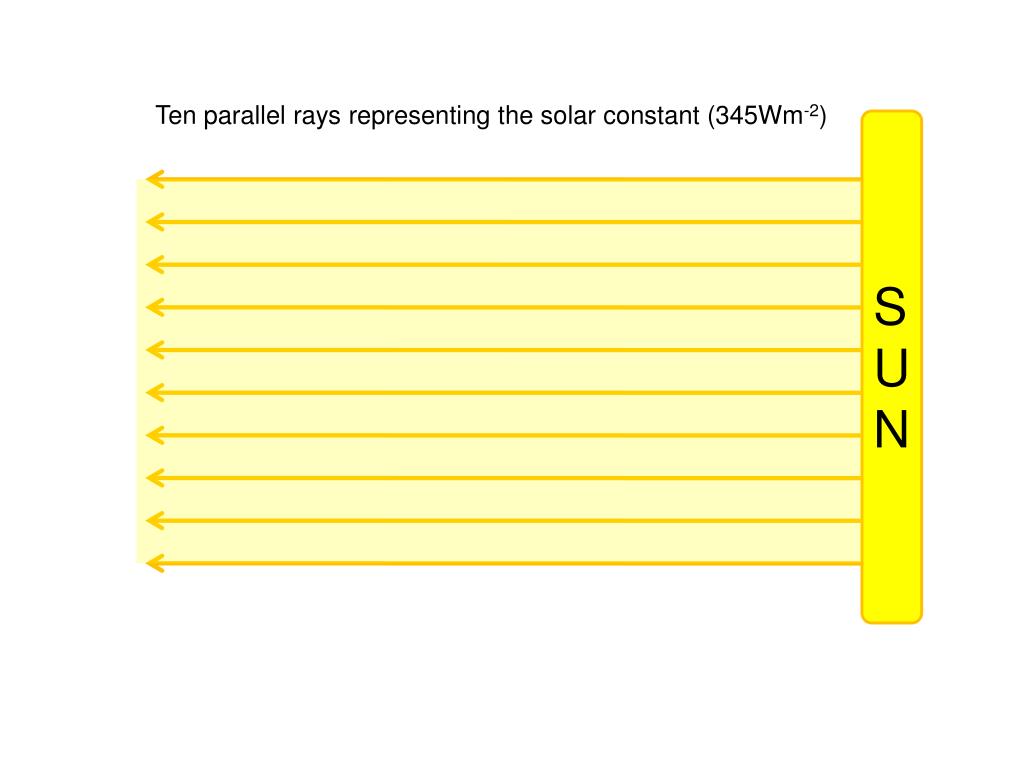

  11. Ten parallel rays representing the solar constant (345Wm-2) SUN

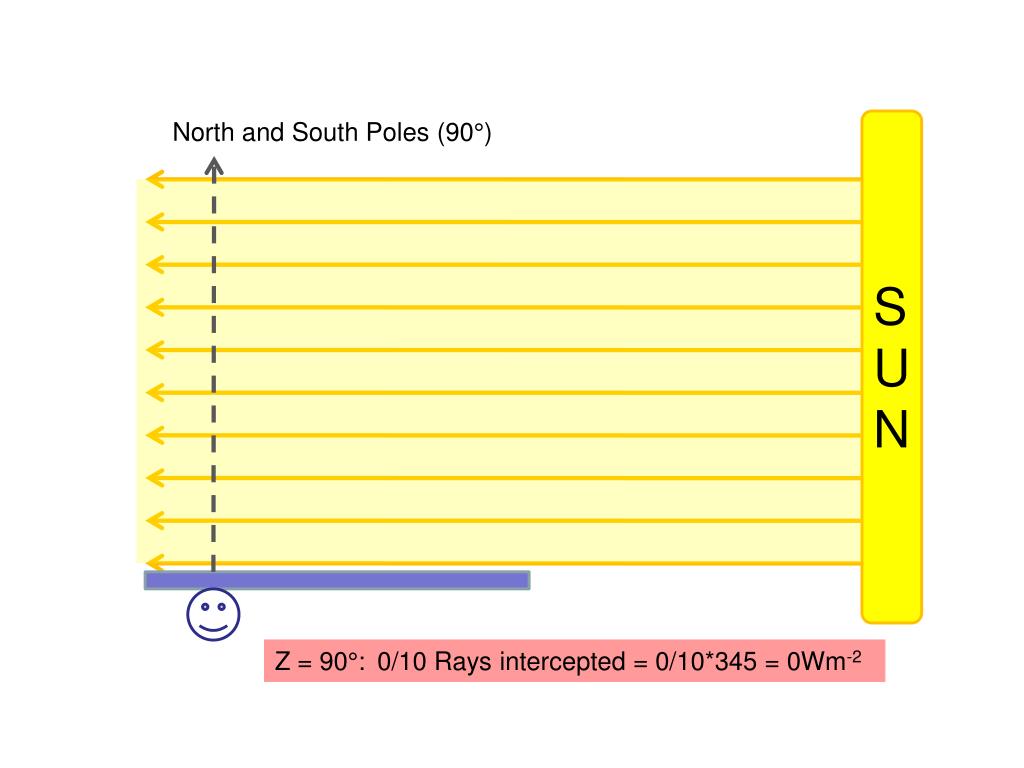

  12. North and South Poles (90°) SUN Z = 90°: 0/10 Rays intercepted = 0/10*345 = 0Wm-2

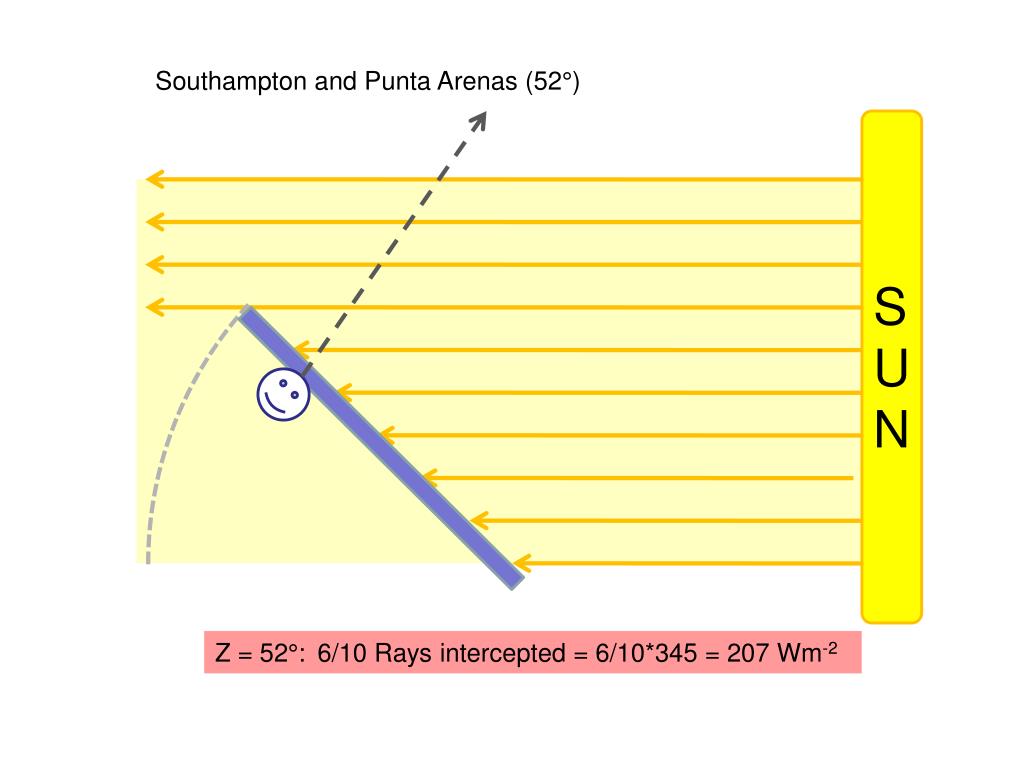

  13. Southampton and Punta Arenas (52°) SUN Z = 52°: 6/10 Rays intercepted = 6/10*345 = 207 Wm-2

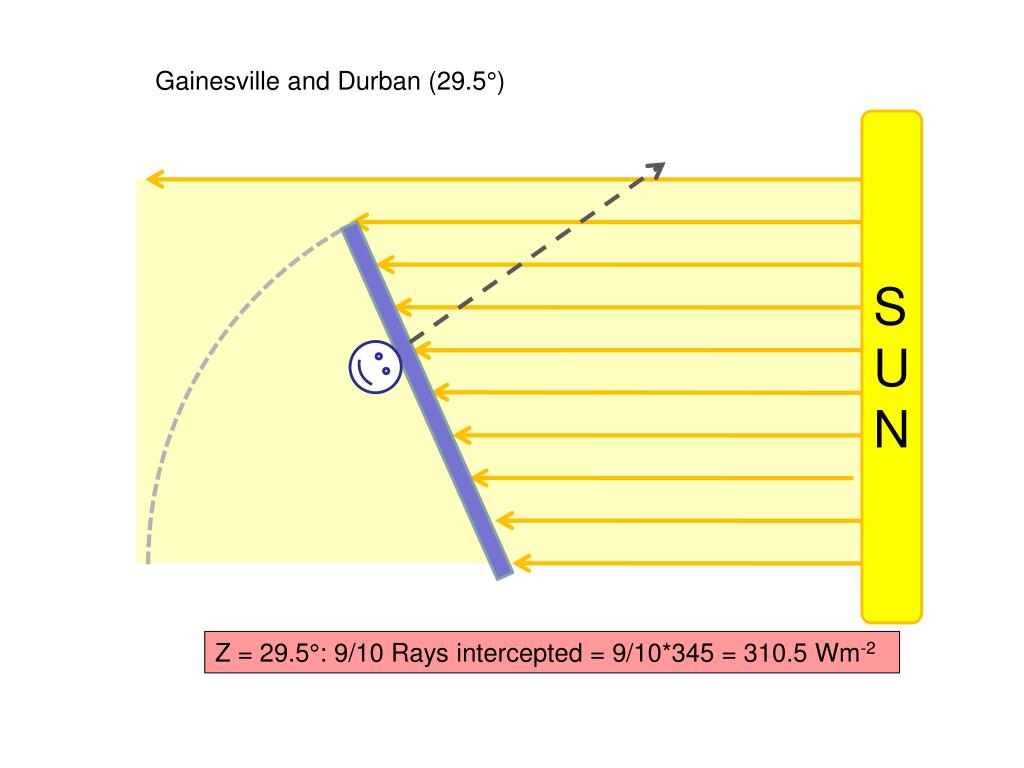

  14. Gainesville and Durban (29.5°) SUN Z = 29.5°: 9/10 Rays intercepted = 9/10*345 = 310.5 Wm-2

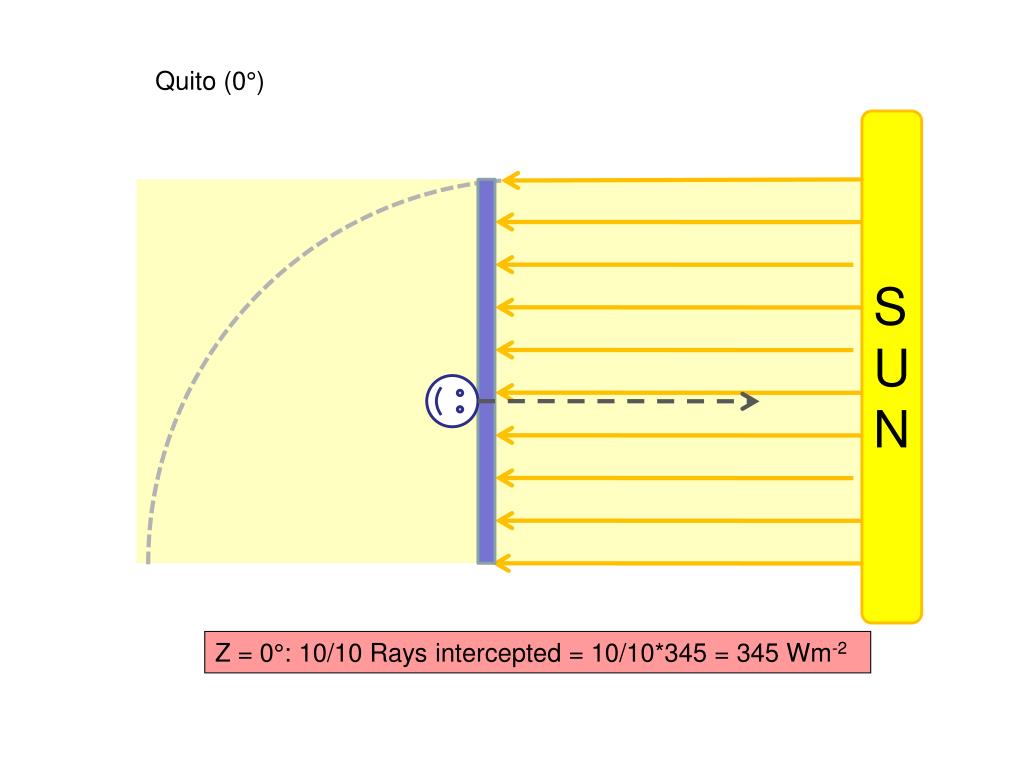

  15. Quito (0°) SUN Z = 0°: 10/10 Rays intercepted = 10/10*345 = 345 Wm-2

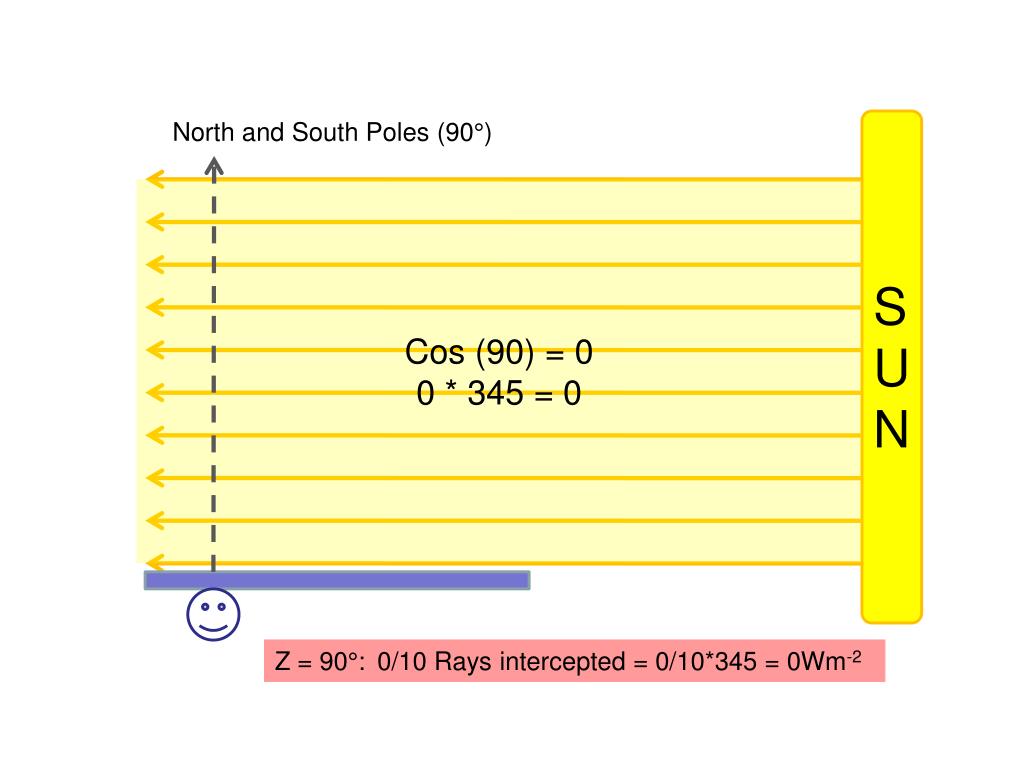

  16. North and South Poles (90°) SUN Cos (90) = 0 0 * 345 = 0 Z = 90°: 0/10 Rays intercepted = 0/10*345 = 0Wm-2

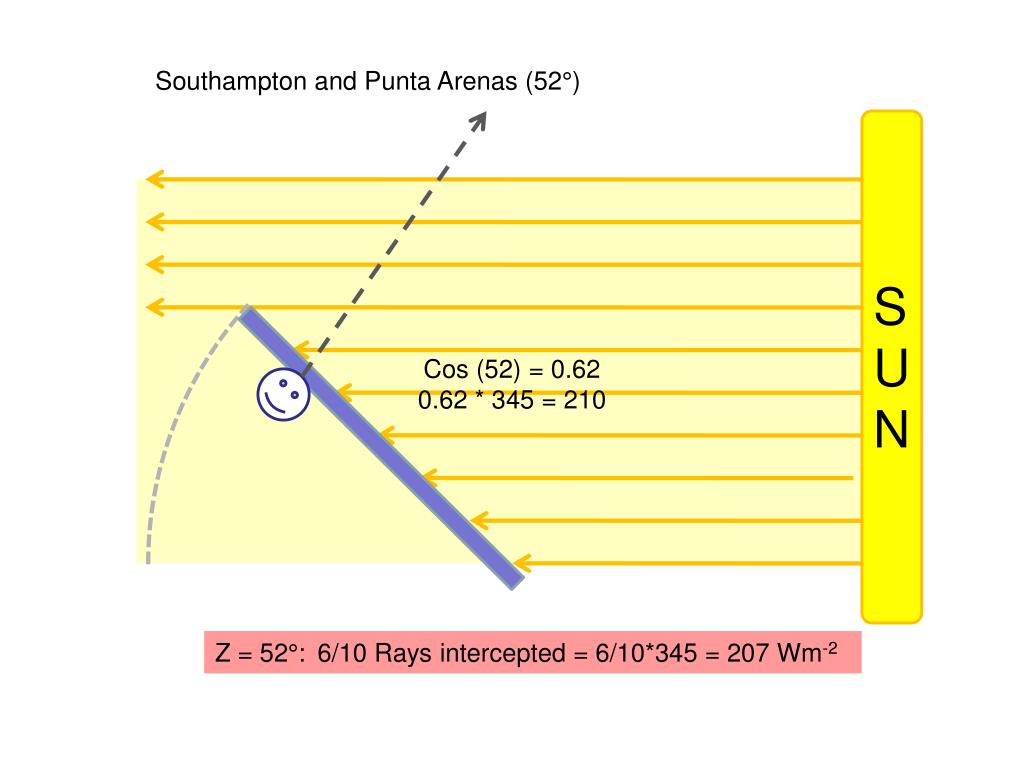

  17. Southampton and Punta Arenas (52°) SUN Cos (52) = 0.62 0.62 * 345 = 210 Z = 52°: 6/10 Rays intercepted = 6/10*345 = 207 Wm-2

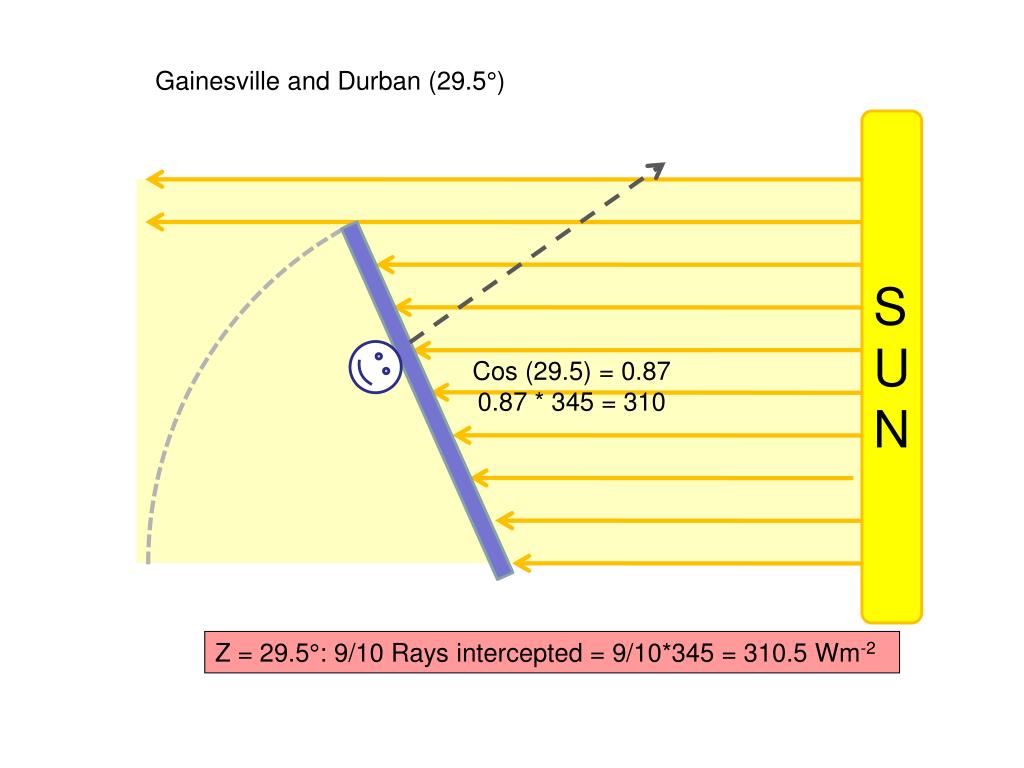

  18. Gainesville and Durban (29.5°) SUN Cos (29.5) = 0.87 0.87 * 345 = 310 Z = 29.5°: 9/10 Rays intercepted = 9/10*345 = 310.5 Wm-2

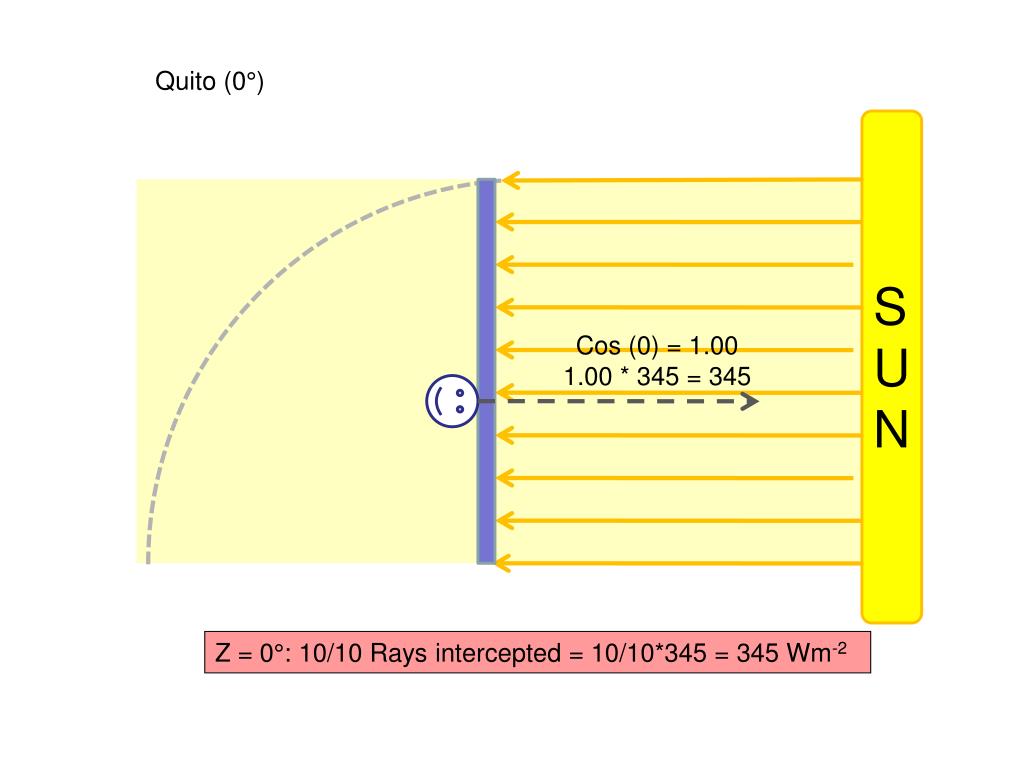

  19. Quito (0°) SUN Cos (0) = 1.00 1.00 * 345 = 345 Z = 0°: 10/10 Rays intercepted = 10/10*345 = 345 Wm-2

  20. ANSWER • Q = Cos(Z) * S Where Q = Quantity of insolation (Wm-2) Z = Zenith angle (noontime value controlled by latitude) S = Solar constant (345 Wm-2)
