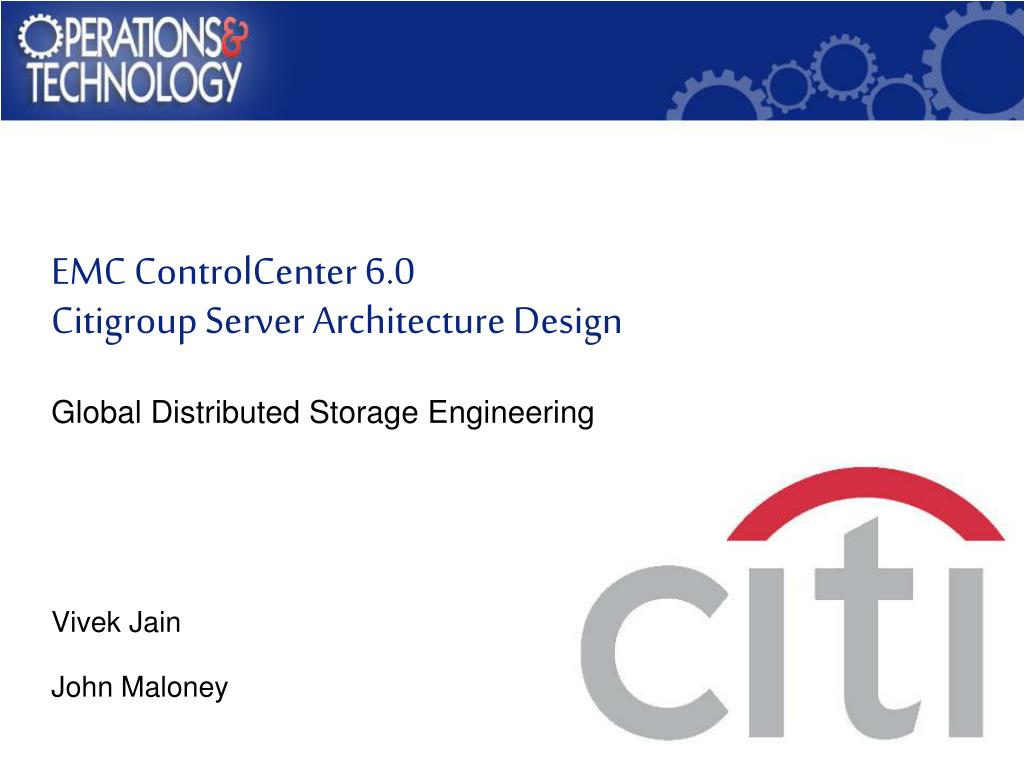

  1. Global Distributed Storage Engineering Vivek Jain John Maloney EMC ControlCenter 6.0 Citigroup Server Architecture Design

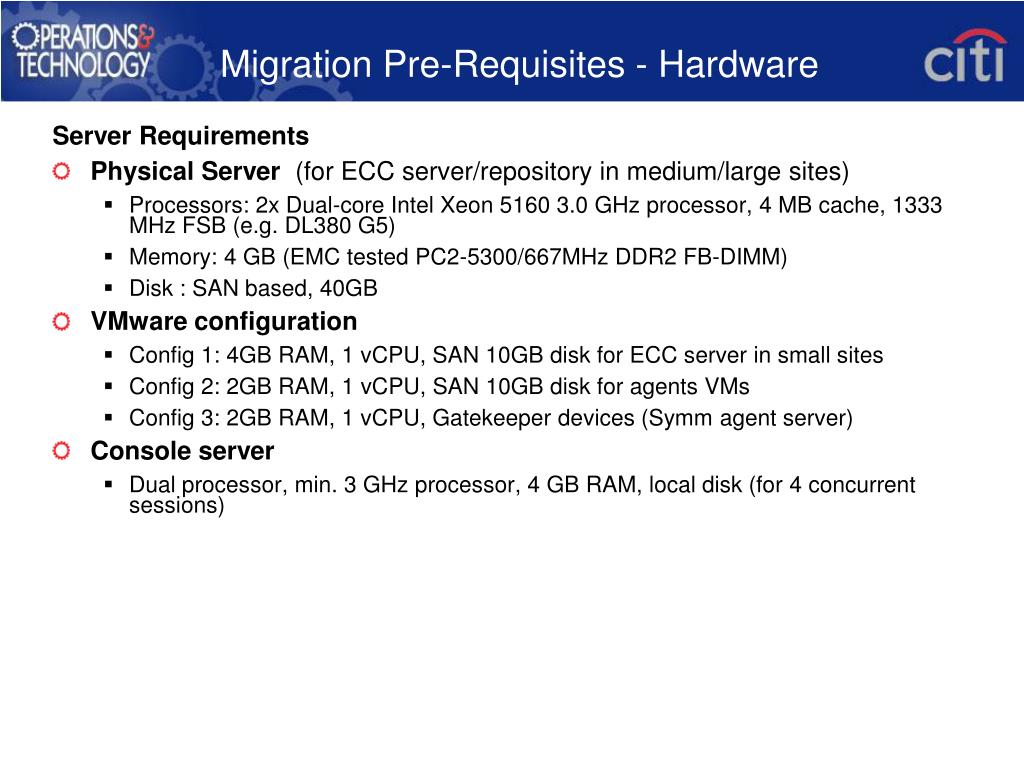

  2. Migration Pre-Requisites - Hardware Server Requirements • Physical Server (for ECC server/repository in medium/large sites) • Processors: 2x Dual-core Intel Xeon 5160 3.0 GHz processor, 4 MB cache, 1333 MHz FSB (e.g. DL380 G5) • Memory: 4 GB (EMC tested PC2-5300/667MHz DDR2 FB-DIMM) • Disk : SAN based, 40GB • VMware configuration • Config 1: 4GB RAM, 1 vCPU, SAN 10GB disk for ECC server in small sites • Config 2: 2GB RAM, 1 vCPU, SAN 10GB disk for agents VMs • Config 3: 2GB RAM, 1 vCPU, Gatekeeper devices (Symm agent server) • Console server • Dual processor, min. 3 GHz processor, 4 GB RAM, local disk (for 4 concurrent sessions)

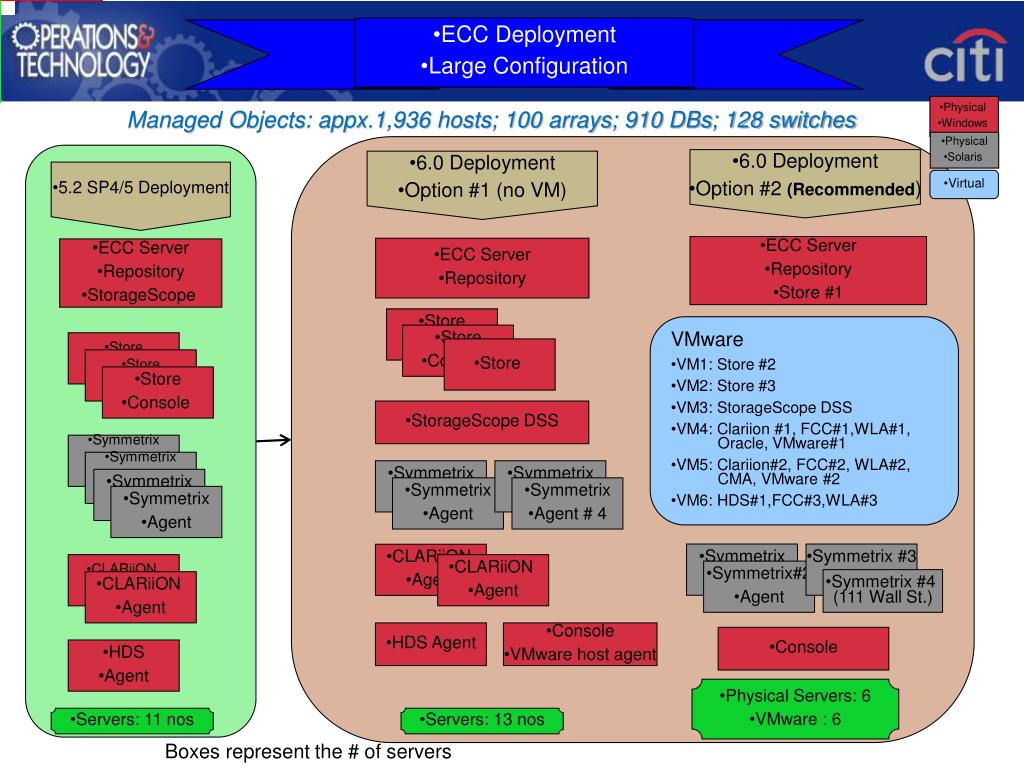

  3. ECC Deployment • Large Configuration Managed Objects: appx.1,936 hosts; 100 arrays; 910 DBs; 128 switches • Physical • Windows • Physical • Solaris • 6.0 Deployment • Option #2 (Recommended) • 6.0 Deployment • Option #1 (no VM) • 5.2 SP4/5 Deployment • Virtual • ECC Server • Repository • Store #1 • ECC Server • Repository • ECC Server • Repository • StorageScope • Store • Console VMware • VM1: Store #2 • VM2: Store #3 • VM3: StorageScope DSS • VM4: Clariion #1, FCC#1,WLA#1, Oracle, VMware#1 • VM5: Clariion#2, FCC#2, WLA#2, CMA, VMware #2 • VM6: HDS#1,FCC#3,WLA#3 • Store • Console • Store • Console • Store • Store • Console • Store • Console • StorageScope DSS • Symmetrix • SDM • Agent • Symmetrix • SDM • Agent • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent # 4 • Symmetrix • Agent • Symmetrix • Agent • Symmetrix #3 • Agent • CLARiiON • Agent • CLARiiON • Agent • CLARiiON • Agent • Symmetrix#2 • Agent • Symmetrix #4 (111 Wall St.) • CLARiiON • Agent • HDS Agent • Console • VMware host agent • Console • HDS • Agent • Physical Servers: 6 • VMware : 6 • Servers: 11 nos • Servers: 13 nos Boxes represent the # of servers

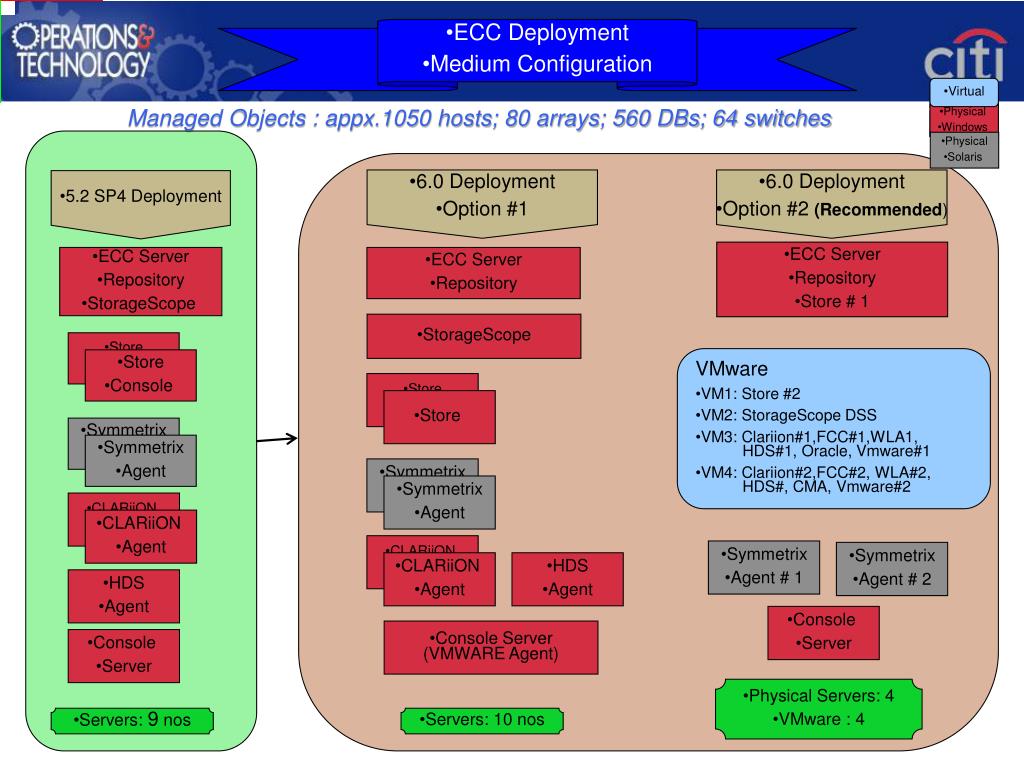

  4. ECC Deployment • Medium Configuration Managed Objects : appx.1050 hosts; 80 arrays; 560 DBs; 64 switches • Virtual • Virtual • Physical • Windows • Physical • Physical • Solaris • 6.0 Deployment • Option #1 • 6.0 Deployment • Option #2 (Recommended) • 5.2 SP4 Deployment • ECC Server • Repository • Store # 1 • ECC Server • Repository • StorageScope • ECC Server • Repository • StorageScope • Store • Console VMware • VM1: Store #2 • VM2: StorageScope DSS • VM3: Clariion#1,FCC#1,WLA1, HDS#1, Oracle, Vmware#1 • VM4: Clariion#2,FCC#2, WLA#2, HDS#, CMA, Vmware#2 • Store • Console • Store • Console • Store • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • CLARiiON • Agent • CLARiiON • Agent • CLARiiON • Agent • Symmetrix • Agent # 1 • Symmetrix • Agent # 2 • CLARiiON • Agent • HDS • Agent • HDS • Agent • Console • Server • Console Server(VMWARE Agent) • Console • Server • Physical Servers: 4 • VMware : 4 • Servers: 9 nos • Servers: 10 nos

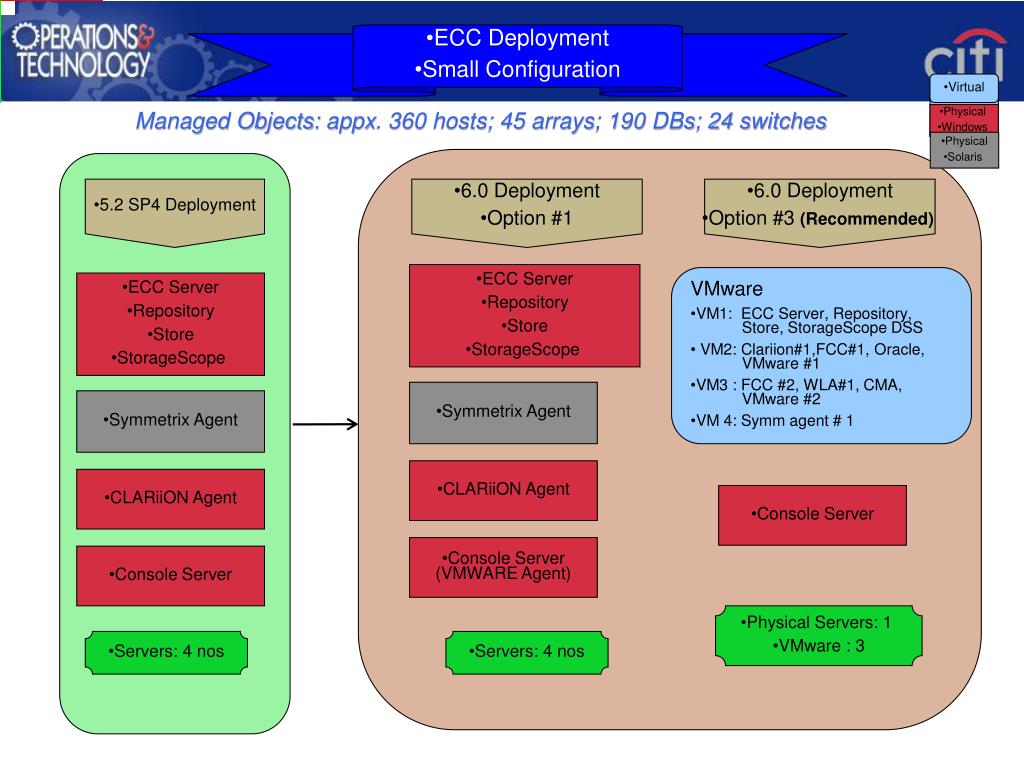

  5. ECC Deployment • Small Configuration Managed Objects: appx. 360 hosts; 45 arrays; 190 DBs; 24 switches • Virtual • Virtual • Physical • Windows • Physical • Physical • Solaris • 5.2 SP4 Deployment • 6.0 Deployment • Option #1 • 6.0 Deployment • Option #3 (Recommended) • ECC Server • Repository • Store • StorageScope VMware • VM1: ECC Server, Repository, Store, StorageScope DSS • VM2: Clariion#1,FCC#1, Oracle, VMware #1 • VM3 : FCC #2, WLA#1, CMA, VMware #2 • VM 4: Symm agent # 1 • ECC Server • Repository • Store • StorageScope • Symmetrix Agent • Symmetrix Agent • CLARiiON Agent • CLARiiON Agent • Console Server • Console Server(VMWARE Agent) • Console Server • Physical Servers: 1 • VMware : 3 • Servers: 4 nos • Servers: 4 nos

  6. 390 NY: appx.1,936 hosts; 100 arrays; 910 DBs; 128 switches • Physical • Windows • Physical • Solaris • 6.0 Deployment • Option #2 • 6.0 Deployment • Option #1 (no VM) • 5.2 SP4/5 Deployment • VMware • ECC Server • Repository • Store #1 • ECC Server • Repository • ECC Server • Repository • StorageScope • Store • Console VMware • VM1: Store #2 • VM2: Store #3 • VM3: StorageScope DSS • VM4: Clariion#1, FCC#1, WLA#1, Oracle, Vmware#1 • VM5: Clariion#2, FCC#2, WLA#2, CMA, Vmware#2 • VM6: HDS#1,FCC#3,WLA#3 • Store • Console • Store • Console • Store • Store • Console • Store • Console • StorageScope DSS • Symmetrix • SDM • Agent • Symmetrix • SDM • Agent • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent # 4 • Symmetrix • Agent • Symmetrix • Agent • Symmetrix #3 • Agent • CLARiiON • Agent • CLARiiON • Agent • CLARiiON • Agent • Symmetrix#2 • Agent • Symmetrix #4 (111 Wall St.) • CLARiiON • Agent • HDS Agent • Console • VMware host agent • Console • HDS • Agent • Physical Servers: 6 • VMware : 6 • Servers: 11 nos • Servers: 13 nos Boxes represent the # of servers

  7. Rutherford : 1525 hosts; 100 arrays; 910 DBs; 128 switches • ViMware • Physical • Windows • Physical • Solaris • 6.0 Deployment • Option #1 • 6.0 Deployment • Option #2 • 5.2 SP5 Deployment • ECC Server • Repository • Store # 1 • ECC Server • Repository • StorageScope • ECC Server • Repository • StorageScope VMware • VM1: Store #2 • VM2: Store #3 • VM3: StorageScope DSS • VM4: CLARiiON#1, HDS#1, FCC#1,WLA#1, Vmware #1 • VM5: CLARiiON#2, HDS#2, FCC#2, Oracle, WLA#2 • VM6: CLARiiON#3, CMA, WLA#3, Vmware#2 • Store • Console • Store • Console • Store • Console • Store • Console • Store • Console • Symmetrix • Agent • Store • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • CLARiiON • Agent • Symmetrix • Agent • CLARiiON • Agent • CLARiiON • Agent • Symmetrix • Agent • Symmetrix • Agent # 3 • CLARiiON • Agent • CLARiiON • Agent • Symmetrix • Agent • CLARiiON • Agent • Symmetrix • Agent # 3 • HDS • Agent • HDS • Agent • Console Server(VMWARE Agent) • Console • Server Physical Servers: 5 VMware: 6 • Servers: 11 nos • Servers: 13 nos

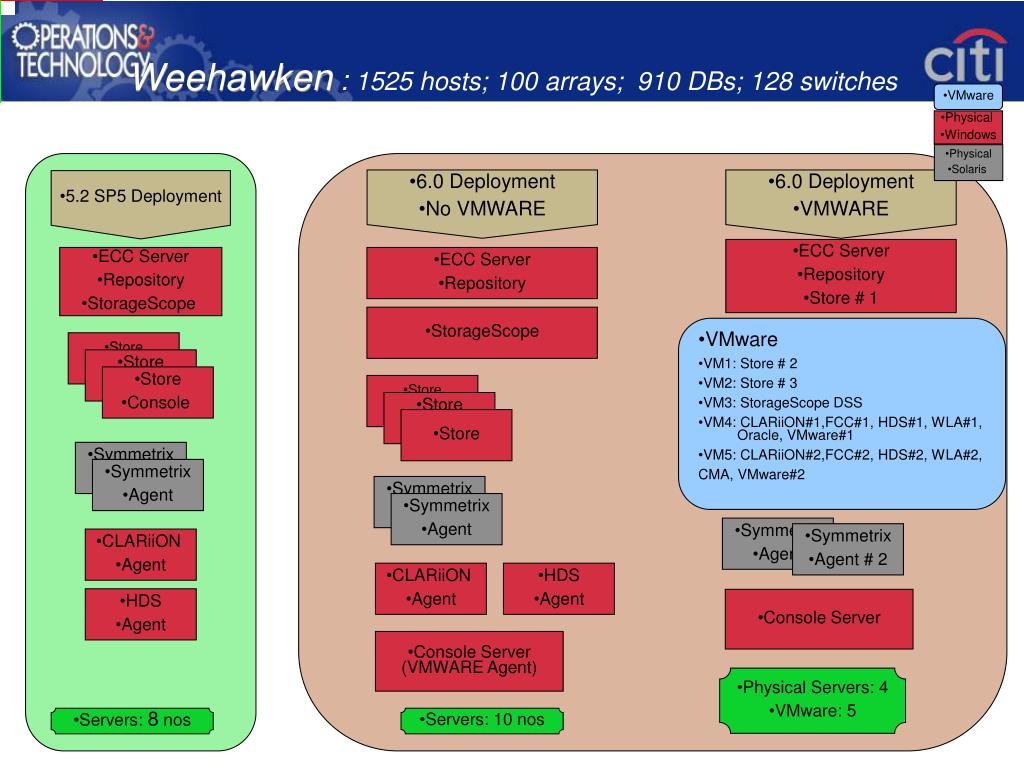

  8. Weehawken : 1525 hosts; 100 arrays; 910 DBs; 128 switches • VMware • Physical • Windows • Physical • Solaris • 6.0 Deployment • No VMWARE • 6.0 Deployment • VMWARE • 5.2 SP5 Deployment • ECC Server • Repository • Store # 1 • ECC Server • Repository • StorageScope • ECC Server • Repository • StorageScope • VMware • VM1: Store # 2 • VM2: Store # 3 • VM3: StorageScope DSS • VM4: CLARiiON#1,FCC#1, HDS#1, WLA#1, Oracle, VMware#1 • VM5: CLARiiON#2,FCC#2, HDS#2, WLA#2, CMA, VMware#2 • Store • Console • Store • Console • Store • Console • Store • Console • Store • Console • Store • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent # 2 • CLARiiON • Agent • CLARiiON • Agent • HDS • Agent • HDS • Agent • Console Server • Console Server(VMWARE Agent) • Physical Servers: 4 • VMware: 5 • Servers: 8 nos • Servers: 10 nos

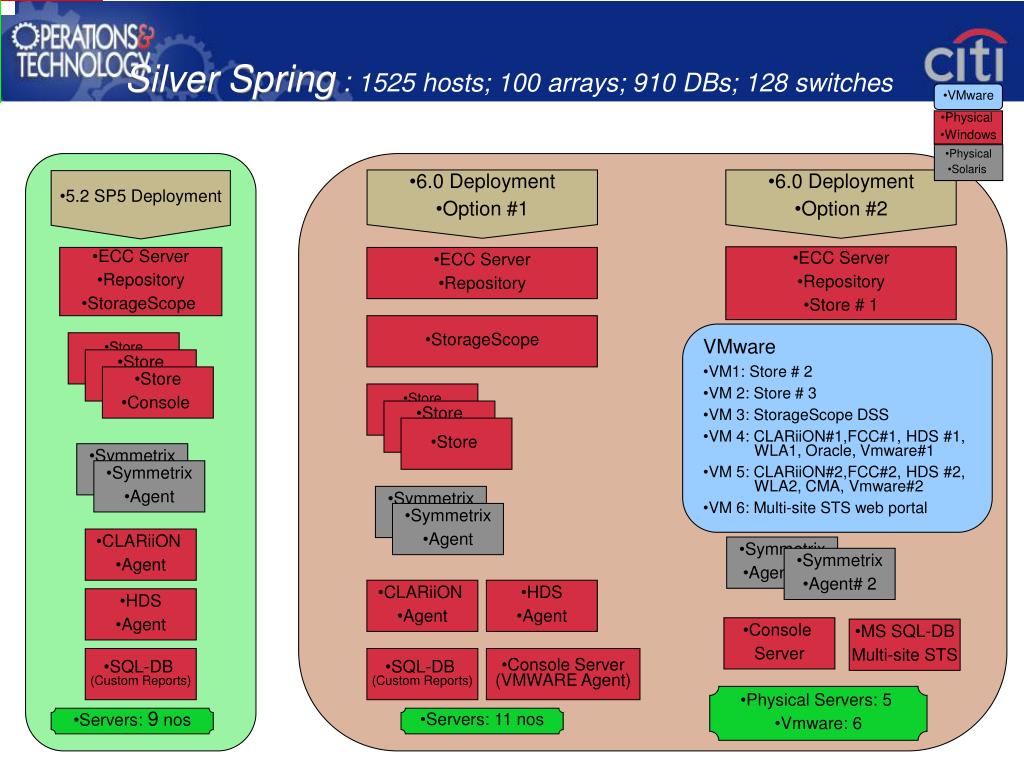

  9. Silver Spring : 1525 hosts; 100 arrays; 910 DBs; 128 switches • VMware • Physical • Windows • Physical • Solaris • 6.0 Deployment • Option #1 • 6.0 Deployment • Option #2 • 5.2 SP5 Deployment • ECC Server • Repository • Store # 1 • ECC Server • Repository • StorageScope • ECC Server • Repository • StorageScope VMware • VM1: Store # 2 • VM 2: Store # 3 • VM 3: StorageScope DSS • VM 4: CLARiiON#1,FCC#1, HDS #1, WLA1, Oracle, Vmware#1 • VM 5: CLARiiON#2,FCC#2, HDS #2, WLA2, CMA, Vmware#2 • VM 6: Multi-site STS web portal • Store • Console • Store • Console • Store • Console • Store • Console • Store • Console • Store • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • CLARiiON • Agent • Symmetrix • Agent # 1 • Symmetrix • Agent# 2 • CLARiiON • Agent • HDS • Agent • HDS • Agent • Console Server • MS SQL-DB Multi-site STS • SQL-DB (Custom Reports) • SQL-DB (Custom Reports) • Console Server(VMWARE Agent) • Physical Servers: 5 • Vmware: 6 • Servers: 9 nos • Servers: 11 nos

  10. SWDC :appx.1050 hosts; 80 arrays; 560 DBs; 64 switches • VMware • Virtual • Physical • Windows • Physical • Physical • Solaris • 6.0 Deployment • Option #1 • 6.0 Deployment • Option #2 • 5.2 SP4 Deployment • ECC Server • Repository • Store # 1 • ECC Server • Repository • StorageScope • ECC Server • Repository • StorageScope VMware • VM1: Store #2 • VM 2: Store #3 • VM 3: StorageScope DSS • VM 4: Clariion#1,FCC#1,WLA#1, HDS#1, Oracle, Vmware#1 • VM 5: Clariion#2,FCC#2, WLA#2, HDS#, CMA, Vmware#2 • Store • Console • Store • Console • Store • Console • Store • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • CLARiiON • Agent • CLARiiON • Agent • CLARiiON • Agent • Symmetrix • Agent # 1 • Symmetrix • Agent # 2 • CLARiiON • Agent • HDS • Agent • HDS • Agent • Console • Server • Console Server(VMWARE Agent) • Console • Server • Physical Servers: 4 • VMware : 5 • Servers: 9 nos • Servers: 10 nos

  11. MWDC : 1050 hosts; 80 arrays; 560 DBs; 64 switches • VMware • Physical • Windows • Physical • Solaris • 6.0 Deployment • Option #1 • 6.0 Deployment • Option #2 • 5.2 SP5 Deployment • ECC Server • Repository • Store # 1 • ECC Server • Repository • StorageScope • ECC Server • Repository • StorageScope VMware • VM1: Store #2 • VM2: StorageScope • VM3 : CLARiiON#1,FCC#1,WLA#1, HDS#1, CMA, VMware#1 • VM4: CLARiiON#2, FCC#2, WLA#2, HDS#2, Oracle, VMware 2 • Store • Console • Store • Store • Console • Store • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • HDS • Agent • Symmetrix • Agent # 2 • HDS • Agent • Console • Console Server • Console(VMWARE Agent) • Physical Servers: 4 • Vmware: 4 • Servers: 7 nos • Servers: 8 nos

  12. Tampa : 190 hosts; 25 arrays; 150 DBs; 12 switches • VMware • Virtual • Physical • Windows • Physical • Physical • Solaris • 5.2 SP4 Deployment • 6.0 Deployment • No VMWARE • 6.0 Deployment • VMWARE • ECC Server • Repository • Store • StorageScope • ECC Server • Repository • Store • StorageScope VMware • VM1: ECC Server, Repository, Store StorageScope DSS • VM2: CLARiiON#1, FCC #1, WLA#1, CMA, Vmware#1 • VM3: CLARiiON#2, FCC #2, Oracle, Vmware#2 • CLARiiON Agent • CLARiiON Agent • Console Server • Console Server(VMWARE Agent) • Console Server • Physical Servers: 1 • VMware: 3 • Servers: 3 nos • Servers: 3 nos

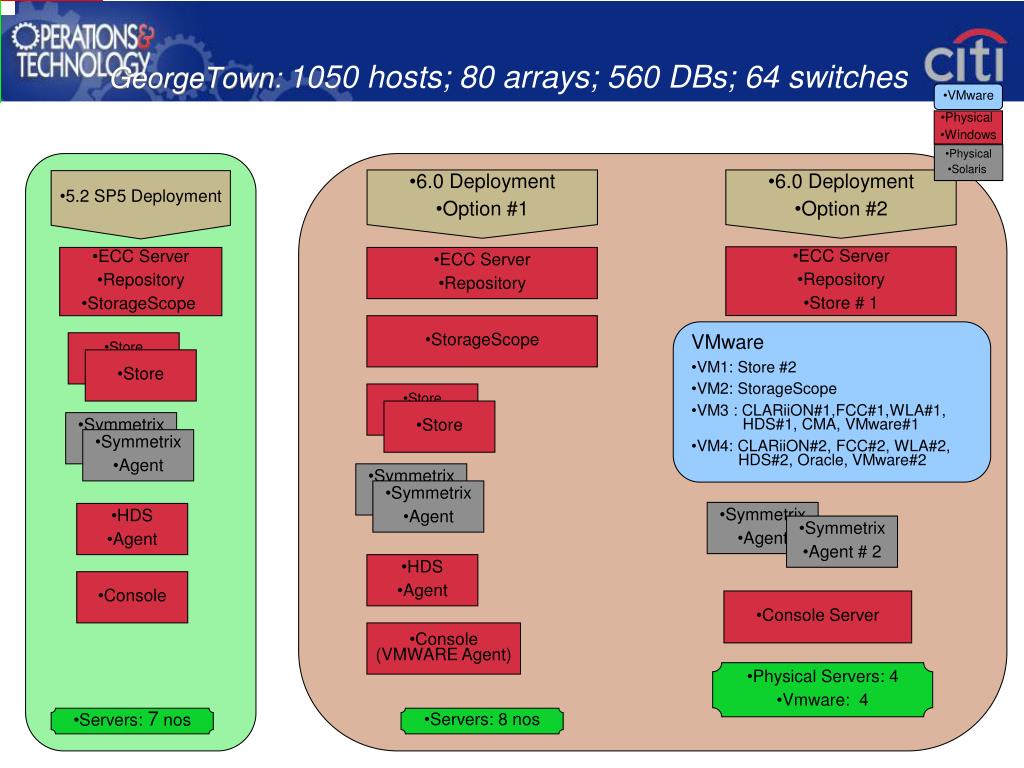

  13. GeorgeTown: 1050 hosts; 80 arrays; 560 DBs; 64 switches • VMware • Physical • Windows • Physical • Solaris • 6.0 Deployment • Option #1 • 6.0 Deployment • Option #2 • 5.2 SP5 Deployment • ECC Server • Repository • Store # 1 • ECC Server • Repository • StorageScope • ECC Server • Repository • StorageScope VMware • VM1: Store #2 • VM2: StorageScope • VM3 : CLARiiON#1,FCC#1,WLA#1, HDS#1, CMA, VMware#1 • VM4: CLARiiON#2, FCC#2, WLA#2, HDS#2, Oracle, VMware#2 • Store • Console • Store • Store • Console • Store • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • Symmetrix • Agent • HDS • Agent • Symmetrix • Agent # 2 • HDS • Agent • Console • Console Server • Console(VMWARE Agent) • Physical Servers: 4 • Vmware: 4 • Servers: 7 nos • Servers: 8 nos

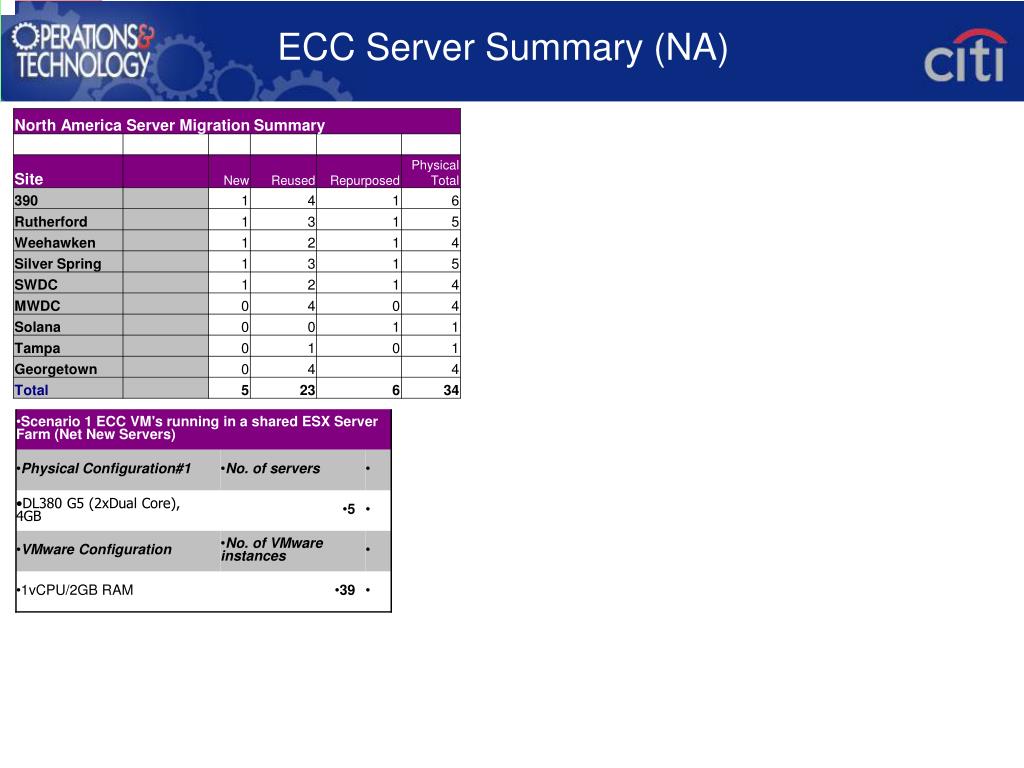

  14. ECC Server Summary (NA)

  15. Appendix

  16. ECC 5.2 SP4 Production Deployment at Citigroup • 11 ECC hosts • 9 ECC hosts • 390 • Silver • Spring • 8 ECC hosts • Weehawken • 4 ECC hosts • Solana • 3 ECC hosts • Tampa • 11 ECC hosts • Rutherford • 9 ECC hosts • 7 ECC hosts • SWDC • MWDC • 62 Hosts
