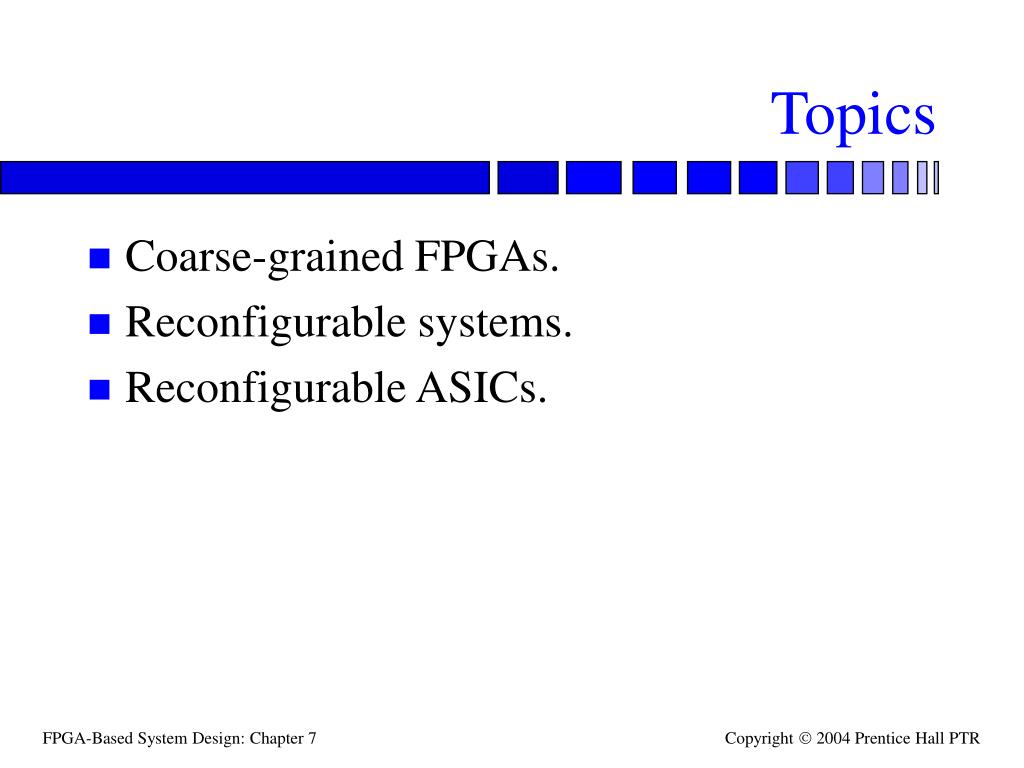

  1. Topics • Coarse-grained FPGAs. • Reconfigurable systems. • Reconfigurable ASICs.

  2. FPGA granularity • Typical LEs implement a small amount of logic. • Waste a lot of space/power on connecting logic elements. • Specialized adder logic tries to solve this problem for a special case. • Can build FPGAs with larger elements.

  3. Granularity issues • How big is the logic element? • How flexible should it be? • What interconnection network is needed? • How do you program it?

  4. Reconfigurable systems • Reconfigure logic on-the-fly: • application characteristics may change over time. • Issues: • Reconfiguration time. • Reconfiguration memory cost. • Power consumption. • Synthesis for reconfiguration.

  5. PipeRench • Reconfigurable pipeline: • Each stage of the pipeline can be reconfigured quickly and independently. • Allows virtual pipeline that is longer than physical pipeline.

  6. PipeRench pipeline operation

  7. RaPiD architecture • Coarse-grained computational architecture: • Soft control can be reconfigured on every cycle. • Hard control can be reconfigured only in configuration mode. • Interconnect network allows computational elements to be arranged in pipelines.

  8. RaPiD pipeline

  9. Reconfigurable ASICs • Problems with ASICs: • Mask cost. • Manufacturing time. • Solution---mix ASIC and FPGA: • Reconfigurable logic on bottom. • Custom wiring on top.
