Inequalities Within Triangles

Inequalities Within Triangles. Section 6-4 & 6-5. Introduction. What is meant by inequalities is that we are going to study what will make parts of a triangle different from each other. That means we are going to be using inequalities like < and >. Topics of Discussion.

tyoder
Télécharger la présentation

Inequalities Within Triangles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

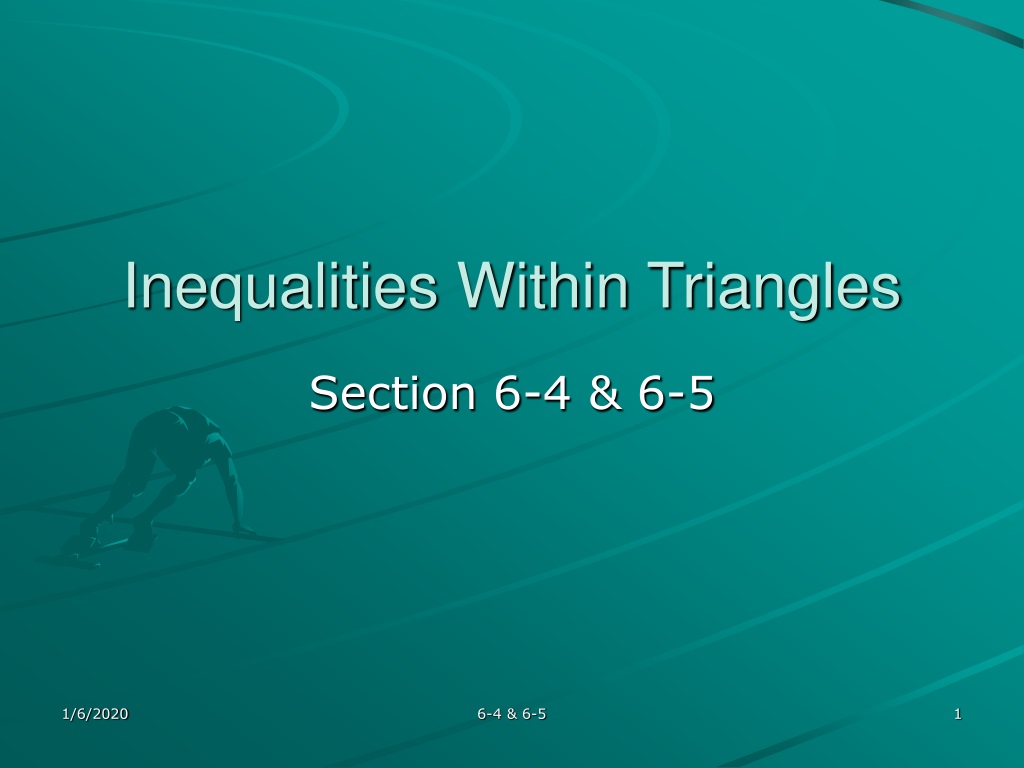

  1. Inequalities Within Triangles Section 6-4 & 6-5 6-4 & 6-5

  2. Introduction • What is meant by inequalities is that we are going to study what will make parts of a triangle different from each other. • That means we are going to be using inequalities like < and >. 6-4 & 6-5

  3. Topics of Discussion • Inequalities within one triangle • Angles and sides • The Triangle Inequality • Inequalities within two triangles • SAS inequality • SSS inequality 6-4 & 6-5

  4. Theorem 6-2 • If one side of a triangle is longer than a second side, then the angle opposite the first side is larger than the angle opposite the second side. • The bigger the side, the bigger the opposite angle. Since this side is bigger 10cm 12 cm bigger smaller Then its opp. angle is bigger 6-4 & 6-5

  5. Example 1 Pg 221 (1-3) From the illustration below, which angle is bigger, <1 or <2? 2 1 48 in 45 in Answer: <1 is bigger Because it is across from a bigger side. 6-4 & 6-5

  6. Theorem 6-3 • Converse of Theorem 6-2 • The bigger the angle, the bigger the opposite side. smaller bigger 48° 70° Since this angle is bigger Then its opp. side is bigger 6-4 & 6-5

  7. Example 2 Pg 221 (4-6) From the illustration below, which side is bigger, AB or CB? C 41° A 42° B Answer: BC is bigger Because it is across from a bigger angle. 6-4 & 6-5

  8. Corollary 1 & 2 • C1– The shortest segment from a point to a line will be a perpendicular segment. or this one Shortest distance from this point or this one Not this segment Is this perpendicular segment This one To this line C2 – The same thing will be true of the distance between a point and a plane. 6-4 & 6-5

  9. Theorem 6-4 Pg 221 (7-12) • The sum of the length of any two sides of a triangle is greater than the length of the third side. • Any two sides will have more length than the leftover side. • If the third side was bigger… • The triangle would not be complete. A AC + AB > BC B C 6-4 & 6-5

  10. Example • Find the longest and shortest segment in this figure. 32˚ 40˚ 60˚ 42˚ 6-4 & 6-5

  11. Section 6-5Inequalities For Two Triangles • Theorem 6-5 – SAS Inequality Thm If two sides of one triangle are congruent to two sides of another triangle, but the included angle of the first triangle is larger than the included angle of the second, then the third side of the first triangle is longer than the third side of the second triangle 6-4 & 6-5

  12. Example Since the second triangle has a bigger included angle, it will have a larger third side. 86˚ smaller larger 32˚ 6-4 & 6-5

  13. SSS Inequality • If two sides of one triangle are congruent to two sides of another triangle, but the third side of the first triangle is longer than the third side of the second, then the included angle of the first triangle is larger. 6-4 & 6-5

  14. Example smaller 14 cm larger 8 cm 6-4 & 6-5

  15. Complete… Homework: Pg 222 (1-13, & 15) Pg 230 (1-7) O D 92˚ What can you conclude? DC < OC C 6-4 & 6-5
